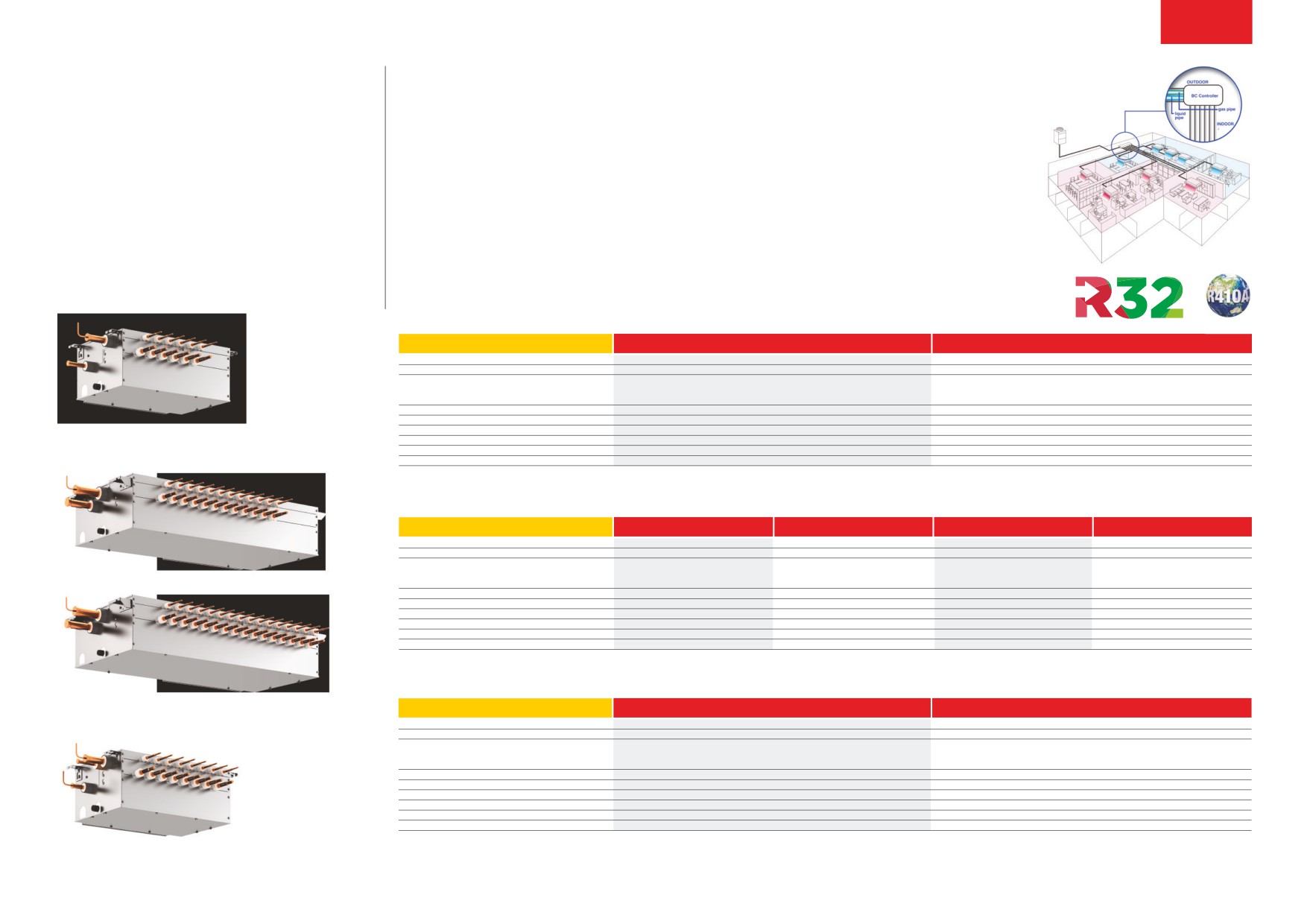

1.5.88
at the heart of both the R2 and WR2 series, the bC controller makes simultaneous
BC Controllers
heating and cooling possible. improved system efficiency is achieved when energy
is transferred intelligently around the building.
Key Features
■ Allows unique 2-pipe heat recovery application
■ Simultaneous heating and cooling
■ Instructs the heat source unit/outdoor unit on the amount of refrigerant (liquid or gas)
that is required to achieve the requested cooling or heating requirements
■ Slim profile for more flexible installation
■ Easy servicing and maintenance access through underside drain pan
■ Brazed connections
BC CONTROLLERS
CMB-M104V-J1
CMB-M106V-J1
NUMbER Of CONNECTiONs
4
6
WEighT (kg)
26
29
diMENsiONs (MM)
Width
596
596
Depth
476
476
Height
250
250
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
phasE
single
single
pOWER iNpUT (kW)
0.076
0.11
RUNNiNg CURRENT (a)
0.34
0.48
fUsE RaTiNg (bs88) - hRC (a)
6
6
MaiNs CablE NO. COREs
3
3
Note: CMB-M-V-J1 units are for use with PURY-EM200-300YNW-A1, PURY-M200-300YNW-A1, PURY-EP200-350YNW-A1, PURY-P200-350YNW-A1 & PQRY-P200-300YLM-A1 units only.
mASTER BC CONTROLLERS
CMB-M108V-JA1
CMB-M1012V-JA1
CMB-M1016V-JA1
CMB-P1016V-KA1
NUMbER Of CONNECTiONs
8
12
16
16
WEighT (kg)
48
60
68
69
diMENsiONs (mm)
Width
911
1135
1135
1135
Depth
622
622
622
622
Height
252
252
252
250
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
pOWER iNpUT (kW)
0.144
0.211
0.279
0.279
RUNNiNg CURRENT (a)
0.63
0.92
1.22
1.22
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
MaiNs CablE No. Cores
3
3
3
3
Notes: CMB-M-V-JA1 units are for use with PURY-EM200-300YNW-A1, PURY-M200-300YNW-A1, PURY-EP200-900Y(S)NW-A1, PURY-P200-900Y(S)NW-A1 & PQRY-P200-900Y(S)LM-A1 units only.
CMB-P1016V-KA1 unit is for use with PURY-P950-1100YSNW-A1 and PURY-EP950-1100YSNW-A1 units only.
SUB BC CONTROLLERS
CMB-M104V-KB1
CMB-M108V-KB1
NUMbER Of CONNECTiONs
4
8
WEighT (kg)
23
31
diMENsiONs (MM)
Width
596
596
Depth
476
476
Height
250
250
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
phasE
single
single
pOWER iNpUT (kW)
0.068
0.135
RUNNiNg CURRENT (a)
0.30
0.59
fUsE RaTiNg (bs88) - hRC (a)
6
6
MaiNs CablE NO. COREs
3
3
Notes: Maximum index of 350 allowable on each Sub BC controller. Up to 11 Sub BC controllers connectable to one system.

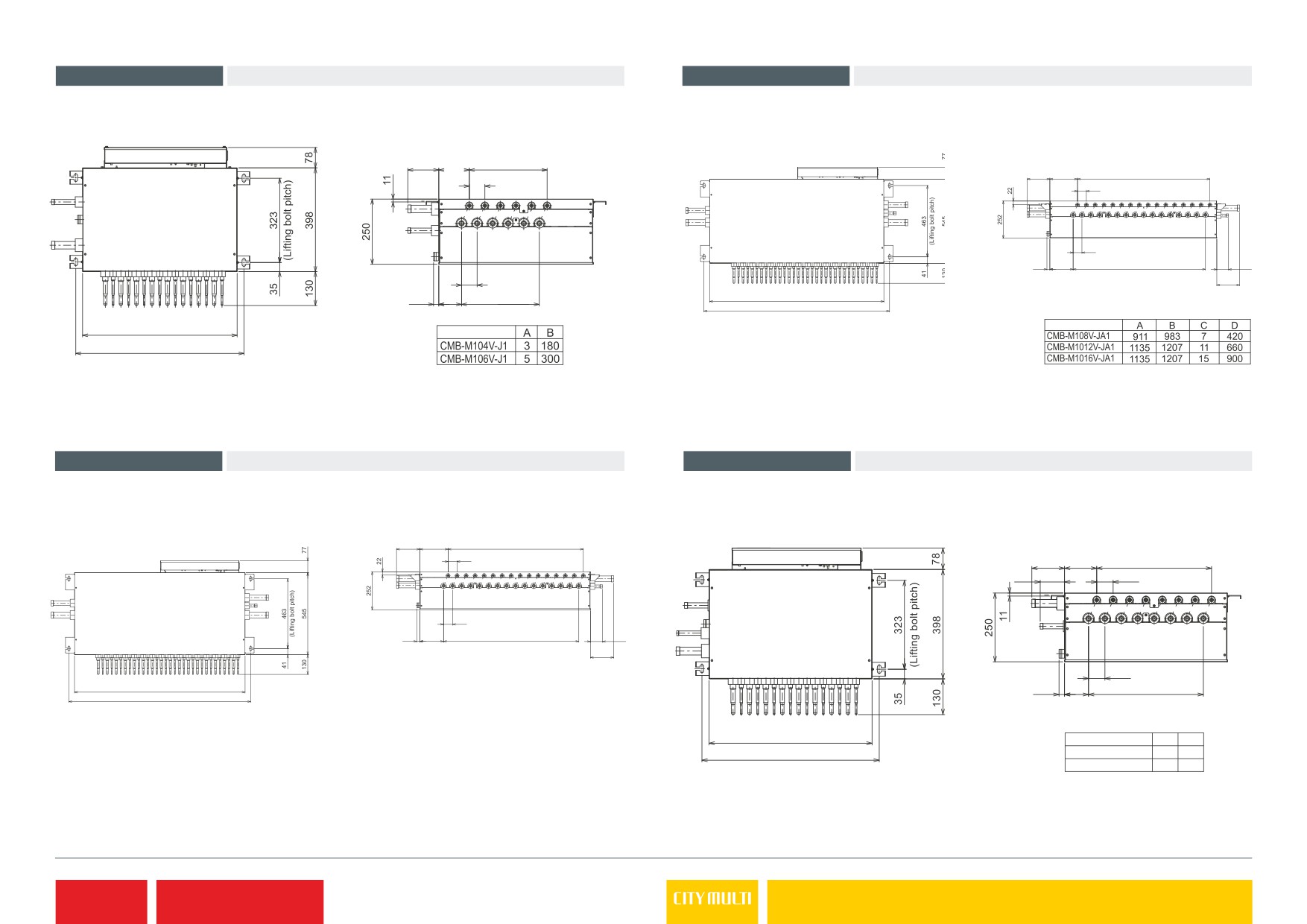

Product Dimensions CMB-M104/106V-J1
Product Dimensions CMB-M108/1012/1016V-JA1
Upper View
Side View
Upper View
Side View
Control box
120
118
60×A=B
Control box
155
188
60×C=D
60
60
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
60
20
158
60×C=D
80
60
155
20
88
60×A=B
1135
1207
(Lifting bolt pitch)
596
648
(Lifting bolt pitch)
Product Dimensions CMB-P1016V-KA1
Product Dimensions CMB-M104/108V-KB1
Upper View
Side View
Upper View
Side View
155
188
60×15=900
60
Control box
Control box
120
118
60×A=B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
89
60
1
2
3
4
5
6
7
8
60
20
158
60×15=900
80
155
60
1135
20
88
60×A=B
1207
(Lifting bolt pitch)
596
A
B
648
CMB-M104V-KB1
3
180
(Lifting bolt pitch)
CMB-M108V-KB1
7
420
1.5.89
Air Conditioning
BC Controllers
1.5.90
at the heart of both the R2 and WR2 series, the bC controller makes simultaneous heating
BC Controllers
and cooling possible. improved system efficiency is achieved when energy is transferred
intelligently around the building.
With Port Isolation
Key Features
Valves
■ Allows unique 2-pipe heat recovery application
■ Heating and cooling at the same time on smaller systems
■ Instructs the heat source unit/outdoor unit on the amount of refrigerant (liquid or gas)
that is required to achieve the requested cooling or heating requirements
■ Slim profile for more flexible installation
■ Easy servicing and maintenance access through underside drain pan
■ Brazed connections
■ Isolation valves factory-fitted on each port
BC CONTROLLERS with Port Isolation Valves
KS8-CMB-P104V-J
KS8-CMB-P106V-J
NUMbER Of CONNECTiONs
4
6
WEighT (kg)
23 + 4.2
27 + 5.9
diMENsiONs (MM)
Width
596
596
Depth
495 + 280
495 + 280
Height
246
246
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
phasE
single
single
pOWER iNpUT (kW)
0.085
0.123
RUNNiNg CURRENT (a)
0.36
0.52
fUsE RaTiNg (bs88) - hRC (a)
6
6
MaiNs CablE NO. COREs
3
3
bC bOX
CMb-p104V-J
CMb-p106V-J
Note: KS8-CMB-P-V-J units are for use with PURY-P200-350YNW-A1, PURY-EP200-350YNW-A1 & PQRY-P200-300YLM-A1 units only.
mASTER BC CONTROLLERS with Port Isolation Valves
KS8-CMB-P108V-JA
KS8-CMB-P1012V-JA
KS8-CMB-P1016V-JA
KS8-CMB-P1016V-KA
NUMbER Of CONNECTiONs
8
12
16
16
WEighT (kg)
45 + 7.9
55 + 12
63 + 14.5
65 + 14.5
diMENsiONs (MM)
Width
911
1135
1135
1135
Depth
639 + 280
639 + 280
639 + 280
639 + 280
Height
246
246
246
246
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
pOWER iNpUT (kW)
0.161
0.236
0.312
0.312
RUNNiNg CURRENT (a)
0.68
0.99
1.30
1.30
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
MaiNs CablE NO. COREs
3
3
3
3
bC bOX
CMb-p108V-Ja
CMb-p1012V-Ja
CMb-p1016V-Ja
CMb-p1016V-ka
Notes: KS8-CMB-P-V-JA units are for use with PURY-P200-900Y(S)NW-A1, PURY-EP200-900Y(S)NW-A1 & PQRY-P200-900Y(S)LM-A1 units only. KS8-CMB-P1016V-KA unit is for use with PURY-P950-1100YNW-A1 & PURY-EP950-1100YSNW-A1 units only.
SUB BC CONTROLLERS with Port Isolation Valves
KS8-CMB-P104V-KB
KS8-CMB-P108V-KB
NUMbER Of CONNECTiONs
4
8
WEighT (kg)
21 + 4.2
28 + 7.5
diMENsiONs (MM)
Width
596
596
Depth
495 + 280
495 + 280
Height
246
246
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
phasE
single
single
pOWER iNpUT (kW)
0.076
0.135
RUNNiNg CURRENT (a)
0.32
0.59
fUsE RaTiNg (bs88) - hRC (a)
6
6
MaiNs CablE NO. COREs
3
3
bC bOX
CMb-p104V-kb
CMb-p108V-kb
Notes: Maximum index of 350 allowable on each Sub BC controller. Up to 11 Sub BC controllers connectable to one system.

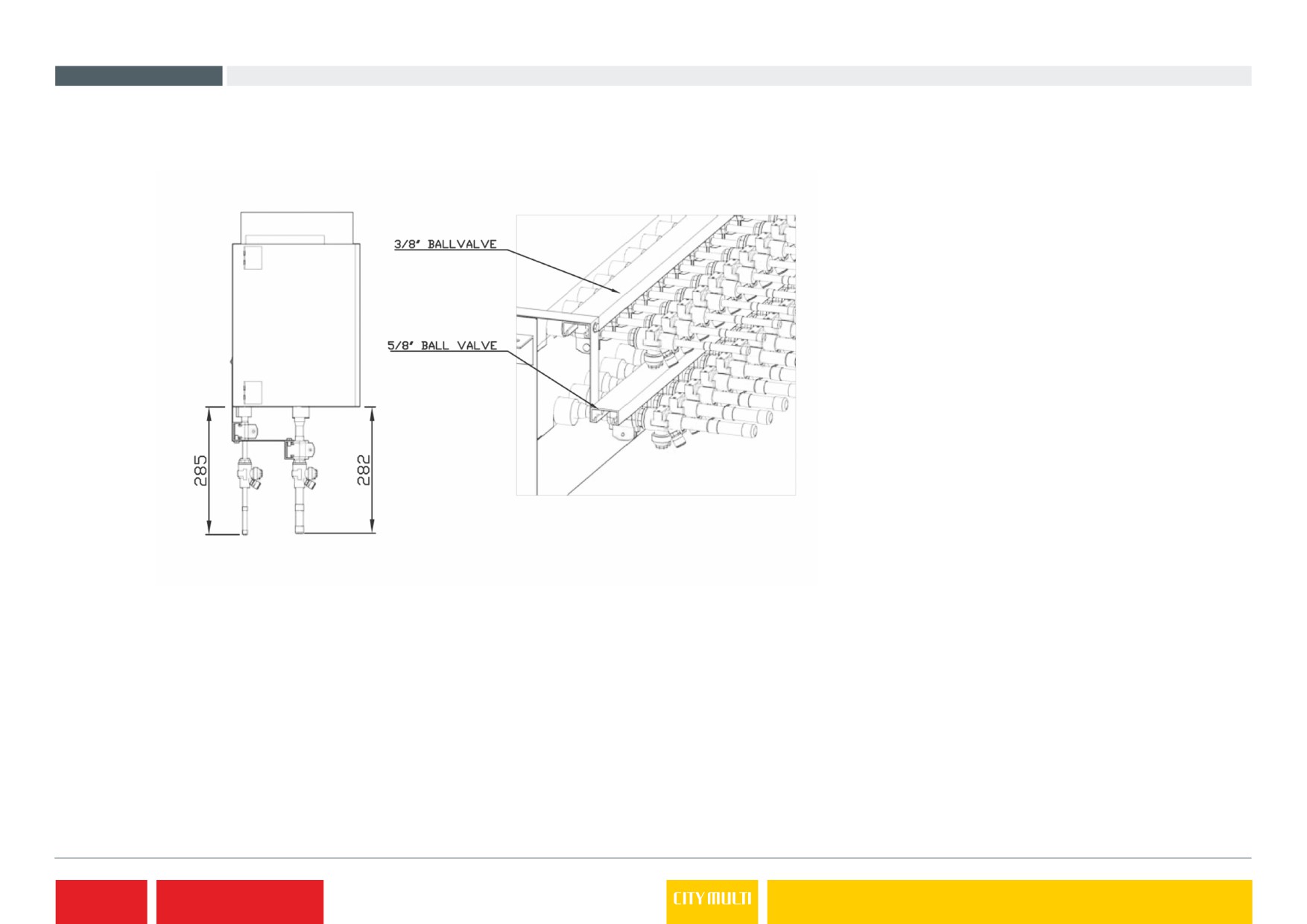

Product Dimensions KS8-CMB-P-J/JA/KA/KBV
Side View
1.5.91
Air Conditioning
BC Controllers With Port Isolation Valves
1.5.92

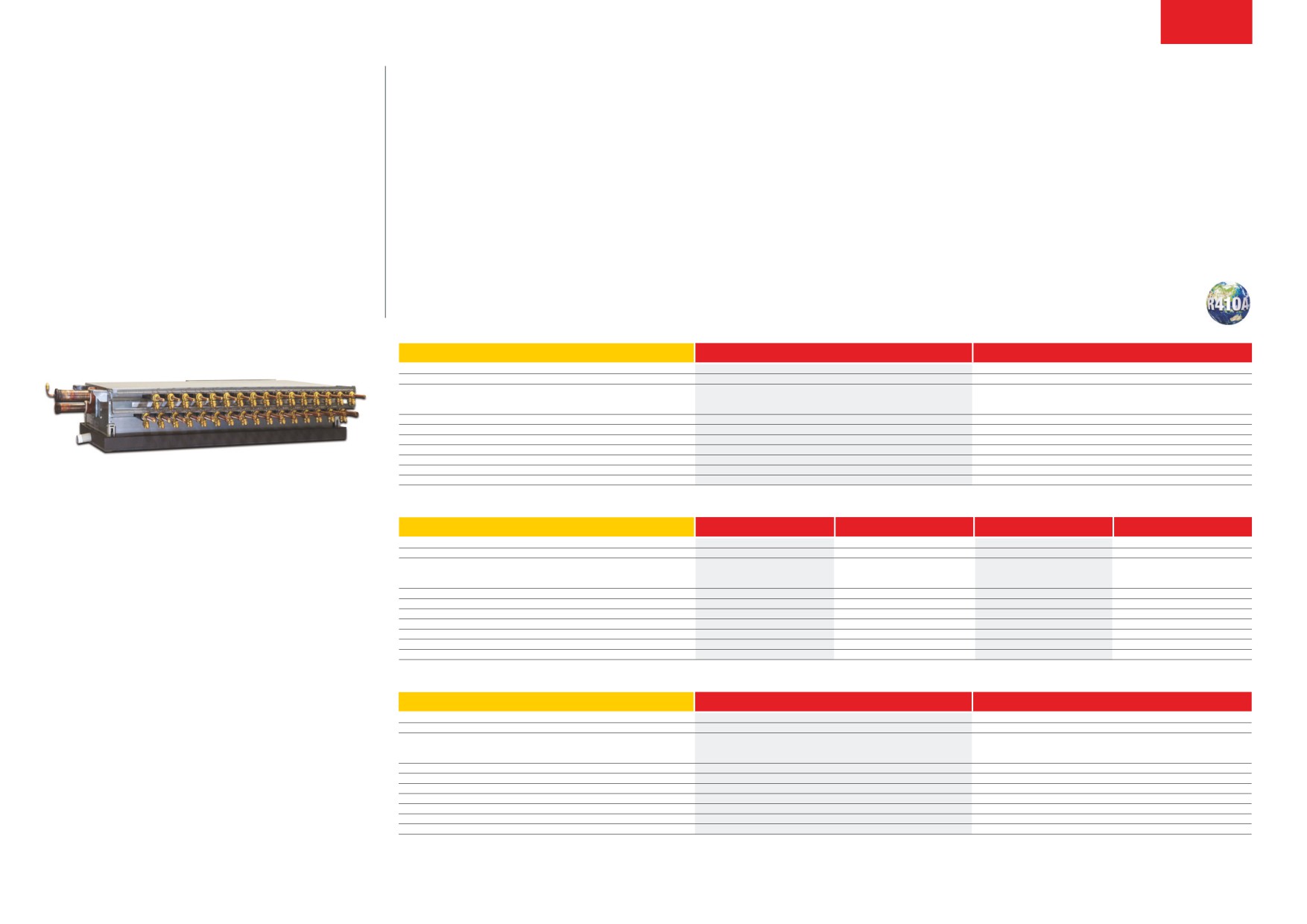

at the heart of both the R2 and WR2 series, the bC controller makes simultaneous heating and cooling possible.
BC Controllers
improved system efficiency is achieved when energy is transferred intelligently around the building.
With Port Isolation
Key Features
■ Allows unique 2-pipe heat recovery application
Valves & Acoustic
■ Heating and cooling at the same time on smaller systems
■ Instructs the heat source unit/outdoor unit on the amount of refrigerant (liquid or gas)
Jacket
that is required to achieve the requested cooling or heating requirements
■ Slim profile for more flexible installation
■ Easy servicing and maintenance access through underside drain pan
■ Brazed connections
■ Isolation valves factory-fitted on each port
■ Up to 5dBA reduction in sound pressure level with acoustic jacket
BC CONTROLLERS
KS8-KS5-SBCAJ-A-CMB-P104V-J
KS8-KS5-SBCAJ-A-CMB-P106V-J
NUMbER Of CONNECTiONs
4
6
WEighT (kg)
38.5
44.2
diMENsiONs (MM)
Width
596
596
Depth
495 + 280
495 + 280
Height
246
246
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
phasE
single
single
pOWER iNpUT (kW)
0.085
0.123
RUNNiNg CURRENT (a)
0.36
0.52
fUsE RaTiNg (bs88) - hRC (a)
6
6
MaiNs CablE NO. COREs
3
3
bC bOX
CMb-p104V-J
CMb-p106V-J
Note: For use with PURY-P200-350YNW-A1, PURY-EP200-350YNW-A1 & PQRY-P200-300YLM-A1 units only. These products are made to order, please consult your local sales office for delivery schedule.
mASTER BC CONTROLLERS
KS8-KS5-MBCAJ-A-CMB-P108V-JA
KS8-KS5-LBCAJ-A-CMB-P1012V-JA
KS8-KS5-LBCAJ-A-CMB-P1016V-JA
KS8-KS5-LBCAJ-A-CMB-P1016V-KA
NUMbER Of CONNECTiONs
8
12
16
16
WEighT (kg)
66
93.1
104.5
106.5
diMENsiONs (MM)
Width
911
1135
1135
1135
Depth
639 + 280
639 + 280
639 + 280
639 + 280
Height
246
246
246
246
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
pOWER iNpUT (kW)
0.161
0.236
0.312
0.312
RUNNiNg CURRENT (a)
0.68
0.99
1.30
1.30
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
MaiNs CablE NO. COREs
3
3
3
3
bC bOX
CMb-p108V-Ja
CMb-p1012V-Ja
CMb-p1016V-Ja
CMb-p1016V-ka
Notes: V-JA units are for use with PURY-P200-900Y(S)NW-A1, PURY-EP200-900Y(S)NW-A1 & PQRY-P200-900Y(S)LM-A1 units only. V-KA unit is for use with PURY-P950-1100YNW-A1 & PURY-EP950-1100YSNW-A1 units only.
These products are made to order, please consult your local sales office for delivery schedule.
SUB BC CONTROLLERS
KS8-KS5-SBCAJ-A-CMB-P104V-KB
KS8-KS5-SBCAJ-A-CMB-P108V-KB
NUMbER Of CONNECTiONs
4
8
WEighT (kg)
36.5
50.2
diMENsiONs (MM)
Width
596
596
Depth
495 + 280
495 + 280
Height
246
246
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
phasE
single
single
pOWER iNpUT (kW)
0.076
0.135
RUNNiNg CURRENT (a)
0.32
0.59
fUsE RaTiNg (bs88) - hRC (a)
6
6
MaiNs CablE NO. COREs
3
3
bC bOX
CMb-p104V-kb
CMb-p108V-kb
Notes: Maximum index of 350 allowable on each Sub BC controller. Up to 11 Sub BC controllers connectable to one system. These products are made to order, please consult your local sales office for delivery schedule.

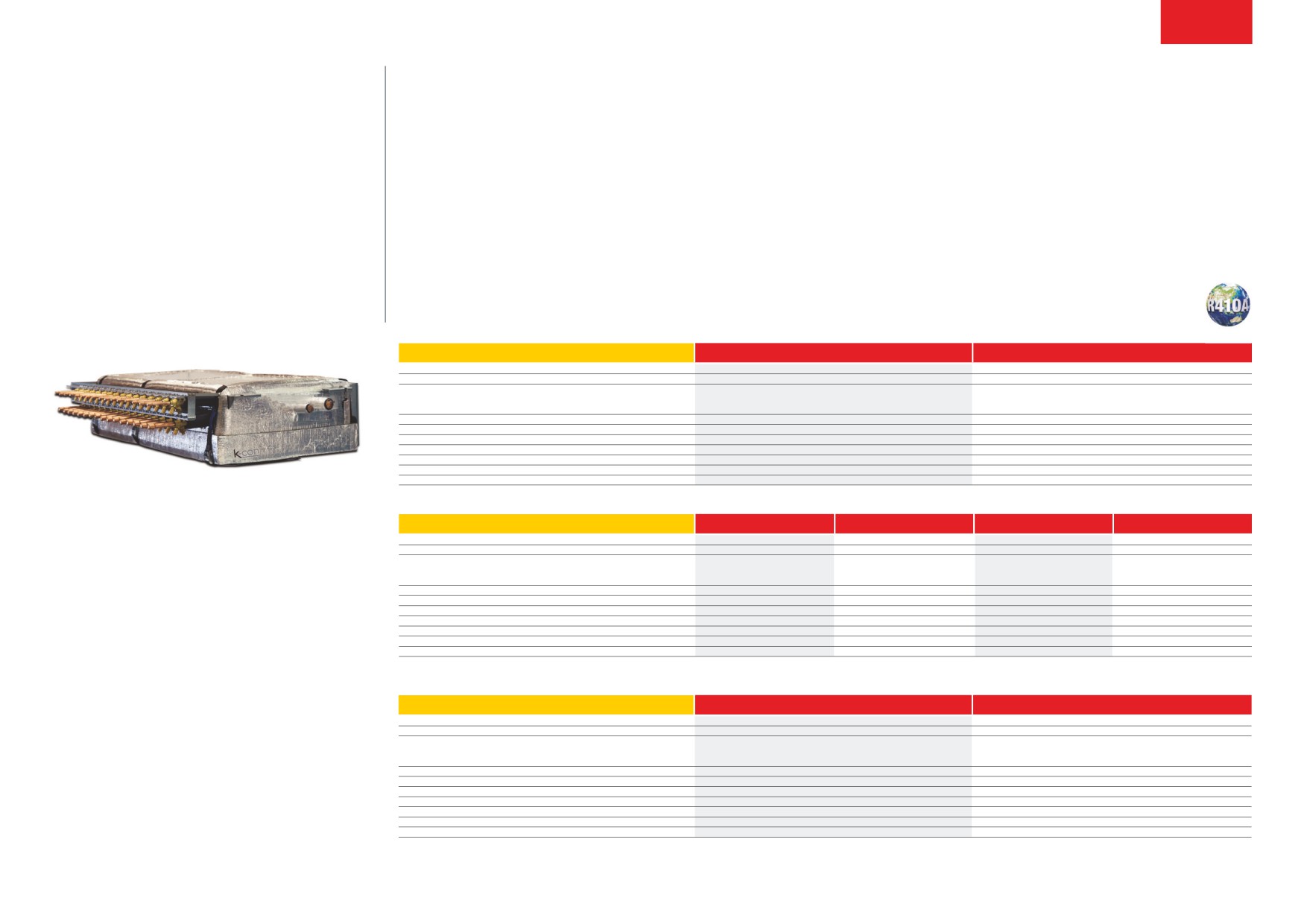

BC Controllers Withat the heart of both the R2 and WR2 series, the bC controller makes simultaneous heating and cooling possible.improved system efficiency is achieved when energy is transferred intelligently around the building.
Acoustic Jacket
Key Features
■ Allows unique 2-pipe heat recovery application
■ Heating and cooling at the same time on smaller systems
■ Instructs the heat source unit/outdoor unit on the amount of refrigerant (liquid or gas)
that is required to achieve the requested cooling or heating requirements
■ Slim profile for more flexible installation
■ Easy servicing and maintenance access through underside drain pan
■ Brazed connections
■ Isolation valves factory-fitted on each port
■ Up to 5dBA reduction in sound pressure level with acoustic jacket
BC CONTROLLERS
KS5-CMB-P104V-J-AL
KS5-CMB-P108V-J-AL
NUMbER Of CONNECTiONs
4
6
WEighT (kg)
34.4
38.3
diMENsiONs (MM)
Width
596
596
Depth
495
495
Height
246
246
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
phasE
single
single
pOWER iNpUT (kW)
0.085
0.123
RUNNiNg CURRENT (a)
0.36
0.52
fUsE RaTiNg (bs88) - hRC (a)
6
6
MaiNs CablE NO. COREs
3
3
Notes: For use with PURY-P200-350YNW-A1, PURY-EP200-350YNW-A1 & PQRY-P200-300YLM-A1 units only. These products are made to order, please consult your local sales office for delivery schedule.
mASTER BC CONTROLLERS
KS5-CMB-P108V-JA-AL
KS5-CMB-P1012V-JA-AL
KS5-CMB-P1016V-JA-AL
KS5-CMB-P1016V-KA-AL
NUMbER Of CONNECTiONs
8
12
16
16
WEighT (kg)
58.1
82
90
92
diMENsiONs (MM)
Width
911
1135
1135
1135
Depth
639
639
639
639
Height
246
246
246
246
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
pOWER iNpUT (kW)
0.161
0.236
0.312
0.312
RUNNiNg CURRENT (a)
0.68
0.99
1.30
1.30
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
MaiNs CablE NO. COREs
3
3
3
3
Notes: V-JA-AL units are for use with PURY-P200-900Y(S)NW-A1, PURY-EP200-900Y(S)NW-A1 & PQRY-P200-900Y(S)LM-A1 units only. V-KA-AL unit is for use with PURY-P950-1100YNW-A1 & PURY-EP950-1100YSNW-A1 units only.
These products are made to order, please consult your local sales office for delivery schedule.
SUB BC CONTROLLERS
KS5-CMB-P104V-KB-AL
KS5-CMB-P108V-KB-AL
NUMbER Of CONNECTiONs
4
8
WEighT (kg)
34.4
42.3
diMENsiONs (MM)
Width
596
596
Depth
495
495
Height
246
246
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
phasE
single
single
pOWER iNpUT (kW)
0.076
0.135
RUNNiNg CURRENT (a)
0.32
0.59
fUsE RaTiNg (bs88) - hRC (a)
6
6
MaiNs CablE NO. COREs
3
3
Notes: Maximum index of 350 allowable on each Sub BC controller. Up to 11 Sub BC controllers connectable to one system. These products are made to order, please consult your local sales office for delivery schedule.
1.5.93
Air Conditioning
BC Controllers With Port Isolation Valves & Acoustic Jacket
