1.5.94
The refrigerant detection systems are designed to detect air conditioning leaks, with the option of
Refrigerant
providing pump down of City Multi VRf R2 systems.
These systems help safeguard against refrigerant levels exceeding permitted concentration levels and react effectively
Detection Systems
in the event of leaks.
Key Features
Enables compliance with BS EN378 - Safety of Building Occupants, critical in hotel applications
Can help achieve recognition within BREEAM Pollution Prevention Assessment, ideal for assisting in the design of modern, sustainable buildings
Robust and tested leak detection with pump down option
Flexible refrigerant gas detection systems - semiconductor or infrared, in standalone or cost effective aspirated panel options
Pump down panel incorporating all elements required for safety and environmental protection along with ease of installation
Actuated ball valves to isolate refrigerant on pump down
Alarm system to alert occupants and staff of any leakages

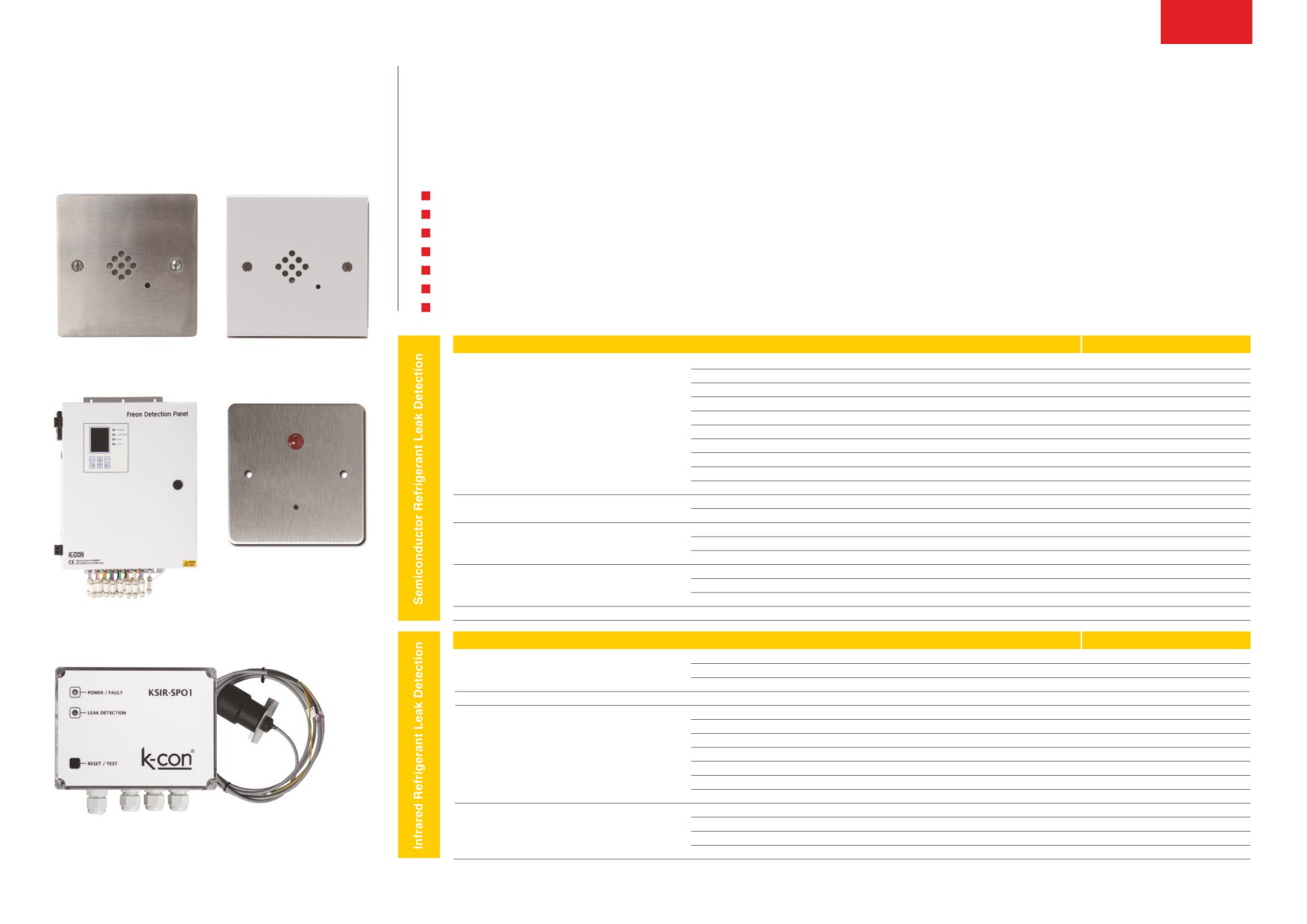

DESCRIPTION
mODEL REF.
KSGD-01S-B
KSGD-01W-B White
Semiconductor Sensor
semiconductor stand alone Refrigerant detector White
ksgd-01W-b
semiconductor stand alone Refrigerant detector silver
ksgd-01s-b
semiconductor sensor polished brass lacquered
ksgd-01pb-b
semiconductor sensor forbes & lomax painted
ksgd-01flp-b
semiconductor sensor forbes & lomax antique
ksgd-01fla-b
semiconductor sensor forbes & lomax polished Nickel
ksgd-01flpN-b
semiconductor sensor White inc. 5 Wire
ksgd-01W-b-5W
semiconductor sensor silver inc. 5 Wire
ksgd-01s-b-5W
Transformer 12Vdc power supply
ksTR12
Transformer 24Vdc power supply
ksTR24
Semiconductor Sensor Panel
32 Channel system
ks8 Rad32-C
64 Channel system
ks8 Rad64-b
Room Alarm Indicator
Room alarm indicator satin stainless steel
ksRa-ss
Room alarm indicator White steel
ksRa-Ws
Room alarm indicator polished brass
ksRa-pb
KS8-SSFPA
Semiconductor Large System
ks8-RMi smart32 input Card 32 semiconductor sensors
ks8-RMi sMaRT32
ks8-RMi smart64 input Card 64 semiconductor sensors
ks8-RMi sMaRT64
semiconductor sensor Remote display 256 sensors
ks8-RMd
Semiconductor T
est Kit
semiconductor leak detector Test kit
ksgd01-aTk
KS8-IR16CIF-A
DESCRIPTION
mODEL REF.
Infrared Stand Alone Sensor
R410a infrared stand alone Refrigerant detector with Remote sensor
ksiR-sp01 R410a
R32 infrared stand alone Refrigerant detector with Remote sensor
ksiR-sp01 R32
infrared stand alone Refrigerant detector Remote display
ks8-sp-RdU
Infrared Faceplate
stainless steel Room faceplate with alarm for aspirated panel
ks8-ssfpa
Infrared Tubing Ancillaries
100M drum sampling Tube for aspirated panel (black)
ks8-bsT100
250M drum sampling Tube for aspirated panel (black)
ks8-bsT250
sampling Tube straight Connector for aspirated panel
ks8-sTsC
sampling Tube Two Way Manifold for aspirated panel
ks8-sT2M
inline filter for aspirated panel
ks8-if
End Of line filter for aspirated panel (Calibration)
ks8-Ef
End Of line filter for aspirated panel (Calibration) C/W bracket
ks8-Ef C/W bRaCkET
Infrared Aspirated Panel
infrared aspirated 8 Channel Refrigerant detector panel
ks8-iR8Cif-a
infrared aspirated 16 Channel Refrigerant detector panel
ks8-iR16Cif-a
KSIR-SP01
infrared aspirated 32 Channel Refrigerant detector panel
ks8-iR32Cif-a
8/16/32 Remote display Unit
ks8-RdU
DESCRIPTION
mODEL REF.
City Multi Pump Down
City Multi R2 automatic pump down Control panel 1 Outdoor Unit
ks8-OC1
Control Panels
City Multi R2 automatic pump down Control panel 2 Outdoor Units
ks8-OC2
City Multi R2 automatic pump down Control panel 3 Outdoor Units
ks8-OC3
City Multi R2 automatic pump down Control panel 4 Outdoor Units
ks8-OC4
City Multi R2 automatic pump down Control panel 5 Outdoor Units
ks8-OC5
City Multi R2 automatic pump down Control panel 6 Outdoor Units
ks8-OC6
City Multi R2 automatic pump down Control panel 7 Outdoor Units
ks8-OC7
City Multi R2 automatic pump down Control panel 8 Outdoor Units
ks8-OC8
Actuated Ball Valves for
5/8" actuated ball Valve
ks8-5/8 abV
Pump Down Operation
3/4" actuated ball Valve
ks8-3/4 abV
7/8" actuated ball Valve
ks8-7/8 abV
1 1/8" actuated ball Valve
ks8-1.1/8 abV
1 3/8" actuated ball Valve
ks8-1.3/8 abV
1 5/8" actuated ball Valve
ks8-1.5/8 abV
KS8-OC1

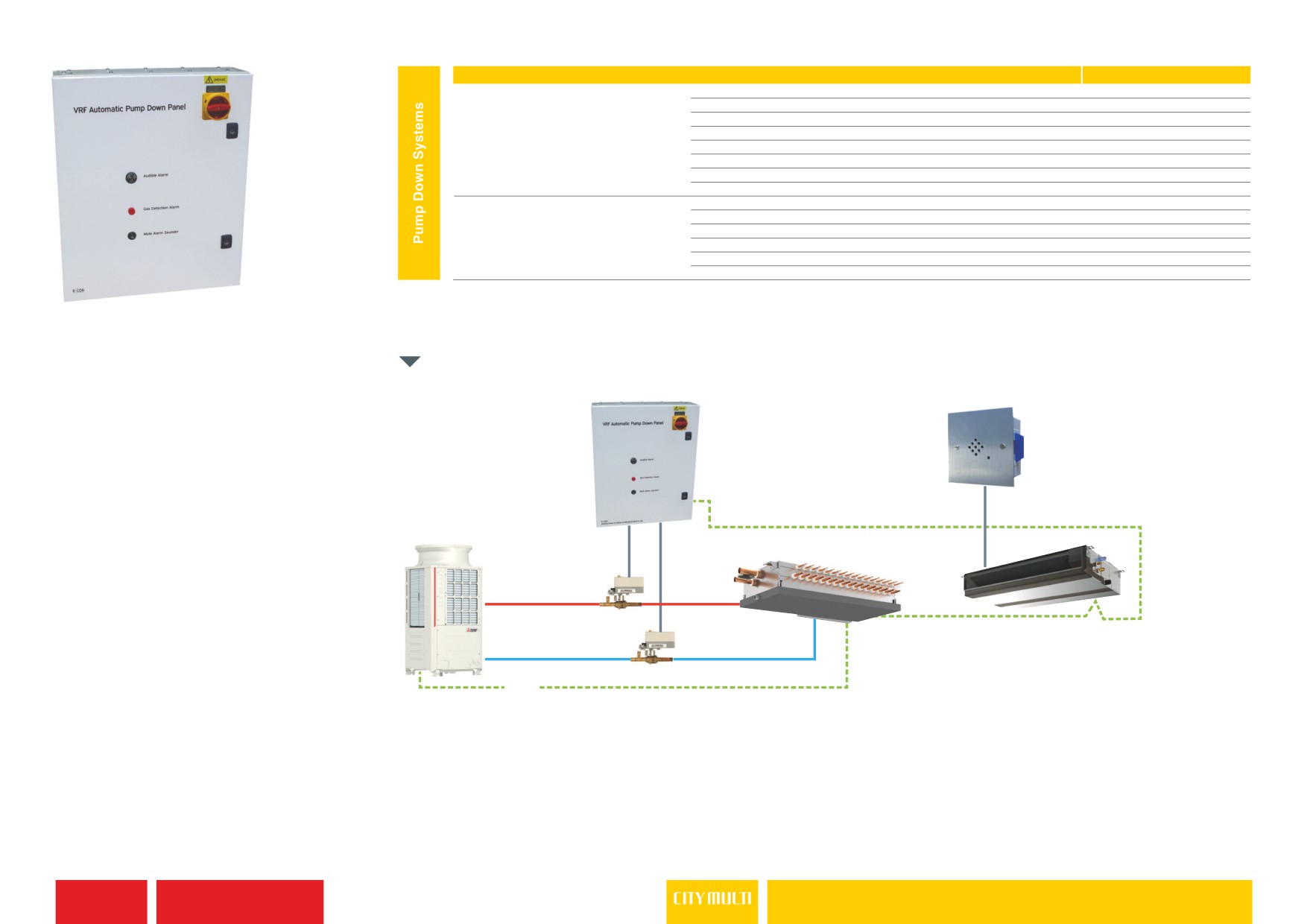

Installation Example City Multi Pump Down System
Pump Down
Control Panel
Refrigerant Detector
Standalone or output
from Aspirated Panel
5-Wire adaptor connected to CN52
Outdoor Unit
Indoor Unit
Branch Controller
Actuated
Ball Valves
MNET
it is recommended that system design is completed
with your local Mitsubishi Electric sales Office
Please Note: commissioning is required on pump down systems
1.5.95
Air Conditioning
Refrigerant Detection Systems
