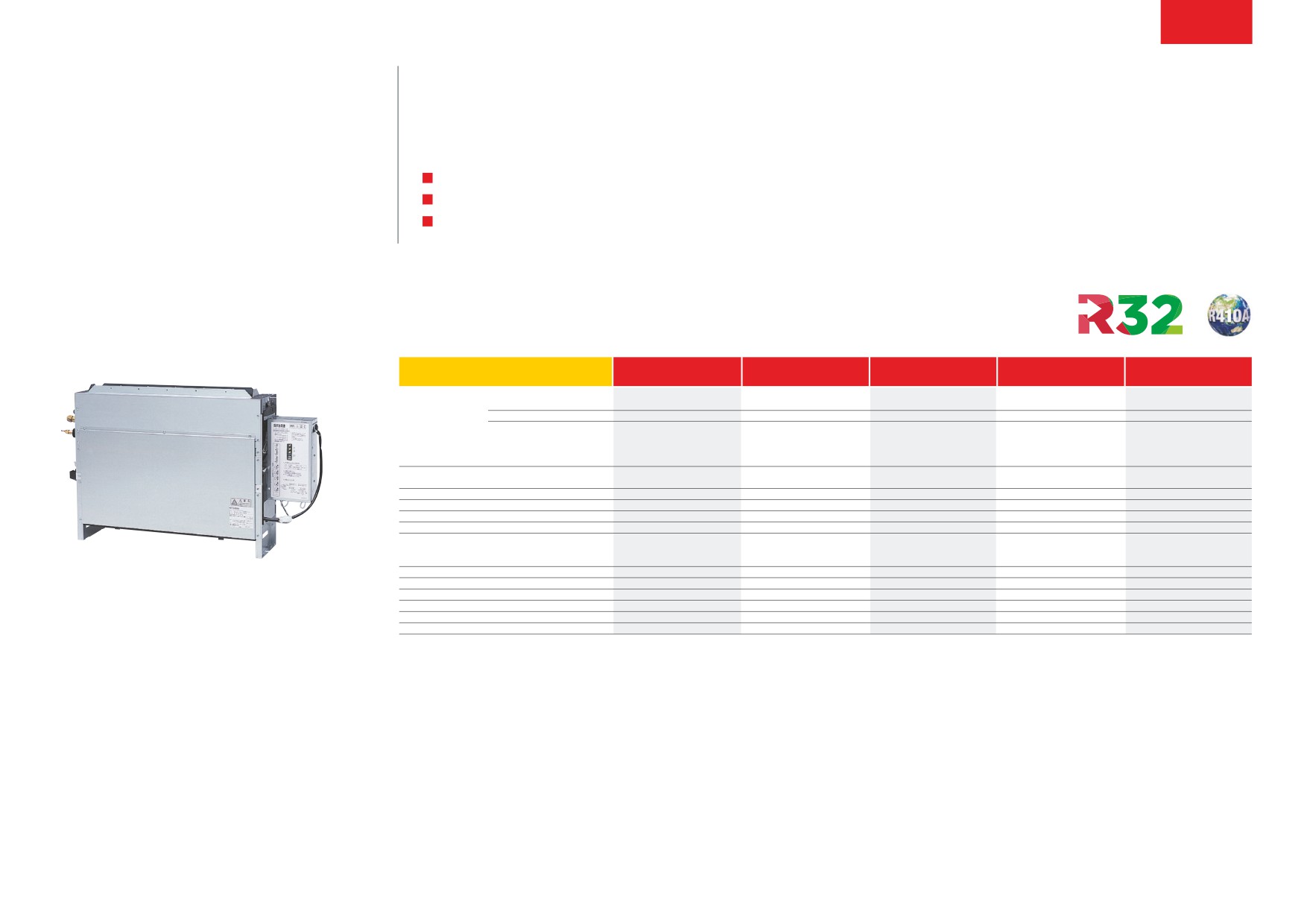

PFFY-WP-VLRMM-Ea compact concealed unit providing simple, effective air conditioning in perimeter zones.The unit is easy to install and at only 220mm deep offers an unobtrusive method of delivering
a highly efficient air conditioning performance.
Floor Standing Concealed
Key Features
indoor Unit
Reduced noise levels
3 static pressure settings - 20/40/60Pa ideal for ducting in the perimeter zone
Concealed unit for hidden installation. The unit can be hidden behind a wardrobe in a hotel, then ducted
above and below the wardrobe doors - this offers lower noise, less disruption and a low visual impact
INDOOR UNITS
PFFY-WP20VLRMM-E
PFFY-WP25VLRMM-E
PFFY-WP32VLRMM-E
PFFY-WP40VLRMM-E
PFFY-WP50VLRMM-E
CapaCiTy (kW)
Heating (nominal)
2.5
3.2
4.0
5.0
6.3
Cooling (nominal)
2.2
2.8
3.6
4.5
5.6
UK Heating
2.5
3.2
4.0
5.0
6.3
UK Total Cooling - Hi (Sensible)
2.00
(1.50)
2.50
(2.00)
3.20
(2.50)
4.00
(3.10)
5.00
(3.90)
UK Total Cooling - Mi2
-
-
-
-
-
UK Total Cooling - Mi1
1.96
2.42
3.07
3.86
4.82
UK Total Cooling - Lo
1.83
2.29
2.86
3.53
4.43
pOWER iNpUT (kW)
Heating (nominal)
0.04
0.04
0.05
0.05
0.07
Cooling (nominal)
0.04
0.04
0.05
0.05
0.07
aiRflOW (l/s)
Lo-Mi-Hi
75-83-100
100-117-133
125-150-175
133-167-192
175-217-250
EXTERNal sTaTiC pREssURE (pa)
20-40-60
20-40-60
20-40-60
20-40-60
20-40-60
sOUNd pREssURE lEVEl (dba) (20pa) Lo-Mi-Hi
31-33-38
31-33-38
31-35-38
34-37-40
37-42-45
WEighT (kg)
22
25
25
29
29
diMENsiONs (mm)
Width
886
1006
1006
1246
1246
Depth
220
220
220
220
220
Height
639
639
639
639
639
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
single
RUNNiNg CURRENT (a) Heating / Cooling
0.35 / 0.35
0.35 / 0.35
0.47 / 0.47
0.47 / 0.47
0.65 / 0.65
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
6
MaiNs CablE No. Cores
3
3
3
3
3
WaTER pipE CONNECTiON
3/4" bsp sCREW
3/4" bsp sCREW
3/4" bsp sCREW
3/4" bsp sCREW
3/4" bsp sCREW
Note: HVRF indoor units can only be configured with the CMB-WM HBC (HVRF) and PURY-(E)M YNW-A1 or PQRY-P YLM-A1 outdoor units.

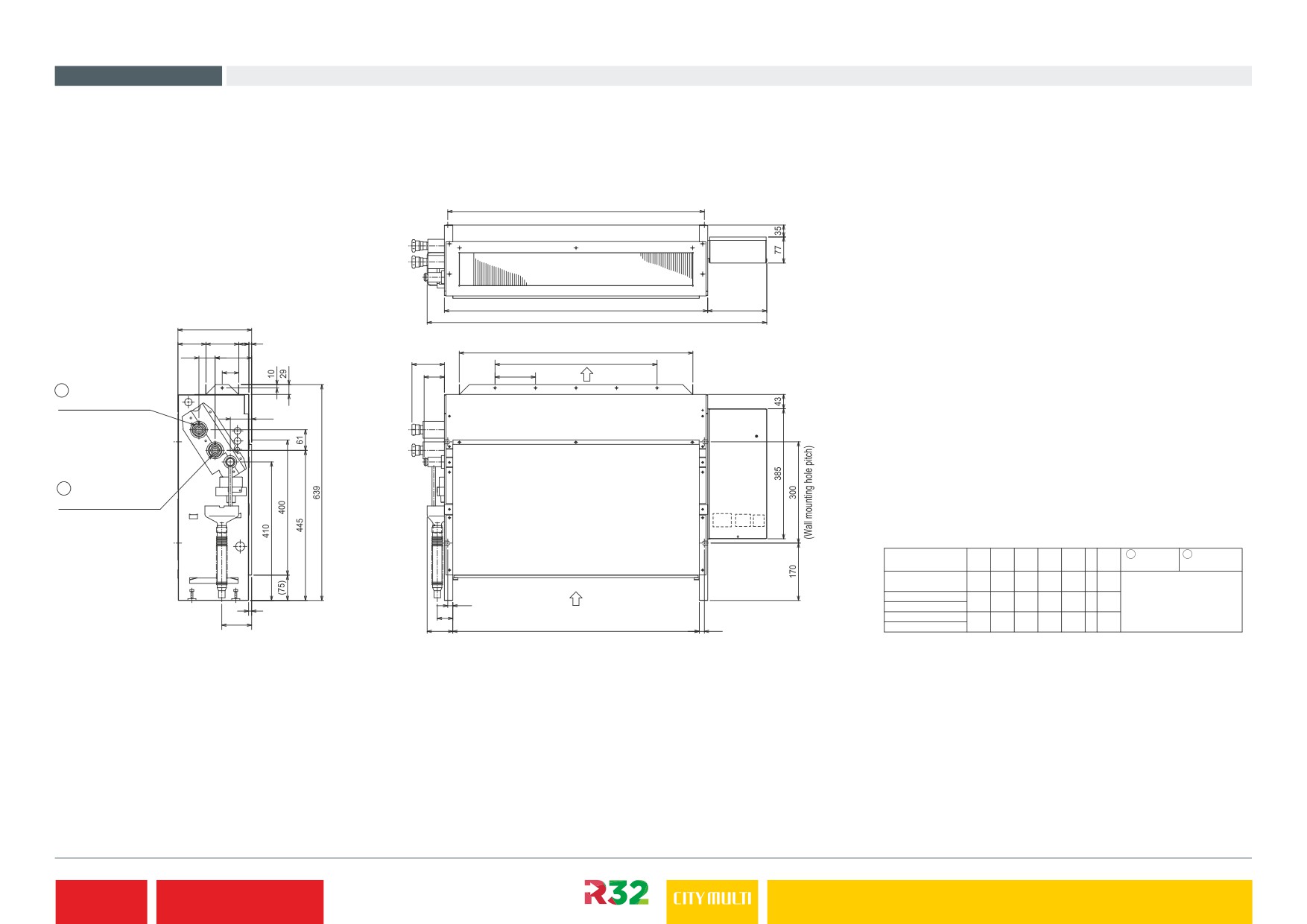

Product Dimensions PFFY-WP20/25/32/40/50VLRMM-E
Upper View
B (Wall mounting hole pitch)
Side View
G
175
A
220
84
98
30
8
C
48
108
96
E
49
60
120
Air outlet
1
Water pipe (To HBC unit)
R/c 3/4 screw
63
2
Water pipe (From HBC unit)
Rc3/4 screw
Dimensions
1
Water pipe
2 Water pipe
Model
A
B
C
D
E
F
G
(
To HBC unit)
(From HBC unit)
PFFY-WP20VLRMM-E
886
640
572
610
360
4
660
15
Air inlet
PFFY-WP25VLRMM-E
1006
760
692
730
480
5
780
Rc3/4 screw
9
PFFY-WP32VLRMM-E
45
90
PFFY-WP40VLRMM-E
1246
1000
932
970
720
7
102 0
76
D
15
PFFY-WP50VLRMM-E
Front View
