1.6.20

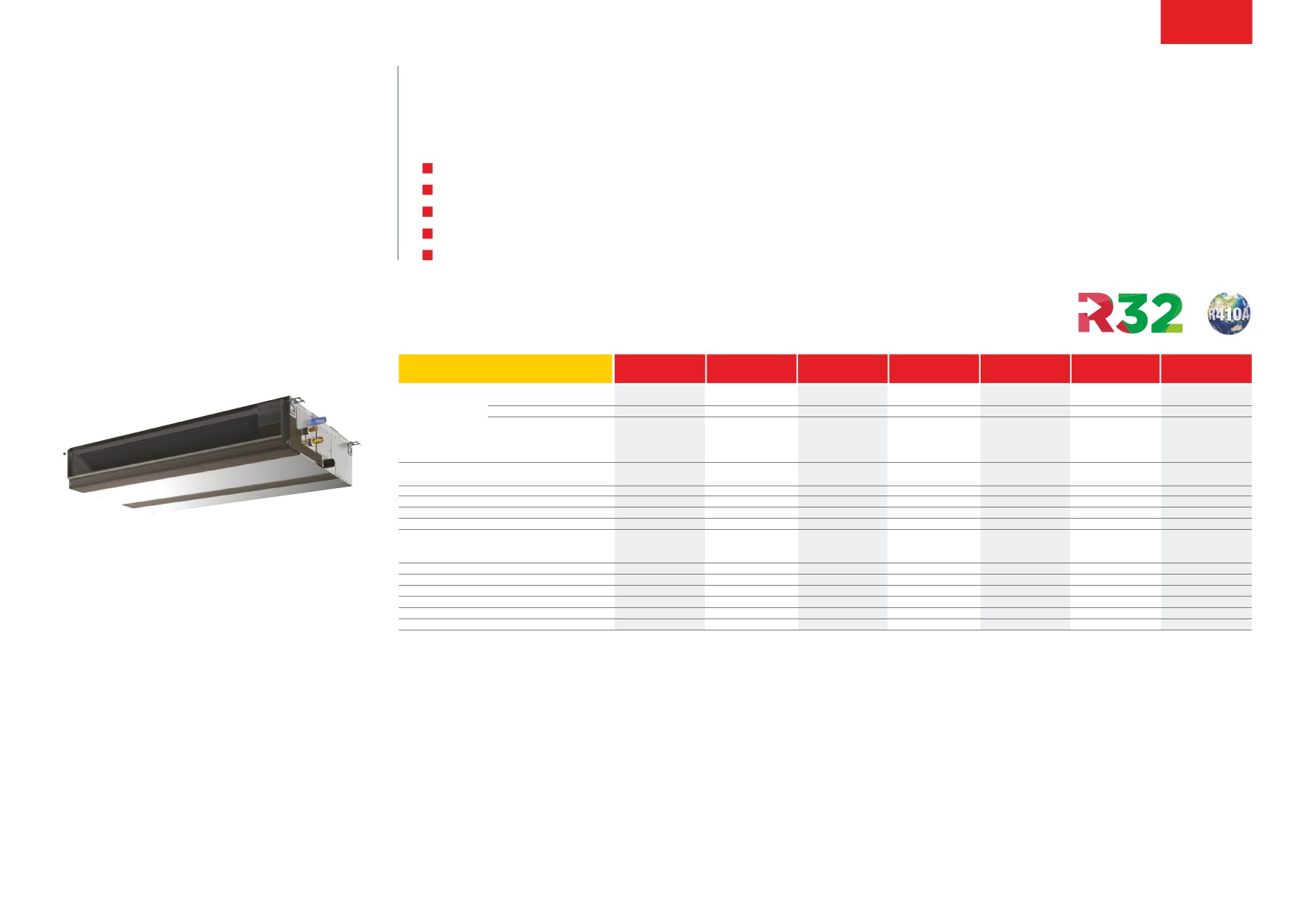

The pEfy-Wp-VMa-E ducted indoor unit is concealed within the ceiling space to allow unobtrusive
PEFY-WP-VMA-E
air conditioning. flexibility of duct layout allows air flow patterns to be arranged to suit any application.
Ceiling Concealed Ducted
Key Features
indoor Unit
Low height - only 250mm
Wide range of external static pressure settings across entire range (35-150Pa)
Low noise levels thanks to the use of a centrifugal fan - as low as 23dBA (size 20-25)
Drain pump included as standard
CN105 connector available - connect to MELCOBEMS MINI for simple BEMS interfacing
INDOOR UNITS
PEFY-WP20VMA-E
PEFY-WP25VMA-E
PEFY-WP32VMA-E
PEFY-WP40VMA-E
PEFY-WP50VMA-E
PEFY-WP63VMA-E
PEFY-WP80VMA-E
CapaCiTy (kW)
Heating (nominal)
2.5
3.2
4.0
5.0
6.3
8.0
10.0
Cooling (nominal)
2.2
2.8
3.6
4.5
5.6
7.1
9.0
UK Heating
2.5
3.2
4.0
5.0
6.3
8.0
10.0
UK Total Cooling - Hi (Sensible)
2.00
(1.80)
2.50
(2.50)
3.20
(3.00)
4.00
(3.80)
5.00
(4.20)
6.40
(5.10)
8.10
(7.20)
UK Total Cooling - Mi2
-
-
-
-
-
-
-
UK Total Cooling - Mi1
1.92
2.40
3.07
3.84
4.80
6.15
7.76
UK Total Cooling - Lo
1.79
2.24
2.85
3.53
4.41
5.64
7.17
pOWER iNpUT (kW)
Heating (nominal)
0.05
0.07
0.9
0.12
0.12
0.12
0.22
Cooling (nominal)
0.07
0.09
0.11
0.14
0.14
0.14
0.24
aiRflOW (l/s)
Lo-Mi-Hi
125-150-175
167-200-233
200-242-283
242-300-350
242-300-350
242-300-350
383-467-550
EXTERNal sTaTiC pREssURE (Pa)
35-50-70-100-150
35-50-70-100-150
35-50-70-100-150
35-50-70-100-150
35-50-70-100-150
35-50-70-100-150
35-50-70-100-150
sOUNd pREssURE lEVEl (dba) (50pa) Lo-Mi-Hi
23-26-29
23-27-30
25-29-32
26-29-34
26-29-34
26-29-34
28-33-37
WEighT (kg)
21
26
26
31
31
31
40
diMENsiONs (mm)
Width
700
900
900
1100
1100
1100
1400
Depth
732
732
732
732
732
732
732
Height
250
250
250
250
250
250
250
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
single
single
single
RUNNiNg CURRENT (a) Heating / Cooling
0.44 / 0.55
0.53 / 0.64
0.63 / 0.74
1.04 / 1.15
1.04 / 1.15
1.04 / 1.15
1.36 / 1.47
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
6
6
6
MaiNs CablE No. Cores
3
3
3
3
3
3
3
WaTER pipE CONNECTiON
3/4" bsp sCREW
3/4" bsp sCREW
3/4" bsp sCREW
3/4" bsp sCREW
3/4" bsp sCREW
1 1/4" bsp sCREW
1 1/4" bsp sCREW
Note: HVRF indoor units can only be configured with the CMB-WM HBC (HVRF) and PURY-(E)M YNW-A1 or PQRY-P YLM-A1 outdoor units.

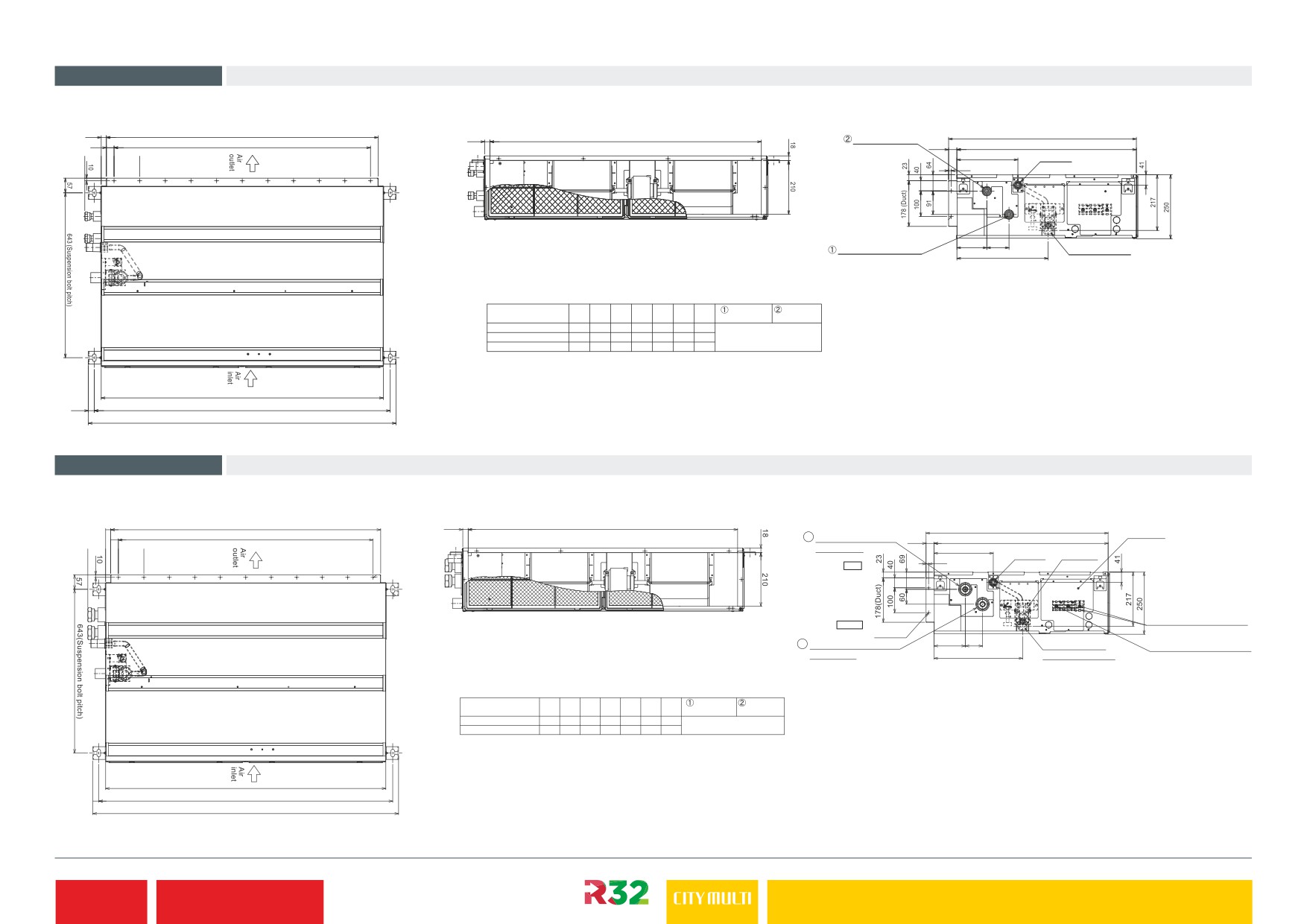

Product Dimensions PEFY-WP20/25/32/40/50VMA-E
Upper View
Front View
Side View
20
D (Duct)
732
21
G
Water pipe (To HBC unit)
30
100x(E-1)=F
32
0
64
100
Rc3/4 screw
238
Drain pipe
10
(O.D.Ø32)
1
17
87
Water pipe(From HBC unit)
Drain pipe(O.D.Ø32)
356
Rc3/4 screw
(Spontaneous draining)
Water pipe
Water pipe
Model
A
B
C
D
E
F
G
(From HBC unit)
(To HBC unit)
PEFY-WP20VMA-E
700
754
800
660
7
600
658
PEFY-WP25,32VMA-E
900
954
1000
860
9
800
858
Rc3/4 screw
PEFY
-WP40,50VMA-E
1100
1154
1200
1060
11
1000
1058
A
23
B (Suspension bolt pitch)
C
Product Dimensions PEFY-WP63/80VMA-E
Upper View
Front View
Side View
20
D (Duct)
21
G
732
30
100×(E-1)=F
Control box
2
Water pipe(To HBC unit)
32
700
64
100
Rc1-1/4 screw
238
Drain pipe
Drain pump
10
T
op
(O.D.ø32)
Terminal block(Transmission)
Bottom
2×2-ø2.9
1
Water pipe(From HBC unit)
126
69
Drain pipe(O.D.ø32)
Terminal block(Power source)
Rc1-1/4 screw
356
(Spontaneous draining)
Water pipe
Water pipe
Model
A
B
C
D
E
F
G
(From HBC unit)
(To HBC unit)
PEFY-WP63VMA-E
1100
1154
1200
1060
11
1000
1058
Rc1-1/4 screw
P
EFY-WP80VMA-E
1400
1454
1500
1360
14
1300
1358
A
23
B(Suspension bolt pitch)
C
1.6.21
Air Conditioning
PEFY-WP-VMA-E Ceiling Concealed Ducted indoor Unit
