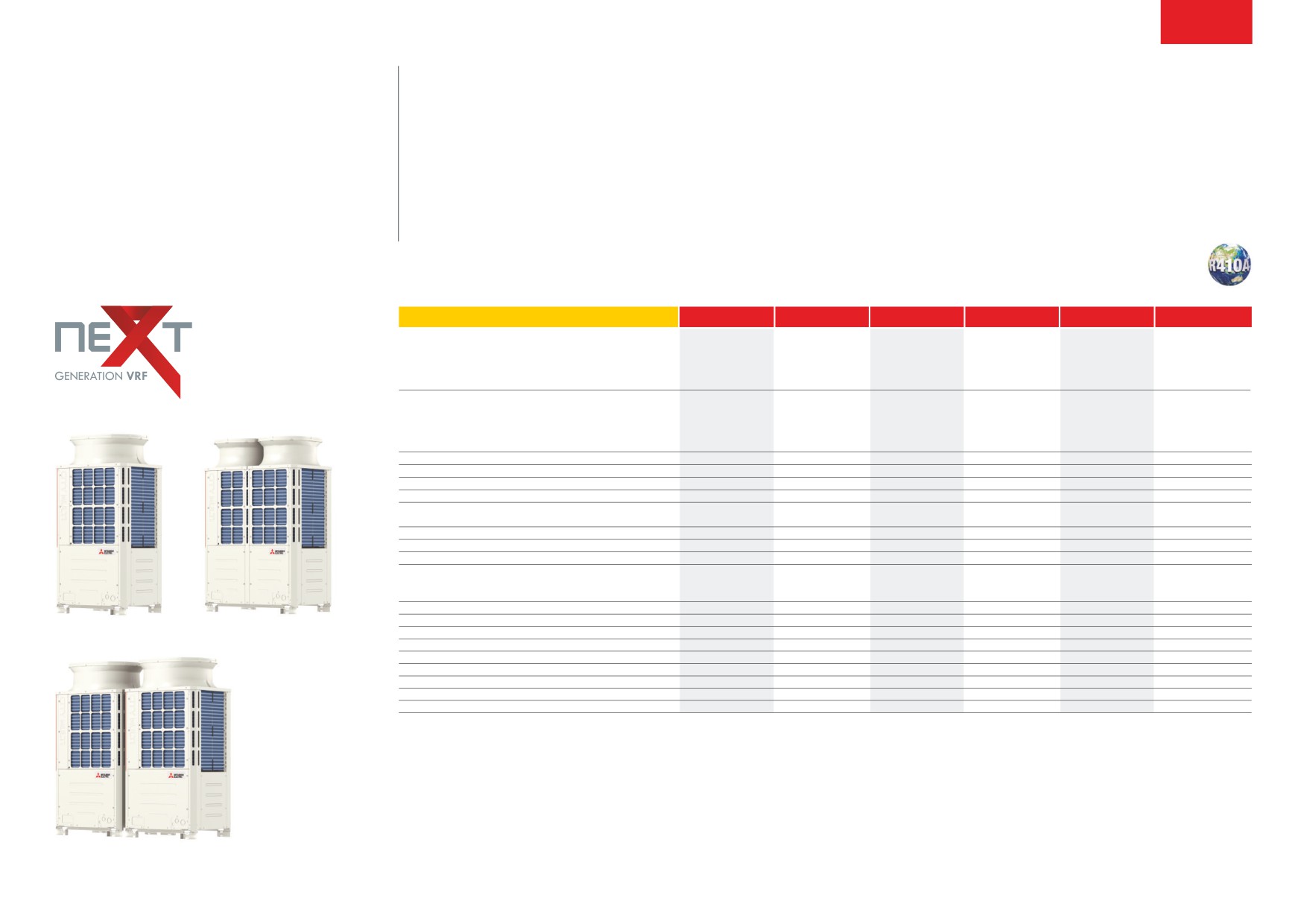

1.5.38

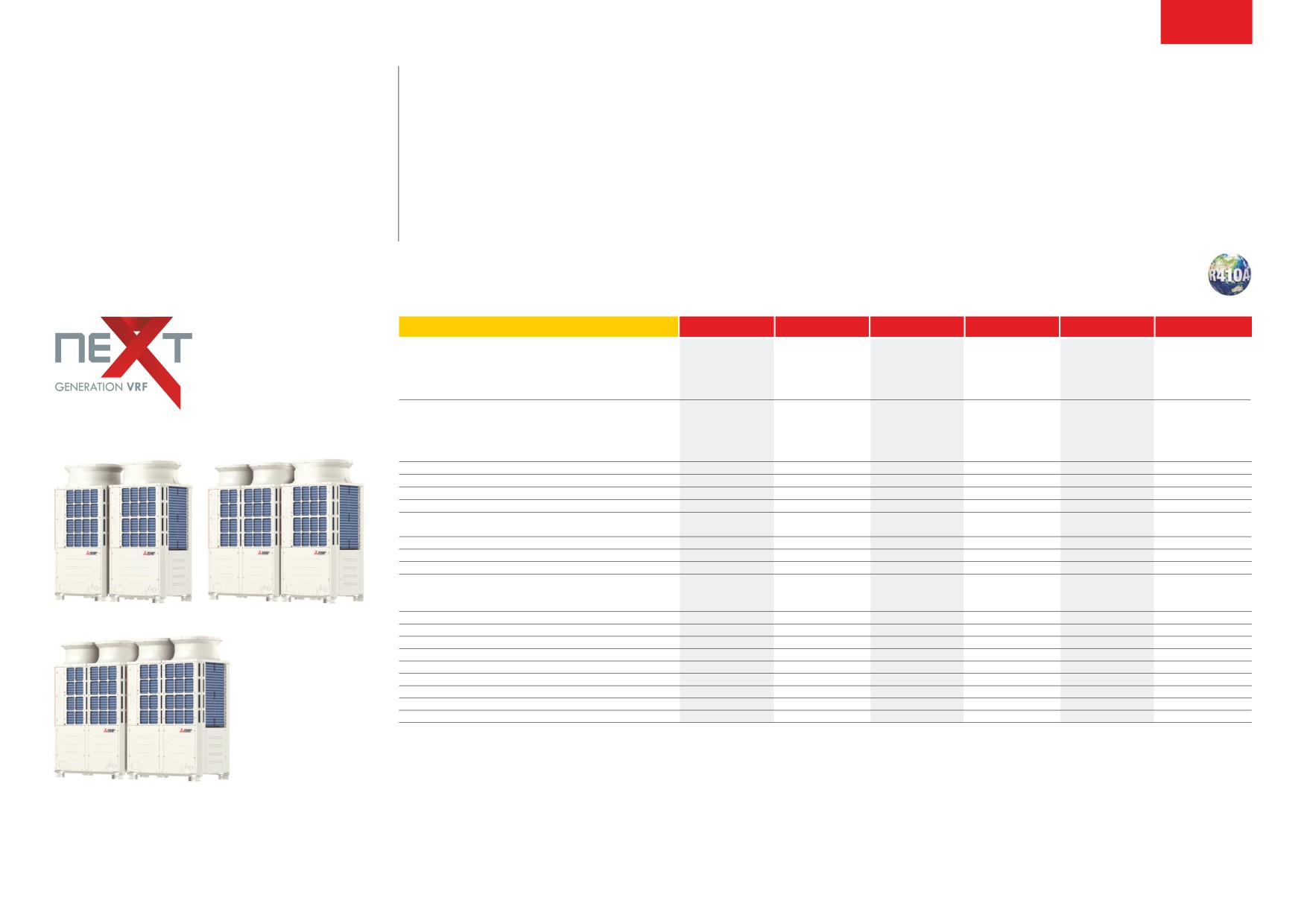

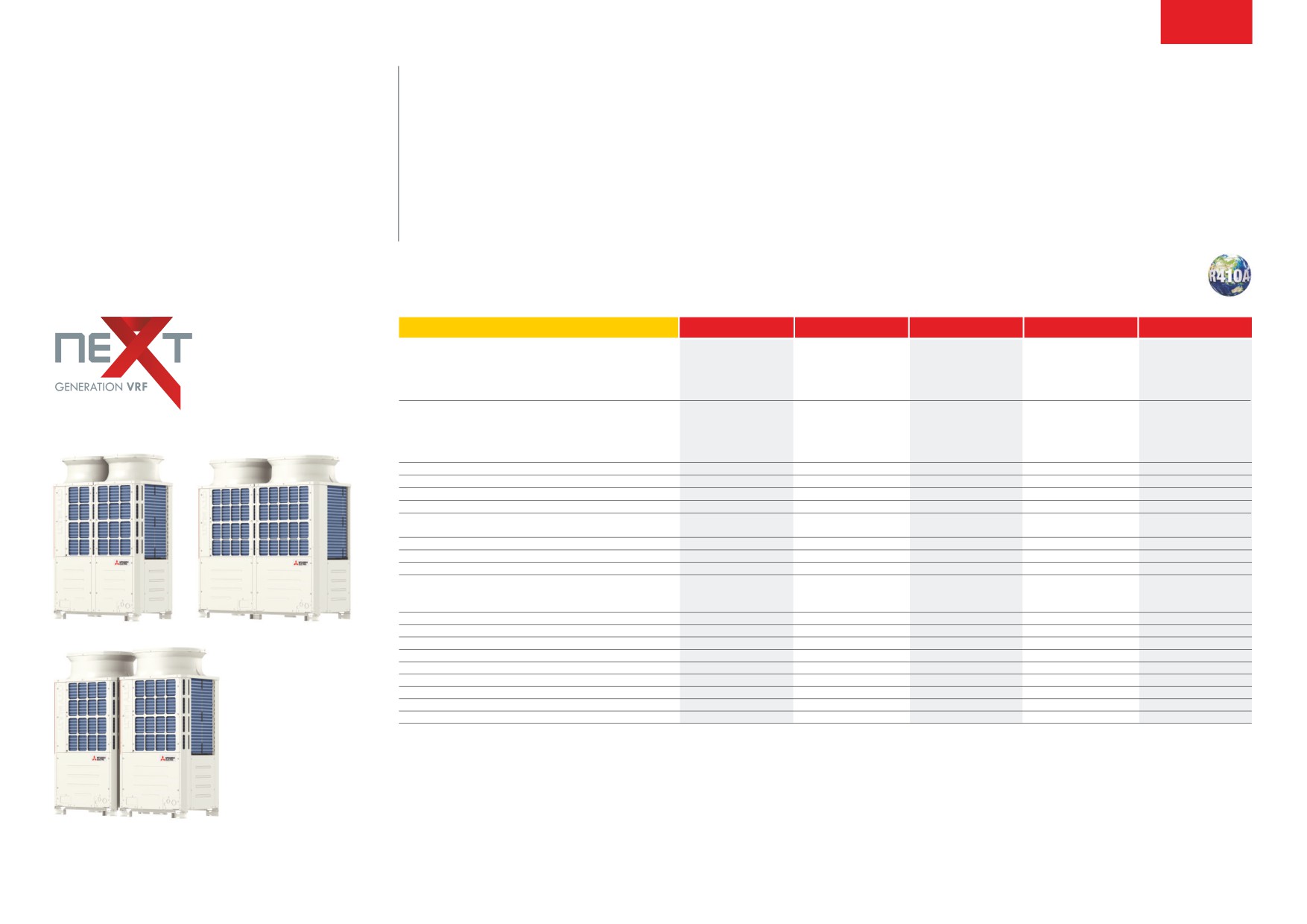

VRf technology provides a simple and flexible solution where there is a demand for a changeover
Y Series VRF
capability between heating and cooling for all indoor units, helping to ensure a constant and
comfortable indoor climate.
(22.4-45kW)
Key Features
Heat Pump Outdoor Unit
■ Effective, efficient solution meeting all the market needs
(Heating or Cooling)
■ Delivers the highest levels of comfort, both thermally and acoustically
■ Cost effective delivery
OUTDOOR UNITS
PUHY-P200YNW-A1
PUHY-P250YNW-A1
PUHY-P300YNW-A1
PUHY-P350YNW-A1
PUHY-P400YNW-A1
PUHY-P400YSNW-A1
CapaCiTy (kW)
Heating (nominal)
25.0
31.5
37.5
45.0
50.0
50.0
Cooling (nominal)
22.4
28.0
33.5
40.0
45.0
45.0
High Performance Heating (UK)
25.0
31.5
35.6
42.8
45.0
50.0
COP Priority Heating (UK)
22.8
28.7
34.1
41.0
43.0
45.5
Cooling (UK)
20.1
25.1
30.0
35.8
40.3
40.3
pOWER iNpUT (kW)
Heating (nominal)
5.10
7.20
8.46
10.39
12.37
10.52
Cooling (nominal)
4.81
7.14
8.79
10.95
14.19
9.97
High Performance Heating (UK)
6.43
9.07
11.25
13.82
13.98
13.47
COP Priority Heating (UK)
5.10
7.20
8.46
10.39
12.00
10.52
Cooling (UK)
2.79
4.14
5.10
6.35
9.08
5.78
COp / EER (nominal)
4.90 / 4.65
4.37 / 3.92
4.43 / 3.81
4.33 / 3.65
4.04 / 3.17
4.75 / 4.51
MaX No. Of CONNECTablE iNdOOR UNiTs
17
21
26
30
34
34
MaX CONNECTablE CapaCiTy
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
aiRflOW (m3/min)
High
170
185
240
270
300
170 / 170
pipE siZE mm (in)
Gas
22.2 (7/8”)
22.2 (7/8”)
22.2 (7/8”)
28.58 (1-1/8”)
28.58 (1-1/8”)
28.58 (1-1/8”)
Liquid
9.52 (3/8”)
9.52 (3/8”)*1
9.52 (3/8”)*1
12.7 (1/2")
12.7 (1/2")
12.7 (1/2")
sOUNd pREssURE lEVEl (dba) Heating / Cooling
59.0 / 58.0
61.0 / 60.0
64.5 / 61.0
64.0 / 62.0
67.0 / 65.0
62.0 / 61.0
sOUNd pOWER lEVEl (dba)
Heating / Cooling
77.0 / 75.0
80.0 / 78.0
84.0 / 80.0
83.0 / 80.0
86.0 / 82.0
80.0 / 78.0
WEighT (kg)
213
213
226
277
277
213 + 213
diMENsiONs (mm)
Width
920
920
920
1240
1240
920 + 920
Depth
740
740
740
740
740
740
(1650mm without legs)
Height
1858
1858
1858
1858
1858
1858
ElECTRiCal sUpply*
2
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
phasE*
2
Three
Three
Three
Three
Three
Three
sTaRTiNg CURRENT (a)*
2
8
8
8
8
8
8
NOMiNal sysTEM RUNNiNg CURRENT (a)*2 Heating / Cooling [MAX]
8.1 / 7.7 [16.1]
11.5 / 11.4 [17.8]
13.5 / 14.0 [22.7]
16.6 / 17.5 [26.4]
19.8 / 22.7 [31.9]
16.8 / 15.9 [16.1]
gUaRaNTEEd OpERaTiNg RaNgE (ºC)
Heating / Cooling
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)*
2
1 x 20
1 x 20
1 x 25
1 x 32
1 x 32
1 x 20 / 1 x 20
MaiNs CablE No. Cores*
2
4 + earth
4 + earth
4 + earth
4 + earth
4 + earth
4 + earth / 4 + earth
ChaRgE REfRigERaNT (kg) / CO2 EQUiValENT (t) R410A (GWP 2088)
6.5 / 13.6
6.5 / 13.6
6.5 / 13.6
9.8 / 20.5
9.8 / 20.5
13 / 27.1
MaX addiTiONal REfRigERaNT (kg) / CO2 EQUiValENT (t) R410A (GWP 2088)
15.9 / 33.2
22.9 / 47.8
23.4 / 48.9
24 / 50.1
24.4 / 51.0
32 / 66.8
Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.
*1 12.7mm(1/2”) if P250 furthest length ≥ 90m, P300 furthest length ≥ 40m. *2 A separate power supply is required for each module. Where more than one figure is quoted there are multiple modules.

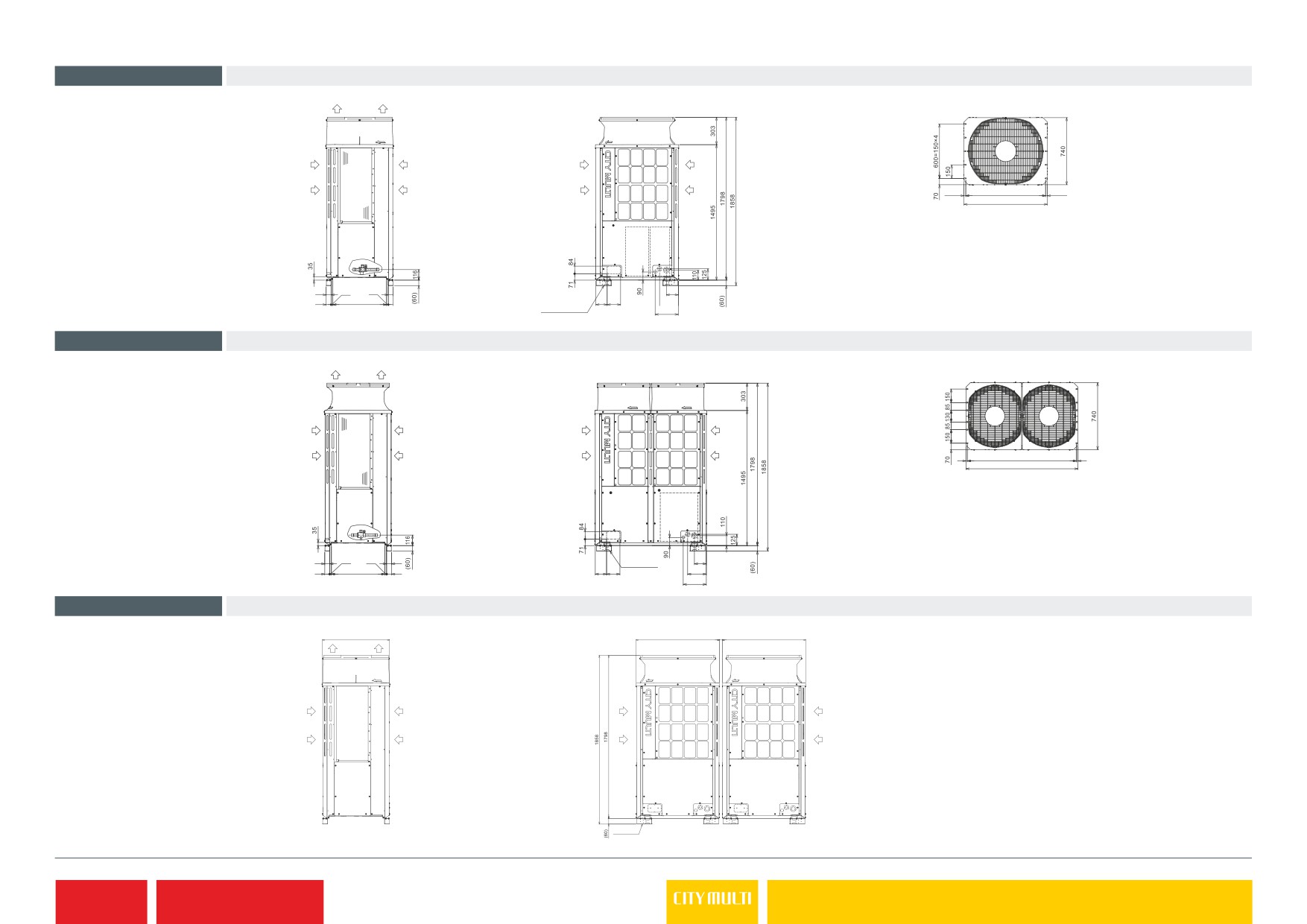

Product Dimensions PUHY-P200/250/300YNW-A1
Discharge air
Side View
Front View
Upper View
Intake
Intake
Intake
Intake
air
air
air
air
19.5
881
19.5
920
56
20
20
56
1
32
54
592
54
125
148
207
Detachable leg
256
(front and back, 2 points)
Product Dimensions PUHY-P350/400YNW-A1
Discharge air
Side View
Front View
Upper View
Intake
Intake
Intake
Intake
air
air
air
air
18
1204
18
1240
56
20
20
56
Detachable leg
132
54
592
54
125
148
(front and back, 2 points)
207
256
Product Dimensions PUHY-P400YSNW-A1
740
920
30
920
Discharge air
Outdoor unit 1
Outdoor unit 2
Side View
Front View
Intake
Intake
Intake
Intake
air
air
air
air
Detachable leg
Y Series VRF (22.4-45kW)
1.5.39
Air Conditioning
Heat Pump Outdoor Unit (Heating or Cooling)
1.5.40
VRf technology provides a simple and flexible solution where there is a demand for a changeover
Y Series VRF
capability between heating and cooling for all indoor units, helping to ensure a constant and
comfortable indoor climate.
(50-63kW)
Key Features
Heat Pump Outdoor Unit
■ Effective, efficient solution meeting all the market needs
(Heating or Cooling)
■ Delivers the highest levels of comfort, both thermally and acoustically
■ Cost effective delivery
OUTDOOR UNITS
PUHY-P450YNW-A1
PUHY-P450YSNW-A1
PUHY-P500YNW-A1
PUHY-P500YSNW-A1
PUHY-P550YSNW-A1
CapaCiTy (kW)
Heating (nominal)
56.0
56.0
63.0
63.0
69.0
Cooling (nominal)
50.0
50.0
56.0
56.0
63.0
High Performance Heating (UK)
50.4
56.0
56.7
63.0
65.6
COP Priority Heating (UK)
48.2
51.0
54.2
57.3
62.8
Cooling (UK)
44.8
44.8
50.1
50.1
56.4
pOWER iNpUT (kW)
Heating (nominal)
14.00
12.55
15.98
14.89
16.15
Cooling (nominal)
14.57
12.16
17.55
14.73
16.84
High Performance Heating (UK)
15.82
16.06
18.06
19.09
21.48
COP Priority Heating (UK)
13.58
12.55
15.50
14.89
16.15
Cooling (UK)
9.32
7.05
11.23
8.54
9.77
COp / EER (nominal)
4.00 / 3.43
4.46 / 4.11
3.94 / 3.19
4.23 / 3.80
4.27 / 3.74
MaX No. Of CONNECTablE iNdOOR UNiTs
39
39
43
43
47
MaX CONNECTablE CapaCiTy
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
aiRflOW (m3/min)
High
305
170 / 185
365
185 / 185
185 / 240
pipE siZE mm (in)
Gas
28.58 (1-1/8”)
28.58 (1-1/8”)
28.58 (1-1/8”)
28.58 (1-1/8”)
28.58 (1-1/8”)
Liquid
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
sOUNd pREssURE lEVEl (dba) Heating / Cooling
69.5 / 65.5
63.0 / 62.0
66.5 / 63.5
64.0 / 63.0
66.0 / 63.5
sOUNd pOWER lEVEl (dba)
Heating / Cooling
89.0 / 84.0
82.0 / 80.0
85.0 / 82.0
83.0 / 81.0
85.0 / 82.0
WEighT (kg)
293
213 + 213
334
213 + 213
213 + 226
diMENsiONs (mm)
Width
1240
920 + 920
1750
920 + 920
920 + 920
Depth
740
740
740
740
740
(1798mm without legs)
Height
1858
1858
1858
1858
1858
ElECTRiCal sUpply*1
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
phasE*1
Three
Three
Three
Three
Three
sTaRTiNg CURRENT (a)*1
8
8
8
8
8
NOMiNal sysTEM RUNNiNg CURRENT (a)*1 Heating / Cooling [MAX]
22.4 / 23.3 [37.1]
20.1 / 19.5 [16.1 + 17.8]
25.6 / 28.1 [43.7]
23.8 / 23.6 [17.8 + 17.8]
25.9 / 27.0 [17.8 + 22.7]
gUaRaNTEEd OpERaTiNg RaNgE (ºC)
Heating / Cooling
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)*1
1 x 40
1 x 20 / 1 x 20
1 x 50
1 x 20 / 1 x 20
1 x 20 / 1 x 25
MaiNs CablE No. Cores*1
4 + earth
4 + earth / 4 + earth
4 + earth
4 + earth / 4 + earth
4 + earth / 4 + earth
ChaRgE REfRigERaNT (kg) / CO2
EQUiValENT (t) R410A (GWP 2088)
10.8 / 22.6
13 / 27.1
10.8 / 22.6
13 / 27.1
13 / 27.1
MaX addiTiONal REfRigERaNT (kg) / CO2 EQUiValENT (t) R410A (GWP 2088)
32.2 / 67.2
32 / 66.8
33.1 / 69.1
32.9 / 68.7
34.7 / 72.5
Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.
*1 A separate power supply is required for each module. Where more than one figure is quoted there are multiple modules.

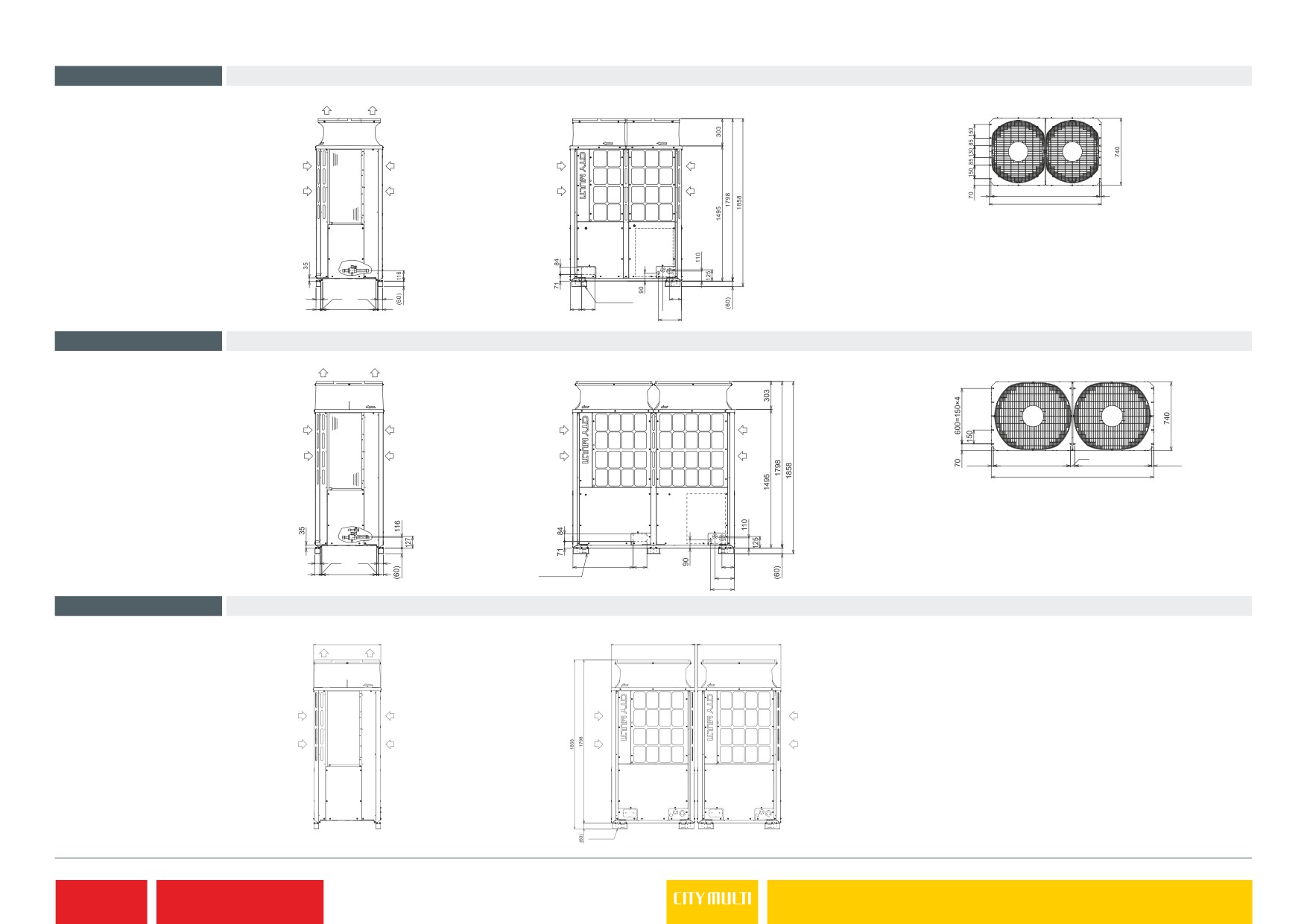

Product Dimensions PUHY-P450YNW-A1
Side View
Discharge air
Front View
Upper View
Intake
Intake
Intake
Intake
air
air
air
air
18
1204
18
1240
56
20
20
56
Detachable leg
132
54
592
54
125
148
(front and back, 2 points)
207
256
Product Dimensions PUHY-P500YNW-A1
Discharge air
Side View
Front View
Upper View
ntake
Intake
Intake
Intake
air
air
air
air
49
19.5
831
831
19.5
1750
60
20
20
60
650
148
1
32
54
592
54
207
Detachable leg
(front and back, 3 points)
256

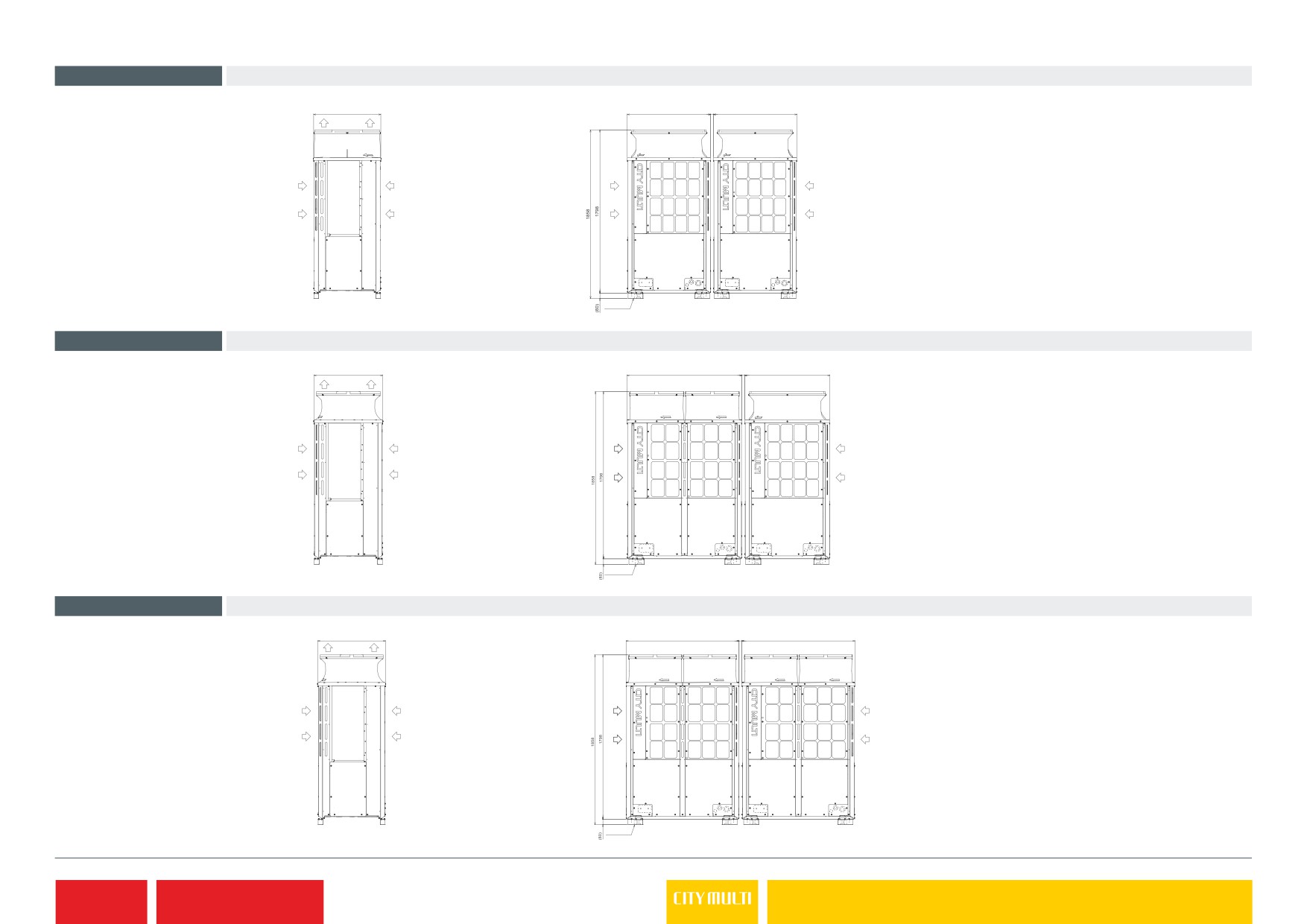

Product Dimensions PUHY-P450/500/550YSNW-A1
740
920
30
920
Discharge air
Outdoor unit 1
Outdoor unit 2
Side View
Front View
Intake
Intake
Intake
Intake
air
air
air
air
Detachable leg
Y Series VRF (50-63kW)
1.5.41
Air Conditioning
Heat Pump Outdoor Unit (Heating or Cooling)
1.5.42
VRf technology provides a simple and flexible solution where there is a demand for a changeover
Y Series VRF
capability between heating and cooling for all indoor units, helping to ensure a constant and
comfortable indoor climate.
(69-96kW)
Key Features
Heat Pump Outdoor Unit
■ Effective, efficient solution meeting all the market needs
(Heating or Cooling)
■ Delivers the highest levels of comfort, both thermally and acoustically
■ Cost effective delivery
OUTDOOR UNITS
PUHY-P600YSNW-A1
PUHY-P650YSNW-A1
PUHY-P700YSNW-A1
PUHY-P750YSNW-A1
PUHY-P800YSNW-A1
PUHY-P850YSNW-A1
CapaCiTy (kW)
Heating (nominal)
76.5
81.5
88.0
95.0
100.0
108.0
Cooling (nominal)
69.0
73.0
80.0
85.0
90.0
96.0
High Performance Heating (UK)
72.7
77.4
83.6
90.3
95.0
97.2
COP Priority Heating (UK)
69.6
74.2
80.1
86.5
91.0
92.9
Cooling (UK)
61.8
65.3
71.6
76.1
80.6
85.9
pOWER iNpUT (kW)
Heating (nominal)
17.83
20.17
20.95
23.45
24.87
27.76
Cooling (nominal)
18.69
21.79
22.59
25.83
26.31
30.00
High Performance Heating (UK)
23.71
26.83
27.86
31.19
33.08
31.37
COP Priority Heating (UK)
17.83
20.17
20.95
23.45
24.87
26.93
Cooling (UK)
10.84
12.64
13.10
14.98
15.26
19.20
COp / EER (nominal)
4.29 / 3.69
4.04 / 3.35
4.20 / 3.54
4.05 / 3.29
4.02 / 3.42
3.89 / 3.20
MaX No. Of CONNECTablE iNdOOR UNiTs
50
50
50
50
50
50
MaX CONNECTablE CapaCiTy
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
aiRflOW (m3/min)
High
240 / 240
185 / 300
270 / 270
270 / 300
270 / 305
300 / 305
pipE siZE mm (in)
Gas
28.58 (1-1/8”)
28.58 (1-1/8”)
34.93 (1-3/8”)
34.93 (1-3/8”)
34.93 (1-3/8”)
41.28 (1-5/8”)
Liquid
15.88 (5/8”)
15.88 (5/8”)
19.05 (3/4”)
19.05 (3/4”)
19.05 (3/4”)
19.05 (3/4”)
sOUNd pREssURE lEVEl (dba) Heating / Cooling
67.5 / 64.0
68.0 / 66.5
67.0 / 65.0
68.5 / 67.0
71.0 / 67.5
71.5 / 68.5
sOUNd pOWER lEVEl (dba)
Heating / Cooling
87.0 / 83.0
87.0 / 83.0
86.0 / 83.0
88.0 / 84.0
90.0 / 85.0
91.0 / 86.0
WEighT (kg)
226 + 226
213 + 277
277 + 277
277 + 277
277 + 293
277 + 293
diMENsiONs (mm)
Width
920 + 920
920 + 1240
1240 + 1240
1240 + 1240
1240 + 1240
1240 + 1240
Depth
740
740
740
740
740
740
(1798mm without legs)
Height
1858
1858
1858
1858
1858
1858
ElECTRiCal sUpply*1
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
phasE*1
Three
Three
Three
Three
Three
Three
sTaRTiNg CURRENT (a)*1
8
8
8
8
8
8
NOMiNal sysTEM RUNNiNg CURRENT (a)*1 Heating / Cooling [MAX]
28.5 / 29.9 [22.7 + 22.7]
32.3 / 34.9 [17.8 + 31.9]
33.5 / 36.2 [26.4 + 26.4]
37.6 / 41.4 [26.4 + 31.9]
39.8 / 42.1 [26.4 + 37.1]
44.5 / 48.1 [31.9 + 37.1]
gUaRaNTEEd OpERaTiNg RaNgE (ºC)
Heating / Cooling
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)*1
1 x 25 / 1 x 25
1 x 20 / 1 x 32
1 x 32 / 1 x 32
1 x 32 / 1 x 32
1 x 32 / 1 x 40
1 x 32 / 1 x 40
MaiNs CablE No. Cores*1
4 + earth / 4 + earth
4 + earth / 4 + earth
4 + earth / 4 + earth
4 + earth / 4 + earth
4 + earth / 4 + earth
4 + earth / 4 + earth
ChaRgE REfRigERaNT (kg) / CO2
EQUiValENT (t) R410A (GWP 2088)
13 / 27.1
16.3 / 34.0
19.6 / 40.9
19.6 / 40.9
20.6 / 43.0
20.6 / 43.0
MaX addiTiONal REfRigERaNT (kg) / CO2 EQUiValENT (t) R410A (GWP 2088)
34.7 / 72.5
35.2 / 73.5
44.8 / 93.5
44.8 / 93.5
44.7 / 93.3
46.5 / 97.1
Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.
*1 A separate power supply is required for each module. Where more than one figure is quoted there are multiple modules.
Product Dimensions PUHY-P600YSNW-A1
740
920
30
920
Side View
Discharge air
Front View
Outdoor unit 1
Outdoor unit 2
Intake
Intake
Intake
Intake
air
air
air
air
Detachable leg
Product Dimensions PUHY-P650YSNW-A1
740
1240
30
920
Discharge air
Outdoor unit 1
Outdoor unit 2
Side View
Front View
Intake
Intake
Intake
Intake
air
air
air
air
Left view
Detachable leg
Product Dimensions PUHY-P700/750/800/850YSNW-A1
740
1240
30
1240
Discharge air
Outdoor unit 1
Outdoor unit 2
Side View
Front View
Intake
Intake
Intake
Intake
air
air
air
air
Detachable leg

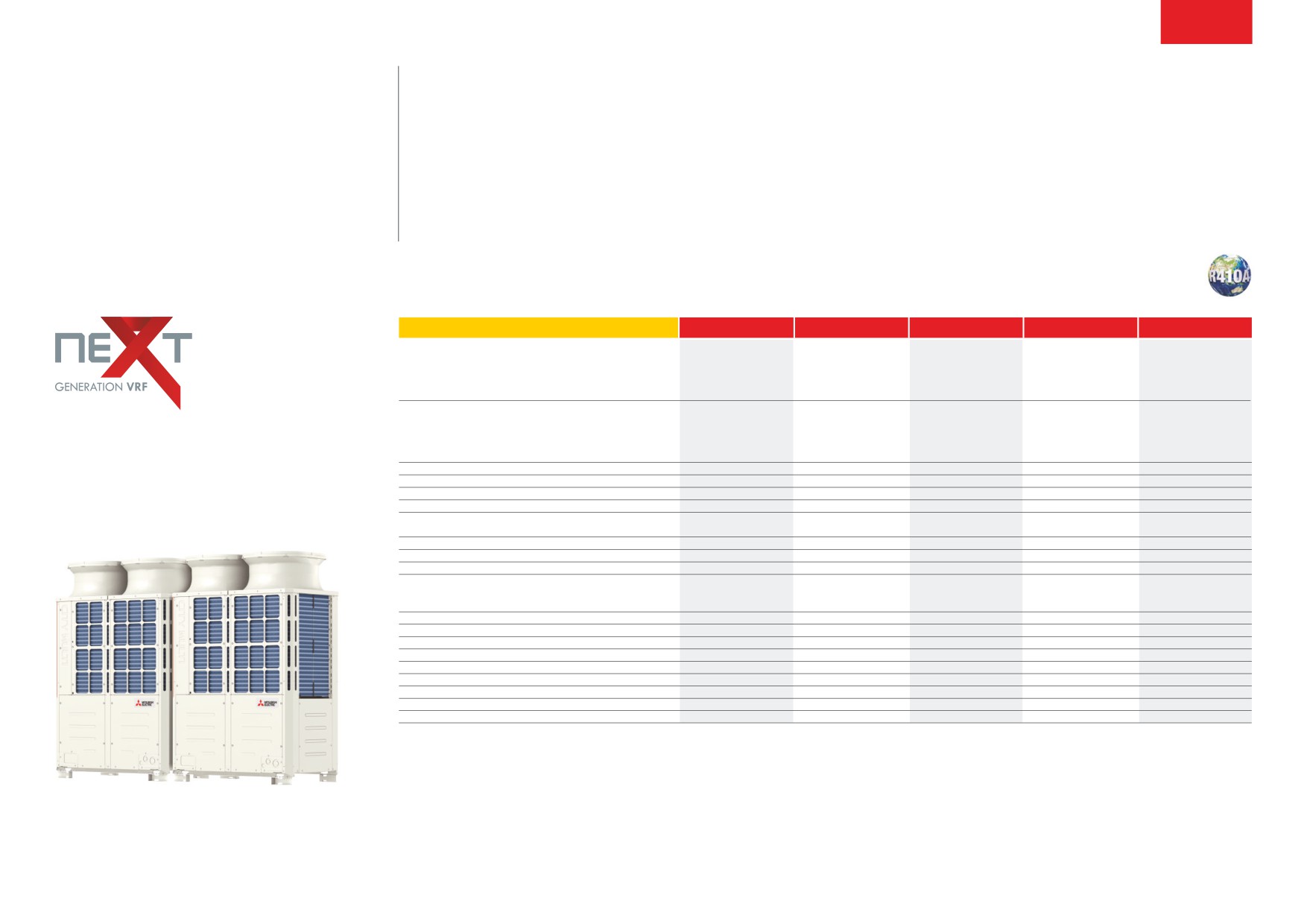

Y Series VRF (69-96kW)
1.5.43
Air Conditioning
Heat Pump Outdoor Unit (Heating or Cooling)
1.5.44
VRf technology provides a simple and flexible solution where there is a demand for a changeover
Y Series VRF
capability between heating and cooling for all indoor units, helping to ensure a constant and
comfortable indoor climate.
(101-124kW)
Key Features
Heat Pump Outdoor Unit
■ Effective, efficient solution meeting all the market needs
(Heating or Cooling)
■ Delivers the highest levels of comfort, both thermally and acoustically
■ Cost effective delivery
OUTDOOR UNITS
PUHY-P900YSNW-A1
PUHY-P950YSNW-A1
PUHY-P1000YSNW-A1
PUHY-P1050YSNW-A1
PUHY-P1100YSNW-A1
CapaCiTy (kW)
Heating (nominal)
113.0
119.5
127.0
132.0
140.0
Cooling (nominal)
101.0
108.0
113.0
118.0
124.0
High Performance Heating (UK)
101.7
107.6
114.3
118.8
126.0
COP Priority Heating (UK)
97.2
102.8
109.2
113.5
120.4
Cooling (UK)
90.4
96.7
101.1
105.6
111.0
pOWER iNpUT (kW)
Heating (nominal)
29.12
28.38
31.05
33.08
34.22
Cooling (nominal)
30.42
30.00
33.13
36.41
36.79
High Performance Heating (UK)
32.91
32.07
35.09
37.38
38.67
COP Priority Heating (UK)
28.25
27.53
30.12
32.09
33.19
Cooling (UK)
19.47
19.20
21.20
23.30
23.55
COp / EER (nominal)
3.88 / 3.32
4.21 / 3.60
4.09 / 3.41
3.99 / 3.24
4.09 / 3.37
MaX No. Of CONNECTablE iNdOOR UNiTs
50
50
50
50
50
MaX CONNECTablE CapaCiTy
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
aiRflOW (m3/min)
High
305 / 305
185 / 270 / 270
185 / 270 / 300
185 / 300 / 300
270 / 270 / 300
pipE siZE mm (in)
Gas
41.28 (1-5/8”)
41.28 (1-5/8”)
41.28 (1-5/8”)
41.28 (1-5/8”)
41.28 (1-5/8”)
Liquid
19.05 (3/4”)
19.05 (3/4”)
19.05 (3/4”)
19.05 (3/4”)
19.05 (3/4”)
sOUNd pREssURE lEVEl (dba) Heating / Cooling
72.5 / 68.5
68.0 / 66.0
69.5 / 68.0
70.5 / 68.5
70.0 / 68.5
sOUNd pOWER lEVEl (dba)
Heating / Cooling
92.0 / 87.0
87.0 / 84.0
88.0 / 85.0
90.0 / 86.0
89.0 / 86.0
WEighT (kg)
293 + 293
213 + 277 + 277
213 + 277 + 277
213 + 277 + 277
277 + 277 + 277
diMENsiONs (mm)
Width
1240 + 1240
920 + 1240 + 1240
920 + 1240 + 1240
920 + 1240 + 1240
1240 + 1240 + 1240
Depth
740
740
740
740
740
(1798mm without legs)
Height
1858
1858
1858
1858
1858
ElECTRiCal sUpply*1
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
phasE*1
Three
Three
Three
Three
Three
sTaRTiNg CURRENT (a)*1
8
8
8
8
8
NOMiNal sysTEM RUNNiNg CURRENT (a)*1 Heating / Cooling [MAX]
46.7 / 48.7 [37.1 + 37.1]
45.5 / 48.1 [17.8 + 26.4 + 26.4]
49.7 / 53.1 [17.8 + 26.4 + 31.9]
53.0 / 58.3 [17.8 + 31.9 + 31.9]
54.8 / 59.0 [26.4 + 26.4 + 31.9]
gUaRaNTEEd OpERaTiNg RaNgE (ºC)
Heating / Cooling
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)*1
1 x 40 / 1 x 40
1 x 20 / 1 x 32 / 1 x 32
1 x 20 / 1 x 32 / 1 x 32
1 x 20 / 1 x 32 / 1 x 32
1 x 32 / 1 x 32 / 1 x 32
MaiNs CablE No. Cores*1
4 + earth / 4 + earth
4 + earth / 4 + earth
4 + earth / 4 + earth / 4 + earth
4 + earth / 4 + earth / 4 + earth
4 + earth / 4 + earth / 4 + earth
ChaRgE REfRigERaNT (kg) / CO2
EQUiValENT (t) R410A (GWP 2088)
21.6 / 45.1
26.1/ 54.5
26.1 / 54.5
26.1 / 54.5
29.4 / 61.4
MaX addiTiONal REfRigERaNT (kg) / CO2 EQUiValENT (t) R410A (GWP 2088)
46.4 / 96.9
45.9 / 95.8
45.9 / 95.8
45.9 / 95.8
45.6 / 95.2
Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.
*1 A separate power supply is required for each module. Where more than one figure is quoted there are multiple modules.
Product Dimensions PUHY-P900YSNW-A1
740
1240
30
1240
Side View
Discharge air
Front View
Outdoor unit 1
Outdoor unit 2
Intake
Intake
Intake
Intake
air
air
air
air
Detachable leg
Product Dimensions PUHY-P950/1000/1050YSNW-A1
740
124 0
30
1240
30
920
Discharge air
Outdoor unit 1
Outdoor unit 2
Outdoor unit 3
Side View
Front View
Intake
Intake
e
Intake
Intake
air
air
air
air
Detachable leg

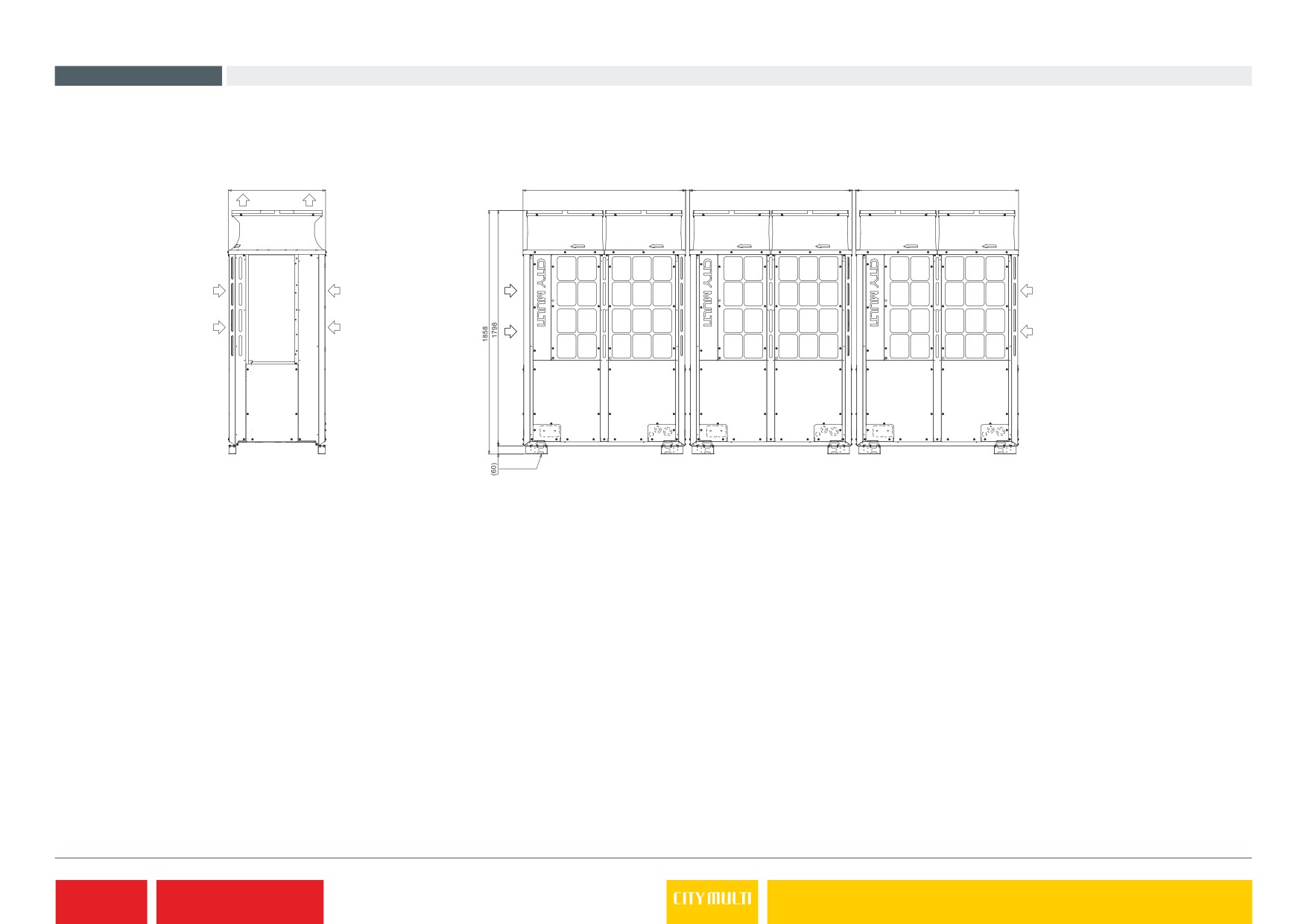

Product Dimensions PUHY-P1100YSNW-A1
740
1240
30
1240
30
1240
Discharge air
Outdoor unit 1
Outdoor unit 2
Outdoor unit 3
Side View
Front View
Intake
Intake
ke
Intake
Intake
air
air
air
air
Detachable leg

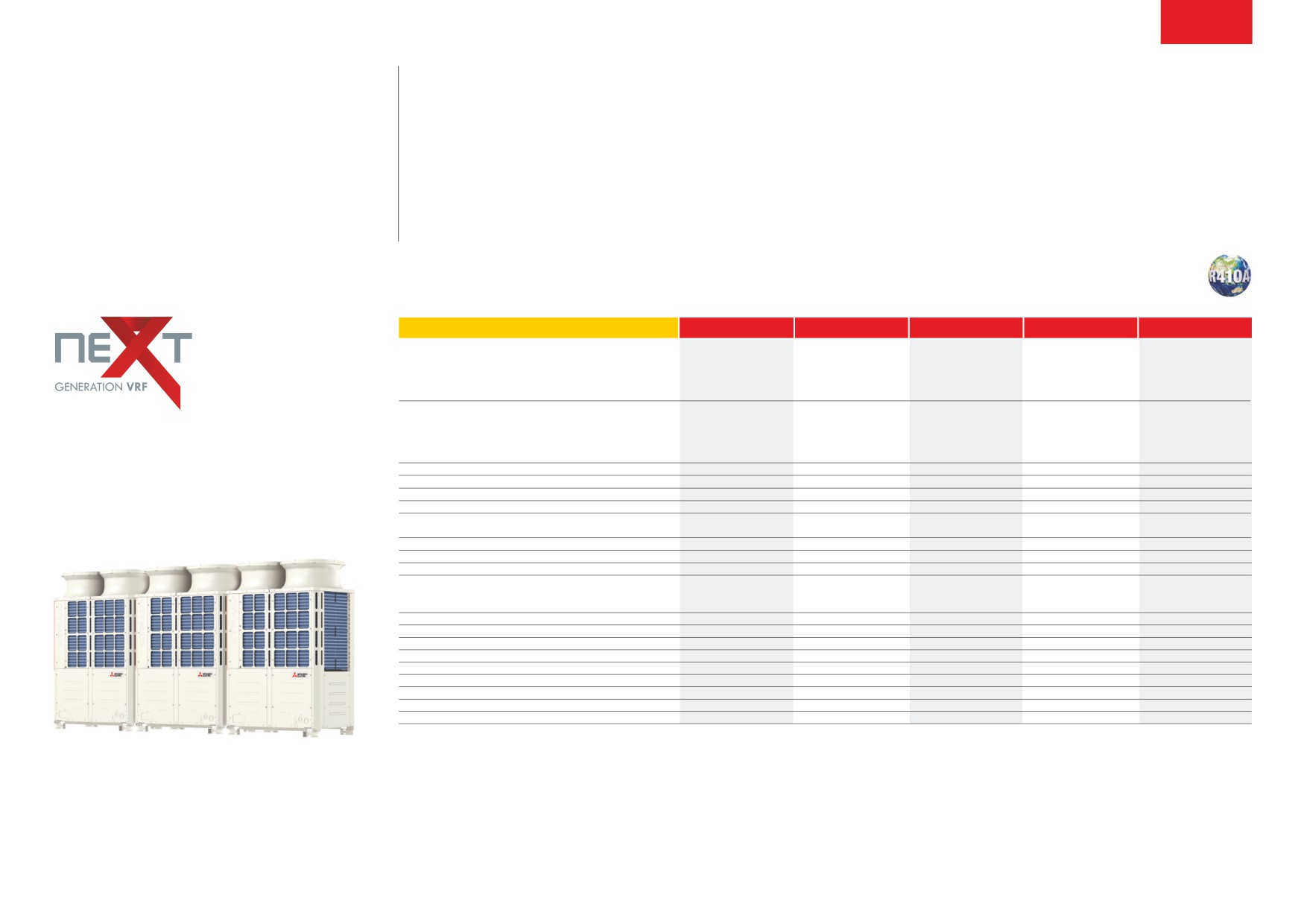

Y Series VRF (101-124kW)
1.5.45
Air Conditioning
Heat Pump Outdoor Unit (Heating or Cooling)
1.5.46
VRf technology provides a simple and flexible solution where there is a demand for a changeover
Y Series VRF
capability between heating and cooling for all indoor units, helping to ensure a constant and
comfortable indoor climate.
(130-150kW)
Key Features
Heat Pump Outdoor Unit
■ Effective, efficient solution meeting all the market needs
(Heating or Cooling)
■ Delivers the highest levels of comfort, both thermally and acoustically
■ Cost effective delivery
OUTDOOR UNITS
PUHY-P1150YSNW-A1
PUHY-P1200YSNW-A1
PUHY-P1250YSNW-A1
PUHY-P1300YSNW-A1
PUHY-P1350YSNW-A1
CapaCiTy (kW)
Heating (nominal)
145.0
150.0
156.5
163.0
168.0
Cooling (nominal)
130.0
136.0
140.0
146.0
150.0
High Performance Heating (UK)
130.5
135.0
140.9
146.7
151.2
COP Priority Heating (UK)
124.7
129.0
134.6
140.2
144.5
Cooling (UK)
116.4
121.7
125.3
130.7
134.3
pOWER iNpUT (kW)
Heating (nominal)
36.25
38.36
40.12
41.90
43.29
Cooling (nominal)
40.49
44.29
44.30
45.06
45.18
High Performance Heating (UK)
40.96
43.35
45.34
47.35
48.92
COP Priority Heating (UK)
35.16
37.21
38.92
40.64
41.99
Cooling (UK)
25.91
28.35
28.35
28.84
28.92
COp / EER (nominal)
4.00 / 3.21
3.91 / 3.07
3.90 / 3.16
3.89 / 3.24
3.88 / 3.32
MaX No. Of CONNECTablE iNdOOR UNiTs
50
50
50
50
50
MaX CONNECTablE CapaCiTy
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
50~130% OU Capacity
aiRflOW (m3/min)
High
270 / 300 / 300
300 / 300 / 300
300 / 300 / 305
300 / 305 / 305
305 / 305 / 305
pipE siZE mm (in)
Gas
41.28 (1-5/8”)
41.28 (1-5/8”)
41.28 (1-5/8”)
41.28 (1-5/8”)
41.28 (1-5/8”)
Liquid
19.05 (3/4”)
19.05 (3/4”)
19.05 (3/4”)
19.05 (3/4”)
19.05 (3/4”)
sOUNd pREssURE lEVEl (dba) Heating / Cooling
71.0 / 69.0
72.0 / 70.0
73.0 / 70.0
73.5 / 70.0
74.5 / 70.5
sOUNd pOWER lEVEl (dba)
Heating / Cooling
90.0 / 86.0
91.0 / 87.0
92.0 / 88.0
93.0 / 88.0
94.0 / 89.0
WEighT (kg)
277 + 277 + 277
277 + 277 + 277
277 + 277 + 293
277 + 293 + 293
293 + 293 + 293
diMENsiONs (mm)
Width
1240 + 1240 + 1240
1240 + 1240 + 1240
1240 + 1240 + 1240
1240 + 1240 + 1240
1240 + 1240 + 1240
Depth
740
740
740
740
740
(1798mm without legs)
Height
1858
1858
1858
1858
1858
ElECTRiCal sUpply*1
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
380-415v, 50hz
phasE*1
Three
Three
Three
Three
Three
sTaRTiNg CURRENT (a)*1
8
8
8
8
8
NOMiNal sysTEM RUNNiNg CURRENT (a)*1 Heating / Cooling [MAX]
58.1 / 64.9 [26.4 + 31.9 + 31.9]
61.5 / 71.0 [31.9 + 31.9 + 31.9]
64.3 / 71.0 [31.9 + 31.9 + 37.1]
67.1 / 72.2 [31.9 + 37.1 + 37.1]
69.4 / 72.4 [37.1 + 37.1 + 37.1]
gUaRaNTEEd OpERaTiNg RaNgE (ºC)
Heating / Cooling
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
-20~15.5 / -5~52
fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)*1
1 x 32 / 1 x 32 / 1 x 32
1 x 32 / 1 x 32 / 1 x 32
1 x 32 / 1 x 32 / 1 x 40
1 x 32 / 1 x 40 / 1 x 40
1 x 40 / 1 x 40 / 1 x 40
MaiNs CablE No. Cores*1
4 + earth / 4 + earth / 4 + earth
4 + earth / 4 + earth / 4 + earth
4 + earth / 4 + earth / 4 + earth
4 + earth / 4 + earth / 4 + earth
4 + earth / 4 + earth / 4 + earth
ChaRgE REfRigERaNT (kg) / CO2
EQUiValENT (t) R410A (GWP 2088)
29.4 / 61.4
29.4 / 61.4
30.4 / 63.5
31.4 / 65.6
32.4 / 67.7
MaX addiTiONal REfRigERaNT (kg) / CO2 EQUiValENT (t) R410A (GWP 2088)
45.6 / 95.2
45.6 / 95.2
47.3 / 98.8
47.2 / 98.6
47.1 / 98.3
Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.
*1 A separate power supply is required for each module. Where more than one figure is quoted there are multiple modules.
Product Dimensions PUHY-P1150/1200/1250/1300/1350YSNW-A1
Side View
Front View
740
1240
30
1240
30
1240
Discharge air
Outdoor unit 1
Outdoor unit 2
Outdoor unit 3
Intake
Intake
ke
Intake
Intake
air
air
air
air
Detachable leg
Y Series VRF (130-150kW)
1.5.47
Air Conditioning
Heat Pump Outdoor Unit (Heating or Cooling)
