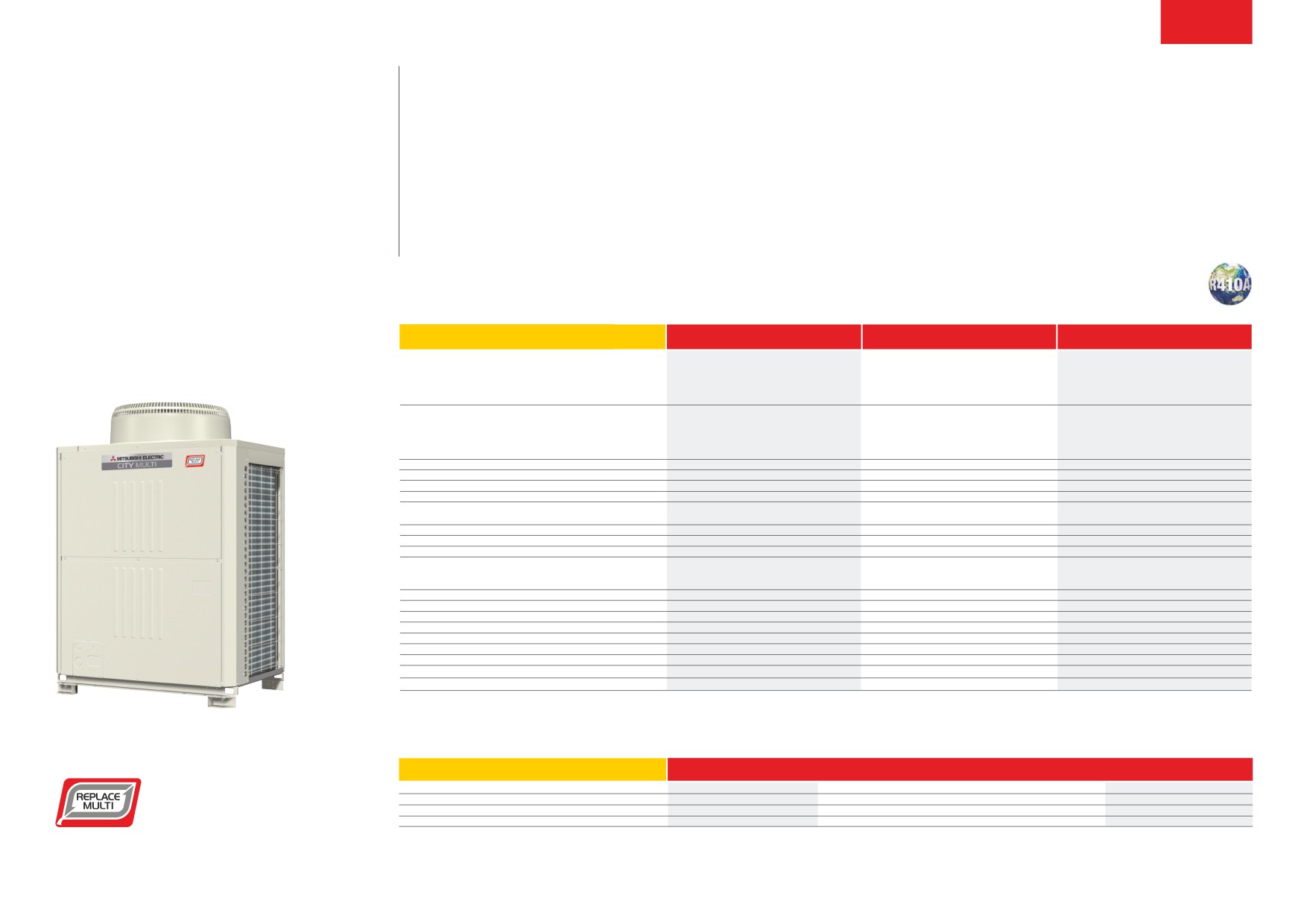

Enables the replacement of VRF systems, whilst utilising existing R22 / R407C pipework

R2 Series

designed for the maturing refurbishment sector, the tried and tested system enables the re-use of existing R22/R407C pipework,

whilst allowing upgrading to an efficient, effective system. Replace Multi cleans existing pipework during commissioning, removing

Replace Multi

any deposits and R22 mineral oil that would have ordinarily required new pipework. This results in significant savings on cost and

time, whilst also minimising any potential disruption.

(22.4-33.5kW)

Key Features

■ Enables replacement of VRF systems including non-Mitsubishi Electric models

Simultaneous Heating and

■ Utilises existing R22/R407C pipework, control and power wiring, to reduce waste, installation time,

CO₂ emissions and increase energy efficiency

Cooling with Heat Recovery

Outdoor Unit

OUTDOOR UNITS

PURY-RP200YJM-B

PURY-RP250YJM-B

PURY-RP300YJM-B

CapaCiTy (kW)

Heating (nominal)

25.0

31.5

37.5

Cooling (nominal)

22.4

28.0

33.5

High Performance Heating (UK)

24.0

30.2

36.0

COP Priority Heating (UK)

21.8

27.4

32.6

Cooling (UK)

21.1

26.3

31.5

pOWER iNpUT (kW)

Heating (nominal)

5.50

7.22

8.70

Cooling (nominal)

4.95

6.82

8.35

High Performance Heating (UK)

7.26

9.53

11.48

COP Priority Heating (UK)

5.34

7.00

8.44

Cooling (UK)

3.61

4.98

6.10

COp / EER (nominal)

4.54 / 4.52

4.36 / 4.10

4.31 / 4.01

MaX No. Of CONNECTablE iNdOOR UNiTs

MaX CONNECTablE CapaCiTy

50~150% OU Capacity

aiRflOW (m³/min)

High

225

pipE siZE mm (in)

Gas

28.58 (1-1/8”)

Liquid

19.05 (3/4”)

sOUNd pREssURE lEVEl (dba)

sOUNd pOWER lEVEl (dba)

WEighT (kg)

275

290

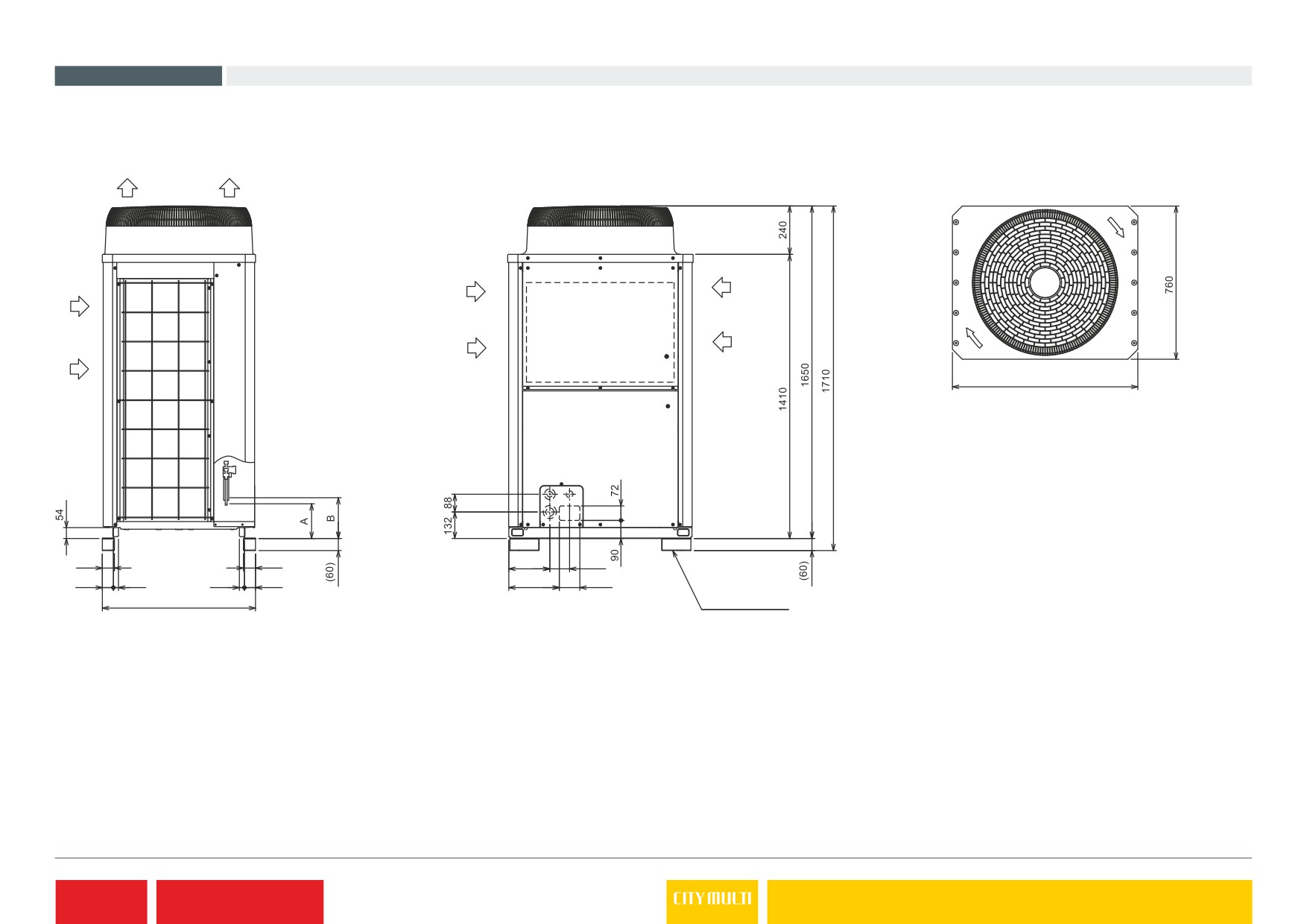

diMENsiONs (mm)

Width

1220

Depth

760

(1650mm without legs)

Height

1710

ElECTRiCal sUpply

380-415v, 50hz

phasE

Three

sTaRTiNg CURRENT (a)

NOMiNal sysTEM RUNNiNg CURRENT (a)* Heating / Cooling [MAX]

8.9 / 8.0 [11.8]

11.9 / 11.2 [16.4]

14.6 / 13.6 [20.0]

gUaRaNTEEd OpERaTiNg RaNgE (ºC)

Heating / Cooling

-20~15.5 / -5~46

fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)

1 x 20

1 x 25

MaiNs CablE No. Cores

4 + earth

ChaRgE REfRigERaNT (kg) / CO2 EQUiValENT (t) R410A (GWP 2088)

11.8 / 24.6

MaX addiTiONal REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

27.0 / 56.4

28.5 / 59.5

29.5 / 61.6

Note: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.

These products are made to order, please consult your local sales office for delivery schedule.

R2 SERIES REPLACE mULTI PIPING RESTRICTIONS

PURY-RP200-300YJM-B

TOTal pipiNg lENgTh

220m max

hEighT bETWEEN OU aNd iU (OU abOVE iU)

50m max

fURThEsT pipiNg lENgTh

100m max

hEighT bETWEEN OU aNd iU (OU bElOW iU)

40m max

lENgTh bETWEEN OU aNd bC

70m max

hEighT bETWEEN iU aNd bC

15m max

lENgTh bETWEEN fURThEsT iU aNd bC

30m max

hEighT bETWEEN iU aNd iU

15m max

Note: For detailed piping design see databook.

1.5.62

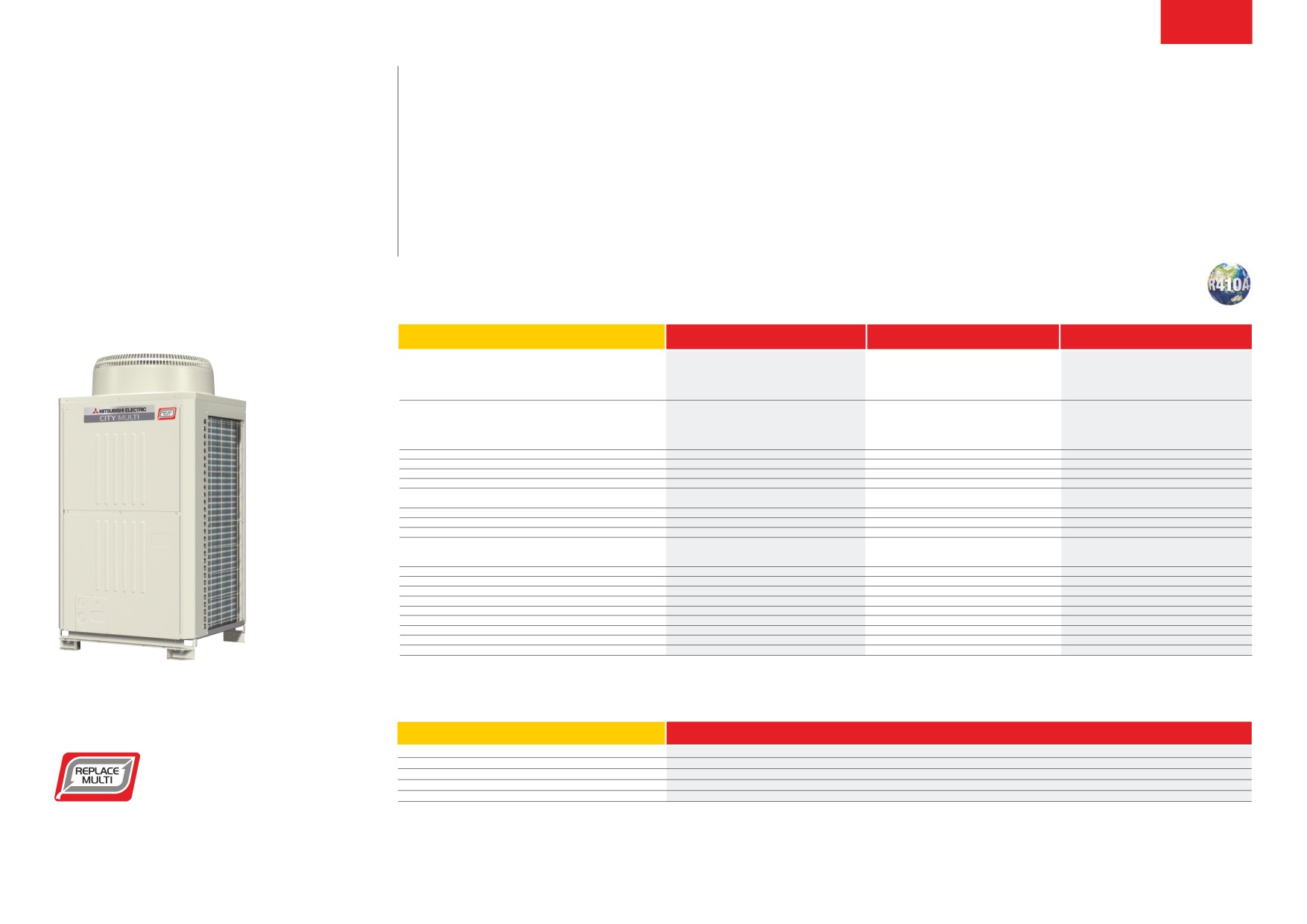

Enables the replacement of VRF systems, whilst utilising existing R22 / R407C pipework

Y Series

designed for the maturing refurbishment sector, the tried and tested system enables the re-use of existing R22/R407C pipework,

whilst allowing upgrading to an efficient, effective system. Replace Multi cleans existing pipework during commissioning, removing

Replace Multi

any deposits and R22 mineral oil that would have ordinarily required new pipework. This results in significant savings on cost and

time, whilst also minimising any potential disruption.

(22.4-33.5kW)

Key Features

■ Enables replacement of VRF systems including non-Mitsubishi Electric models

Heat Pump Outdoor Unit

■ Utilises existing R22/R407C pipework, control and power wiring, to reduce waste, installation time,

CO₂ emissions and increase energy efficiency

OUTDOOR UNITS

PUHY-RP200YJM-B

PUHY-RP250YJM-B

PUHY-RP300YJM-B

CapaCiTy (kW)

Heating (nominal)

25.0

31.5

37.5

Cooling (nominal)

22.4

28.0

33.5

High Performance Heating (UK)

25.0

31.5

36.0

COP Priority Heating (UK)

22.8

28.7

32.6

Cooling (UK)

21.2

26.6

31.5

pOWER iNpUT (kW)

Heating (nominal)

5.69

7.22

9.42

Cooling (nominal)

5.68

7.62

8.98

High Performance Heating (UK)

7.34

9.31

12.43

COP Priority Heating (UK)

5.63

7.15

9.14

Cooling (UK)

3.30

4.42

5.84

COp / EER (nominal)

4.39 / 3.94

4.36 / 3.67

3.98 / 3.73

MaX No. Of CONNECTablE iNdOOR UNiTs

MaX CONNECTablE CapaCiTy

50-130% OU Capacity

aiRflOW (m³/min)

High

185

pipE siZE mm (in)

Gas

28.58 (1-1/8”)

Liquid

12.7 (1/2”)

sOUNd pREssURE lEVEl (dba)

sOUNd pOWER lEVEl (dba)

WEighT (kg)

230

255

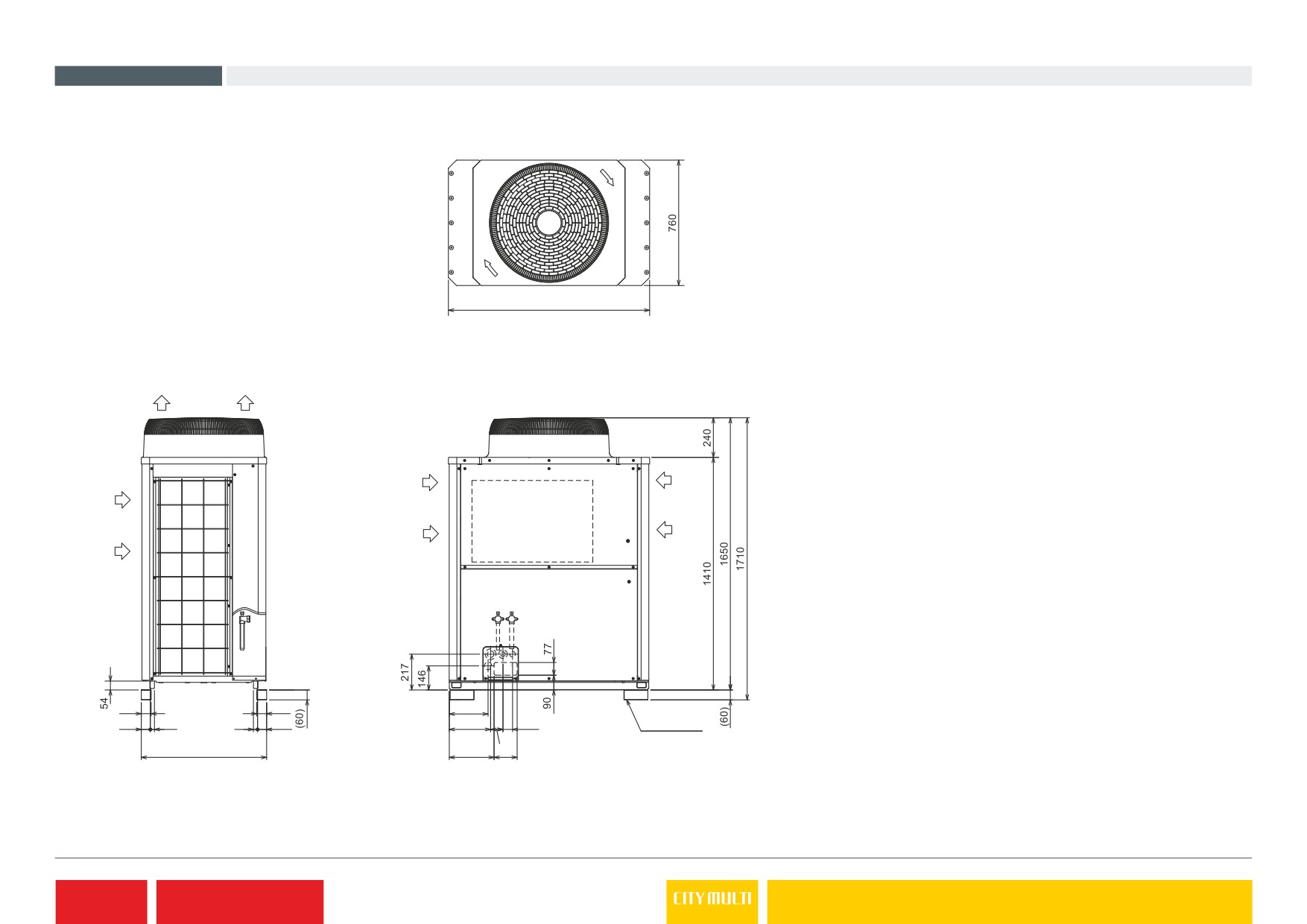

diMENsiONs (mm)

Width

920

Depth

760

(1650mm without legs)

Height

1710

ElECTRiCal sUpply

380-415v, 50hz

phasE

Three

sTaRTiNg CURRENT (a)

NOMiNal sysTEM RUNNiNg CURRENT (a)* Heating / Cooling [MAX]

8.7/8.7 [13.5]

12.1/12.7 [18.3]

15.2/14.4 [21.5]

gUaRaNTEEd OpERaTiNg RaNgE (ºC)

Heating / Cooling

-20~15.5 / -5~46

fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)

1 x 20

1 x 25

MaiNs CablE No. Cores

4 + earth

ChaRgE REfRigERaNT (kg) / CO2 EQUiValENT (t) R410A (GWP 2088)

6.5 / 13.6

9.0 / 18.8

MaX addiTiONal REfRigERaNT (kg) / CO2 EQUiValENT (t) R410A (GWP 2088)

21.0 / 43.8

28.0 / 58.5

Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.

Larger combination models are also available, please ask your local sales office for further information. These products are made to order, please consult your local sales office for delivery schedule.

PIPING RESTRICTIONS

PUHY-RP200-300YJM-B

TOTal pipiNg lENgTh

300m max

fURThEsT pipiNg lENgTh

120m max

fURThEsT pipiNg lENgTh afTER 1st bRaNCh

40m max

bETWEEN iNdOOR aNd OUTdOOR UNiTs - hEighT

50m max (40m max if outdoor installed below)

bETWEEN iNdOOR aNd iNdOOR UNiTs - hEighT

15m max
