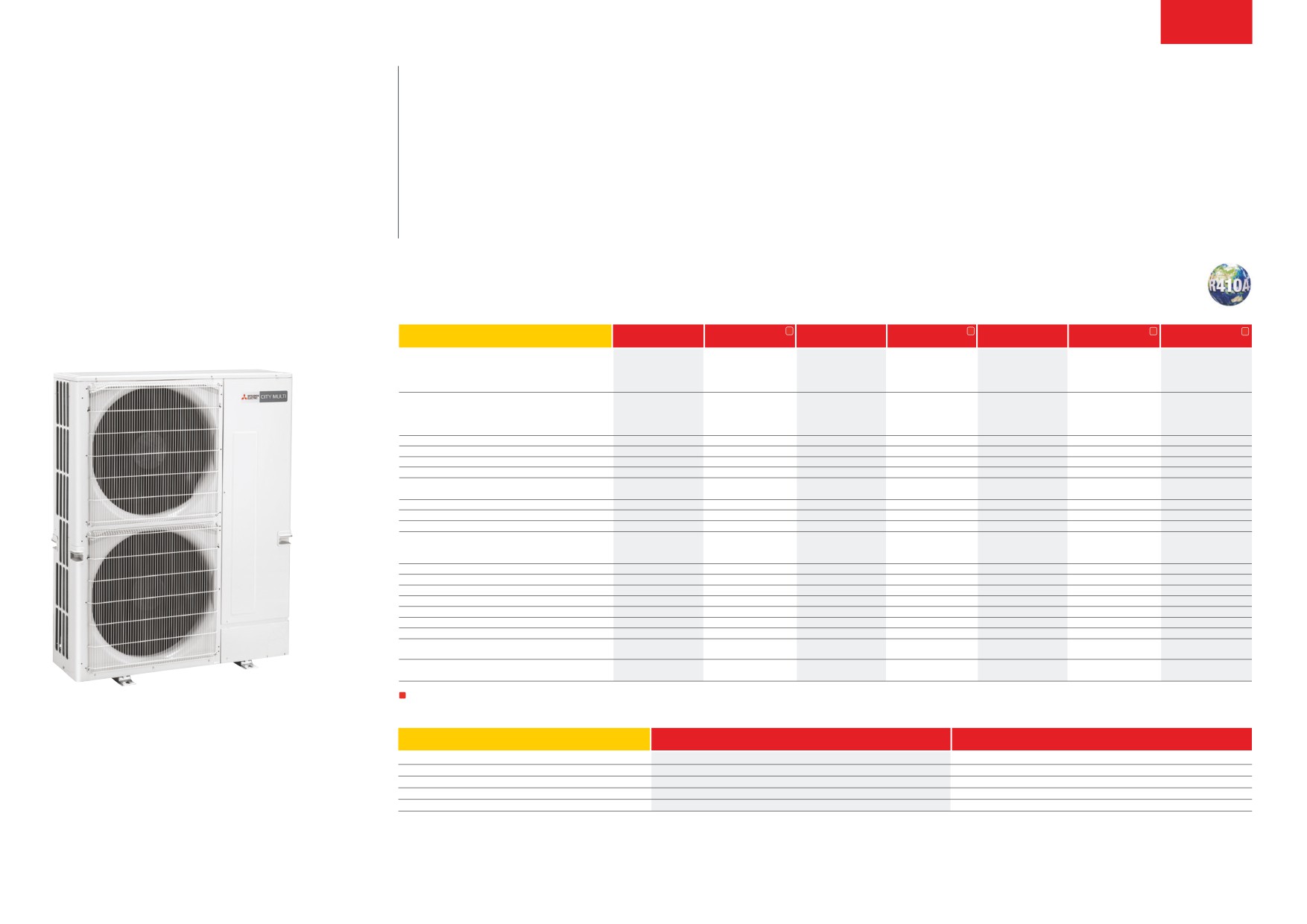

1.5.50
VRf technology and efficiency delivered in a small capacity, low footprint, side blow system, where
Y Series
there is a demand for a changeover capability between heating and cooling for all indoor units.
Twin Fan
(12.5-22kW)
Key Features
■ VRF efficiency, control and piping benefits in a low footprint, low impact solution
Mini VRF Heat Pump
■ Ideal for areas of high occupancy, such as city centres and residential areas
Outdoor Unit
■ Compatible with M Series, Mr Slim and City Multi indoor units
3
3
3
3
OUTDOOR UNITS
PUMY-P112VKM5
PUMY-P112YKM4
PUMY-P125VKM5
PUMY-P125YKM4
PUMY-P140VKM5
PUMY-P140YKM4
PUMY-P200YKM2
CapaCiTy (kW)
Heating (nominal)
14.0
14.0
16.0
16.0
18.0
18.0
25.0
Cooling (nominal)
12.5
12.5
14.0
14.0
15.5
15.5
22.4
Heating (UK)
13.9
13.9
15.8
15.8
17.8
17.8
24.8
Cooling (UK)
10.0
10.0
11.2
11.2
12.4
12.4
17.9
pOWER iNpUT (kW)
Heating (nominal)
3.04
3.04
3.74
3.74
4.47
4.47
5.84
Cooling (nominal)
2.79
2.79
3.46
3.46
4.52
4.52
6.05
Heating (UK)
4.01
4.01
4.94
4.94
5.90
5.90
7.71
Cooling (UK)
1.56
1.56
1.94
1.94
2.53
2.53
3.39
COp / EER (nominal)
4.61 / 4.48
4.61 / 4.48
4.28 / 4.05
4.28 / 4.05
4.03 / 3.43
4.03 / 3.43
4.28 / 3.70
MaX NO. Of CONNECTablE iNdOOR UNiTs
9
9
10
10
12
12
12
MaX CONNECTablE CapaCiTy
50-130% OU Capacity
50-130% OU Capacity
50-130% OU Capacity
50-130% OU Capacity
50-130% OU Capacity
50-130% OU Capacity
50-130% OU Capacity
aiRflOW (m3/min)
110
110
110
110
110
110
139
pipE siZE MM (in)
Gas
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
19.05 (3/4”)
Liquid
9.52 (3/8”)
9.52 (3/8”)
9.52 (3/8”)
9.52 (3/8”)
9.52 (3/8”)
9.52 (3/8”)
9.52 (3/8”)*1
sOUNd pREssURE lEVEl (dba)
49
49
50
50
51
51
56
sOUNd pOWER lEVEl (dba)
69
69
70
70
71
71
75
WEighT (kg)
122
125
122
125
122
125
141

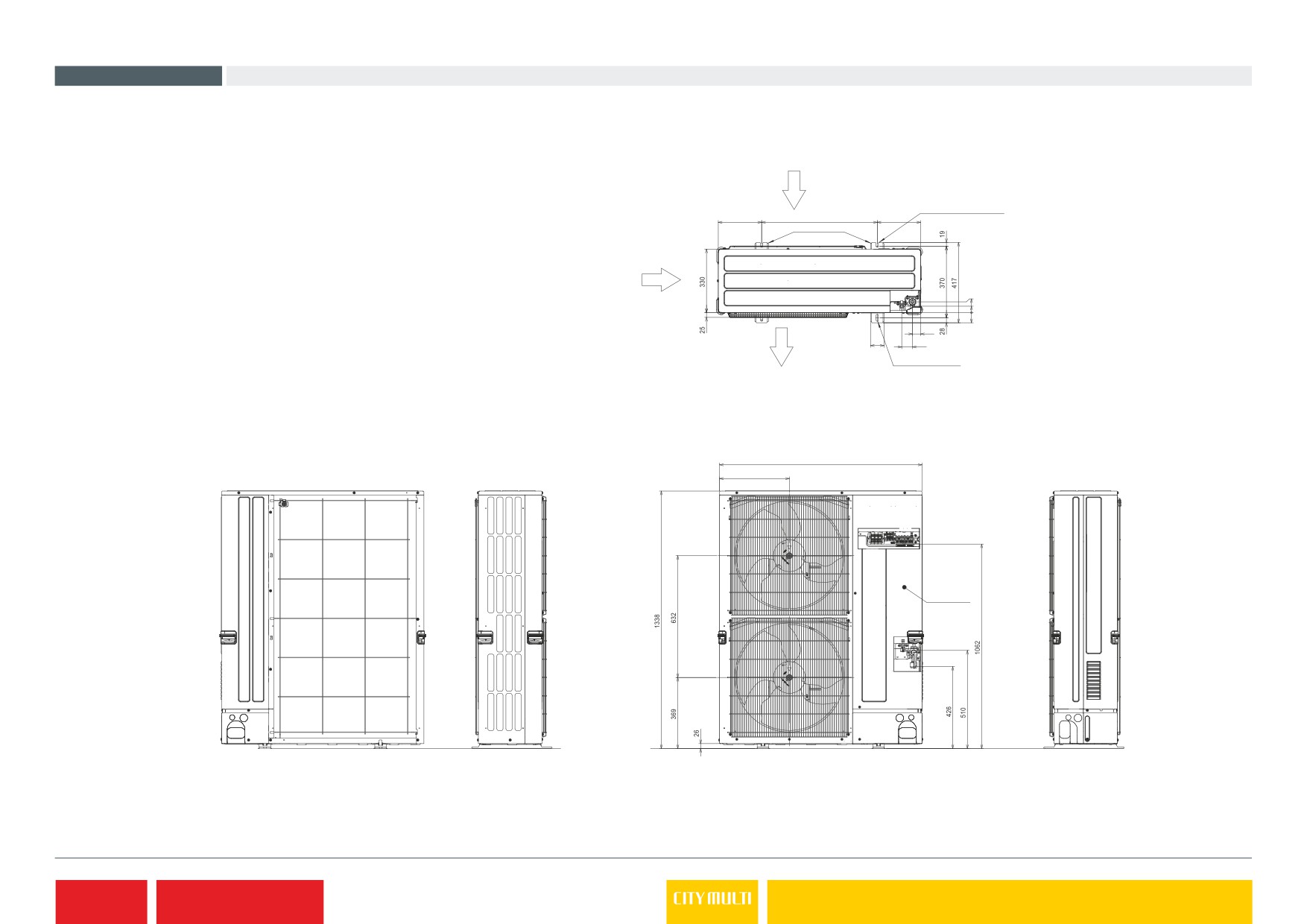

diMENsiONs (mm)
Width
1050
1050
1050
1050
1050
1050
1050
Depth
330+40
330+40
330+40
330+40
330+40
330+40
330+40
Height
1338
1338
1338
1338
1338
1338
1338
ElECTRiCal sUpply
220-240v, 50hz
380-415v, 50hz
220-240v, 50hz
380-415v, 50hz
220-240v, 50hz
380-415v, 50hz
380-415v, 50hz
phasE
single
Three
single
Three
single
Three
Three
sTaRTiNg CURRENT (a)
14
7
14
7
14
7
7
NOMiNal sysTEM RUNNiNg CURRENT (a) Heating / Cooling [MAX]
13.42 / 12.32 [29.5]
5.16 / 4.74 [13.0]
16.51 / 15.27 [29.5]
6.00 / 5.55 [13.0]
19.73 / 19.95 [29.5]
6.79 / 6.87 [13.0]
8.74 / 9.05 [19.0]
gUaRaNTEEd OpERaTiNg RaNgE (°C) Heating / Cooling
-20~15 / -5~46
-20~15 / -5~46
-20~15 / -5~46
-20~15 / -5~46
-20~15 / -5~46
-20~15 / -5~46
-20~15 / -5~46
fUsE RaTiNg (bs88) - hRC (a)
1 x 32
1 x 16
1 x 32
1 x 16
1 x 32
1 x 16
1 x 20
MaiNs CablE NO. COREs
3
4 + earth
3
4 + earth
3
4 + earth
4 + earth
ChaRgE REfRigERaNT (kg) / CO2 EQUiValENT (T)
4.8 / 10.0
4.8 / 10.0
4.8 / 10.0
4.8 / 10.0
4.8 / 10.0
4.8 / 10.0
7.3 / 15.2
R410A (GWP 2088)
MaX addiTiONal REfRigERaNT (kg) / CO2 EQUiValENT (T)
13.7 / 28.6
13.7 / 28.6
13.7 / 28.6
13.7 / 28.6
13.7 / 28.6
13.7 / 28.6
13.5 / 28.2
R410A (GWP 2088)
3 Three Phase Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.
*1 12.7mm (1/2”) if furthest length ≥ 60m.
PIPING RESTRICTIONS
PUMY-P112-140VKM/YKM4
PUMY-P200YKM2
TOTal pipiNg lENgTh
300m max
150m max
fURThEsT pipiNg lENgTh
150m max
80m max
fURThEsT pipiNg lENgTh afTER 1st bRaNCh
30m max
30m max
bETWEEN iNdOOR aNd OUTdOOR UNiTs - hEighT
50m max (40m max if outdoor installed below)
50m max (40m max if outdoor installed below)
bETWEEN iNdOOR aNd iNdOOR UNiTs - hEighT
15m max
15m max
