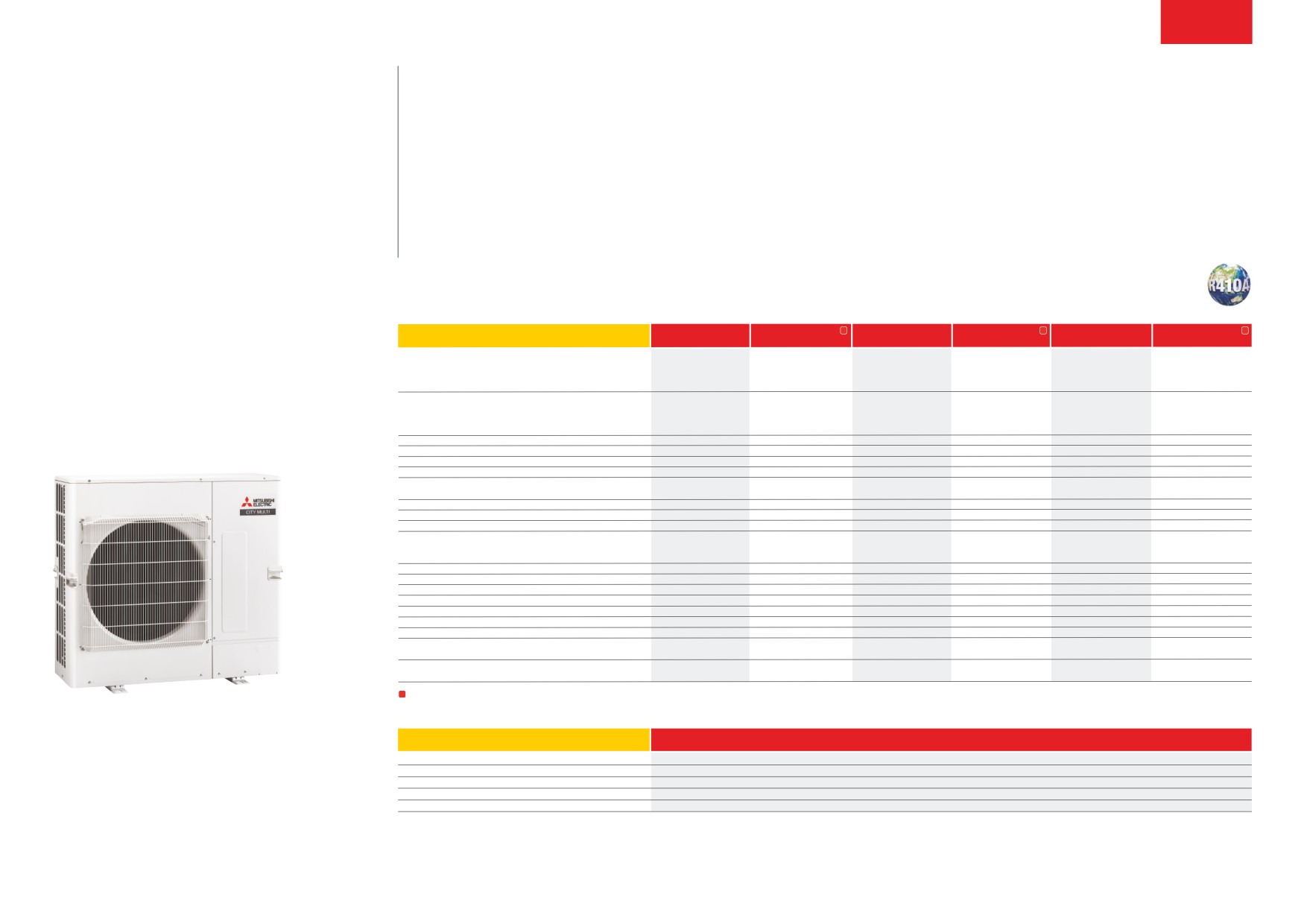

VRf technology and efficiency delivered in a small capacity, low footprint, single fan side blow system,
Y Series
where there is a demand for a changeover capability between heating and cooling for all indoor units.
Single Fan
Key Features
(12.5-15.5kW)
■ VRF piping, control and connectivity for small systems requiring heating or cooling
Mini VRF Heat Pump
■ Low height profile and footprint making installation in built up areas easier
■ 30Pa static pressure fan as standard if enclosures are required
Outdoor Unit
■ Compatible with M Series, Mr Slim and City Multi indoor units
3
3
3
OUTDOOR UNITS
PUMY-SP112VKM
PUMY-SP112YKM
PUMY-SP125VKM
PUMY-SP125YKM
PUMY-SP140VKM
PUMY-SP140YKM
CapaCiTy (kW)
Heating (nominal)
14.0
14.0
16.0
16.0
16.5
16.5
Cooling (nominal)
12.5
12.5
14.0
14.0
15.5
15.5
Heating (UK)
13.9
13.9
15.8
15.8
16.3
16.3
Cooling (UK)
10.0
10.0
11.2
11.2
12.4
12.4
pOWER iNpUT (kW)
Heating (nominal)
3.17
3.17
3.90
3.90
4.02
4.02
Cooling (nominal)
3.10
3.10
3.84
3.84
4.70
4.70
Heating (UK)
4.18
4.18
5.15
5.15
5.31
5.31
Cooling (UK)
1.61
1.61
2.00
2.00
2.44
2.44
COp / EER (nominal)
4.42 / 4.03
4.42 / 4.03
4.10 / 3.65
4.10 / 3.65
4.10 / 3.30
4.10 / 3.30
MaX NO. Of CONNECTablE iNdOOR UNiTs
9
9
10
10
12
12
MaX CONNECTablE CapaCiTy
50-130% OU Capacity
50-130% OU Capacity
50-130% OU Capacity
50-130% OU Capacity
50-130% OU Capacity
50-130% OU Capacity
aiRflOW (m3/min)
77
77
83
83
83
83
pipE siZE MM (in)
Gas
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
15.88 (5/8”)
Liquid
9.52 (3/8”)
9.52 (3/8”)
9.52 (3/8”)
9.52 (3/8”)
9.52 (3/8”)
9.52 (3/8”)
sOUNd pREssURE lEVEl (dba)
52
52
53
53
54
54
sOUNd pOWER lEVEl (dba)
72
72
73
73
74
74
WEighT (kg)
93
94
93
94
93
94
diMENsiONs (mm)
Width
1050
1050
1050
1050
1050
1050
Depth
330+40
330+40
330+40
330+40
330+40
330+40
Height
981
981
981
981
981
981
ElECTRiCal sUpply
220-240v, 50hz
380-415v, 50hz
220-240v, 50hz
380-415v, 50hz
220-240v, 50hz
380-415v, 50hz
phasE
single
Three
single
Three
single
Three
sTaRTiNg CURRENT (a)
14
7
14
7
14
7
NOMiNal sysTEM RUNNiNg CURRENT (a) Heating / Cooling [MAX]
13.48 / 13.18 [30.5]
4.82 / 4.71 [13.0]
16.58 / 16.33 [30.5]
5.93 / 5.83 [13.0]
17.09 / 19.98 [30.5]
6.11 / 7.14 [13.0]
gUaRaNTEEd OpERaTiNg RaNgE (°C) Heating / Cooling
-20~15 / -5~52
-20~15 / -5~52
-20~15 / -5~52
-20~15 / -5~52
-20~15 / -5~52
-20~15 / -5~52
fUsE RaTiNg (bs88) - hRC (a)
1 x 32
1 x 16
1 x 32
1 x 16
1 x 32
1 x 16
MaiNs CablE NO. COREs
3
4 + earth
3
4 + earth
3
4 + earth
ChaRgE REfRigERaNT (kg) / CO2 EQUiValENT (T)
3.5 / 7.31
3.5 / 7.31
3.5 / 7.31
3.5 / 7.31
3.5 / 7.31
3.5 / 7.31
R410A (GWP 2088)
MaX addiTiONal REfRigERaNT (kg) / CO2 EQUiValENT (T)
9.0 / 18.79
9.0 / 18.79
R410A (GWP 2088)
9.0 / 18.79
9.0 / 18.79
9.0 / 18.79
9.0 / 18.79
3 Three Phase available May 2018.
Note: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.
PIPING RESTRICTIONS
PUMY-SP112-140V(Y)KM
TOTal pipiNg lENgTh
120m max
fURThEsT pipiNg lENgTh
70m max
fURThEsT pipiNg lENgTh afTER 1st bRaNCh
50m max
bETWEEN iNdOOR aNd OUTdOOR UNiTs - hEighT
50m max (30m max if outdoor installed below)
bETWEEN iNdOOR aNd iNdOOR UNiTs - hEighT
15m max

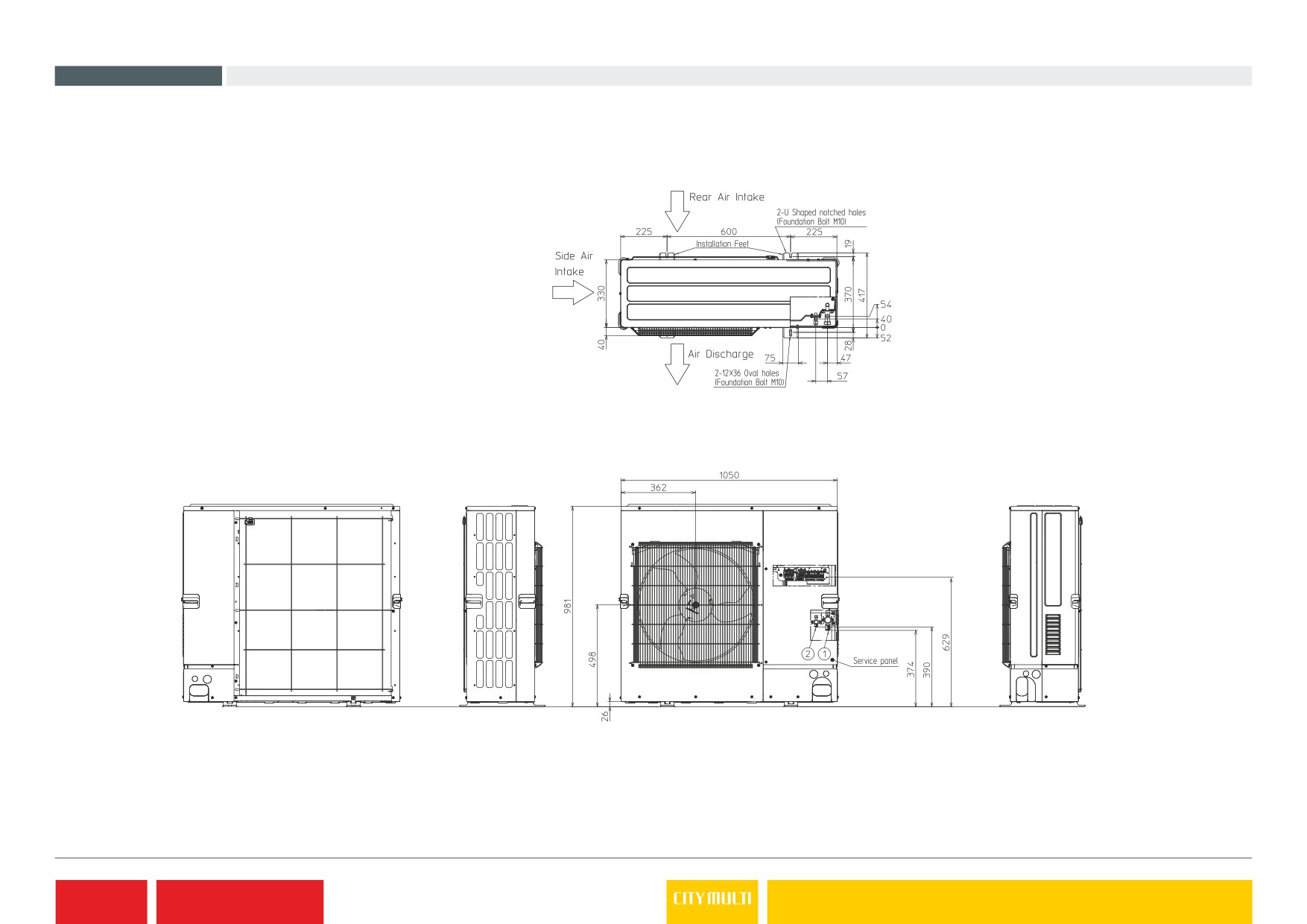

Product Dimensions PUMY-SP112/125/140VKM/YKM
Upper View
Side View
Front View
Side View
Rear View
