1.5.16

Throughout the year, many buildings require cooling in some areas and heating in others - even in adjacent

R2 Series VRF

rooms. The outstanding City Multi R2 system meets these requirements by distributing surplus heat from

cooling operations (and vice versa) to rooms where it is needed. This efficiency can result in energy savings

Standard Efficiency

up to 30% over conventional systems.

(22.4-33.5kW)

Key Features

■ High efficiency heat recovery system

Simultaneous Heating and

■ Delivers the highest levels of comfort, both thermally and acoustically

Cooling with Heat Recovery

■ Flexible design, installation and maintenance

Outdoor Unit

■ Utilises lower GWP R32 refrigerant

OUTDOOR UNITS

PURY-M200YNW-A1

PURY-M250YNW-A1

PURY-M300YNW-A1

CapaCiTy (kW)

Heating (nominal)

25.0

31.5

37.5

Cooling (nominal)

22.4

28.0

33.5

High Performance Heating (UK)

25.0

31.5

35.6

COP Priority Heating (UK)

22.8

28.7

34.1

Cooling (UK)

20.1

25.1

30.0

pOWER iNpUT (kW)

Heating (nominal)

5.27

7.32

9.35

Cooling (nominal)

4.85

7.10

8.67

High Performance Heating (UK)

6.64

9.22

12.44

COP Priority Heating (UK)

5.27

7.32

9.35

Cooling (UK)

2.81

4.12

5.03

COp / EER (nominal)

4.74 / 4.61

4.30 / 3.94

4.01 / 3.86

MaX No. Of CONNECTablE iNdOOR UNiTs

9 (8*1)

11 (10*1)

14 (12*1)

MaX CONNECTablE CapaCiTy

50~150% OU Capacity

aiRflOW (m³/min)

High

170

185

240

pipE siZE mm (in)

Gas

19.05 (3/4”)

22.2 (7/8")

Liquid

15.88 (5/8”)

15.88 (5/8")

sOUNd pREssURE lEVEl (dba) @ 1m

Heating / Cooling

59.0 / 59.0

61.0 / 60.5

67.0 / 61.0

sOUNd pOWER lEVEl (dba) @ 100% Capacity Heating / Cooling

78.0 / 76.0

80.0 / 78.5

86.5 / 80.0

WEighT (kg)

227

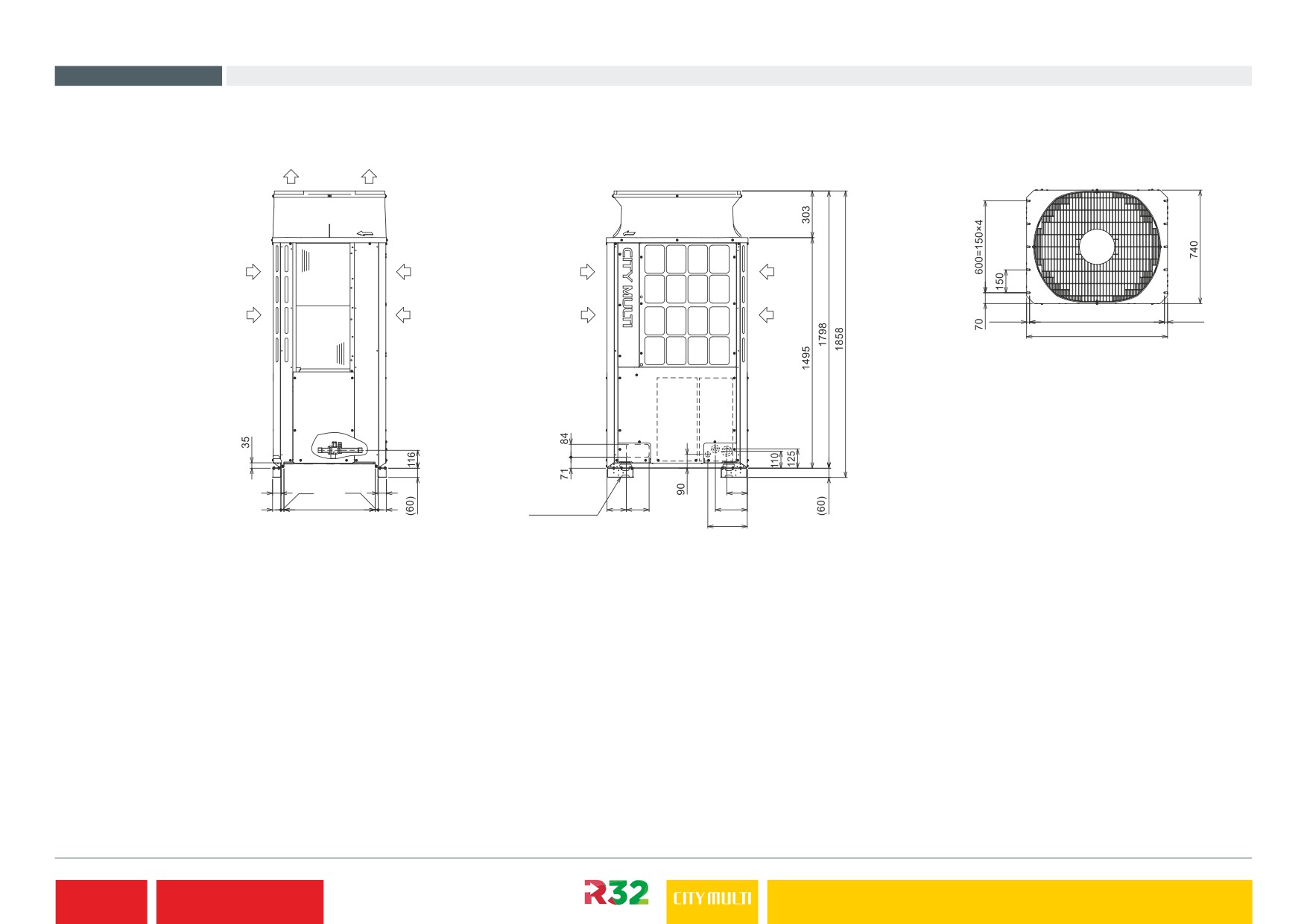

diMENsiONs (mm)

Width

920

Depth

740

(1798mm without legs)

Height

1858

ElECTRiCal sUpply

380-415v, 50hz

phasE

Three

sTaRTiNg CURRENT (a)

NOMiNal sysTEM RUNNiNg CURRENT (a) Heating / Cooling [MAX]

8.4 / 7.7 [16.1]

11.7 / 11.3 [22.5]

14.9 / 13.9 [25.6]

gUaRaNTEEd OpERaTiNg RaNgE (ºC)

Heating / Cooling

-20~15.5 / -5~52

fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)

1 x 20

1 x 25

1 x 32

MaiNs CablE No. Cores

ChaRgE REfRigERaNT (kg) / CO₂ EQUiValENT (t) R32 (GWP 675)

5.2 / 3.5

MaX addiTiONal REfRigERaNT (kg) / CO₂ EQUiValENT (t) R32 (GWP 675)

21.3 / 14.4

22.3 / 15.1

22.8 / 15.4

Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.

*1 If a PEFY-M 20 or 25 indoor unit is connected.
