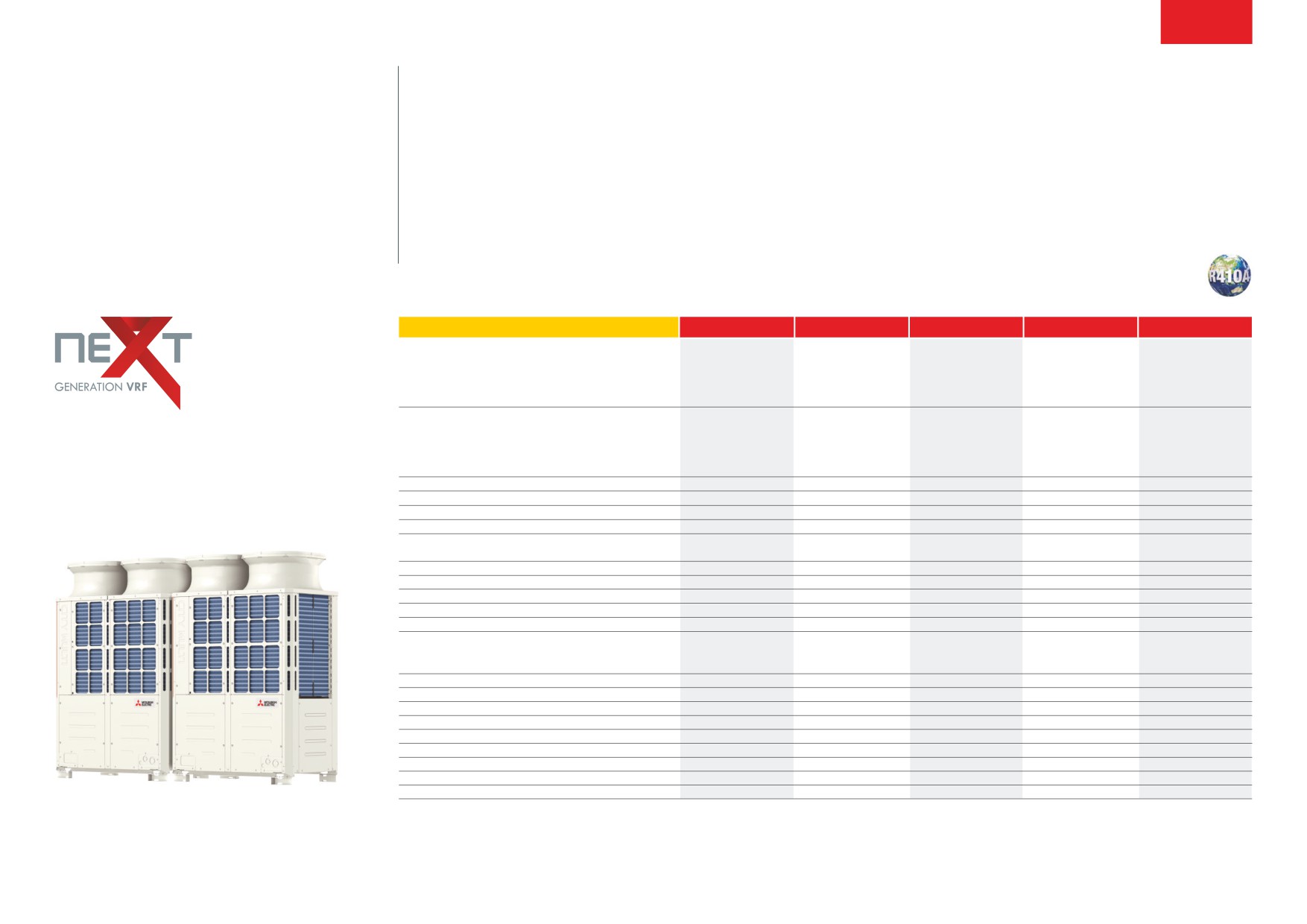

1.5.28

Throughout the year, many buildings require cooling in some areas and heating in others - even in adjacent

R2 Series VRF

rooms. The outstanding City Multi R2 system meets these requirements by distributing surplus heat from

cooling operations (and vice versa) to rooms where it is needed. This efficiency can result in energy savings

Standard Efficiency

up to 30% over conventional systems.

(22.4-45kW)

Key Features

Simultaneous Heating and

■ High efficiency heat recovery system

Cooling with Heat Recovery

■ Delivers the highest levels of comfort, both thermally and acoustically

Outdoor Unit

■ Flexible design, installation and maintenance

OUTDOOR UNITS

PURY-P200YNW-A1

PURY-P250YNW-A1

PURY-P300YNW-A1

PURY-P350YNW-A1

PURY-P400YNW-A1

PURY-P400YSNW-A1

CapaCiTy (kW)

Heating (nominal)

25.0

31.5

37.5

45.0

50.0

Cooling (nominal)

22.4

28.0

33.5

40.0

45.0

High Performance Heating (UK)

25.0

31.5

35.6

42.8

45.0

50.0

COP Priority Heating (UK)

22.8

28.7

34.1

41.0

43.0

45.5

Cooling (UK)

20.1

25.1

30.0

35.8

40.3

pOWER iNpUT (kW)

Heating (nominal)

5.33

7.42

9.54

11.13

13.77

10.98

Cooling (nominal)

5.27

7.25

8.98

10.98

14.61

10.92

High Performance Heating (UK)

6.72

9.35

12.69

14.80

15.56

14.05

COP Priority Heating (UK)

5.33

7.42

9.54

11.13

13.36

10.98

Cooling (UK)

3.06

4.21

5.21

6.37

9.35

6.33

COp / EER (nominal)

4.69 / 4.25

4.24 / 3.86

3.93 / 3.73

4.04 / 3.64

3.63 / 3.08

4.55 / 4.12

MaX No. Of CONNECTablE iNdOOR UNiTs

MaX CONNECTablE CapaCiTy

50~150% OU Capacity

aiRflOW (m³/min)

High

170

185

240

250

315

170 / 170

pipE siZE mm (in)

Gas

19.05 (3/4”)

22.2 (7/8”)

28.58 (1-1/8”)

Liquid

15.88 (5/8”)

19.05 (3/4”)

22.2 (7/8”)

sOUNd pREssURE lEVEl (dba) @ 1m

Heating / Cooling

59.0 / 59.0

61.0 / 60.5

67.0 / 61.0

64.0 / 62.5

69.0 / 65.0

62.0 / 62.0

sOUNd pOWER lEVEl (dba) @ 100% Capacity Heating / Cooling

78.0 / 76.0

80.0 / 78.0

86.0 / 80.0

83.0 / 81.0

88.0 / 83.0

81.0 / 79.0

sOUNd pOWER lEVEl (dba) @ 90% Capacity Heating / Cooling

74.5 / 71.0

76.0 / 73.5

78.5 / 74.5

81.0 / 76.0

81.0 / 77.0

77.5 / 74.0

sOUNd pOWER lEVEl (dba) @ 75% Capacity Heating / Cooling

71.5 / 66.5

74.5 / 69.5

74.5 / 70.5

77.0 / 73.0

75.0 / 73.0

74.5 / 69.5

WEighT (kg)

214

223

225

269

214 + 214

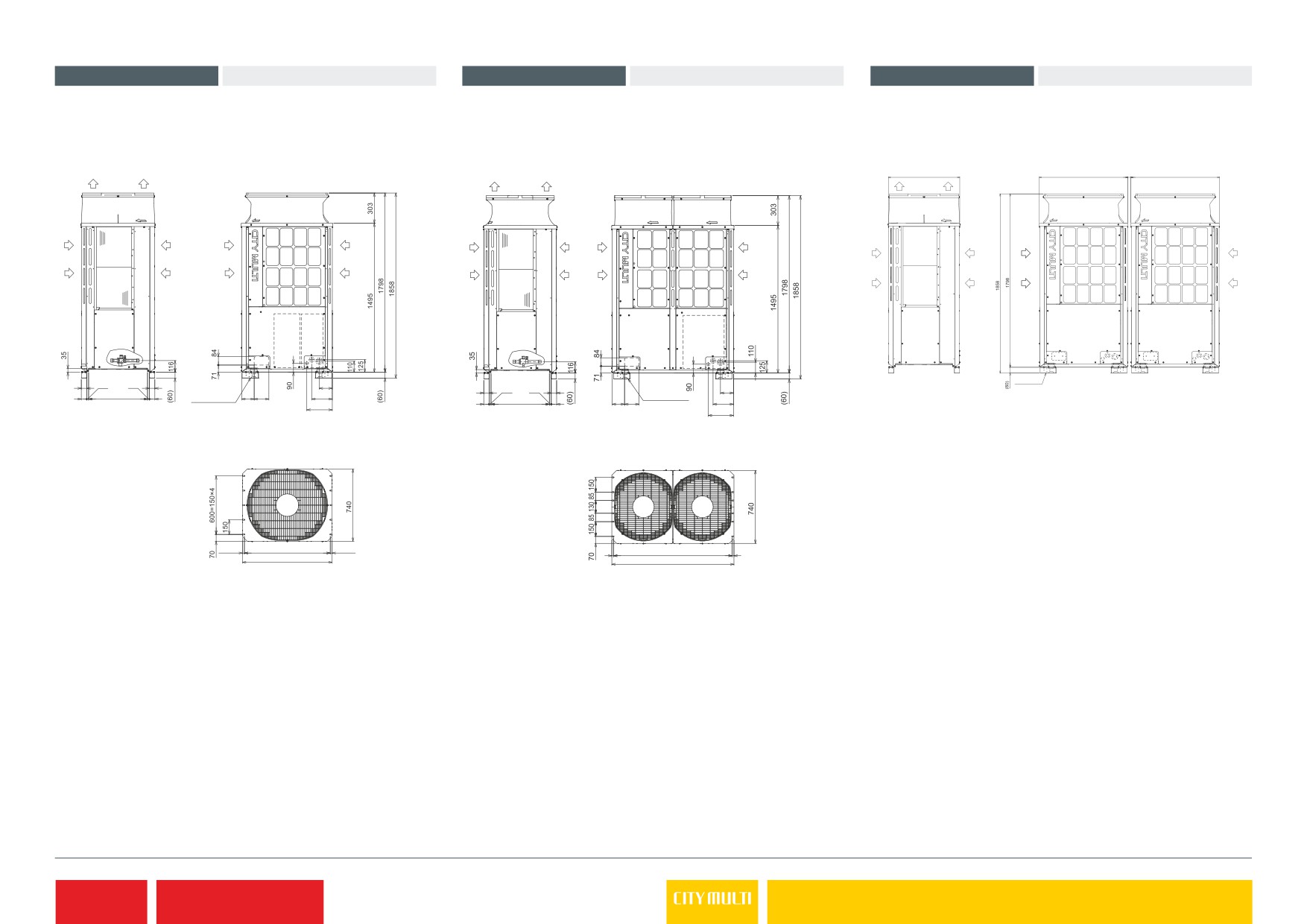

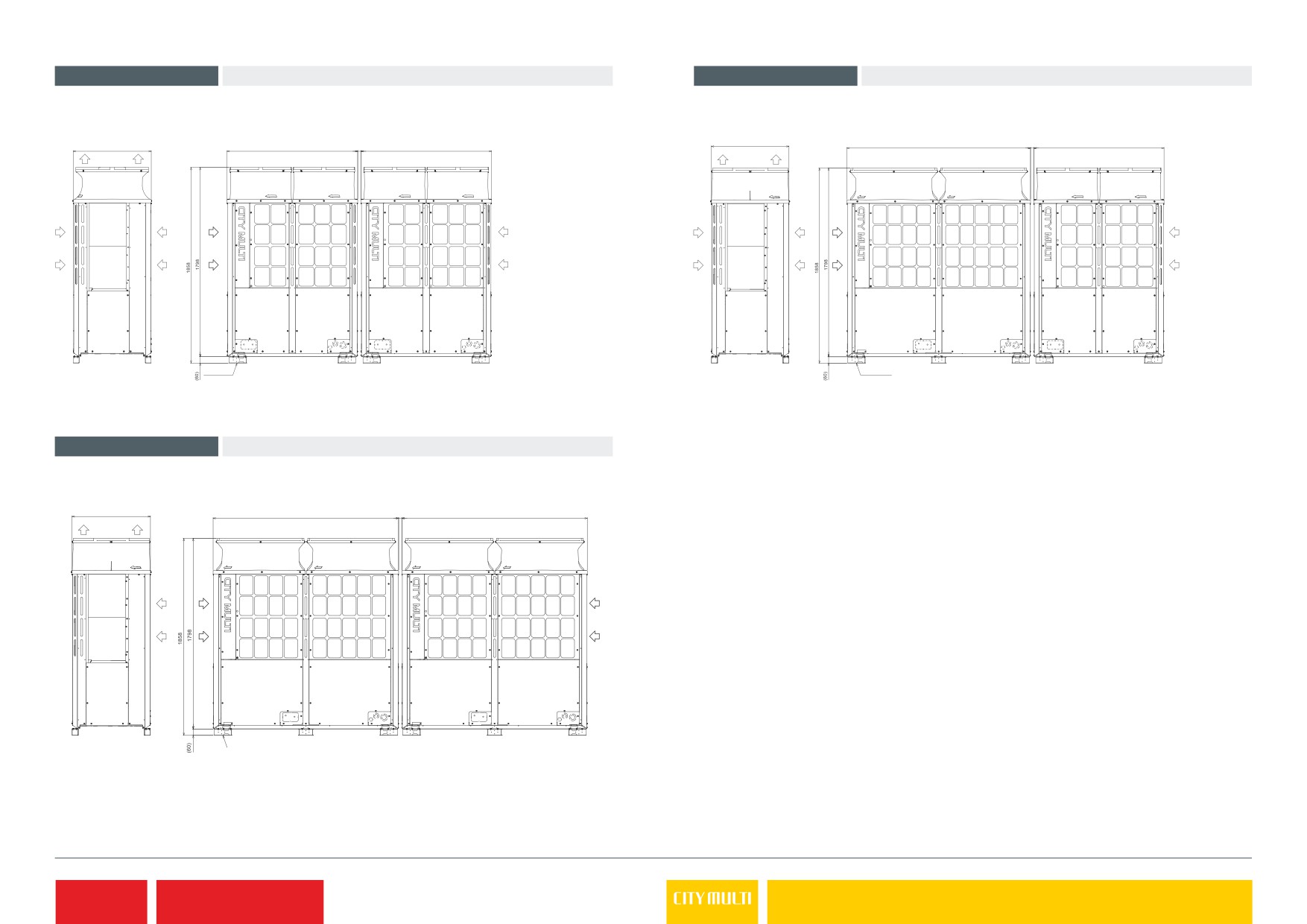

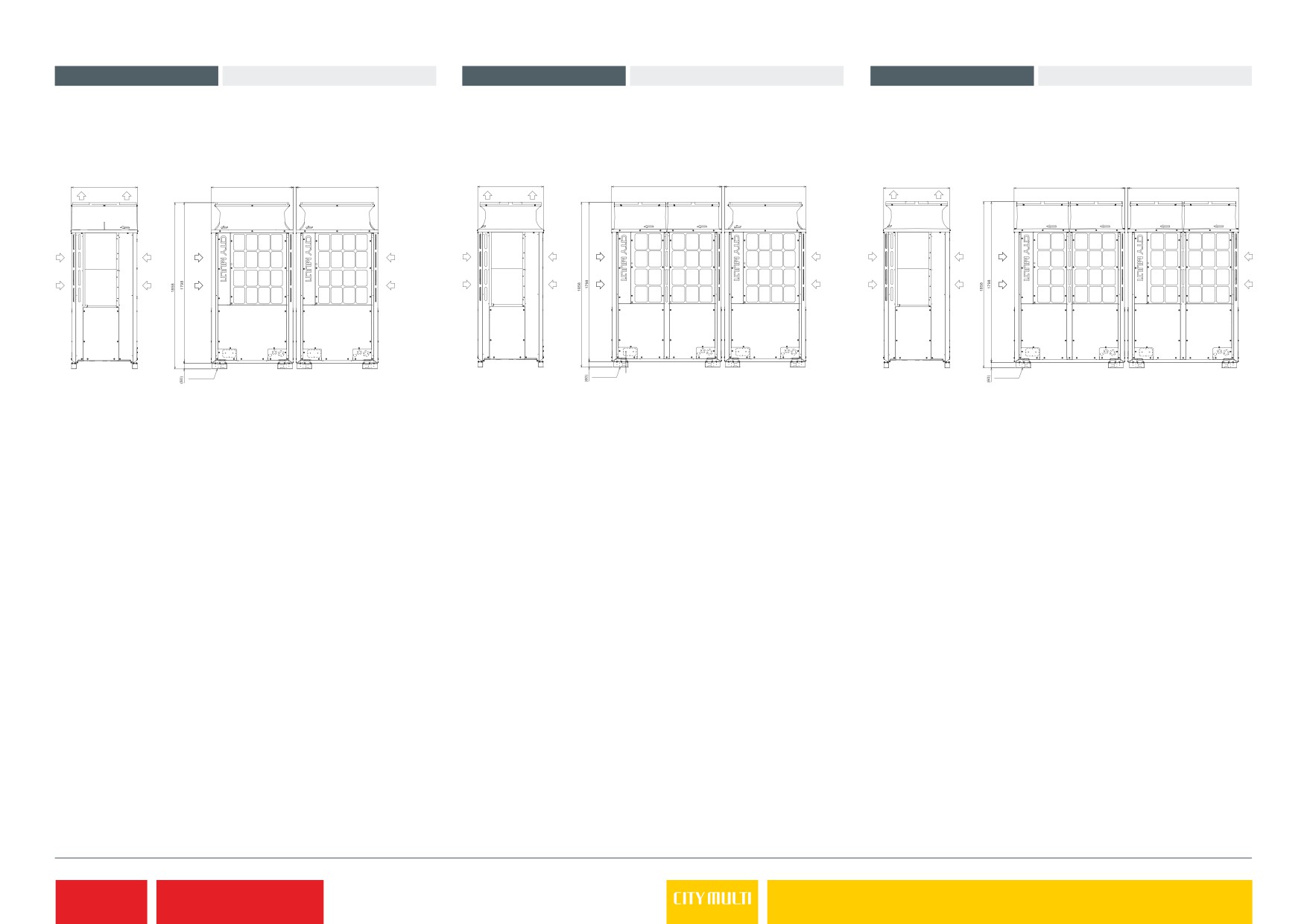

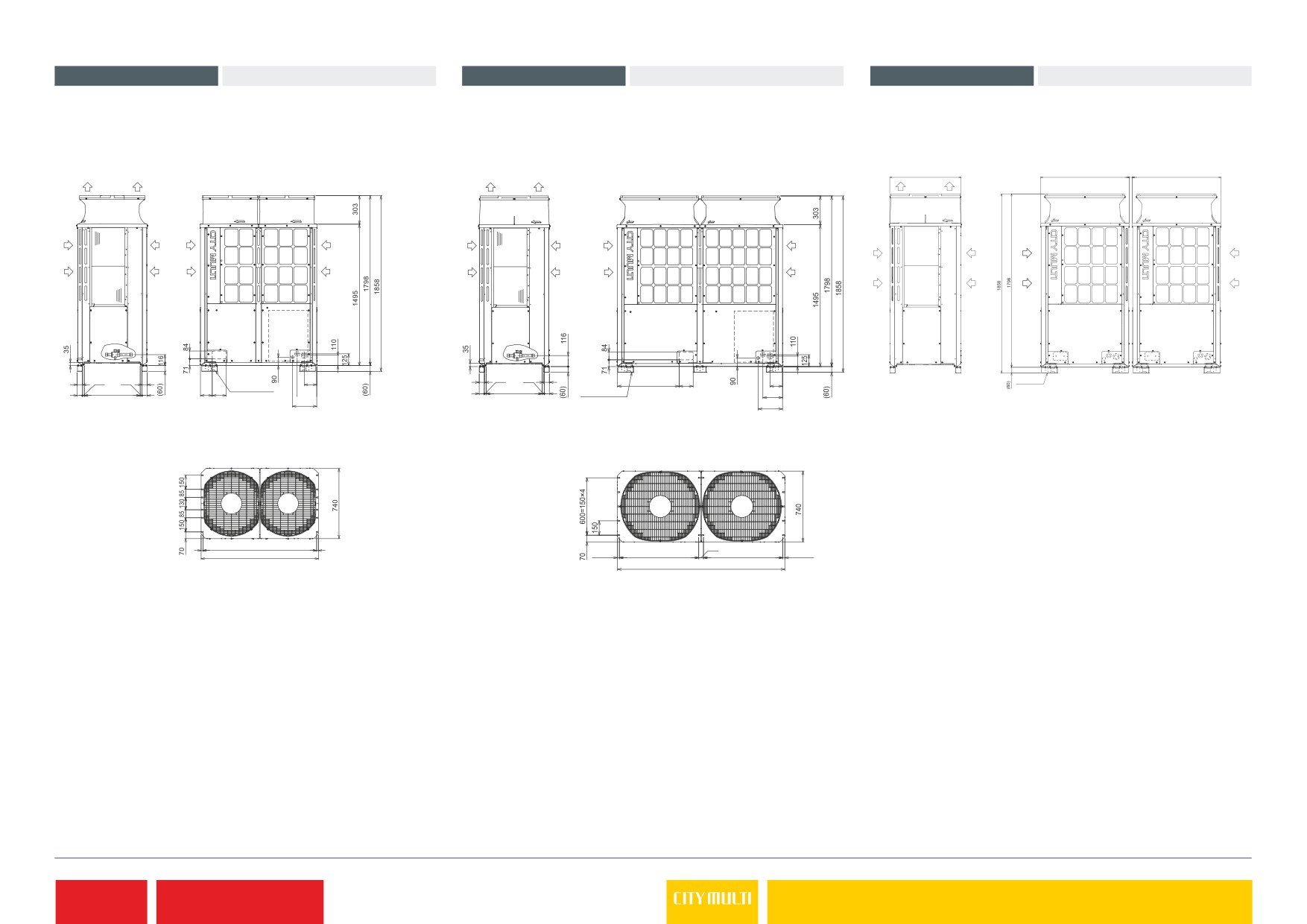

diMENsiONs (mm)

Width

920

1240

920 + 920

Depth

740

(1798mm without legs)

Height

1858

ElECTRiCal sUpply*1

380-415v, 50hz

phasE*1

Three

sTaRTiNg CURRENT (a)*1

NOMiNal sysTEM RUNNiNg CURRENT (a)*1 Heating / Cooling [MAX]

8.5 / 8.4 [16.1]

11.8 / 11.6 [17.8]

15.2 / 14.4 [22.7]

17.8 / 17.6 [27.6]

22.0 / 23.4 [35.1]

17.6 / 17.5 [16.1 + 16.1]

gUaRaNTEEd OpERaTiNg RaNgE (ºC)

Heating / Cooling

-20~15.5 / -5~52

fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)*1

1 x 20

1 x 25

1 x 32

1 x 40

1 x 20 / 1 x 20

MaiNs CablE No. Cores*1

4 + earth

4 + earth / 4 + earth

ChaRgE REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

5.2 / 10.9

8 / 16.7

10.4 / 21.7

MaX addiTiONal REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

31.8 / 66.4

37.8 / 78.9

41.3 / 86.2

47.3 / 98.8

60.6 / 126.5

Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.

*1 A separate power supply is required for each module. Where more than one figure is quoted there are multiple modules.

1.5.30

Throughout the year, many buildings require cooling in some areas and heating in others - even in adjacent

R2 Series VRF

rooms. The outstanding City Multi R2 system meets these requirements by distributing surplus heat from

cooling operations (and vice versa) to rooms where it is needed. This efficiency can result in energy savings

Standard Efficiency

up to 30% over conventional systems.

(50-63kW)

Key Features

Simultaneous Heating and

■ High efficiency heat recovery system

Cooling with Heat Recovery

■ Delivers the highest levels of comfort, both thermally and acoustically

Outdoor Unit

■ Flexible design, installation and maintenance

OUTDOOR UNITS

PURY-P450YNW-A1

PURY-P450YSNW-A1

PURY-P500YNW-A1

PURY-P500YSNW-A1

PURY-P550YNW-A1

PURY-P550YSNW-A1

CapaCiTy (kW)

Heating (nominal)

56.0

63.0

69.0

Cooling (nominal)

50.0

56.0

63.0

High Performance Heating (UK)

50.4

56.0

56.7

63.0

62.1

65.6

COP Priority Heating (UK)

48.2

51.0

54.2

57.3

59.3

62.8

Cooling (UK)

44.8

50.1

56.4

pOWER iNpUT (kW)

Heating (nominal)

15.42

12.93

17.50

15.32

20.29

17.42

Cooling (nominal)

14.83

12.72

18.54

14.97

22.18

17.11

High Performance Heating (UK)

17.42

16.55

19.78

19.61

22.93

23.17

COP Priority Heating (UK)

14.96

12.93

16.98

15.32

19.68

17.42

Cooling (UK)

9.49

7.38

11.87

8.68

14.20

9.92

COp / EER (nominal)

3.63 / 3.37

4.33 / 3.93

3.60 / 3.02

4.11 / 3.74

3.40 / 2.84

3.96 / 3.68

MaX No. Of CONNECTablE iNdOOR UNiTs

MaX CONNECTablE CapaCiTy

50~150% OU Capacity

aiRflOW (m³/min)

High

315

170 / 185

295

185 / 185

410

185 / 240

pipE siZE mm (in)

Gas

28.58 (1-1/8”)

Liquid

22.2 (7/8”)

22.2 (7/8”) / 28.58 (1-1/8")*1

sOUNd pREssURE lEVEl (dba) @ 1m

Heating / Cooling

70.0 / 65.5

63.5 / 63.0

64.5 / 63.5

64.0 / 63.5

70.0 / 66.0

68.0 / 64.0

sOUNd pOWER lEVEl (dba) @ 100% Capacity Heating / Cooling

89.0 / 83.0

83.0 / 81.0

84.0 / 82.0

83.0 / 81.0

89.0 / 83.0

87.0 / 83.0

sOUNd pOWER lEVEl (dba) @ 90% Capacity Heating / Cooling

83.0 / 78.5

78.5 / 75.5

81.0 / 76.5

79.0 / 76.5

82.5 / 78.0

81.5 / 77.0

sOUNd pOWER lEVEl (dba) @ 75% Capacity Heating / Cooling

76.5 / 74.0

76.5 / 71.5

77.5 / 73.5

75.5 / 72.5

78.5 / 74.5

77.5 / 73.0

WEighT (kg)

289

214 + 214

335

223 + 223

335

223 + 225

diMENsiONs (mm)

Width

1240

920 + 920

1750

920 + 920

1750

920 + 920

Depth

740

(1798mm without legs)

Height

1858

ElECTRiCal sUpply*2

380-415v, 50hz

phasE*2

Three

sTaRTiNg CURRENT (a)*2

NOMiNal sysTEM RUNNiNg CURRENT (a)*2 Heating / Cooling [MAX]

24.7 / 23.7 [37.1]

20.7 / 20.3 [16.1 + 17.8]

28.0 / 29.7 [43.2]

24.5 / 24.0 [17.8 + 17.8]

32.5 / 35.5 [47.5]

27.9 / 27.4 [17.8 + 22.7]

gUaRaNTEEd OpERaTiNg RaNgE (ºC)

Heating / Cooling

-20~15.5 / -5~52

fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)*2

1 x 40

1 x 20 / 1 x 20

1 x 50

1 x 20 / 1 x 20

1 x 50

1 x 20 / 1 x 25

MaiNs CablE No. Cores*2

4 + earth

4 + earth / 4 + earth

4 + earth

4 + earth / 4 + earth

4 + earth

4 + earth / 4 + earth

ChaRgE REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

10.8 / 22.5

10.4 / 21.7

10.8 / 22.6

10.4 / 21.7

10.8 / 22.6

10.4 / 21.7

MaX addiTiONal REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

44.5 / 92.9

60.6 / 126.5

45.2 / 94.4

60.6 / 126.5

45.2 / 94.4

60.6 / 126.5

Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.

*1 If distance from OU to BC controller is greater than 65m. *2 A separate power supply is required for each module. Where more than one figure is quoted there are multiple modules.

1.5.32

Throughout the year, many buildings require cooling in some areas and heating in others - even in adjacent

R2 Series VRF

rooms. The outstanding City Multi R2 system meets these requirements by distributing surplus heat from

cooling operations (and vice versa) to rooms where it is needed. This efficiency can result in energy savings

Standard Efficiency

up to 30% over conventional systems.

(69-96kW)

Key Features

Simultaneous Heating and

■ High efficiency heat recovery system

Cooling with Heat Recovery

■ Delivers the highest levels of comfort, both thermally and acoustically

Outdoor Unit

■ Flexible design, installation and maintenance

OUTDOOR UNITS

PURY-P600YSNW-A1

PURY-P650YSNW-A1

PURY-P700YSNW-A1

PURY-P750YSNW-A1

PURY-P800YSNW-A1

PURY-P850YSNW-A1

CapaCiTy (kW)

Heating (nominal)

76.5

81.5

88.0

95.0

100.0

108.0

Cooling (nominal)

69.0

73.0

80.0

85.0

90.0

96.0

High Performance Heating (UK)

72.7

77.4

83.6

85.5

90.0

97.2

COP Priority Heating (UK)

69.6

74.2

80.1

81.7

86.0

92.9

Cooling (UK)

61.8

65.3

71.6

76.1

80.6

85.9

pOWER iNpUT (kW)

Heating (nominal)

20.07

21.05

22.44

25.53

28.40

30.68

Cooling (nominal)

19.06

20.44

22.66

26.07

30.10

30.67

High Performance Heating (UK)

26.69

28.00

29.85

28.85

32.09

34.67

COP Priority Heating (UK)

20.07

21.05

22.44

24.76

27.55

29.76

Cooling (UK)

11.05

11.86

13.14

15.12

19.26

19.63

COp / EER (nominal)

3.81 / 3.62

3.87 / 3.57

3.92 / 3.53

3.72 / 3.26

3.52 / 2.99

3.52 / 3.13

MaX No. Of CONNECTablE iNdOOR UNiTs

MaX CONNECTablE CapaCiTy

50~150% OU Capacity

aiRflOW (m³/min)

High

240 / 240

240 / 250

250 / 250

250 / 315

315 / 315

pipE siZE mm (in)

Gas

28.58 (1-1/8”)

34.93 (1-3/8”)

41.28 (1-5/8”)

Liquid

22.2 (7/8”) / 28.58 (1-1/8")*1

28.58 (1-1/8”)

sOUNd pREssURE lEVEl (dba) @ 1m

Heating / Cooling

70.0 / 64.0

69.0 / 65.0

67.0 / 65.5

70.5 / 67.0

72.0 / 68.0

72.5 / 68.5

sOUNd pOWER lEVEl (dba) @ 100% Capacity Heating / Cooling

89.0 / 83.0

88.5 / 84.0

86.0 / 84.0

90.0 / 86.0

91.0 / 86.0

92.0 / 86.0

sOUNd pOWER lEVEl (dba) @ 90% Capacity Heating / Cooling

81.5 / 77.5

83.0 / 78.5

84.0 / 79.0

83.5 / 79.5

83.0 / 80.0

85.0 / 81.0

sOUNd pOWER lEVEl (dba) @ 75% Capacity Heating / Cooling

77.5 / 73.5

79.0 / 75.0

80.0 / 76.0

79.5 / 76.0

78.0 / 76.0

79.0 / 76.5

WEighT (kg)

225 + 225

225 + 269

269 + 269

269 + 289

diMENsiONs (mm)

Width

920 + 920

920 + 1240

1240 + 1240

Depth

740

(1798mm without legs)

Height

1858

ElECTRiCal sUpply*2

380-415v, 50hz

phasE*2

Three

sTaRTiNg CURRENT (a)*2

NOMiNal sysTEM RUNNiNg CURRENT (a)*2 Heating / Cooling [MAX]

32.1 / 30.5 [22.7 + 22.7]

33.7 / 32.7 [22.7 + 27.6]

35.9 / 36.3 [27.6 + 27.6]

40.9 / 41.8 [27.6 + 35.1]

45.5 / 48.2 [35.1 + 35.1]

49.2 / 49.1 [35.1 + 37.1]

gUaRaNTEEd OpERaTiNg RaNgE (ºC)

Heating / Cooling

-20~15.5 / -5~52

fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)*2

1 x 25 / 1 x 25

1 x 25 / 1 x 32

1 x 32 / 1 x 32

1 x 32 / 1 x 40

1 x 40 / 1 x 40

MaiNs CablE No. Cores*2

4 + earth / 4 + earth

ChaRgE REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

10.4 / 21.7

13.2 / 27.6

16 / 33.4

18.8 / 39.3

MaX addiTiONal REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

60.6 / 126.5

65.6 / 137.0

79.6 / 166.2

83 / 173.3

80.2 / 167.5

Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard

*1 If distance from OU to BC controller is greater than 65m. *2 A separate power supply is required for each module. Where more than one figure is quoted there are multiple modules.

1.5.34

Throughout the year, many buildings require cooling in some areas and heating in others - even in adjacent

R2 Series VRF

rooms. The outstanding City Multi R2 system meets these requirements by distributing surplus heat from

cooling operations (and vice versa) to rooms where it is needed. This efficiency can result in energy savings

Standard Efficiency

up to 30% over conventional systems.

(101-124kW)

Key Features

Simultaneous Heating and

■ High efficiency heat recovery system

Cooling with Heat Recovery

■ Delivers the highest levels of comfort, both thermally and acoustically

Outdoor Unit

■ Flexible design, installation and maintenance

OUTDOOR UNITS

PURY-P900YSNW-A1

PURY-P950YSNW-A1

PURY-P1000YSNW-A1

PURY-P1050YSNW-A1

PURY-P1100YSNW-A1

CapaCiTy (kW)

Heating (nominal)

113.0

119.5

127.0

132.0

140.0

Cooling (nominal)

101.0

108.0

113.0

118.0

124.0

High Performance Heating (UK)

101.7

107.6

114.3

118.8

126.0

COP Priority Heating (UK)

97.2

102.8

109.2

113.5

120.4

Cooling (UK)

90.4

96.7

101.1

105.6

111.0

pOWER iNpUT (kW)

Heating (nominal)

32.10

34.04

36.38

38.82

42.42

Cooling (nominal)

30.88

34.83

38.56

41.54

45.09

High Performance Heating (UK)

36.27

38.47

41.09

43.87

47.93

COP Priority Heating (UK)

31.14

33.02

35.27

37.66

41.15

Cooling (UK)

19.76

22.29

24.68

27.00

29.31

COp / EER (nominal)

3.52 / 3.27

3.51 / 3.10

3.49 / 2.93

3.40 / 2.84

3.30 / 2.75

MaX No. Of CONNECTablE iNdOOR UNiTs

MaX CONNECTablE CapaCiTy

50~150% OU Capacity

aiRflOW (m³/min)

High

315 / 315

315 / 295

295 / 295

295 / 410

410 / 410

pipE siZE mm (in)

Gas

41.28 (1-5/8”)

Liquid

28.58 (1-1/8”)

34.93 (1-3/8”)

sOUNd pREssURE lEVEl (dba) @ 1m

Heating / Cooling

73.0 / 68.5

71.5 / 68.0

67.5 / 66.5

73.0 / 68.0

73.0 / 69.0

sOUNd pOWER lEVEl (dba) @ 100% Capacity Heating / Cooling

92.0 / 86.0

91.0 / 86.0

87.0 / 85.0

91.0 / 86.0

92.0 / 86.0

sOUNd pOWER lEVEl (dba) @ 90% Capacity Heating / Cooling

86.0 / 81.5

85.5 / 81.0

84.0 / 79.5

85.0 / 80.5

85.5 / 81.0

sOUNd pOWER lEVEl (dba) @ 75% Capacity Heating / Cooling

79.5 / 77.0

80.0 / 77.0

80.5 / 76.5

81.0 / 77.0

81.5 / 77.5

WEighT (kg)

289 + 289

289 + 335

335 + 335

diMENsiONs (mm)

Width

1240 + 1240

1240 + 1750

1750 + 1750

Depth

740

(1798mm without legs)

Height

1858

ElECTRiCal sUpply*1

380-415v, 50hz

phasE*1

Three

sTaRTiNg CURRENT (a)*1

NOMiNal sysTEM RUNNiNg CURRENT (a)*1 Heating / Cooling [MAX]

51.4 / 49.5 [37.1 + 37.1]

54.5 / 55.8 [37.1 + 43.2]

58.3 / 61.8 [43.2 + 43.2]

62.2 / 66.6 [43.2 + 47.5]

68.0 / 72.3 [47.5 + 47.5]

gUaRaNTEEd OpERaTiNg RaNgE (ºC)

Heating / Cooling

-20~15.5 / -5~52

fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)*1

1 x 40 / 1 x 40

1 x 40 / 1 x 50

1 x 50 / 1 x 50

MaiNs CablE No. Cores*1

4 + earth / 4 + earth

ChaRgE REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

21.6 / 45.1

MaX addiTiONal REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

77.4 / 161.6

Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.

*1 A separate power supply is required for each module. Where more than one figure is quoted there are multiple modules.
