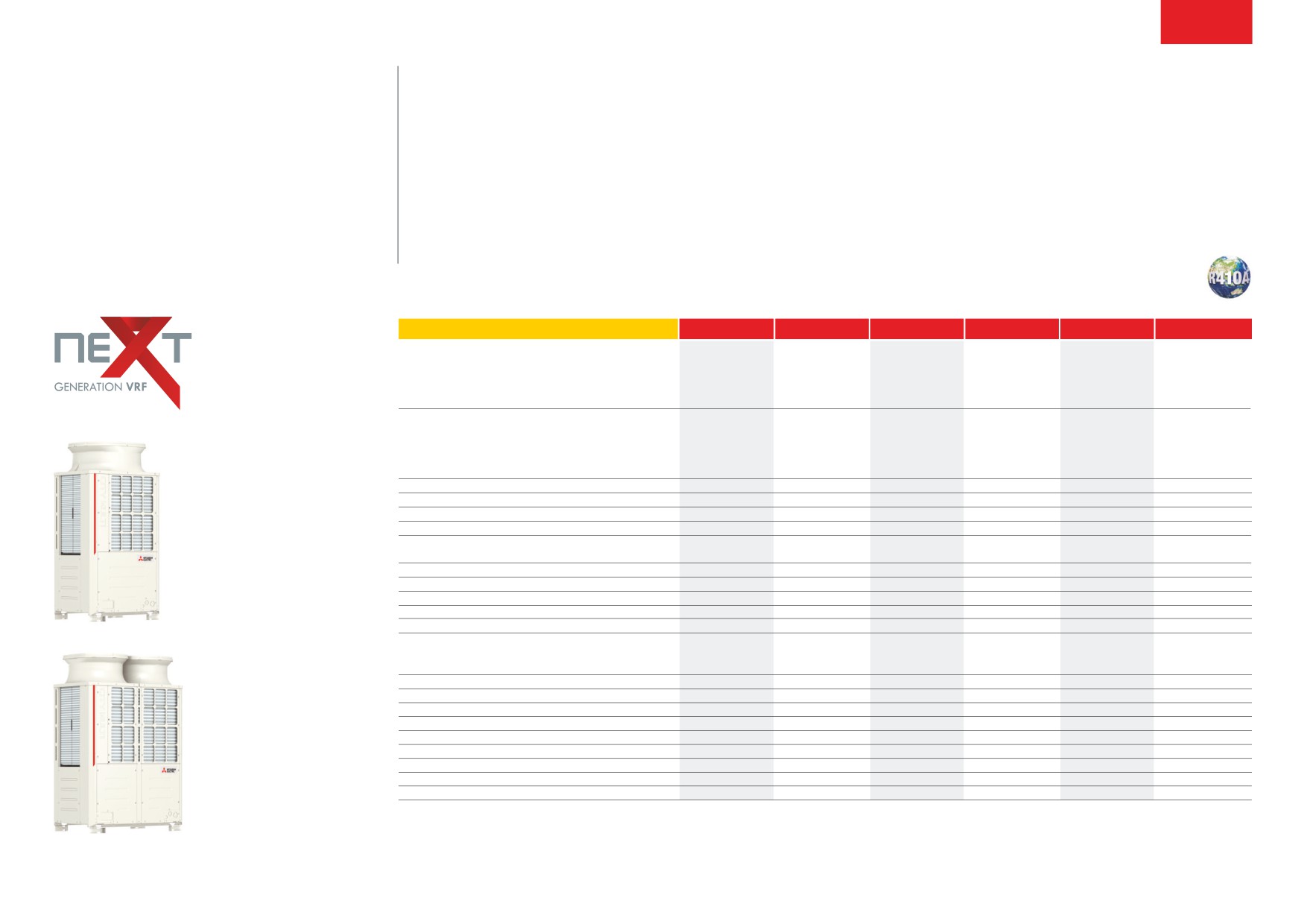

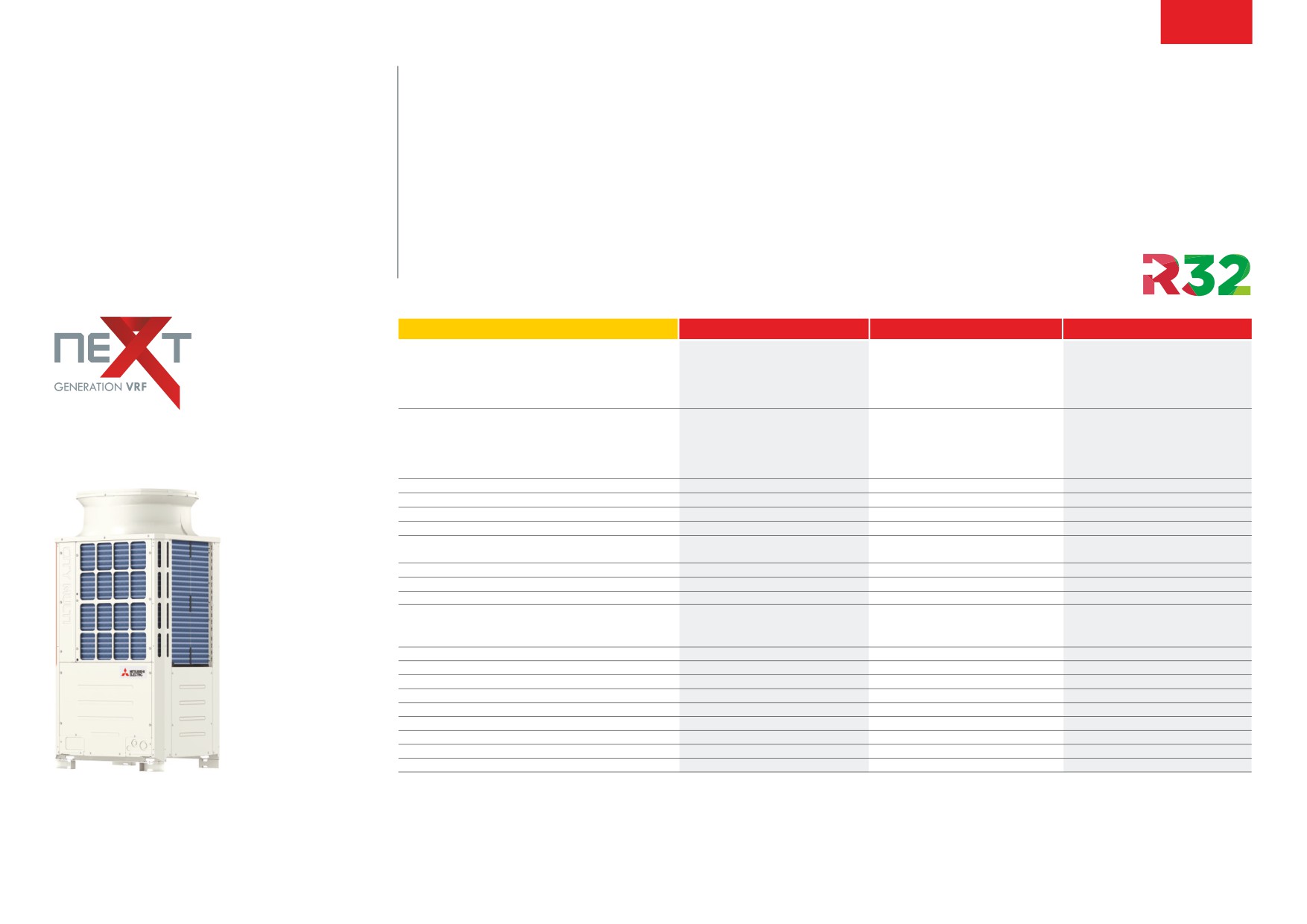

Throughout the year, many buildings require cooling in some areas and heating in others - even in adjacent

R2 Series VRF

rooms. The outstanding City Multi R2 system meets these requirements by distributing surplus heat from

cooling operations (and vice versa) to rooms where it is needed. This efficiency can result in energy savings

Standard Efficiency

up to 30% over conventional systems.

(22.4-33.5kW)

Key Features

■ High efficiency heat recovery system

Simultaneous Heating and

■ Delivers the highest levels of comfort, both thermally and acoustically

Cooling with Heat Recovery

■ Flexible design, installation and maintenance

Outdoor Unit

■ Utilises lower GWP R32 refrigerant

OUTDOOR UNITS

PURY-M200YNW-A1

PURY-M250YNW-A1

PURY-M300YNW-A1

CapaCiTy (kW)

Heating (nominal)

25.0

31.5

37.5

Cooling (nominal)

22.4

28.0

33.5

High Performance Heating (UK)

25.0

31.5

35.6

COP Priority Heating (UK)

22.8

28.7

34.1

Cooling (UK)

20.1

25.1

30.0

pOWER iNpUT (kW)

Heating (nominal)

5.27

7.32

9.35

Cooling (nominal)

4.85

7.10

8.67

High Performance Heating (UK)

6.64

9.22

12.44

COP Priority Heating (UK)

5.27

7.32

9.35

Cooling (UK)

2.81

4.12

5.03

COp / EER (nominal)

4.74 / 4.61

4.30 / 3.94

4.01 / 3.86

MaX No. Of CONNECTablE iNdOOR UNiTs

9 (8*1)

11 (10*1)

14 (12*1)

MaX CONNECTablE CapaCiTy

50~150% OU Capacity

aiRflOW (m³/min)

High

170

185

240

pipE siZE mm (in)

Gas

19.05 (3/4”)

22.2 (7/8")

Liquid

15.88 (5/8”)

15.88 (5/8")

sOUNd pREssURE lEVEl (dba) @ 1m

Heating / Cooling

59.0 / 59.0

61.0 / 60.5

67.0 / 61.0

sOUNd pOWER lEVEl (dba) @ 100% Capacity Heating / Cooling

78.0 / 76.0

80.0 / 78.5

86.5 / 80.0

WEighT (kg)

227

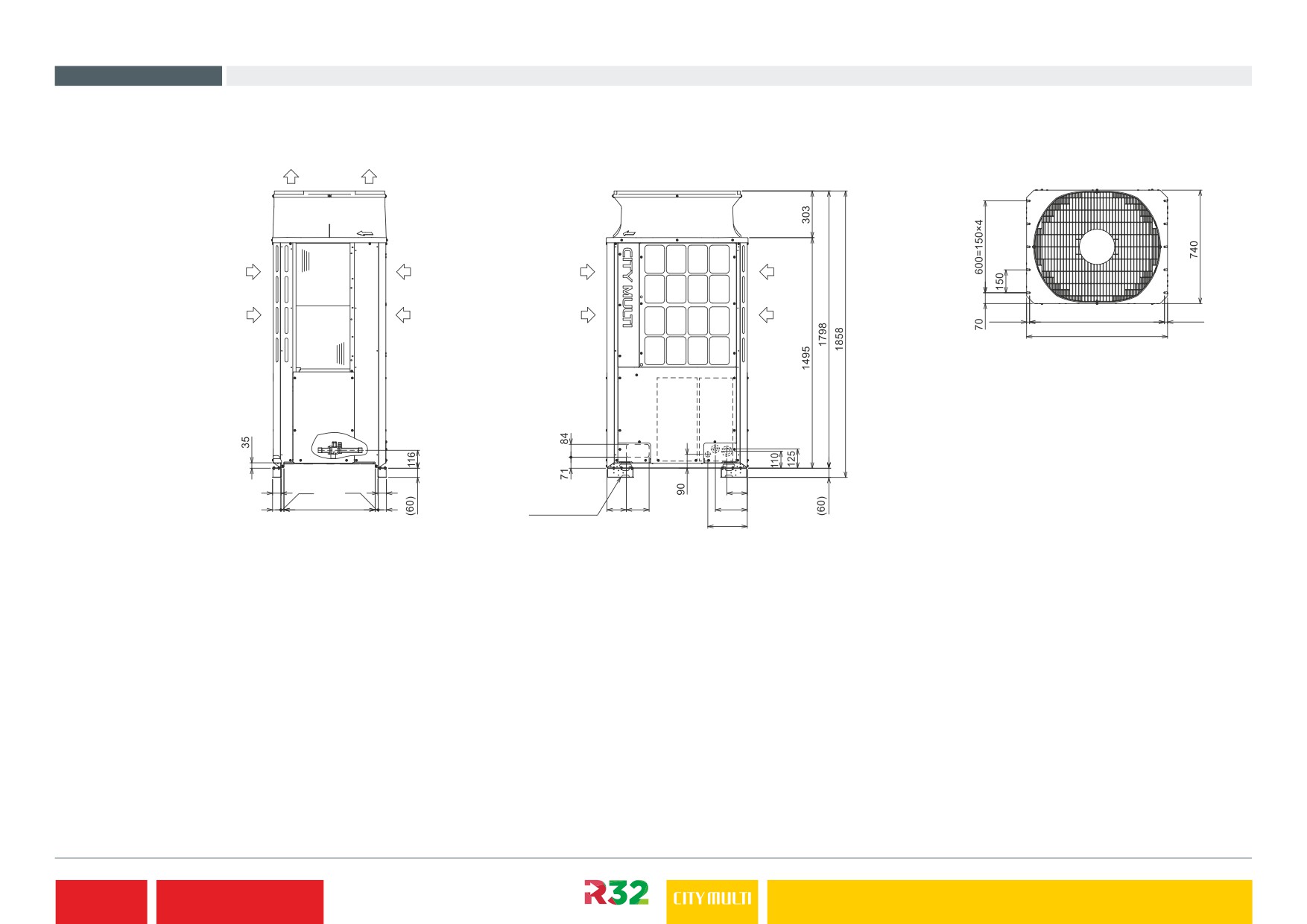

diMENsiONs (mm)

Width

920

Depth

740

(1798mm without legs)

Height

1858

ElECTRiCal sUpply

380-415v, 50hz

phasE

Three

sTaRTiNg CURRENT (a)

NOMiNal sysTEM RUNNiNg CURRENT (a) Heating / Cooling [MAX]

8.4 / 7.7 [16.1]

11.7 / 11.3 [22.5]

14.9 / 13.9 [25.6]

gUaRaNTEEd OpERaTiNg RaNgE (ºC)

Heating / Cooling

-20~15.5 / -5~52

fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)

1 x 20

1 x 25

1 x 32

MaiNs CablE No. Cores

ChaRgE REfRigERaNT (kg) / CO₂ EQUiValENT (t) R32 (GWP 675)

5.2 / 3.5

MaX addiTiONal REfRigERaNT (kg) / CO₂ EQUiValENT (t) R32 (GWP 675)

21.3 / 14.4

22.3 / 15.1

22.8 / 15.4

Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.

*1 If a PEFY-M 20 or 25 indoor unit is connected.

1.5.18

VRf technology provides a simple and flexible solution where there is a demand for a changeover

Y Series VRF

capability between heating and cooling for all indoor units, helping to ensure a constant and

comfortable indoor climate.

(22.4-33.5kW)

Key Features

Heat Pump Outdoor Unit

■ Effective, efficient solution meeting all the market needs

(Heating or Cooling)

■ Delivers the highest levels of comfort, both thermally and acoustically

■ Utilises lower GWP R32 refrigerant

OUTDOOR UNITS

PUHY-M200YNW-A1

PUHY-M250YNW-A1

PUHY-M300YNW-A1

CapaCiTy (kW)

Heating (nominal)

25.0

31.5

37.5

Cooling (nominal)

22.4

28.0

33.5

High Performance Heating (UK)

25.0

31.5

35.6

COP Priority Heating (UK)

22.8

28.7

34.1

Cooling (UK)

20.0

25.1

30.0

pOWER iNpUT (kW)

Heating (nominal)

5.08

7.14

8.33

Cooling (nominal)

4.72

6.96

8.54

High Performance Heating (UK)

6.40

9.00

11.08

COP Priority Heating (UK)

5.08

7.14

8.33

Cooling (UK)

2.74

4.04

4.05

COp / EER (nominal)

4.92 / 4.74

4.41 / 4.02

4.50 / 3.92

MaX No. Of CONNECTablE iNdOOR UNiTs

MaX CONNECTablE CapaCiTy

50~130% OU Capacity

aiRflOW (m³/min)

High

170

185

240

pipE siZE mm (in)

Gas

22.2 (7/8”)

Liquid

9.52 (3/8”)

sOUNd pREssURE lEVEl (dba) @ 1m

Heating / Cooling

59.0 / 58.0

61.0 / 60.0

64.5 / 61.0

sOUNd pOWER lEVEl (dba) @ 100% Capacity Heating / Cooling

78.0 / 75.0

80.0 / 78.0

83.5 / 80.0

WEighT (kg)

222

223

diMENsiONs (mm)

Width

920

Depth

740

(1798mm without legs)

Height

1858

ElECTRiCal sUpply

380-415v, 50hz

phasE

Three

sTaRTiNg CURRENT (a)

NOMiNal sysTEM RUNNiNg CURRENT (a) Heating / Cooling [MAX]

8.1 / 7.5 [16.1]

11.4 / 11.1 [21.8]

13.3 / 13.6 [25.6]

gUaRaNTEEd OpERaTiNg RaNgE (ºC)

Heating / Cooling

-20~15.5 / -5~52

fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)

1 x 20

1 x 25

1 x 32

MaiNs CablE No. Cores

4 + earth

ChaRgE REfRigERaNT (kg) / CO₂ EQUiValENT (t) R32 (GWP 675)

6.5 / 4.4

MaX addiTiONal REfRigERaNT (kg) / CO₂ EQUiValENT (t) R32 (GWP 675)

18.0 / 12.2

18.5 / 12.5

19.5 / 13.2

Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.

1.5.20

Throughout the year, many buildings require cooling in some areas and heating in others - even in adjacent

R2 Series VRF

rooms. The outstanding City Multi R2 system meets these requirements by distributing surplus heat from

cooling operations (and vice versa) to rooms where it is needed. This efficiency can result in energy savings

High Efficiency

up to 30% over conventional systems.

(22.4-45kW)

Key Features

Simultaneous Heating and

■ Highest specification, highest efficiency heat recovery system available

Cooling with Heat Recovery

■ Delivers the highest levels of comfort, both thermally and acoustically

Outdoor Unit

■ Flexible design, installation and maintenance

OUTDOOR UNITS

PURY-EP200YNW-A1

PURY-EP250YNW-A1

PURY-EP300YNW-A1

PURY-EP350YNW-A1

PURY-EP400YNW-A1

PURY-EP400YSNW-A1

CapaCiTy (kW)

Heating (nominal)

25.0

31.5

37.5

45.0

50.0

Cooling (nominal)

22.4

28.0

33.5

40.0

45.0

High Performance Heating (UK)

25.0

31.5

35.6

42.8

45.0

50.0

COP Priority Heating (UK)

22.8

28.7

34.1

41.0

43.0

45.5

Cooling (UK)

20.1

25.1

30.0

35.8

40.3

pOWER iNpUT (kW)

Heating (nominal)

5.25

7.37

9.51

11.08

13.58

10.82

Cooling (nominal)

4.74

6.89

8.17

9.97

13.04

9.82

High Performance Heating (UK)

6.62

9.29

12.65

14.74

15.35

13.85

COP Priority Heating (UK)

5.25

7.37

9.51

11.08

13.17

10.82

Cooling (UK)

2.75

4.00

4.74

5.78

8.35

5.70

COp / EER (nominal)

4.76 / 4.72

4.27 / 4.06

3.94 / 4.10

4.06 / 4.01

3.68 / 3.45

4.62 / 4.58

MaX No. Of CONNECTablE iNdOOR UNiTs

MaX CONNECTablE CapaCiTy

50~150% OU Capacity

aiRflOW (m³/min)

High

170

185

240

250

315

170 / 170

pipE siZE mm (in)

Gas

19.05 (3/4”)

22.2 (7/8”)

28.58 (1-1/8”)

Liquid

15.88 (5/8”)

19.05 (3/4”)

22.2 (7/8”)

sOUNd pREssURE lEVEl (dba) @ 1m

Heating / Cooling

59.0 / 59.0

61.0 / 60.5

67.0 / 61.0

64.0 / 62.5

69.0 / 65.0

62.0 / 62.0

sOUNd pOWER lEVEl (dba) @ 100% Capacity Heating / Cooling

78.0 / 76.0

80.0 / 78.0

86.0 / 80.0

83.0 / 81.0

88.0 / 83.0

81.0 / 79.0

sOUNd pOWER lEVEl (dba) @ 90% Capacity Heating / Cooling

74.5 / 71.0

76.0 / 73.5

78.5 / 74.5

81.0 / 76.0

81.0 / 77.0

77.5 / 74.0

sOUNd pOWER lEVEl (dba) @ 75% Capacity Heating / Cooling

71.5 / 66.5

74.5 / 69.5

74.5 / 70.5

77.0 / 73.0

75.0 / 73.0

74.5 / 69.5

WEighT (kg)

219

228

230

275

276

219 + 219

diMENsiONs (mm)

Width

920

1240

920 + 920

Depth

740

(1798mm without legs)

Height

1858

ElECTRiCal sUpply*1

380-415v, 50hz

phasE*1

Three

sTaRTiNg CURRENT (a)*1

8 / 8

NOMiNal sysTEM RUNNiNg CURRENT (a)*1 Heating / Cooling [MAX]

8.4 / 7.6 [16.1]

11.8 / 11.0 [17.0]

15.2 / 13.1 [20.3]

17.7 / 15.9 [24.4]

21.7 / 20.9 [30.7]

17.3 / 15.7 [16.1 + 16.1]

gUaRaNTEEd OpERaTiNg RaNgE (ºC)

Heating / Cooling

-20~15.5 / -5~52

fUsE RaTiNg (MCb sizes bs EN 60947-2) - (a)*1

1 x 20

1 x 25

1 x 32

1 x 20 / 1 x 20

MaiNs CablE No. Cores*1

4 + earth

4 + earth / 4 + earth

ChaRgE REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

5.2 / 10.9

8 / 16.7

10.4 / 21.7

MaX addiTiONal REfRigERaNT (kg) / CO₂ EQUiValENT (t) R410A (GWP 2088)

28.3 / 59.1

34.3 / 71.6

39 / 81.4

53.6 / 111.9

Notes: *SEER/SCOP available separately in the 'City Multi VRF Seasonal Efficiency' document. Based on Ecodesign Lot 21/6 to EN14825 standard.

*1 A separate power supply is required for each module. Where more than one figure is quoted there are multiple modules.
