designed for ultra-quiet operation and easy maintenance, the unit provides comfortable air conditioning
PCFY-P-VKM-E
for a wide range of applications where floor or wall space cannot be used practically.

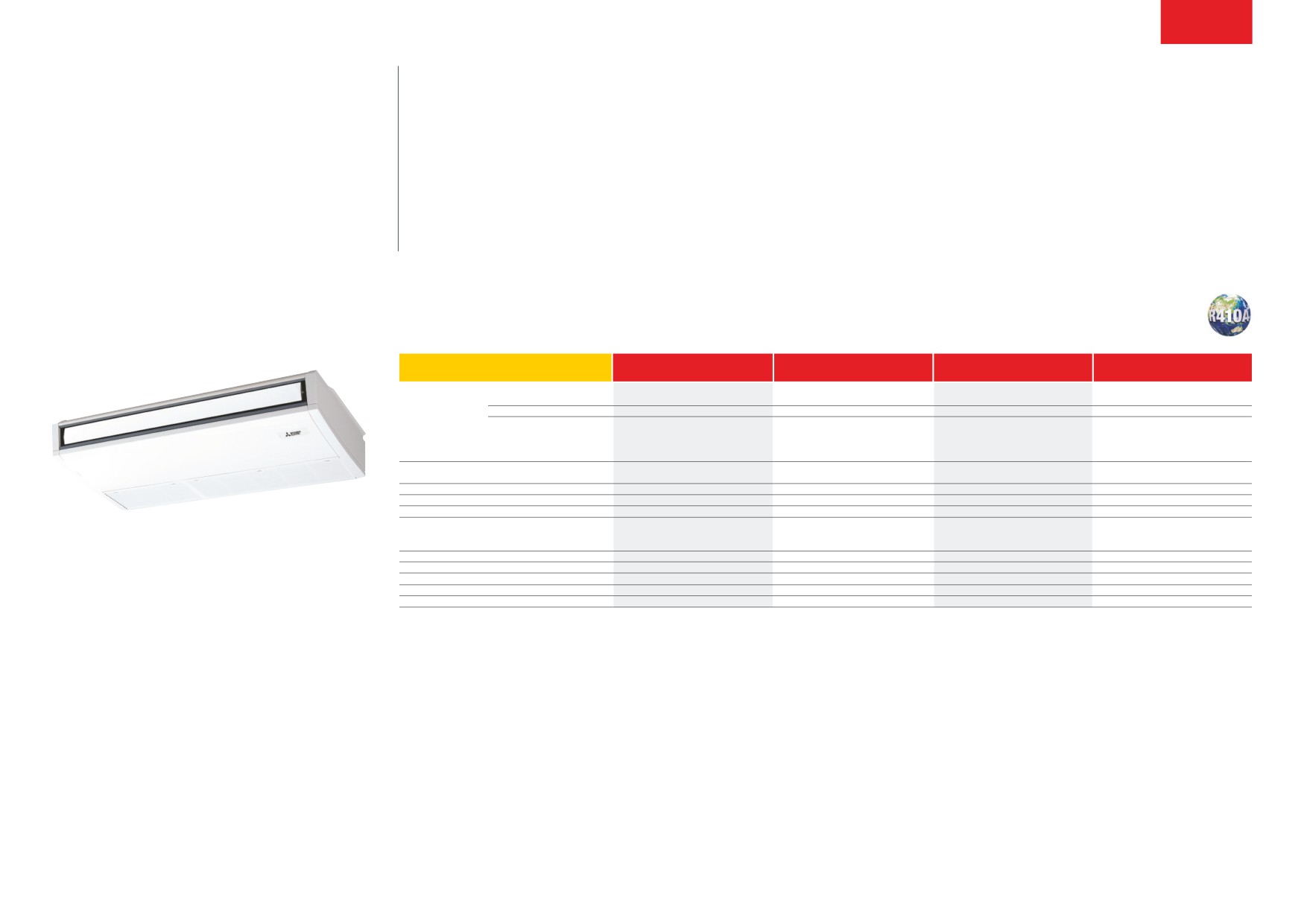

Ceiling Suspended
Indoor Unit
Key Features
■ Indoor unit designed for direct ceiling suspension
■ Flush to wall installation for concealment of service connections
■ Drain piping can be connected from left or right
INDOOR UNITS
PCFY-P40VKM-E
PCFY-P63VKM-E
PCFY-P100VKM-E
PCFY-P125VKM-E
CapaCiTy (kW)
Heating (nominal)
5.0
8.0
12.5
16.0
Cooling (nominal)
4.5
7.1
11.2
14.0
UK Heating
5.0
8.0
12.5
16.0
UK Total Cooling - Hi (Sensible)
4.10
(3.00)
6.40
(4.60)
10.10
(7.10)
12.60
(8.90)
UK Total Cooling - Mi2
4.03
6.22
9.94
12.17
UK Total Cooling - Mi1
3.92
6.09
9.70
11.66
UK Total Cooling - Lo
3.79
5.93
9.23
11.00
pOWER iNpUT (kW)
Heating (nominal)
0.04
0.05
0.09
0.11
Cooling (nominal)
0.04
0.05
0.09
0.11
aiRflOW (l/s)
Lo-Mi1-Mi2-Hi
167-183-200-217
233-250-267-300
350-400-433-467
350-400-450-517
sOUNd pREssURE lEVEl (dba) Lo-Mi1-Mi2-Hi
29-32-34-36
31-33-35-37
36-38-41-43
36-39-42-44
WEighT (kg)
24
32
36
38
diMENsiONs (mm)
Width
960
1280
1600
1600
Depth
680
680
680
680
Height
230
230
230
230
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
RUNNiNg CURRENT (a) Heating / Cooling
0.28 / 0.28
0.33 / 0.33
0.65 / 0.65
0.76 / 0.76
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
MaiNs CablE No. Cores
3
3
3
3

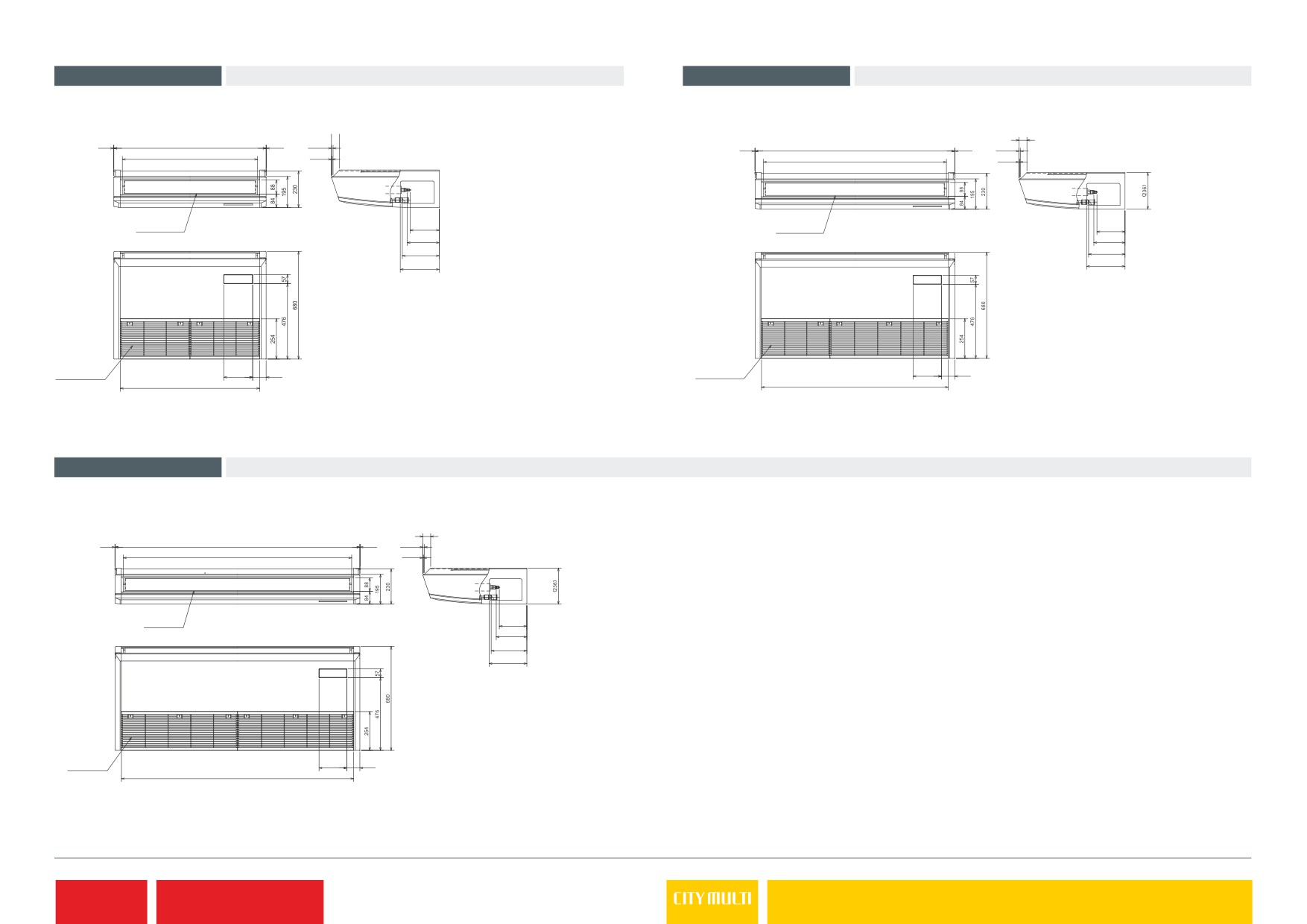

Product Dimensions PCFY-P40VKM-E
Product Dimensions PCFY-P63VKM-E
Front View
Side View
Front View
Side View
51
51
2
960
2
10
2
1280
2
10
853
5
1173
5
Air outlet
184
180
(liquid Ø6.35)
Air outlet
(liquid Ø9.52)
203
(gas Ø12.7)
200
(gas Ø15.88)
233
233
246
246
182
85
182
85
Air intake
Air intake
878
1198
Lower View
Lower View
Product Dimensions PCFY-P100/125VKM-E
Front View
Side View
51
2
1600
2
10
1493
5
Air outlet
180
(liquid Ø9.52)
200
(gas Ø15.88)
233
246
Air intake
182
85
1518
Lower View
