1.5.74
a compact concealed unit providing simple, effective air conditioning in perimeter zones.
PFFY-P-VCM-E
The unit is easy to install and, at only 200mm deep, offers an unobtrusive method of delivering
a highly efficient air conditioning performance.
Floor Standing Concealed
Indoor Unit
Key Features
■ Concealed unit for hidden installation
■ Ideal for perimeter refurbishments
■ 0-10-40-60Pa static pressure settings available
■ Reduced noise levels
INDOOR UNITS
PFFY-P20VCM-E
PFFY-P25VCM-E
PFFY-P32VCM-E
PFFY-P40VCM-E
PFFY-P50VCM-E
PFFY-P63VCM-E
CapaCiTy (kW)
Heating (nominal)
2.5
3.2
4.0
5.0
6.3
8.0
Cooling (nominal)
2.2
2.8
3.6
4.5
5.6
7.1
UK Heating
2.5
3.2
4.0
5.0
6.3
8.0
UK Total Cooling - Hi (Sensible)
2.00
(1.60)
2.50
(1.90)
3.20
(2.40)
4.10
(3.00)
5.00
(3.80)
6.40
(4.70)
UK Total Cooling - Mi
1.92
2.40
3.05
3.95
4.81
6.11
UK Total Cooling - Lo
1.77
2.21
2.87
3.70
4.48
5.71
pOWER iNpUT (kW)
Heating (nominal)
0.022
0.026
0.031
0.038
0.052
0.058
Cooling (nominal)
0.022
0.026
0.031
0.038
0.052
0.058
aiRflOW (l/s)
Lo-Mi-Hi
83-100-117
92-108-133
92-117-142
133-158-183
167-192-225
200-233-275
EXTERNal sTaTiC pREssURE (pa)
0-10-40-60
0-10-40-60
0-10-40-60
0-10-40-60
0-10-40-60
0-10-40-60
sOUNd pREssURE lEVEl*1 (dba) Lo-Mi-Hi
21-23-26
22-25-29
23-26-30
25-27-30
28-31-34
28-32-35
WEighT (kg)
18
18
18.5
22.5
22.5
25.5

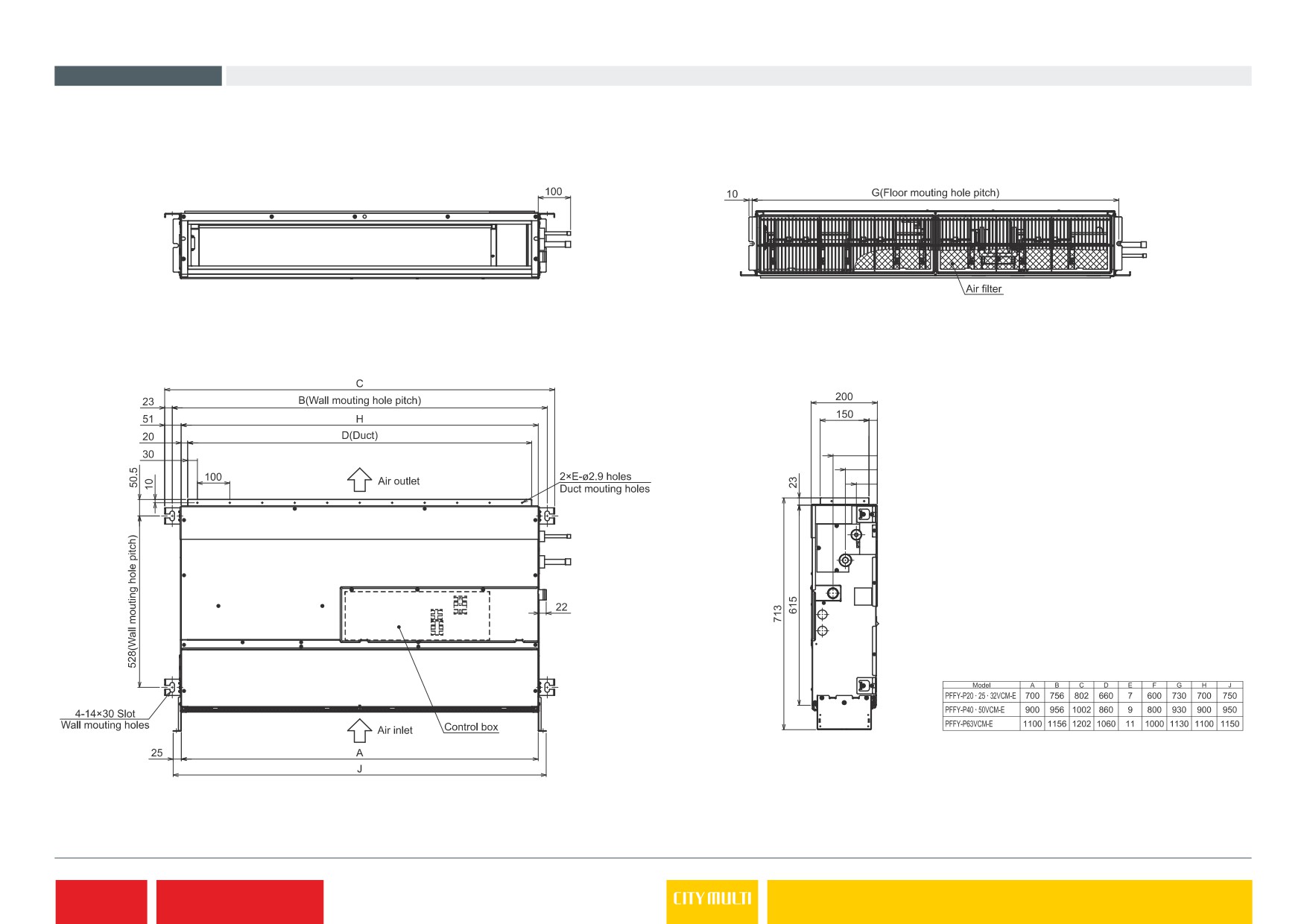

diMENsiONs (mm)
Width
700
700
700
900
900
1100
Depth
200
200
200
200
200
200
Height
690
690
690
690
690
690
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
single
single
RUNNiNg CURRENT (a) Heating / Cooling
0.25 / 0.25
0.30 / 0.30
0.34 / 0.34
0.38 / 0.38
0.50 / 0.50
0.49 / 0.49
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
6
6
MaiNs CablE No. Cores
3
3
3
3
3
3
Note: *1 Additional sound data is available for this model. Separated inlet and breakout sound power level and discharge sound power level data is available on request.
