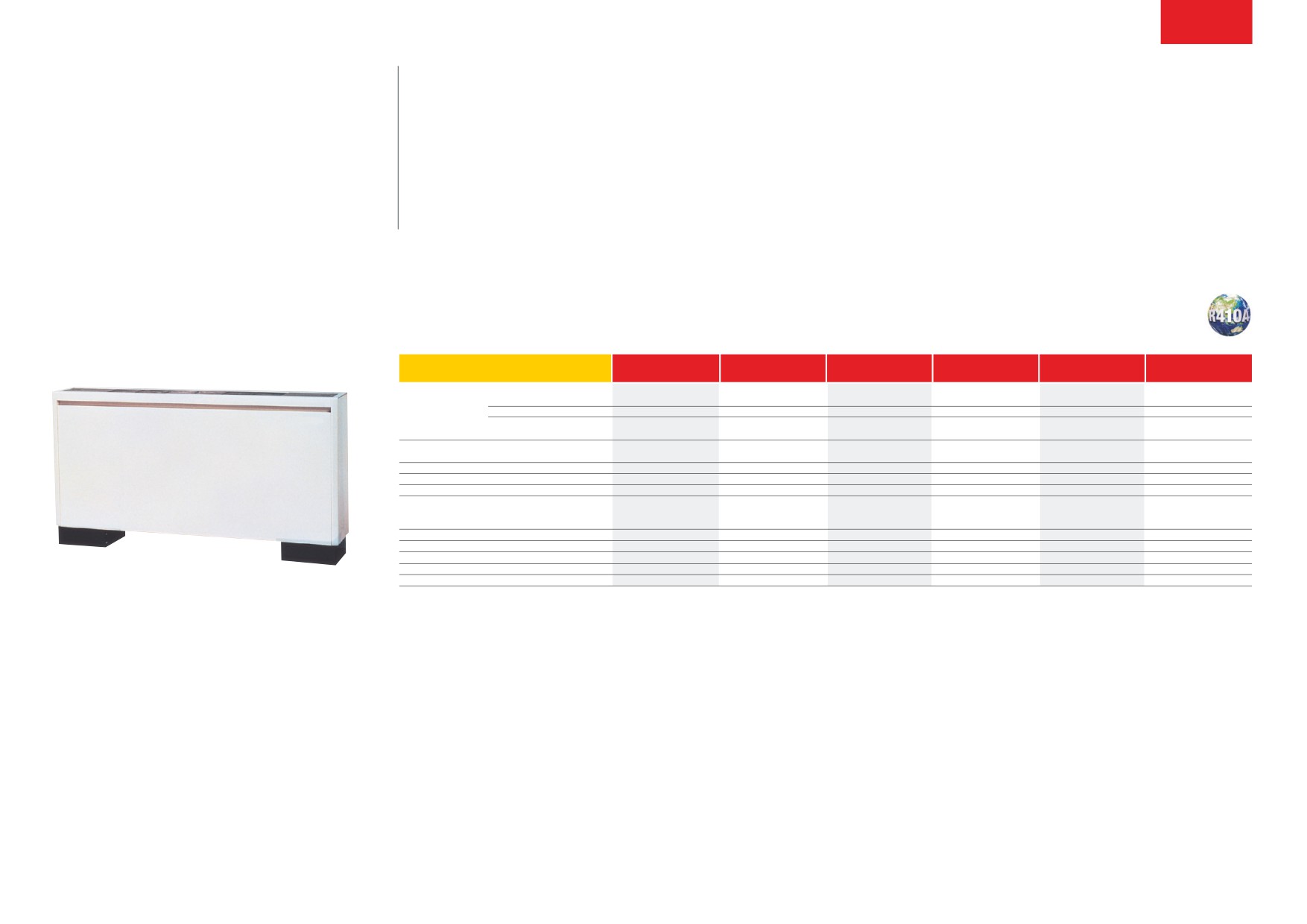

1.5.76
a compact cased unit providing simple, effective air conditioning in perimeter zones. The unit is
PFFY-P-VLEM-E
easy to install and, at only 220mm deep, offers an unobtrusive method of delivering a highly
efficient air conditioning performance.
Floor Standing Exposed
Indoor Unit
Key Features
■ Remote controller can be incorporated into the main unit
■ Perimeter air conditioning for retrofit applications with low ceiling void
INDOOR UNTS
PFFY-P20VLEM-E
PFFY-P25VLEM-E
PFFY-P32VLEM-E
PFFY-P40VLEM-E
PFFY-P50VLEM-E
PFFY-P63VLEM-E
CapaCiTy (kW)
Heating (nominal)
2.5
3.2
4.0
5.0
6.3
8.0
Cooling (nominal)
2.2
2.8
3.6
4.5
5.6
7.1
UK Heating
2.5
3.2
4.0
5.0
6.3
8.0
UK Total Cooling - Hi (Sensible)
2.00
(1.60)
2.50
(1.90)
3.20
(2.40)
4.10
(3.00)
5.00
(3.80)
6.40
(4.70)
UK Total Cooling - Lo
1.92
2.40
2.97
3.88
4.81
5.93
pOWER iNpUT (kW)
Heating (nominal)
0.04
0.04
0.06
0.065
0.085
0.10
Cooling (nominal)
0.04
0.04
0.06
0.065
0.085
0.10
aiRflOW (l/s)
Lo-Hi
92-108
92-108
117-150
150-183
200-233
200-258
sOUNd pREssURE lEVEl (dba) Lo-Hi
34-40
34-40
35-40
38-43
38-43
40-46
WEighT (kg)
23
23
25
26
30
32
diMENsiONs (mm)
Width
1050
1050
1170
1170
1410
1410
Depth
220
220
220
220
220
220
Height
630
630
630
630
630
630
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
single
single
RUNNiNg CURRENT (a) Heating / Cooling
0.19 / 0.19
0.19 / 0.19
0.29 / 0.29
0.32 / 0.32
0.40 / 0.40
0.46 / 0.46
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
6
6
MaiNs CablE No. Cores
3
3
3
3
3
3

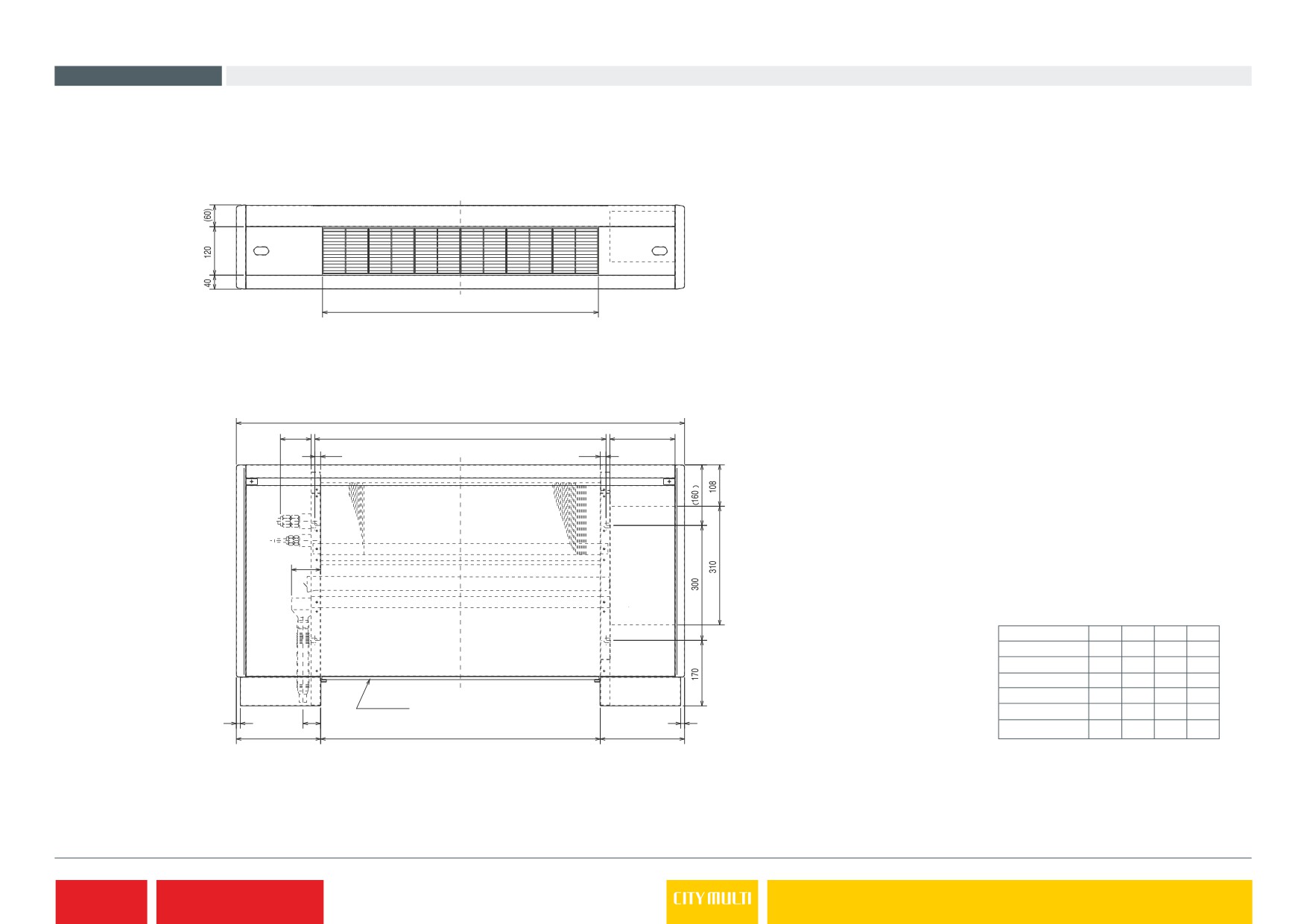

Product Dimensions PFFY-P20/25/32/40/50/63VLEM-E
Upper View
C
Front View
A
80
B
170
15
15
78
Model
a
b
C
d
pffy-p20VlEM-E
1050
640
600
610
pffy-p25VlEM-E
1050
640
600
610
pffy-p32VlEM-E
1170
760
720
730
pffy-p40VlEM-E
1170
760
720
730
Air filter
pffy-p50VlEM-E
1410
1000
960
970
10
45
10
2
20
D
220
pffy-p63VlEM-E
1410
1000
960
970
1.5.77
Air Conditioning
PFFY-P-VLEM-E Floor Standing Exposed Indoor Unit
1.5.78

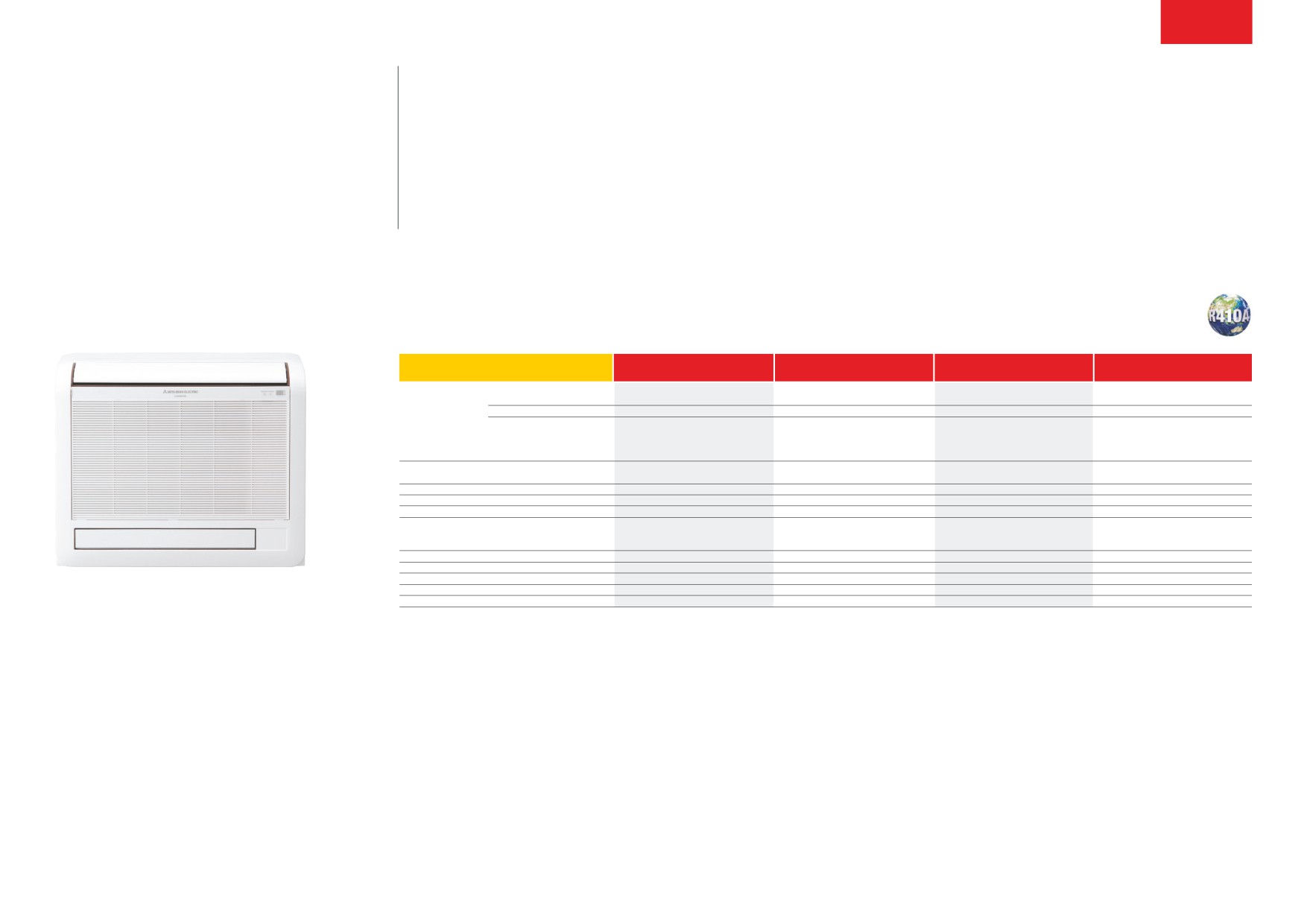

The pffy-p-VkM-E series is extremely versatile and is designed for wall attached installation at floor level.
PFFY-P-VKM-E
The auto swing vane provides a more natural and comfortable airflow throughout the room and the
lightweight, compact design makes installation easy.
Floor Standing Exposed
Indoor Unit
Key Features
■ Pure white, slimline design
■ Upper and lower vanes for optimum, powerful and efficient air distribution
INDOOR UNITS
PFFY-P20VKM-E
PFFY-P25VKM-E
PFFY-P32VKM-E
PFFY-P40VKM-E
CapaCiTy (kW)
Heating (nominal)
2.5
3.2
4.0
5.0
Cooling (nominal)
2.2
2.8
3.6
4.5
UK Heating
2.5
3.2
4.0
5.0
UK Total Cooling - Hi (Sensible)
2.00
(1.60)
2.50
(1.90)
3.20
(2.30)
4.10
(2.90)
UK Total Cooling - Mi2
1.94
2.42
3.10
3.98
UK Total Cooling - Mi1
1.86
2.31
2.96
3.92
UK Total Cooling - Lo
1.75
2.17
2.78
3.74
pOWER iNpUT (kW)
Heating (nominal)
0.025
0.025
0.025
0.028
Cooling (nominal)
0.025
0.025
0.025
0.028
aiRflOW (l/s)
Lo-Mi1-Mi2-Hi
98-113-127-145
102-117-133-152
102-117-133-152
133-150-158-178
sOUNd pREssURE lEVEl (dba) Lo-Mi1-Mi2-Hi
27-31-34-37
28-32-35-38
28-32-35-38
35-38-42-44
WEighT (kg)
15
15
15
15
diMENsiONs (mm)
Width
700
700
700
700
Depth
200
200
200
200
Height
600
600
600
600
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
RUNNiNg CURRENT (a) Heating / Cooling
0.20 / 0.20
0.20 / 0.20
0.20 / 0.20
0.24 / 0.24
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
MaiNs CablE No. Cores
3
3
3
3

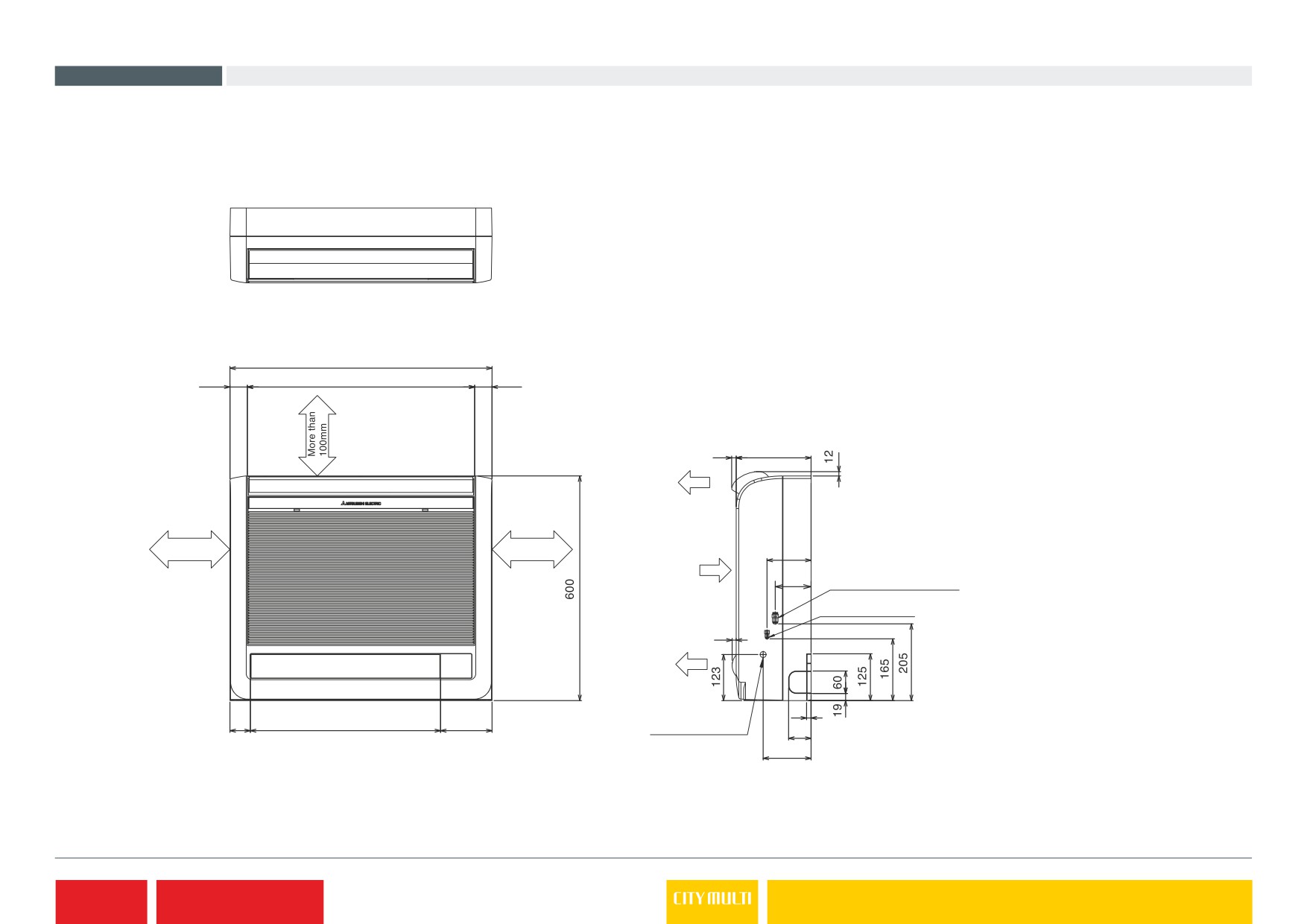

Product Dimensions PFFY-P20/25/32/40VKM-E
Upper View
Front View
700
Side View
46.5
607
4
12
200
Air out
More than
More than
Air in
118
100mm
100mm
Gas pipe
96
ø12.7(flared)1/2
Liquid pipe
ø6.35(flared)1/4
11
Air out
12
Drain pipe
54
508
137
O.D. 16 (5/8")
60
128
1.5.79
Air Conditioning
PFFY-P-VKM-E Floor Standing Exposed Indoor Unit
