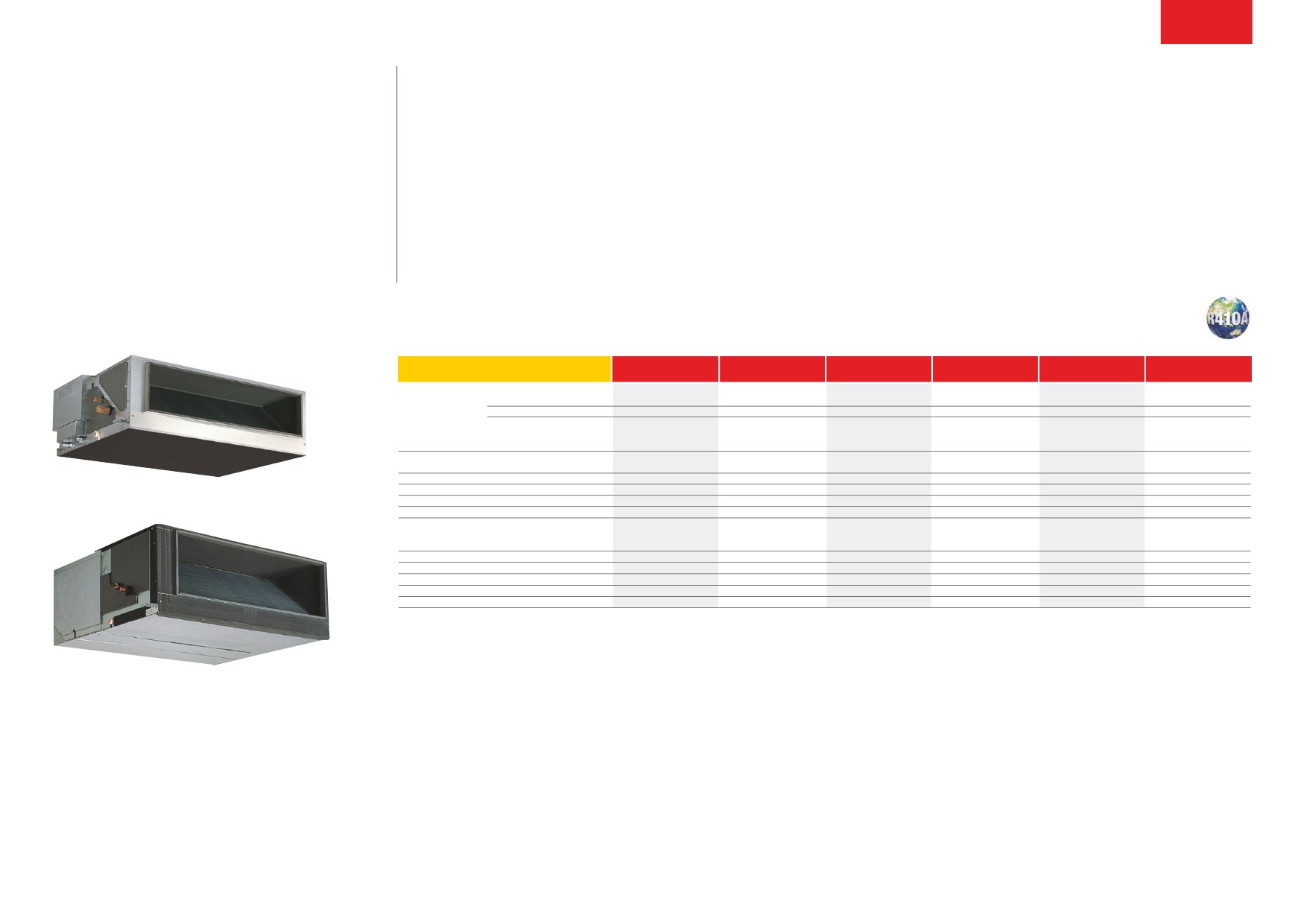

With improved design flexibility as a result of increased external static pressure, the pEfy-p-VMhs-E
PEFY-P-VMHS-E
allows authentic duct air conditioning within the strictest aesthetic confines.
High Static Pressure Ceiling
Concealed Ducted Indoor Unit
Key Features
■ External static pressure of up to 250Pa
■ Greater flexibility for duct extension, branching air outlet configuration
■ Reduced noise levels due to the centrifugal fan
■ Duct can be connected to intake side
■ Drain lift-pump (option) 550mm of lift
INDOOR UNITS
PEFY-P80VMHS-E
PEFY-P100VMHS-E
PEFY-P125VMHS-E
PEFY-P140VMHS-E
PEFY-P200VMHS-E
PEFY-P250VMHS-E
CapaCiTy (kW)
Heating (nominal)
10.0
12.5
16.0
18.0
25.0
31.5
Cooling (nominal)
9.0
11.2
14.0
16.0
22.4
28.0
UK Heating
10.0
12.5
16.0
18.0
25.0
31.5
UK Total Cooling - Hi (Sensible)
8.10
(6.10)
10.10
(8.30)
12.60
(9.50)
14.40
(10.80)
20.20
(15.60)
25.20
(19.30)
UK Total Cooling - Mi
-
-
-
-
19.33
24.10
UK Total Cooling - Lo
7.27
8.95
11.16
12.77
17.84
22.21
pOWER iNpUT (kW)
Heating (nominal)
0.09
0.16
0.16
0.19
0.63
0.82
Cooling (nominal)
0.09
0.16
0.16
0.19
0.63
0.82
aiRflOW (l/s)
Lo-Mi-Hi
300-358-417
442-533-633
442-533-633
467-567-667
833-1017-1200
967-1183-1400
EXTERNal sTaTiC pREssURE (Pa)
100-150-200
100-150-200
100-150-200
100-150-200
50-100-150-200-250
50-100-150-200-250
sOUNd pREssURE lEVEl (dba) (150pa) Lo-Mi-Hi
25-27-30
27-31-34
27-31-34
27-32-36
36-39-43
39-42-46
WEighT (kg)
45
51
51
53
97
100
diMENsiONs (mm)
Width
1030
1195
1195
1195
1250
1250
Depth
900
900
900
900
1120
1120
Height
380
380
380
380
470
470
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
single
single
RUNNiNg CURRENT (a) Heating / Cooling
0.61 / 0.61
1.01 / 1.01
1.01 / 1.01
1.19 / 1.19
3.18 / 3.18
4.14 / 4.14
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
6
6
MaiNs CablE No. Cores
3
3
3
3
3
3

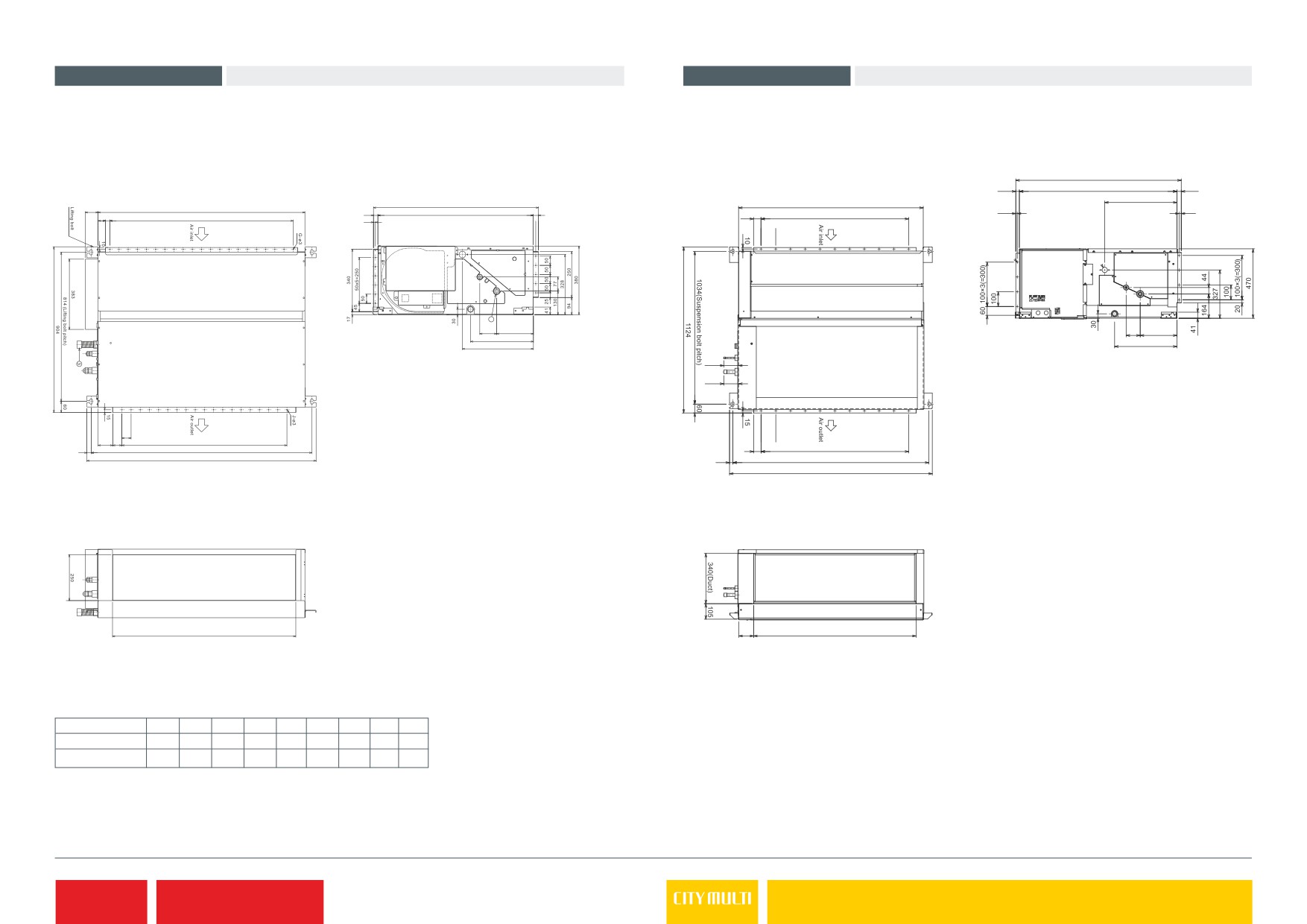

Product Dimensions PEFY-P80/100/125/140VMHS-E
Product Dimensions PEFY-P200/250VMHS-E
Upper View
Side View
Upper View
Side View
1120
24
1067
29
489
900
1250
70
C
24
847
29
10
15
41 F
50x(G-1)=H
50
100×10(=1000)
10
15
100
1
92
200
95
249
343
387
422
(100)
(100)
50
100
80
50
50x(J-1)= K
23
B (Lifting bolt pitch)
50
100×10(=1000)
A
23
1326(Suspension bolt pitch)
1372
Front View
Front View
E
100
1100(Duct)
Model
a
b
C
E
f
g
h
J
k
pEfy-p80VMhs-E
1085
1039
965
835
42.5
17
800
15
700
pEfy-p100-140VMhs-E
1250
1204
1130
1000
25
21
1000
19
900
PEFY-P-VMHS-E
