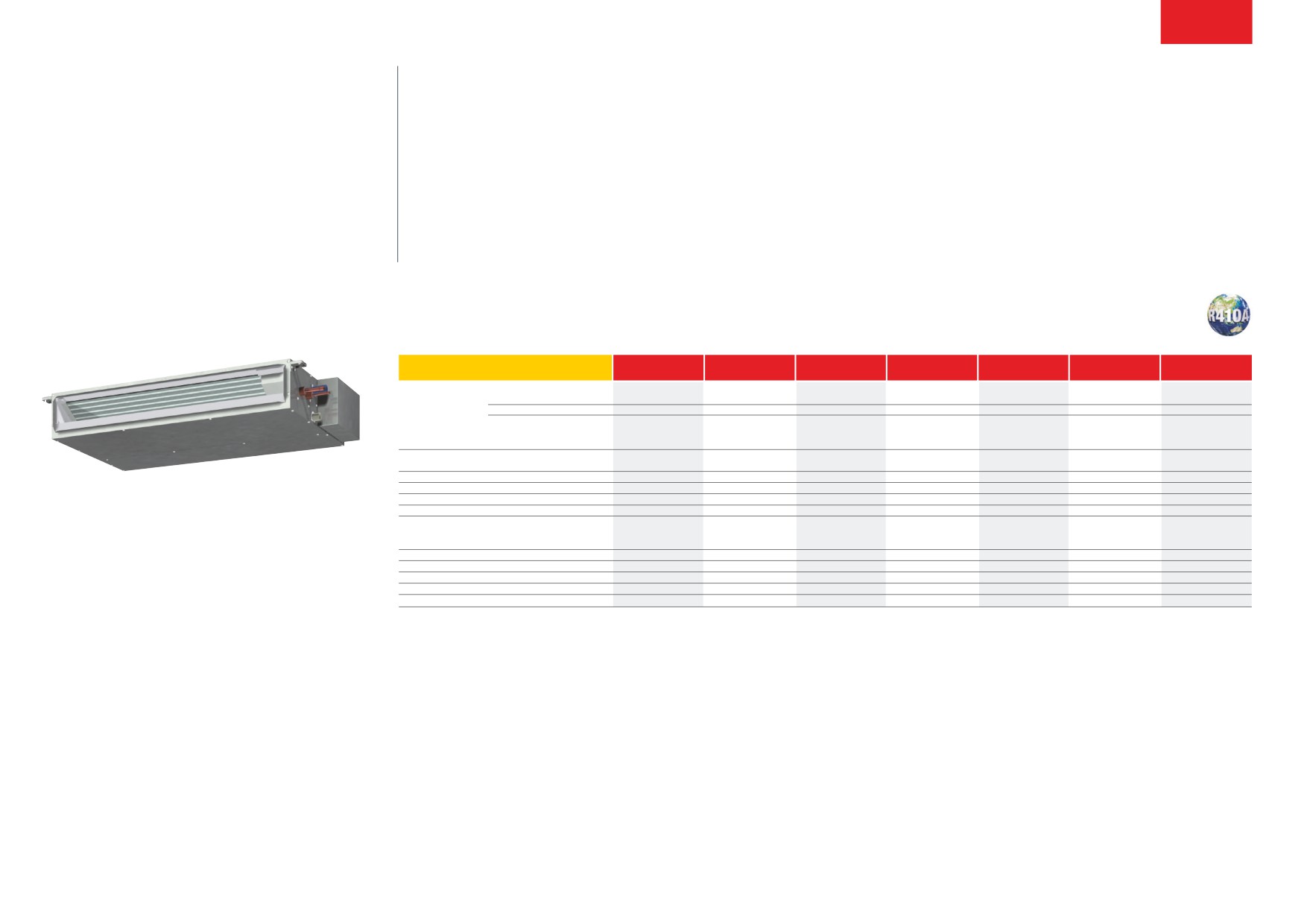

The ultra thin ceiling concealed ducted indoor unit offers increased flexibility and is particularly suitable
PEFY-P-VMS1-E
for locations where low noise operation is desired from a slimline body, such as hotels.
Ultra Thin Ceiling Concealed
Ducted Indoor Unit
Key Features
■ Ultra thin body - height of only 200mm & width of only 790mm (size P15-32)
■ Extremely quiet operation - as low as 22dBA (size P15-20)
■ Static pressure of 5-50Pa
■ Available in a 1.5kW size, ideal for hotel rooms
INDOOR UNITS
PEFY-P15VMS1-E
PEFY-P20VMS1-E
PEFY-P25VMS1-E
PEFY-P32VMS1-E
PEFY-P40VMS1-E
PEFY-P50VMS1-E
PEFY-P63VMS1-E
CapaCiTy (kW)
Heating (nominal)
1.9
2.5
3.2
4.0
5.0
6.3
8.0
Cooling (nominal)
1.7
2.2
2.8
3.6
4.5
5.6
7.1
UK Heating
1.9
2.5
3.2
4.0
5.0
6.3
8.0
UK Total Cooling - Hi (Sensible)
1.50
(1.40)
2.00
(1.70)
2.50
(2.10)
3.20
(2.50)
4.10
(3.00)
5.00
(3.70)
6.40
(4.70)
UK Total Cooling - Mi
1.44
1.89
2.32
2.99
3.95
4.78
6.13
UK Total Cooling - Lo
1.34
1.76
2.07
2.63
3.70
4.51
5.77
pOWER iNpUT (kW)
Heating (nominal)
0.03
0.03
0.04
0.05
0.05
0.07
0.07
Cooling (nominal)
0.05
0.05
0.06
0.07
0.07
0.09
0.09
aiRflOW (l/s)
Lo-Mi-Hi
83-100-117
91-108-133
91-117-150
100-133-167
133-158-183
158-183-217
200-233-275
EXTERNal sTaTiC pREssURE (Pa)
5-15-35-50
5-15-35-50
5-15-35-50
5-15-35-50
5-15-35-50
5-15-35-50
5-15-35-50
sOUNd pREssURE lEVEl (dba)*1 Lo-Mi-Hi
22-24-28
22-25-29
24-26-30
24-27-32
28-30-33
30-32-35
30-33-36
WEighT (kg)
19
19
19
20
24
24
28
diMENsiONs (mm)
Width
790
790
790
790
990
990
1190
Depth
700
700
700
700
700
700
700
Height
200
200
200
200
200
200
200
ElECTRiCal sUpply
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
220-240v, 50hz
phasE
single
single
single
single
single
single
single
RUNNiNg CURRENT (a) Heating / Cooling
0.31 / 0.42
0.36 / 0.47
0.39 / 0.50
0.39 / 0.50
0.45 / 0.56
0.56 / 0.67
0.61 / 0.72
fUsE RaTiNg (bs88) - hRC (a)
6
6
6
6
6
6
6
MaiNs CablE No. Cores
3
3
3
3
3
3
3
Note: *1 Additional sound data is available for this model. Separated inlet and breakout sound power level and discharge sound power level data is available on request.

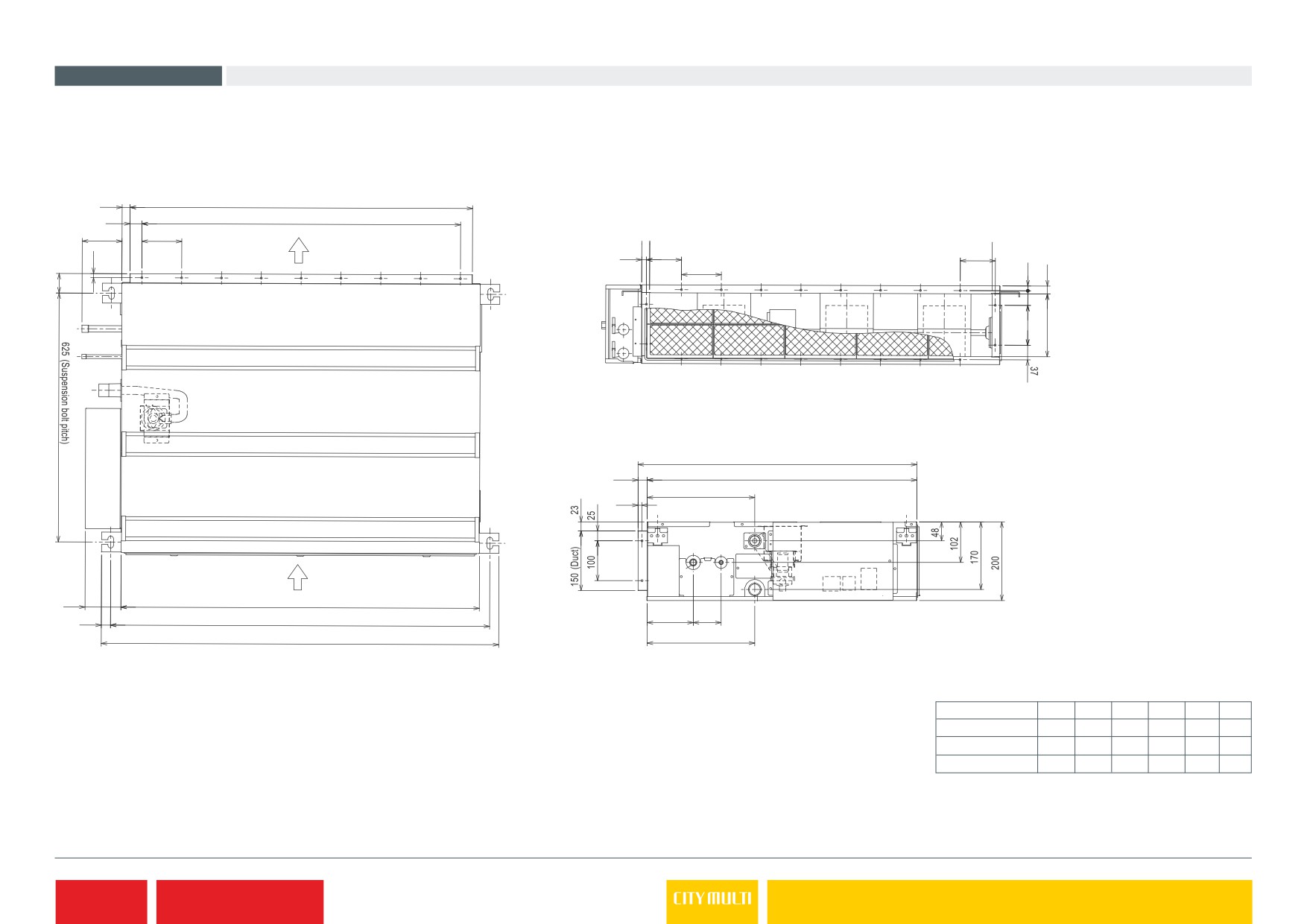

Product Dimensions PEFY-P15/20/25/32/40/50/63VMS1-E
Upper View
20
D (Duct)
Front View
30
100X(E
-
)
100
100
20
Air
outlet
12
88
88
10
100
12
20
49
37
100
157.5
Side View
700
2
3
677
270
10
Air
inlet
90
A
2
3
B (Suspension bolt pitch)
1
16
70
C
270
Model
A
B
C
D
E
F
PEFY-P15-32VMS1-E
700
752
798
660
7
600
PEFY-P40-50VMS1-E
900
952
998
860
9
800
PEFY-P63VMS1-E
1100
1152
1198
1060
11
1000
