1.5.70

The plfy-M-VEM-E offer 72 different airflow patterns, with the ability to handle a multitude of ceiling

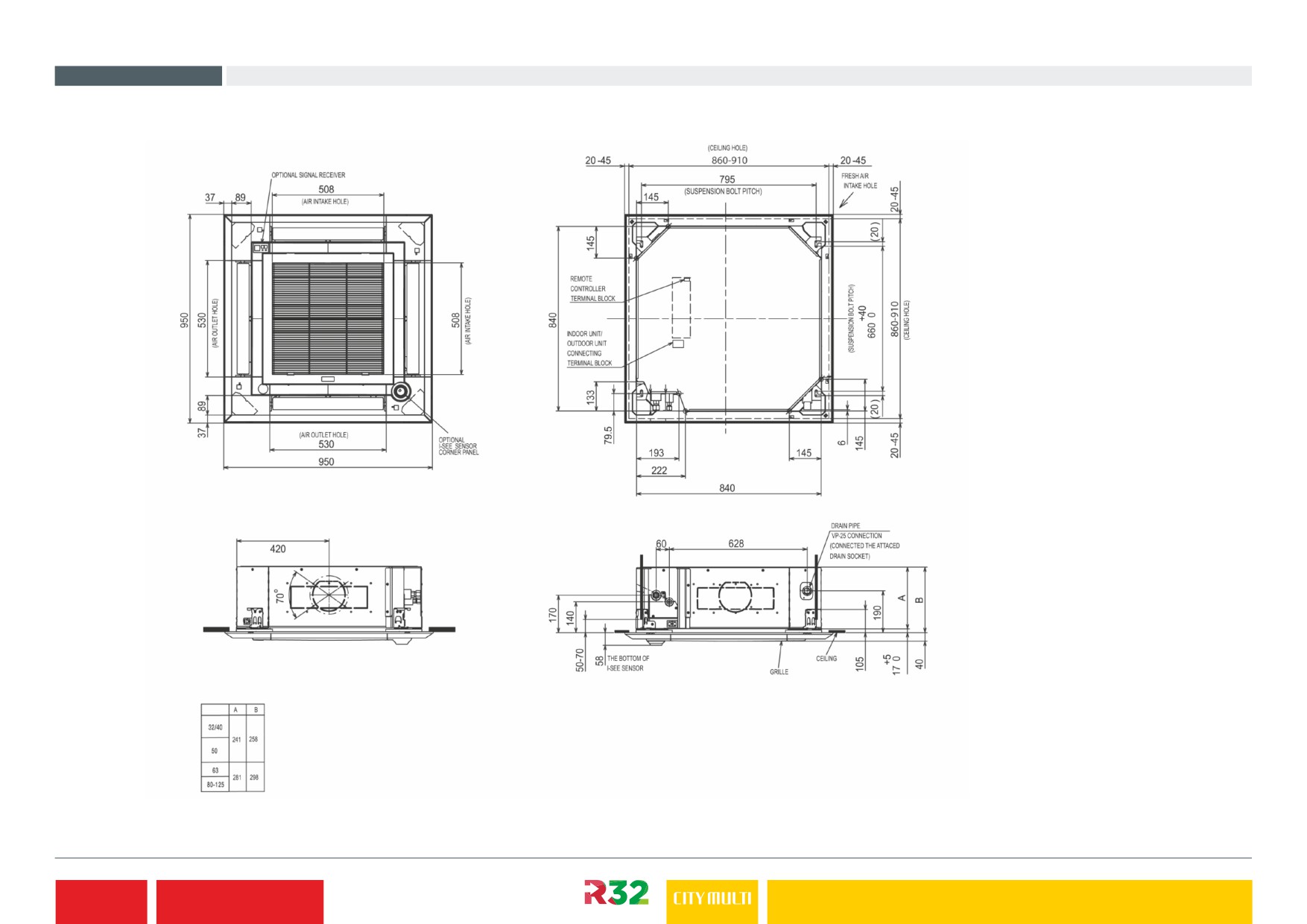

PLFY-M-VEM-E

applications up to 4.2 metres in height. The easy to install, slim unit is ideal for maintaining constant

temperatures, thanks to adjustable vanes that allow users to precisely direct air where it’s needed.

4-Way Blow Ceiling Cassette

Indoor Unit

Key Features

■ Improved airflow control, including horizontal airflow for greater comfort

■ Optional 3D i-see sensor grille (PLP-6EAE) provides customised comfort by automatically

monitoring room occupancy, position and body temperatures

■ Optional filter lowering operation down to 4m (PLP-6EAJ)

INDOOR UNITS

PLFY-M32VEM-E

PLFY-M40VEM-E

PLFY-M50VEM-E

PLFY-M63VEM-E

PLFY-M80VEM-E

PLFY-M100VEM-E

PLFY-M125VEM-E

CapaCiTy (kW)

Heating (nominal)

4.0

5.0

6.3

8.0

10.0

12.5

16.0

Cooling (nominal)

3.6

4.5

5.6

7.1

9.0

11.2

14.0

UK Heating

4.0

5.0

6.3

8.0

10.0

12.5

16.0

UK Total Cooling - Hi (Sensible)

3.20

(3.00)

4.00

(3.50)

5.00

(4.10)

6.40

(4.90)

8.10

(6.20)

10.00

(7.60)

12.50

(9.50)

UK Total Cooling - Mi2

3.16

3.95

4.93

6.22

7.88

9.74

12.01

UK Total Cooling - Mi1

3.09

3.87

4.83

6.09

7.71

9.34

11.37

UK Total Cooling - Lo

3.02

3.77

4.72

5.93

7.51

8.81

10.54

pOWER iNpUT (kW)

Heating (nominal)

0.03

0.05

0.07

0.11

Cooling (nominal)

0.03

0.05

0.07

0.11

aiRflOW (l/s)

Lo-Mi1-Mi2-Hi

217-233-250-267

217-233-250-283

217-233-267-300

233-250-267-300

233-283-333-383

333-383-433-483

367-433-500-583

sOUNd pREssURE lEVEl (dba) Lo-Mi1-Mi2-Hi

26-27-29-31

28-29-30-32

28-31-34-37

34-37-39-41

35-39-42-45

WEighT (kg)

(Grille)

19(5)

21(5)

24(5)

diMENsiONs (mm)

Width (Grille)

840 (950)

Depth (Grille)

840 (950)

Height (Grille)

258 (40)

298 (40)

ElECTRiCal sUpply

220-240v, 50hz

phasE

single

RUNNiNg CURRENT (a) Heating

0.25

0.29

0.43

0.60

0.99

Cooling

0.32

0.36

0.50

0.67

1.06

fUsE RaTiNg (bs88) - hRC (a)

MaiNs CablE No. Cores

gRillE MOdEl REfERENCE

plp-6Ea

1.5.72

The plfy 600x600 cassette unit provides the smart solution to comfortable and efficient air conditioning.

PLFY-P-VFM-E

it combines a stylish square design slimline grille with the latest energy-saving technologies and

is designed to fit snugly to ceilings, making it ideal in both offices and retail.

600x600 4-Way Blow

Ceiling Cassette Indoor Unit

Key Features

■ New design - fits into narrow ceiling spaces with height of only 245mm

■ Low noise levels - reduced noise value with 3D turbo fan

■ Horizontal airflow - eliminating uncomfortable drafts and improved airflow control

■ Easy installation - temporary hanging hook on grille and no screw removal for corner panel / control box

■ 3D i-see Sensor Grille - optional 360º human body temperature, room occupancy and position sensor grille

INDOOR UNITS

PLFY-P15VFM-E

PLFY-P20VFM-E

PLFY-P25VFM-E

PLFY-P32VFM-E

PLFY-P40VFM-E

PLFY-P50VFM-E

CapaCiTy (kW)

Heating (nominal)

1.9

2.5

3.2

4.0

5.0

6.3

Cooling (nominal)

1.7

2.2

2.8

3.6

4.5

5.6

UK Heating

1.9

2.5

3.2

4.0

5.0

6.3

UK Total Cooling - Hi (Sensible)

1.50

(1.30)

2.00

(1.60)

2.50

(2.00)

3.20

(2.40)

4.00

(2.90)

5.00

(3.60)

UK Total Cooling - Mi

1.48

1.94

2.38

3.06

3.78

4.78

UK Total Cooling - Lo

1.41

1.84

2.24

2.91

3.51

4.41

pOWER iNpUT (kW)

Heating (nominal)

0.02

0.03

Cooling (nominal)

0.02

0.03

aiRflOW (l/s)

Lo-Mi-Hi

108-125-133

108-125-142

108-133-150

117-133-158

125-150-183

150-183-217

sOUNd pREssURE lEVEl (dba) Lo-Mi-Hi

26-28-30

26-29-31

26-30-33

26-30-34

28-33-39

33-39-43

WEighT (kg)

(Grille)

14 (3)

15 (3)

diMENsiONs (mm)

Width (Grille)

570 (625)

Depth (Grille)

570 (625)

Height (Grille)

245 (10)

ElECTRiCal sUpply

220-240v, 50hz

phasE

single

RUNNiNg CURRENT (a) Heating / Cooling

0.14 / 0.19

0.16 / 0.21

0.17 / 0.22

0.18 / 0.23

0.23 / 0.28

0.35 / 0.4

fUsE RaTiNg (bs88) - hRC (a)

MaiNs CablE No. Cores

gRillE MOdEl REfERENCE

slp-2fa
