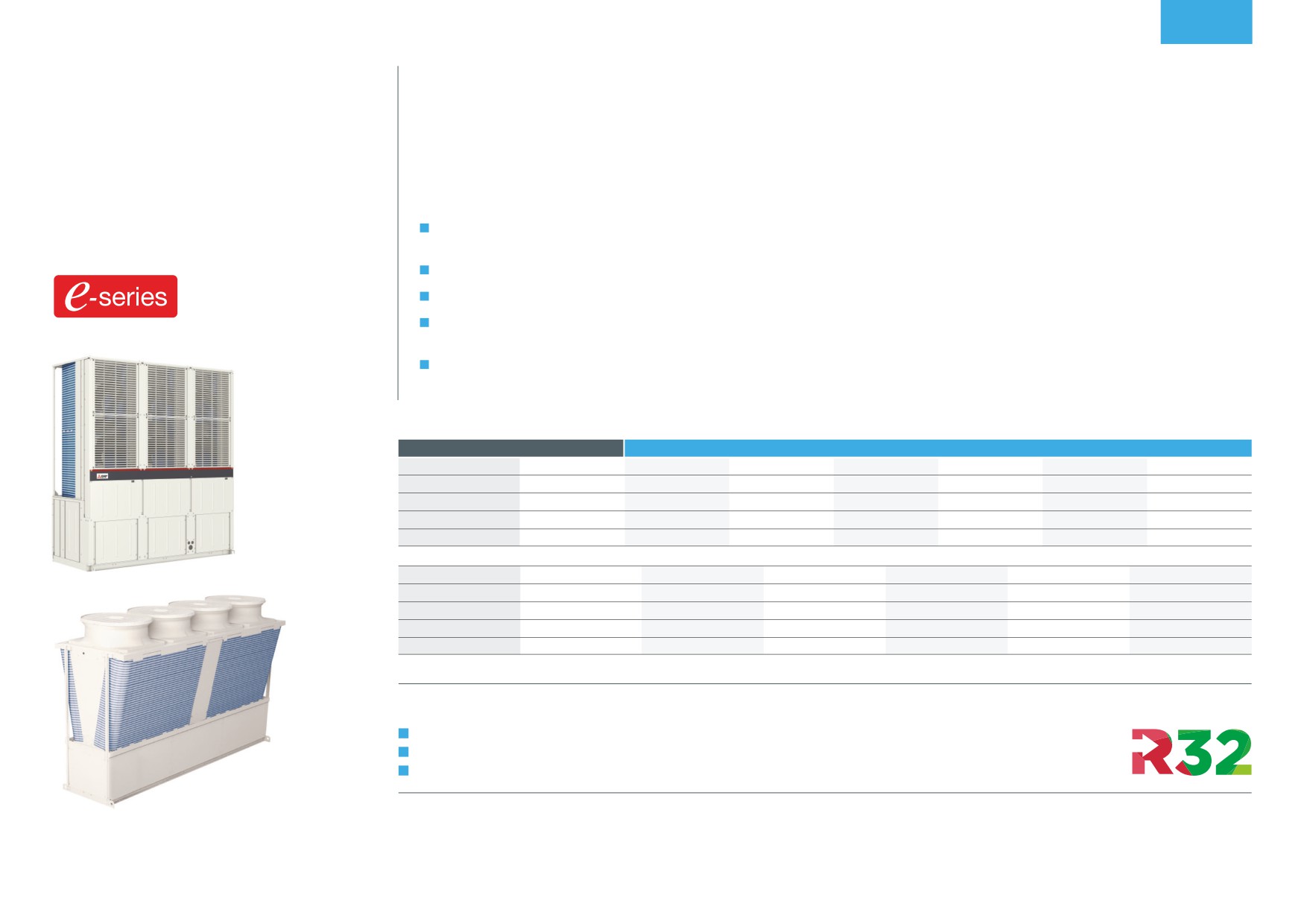

2.10

The e-series chiller allows for up to six individual units to be connected together to provide a

e-series

system capacity from 90kW to 1,080kW.

Modular Chiller

Using this modular approach reduces space requirements and simplifies lifting and installation. The e-series chiller

is available as a cooling only or heat pump version, suitable for both comfort and process cooling applications.

(90-1,080kW)

Key Features

Cooling Only or Heat Pump

Two high efficiency advanced DC inverter-driven scroll compressors are incorporated within each 90kW module and four within the

150/180kW modules. This allows the unit to operate between 8% ~ 100% of capacity, producing exceptional part load efficiencies

Two-stage cooling circuit - both compressors (or pair of compressors) serve separate plate heat exchangers located in the centre of the unit

Reduced plant space - each size module can be positioned in a bank of up to six connected units using the same internal header

Internal header pipe - the in-built internal header pipes simplify design, installation and maintenance and also reduces space requirements,

making the e-series range modular and suitable for almost any situation

High performance compact air heat exchanger - the use of U-shaped or Y-shaped heat exchangers allows for a greater surface area,

maximising efficiency whilst also keeping the units much narrower than conventional chillers. Blue Fin anti-corrosion coating on the heat

exchanger is also provided as standard

SYSTEM CONFIGURATIONS

MAXIMUM CAPACITY

90kW

150kW

180kW

270kW

300kW

360kW

450kW

COOLING ONLY

EACV-P900YAL-N

EACV-P1500YBL-N

EACV-P900YAL-N x2

EACV-P900YAL-N x3

EACV-P1500YBL-N x2

EACV-P900YAL-N x4

EACV-P900YAL-N x5

EACV-P1800YBL-N

EACV-P1800YBL-N x2

EACV-P1500YBL-N x3

HEATING / COOLING

EAHV-P900YAL-N

EAHV-P1500YBL-N

EAHV-P900YAL-N x2

EAHV-P900YAL-N x3 EAHV-P1500YBL-N x2 EAHV-P900YAL-N x4

EAHV-P900YAL-N x5

EAHV-P1800YBL-N

EAHV-P1800YBL-N x2 EAHV-P1500YBL-N x3

MAXIMUM CAPACITY

540kW

600kW

720kW

750kW

900kW

1,080kW

COOLING ONLY

EACV-P900YAL-N x6

EACV-P1500YBL-N x4

EACV-P1800YBL-N x4

EACV-P1500YBL-N x5

EACV-P1500YBL-N x6

EACV-P1800YBL-N x6

EACV-P1800YBL-N x3

EACV-P1800YBL-N x5

HEATING / COOLING

EAHV-P900YAL-N x6

EAHV-P1500YBL-N x4

EAHV-P1800YBL-N x4

EAHV-P1500YBL-N x5

EAHV-P1500YBL-N x6

EAHV-P1800YBL-N x6

EAHV-P1800YBL-N x3

EAHV-P1800YBL-N x5

150/180kW lower GWP R32 refrigerant modules available Autumn 2020

Micro-channel aluminium heat exchanger

Reduced refrigerant volume - 90% reduction in CO₂ equivalent compared to the current R410A cooling only models

Expanded operating temperature range - will work with outdoor temperatures of -20ºC

MODEL

EACV-P900YAL-N Cooling Only

EACV-P1500YBL-N Cooling Only

EACV-P1800YBL-N Cooling Only

e-series

POWER SOURCE

3-phase 4-wire

380-400-415v, 50/60Hz

COOLING CAPACITY ^*1

90.0

150.0

180.0

Modular Chiller

WATER

kcal/h

77,400

129,000

154,800

BTU/h

307,080

511,800

614,160

Power Input

27.27

45.1

59.01

EER (Pump input is not included)

3.30

3.33

3.05

(90-1,080kW)

IPLV ^*3

6.34

6.55

6.33

Water Flow Rate

m³/h

15.5

25.8

COOLING CAPACITY

148.6

177.8

(EN14511)^*2

kcal/h

77,400

127,779

152,874

Cooling Only

WATER

BTU/h

307,080

506,955

606,517

Power Input

29.2

46.52

61.25

EER

3.08

3.19

2.90

Eurovent Efficiency Class

ESEER ^*4

4.71

4.74

4.45

SEER (ƞsc) (BS EN14825)

4.88 (192%)

4.62 (181%)

4.58 (180%)

Water Flow Rate

m³/h

15.5

25.8

31.0

Minimum Water Circuit Volume

420

800

COOLING CAPACITY

56.73

N/A

BRINE

kcal/h

48,788

N/A

(ethylene glycol 35WT%)^{*5 *6}

BTU/h

193,563

N/A

Power Input

25.98

N/A

Current Input 380 - 400 - 415V

43.9 - 41.7 - 40.2

N/A

EER (Pump input is not included)

2.18

N/A

EER (Includes pump input based on EN14511)

2.10

N/A

SEPR (ƞsc) (BS EN14825)

6.11 (241%)

N/A

Brine (ethylenegylcol 35WT%) Flow Rate

m³/h

11.5

N/A

CURRENT INPUT

Cooling Current 380 - 400 - 415V ^*1

46.0 - 43.7 - 42.2

77 - 73 - 70

Maximum Current Input

111

WATER PRESSURE DROP ^*1

Water

kPa

135

114

164

Brine (ethylene glycol 35WT%)^*5

kPa

106

N/A

TEMP RANGE

Cooling Water

ºC

Outlet water 5 ～ 25

Outlet water 5 ～ 30

Cooling Brine (ethylene glycol 35WT%)^*5

ºC

Outlet brine -10 ～ 25

N/A

Heating

ºC

N/A

Outdoor

ºC

-15 ～ 43 *6

-15 ～ 43

CIRCULATING WATER VOLUME

m³/h

15.5

25.8

SOUND PRESSURE LEVEL (measured in anechoic room) at 1m^*1

dB(A)

SOUND POWER LEVEL (measured in anechoic room)^*1

dB(A)

DIAMETER OF WATER PIPE

Inlet

100A housing type joint

150A housing joint type

(Standard piping)

Outlet

100A housing type joint

150A housing joint type

EXTERNAL FINISH

Polyester powder coated steel plate

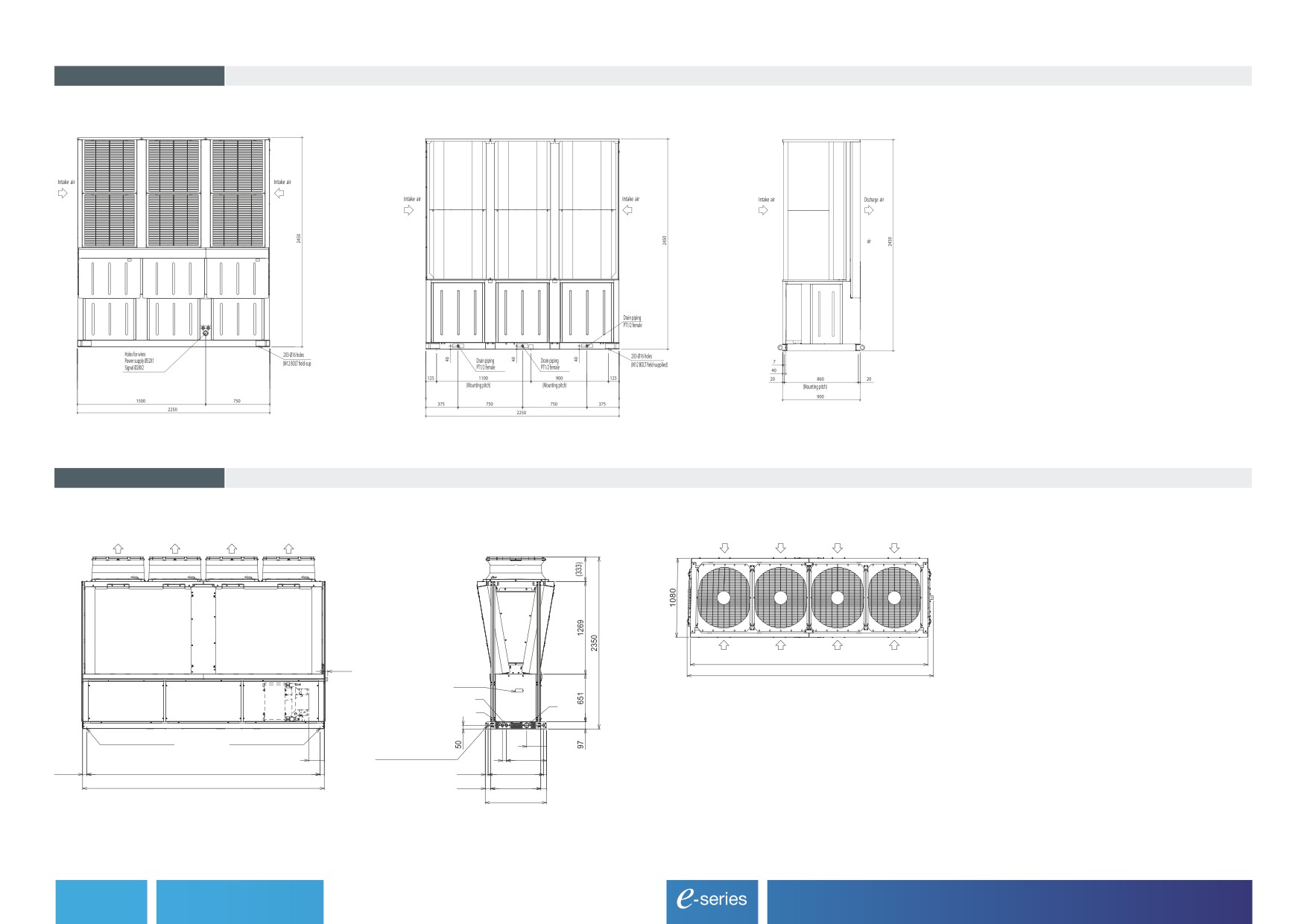

EXTERNAL DIMENSION

Width x Depth x Height

2250 x 900 x 2450

3400 x 1080 x 2350

WEIGHT

Inside Header Piping "-N" Model

992

1256

DESIGN PRESSURE

R410A

MPa

4.15

Water

MPa

HEAT EXCHANGER

Water Side

Stainless steel plate and copper brazing

Air Side

Plate fin and copper tube

COMPRESSOR

Type

Inverter scroll hermetic compressor

Maker

Mitsubishi Electric Corporation

Starting Method

Inverter

Quantity

Motor Output

11.7 x 2

11.7 x 4

Case Heater

0.045 x 2

N/A

Lubricant

MEL32

*1 Under normal cooling conditions at outdoor temp 35ºCDB/24ºCWB outlet water

Starting Current

8.5

19.1

temp 7ºC inlet water temp 12ºC. Outlet brine temp -5ºC inlet brine temp 0ºC.

Max Running Current

111

Pump input not included.

FAN

Air Flow Rate

m³/min

77 x 6

265 x 4

*2 Under normal cooling conditions at outdoor temp 35ºCDB/24ºCWB outlet water

L/s

1,283 x 6

4,417 x 4

temp 7ºC inlet water temp 12ºC. Pump input is included based on EN14511.

cfm

2,719 x 6

9,357 x 4

*3 IPLV IS is calcuated in accordance with AHRI 550 - 590.

Type, Quantity

Propeller fan x 6

Propeller fan x 4

*4 ESEER is calculated in accordance with EUROVENT conditions.

Starting Method

Inverter

*5 Under normal cooling conditions at outdoor temp 35ºCDB/24ºCWB outlet

Motor Output

0.19 x 6

0.94 x 4

brine temp -5ºC inlet water temp 0ºC.

PROTECTION

High Pressure Protection

High pres. sensor & High pres.

*6 Only EACV-P900YA-N capable of water flow temps to -10ºC.

switch at 4.15MPa (601psi)

Inverter Circuit

Over-heat protection,

Please always make water circulate, or take the circulation water out completely

Over-current protection

when not in use for long periods.

Compressor

Over-heat protection

The water circuit must be closed circuit.

REFRIGERANT

Charge (kg)

R410A (GWP 2088)

19 x 2

15 x 4

Due to continuous improvement, the above specifications may be subject to

CO2 Equivalent (t)

79.3

125.3

change without notice.

Control

LEV

2.11

Chillers

e-series Modular Chiller Range (90-1,080kW)

2.12

MODEL

EAHV-P900YAL-N Heating/Cooling

EAHV-P1500YBL-N Heating/Cooling

EAHV-P1800YBL-N Heating/Cooling

e-series

POWER SOURCE

3-phase 4-wire

380-400-415v, 50/60Hz

COOLING CAPACITY^*1

90.0

150.0

180.0

Modular Chiller

WATER

kcal/h

77,400

129,000

154,800

BTU/h

307,080

511,800

614,160

Power Input

30.6

45.1

59.01

EER (Pump input is not included)

3.30

3.33

3.05

(90-1,080kW)

IPLV ^*5

6.34

6.55

6.33

Water Flow Rate

m³/h

15.5

25.8

COOLING CAPACITY

148.6

177.8

(EN14511)^*2

kcal/h

77,400

127,779

152,874

WATER

BTU/h

307,080

506,955

606,517

Heat Pump

Power Input

29.2

46.52

61.25

EER

2.94

3.19

2.90

Eurovent Efficiency Class

ESEER ^*6

4.71

4.74

4.45

SEER (ƞsc) (BS EN14825)

4.88 (192%)

4.62 (181%)

4.58 (180%)

Water Flow Rate

m3/h

15.5

25.8

31.0

Minimum Water Circuit Volume

780

1450

HEATING CAPACITY^*3

90.0

150

180

kcal/h

77,400

129,000

154,800

BTU/h

307,080

511,800

614,160

Power Input^*3

25.71

44.59

55.68

COP

3.50

3.36

3.23

Water Flow Rate

m³/h

15.5

25.8

31.0

HEATING CAPACITY

90.0

151.42

182.24

(EN14511)^*4

kcal/h

77,400

130,221

156,726

BTU/h

307,080

516,645

621,803

Power Input^*3

27.6

46.01

57.92

COP

3.25

3.29

3.15

Eurovent Efficiency Class

A+

SCOP Low/Medium

3.66 (143%) / 2.89 (113%)

3.24 (127%) / 2.85 (112%)

Water Flow Rate

m³/h

15.5

25.8

31.0

CURRENT INPUT

Cooling Current 380 - 400 - 415V ^*1

46.0 - 43.7 - 42.3

77 - 73 - 70

Heating Current 380 - 400 - 415V ^*3

43.4 - 41.2 - 39.7

76 - 72 - 69

Maximum Current Input

111

WATER PRESSURE DROP^*1

Water

kPa

135

114

164

TEMP RANGE

Cooling Water

ºC

Outlet water 5 ～ 25

Outlet water 5 ～ 30

Heating

ºC

Outlet water 30 ～ 55

Outlet water 30 ~ 55

Outdoor

ºC

-15 ～ 43

CIRCULATING WATER VOLUME

m3/h

15.5

25.8

SOUND PRESSURE LEVEL (measured in anechoic room) at 1m^*1

dB(A)

SOUND POWER LEVEL (measured in anechoic room)^*1

dB(A)

DIAMETER OF WATER PIPE

Inlet

100A housing type joint

150A housing joint type

(Standard piping)

Outlet

100A housing type joint

150A housing joint type

EXTERNAL FINISH

Polyester powder coated steel plate

EXTERNAL DIMENSION

Width x Depth x Height

2250 x 900 x 2450

3400 x 1080 x 2350

WEIGHT

Inside Header Piping "-N" Model

1022

1326

DESIGN PRESSURE

R410A

MPa

4.15

Water

MPa

HEAT EXCHANGER

Water Side

Stainless steel plate and copper brazing

Air Side

Plate fin and copper tube

COMPRESSOR

Type

Inverter scroll hermetic compressor

Maker

Mitsubishi Electric Corporation

Starting Method

Inverter

Quantity

Motor Output

11.7 x 2

11.7 x 4

Case Heater

0.045 x 2

N/A

*1 Under normal cooling conditions at outdoor temp 35ºCDB/24ºCWB outlet water temp

Lubricant

MEL32

7ºC inlet water temp 12ºC. Pump input not included.

Starting Current

8.5

19.1

*2 Under normal cooling conditions at outdoor temp 35ºCDB/24ºCWB outlet water temp

Max Running Current

111

FAN

Air Flow Rate

m³/min

77 x 6

265 x 4

7ºC inlet water temp 12ºC. Pump input is included based on EN14511.

L/s

1,283 x 6

4,417 x 4

*3 Under normal heating conditions at outdoor temp 7ºCDB/6ºCWB outlet water temp

cfm

2,719 x 6

9,357 x 4

45ºC inlet 40ºC. Pump input not included.

Type, Quantity

Propeller fan x 6

Propeller fan x 4

*4 Under normal heating conditions at outdoor temp 7ºCDB/6ºCWB outlet water temp

Starting Method

Inverter

45ºC inlet 40ºC. Pump input power is included, based on EN14511.

Motor Output

0.19 x 6

0.94 x 4

*5 IPLV IS is calcuated in accordance with AHRI 550 - 590.

PROTECTION

High Pressure Protection

High pres. sensor & High pres.

*6 ESEER is calculated in accordance with EUROVENT conditions.

switch at 4.15MPa (601psi)

Inverter Circuit

Over-heat protection,

Please always make water circulate, or take the circulation water out completely

Over-current protection

when not in use for long periods.

Compressor

Over-heat protection

The water circuit must be closed circuit.

REFRIGERANT

Charge (kg)

R410A (GWP 2088)

19 x 2

15 x 4

Due to continuous improvement, the above specifications may be subject to

CO2 Equivalent (t)

79.3

125.3

change without notice.

Control

LEV
