Contents

PLA-ZM R32 4-Way Blow Ceiling Cassette System, Power Inverter Heat Pump

1.3.8

PLA-M R32 4-Way Blow Ceiling Cassette System, Standard Inverter Heat Pump

1.3.12

PLA-SM R32 4-Way Blow Ceiling Cassette System, Inverter Heat Pump

1.3.16

SLZ-M R32 600x600 4-Way Blow Ceiling Cassette System, Standard Inverter Heat Pump

1.3.18

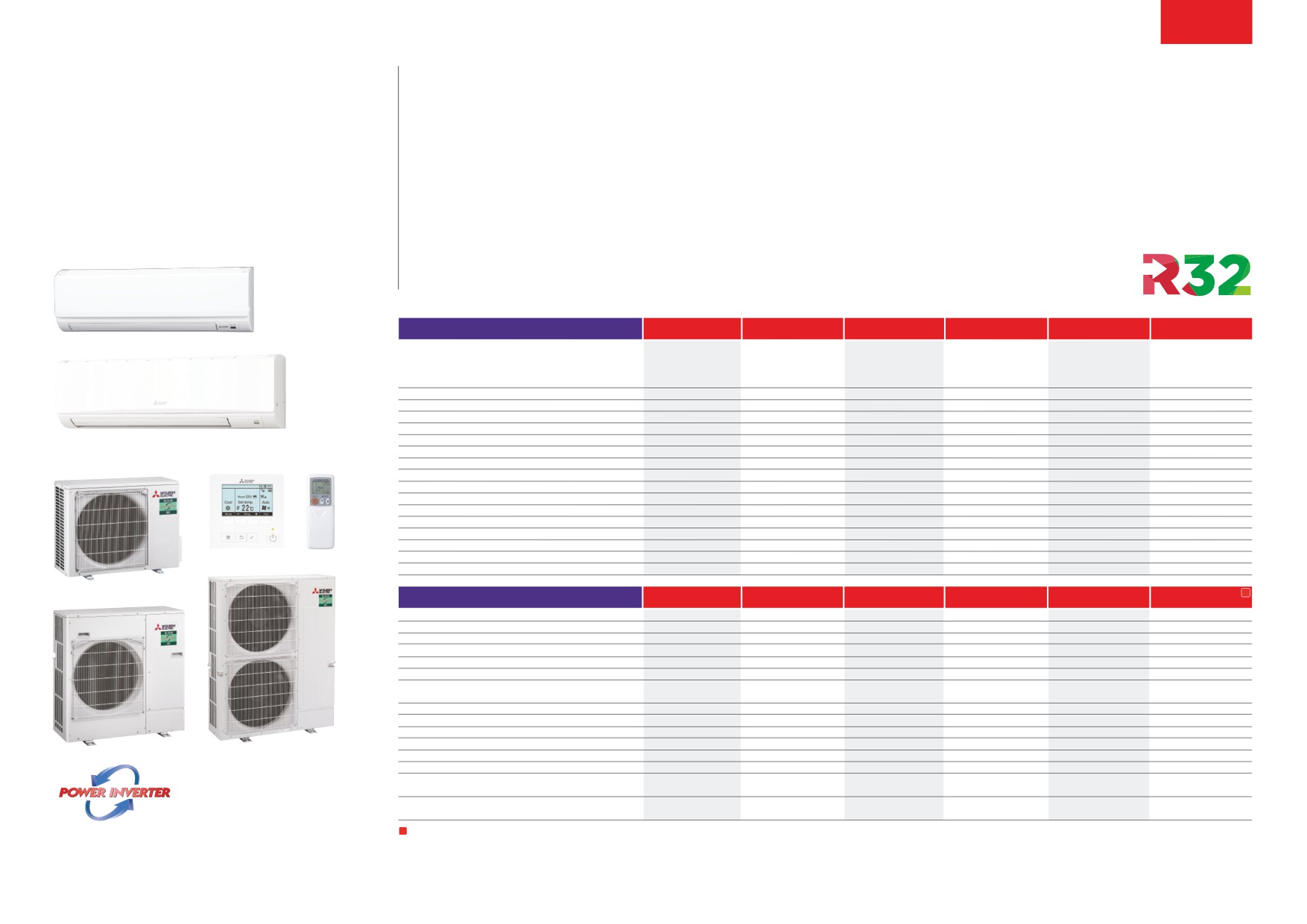

PKA-M R32 Wall Mounted System, Power Inverter Heat Pump.

1.3.20

PKA-M R32 Wall Mounted System, Standard Inverter Heat Pump

1.3.22

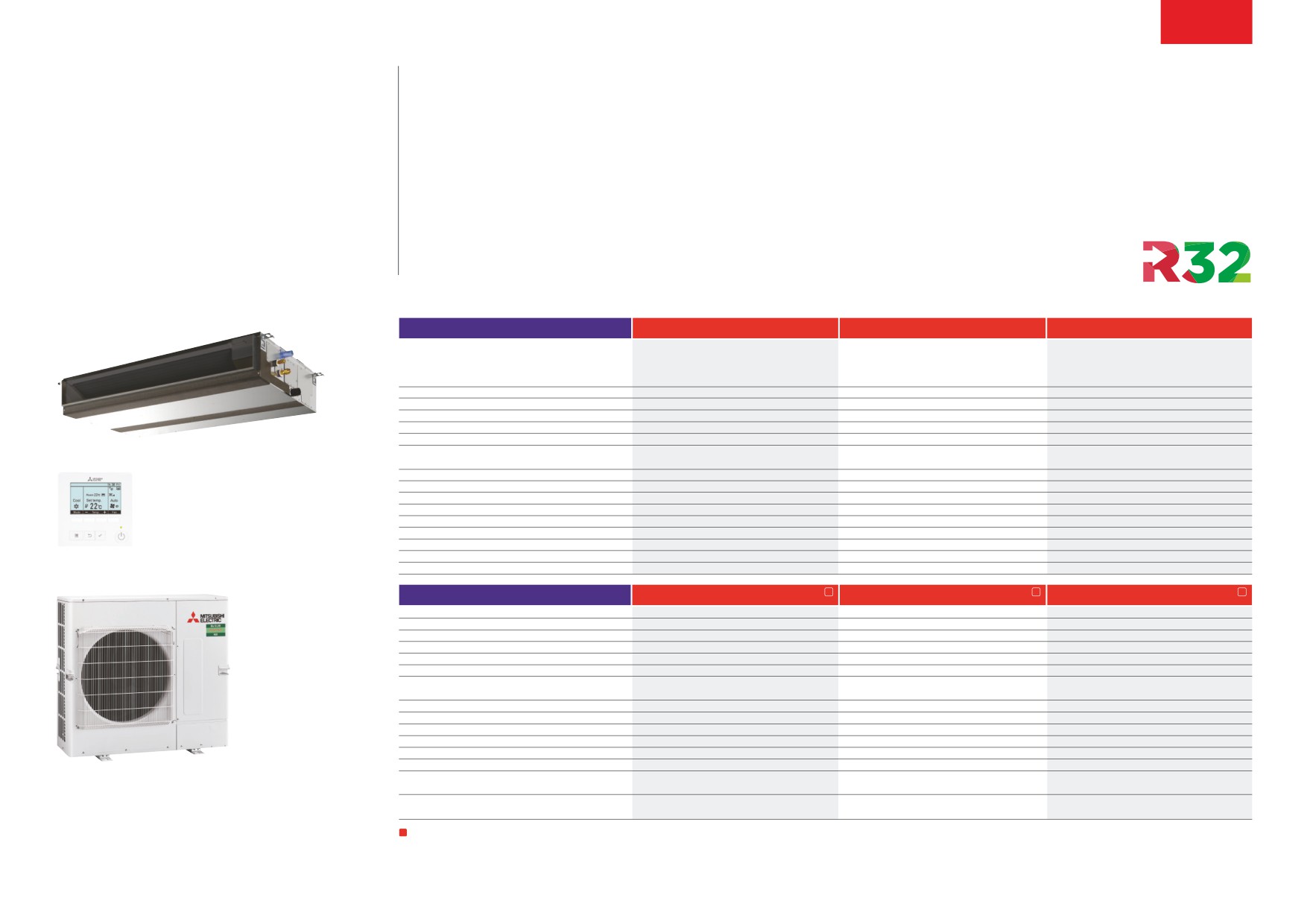

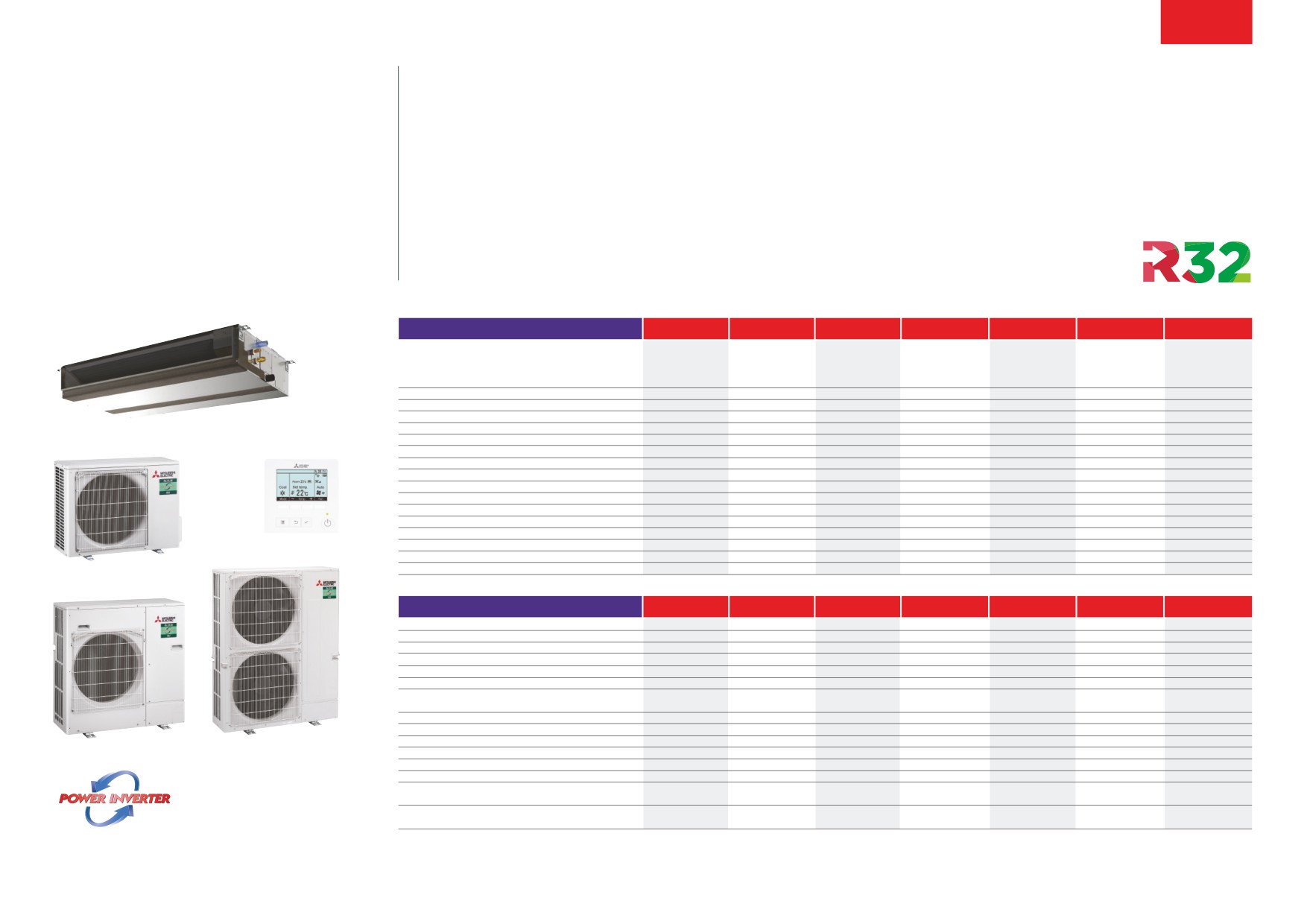

PEAD-M R32 Ceiling Concealed Ducted System, Power Inverter Heat Pump

1.3.24

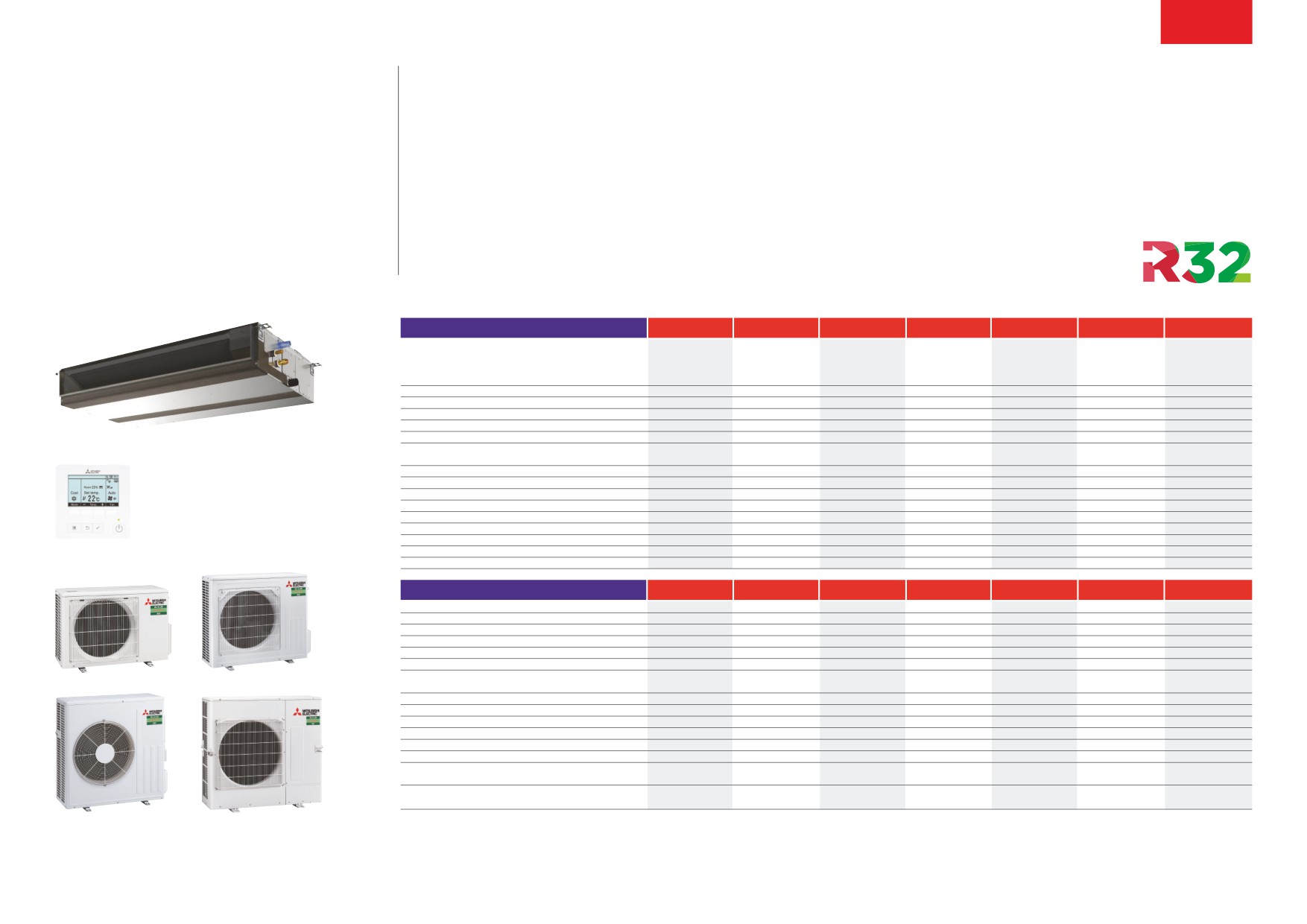

PEAD-M R32 Ceiling Concealed Ducted System, Standard Inverter Heat Pump

1.3.28

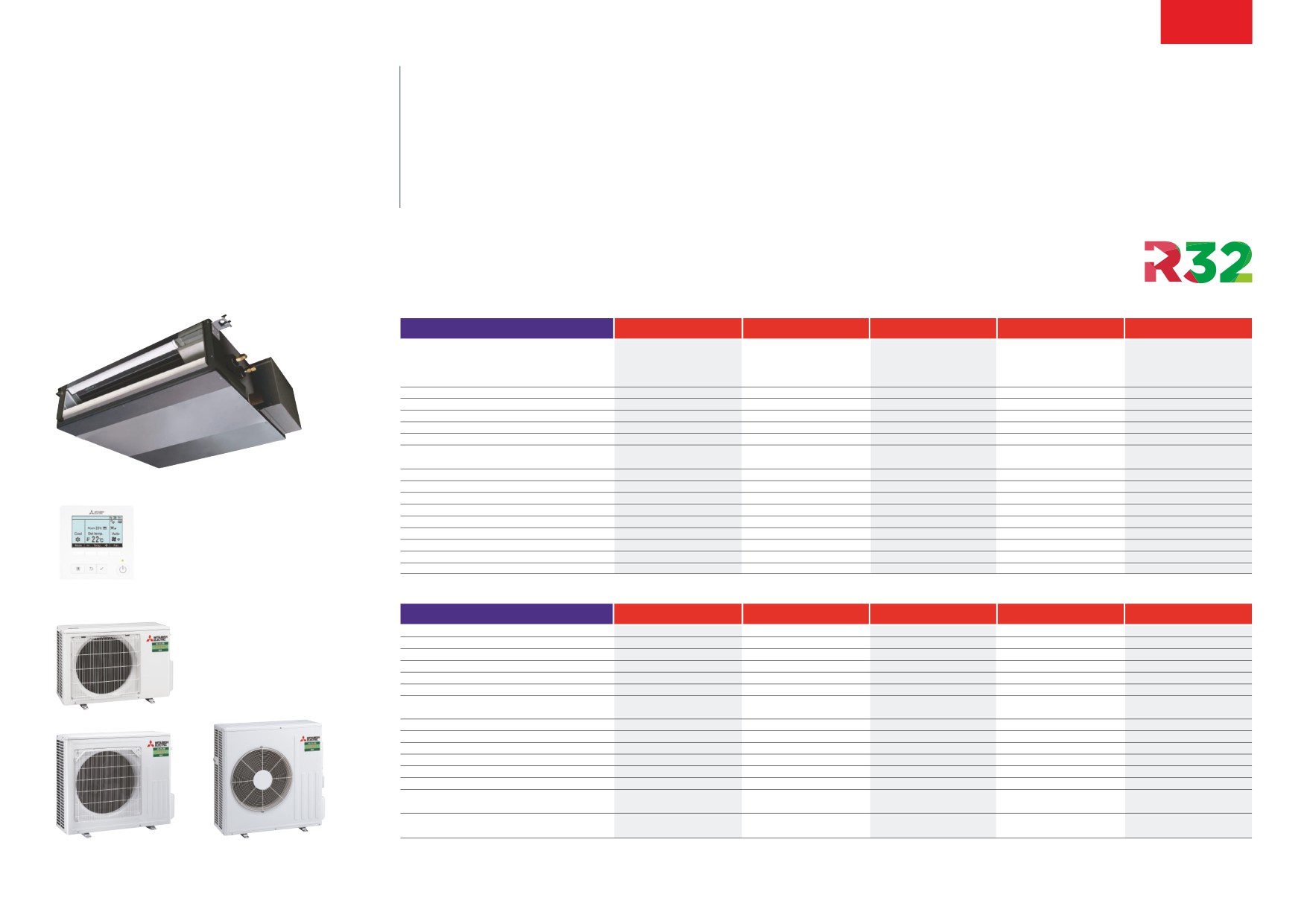

SEZ-M R32 Ceiling Concealed Ducted System, Standard Inverter Heat Pump

1.3.32

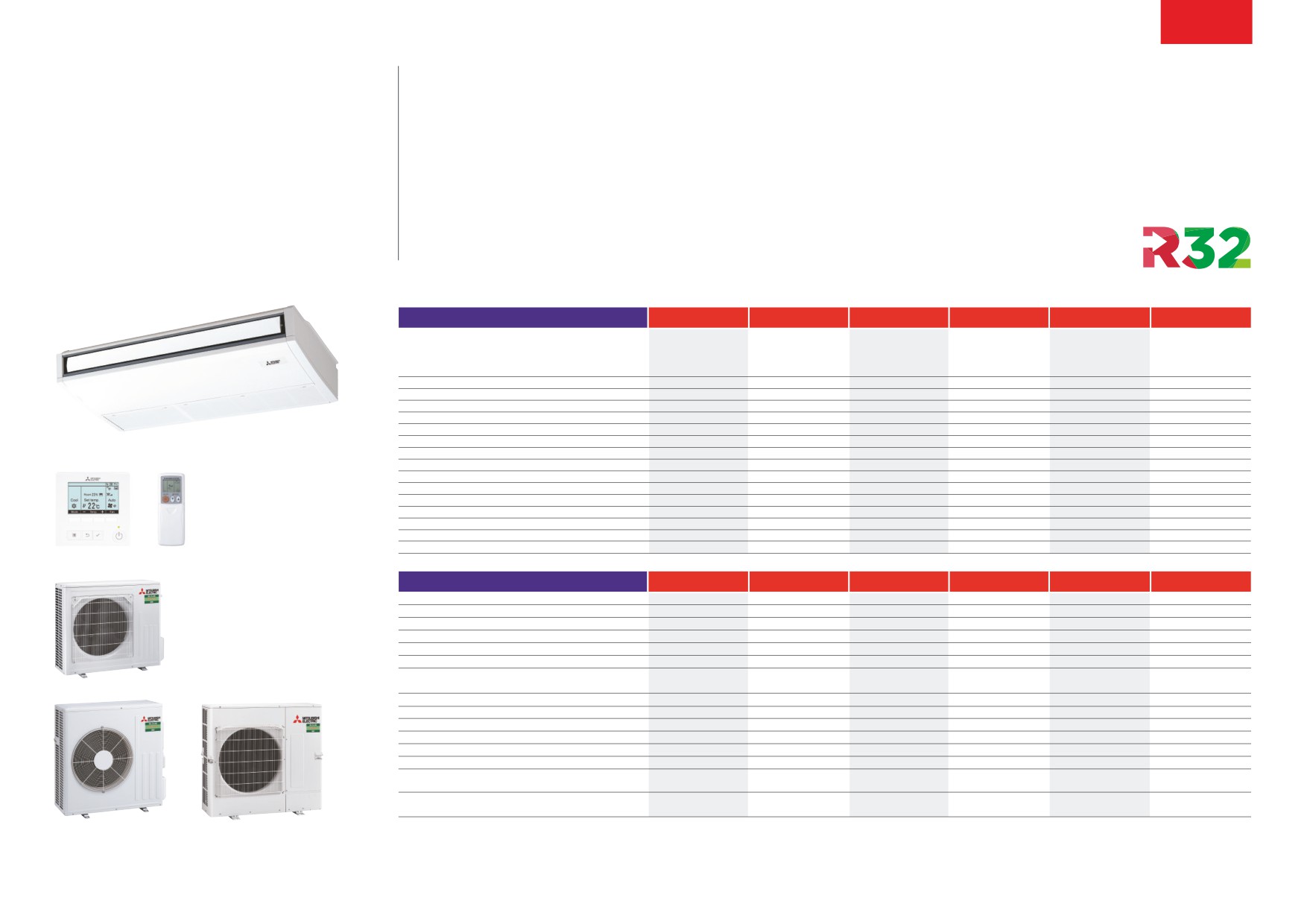

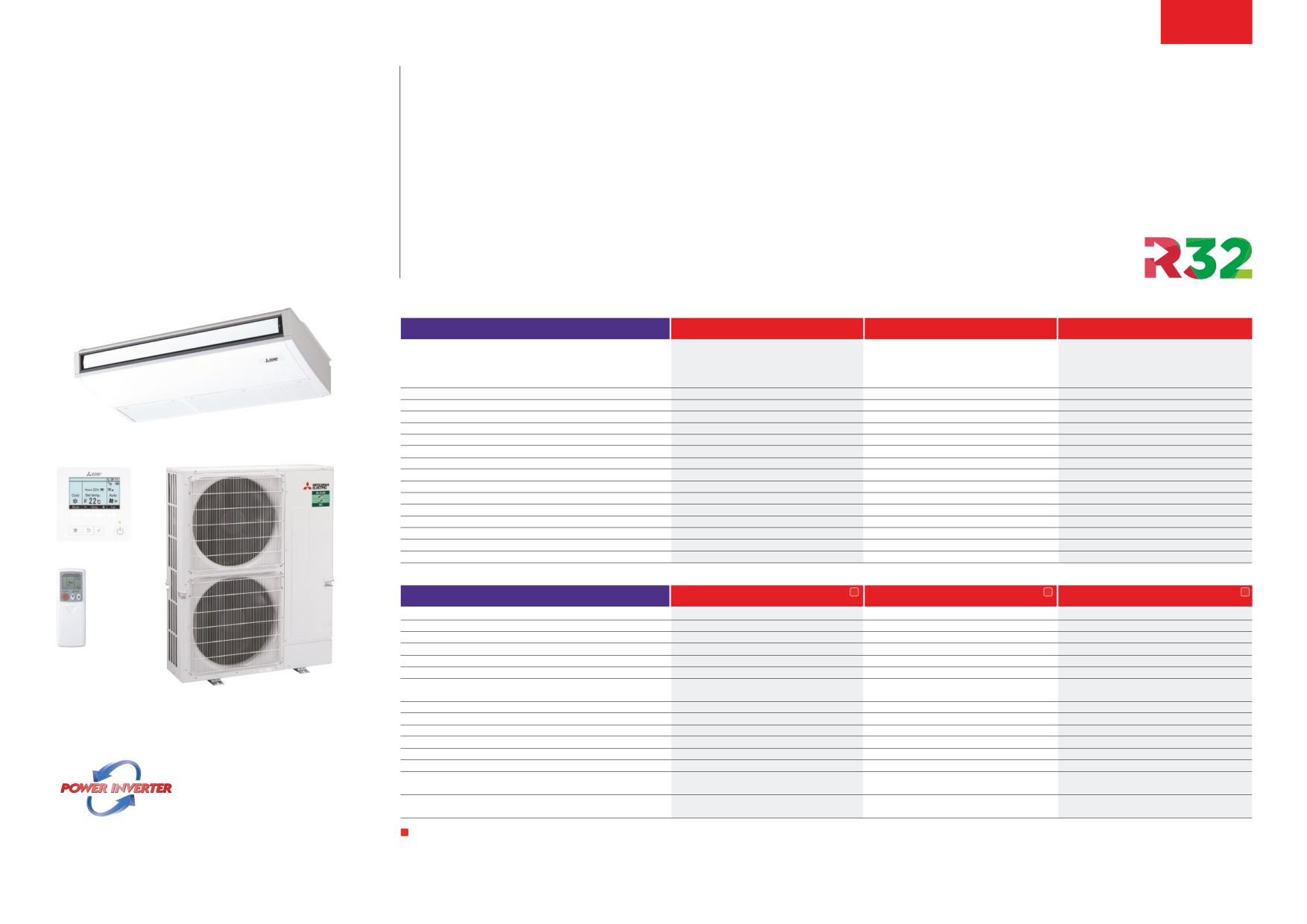

PCA-M R32 Ceiling Suspended System, Power Inverter Heat Pump

1.3.34

PCA-M R32 Ceiling Suspended System, Standard Inverter Heat Pump

1.3.38

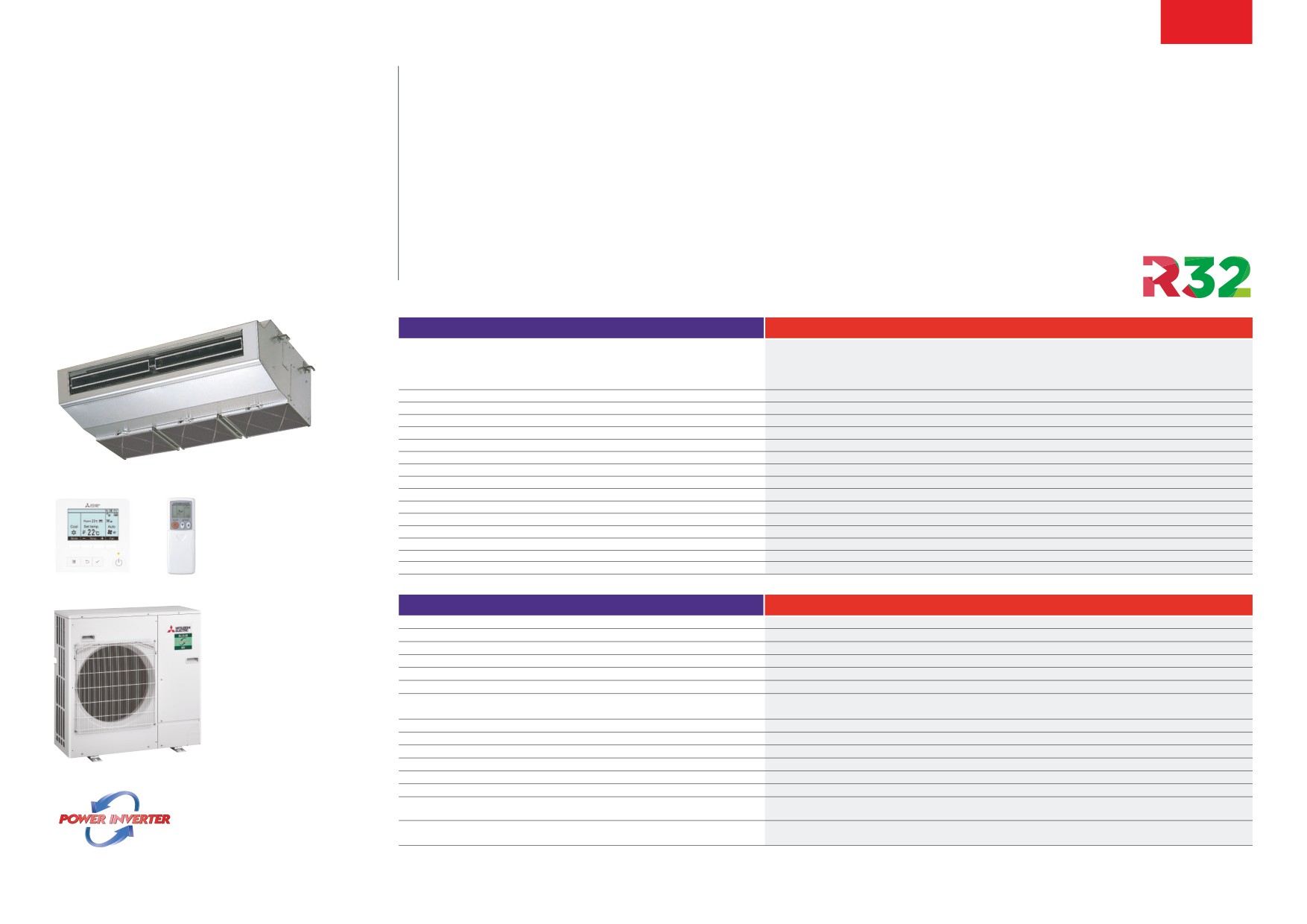

PCA-M-HA R32 Stainless Steel Ceiling Suspended System, Power Inverter Heat Pump

1.3.42

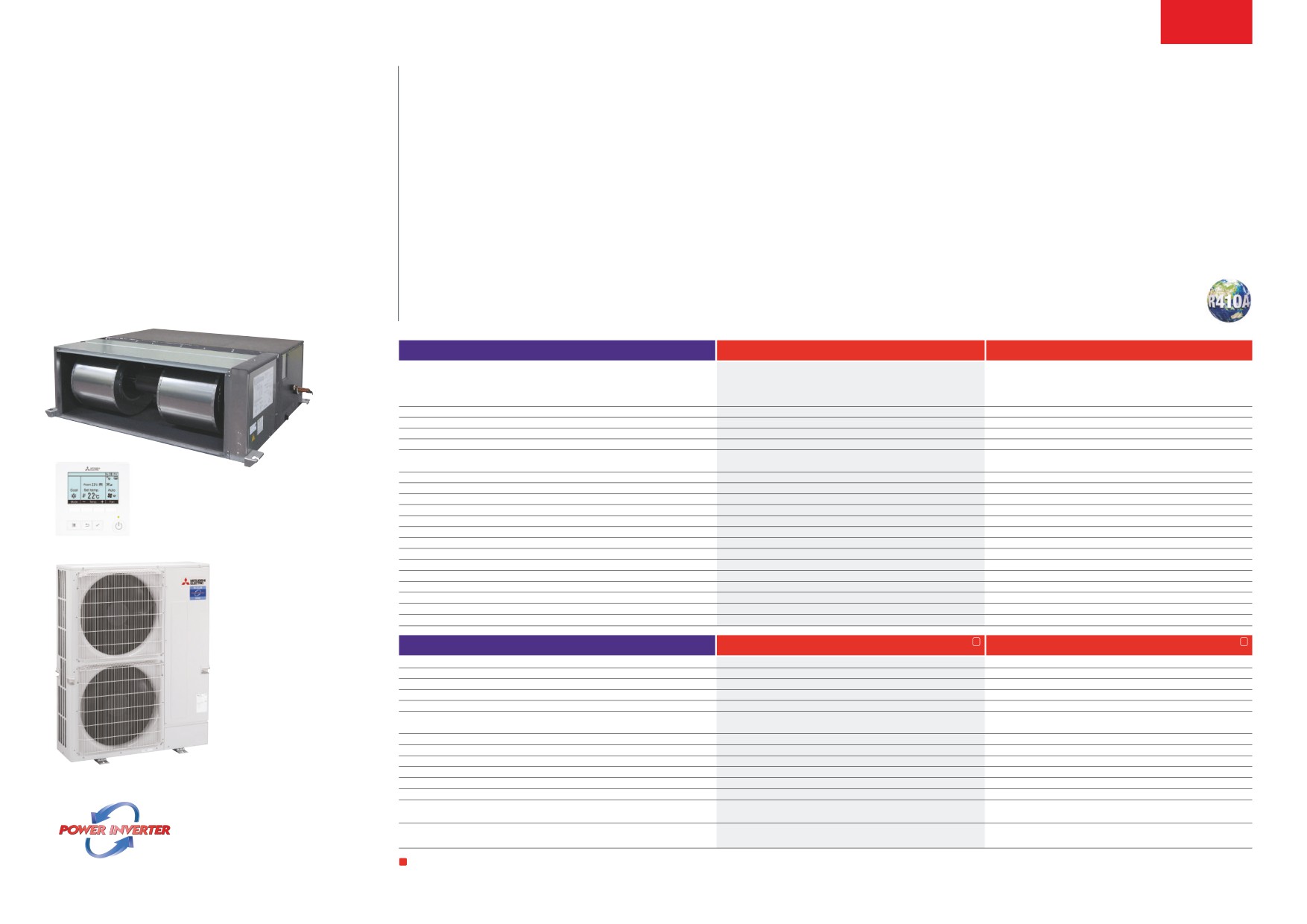

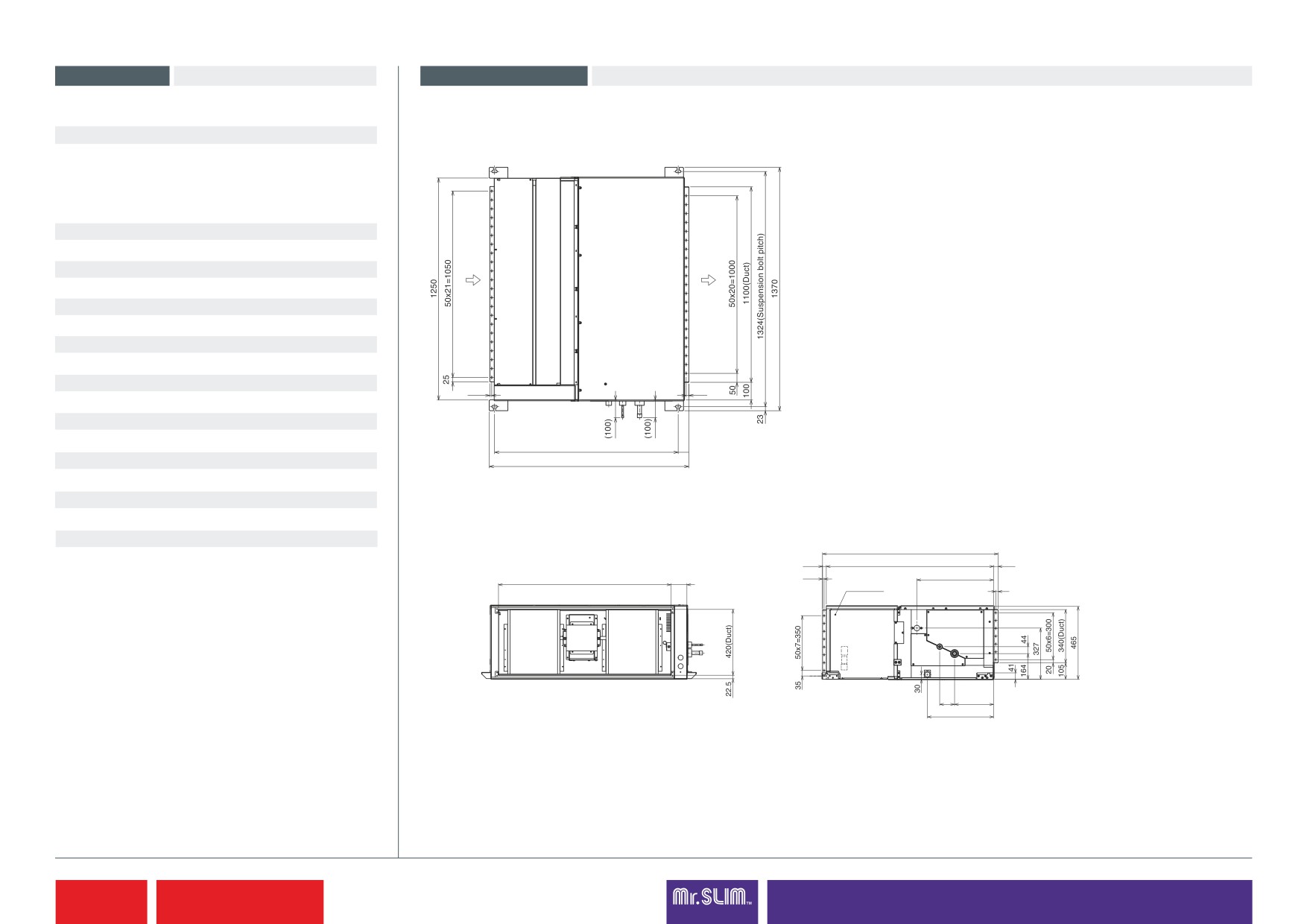

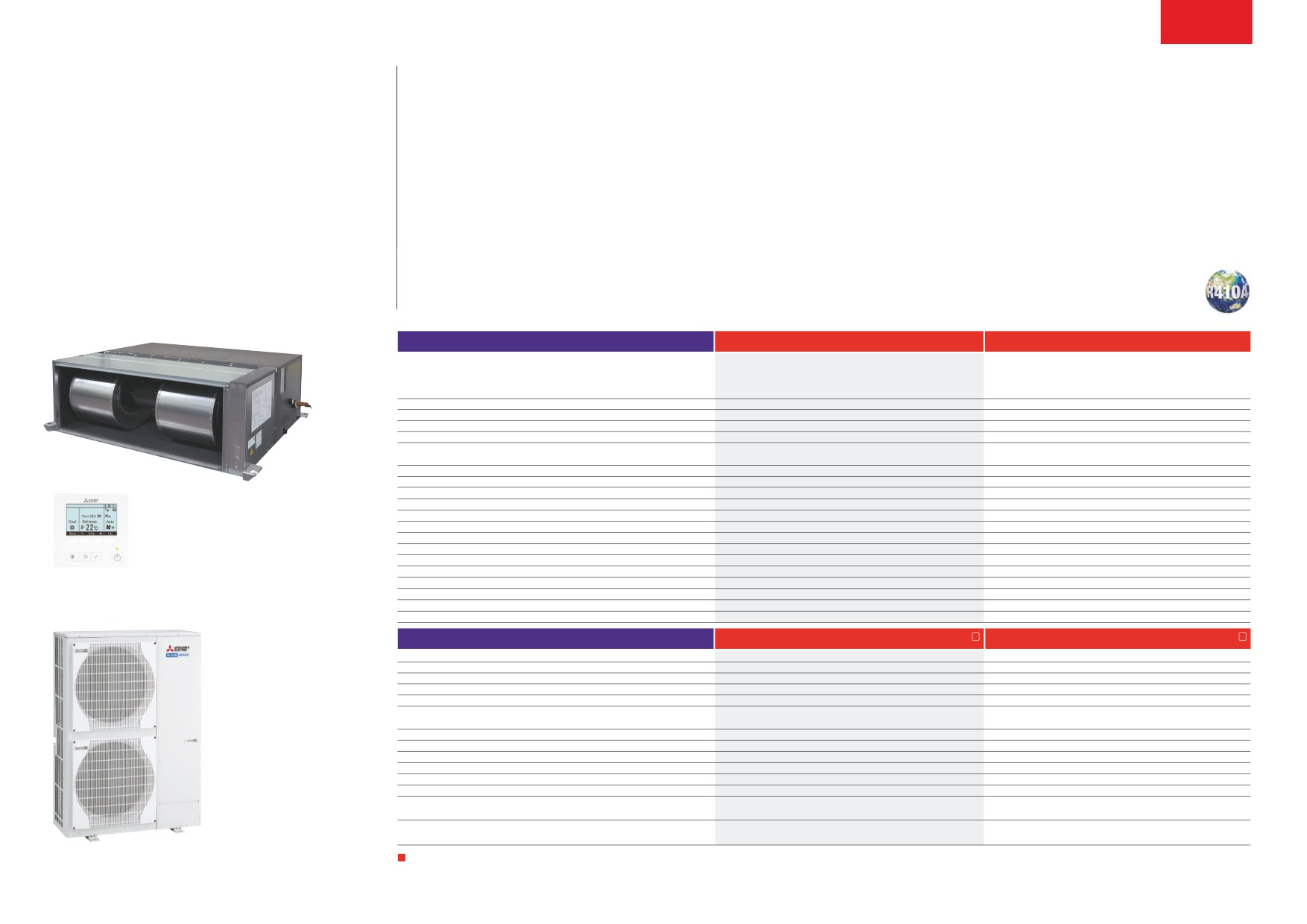

PEA-RP R410A Large Capacity Ceiling Concealed Ducted System, Power Inverter Heat Pump

1.3.44

PEA-RP R410A Large Capacity Ceiling Concealed Ducted System, Standard Inverter Heat Pump

1.3.46

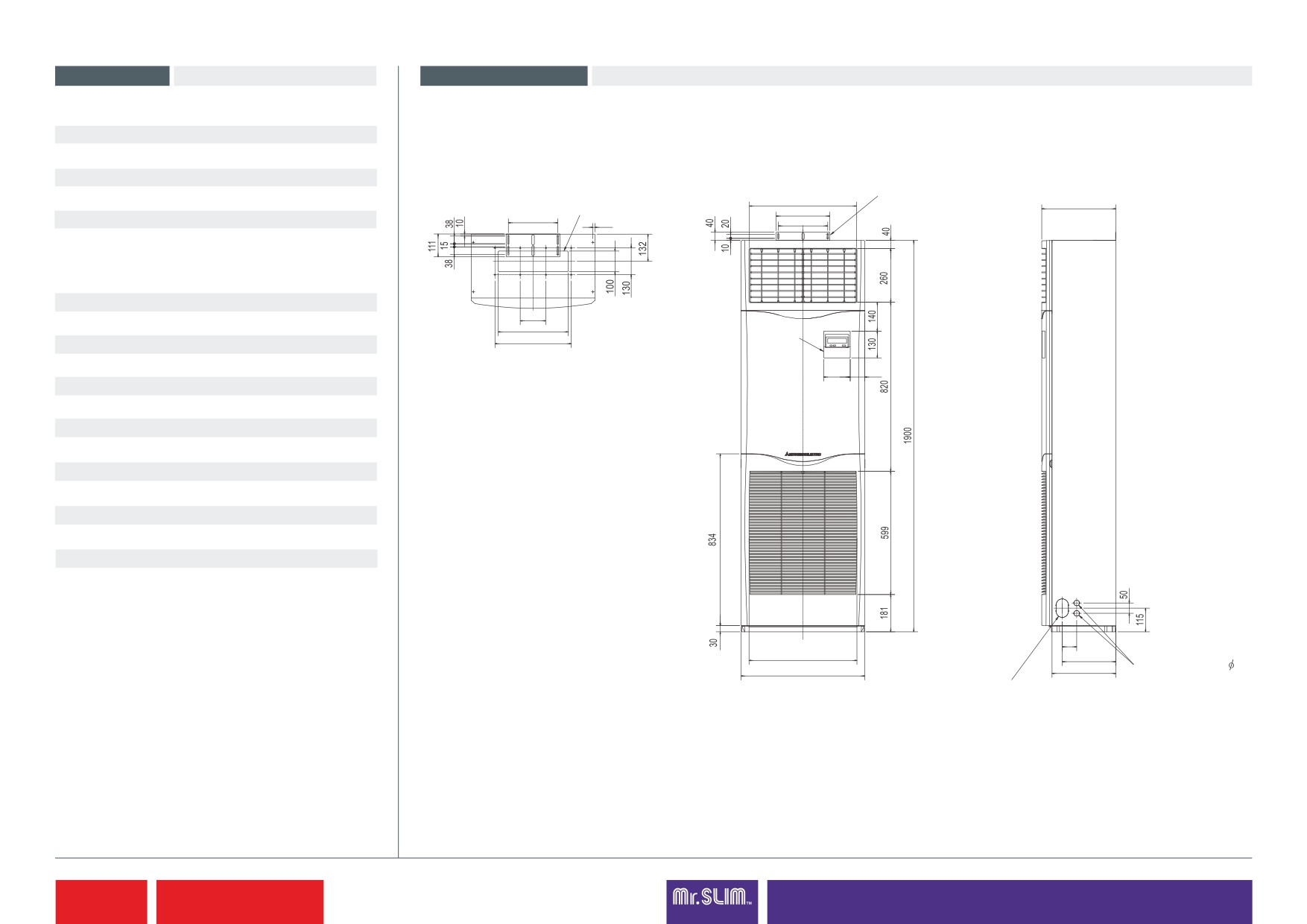

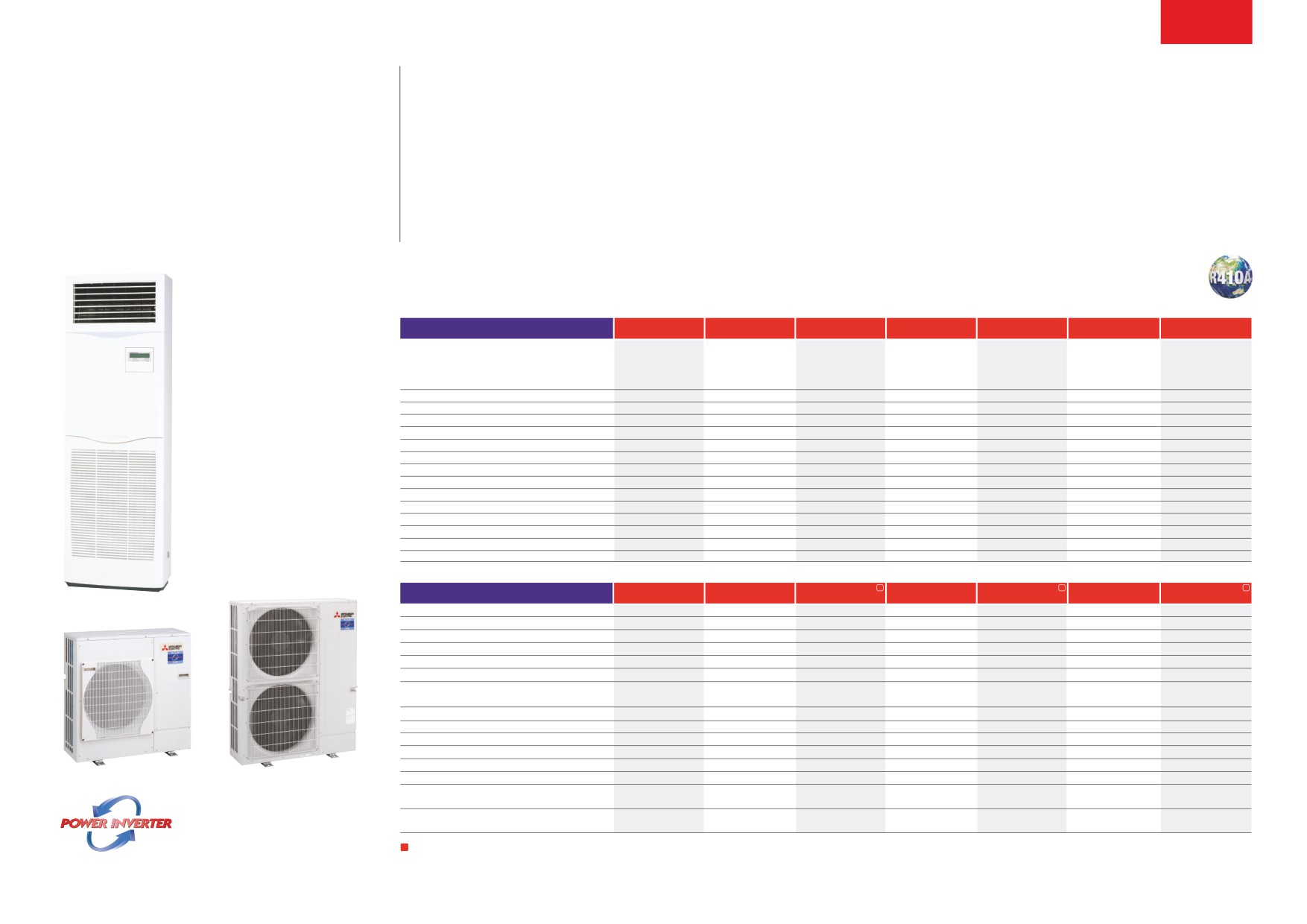

PSA-RP R410A Floor Standing System, Power Inverter Heat Pump

1.3.48

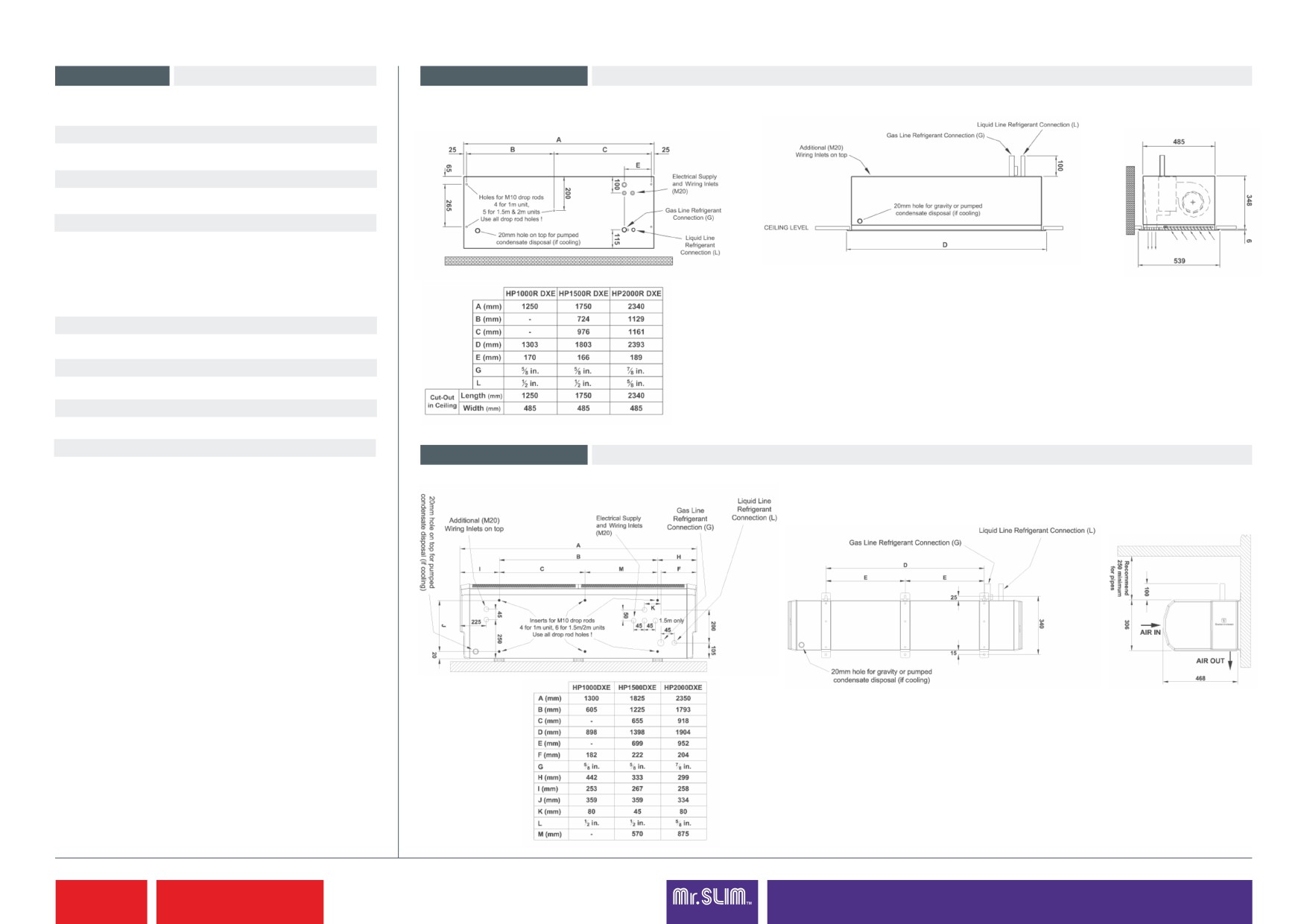

HP DXE R410A Air Curtain System, Power Inverter Heat Pump

1.3.50

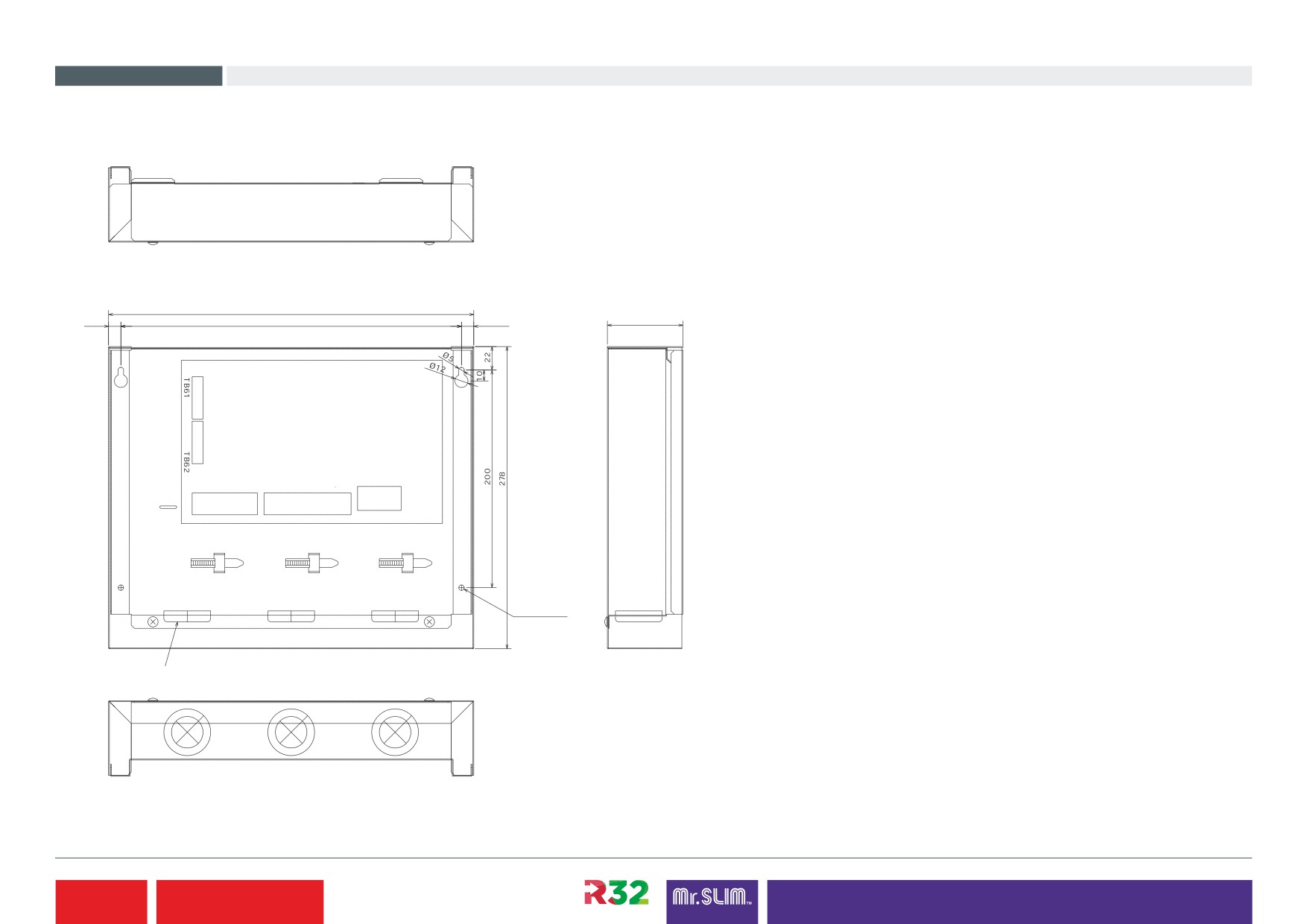

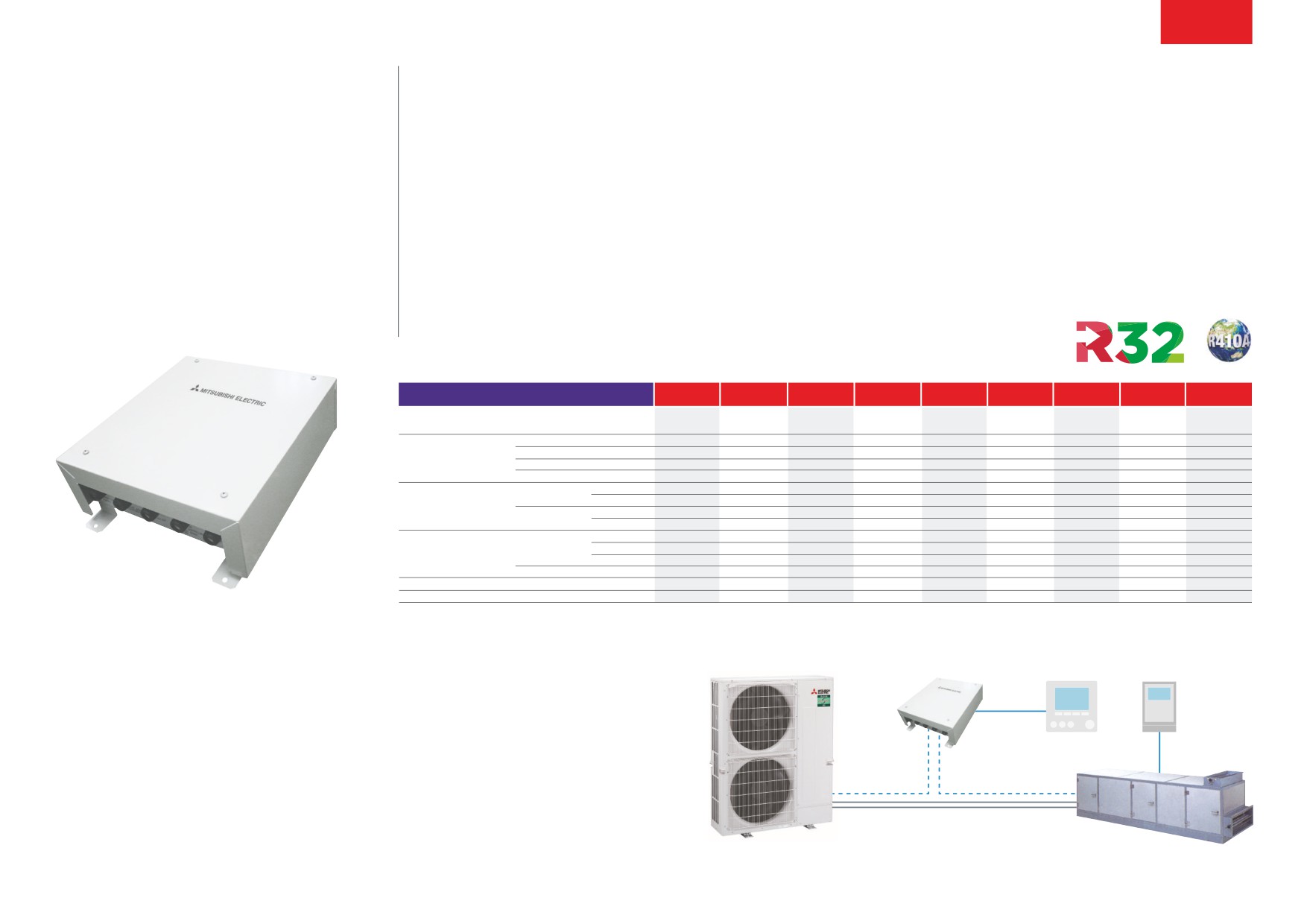

PAC-IF R32 / R410A Air Handling Unit Controller

1.3.52

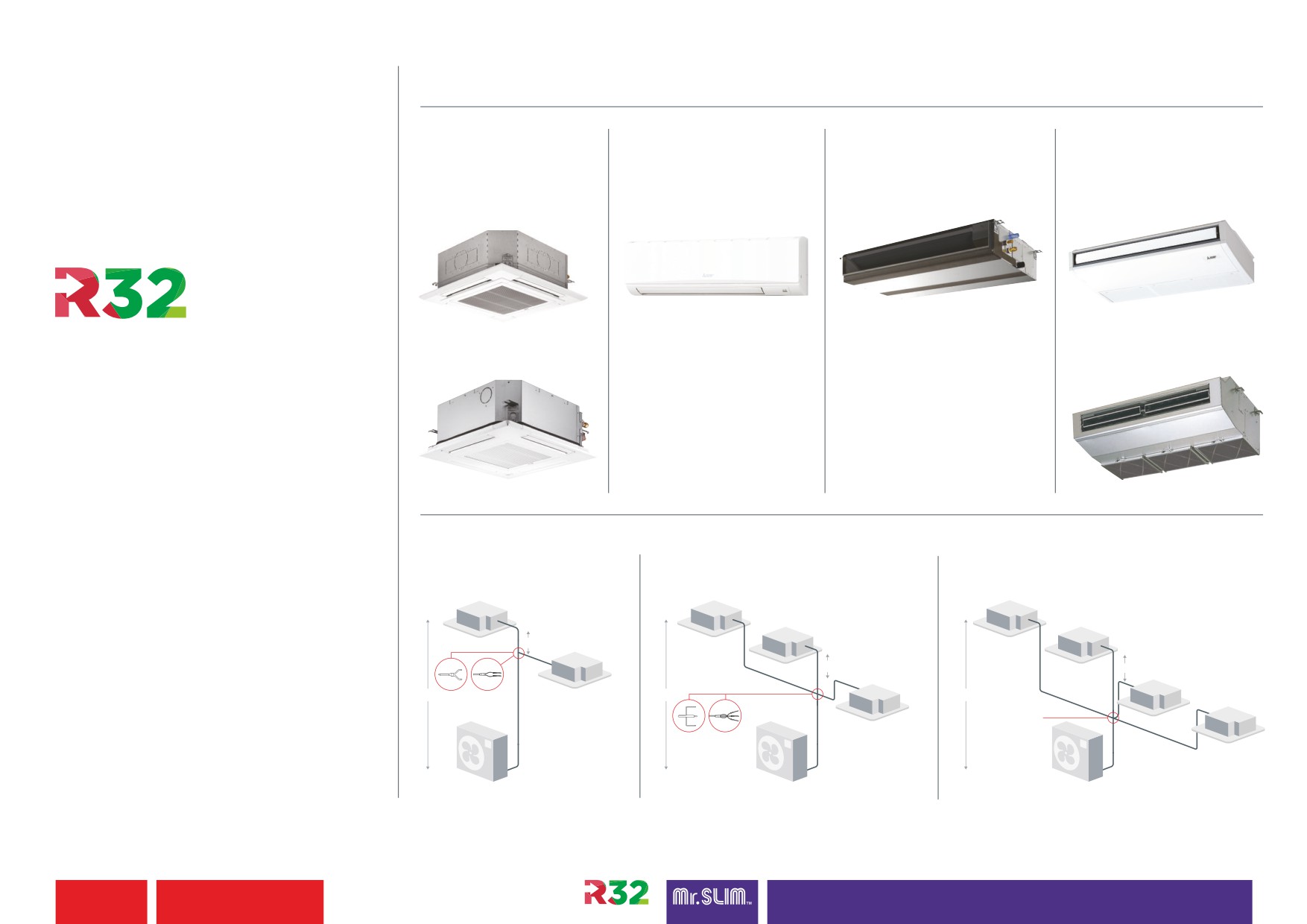

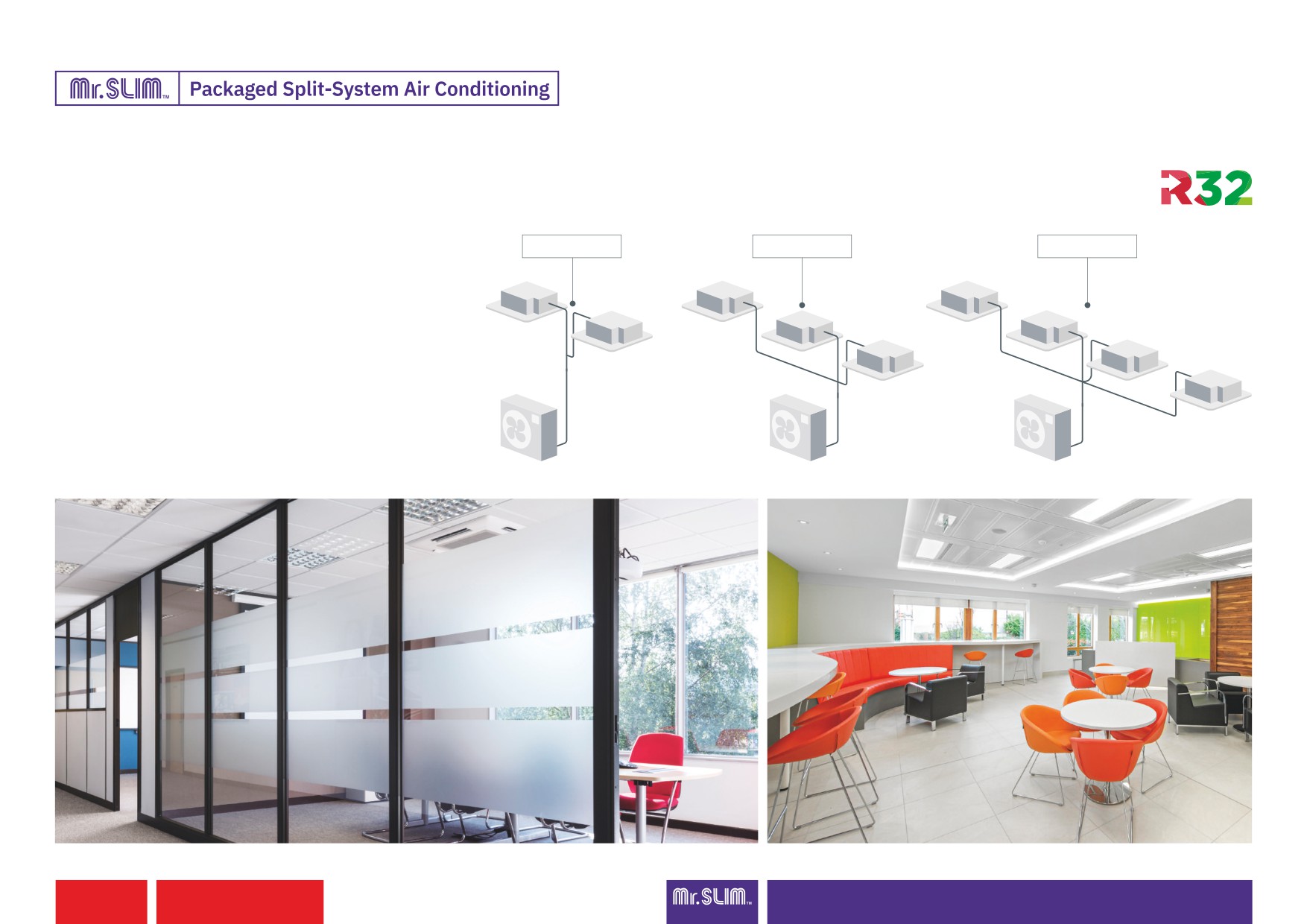

R32 Mr Slim Twin, Triple & Quadruple Multi-Split Systems

1.3.54

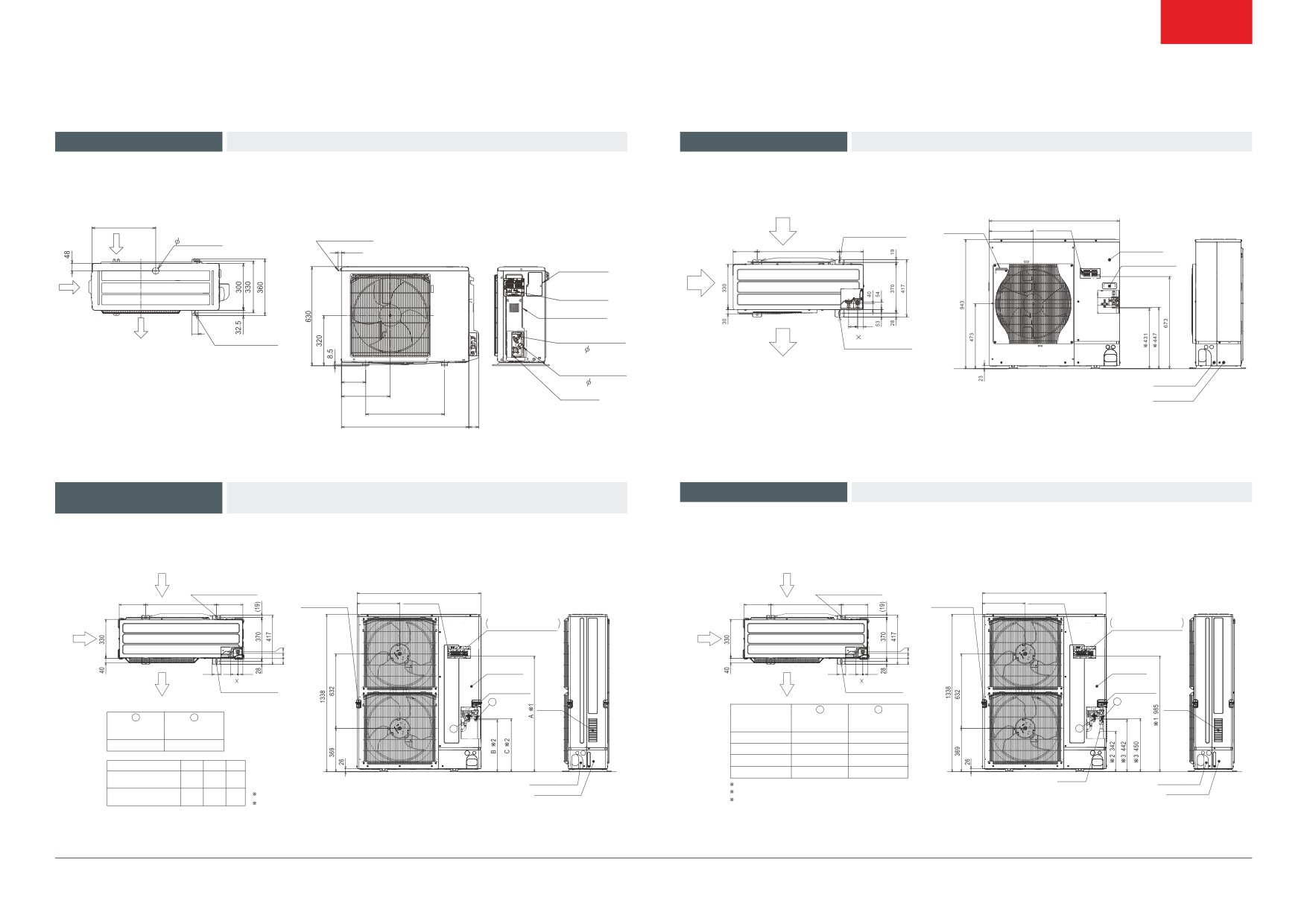

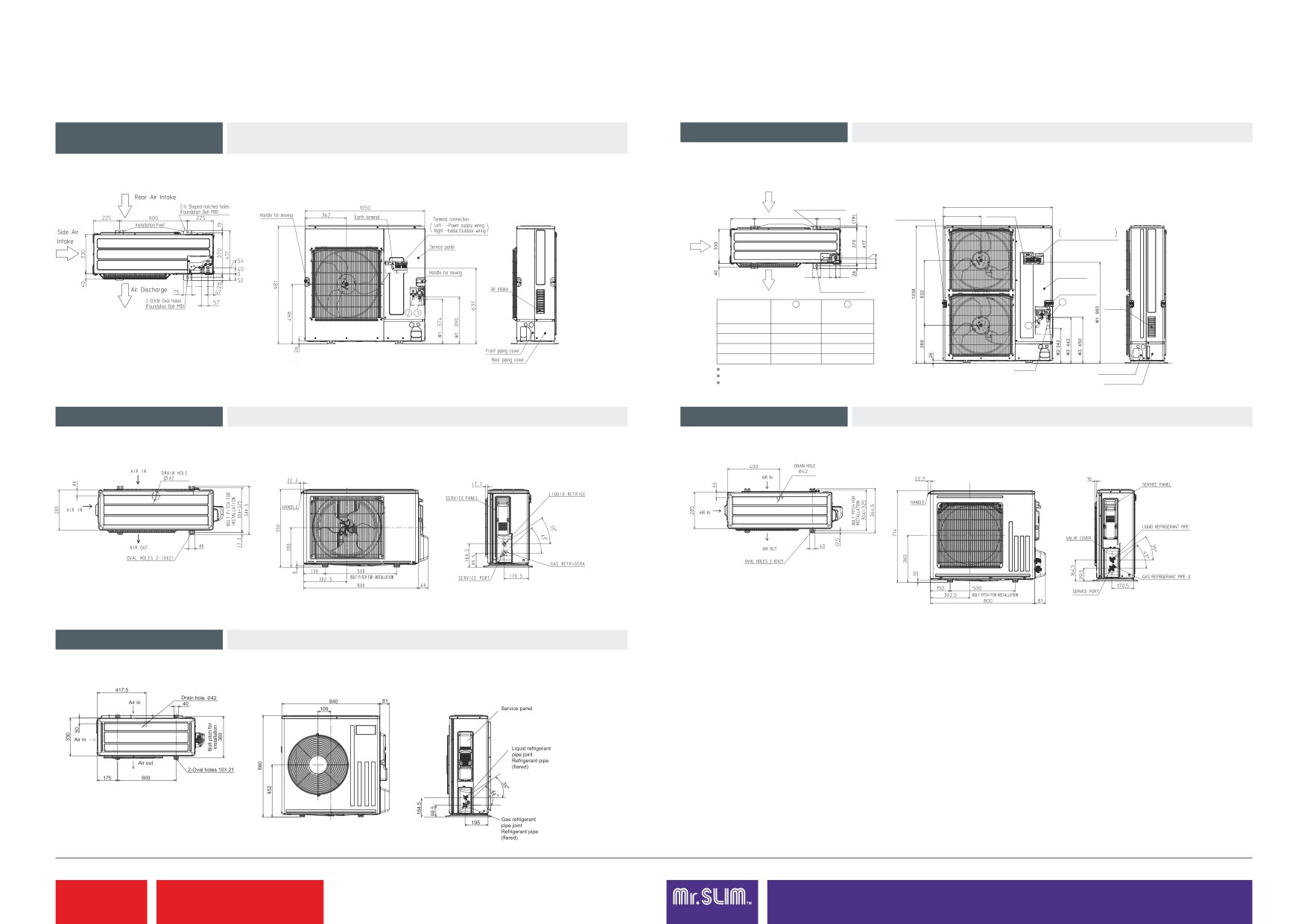

Outdoor Units Product Dimensions

1.3.60

Accessories / Optional Extras

1.3.62

1.3.3

Air Conditioning

Contents

1.3.4

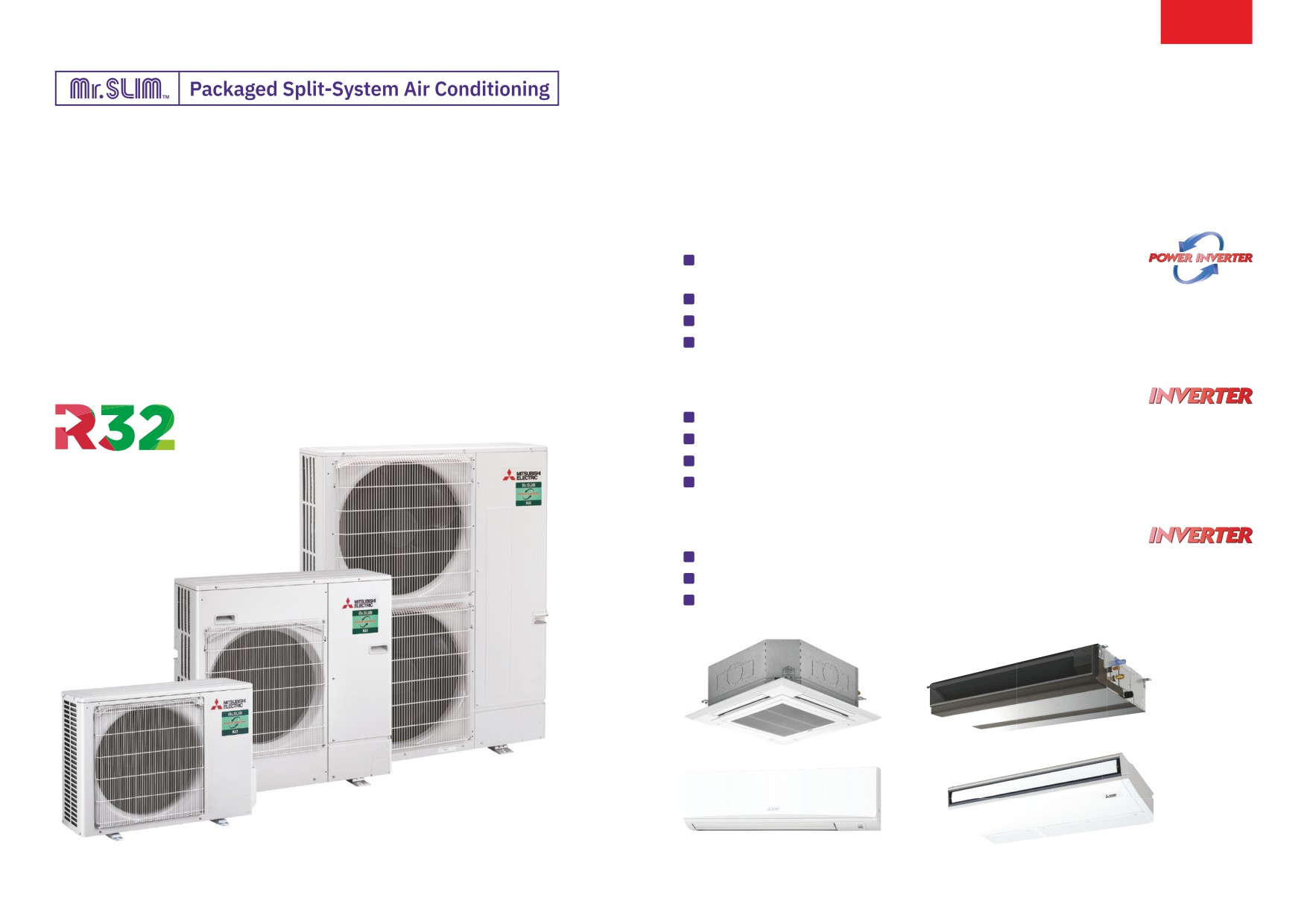

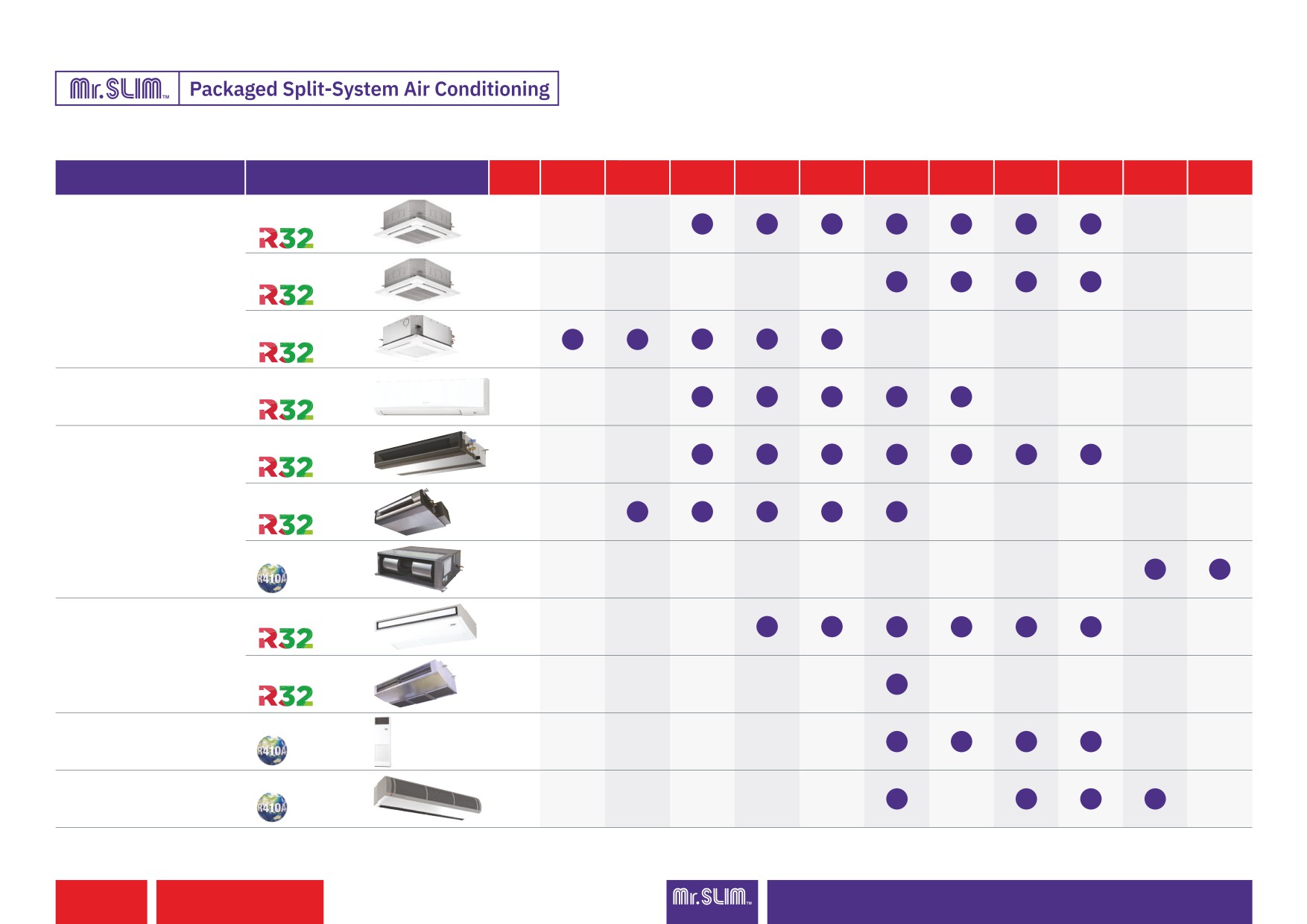

The Versatile Mr Slim Range

Suitable to cool or heat a huge variety of applications, such as

R32 Power Inverter

offices and retail units, our Mr Slim range is one of Britain’s best

Top of the range Power Inverter technology optimised

for high seasonal efficiencies

selling air conditioning split-systems. Now available utilising

Available with single and three phase outdoor units

lower GWP R32 refrigerant - combine the efficiency with the

12 sizes available from 3.5-22kW

complete versatility that this range has to offer and the

Available with four way blow cassettes, ceiling concealed ducted,

possibilities are virtually infinite.

wall mounted or ceiling suspended indoor units

R32 Standard Inverter

High quality cost effective Standard Inverter

Available with single and three phase outdoor units

13 sizes available from 2.5-22kW

Available with four way blow cassettes, ceiling concealed ducted,

wall mounted or ceiling suspended indoor units

R32 Inverter

Cost effective

Available with single and three phase outdoor units

Available with four way blow cassettes from 7.1-14kW

1.3.6

Ecodesign and Seasonal Efficiency

Operational Range

With buildings accounting for around half of all UK greenhouse emissions,

legislation is demanding increased energy efficiency in this sector.

Mode

Size

PUZ-ZM / PUHZ-ZRP

PUZ-M / PUZ-SM / PUHZ-P

SUZ-M / SUZ-SM

The Ecodesign Directive for Energy Related Products (ErP) is focusing on this area in a bid to

Cooling

-15°C to +46°C

N/A

-10°C to +46°C

reduce overall energy consumption, and to accelerate market transformation to more energy

50 or more

-15°C to +46°C

efficient products.

Heating

50 or less

-11°C to +21°C

N/A

-10°C to +24°C

60 or more

-20°C to +21°C

-15°C to +21°C

-10°C to +24°C

An air conditioner will vary performance over changing seasons, which means calculating

seasonal performance is important to ascertain the true performance of an air conditioning

Setpoint Range

system. The Ecodesign Directive reflects this by setting minimum efficiency requirement

and a new method of measuring performance that has been introduced across Europe.

Mode

Minimum

Maximum

Nominal Conditions: Cooling; indoor 27ºC DB, 19ºC WB; outdoor 35ºC DB, 24ºC WB.

Cooling

19ºC

30ºC

The European Standard BS EN14825 sets the seasonal performance calculation for an

Nominal Conditions: Heating; indoor 20ºC DB; outdoor 7ºC DB, 6ºC WB.

Heating

17ºC

28ºC

air conditioning system under 12kW of which the energy efficiency class for each product

UK Conditions: Cooling; indoor 21ºC DB, 15ºC WB; outdoor 27ºC DB.

specification is shown. For more information visit the website erp.mitsubishielectric.eu/erp

Auto

19ºC

28ºC

UK Conditions: Heating; indoor 21ºC DB; outdoor 0°C DB, -1ºC WB.

1.3.8

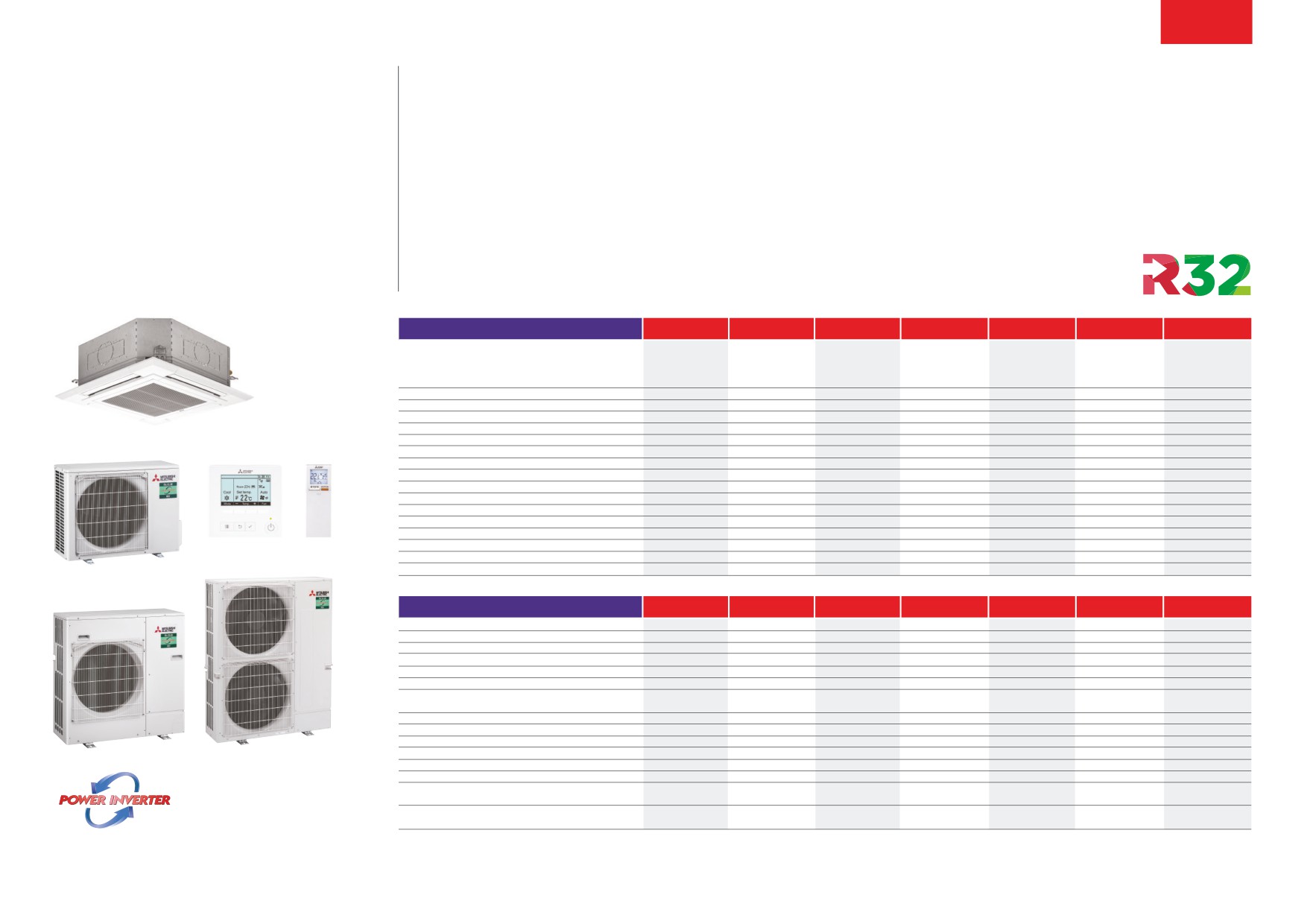

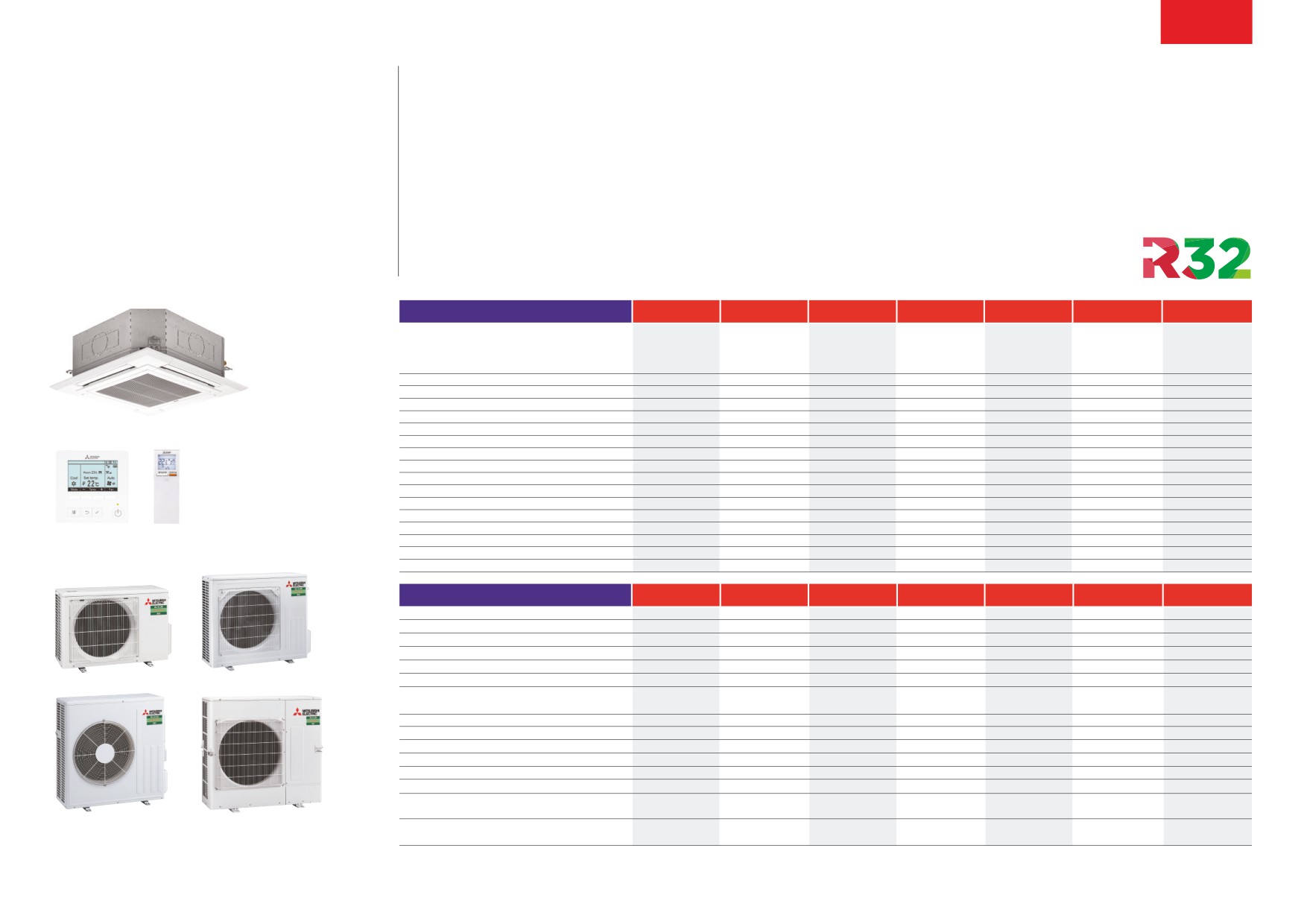

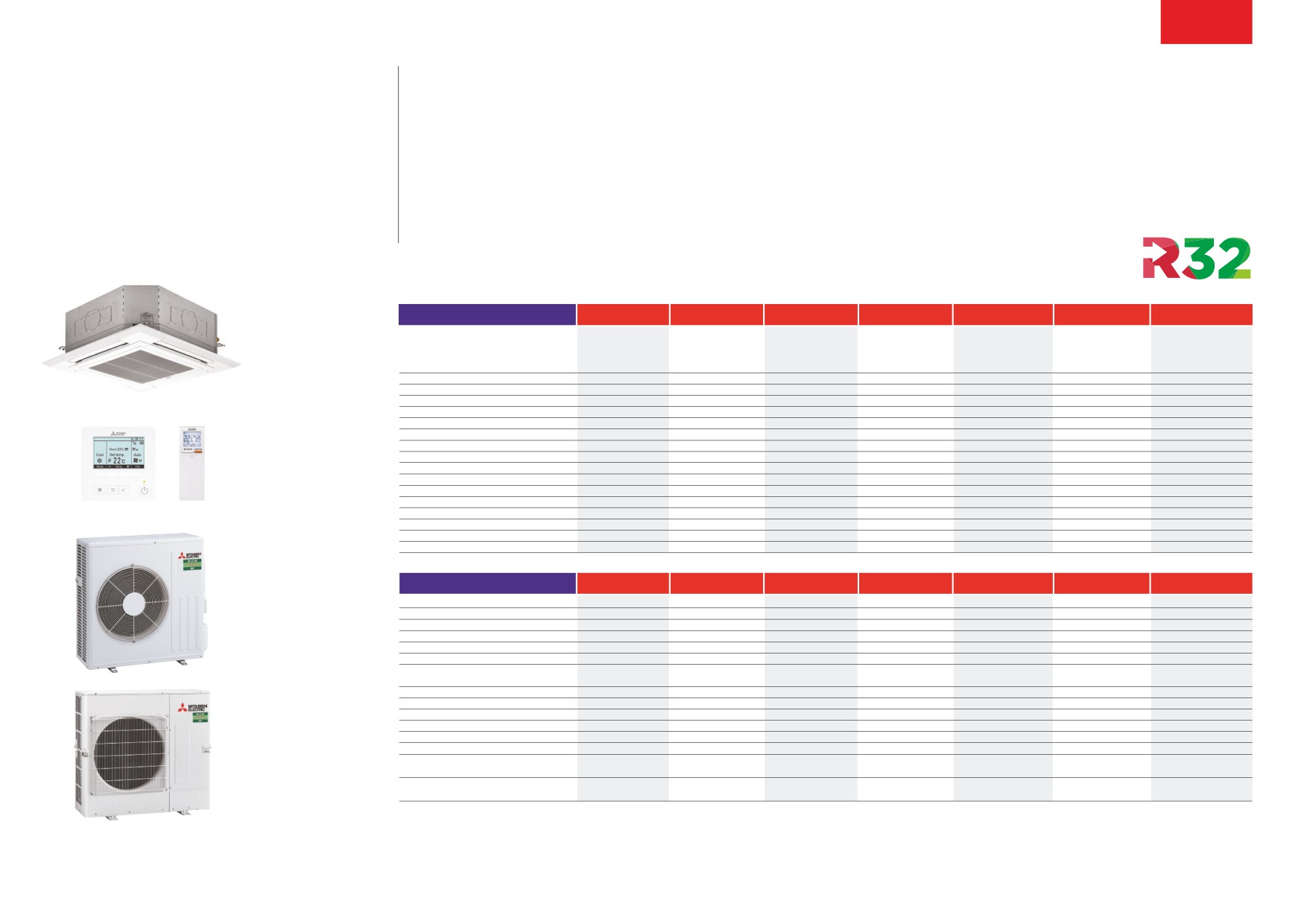

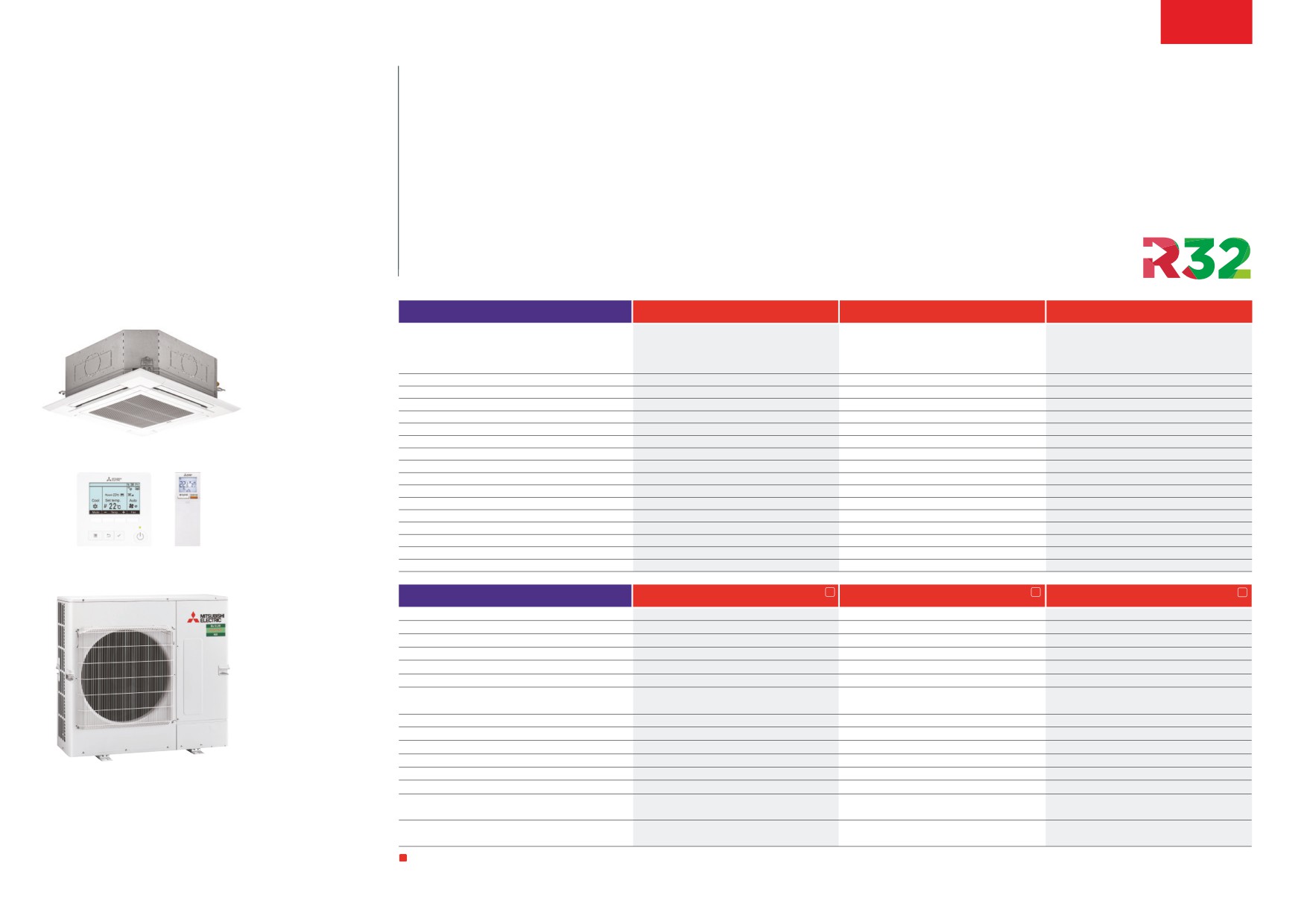

The PLA-ZM Power Inverter range is a ceiling cassette system that blends a host of outstanding features

PLA-ZM R32

with a sophisticated streamlined design. Offering high seasonal efficiency, advanced control options and

extended pipe runs, this range is extremely flexible.

4-Way Blow Ceiling

Key Features

Cassette System

■ Improved airflow control, including horizontal airflow for greater comfort

■ Optional 3D i-see sensor grille (PLP-6EAE) provides customised comfort by automatically

monitoring room occupancy, position and body temperatures

Power Inverter Heat Pump

■ Optional filter lowering operation down to 4m (PLP-6EAJ)

(Single Phase)

■ Full heating capacity down to -3°C

■ 100m pipe run (Size 100-140)

■ Replace Technology available

PLA-ZM - INDOOR UNITS

PLA-ZM35EA

PLA-ZM50EA

PLA-ZM60EA

PLA-ZM71EA

PLA-ZM100EA

PLA-ZM125EA

PLA-ZM140EA

CAPACITY (kW)

Heating (nominal)

4.1 (1.6-5.2)

6.0 (2.5-7.3)

7.0 (2.8-8.2)

8.0 (3.5-10.2)

11.2 (4.5-14.0)

14.0 (5.0-16.0)

16.0 (5.7-18.0)

Cooling (nominal)

3.6 (1.6-4.5)

5.0 (2.3-5.6)

6.1 (2.7-6.5)

7.1 (3.3-8.1)

9.5 (4.9-11.4)

12.5 (5.5-14.0)

13.4 (6.2-15.0)

Heating (UK)

3.5 (1.35-4.4)

5.1 (2.15-6.2)

6.0 (2.38-6.97)

6.8 (3.0-8.65)

9.5 (3.85-11.9)

11.9 (4.25-13.6)

13.6 (4.85-15.3)

Cooling (UK)

3.3 (1.45-4.15)

4.6 (2.1-5.15)

5.6 (2.48-5.98)

6.55 (3.05-7.45)

9.2 (4.5-10.5)

11.5 (5.05-12.9)

12.9 (5.7-14.1)

SHF (nominal)

0.95

0.85

0.77

0.72

0.77

0.70

COP / EER (nominal)

5.00 / 5.10

4.40 / 4.52

4.10 / 4.20

4.40 / 4.30

4.30 / 4.60

3.81 / 3.70

3.71 / 3.55

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.70 / 7.50

4.90 / 7.60

4.60 / 7.20

4.80 / 7.60

4.80 / 7.70

4.70 (185.1%) / 7.40 (303.3%)

4.60 (181.1%) / 7.00 (285.7%)

ERP ENERGY EFFICIENCY CLASS

Heating/Cooling

A++ / A++

AIRFLOW (l/s)

Lo-Mi-Mi2-Hi

183-217-250-267

200-233-267-300

283-317-350-383

317-367-417-467

350-400-433-483

400-433-483-533

PIPE SIZE MM (in)

Gas/Liquid

12.7 (1/2”) / 6.35 (1/4”)

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA)

Lo-Mi-Mi2-Hi

26-28-29-31

27-29-31-32

28-30-33-36

31-34-37-40

33-36-39-41

36-39-42-44

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height (Grille)

840 (950) x 840 (950) x 258 (40)

840 (950) x 840 (950) x 298 (40)

WEIGHT (kg)

Unit / Grille

21 / 5

24 / 5

26 / 5

26 /5

26 / 5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE NO. CORES

GRILLE REFERENCE

PLP-6EA

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL100A-E

PUZ-ZM - OUTDOOR UNITS

PUZ-ZM35VKA

PUZ-ZM50VKA

PUZ-ZM60VHA

PUZ-ZM71VHAR1

PUZ-ZM100VKAR1

PUZ-ZM125VKAR2

PUZ-ZM140VKAR2

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

46 / 44

49 / 47

51 / 49

52 / 50

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

116

118

DIMENSIONS (mm)

Width x Depth x Height

809 x 300 x 630

950 x 330 + 25 x 943

1050 x 330 + 40 x 1338

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

0.820 / 0.705

1.363 / 1.106

1.707 / 1.452

1.818 / 1.651

2.604 / 2.065

3.674 / 3.378

4.312 / 3.772

Heating/Cooling (UK)

0.73 / 0.59

1.21/ 0.94

1.43 / 1.15

1.61 / 1.39

2.09 / 1.77

3.27 / 2.87

3.83 / 3.15

STARTING CURRENT (A)

5.0

6.0

13.0

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

3.89 / 3.51 [13.2]

6.05 / 5.00 [13.2]

7.39 / 6.31 [19.2]

7.79 / 7.06 [19.3]

11.25 / 8.97 [27.0]

15.77 / 14.53 [27.0]

18.41 / 15.88 [28.7]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE NO. CORES

MAX PIPE LENGTH (m)

100

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) /

R32 (GWP 675) - 30m

2.0 / 1.35

2.00 / 1.35

2.80 / 1.89

4.00 / 2.70

CO2 EQUIVALENT (t)

MAX ADDITIONAL REFRIGERANT (kg) /

R32 (GWP 675)

0.30 / 0.20

0.80 / 0.54

2.80 / 1.89

CO2 EQUIVALENT (t)

Accessories

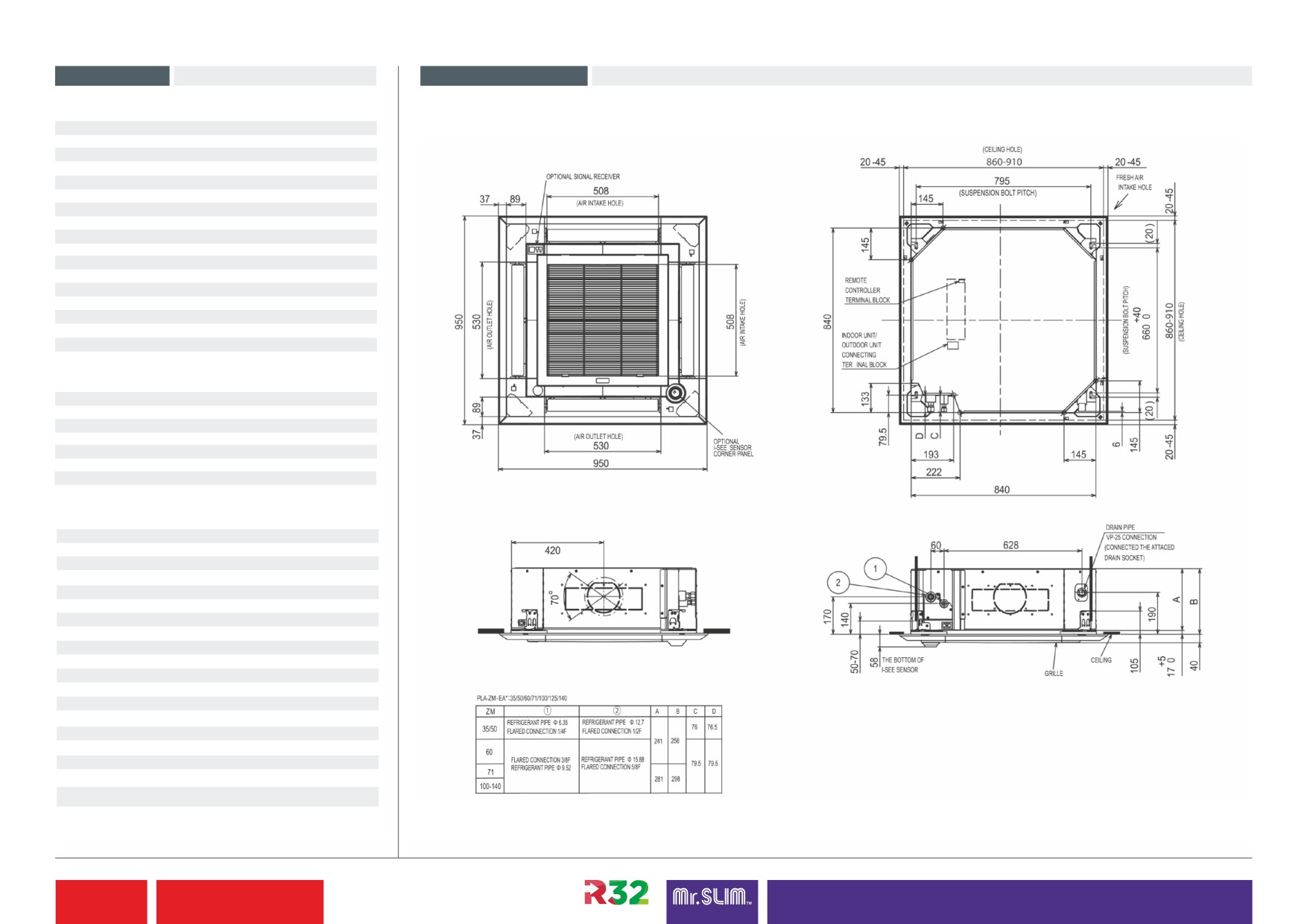

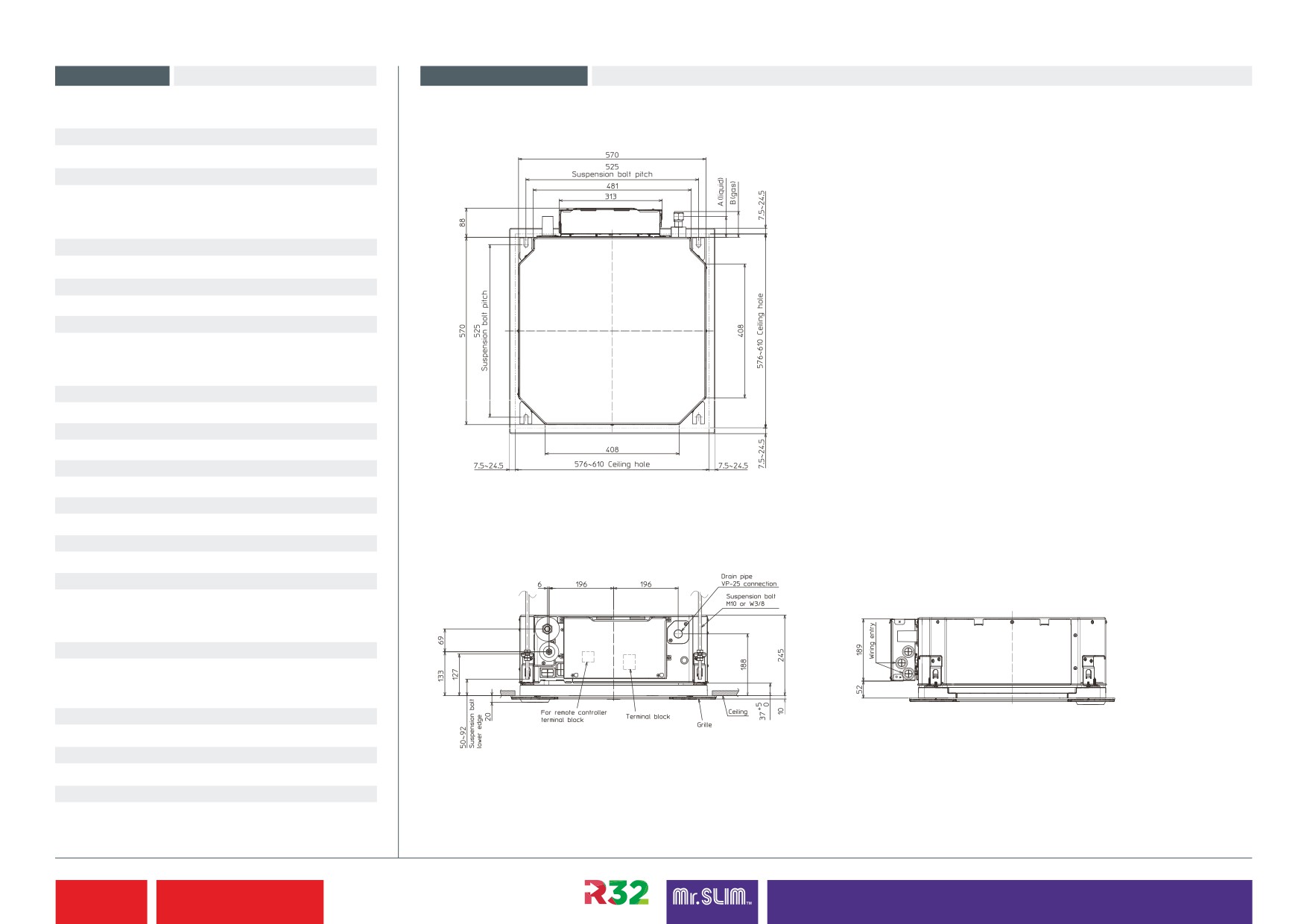

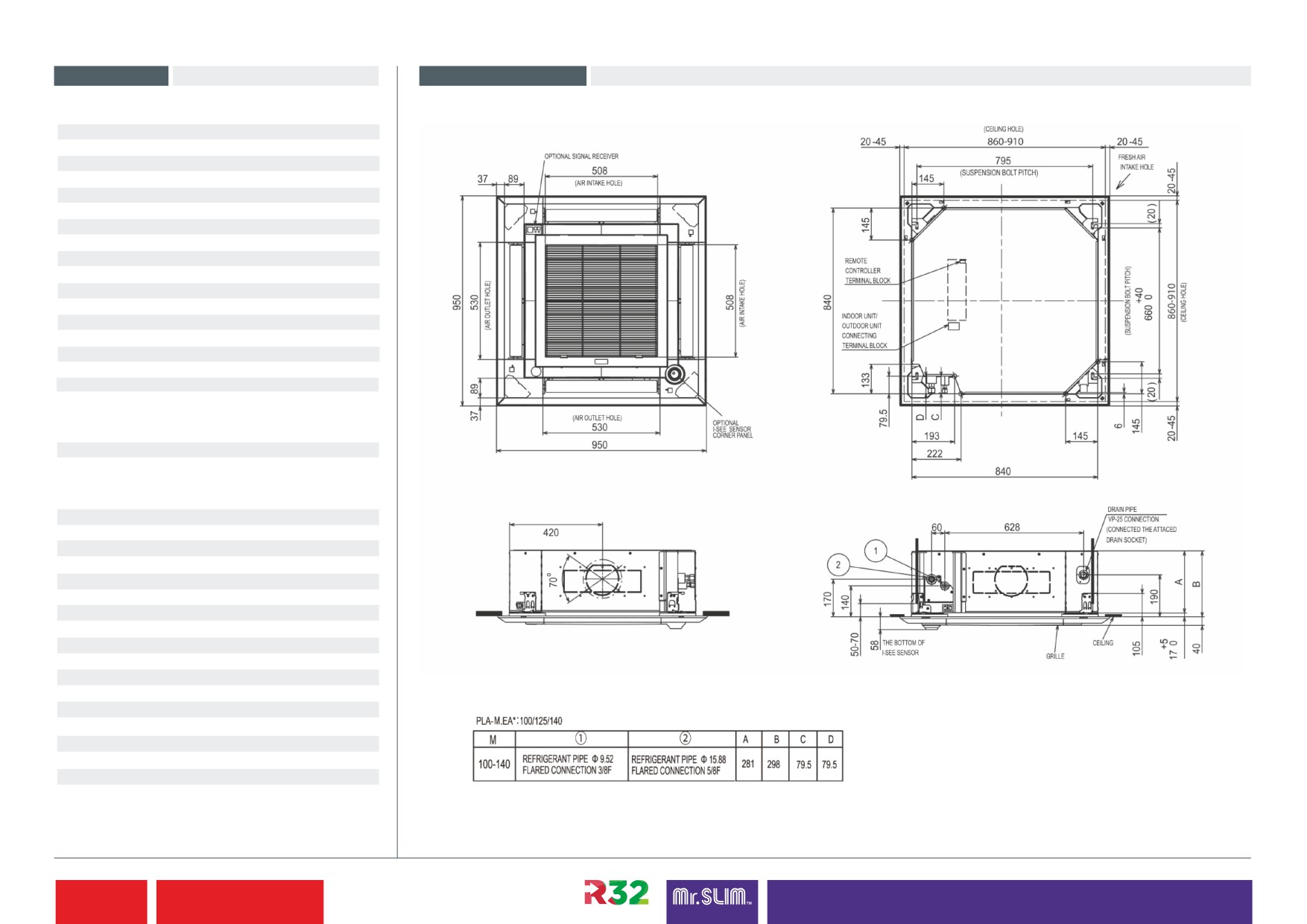

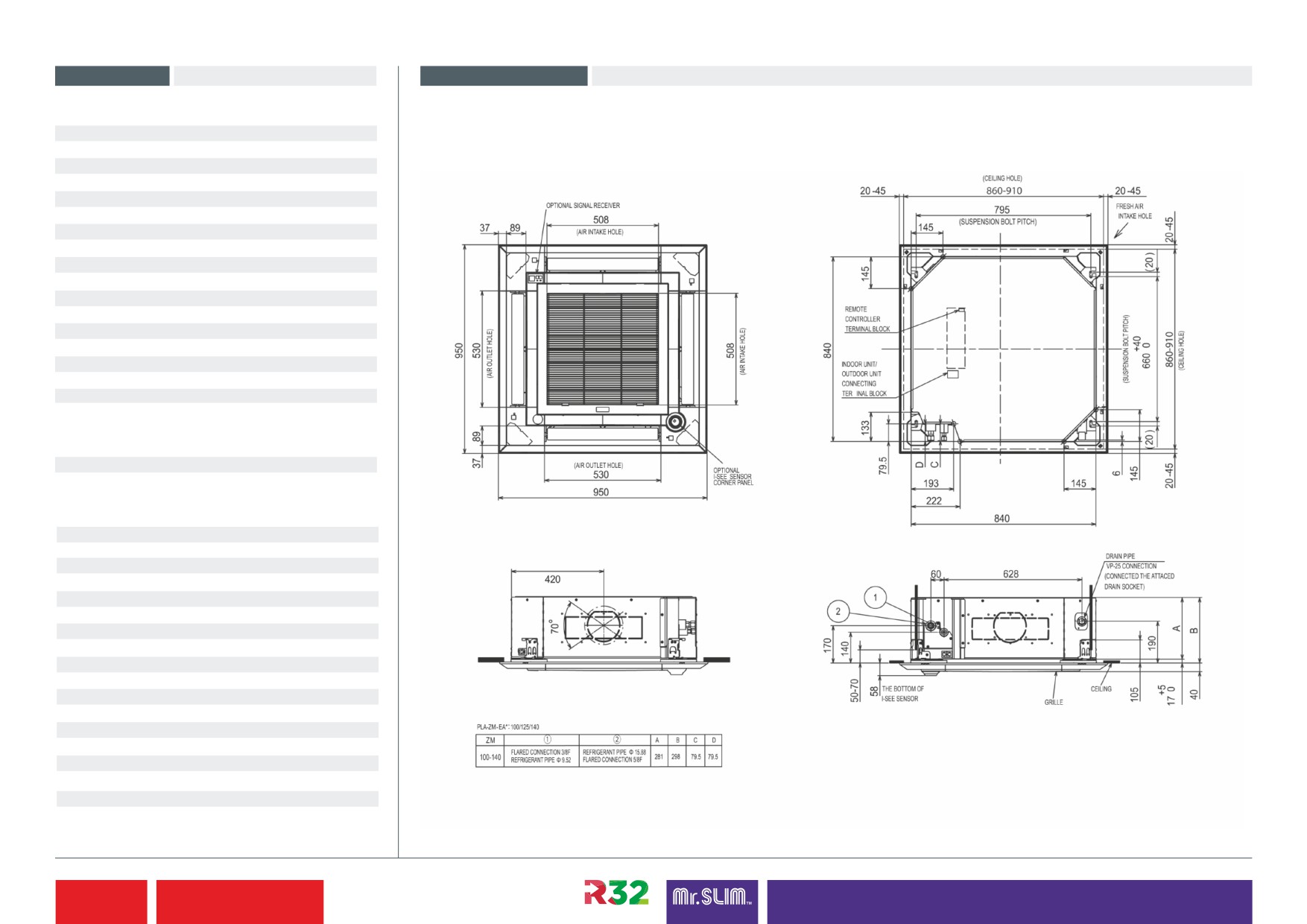

roduct Dimensions PLA-ZM35/50/60/71/100/125/140EA

Indoor Units

PLP-6EA

Lower View

Upper View

Grille for PLA-ZM35-140EA

PLP-6EAE

3D i-see sensor grille for PLA-ZM35-140EA

PLP-6EAJ

Self elevating grille for PLA-ZM35-140EA

PAC-SE1ME-E

Corner panel with i-see sensor for PLA-ZM35-140EA

PAR-SE9FA-E

Corner panel with signal receiver for PLA-ZM35-140EA

PAC-SJ37SP-E

Shutter plate for PLA-ZM35-140EA

PAC-SJ41TME

Multi-function casement for PLA-ZM35-140EA

PAC-SJ39HR-E

Power supply kit for PLA-ZM35-140EA

PAR-SL100A-E

Wireless remote controller for PLA-ZM35-140EA

Outdoor Units

PAC-SJ07SG

Air outlet guide for PUZ-ZM35-50VKA

PAC-SG59SG

Air outlet guide for PUZ-ZM60VHA / PUZ-ZM71VHAR1

PAC-SH96SG

Air outlet guide for PUZ-ZM100VKAR1 / PUZ-ZM125-140VKAR2

PAC-SJ71FM-E

30Pa outdoor fan motor for PUZ-ZM100VKAR1 / PUZ-ZM125-140VKAR2

System Control Units

Front View

Side View

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

PAC-SJ96MA

M-NET adaptor for size 35 and 50

PAC-SJ95MA

M-NET adaptor for size 60 to 140

Note: Please see page 1.3.62 for the full range of accessories.

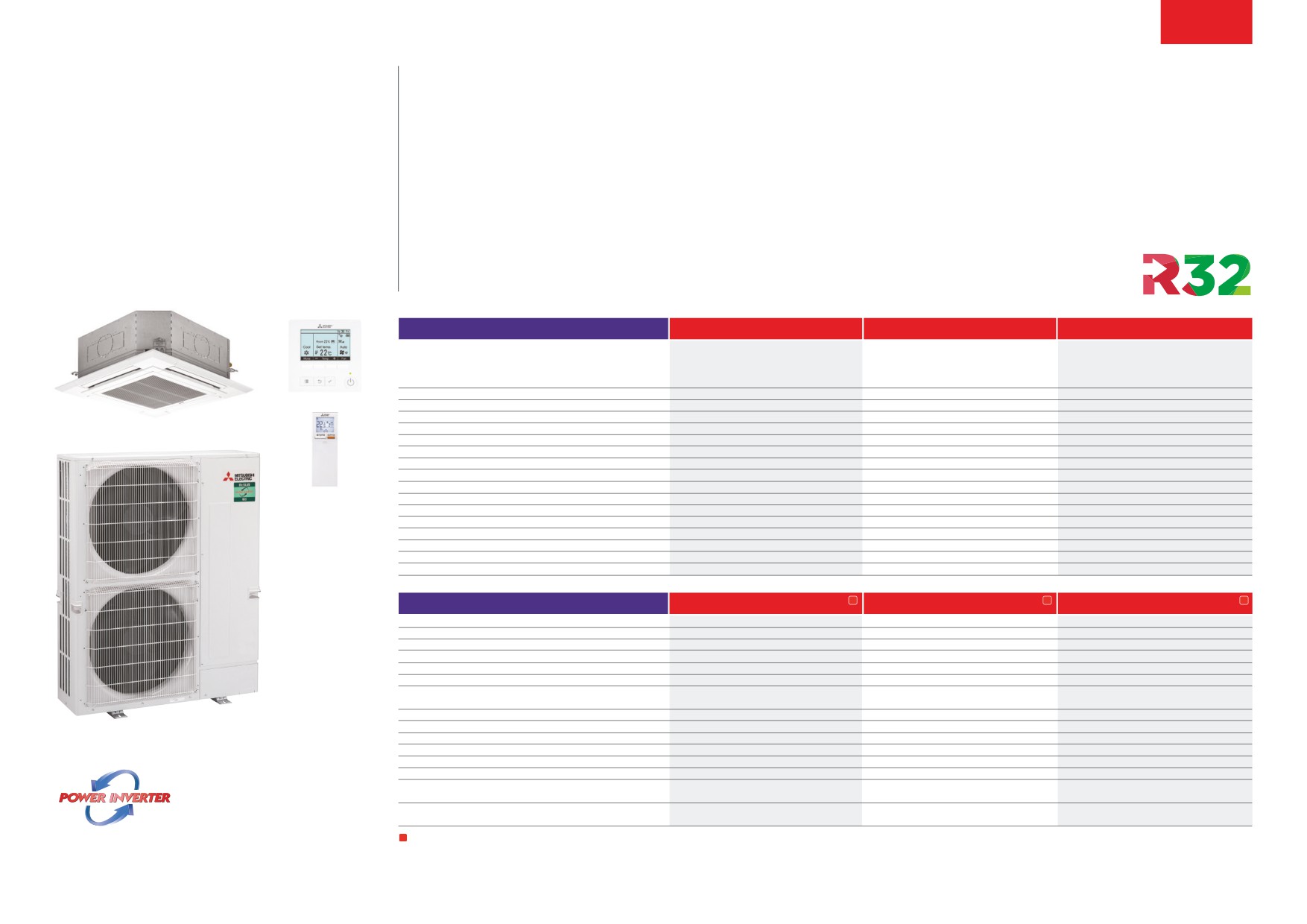

PLA-ZM R32 4-Way Blow Ceiling Cassette System,

1.3.9

Air Conditioning

Power Inverter Heat Pump (Single Phase)

1.3.10

The PLA-ZM Power Inverter range is a ceiling cassette system that blends a host of outstanding features

PLA-ZM R32

with a sophisticated streamlined design. Offering high seasonal efficiency, advanced control options and

extended pipe runs, this range is extremely flexible.

4-Way Blow Ceiling

Key Features

Cassette System

■ Improved airflow control, including horizontal airflow for greater comfort

■ Optional 3D i-see sensor grille (PLP-6EAE) provides customised comfort by automatically

monitoring room occupancy, position and body temperatures

Power Inverter Heat Pump

■ Optional filter lowering operation down to 4m (PLP-6EAJ)

(Three Phase)

■ Full heating capacity down to -3°C

■ 100m pipe run

■ Replace Technology available

PLA-ZM - INDOOR UNITS

PLA-ZM100EA

PLA-ZM125EA

PLA-ZM140EA

CAPACITY (kW)

Heating (nominal)

11.2 (4.5-14.0)

14.0 (5.0-16.0)

16.0 (5.7-18.0)

Cooling (nominal)

9.5 (4.9-11.4)

12.5 (5.5-14.0)

13.4 (6.2-15.0)

Heating (UK)

9.5 (3.85-11.9)

11.9 (4.25-13.6)

13.6 (4.85-15.3)

Cooling (UK)

9.2 (4.5-10.5)

11.5 (5.05-12.9)

12.9 (5.7-14.1)

SHF (nominal)

0.77

0.70

COP / EER (nominal)

4.30 / 4.60

3.81 / 3.70

3.71 / 3.55

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.80 / 7.50

4.70 (185.1%) / 7.20 (301.1%)

4.60 (181.1%) / 6.90 (283.9%)

ERP ENERGY EFFICIENCY CLASS

Heating/Cooling

A++ / A++

AIRFLOW (l/s)

Lo-Mi-Mi2-Hi

317-367-417-467

350-400-433-483

400-433-483-533

PIPE SIZE MM (in)

Gas/Liquid

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA)

Lo-Mi-Mi2-Hi

31-34-37-40

33-36-39-41

36-39-42-44

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height (Grille)

840 (950) x 840 (950) x 298 (40)

WEIGHT (kg)

Unit / Grille

26 / 5

26 /5

26 / 5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE NO. CORES

GRILLE REFERENCE

PLP-6EA

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL100A-E

PUZ-ZM - OUTDOOR UNITS

PUZ-ZM100YKAR1

PUZ-ZM125YKAR2

PUZ-ZM140YKAR2

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

51 / 49

52 / 50

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

123

125

131

DIMENSIONS (mm)

Width x Depth x Height

1050 x 330 + 40 x 1338

ELECTRICAL SUPPLY

380-415v, 50Hz

PHASE

Three

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

2.604 / 2.065

3.674 / 3.378

4.312 / 3.772

Heating/Cooling (UK)

2.09 / 1.77

3.27 / 2.87

3.83 / 3.15

STARTING CURRENT (A)

6.0

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

3.75 / 2.96 [8.5]

5.32 / 4.89 [10.0]

6.23 / 5.37 [13.7]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE NO. CORES

MAX PIPE LENGTH (m)

100

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) /

R32 (GWP 675) - 30m

4.00 / 2.70

CO₂ EQUIVALENT (t)

MAX ADDITIONAL REFRIGERANT (kg) /

R32 (GWP 675)

2.80 / 1.89

CO₂ EQUIVALENT (t)

3 Three Phase

Accessories

roduct Dimensions PLA-ZM100/125/140EA

Indoor Units

PLP-6EA

Grille for PLA-ZM35-140EA

Lower View

Upper View

PLP-6EAE

3D i-see sensor grille for PLA-ZM35-140EA

PLP-6EAJ

Self elevating grille for PLA-ZM35-140EA

PAC-SE1ME-E

Corner panel with i-see sensor for PLA-ZM35-140EA

PAR-SE9FA-E

Corner panel with signal receiver for PLA-ZM35-140EA

PAC-SJ37SP-E

Shutter plate for PLA-ZM35-140EA

PAC-SJ41TME

Multi-function casement for PLA-ZM35-140EA

PAC-SJ39HR-E

Power supply kit for PLA-ZM35-140EA

PAR-SL100A-E

Wireless remote controller for PLA-ZM35-140EA

Outdoor Units

PAC-SH96SG

Air outlet guide for PUZ-ZM100YKAR1 / PUZ-ZM125-140YKAR2

System Control Units

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

Front View

Side View

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Retail control and input / output interface

MELCORETAIL MINI

Retail control and input / output interface

PAC-SJ95MA

M-NET adaptor for size 100 to 140

Note: Please see page 1.3.62 for the full range of accessories.

PLA-ZM R32 4-Way Blow Ceiling Cassette System,

1.3.11

Air Conditioning

Power Inverter Heat Pump (Three Phase)

1.3.12

The PLA-M Standard Inverter range is a ceiling cassette system that blends a host of outstanding features

PLA-M R32

with a sophisticated streamlined design. Offering advanced control options and quiet operation, this range

provides extreme flexibility and ease of installation whilst being cost effective.

4-Way Blow Ceiling

Key Features

Cassette System

■ Improved airflow control, including horizontal airflow for greater comfort

■ Optional 3D i-see sensor grille (PLP-6EAE) provides customised comfort by automatically

Standard Inverter Heat Pump

monitoring room occupancy, position and body temperatures

■ Optional filter lowering operation down to 4m (PLP-6EAJ)

(Single Phase)

■ Replace Technology available

■ Single fan chassis across entire outdoor unit range

PLA-M - INDOOR UNITS

PLA-M35EA

PLA-M50EA

PLA-M60EA

PLA-M71EA

PLA-M100EA

PLA-M125EA

PLA-M140EA

CAPACITY (kW)

Heating (nominal)

4.1 (1.0-5.0)

6.0 (1.5-7.2)

7.0 (1.6-8.0)

8.0 (2.0-10.2)

11.2 (2.8-12.5)

13.5 (4.1-15.0)

15.0 (4.2-15.8)

Cooling (nominal)

3.6 (0.8-3.9)

5.5 (1.2-5.6)

6.1 (1.6-6.3)

7.1 (2.2-8.1)

9.5 (4.0-10.6)

12.1 (5.8-13.0)

13.4 (5.8-14.1)

Heating (UK)

3.49 (0.85-4.26)

5.11 (1.28-6.13)

6.13 (1.36-6.81)

6.81 (1.70-8.68)

9.63 (2.41-10.75)

11.49 (3.49-12.77)

12.77 (3.57-13.45)

Cooling (UK)

3.31 (0.74-3.60)

5.06 (1.10-5.15)

5.61 (1.47-5.80)

6.53 (2.02-7.45)

8.65 (3.64 - 9.65)

11.01 (5.28-11.83)

12.19 (5.28-12.83)

SHF (nominal)

0.91

0.77

0.79

0.74

0.77

0.72

0.70

COP / EER (nominal)

4.20 / 4.00

3.46 / 3.40

3.80 / 3.30

3.61 / 3.70

3.71 / 3.50

3.71 / 3.01

3.41 / 2.70

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.70 / 7.40

4.10 / 6.70

4.40 / 6.60

4.50 / 7.50

4.60 / 7.00

4.1 (162%) / 5.6 (231.9%)

4.1 (161.3%) / 5.7 (232.7%)

ErP ENERGY EFFICIENCY CLASS Heating/Cooling

A++ / A++

A+ / A++

A++ / A++

A+ / A+

AIRFLOW (l/s)

Lo-Mi-Mi2-Hi

183-217-250-267

200-233-317-350

233-283-317-350

317-383-433-483

350-417-467-517

400-433-483-533

PIPE SIZE mm (in)

Gas/Liquid

9.52 (3/8”) / 6.35 (1/4”)

12.7 (1/2”) / 6.35 (1/4”)

15.88 (5/8”) / 6.35 (1/4”)

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA) Lo-Mi-Mi2-Hi

26-28-29-31

27-29-31-32

28-30-32-34

31-34-37-40

33-37-41-44

36-39-42-44

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height (Grille)

840 (950) x 840 (950) x 258 (40)

840 (950) x 840 (950) x 298 (40)

WEIGHT (kg)

Unit / Panel

19 / 5

21 / 5

24 / 5

26 / 5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

GRILLE REFERENCE

PLP-6EA

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL100A-E

SUZ-M / PUZ-M - OUTDOOR UNITS

SUZ-M35VAR2

SUZ-M50VAR2

SUZ-M60VAR2

SUZ-M71VAR1

PUZ-M100VAR1

PUZ-M125VAR1

PUZ-M140VAR1

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

48 / 48

48 / 49

49 / 51

51 / 54

54 / 56

55 / 57

SOUND POWER LEVEL (dBA) Cooling

WEIGHT (kg)

DIMENSIONS (mm)

Width x Depth x Height

800 x 285 x 550

800 x 285 x 714

840 x 330 x 880

1050 x 330 x 981

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

0.97 / 0.90

1.73 / 1.61

1.84 / 1.84

2.21 / 1.91

3.01 / 2.71

3.63 / 4.01

4.39 / 4.96

Heating/Cooling (UK)

0.83 / 0.77

1.47 / 1.39

1.56 / 1.58

1.88 / 1.64

2.71 / 2.50

3.27 / 3.33

3.59 / 4.12

STARTING CURRENT (A)

5.0

8.0

9.3

9.5

13.0

17.4

21.5

SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX]

5.0 / 4.1 [8.5]

8.0 / 7.1 [13.5]

9.3 / 8.4 [14.8]

9.5 / 9.1 [14.8]

13.0 / 11.7 [20]

15.6 / 17.4 [26.5]

19.0 / 21.5 [30]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) /

R32 (GWP 675)

0.90 / 0.61

1.20 / 0.81

1.25 / 0.84

1.45 / 0.98

3.10 / 2.09

3.60 / 2.43

CO₂ EQUIVALENT (t)

MAX ADDITIONAL REFRIGERANT (kg) /

R32 (GWP 675)

1.16 / 0.78

1.66 / 1.12

1.71 / 1.15

2.37 / 1.80

4.10 / 2.77

5.00 / 3.38

CO₂

EQUIVALENT (t)

Note: No duty/standby operation on SUZ-M35/50/60/71VAR2/1.

Accessories

roduct Dimensions PLA-M35/50/60/71/100/125/140EA

Indoor Units

PLP-6EA

Lower View

Upper View

Grille for PLA-M35-140EA

PLP-6EAE

3D i-see sensor grille for PLA-M35-140EA

PLP-6EAJ

Self elevating grille for PLA-M35-140EA

PAC-SE1ME-E

Corner panel with i-see sensor for PLA-M35-140EA

PAR-SE9FA-E

Corner panel with signal receiver for PLA-M35-140EA

PAC-SJ37SP-E

Shutter plate for PLA-M35-140EA

PAC-SJ41TME

Multi-function casement for PLA-M35-140EA

PAC-SJ39HR-E

Power supply kit for PLA-M35-140EA

PAR-SL100A-E

Wireless remote controller for PLA-M35-140EA

Outdoor Units

MAC-889SG

Air outlet guide for SUZ-M35VAR2

MAC-882SG

Air outlet guide for SUZ-M50VAR2

MAC-886SG

Air outlet guide for SUZ-M60VAR2 / SUZ-M71VAR1

PAC-SH96SG

Air outlet guide for PUZ-M100-140VAR1

Front View

Side View

System Control Units

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-334IF

Interface for M-NET, MA remote controller, on/off input and run/fault output

MAC-397IF

Interface for MA remote controller, on/off input and run or fault output

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

PAC-SJ95MA

M-NET adaptor for size 100 to 140

Note: Please see page 1.3.62 for the full range of accessories.

PLA-M R32 4-Way Blow Ceiling Cassette System,

1.3.13

Air Conditioning

Standard Inverter Heat Pump (Single Phase)

1.3.14

The PLA-M Standard Inverter range is a ceiling cassette system that blends a host of outstanding features

PLA-M R32

with a sophisticated streamlined design. Offering advanced control options and quiet operation, this range

provides extreme flexibility and ease of installation whilst being cost effective.

4-Way Blow Ceiling

Key Features

Cassette System

■ Improved airflow control, including horizontal airflow for greater comfort

■ Optional 3D i-see sensor grille (PLP-6EAE) provides customised comfort by automatically

Standard Inverter Heat Pump

monitoring room occupancy, position and body temperatures

■ Optional filter lowering operation down to 4m (PLP-6EAJ)

(Three Phase)

■ Replace Technology available

■ Single fan chassis across entire outdoor unit range

PLA-M - INDOOR UNITS

PLA-M100EA

PLA-M125EA

PLA-M140EA

CAPACITY (kW)

Heating (nominal)

11.2 (2.8-12.5)

13.5 (4.1-15.0)

15.0 (4.2-15.8)

Cooling (nominal)

9.5 (4.0-10.6)

12.1 (5.8-13.0)

13.4 (5.8-14.1)

Heating (UK)

9.63 (2.41-10.75)

11.49 (3.49-12.77)

12.77 (3.57-13.45)

Cooling (UK)

8.65 (3.64-9.65)

11.01 (5.28-11.83)

12.19 (5.28-12.83)

SHF (nominal)

0.77

0.72

0.70

COP / EER (nominal)

3.71 / 3.50

3.71 / 3.01

3.41 / 2.70

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.60 / 7.00

4.1 (162%) / 5.6 (231.9%)

4.1 (161.3%) / 5.7 (232.7%)

ErP ENERGY EFFICIENCY CLASS Heating/Cooling

A++ / A++

A+ / A+

AIRFLOW (l/s)

Lo-Mi-Mi2-Hi

317-383-433-483

350-417-467-517

400-433-483-533

PIPE SIZE mm (in)

Gas/Liquid

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA)

Lo-Mi-Mi2-Hi

31-34-37-40

33-37-41-44

36-39-42-44

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height (Grille)

840 (950) x 840 (950) x 298 (40)

WEIGHT (kg)

Unit / Panel

24 / 5

26 / 5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

GRILLE REFERENCE

PLP-6EA

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL100A-E

PUZ-M - OUTDOOR UNITS

PUZ-M100YAR1

PUZ-M125YAR1

PUZ-M140YAR1

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

51 / 54

54 / 56

55 / 57

SOUND POWER LEVEL (dBA) Cooling

WEIGHT (kg)

DIMENSIONS (mm)

Width x Depth x Height

1050 x 330 x 981

ELECTRICAL SUPPLY

380-415v, 50Hz

PHASE

Three

SYSTEM POWER

Heating/Cooling (nominal)

3.01 / 2.71

3.63 / 4.01

4.39 / 4.96

INPUT (kW)

Heating/Cooling (UK)

2.71 / 2.50

3.27 / 3.33

3.59 / 4.12

STARTING CURRENT (A)

4.7

6.3

7.8

SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX]

4.7 / 4.2 [11.5]

5.6 / 6.3 [11.5]

6.9 / 7.8 [11.5]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) /

R32 (GWP 675)

3.10 / 2.09

3.60 / 2.43

CO₂ EQUIVALENT (t)

MAX ADDITIONAL REFRIGERANT (kg) /

R32 (GWP 675)

4.10 / 2.77

5.00 / 3.38

CO₂

EQUIVALENT (t)

Three Phase

Accessories

Product Dimensions

PLA-M100/125/140EA

Indoor Units

Lower View

Upper View

PLP-6EA

Grille for PLA-M35-140EA

PLP-6EAE

3D i-see sensor grille for PLA-M35-140EA

PLP-6EAJ

Self elevating grille for PLA-M35-140EA

PAC-SE1ME-E

Corner panel with i-see sensor for PLA-M35-140EA

PAR-SE9FA-E

Corner panel with signal receiver for PLA-M35-140EA

PAC-SJ37SP-E

Shutter plate for PLA-M35-140EA

PAC-SJ41TME

Multi-function casement for PLA-M35-140EA

PAC-SJ39HR-E

Power supply kit for PLA-M35-140EA

PAR-SL100A-E

Wireless remote controller for PLA-M35-140EA

Outdoor Units

PAC-SH96SG

Air outlet guide for PUZ-M100-140YAR1

System Control Units

Front View

Side View

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

PAC-SJ95MA

M-NET adaptor for size 100 to 140

Note: Please see page 1.3.62 for the full range of accessories.

PLA-M R32 4-Way Blow Ceiling Cassette System,

1.3.15

Air Conditioning

Standard Inverter Heat Pump (Three Phase)

1.3.16

Our PLA-SM Inverter range offers customers all the features and benefits of inverter technology

PLA-SM R32

whilst being cost effective.

4-Way Blow Ceiling

Key Features

Cassette System

■ Inverter cassette range only

■ Single combination only

■ Up to 40m pipe run

Inverter Heat Pump

■ Cost effective with the benefits and features of inverter technology

■ Filter lowering operation down to 4m (optional PLP-6EAJ grille required)

PLA-SM INDOOR UNITS

PLA-SM71EA

PLA-SM100EA

PLA-SM125EA

PLA-SM140EA

CAPACITY (kW)

Heating (nominal)

8.0 (2.2-8.1)

11.2 (2.8-12.5)

13.5 (4.1-15.0)

15.0 (4.2-15.8)

Cooling (nominal)

7.1 (2.2-8.1)

9.5 (4.0-10.6)

12.1 (5.8-13.0)

13.4 (5.8-14.1)

Heating (UK)

6.80 (1.87-6.89)

9.63 (2.41-10.75)

11.61 (3.53-12.90)

12.90 (3.61-13.59)

Cooling (UK)

6.53 (2.03-7.45)

8.55 (3.60-11.25)

10.89 (5.22-11.70)

11.61 (5.22-12.69)

SHF (nominal)

0.75

0.77

0.73

0.70

COP / EER (nominal)

3.50 / 3.60

3.61 / 3.40

3.61 / 2.90

3.30 / 2.61

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

3.90 / 6.00

4.50 / 6.00

3.9 (154.1%) / 5.5 (225.2%)

3.9 (153.3%) / 5.5 (224.9%)

ErP ENERGY EFFICIENCY CLASS Heating/Cooling

A / A+

A+ / A+

A / A

AIRFLOW (l/s)

Lo-Mi1-Mi2-Hi

233-283-317-350

317-383-433-483

350-417-467-517

400-433-483-533

PIPE SIZE mm (in)

Gas/Liquid

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA) Lo-Mi1-Mi2-Hi

28-30-32-34

31-34-37-40

33-37-41-44

36-39-42-44

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm) Width x Depth x Height (Grille)

840 (950) x 840 (950) x 258 (40)

840 (950) x 840 (950) x 298 (40)

WEIGHT (kg)

Unit / Panel

21 (5)

24 (5)

26 (5)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

GRILLE REFERENCE

PLP-6EA

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL100A-E

SUZ-SM / PUZ-SM OUTDOOR UNITS

SUZ-SM71VA

PUZ-SM100VKA

PUZ-SM100YKA

PUZ-SM125VKA

PUZ-SM125YKA

PUZ-SM140VKA

PUZ-SM140YKA

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

51 / 49

54 / 51

56 / 54

57 / 55

SOUND POWER LEVEL (dBA) Cooling

WEIGHT (kg)

DIMENSIONS (mm)

Width x Depth x Height

840 x 330 x 880

1050 x 330 x 981

ELECTRICAL SUPPLY

220-240v, 50Hz

380-415v, 50Hz

220-240v, 50Hz

380-415v, 50Hz

220-240v, 50Hz

380-415v, 50Hz

PHASE

Single

Three

Single

Three

Single

Three

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

2.28 / 1.97

3.10 / 2.79

3.73 / 4.17

4.54 / 5.13

Heating/Cooling (UK)

1.94 / 1.70

2.64 / 2.40

3.17 / 3.59

3.87 / 4.14

STARTING CURRENT (A)

9.7

13.4

4.8

17.4

6.3

22.3

8.1

SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX]

9.7 / 8.3 [14.8]

13.4 / 12.1 [20.0]

4.8 / 4.3 [11.5]

15.6 / 17.4 [26.5]

5.6 / 6.3 [11.5]

19.0 / 22.3 [30.0]

6.9 / 8.1 [11.5]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) /

R32 (GWP 675)

1.45 / 0.98 (7m)

3.10 / 2.09 (30m)

3.60 / 2.43 (30m)

^CO2 EQUIVALENT (t)

MAX ADDITIONAL REFRIGERANT (kg) /

R32 (GWP 675)

2.37 / 1.80

N/A

3.50 / 2.36

4.00 / 2.70

^CO2 EQUIVALENT (t)

Note: The PLP-6EAE 3D i-See sensor grille or PAC-SE1ME-E corner panel will NOT operate with this model.

Accessories

Product Dimensions PLA-SM71/100/125/140EA

Indoor Units

Lower View

Upper View

PLP-6EA

Grille for PLA-SM71-140EA

PLP-6EAJ

Self elevating grille for PLA-SM71-140EA

PAR-SE9FA-E

Corner panel with signal receiver for PLA-SM71-140EA

PAC-SJ37SP-E

Shutter plate for PLA-SM71-140EA

PAC-SJ41TME

Multi-function casement for PLA-SM71-140EA

PAC-SJ39HR-E

Power supply kit for PLA-SM71-140EA

PAR-SL100A-E

Wireless remote controller for PLA-SM71-140EA

Outdoor Units

MAC-886SG

Air outlet guide for SUZ-SM71VA

PAC-SH96SG

Air outlet guide for PUZ-SM100-140VKA/YKA

System Control Units

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

Front View

Side View

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

PLA-SM71/100/125/140

MELCORETAIL MINI

Retail control and input / output interface

241

258

FLARED CONNECTION

REFRIGERANT PIPE Ф 15.88

79.5

PAC-SJ95MA

3/8FREFRIGERANT PIPE Ф 9.52

FLARED CONNECTION 5/8F

100-140

281

298

M-NET adaptor for size 100 to 140

Note: Please see page 1.3.62 for the full range of accessories.

1.3.17

Air Conditioning

PLA-SM R32 4-Way Blow Ceiling Cassette System, Inverter Heat Pump

1.3.18

The SLZ-M Standard Inverter ceiling cassette unit provides the smart solution to comfortable and

SLZ-M R32

efficient air conditioning. It combines a stylish square design slimline grille with the latest energy-saving

technologies and is designed to fit snugly in narrow ceilings, making it ideal in both offices and retail.

600x600 4-Way Blow

Key Features

Ceiling Cassette System

■ New Design - Fits into narrow ceiling spaces with height of only 245mm

■ Optional 3D i-see sensor grille provides customised comfort by automatically monitoring room occupancy,

Standard Inverter Heat Pump

position and body temperatures

(Single Phase)

■ Horizontal Airflow - eliminating uncomfortable draughts and improving airflow control

SLZ-M - INDOOR UNITS

SLZ-M15FA

SLZ-M25FA

SLZ-M35FA

SLZ-M50FA

SLZ-M60FA

CAPACITY (kW)

Heating (nominal)

1.7 (0.9-3.1)

3.2 (1.3-4.2)

4.0 (1.0-5.0)

5.0 (1.3-5.5)

6.4 (1.6-7.3)

Cooling (nominal)

1.5 (0.9-2.4)

2.5 (1.4-3.2)

3.5 (0.7-3.9)

4.6 (1.0-5.2)

5.7 (1.5-6.3)

Heating (UK)

2.72 (1.11-3.57)

3.40 (0.85-4.25)

4.25 (1.11-4.68)

5.44 (1.36-6.21)

Cooling (UK)

2.30 (1.29-2.94)

3.22 (0.64-3.59)

4.42 (0.92-4.79)

5.25 (1.38-5.80)

SHF (nominal)

0.78

0.72

0.68

COP / EER (nominal)

3.61 / 3.80

3.71 / 3.20

3.20 / 3.40

3.00 / 3.40

SCOP / SEER (BS EN14825)

4.30 / 6.30

4.30 / 6.70

4.20 / 6.30

4.10 / 6.20

ErP ENERGY EFFICIENCY CLASS Heating/Cooling

A+ / A++

AIRFLOW (l/s)

Lo-Mi-Hi

100-108-117

108-125-142

108-133-158

117-150-192

125-192-217

PIPE SIZE mm (in)

Gas

9.52 (3/8”)

12.7 (1/2”)

15.88 (5/8”)

Liquid

6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA) Lo-Mi-Hi

24-26-28

25-28-31

25-30-34

27-34-39

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm) Width x Depth x Height

570 (650) x 570 (650) x 245 (10)

WEIGHT (kg)

Unit / Grille

15 / 3

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

GRILLE REFERENCE

SLP-2FA

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

Note: SLZ-M15FA only available with R32 MXZ Multi-Split outdoor units.

SUZ-M - OUTDOOR UNITS

N/A MULTI-SPLIT oNLY

SUZ-M25VAR2

SUZ-M35VAR2

SUZ-M50VAR2

SUZ-M60VAR2

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

45 / 46

48 / 48

48 / 49

49 / 51

SOUND POWER LEVEL (dBA) Cooling

WEIGHT (kg)

DIMENSIONS (mm)

Width x Depth x Height

800 x 285 x 550

800 x 285 x 714

840 x 330 x 880

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER

Heating/Cooling (nominal)

0.88 / 0.65

1.07 / 1.09

1.56 / 1.35

2.13 / 1.67

INPUT (kW)

Heating/Cooling (UK)

0.75 / 0.56

0.91 / 0.94

1.33 / 1.16

1.81 / 1.44

STARTING CURRENT (A)

3.7

5.0

8.0

9.3

SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX]

3.7 / 3.0 [6.8]

5.0 / 4.1 [8.5]

8.0 / 7.1 [13.5]

9.3 / 8.4 [14.9]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (KG) /

R32 (GWP 675)

0.65 / 0.44

0.90 / 0.61

1.20 / 0.81

1.25 / 0.84

CO₂ EQUIVALENT (T)

MAX ADDITIONAL REFRIGERANT (KG) /

R32 (GWP 675)

0.91 / 0.61

1.16 / 0.78

1.66 / 1.12

1.71 / 1.15

^CO2

EQUIVALENT (T)

Accessories

roduct Dimensions SLZ-M15/25/35/50/60FA

Indoor Units

Upper View

SLP-2FA

Grille for SLZ-M15-60FA

SLP-2FAE

3D i-see sensor grille for SLZ-M15-60FA

Outdoor Units

MAC-889SG

Air outlet guide for SUZ-M25-35VAR2

MAC-882SG

Air outlet guide for SUZ-M50VAR2

MAC-886SG

Air outlet guide for SUZ-M60VAR2

System Control Units

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

mporary hanging hook

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Side View

Front View

Standard wired remote controller

MAC-334IF

Interface for M-NET, MA remote controller

(PAR-40MAA / PAR-CT01MAA),

on/off input and run/fault output

MAC-397IF

Interface for MA remote controller

(PAR-40MAA / PAR-CT01MAA),

on/off input and run or fault output

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

Note: Please see page 1.3.62 for the full range of accessories.

SLZ-M R32 600x600 4-Way Blow Ceiling Cassette System,

1.3.19

Air Conditioning

Standard Inverter Heat Pump (Single Phase)

1.3.20

The PKA-M Power Inverter range is a wall mounted system that blends a host of outstanding features

PKA-M R32

with a sophisticated, streamlined design. Offering high seasonal efficiency, advanced control options

and extended pipe runs, this range is extremely flexible.

Wall Mounted

Key Features

System

■ Improved airflow control, including adjustable louvres for uniform air distribution

■ Internal pipe connection to wall mounted unit for easy and neat installation

Power Inverter Heat Pump

■ CN22 connector as standard for connection to PAR-40MAA hard wired controller

■ Full heating capacity down to -3°C

■ 100m pipe run (Size 100)

■ Replace Technology available

PKA-M - INDOOR UNITS

PKA-M35HA

PKA-M50HA

PKA-M60KA

PKA-M71KA

PKA-M100KA

CAPACITY (kW)

Heating (nominal)

4.1 (1.6-5.2)

5.0 (2.5-7.3)

7.0 (2.8-8.2)

8.0 (3.5-10.2)

11.2 (4.5-14.0)

Cooling (nominal)

3.6 (1.6-4.5)

4.6 (2.3-5.6)

6.1 (2.7-6.7)

7.1 (3.3-8.1)

9.5 (4.9-11.4)

Heating (UK)

3.5 (1.35-4.4)

4.25 (2.15-6.2)

5.95 (2.4-6.95)

6.8 (3.0-8.65)

9.5 (3.85-11.9)

Cooling (UK)

3.3 (1.45-4.15)

4.23 (2.1-5.15)

5.5 (2.5-6.15)

6.55 (3.05-7.45)

9.2 (4.5-10.5)

SHF (nominal)

0.81

0.72

0.86

0.78

0.73

COP / EER (nominal)

3.94 / 4.14

3.71 / 3.71

4.04 / 3.91

3.78 / 3.81

3.61 / 3.95

SCOP / SEER (BS EN14825)

4.0 / 6.3

4.1 / 6.4

4.2 / 6.8

4.3 / 6.8

4.4/ 6.5

4.4 / 6.4

ERP ENERGY EFFICIENCY CLASS

Heating/Cooling

A+ / A++

AIRFLOW (l/s)

Lo-Mi-Hi

150-175-200

300-333-367

333-383-433

PIPE SIZE MM (in)

Gas

12.7 (1/2”)

15.88 (5/8”)

Liquid

6.35 (1/4”)

9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA)

Lo-Mi-Hi

36-40-43

39-42-45

41-45-49

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

898 x 249 x 295

1170 x 295 x 365

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE NO. CORES

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-FL32MA

PUZ-ZM - OUTDOOR UNITS

PUZ-ZM35VKA

PUZ-ZM50VKA

PUZ-ZM60VHA

PUZ-ZM71VHAR1

PUZ-ZM100VKAR1

PUZ-ZM100YKAR1

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

46 / 44

49 / 47

51 / 49

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

116

123

DIMENSIONS (mm)

Width x Depth x Height

809 x 300 x 630

950 x 330 + 25 x 943

1050 x 330 + 40 x 1338

ELECTRICAL SUPPLY

220-240v, 50Hz

380-415v, 50Hz

PHASE

Single

Three

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

1.040 / 0.869

1.347 / 1.239

1.732 / 1.560

2.116 / 1.863

3.102 / 2.405

Heating/Cooling (UK)

0.81 / 0.84

1.12 / 1.12

1.25 / 1.65

1.54 / 1.92

2.47 / 2.06

STARTING CURRENT (A)

5.0

6.0

13.0

6.0

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

4.97 / 4.31 [13.4]

5.98 / 5.57 [13.4]

7.41 / 6.65 [19.4]

9.10 / 7.96 [19.4]

13.46 / 10.45 [27.1]

4.49 / 5.45 [8.6]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE NO. CORES

MAX PIPE LENGTH (m)

100

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) /

R32 (GWP 675) - 30m

2.0 / 1.35

2.00 / 1.35

2.80 / 1.89

4.00 / 2.70

CO₂ EQUIVALENT (t)

MAX ADDITIONAL REFRIGERANT (kg) /

R32 (GWP 675)

0.30 / 0.20

0.80 / 0.54

2.80 / 1.89

CO₂ EQUIVALENT (t)

3 Three Phase

Accessories

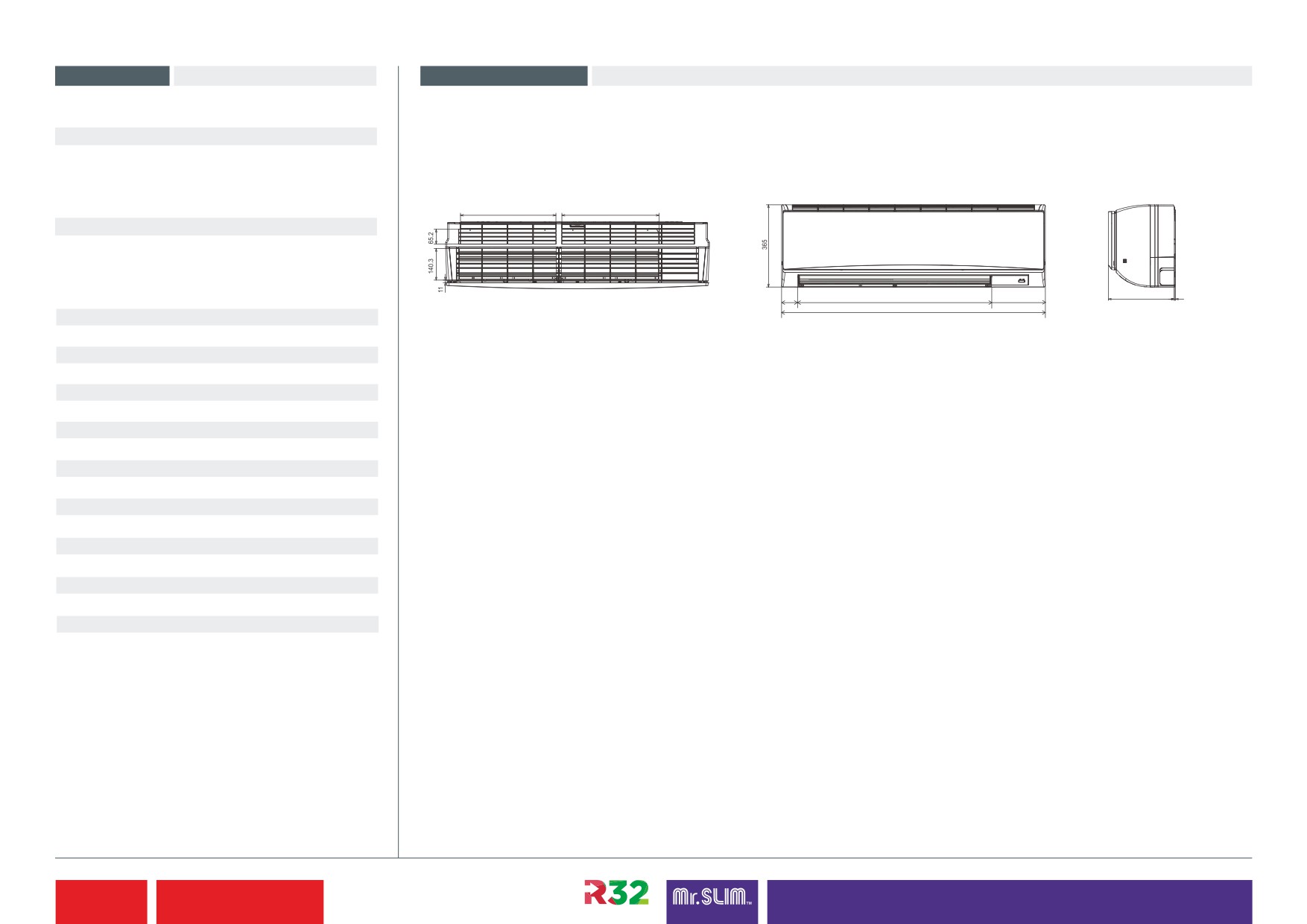

Product Dimensions PKA-M35/50HA

Indoor Units

Upper View

Front View

Side View

PAR-FL32MA

387

192

Wireless remote controller for PKA-M35-100HA/KA

Outdoor Units

PAC-SJ07SG

Air outlet guide for PUZ-ZM35-50VKA

PAC-SG59SG

599

249

688

155

Air outlet guide for PUZ-ZM60VHA / PUZ-ZM71VHAR1

898

PAC-SH96SG

Air outlet guide for PUZ-ZM100VKAR1/YKAR1

PAC-SJ71FM-E

30Pa outdoor fan motor for PUZ-ZM100VKAR1/YKAR1

Product Dimensions PKA-M60/71/100KA

System Control Units

Upper View

Front View

Side View

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

423.7

431.7

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

(855)

241

295

PAR-CT01MAA-SB/PB

1170

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

PAC-SJ96MA

M-NET adaptor for size 35 and 50

PAC-SJ95MA

M-NET adaptor for size 60 to 100

Note: Please see page 1.3.62 for the full range of accessories.

1.3.21

Air Conditioning

PKA-M R32 Wall Mounted System, Power Inverter Heat Pump

1.3.22

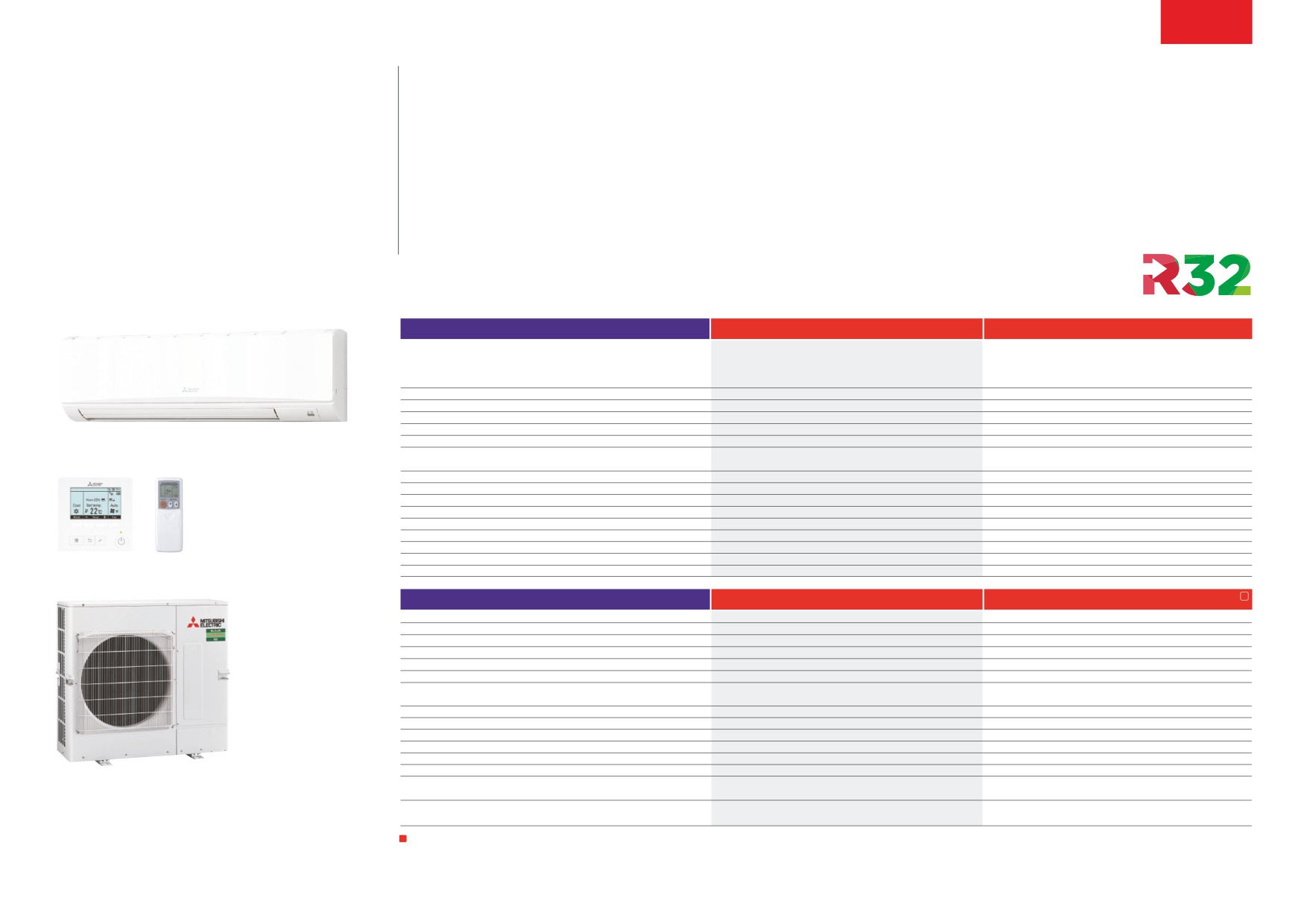

The PKA-M Standard Inverter range is a wall mounted system that blends a host of outstanding features

PKA-M R32

with a sophisticated, streamlined design. Offering advanced control options and quiet operation,

this range provides extreme flexibility and ease of installation whilst being cost effective.

Wall Mounted

System

Key Features

■ Improved airflow control, including adjustable louvres for uniform air distribution

■ Internal pipe connection to wall mounted unit for easy and neat installation

Standard Inverter Heat Pump

■ CN22 connector as standard for connection to PAR-40MAA hard wired controller

■ Replace Technology available

PKA-M - INDOOR UNITS

PKA-M100KA

CAPACITY (kW)

Heating (nominal)

11.2 (2.8-12.5)

Cooling (nominal)

9.5 (4.0-10.6)

Heating (UK)

9.63 (2.41-10.75)

9.63 (2.41 - 10.75)

Cooling (UK)

8.65 (3.64-9.65)

8.65 (3.64 - 9.65)

SHF (nominal)

0.73

COP / EER (nominal)

3.41 / 3.23

SCOP / SEER (BS EN14825)

4.00 / 5.80

ErP ENERGY EFFICIENCY CLASS

Heating/Cooling

A+ / A+

AIRFLOW (l/s)

Lo-Mi-Hi

333-383-433

PIPE SIZE mm (in)

Gas

15.88 (5/8”)

Liquid

9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA)

Lo-Mi-Hi

41-45-49

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

1170 x 295 x 365

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-FL32MA

PUZ-M - OUTDOOR UNITS

PUZ-M100VAR1

PUZ-M100YAR1

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

51 / 54

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

DIMENSIONS (mm)

Width x Depth x Height

1050 x 330 x 981

ELECTRICAL SUPPLY

220-240v, 50Hz

380-415v, 50Hz

PHASE

Single

Three

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

3.28 / 2.94

Heating/Cooling (UK)

2.95 / 2.44

STARTING CURRENT (A)

14.2

5.1

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

14.2 / 12.7 [20]

5.1 / 4.6 [11.5]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (KG) /

R32 (GWP 675)

3.10 / 2.09

CO2 EQUIVALENT (T)

MAX ADDITIONAL REFRIGERANT (KG) /

R32 (GWP 675)

4.10 / 2.77

CO2

EQUIVALENT (T)

Three Phase

1.3.24

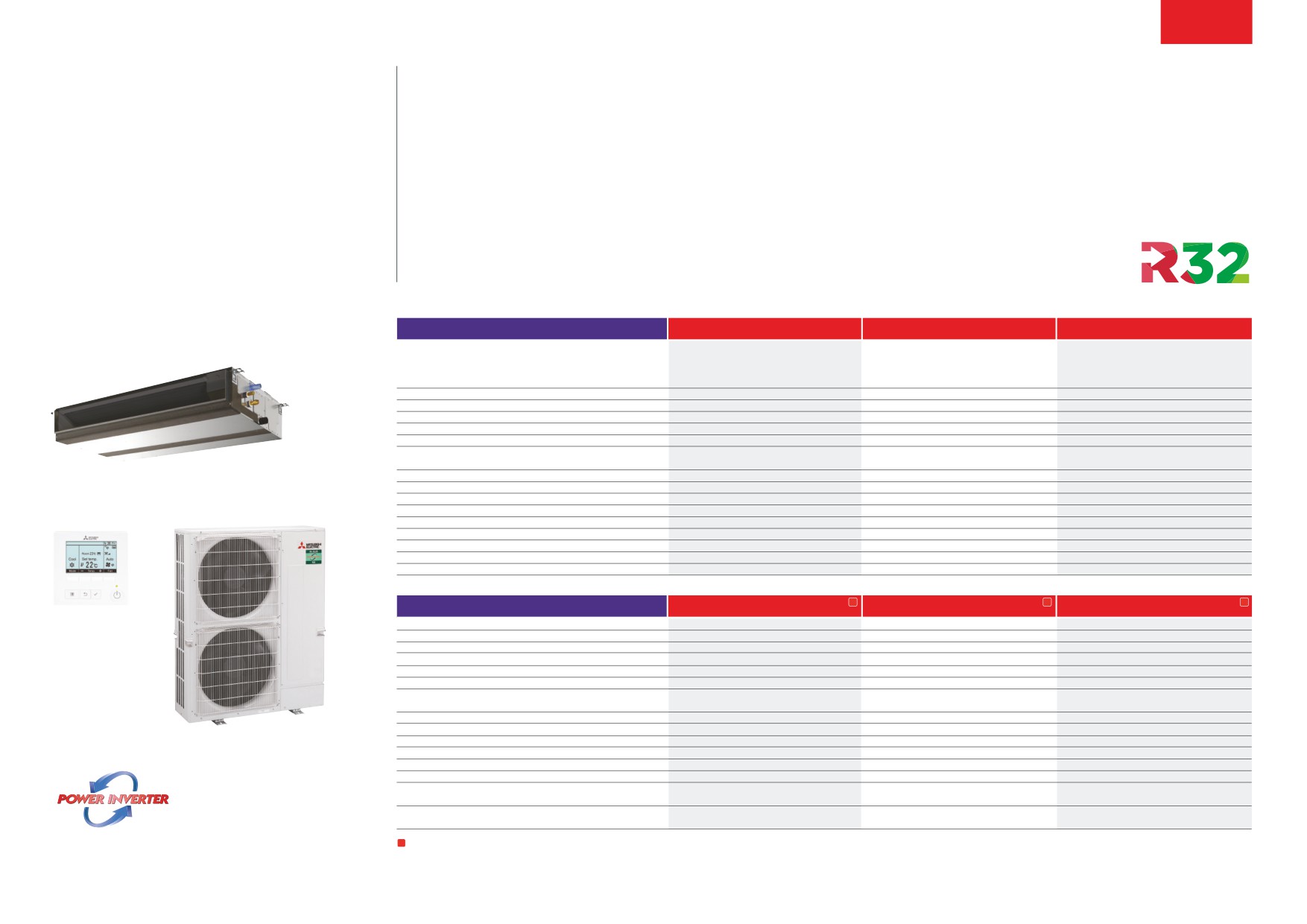

The PEAD-M Power Inverter range is a ceiling concealed ducted system that blends a host of outstanding features

PEAD-M R32

with an unobtrusive design for easy installation and maintenance. Offering high seasonal efficiency, advanced

control options and extended pipe runs, this range is extremely flexible.

Ceiling Concealed

Key Features

Ducted System

■ Entire range only 250mm in height

■ Wider range of external static pressure settings

Power Inverter Heat Pump

■ Drain pump included as standard

(Single Phase)

■ Full heating capacity down to -3°C

■ 100m pipe run (Size 100-140)

■ Replace Technology available

PEAD-M - INDOOR UNITS

PEAD-M35JA

PEAD-M50JA

PEAD-M60JA

PEAD-M71JA

PEAD-M100JA

PEAD-M125JA

PEAD-M140JA

CAPACITY (kW)

Heating (nominal)

4.1 (1.6-5.2)

6.0 (2.5-7.3)

7.0 (2.8-8.2)

8.0 (3.5-10.2)

11.2 (4.5-14.0)

14.0 (5.0-16.0)

16.0 (5.7-18.0)

Cooling (nominal)

3.6 (1.6-4.5)

5.0 (2.3-5.6)

6.1 (2.7-6.7)

7.1 (3.3-8.1)

9.5 (4.9-11.4)

12.5 (5.5-14.0)

13.4 (6.2-15.3)

Heating (UK)

3.5 (1.35-4.4)

5.1 (2.15-6.2)

5.95 (2.4-6.95)

6.8 (3.0-8.65)

9.5 (3.85-11.9)

11.9 (4.25-13.6)

13.6 (4.85-15.3)

Cooling (UK)

3.3 (1.45-4.15)

4.6 (2.1-5.15)

5.5 (2.5-6.15)

6.55 (3.05-7.45)

9.2 (4.5-10.5)

11.5 (5.05-12.9)

12.9 (5.7-14.1)

SHF (nominal)

0.85

0.84

0.83

0.82

0.84

COP / EER (nominal)

4.47 / 4.30

4.57 / 4.16

4.33 / 4.04

4.14 / 3.82

4.31 / 4.18

4.18 / 3.75

4.03 / 3.69

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

3.9 / 5.8

4.3 / 6.2

4.0 / 6.1

3.9 / 5.8

4.1 / 6.2

3.9 (153.2%) / 5.8 (235.8%)

4.0 (157.4%) / 5.7 (231.1%)

ERP ENERGY EFFICIENCY CLASS

Heating/Cooling

A / A+

A+ / A++

A / A+

A+ / A++

AIRFLOW (l/s)

Lo-Mi-Hi

167-200-233

200-242-283

242-300-350

292-350-417

400-483-567

492-592-700

533-650-767

PIPE SIZE MM (in)

Gas

12.7 (1/2”)

15.88 (5/8”)

Liquid

6.35 (1/4”)

9.52 (3/8”)

EXTERNAL STATIC PRESSURE (Pa)

35-50-70-100-150

SOUND PRESSURE LEVEL (dBA)

Lo-Mi-Hi

23-27-30

26-31-35

25-29-33

26-30-34

29-34-38

33-36-40

34-38-43

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

900 x 732 x 250

1100 x 732 x 250

1400 x 732 x 250

1600 x 732 x 250

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE NO. CORES

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

PUZ-ZM - OUTDOOR UNITS

PUZ-ZM35VKA

PUZ-ZM50VKA

PUZ-ZM60VHA

PUZ-ZM71VHAR1

PUZ-ZM100VKAR1

PUZ-ZM125VKAR2

PUZ-ZM140VKAR2

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

46 / 44

49 / 47

51 / 49

52 / 50

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

116

118

DIMENSIONS (mm)

Width x Depth x Height

809 x 300 x 630

950 x 330 + 25 x 943

1050 x 330 + 40 x 1338

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

0.917 / 0.837

1.312 / 1.201

1.616 / 1.509

1.932 / 1.858

2.598 / 2.272

3.349 / 3.333

3.970 / 3.631

Heating/Cooling (UK)

0.76 / 0.76

1.11 / 1.06

1.32 / 1.39

1.7 / 1.59

2.07 / 1.95

2.68 / 2.86

3.16 / 3.11

STARTING CURRENT (A)

5.0

6.0

13.0

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

4.17 / 3.89 [4.1]

5.55 / 5.07 [14.4]

6.68 / 6.16 [20.5]

7.85 / 7.45 [21]

10.54 / 9.07 [29.2]

13.21/ 13.10 [29.3]

15.74 / 14.21 [30.8]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE NO. CORES

MAX PIPE LENGTH (m)

100

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) /

R32 (GWP 675) - 30m

2.0 / 1.35

2.00 / 1.35

2.80 / 1.89

4.00 / 2.70

CO₂ EQUIVALENT (t)

MAX ADDITIONAL REFRIGERANT (kg) /

R32 (GWP 675)

0.30 / 0.20

0.80 / 0.54

2.80 / 1.89

CO₂ EQUIVALENT (t)

Accessories

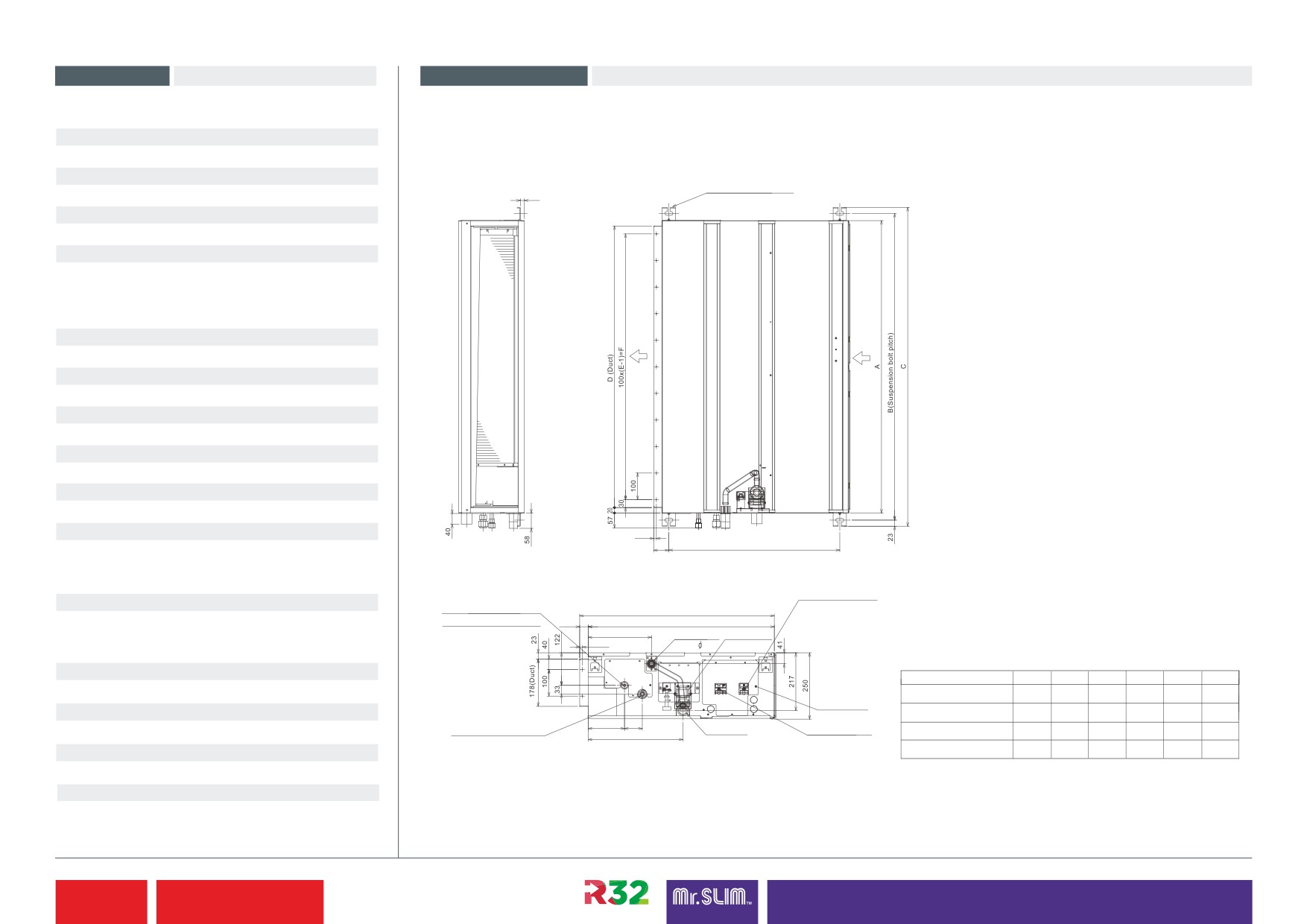

Product Dimensions PEAD-M35/50/60/71/100/125/140JA

Outdoor Units

PAC-SJ07SG

Air outlet guide for PUZ-ZM35-50VKA

Front View

Upper View

PAC-SG59SG

Air outlet guide for PUZ-ZM60VHA / PUZ-ZM71VHAR1

Suspension bolt hole

4-14x30 Slot

PAC-SH96SG

Air outlet guide for PUZ-ZM100VKAR1 / PUZ-ZM125-140VKAR2

PAC-SJ71FM-E

30Pa outdoor fan motor for PUZ-ZM100VKAR1 / PUZ-ZM125-140VKAR2

System Control Units

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

Air

outlet

inlet

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

643(Suspension bolt pitch)

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

Side View

Terminal block

Refrigerant piping

(Remote controller

MELCORETAIL MINI

732

transmission line)

Flare connection (liquid)

700

Retail control and input / output interface

238

Drain pipe Drain pump

(O.D.

32)

PAC-SJ96MA

M-NET adaptor for size 35 and 50

Model

PAC-SJ95MA

PEAD-M35,50JA

900

954

1000

860

800

M-NET adaptor for size 60 to 140

Control box

PEAD-M60,71JA

1100

1154

1200

1060

1000

136

Refrigerant piping

Drain pipe

Terminal block

PEAD-M100,125JA

1400

1454

1500

1360

1300

356

Flare connection (gas)

(Spontaneous draining)

(Indoor/Outdoor

connecting line)

PEAD-M140JA

1600

1654

1700

1560

1500

Note: Please see page 1.3.62 for the full range of accessories.

PEAD-M R32 Ceiling Concealed Ducted System,

1.3.25

Air Conditioning

Power Inverter Heat Pump (Single Phase)

1.3.26

The PEAD-M Power Inverter range is a ceiling concealed ducted system that blends a host of outstanding features

PEAD-M R32

with an unobtrusive design for easy installation and maintenance. Offering high seasonal efficiency, advanced

control options and extended pipe runs, this range is extremely flexible.

Ceiling Concealed

Key Features

Ducted System

■ Entire range only 250mm in height

■ Wider range of external static pressure settings

Power Inverter Heat Pump

■ Drain pump included as standard

(Three Phase)

■ Full heating capacity down to -3°C

■ 100m pipe run

■ Replace Technology available

PEAD-M - INDOOR UNITS

PEAD-M100JA

PEAD-M125JA

PEAD-M140JA

CAPACITY (kW)

Heating (nominal)

11.2 (4.5-14.0)

14.0 (5.0-16.0)

16.0 (5.7-18.0)

Cooling (nominal)

9.5 (4.9-11.4)

12.5 (5.5-14.0)

13.4 (6.2-15.3)

Heating (UK)

9.5 (3.85-11.9)

11.9 (4.25-13.6)

13.6 (4.85-15.3)

Cooling (UK)

9.2 (4.5-10.5)

11.5 (5.05-12.9)

12.9 (5.7-14.1)

SHF (nominal)

0.82

0.84

COP / EER (nominal)

4.31 / 4.18

4.18 / 3.75

4.03 / 3.69

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.1 / 6.1

3.9 (153.2%) / 5.7 (234.5%)

4.0 (157.4%) / 5.6 (229.9%)

ERP ENERGY EFFICIENCY CLASS

Heating/Cooling

A+ / A++

AIRFLOW (l/s)

Lo-Mi-Hi

400-483-567

492-592-700

533-650-767

PIPE SIZE MM (in)

Gas

15.88 (5/8”)

Liquid

9.52 (3/8”)

EXTERNAL STATIC PRESSURE (Pa)

35-50-70-100-150

SOUND PRESSURE LEVEL (dBA)

Lo-Mi-Hi

29-34-38

33-36-40

34-38-43

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

1400 x 732 x 250

1600 x 732 x 250

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE NO. CORES

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

PUZ-ZM - OUTDOOR UNITS

PUZ-ZM100YKAR1

PUZ-ZM125YKAR2

PUZ-ZM140YKAR2

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

51 / 49

52 / 50

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

123

125

131

DIMENSIONS (mm)

Width x Depth x Height

1050 x 330 + 40 x 1338

ELECTRICAL SUPPLY

380-415v,50Hz

PHASE

Three

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

2.598 / 2.272

3.349 / 3.333

3.970 / 3.631

Heating/Cooling (UK)

2.07 / 1.95

2.68 / 2.86

3.16 / 3.11

STARTING CURRENT (A)

6.0

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

3.51 / 3.01 [10.7]

4.45 / 4.41 [12.3]

5.58 / 4.87 [15.8]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE NO. CORES

MAX PIPE LENGTH (m)

100

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) /

R32 (GWP 675) - 30m

4.00 / 2.70

CO₂ EQUIVALENT (t)

MAX ADDITIONAL REFRIGERANT (kg) /

R32 (GWP 675)

2.80 / 1.89

CO₂ EQUIVALENT (t)

Three Phase

Accessories

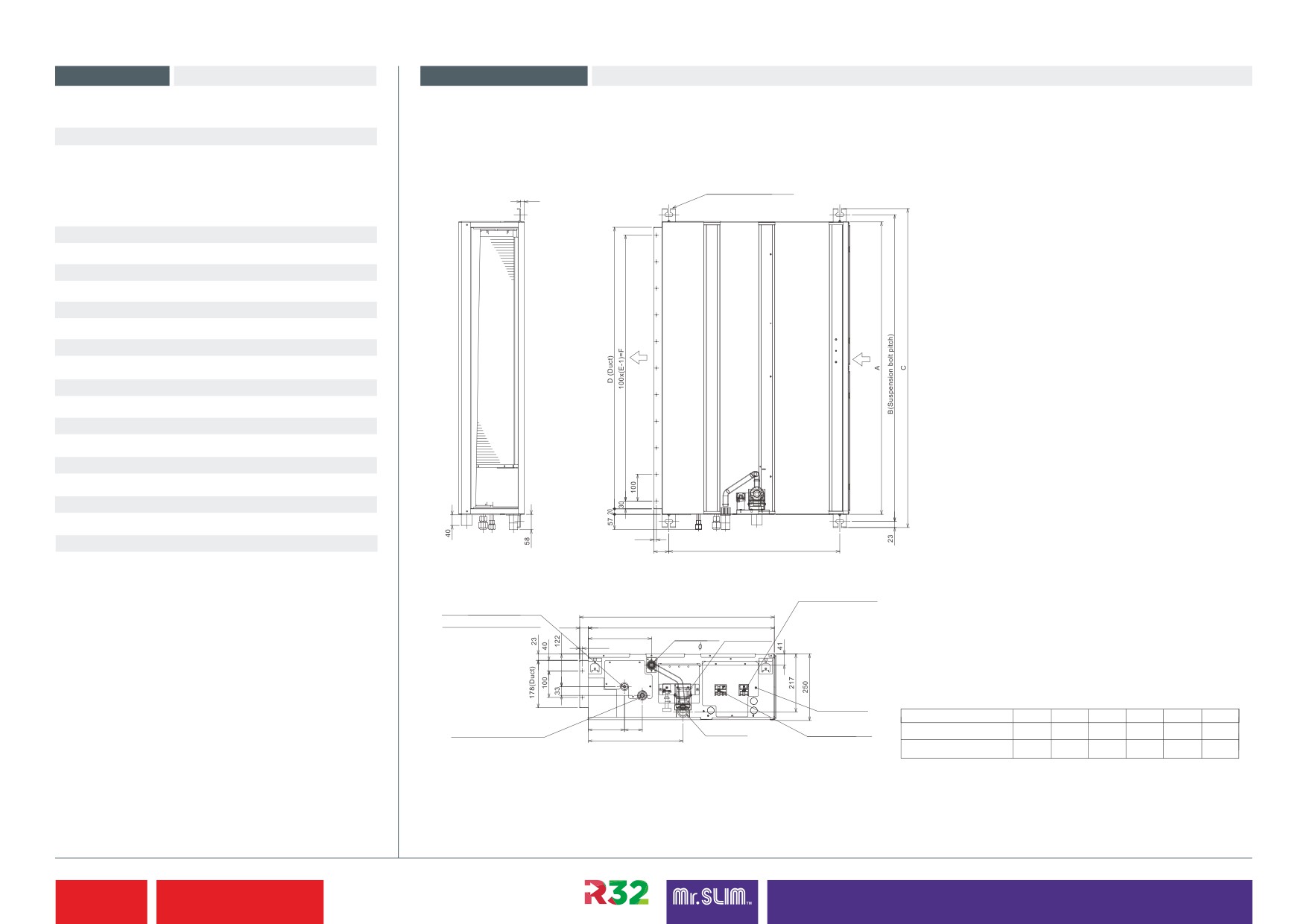

Product Dimensions PEAD-M100/125/140JA

Outdoor Units

PAC-SH96SG

Air outlet guide for PUZ-ZM100YKAR1 / PUZ-ZM125-140YKAR2

Front View

Upper View

PAC-SJ71FM-E

30Pa outdoor fan motor for PUZ-ZM100YKAR1 / PUZ-ZM125-140YKAR2

Suspension bolt hole

4-14x30 Slot

System Control Units

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Air

outlet

inlet

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

643(Suspension bolt pitch)

PAC-SJ95MA

M-NET adaptor for size 100 to 140

Side View

Terminal block

Refrigerant piping

(Remote controller

732

transmission line)

Flare connection (liquid)

700

238

Drain pipe Drain pump

(O.D.

32)

Control box

Model

136

Refrigerant piping

Drain pipe

Terminal block

PEAD-M100,125JA

1400

1454

1500

1360

1300

356

Flare connection (gas)

(Spontaneous draining)

(Indoor/Outdoor

connecting line)

PEAD-M140JA

1600

1654

1700

1560

1500

Note: Please see page 1.3.62 for the full range of accessories.

PEAD-M R32 Ceiling Concealed Ducted System,

1.3.27

Air Conditioning

Power Inverter Heat Pump (Three Phase)

1.3.28

The PEAD-M Standard Inverter range is a ceiling concealed ducted system that blends a host of

PEAD-M R32

outstanding features with an unobtrusive design for easy installation and maintenance. Offering

advanced control options and quiet operation, this range provides extreme flexibility and ease of

Ceiling Concealed

installation whilst being cost effective.

Ducted System

Key Features

■ Entire range only 250mm in height

Standard Inverter Heat Pump

■ Wider range of external static pressure settings

■ Drain pump included as standard

(Single Phase)

■ Replace Technology available

■ Single fan chassis across entire outdoor unit range

PEAD-M - INDOOR UNITS

PEAD-M35JA

PEAD-M50JA

PEAD-M60JA

PEAD-M71JA

PEAD-M100JA

PEAD-M125JA

PEAD-M140JA

CAPACITY (kW)

Heating (nominal)

4.1 (1.1-5.0)

6.0 (1.5-7.2)

7.0 (1.6-8.0)

8.0 (2.0-10.2)

11.2 (2.8-12.5)

13.5 (4.1-15.0)

15.0 (4.2-15.8)

Cooling (nominal)

3.6 (0.8-3.9)

5.0 (1.7-5.6)

6.1 (1.6-6.3)

7.1 (2.2-8.1)

9.5 (4.0-10.6)

12.1 (6.0-13.0)

13.4 (6.1-14.1)

Heating (UK)

3.49 (0.94-4.25)

5.10 (1.28-6.12)

5.96 (1.36-6.8)

6.80 (1.70-8.67)

9.63 (2.41-10.75)

11.61 (3.53-12.90)

12.90 (3.61-13.59)

Cooling (UK)

3.31 (0.74-3.59)

4.60 (1.56-5.15)

5.16 (1.47-5.80)

6.53 (2.02-7.45)

8.65 (3.64-9.65)

11.01 (5.46-11.83)

12.19 (5.55-12.83)

SHF (nominal)

0.85

0.84

0.83

0.82

0.84

COP / EER (nominal)

4.00 / 3.90

4.10 / 3.70

3.80 / 3.60

3.71 / 3.50

3.80 / 3.30

3.61 / 3.01

3.61 / 2.81

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

3.90 / 5.80

4.20 / 6.10

4.00 / 6.00

3.90 / 5.80

4.00 / 5.40

3.8 (152.7%) / 4.7 (193.1%)

3.7 (145.4%) / 4.7 (192.6%)

ErP ENERGY EFFICIENCY CLASS Heating/Cooling

A / A+

A+ / A++

A+ / A+

A / A+

A+ / A

A / B

AIRFLOW (l/s)

Lo-Mi-Hi

167-200-233

200-242-283

242-300-350

292-350-417

400-483-567

492-592-700

533-650-767

PIPE SIZE mm (in)

Gas

9.52 (3/8”)

12.7 (1/2”)

15.88 (5/8”)

Liquid

6.35 (1/4”)

9.52 (3/8”)

EXTERNAL STATIC PRESSURE (Pa)

35-50-70-100-150

SOUND PRESSURE LEVEL (dBA)

Lo-Mi-Hi

23-27-30

26-31-35

25-29-33

26-30-34

29-34-38

33-36-40

34-38-43

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

900 x 732 x 250

1100 x 732 x 250

1400 x 732 x 250

1600 x 732 x 250

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

SUZ-M / PUZ-M - OUTDOOR UNITS

SUZ-M35VAR2

SUZ-M50VAR2

SUZ-M60VAR2

SUZ-M71VAR1

PUZ-M100VAR1

PUZ-M125VAR1

PUZ-M140VAR1

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

48 / 48

48 / 49

49 / 51

51 / 54

54 / 56

55 / 57

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

DIMENSIONS (mm)

Width x Depth x Height

800 x 285 x 550

800 x 285 x 714

840 x 330 x 880

1050 x 330 x 981

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

1.02 / 0.92

1.46 / 1.35

1.84 / 1.69

2.15 / 2.02

2.94 / 2.87

3.73 / 4.01

4.15 / 4.76

Heating/Cooling (UK)

0.87 / 0.79

1.26 / 1.16

1.56 / 1.45

1.83 / 1.73

2.65 / 2.38

3.36 / 3.33

3.74 / 3.95

STARTING CURRENT (A)

5.0

8.0

9.3

9.5

12.0

16.2

19.3

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

5.0 / 4.1 [8.5]

8.0 / 7.1 [13.5]

9.3 / 8.4 [14.8]

9.5 / 9.1 [14.8]

12.0 / 11.6 [20.0]

15.0 / 16.2 [26.5]

16.8 / 19.3 [30.0]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (KG) /

R32 (GWP 675)

0.90 / 0.61 (7m)

1.20 / 0.81 (7m)

1.25 / 0.84 (7m)

1.45 / 0.98 (7m)

3.10 / 2.09 (30m)

3.60 / 2.43 (30m)

CO₂ EQUIVALENT (T)

MAX ADDITIONAL REFRIGERANT (KG) /

R32 (GWP 675)

1.16 / 0.78

1.66 / 1.12

1.71 / 1.15

2.37 / 1.80

4.10 / 2.77

5.00 / 3.38

CO2

EQUIVALENT (T)

Note: No duty/standby operation on SUZ-M35/50/60/71VAR2/1.

Accessories

Product Dimensions PEAD-M35/50/60/71/100/125/140JA

Outdoor Units

MAC-889SG

Air outlet guide for SUZ-M35VAR2

Front View

Upper View

MAC-882SG

Suspension bolt hole

Air outlet guide for SUZ-M50VAR2

4-14x30 Slot

MAC-886SG

Air outlet guide for SUZ-M60VAR2 / SUZ-M71VAR1

PAC-SH96SG

Air outlet guide for PUZ-M100-140VAR1

System Control Units

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

Air

PAC-SA88HA

outlet

inlet

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-334IF

643(Suspension bolt pitch)

Interface for M-NET, MA remote controller

(PAR-40MAA / PAR-CT01MAA),

on/off input and run/fault output

Side View

Terminal block

MAC-397IF

Refrigerant piping

(Remote controller

732

transmission line)

Interface for MA remote controller

Flare connection (liquid)

700

238

Drain pipe Drain pump

(PAR-40MAA / PAR-CT01MAA),

(O.D.

32)

on/off input and run or fault output

MAC-567IF

Model

Interface for connection to Wi-Fi MELCloud service

PEAD-M35,50JA

900

954

1000

860

800

Control box

MELCOBEMS MINI

PEAD-M60,71JA

1100

1154

1200

1060

1000

136

Modbus and BACnet MSTP CN105 adaptor

Refrigerant piping

Drain pipe

Terminal block

PEAD-M100,125JA

1400

1454

1500

1360

1300

356

Flare connection (gas)

(Spontaneous draining)

(Indoor/Outdoor

MELCORETAIL MINI

connecting line)

PEAD-M140JA

1600

1654

1700

1560

1500

Retail control and input / output interface

PAC-SJ95MA

M-NET adaptor for size 100 to 140

Note: Please see page 1.3.62 for the full range of accessories.

PEAD-M R32 Ceiling Concealed Ducted System,

1.3.29

Air Conditioning

Standard Inverter Heat Pump (Single Phase)

1.3.30

The PEAD-M Standard Inverter range is a ceiling concealed ducted system that blends a host of

PEAD-M R32

outstanding features with an unobtrusive design for easy installation and maintenance. Offering

advanced control options and quiet operation, this range provides extreme flexibility and ease of

Ceiling Concealed

installation whilst being cost effective.

Ducted System

Key Features

■ Entire range only 250mm in height

Standard Inverter Heat Pump

■ Wider range of external static pressure settings

■ Drain pump included as standard

(Three Phase)

■ Replace Technology available

■ Single fan chassis across entire outdoor unit range

PEAD-M - INDOOR UNITS

PEAD-M100JA

PEAD-M125JA

PEAD-M140JA

CAPACITY (kW)

Heating (nominal)

11.2 (2.8-12.5)

13.5 (4.1-15.0)

15.0 (4.2-15.8)

Cooling (nominal)

9.5 (4.0-10.6)

12.1 (6.0-13.0)

13.4 (6.1-14.1)

Heating (UK)

9.63 (2.41-10.75)

11.61 (3.53-12.90)

12.90 (3.61-13.59)

Cooling (UK)

8.65 (3.64-9.65)

11.01 (5.46-11.83)

12.19 (5.55-12.83)

SHF (nominal)

0.82

0.84

COP / EER (nominal)

3.80 / 3.30

3.61 / 3.01

3.61 / 2.81

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.00 / 5.40

3.8 (152.7%) / 4.7 (193.1%)

3.7 (145.4%) / 4.7 (192.6%)

ErP ENERGY EFFICIENCY CLASS Heating/Cooling

A+ / A

A / B

AIRFLOW (l/s)

Lo-Mi-Hi

400-483-567

492-592-700

533-650-767

PIPE SIZE mm (in)

Gas

15.88 (5/8”)

Liquid

9.52 (3/8”)

EXTERNAL STATIC PRESSURE (Pa)

35-50-70-100-150

SOUND PRESSURE LEVEL (dBA) Lo-Mi-Hi

29-34-38

33-36-40

34-38-43

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

1400 x 732 x 250

1600 x 732 x 250

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

PUZ-M - OUTDOOR UNITS

PUZ-M100YAR1

PUZ-M125YAR1

PUZ-M140YAR1

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

51 / 54

54 / 56

55 / 57

SOUND POWER LEVEL (dBA) Cooling

WEIGHT (kg)

DIMENSIONS (mm)

Width x Depth x Height

1050 x 330 x 981

ELECTRICAL SUPPLY

380-415v, 50Hz

PHASE

Three

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

2.94 / 2.87

3.73 / 4.01

4.15 / 4.76

Heating/Cooling (UK)

2.65 / 2.38

3.36 / 3.33

3.74 / 3.95

STARTING CURRENT (A)

4.3

5.8

7.0

SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX]

4.3 / 4.2 [11.5]

5.4 / 5.8 [11.5]

6.0 / 7.0 [11.5]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (KG) /

R32 (GWP 675)

3.10 / 2.09

3.60 / 2.43

CO2 EQUIVALENT (T)

MAX ADDITIONAL REFRIGERANT (KG) /

R32 (GWP 675)

4.10 / 2.77

5.00 / 3.38

CO2

EQUIVALENT (T)

Three Phase

Accessories

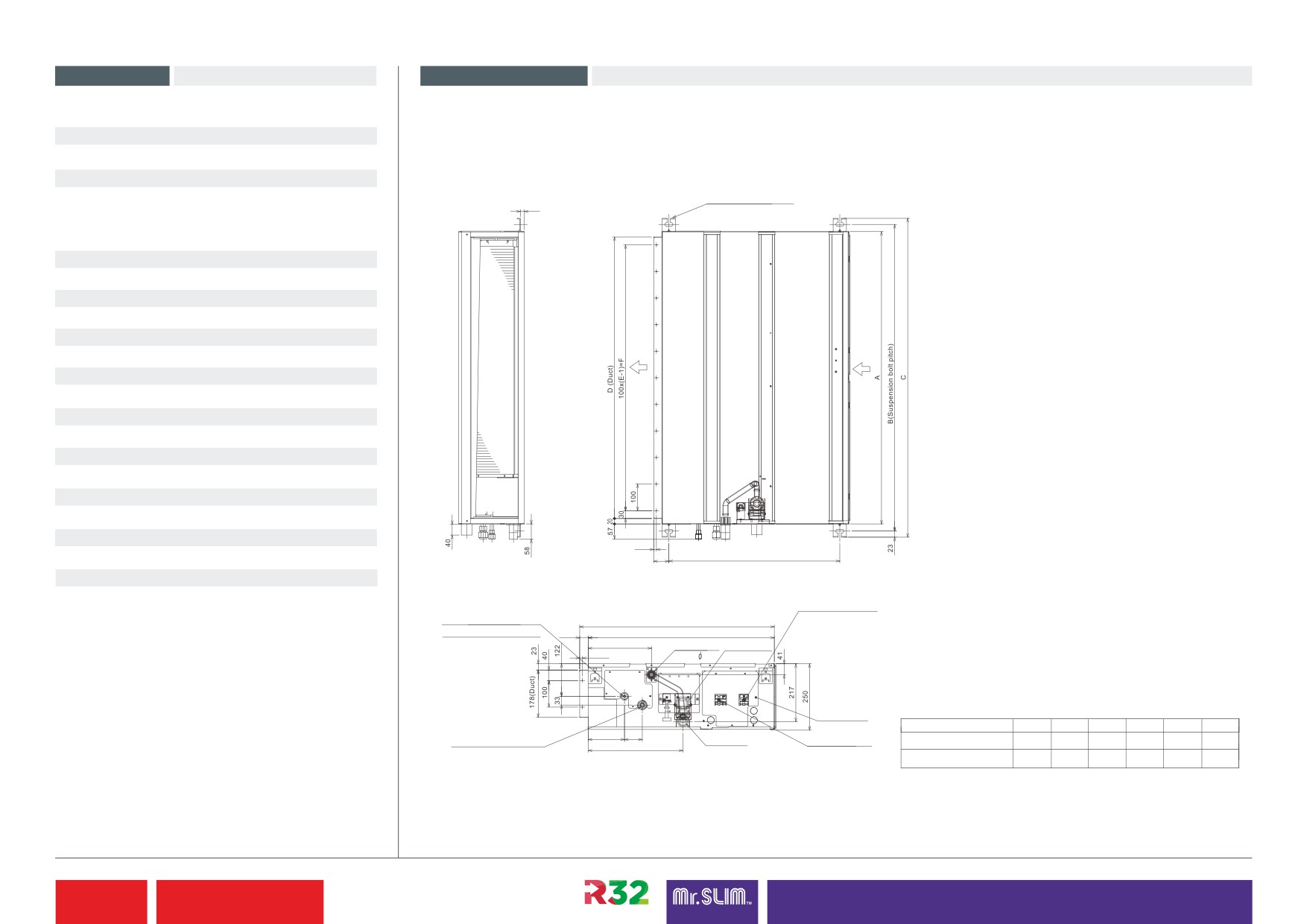

Product Dimensions PEAD-M100/125/140JA

Outdoor Units

PAC-SH96SG

Air outlet guide for PUZ-M100-140YAR1

Front View

Upper View

Suspension bolt hole

4-14x30 Slot

System Control Units

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

Air

outlet

inlet

PAR-40MAA

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

PAC-SJ95MA

643(Suspension bolt pitch)

M-NET adaptor for size 100 to 140

Side View

Terminal block

Refrigerant piping

(Remote controller

732

Flare connection (liquid)

transmission line)

700

238

Drain pipe Drain pump

(O.D.

32)

Control box

Model

136

Refrigerant piping

Drain pipe

Terminal block

PEAD-M100,125JA

1400

1454

1500

1360

1300

356

Flare connection (gas)

(Spontaneous draining)

(Indoor/Outdoor

connecting line)

PEAD-M140JA

1600

1654

1700

1560

1500

Note: Please see page 1.3.62 for the full range of accessories.

PEAD-M R32 Ceiling Concealed Ducted System,

1.3.31

Air Conditioning

Standard Inverter Heat Pump (Three Phase)

1.3.32

Designed for offices, restaurants and shops, the SEZ-M series operates at low noise levels. Its low unit

SEZ-M R32

height and lightweight design also help to make installation easier and more convenient.

Ceiling Concealed

Key Features

Ducted System

■ Compact ceiling concealed ducted unit with an unobtrusive design

■ Low Static Pressure Level - resulting in noise reduction

■ Low Unit Height - minimal intrusion into occupied space

Standard Inverter Heat Pump

(Single Phase)

SEZ-M - INDOOR UNITS

SEZ-M25DA

SEZ-M35DA

SEZ-M50DA

SEZ-M60DA

SEZ-M71DA

CAPACITY (kW)

Heating (nominal)

2.9 (1.3-4.2)

4.2 (1.1-5.0)

6.0 (1.5-7.2)

7.4 (1.6-8.0)

8.0 (2.0-10.2)

Cooling (nominal)

2.5 (1.4-3.2)

3.5 (0.7-3.9)

5.0 (1.1-5.6)

6.1 (1.6-6.3)

7.1 (2.2-8.1)

Heating (UK)

2.47 (1.11-3.57)

3.57 (0.94-4.25)

5.10 (1.28-6.12)

6.29 (1.36-6.80)

6.80 (1.70-8.67)

Cooling (UK)

2.30 (1.29-2.94)

3.22 (0.64-3.59)

4.60 (1.01-5.15)

5.61 (1.47-5.80)

6.53 (2.02-7.45)

SHF (nominal)

0.78

0.76

0.79

0.74

COP / EER (nominal)

3.61 / 3.50

3.90 / 3.50

3.71 / 3.23

3.61 / 3.30

3.50 / 3.30

SCOP / SEER (BS EN14825)

3.80 / 5.30

4.10 / 5.90

4.00 / 6.00

4.20 / 5.50

3.90 / 5.50

ErP ENERGY EFFICIENCY CLASS Heating/Cooling

A / A

A+ / A+

A+ / A

A / A

AIRFLOW (l/s)

Lo-Mi-Hi

100-117-150

117-150-183

167-217-250

200-250-300

200-267-333

PIPE SIZE mm (in)

Gas

9.52 (3/8”)

12.7 (1/2”)

15.88 (5/8”)

Liquid

6.35 (1/4”)

9.52 (3/8”)

EXTERNAL STATIC PRESSURE (Pa)

5-15-35-50

SOUND PRESSURE LEVEL (dBA) Lo-Mi-Hi

22-25-29

23-28-33

29-33-36

29-33-37

29-34-39

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

790 x 700 x 200

990 x 700 x 200

1190 x 700 x 200

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

SUZ-M - OUTDOOR UNITS

SUZ-M25VAR2

SUZ-M35VAR2

SUZ-M50VAR2

SUZ-M60VAR2

SUZ-M71VAR1

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

45 / 46

48 / 48

48 / 49

49 / 51

SOUND POWER LEVEL (dBA) Heating/Cooling

WEIGHT (kg)

DIMENSIONS (mm) Width x Depth x Height

800 x 285 x 550

800 x 285 x 714

840 x 330 x 880

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER

Heating/Cooling (nominal)

0.80 / 0.71

1.07 / 1.00

1.61 / 1.54

2.04 / 1.84

2.28 / 2.15

INPUT (kW)

Heating/Cooling (UK)

0.68 / 0.61

0.91 / 0.86

1.37 / 1.32

1.73 / 1.58

1.94 / 1.85

STARTING CURRENT (A)

3.7

5.0

8.0

9.3

9.5

SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX]

3.7 / 3.0 [6.8]

5.0 / 4.1 [8.5]

8.0 / 7.1 [13.5]

9.3 / 8.4 [14.8]

9.5 / 9.1 [14.8]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (KG) /

R32 (GWP 675)

0.65 / 0.44

0.90 / 0.61

1.20 / 0.81

1.25 / 0.84

1.45 / 0.98

CO2 EQUIVALENT (T)

MAX ADDITIONAL REFRIGERANT (KG) /

R32 (GWP 675)

0.91 / 0.61

1.16 / 0.78

1.66 / 1.12

1.71 / 1.15

2.37 / 1.60

CO₂EQUIVALENT (T)

Accessories

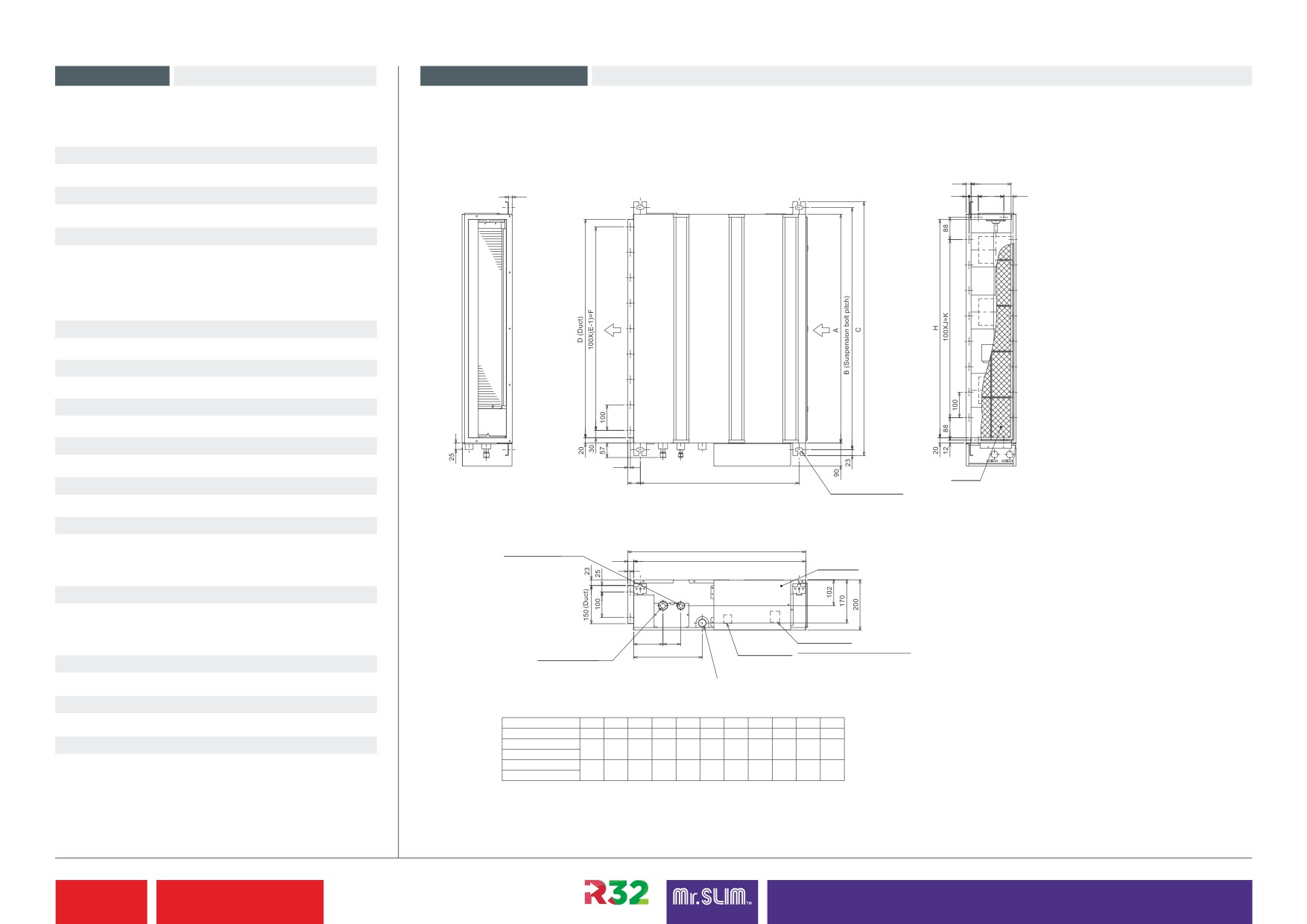

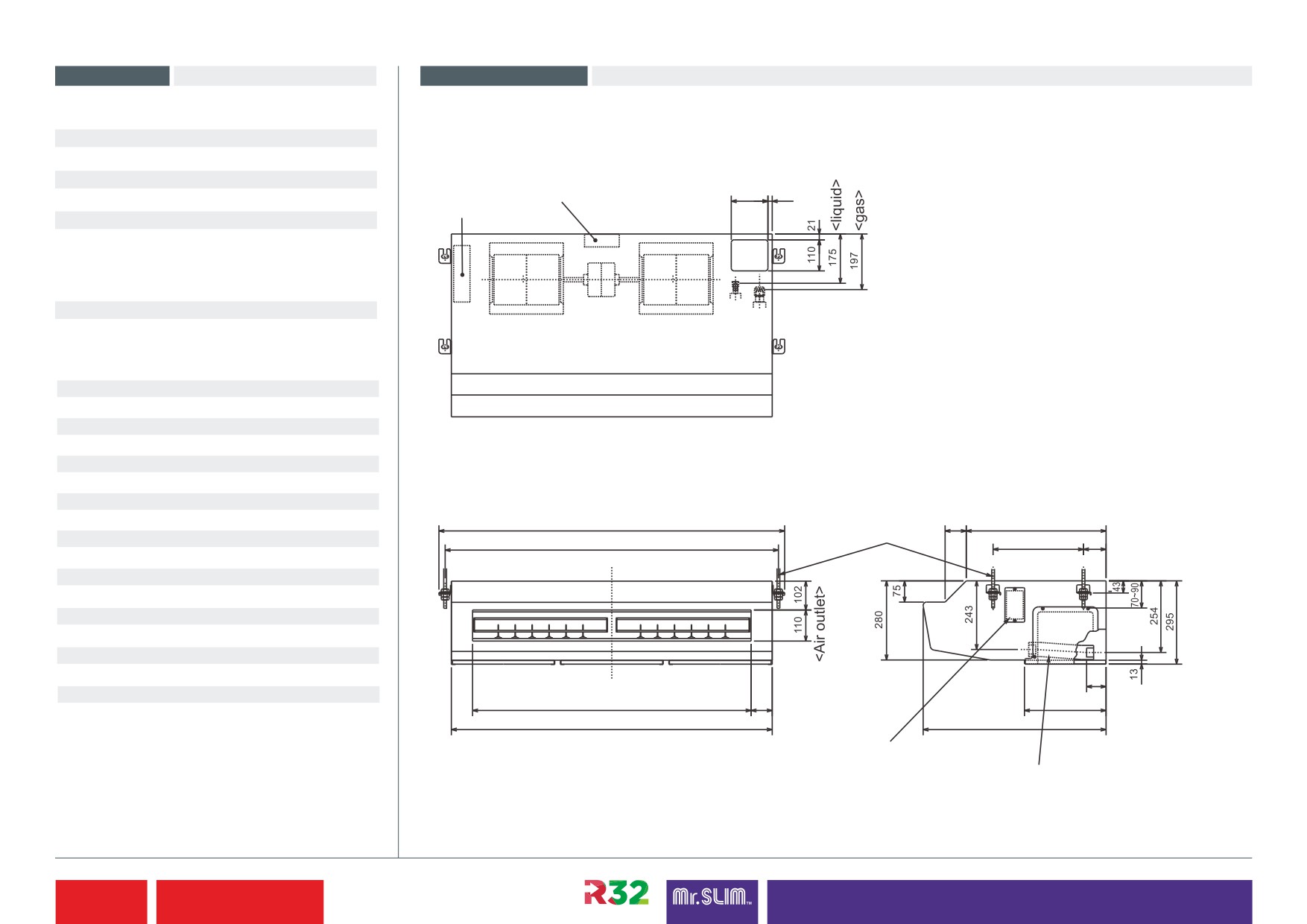

Product Dimensions SEZ-M25/35/50/60/71DA

Outdoor Units

Front View

Upper View

Back View

MAC-889SG

Air outlet guide for SUZ-M25-35VAR2

157.5

100

MAC-882SG

Air outlet guide for SUZ-M50VAR2

MAC-886SG

Air outlet guide for SUZ-M60VAR2 / SUZ-M71VAR1

System Control Units

PAC-SA89TA

Air

Remote on/off adaptor (3 wire adaptor)

outlet

inlet

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

625 (Suspension bolt pitch)

Air filter

PAR-40MAA

Suspension bolt hole

Standard wired remote controller

Side View

PAR-334IF

Interface for M-NET, MA remote controller

700

Refrigerant piping

(PAR-40MAA / PAR-CT01MAA),

677

flare connection (liquid)

Control box

on/off input and run/fault output

MAC-397IF

Interface for MA remote controller

(PAR-40MAA / PAR-CT01MAA),

116

Terminal block

on/off input and run or fault output

Terminal block

(Indoor/outdoor connecting line)

Refrigerant piping

270

(Remote controller transmission line)

MAC-567IF

flare connection (gas)

Drain pipe(Spontaneous draining)

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

Model

SEZ-M25DA

700

752

798

660

600

800

660

500

MELCORETAIL MINI

SEZ-M35DA

900

952

998

860

800

1000

860

700

SEZ-M50DA

Retail control and input / output interface

SEZ-M60DA

1100

1152

1198

1060

1000

1200

1060

900

SEZ-M71DA

Note: Please see page 1.3.62 for the full range of accessories.

SEZ-M R32 Ceiling Concealed Ducted System,

1.3.33

Air Conditioning

Standard Inverter Heat Pump (Single Phase)

1.3.34

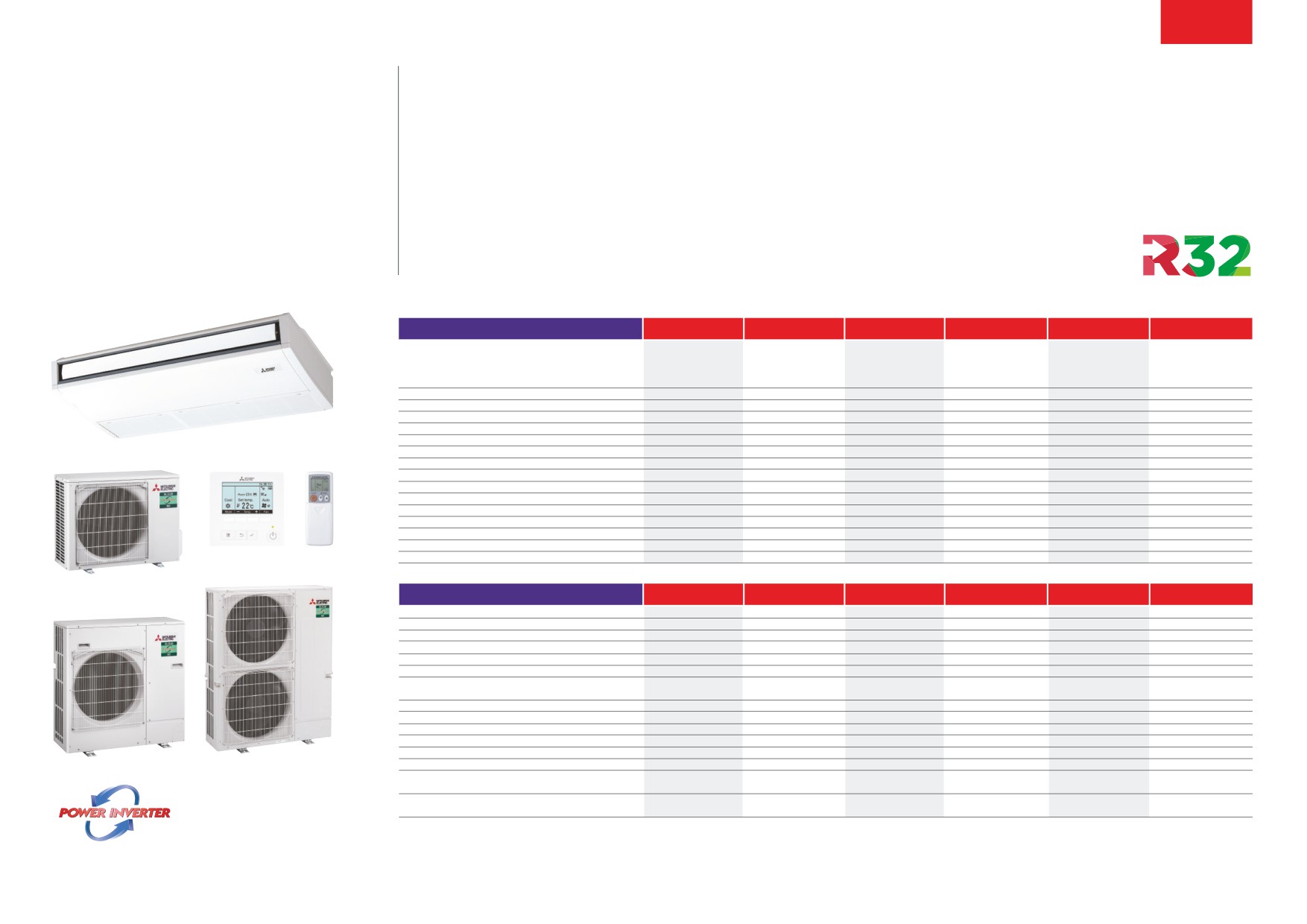

The PCA-M Power Inverter range is a ceiling suspended system that blends a host of outstanding features

PCA-M R32

with a sophisticated streamlined design. Offering high seasonal efficiency, advanced control options and

Ceiling Suspended^{extended pipe runs, this range is extremely flexible.}

Key Features

System

■ Flush to wall installation for concealment of service connections

■ High / Low ceiling height modes

■ Improved airflow control, including automatic air speed adjustment for greater comfort

Power Inverter Heat Pump

■ Full heating capacity down to -3°C

(Single Phase)

■ 100m pipe run (Size 100-140)

■ Replace Technology available

PCA-M - INDOOR UNITS

PCA-M50KA

PCA-M60KA

PCA-M71KA

PCA-M100KA

PCA-M125KA

PCA-M140KA

CAPACITY (kW)

Heating (nominal)

5.5 (2.5-6.6)

7.0 (2.8-8.2)

8.0 (3.5-10.2)

11.2 (4.5-14.0)

14.0 (5.0-16.0)

16.0 (5.7-18.0)

Cooling (nominal)

5.0 (2.3-5.6)

6.1 (2.7-6.7)

7.1 (3.3-8.1)

9.5 (4.9-11.4)

12.5 (5.5-14.0)

13.4 (6.2-15.0)

Heating (UK)

4.7 (2.15-5.6)

5.95 (2.4-6.95)

6.8 (3.0-8.65)

9.5 (3.85-11.9)

11.9 (4.25-13.6)

13.6 (4.85-15.3)

Cooling (UK)

4.6 (2.1-5.15)

5.5 (2.5-6.15)

6.55 (3.05-7.45)

9.2 (4.5-10.5)

11.5 (5.05-12.9)

12.9 (5.7-13.8)

SHF (nominal)

0.79

0.81

0.76

0.77

0.72

COP / EER (nominal)

4.04 / 4.00

4.01 / 4.01

3.71 / 3.88

3.71 / 4.10

3.54 / 3.25

3.61 / 3.40

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.2 / 6.7

4.1 / 6.5

4.2 / 6.7

4.3 / 6.4

4.3 (168.8%) / 6.2 (251.0%)

4.4 (173.5%) / 6.2 (248.9%)

ERP ENERGY EFFICIENCY CLASS

Heating/Cooling

A+ / A++

AIRFLOW (l/s)

Lo-Mi1-Mi2-Hi

167-183-217-250

250-267-283-317

267-283-300-333

367-400-433-467

383-417-450-483

400-433-483-533

PIPE SIZE MM (in)

Gas/Liquid

12.7 (1/2”) / 6.35 (1/4”)

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA)

Lo-Mi1-Mi2-Hi

32-34-37-40

33-35-37-40

35-37-39-41

37-39-41-43

39-41-43-45

41-43-45-48

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

960 x 680 x 230

1280 x 680 x 230

1600 x 680 x 230

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE

No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL94B

PUZ-ZM - OUTDOOR UNITS

PUZ-ZM50VKA

PUZ-ZM60VHA

PUZ-ZM71VHAR1

PUZ-ZM100VKAR1

PUZ-ZM125VKAR2

PUZ-ZM140VKAR2

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

46 / 44

49 / 47

51 / 49

52 / 50

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

116

118

DIMENSIONS (mm)

Width x Depth x Height

809 x 300 x 630

950 x 330 + 25 x 943

1050 x 330 + 40 x 1338

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

1.361 / 1.25

1.745 / 1.521

2.156 / 1.829

3.018 / 2.317

3.954 / 3.846

4.432 / 3.941

Heating/Cooling (UK)

1.21 / 1.06

1.55 / 1.29

1.92 / 1.55

2.41 / 1.99

3.51 / 3.26

3.94 / 3.35

STARTING CURRENT (A)

5.0

6.0

13.0

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

5.95 / 5.37 [13.4]

7.43 / 6.48 [19.4]

9.23 / 7.81 [19.4]

12.97 / 9.97 [27.2]

16.87/ 16.46 [27.3]

18.76 / 16.66 [28.9]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE NO. CORES

MAX PIPE LENGTH (m)

100

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) /

R32 (GWP 675) - 30m

2.00 / 1.35

2.80 / 1.89

4.00 / 2.70

CO₂ EQUIVALENT (t)

MAX ADDITIONAL REFRIGERANT (kg) /

R32 (GWP 675)

0.30 / 0.20

0.80 / 0.54

2.80 / 1.89

CO₂ EQUIVALENT (t)

Accessories

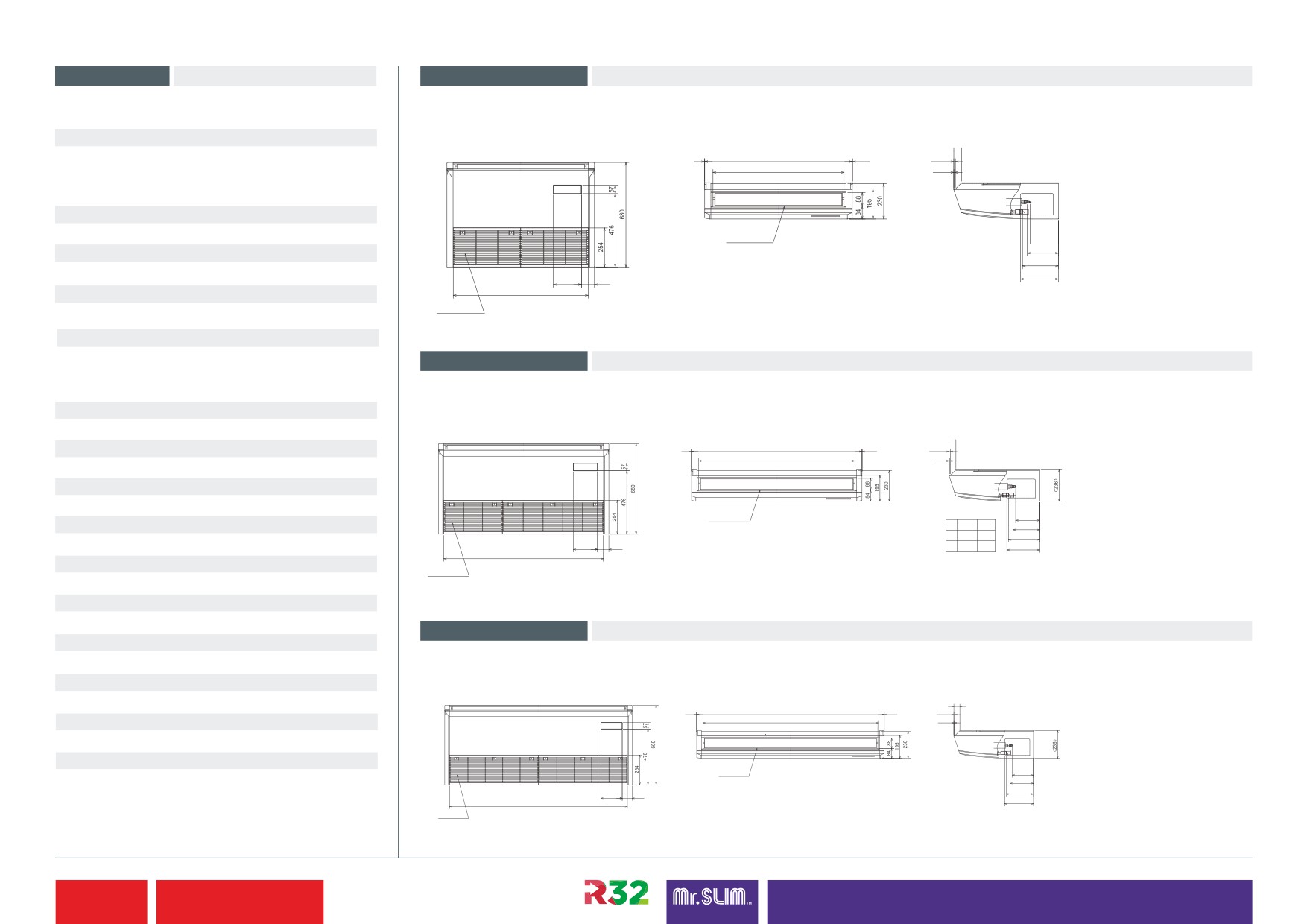

Product Dimensions PCA-M50KA

Indoor Units

Lower View

Front View

Side View

PAR-SL94B

Wireless remote controller and adaptor for PCA-M50-140KA

960

853

Outdoor Units

PAC-SJ07SG

Air outlet guide for PUZ-ZM50VKA

184

Air outlet

(liquid

203

(gas

PAC-SG59SG

233

When drain socket

(

is installed

Air outlet guide for PUZ-ZM60VHA / PUZ-ZM71VHAR1

246

(Drainage)

182

878

PAC-SH96SG

Air intake

Air outlet guide for PUZ-ZM100VKAR1 / PUZ-ZM125-140VKAR2

PAC-SJ71FM-E

30Pa outdoor fan motor for PUZ-ZM100VKAR1 / PUZ-ZM125-140VKAR2

Product Dimensions

PCA-M60/71KA

System Control Units

Lower View

Front View

Side View

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

1280

1173

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

Air outlet

(liquid)

PAR-CT01MAA-SB/PB

(gas)

179

180

233

When drain socket

is installed

(

Touch screen wired remote controller (PB=Premium Finish)

182

203

200

246

(Drainage)

1198

PAR-40MAA

Air intake

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

Product Dimensions

PCA-M100/125/140KA

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

Lower View

Front View

Side View

MELCORETAIL MINI

Retail control and input / output interface

1600

1493

PAC-SJ96MA

M-NET adaptor for size 50

PAC-SJ95MA

Air outlet

180

(liquid)

M-NET adaptor for size 60 to 140

200

(gas)

233

When drain socket

182

(

is installed

1518

246

(Drainage)

Air intake

Note: Please see page 1.3.62 for the full range of accessories.

PCA-M R32 Ceiling Suspended System,

1.3.35

Air Conditioning

Power Inverter Heat Pump (Single Phase)

1.3.36

The PCA-M Power Inverter range is a ceiling suspended system that blends a host of outstanding features

PCA-M R32

with a sophisticated streamlined design. Offering high seasonal efficiency, advanced control options and

extended pipe runs, this range is extremely flexible.

Ceiling Suspended

Key Features

System

■ Flush to wall installation for concealment of service connections

■ High / Low ceiling height modes

Power Inverter Heat Pump

■ Improved airflow control, including automatic air speed adjustment for greater comfort

■ Full heating capacity down to -3°C

(Three Phase)

■ 100m pipe run

■ Replace Technology available

PCA-M - INDOOR UNITS

PCA-M100KA

PCA-M125KA

PCA-M140KA

CAPACITY (kW)

Heating (nominal)

11.2 (4.5-14.0)

14.0 (5.0-16.0)

16.0 (5.7-18.0)

Cooling (nominal)

9.5 (4.9-11.4)

12.5 (5.5-14.0)

13.4 (6.2-15.0)

Heating (UK)

9.5 (3.85-11.9)

11.9 (4.25-13.6)

13.6 (4.85-15.3)

Cooling (UK)

9.2 (4.5-10.5)

11.5 (5.05-12.9)

12.9 (5.7-13.8)

SHF (nominal)

0.77

0.72

COP / EER (nominal)

3.71 / 4.10

3.54 / 3.25

3.61 / 3.40

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.3 / 6.3

4.3 (168.8%) / 6.1 (249.5%)

4.4 (173.5%) / 6.1 (247.6%)

ERP ENERGY EFFICIENCY CLASS

Heating/Cooling

A+/ A++

AIRFLOW (l/s)

Lo-Mi1-Mi2-Hi

367-400-433-467

383-417-450-483

400-433-483-533

PIPE SIZE MM (in)

Gas/Liquid

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA)

Lo-Mi1-Mi2-Hi

37-39-41-43

39-41-43-45

41-43-45-48

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

1600 x 680 x 230

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE

No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL94B

PUZ-ZM - OUTDOOR UNITS

PUZ-ZM100YKAR1

PUZ-ZM125YKAR2

PUZ-ZM140YKAR2

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

51 / 49

52 / 50

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

123

125

131

DIMENSIONS (mm)

Width x Depth x Height

1050 x 330 + 40 x 1338

ELECTRICAL SUPPLY

380-415v,50Hz

PHASE

Three

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

3.018 / 2.317

3.954/ 3.846

4.432 / 3.941

Heating/Cooling (UK)

2.41 / 1.99

3.51 / 3.26

3.94 / 3.35

STARTING CURRENT (A)

6.0

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

4.34 / 3.31 [8.7]

5.69 / 5.54 [10.3]

6.42 / 5.71 [13.9]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE NO. CORES

MAX PIPE LENGTH (m)

100

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) /

R32 (GWP 675) - 30m

4.00 / 2.70

CO₂ EQUIVALENT (t)

MAX ADDITIONAL REFRIGERANT (kg) /

R32 (GWP 675)

CO₂ EQUIVALENT (t)

2.80 / 1.89

3 Three Phase

Accessories

Product Dimensions PCA-M100/125/140KA

Indoor Units

Lower View

Front View

Side View

PAR-SL94B

Wireless remote controller and adaptor for PCA-M100-140KA

1600

1493

Outdoor Units

PAC-SH96SG

Air outlet

180

(liquid)

Air outlet guide for PUZ-ZM100YKAR1 / PUZ-ZM125-140YKAR2

200

(gas)

233

When drain socket

182

(

is installed

PAC-SJ71FM-E

1518

246

(Drainage)

Air intake

30Pa outdoor fan motor for PUZ-ZM100YKAR1 / PUZ-ZM125-140YKAR2

System Control Units

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

PAC-SJ95MA

M-NET adaptor for size 100 to 140

Note: Please see page 1.3.62 for the full range of accessories.

PCA-M R32 Ceiling Suspended System,

1.3.37

Air Conditioning

Power Inverter Heat Pump (Three Phase)

1.3.38

The PCA-M Standard Inverter range is a ceiling suspended system that blends a host of outstanding

PCA-M R32

features with a sophisticated streamlined design. Offering advanced control options and quiet operation,

Ceiling Suspended^{this range provides extreme flexibility and ease of installation whilst being cost effective.}

System

Key Features

■ Flush to wall installation for concealment of service connections

■ High / Low ceiling height modes

Standard Inverter Heat Pump

■ Improved airflow control, including automatic air speed adjustment for greater comfort

(Single Phase)

■ Replace Technology available

■ Single fan chassis across entire outdoor unit range

PCA-M - INDOOR UNITS

PCA-M50KA

PCA-M60KA

PCA-M71KA

PCA-M100KA

PCA-M125KA

PCA-M140KA

CAPACITY (kW)

Heating (nominal)

6.0 (1.5-7.2)

7.0 (1.6-8.0)

8.0 (2.0-10.2)

11.2 (2.8-12.5)

13.5 (4.1-15.0)

15.0 (4.2-15.8)

Cooling (nominal)

5.0 (1.5-5.6)

6.1 (1.6-6.3)

7.1 (2.2-8.1)

9.5 (4.0-10.6)

12.1 (5.7-13.0)

13.4 (5.7-14.1)

Heating (UK)

5.10 (1.28-6.12)

5.95 (1.36-6.80)

6.80 (1.70-8.67)

9.63 (2.41-10.75)

11.61 (3.53-12.90)

12.90 (3.61-13.59)

Cooling (UK)

4.60 (1.38-5.15)

5.61 (1.47-5.80)

6.53 (1.56-7.45)

8.65 (3.64-9.65)

11.01 (5.19-11.83)

12.19 (5.19-12.83)

SHF (nominal)

0.79

0.81

0.76

0.77

0.72

COP / EER (nominal)

3.71 / 3.30

4.00 / 3.70

3.61 / 3.60

3.41 / 3.23

3.41 / 3.01

3.50 / 2.50

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.10 / 6.00

4.10 / 6.40

4.10 / 6.50

4.10 / 6.00

4.1 (162.7%) / 5.2 (213%)

4.0 (158.7%) / 5.1 (208%)

ErP ENERGY EFFICIENCY CLASS Heating/Cooling

A+ / A+

A+ / A++

A+ / A+

A+ / A

AIRFLOW (l/s)

Lo-Mi1-Mi2-Hi

167-183-217-250

250-267-283-317

267-283-300-333

367-400-433-467

383-417-450-483

400-433-483-533

PIPE SIZE mm (in)

Gas/Liquid

12.7 (1/2”) / 6.35 (1/4”)

15.88 (5/8”) / 6.35 (1/4”)

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA)

Lo-Mi1-Mi2-Hi

32-34-37-40

33-35-37-40

35-37-39-41

37-39-41-43

39-41-43-45

41-43-45-48

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

960 x 680 x 230

1280 x 680 x 230

1600 x 680 x 230

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL94B

SUZ-M / PUZ-M - OUTDOOR UNITS

SUZ-M50VAR2

SUZ-M60VAR2

SUZ-M71VAR1

PUZ-M100VAR1

PUZ-M125VAR1

PUZ-M140VAR1

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

48 / 49

49 / 51

51 / 54

54 / 56

55 / 57

SOUND POWER LEVEL (dBA

Cooling

WEIGHT (kg)

DIMENSIONS (mm)

Width x Depth x Height

800 x 285 x 714

840 x 330 x 880

1050 x 330 x 981

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

1.61 / 1.51

1.75 / 1.64

2.21 / 1.97

3.28 / 2.94

3.95 / 4.01

4.28 / 5.36

Heating/Cooling (UK)

1.37 / 1.30

1.49 / 1.41

1.88 / 1.69

2.95 / 2.44

3.56 / 3.33

3.85 / 4.45

STARTING CURRENT (A)

8.0

9.3

9.5

14.2

17.3

23.2

SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX]

8.0 / 7.1 [13.5]

9.3 / 8.4 [14.8]

9.5 / 9.1 [14.8]

14.2 / 12.6 [20.0]

17.0 / 17.3 [26.5]

18.4 / 23.2 [30.0]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (KG) /

R32 (GWP 675)

1.20 / 0.81 (7m)

1.25 / 0.84 (7m)

1.45 / 0.98 (7m)

3.10 / 2.09 (30m)

3.60 / 2.43 (30m)

CO₂ EQUIVALENT (T)

MAX ADDITIONAL REFRIGERANT (KG) /

R32 (GWP 675)

1.66 / 1.12

1.71 / 1.15

2.37 / 1.80

4.10 / 2.77

5.00 / 3.38

CO2EQUIVALENT (T)

Note: Duty/standby not available on SUZ-M50/60/71VAR2/1.

Accessories

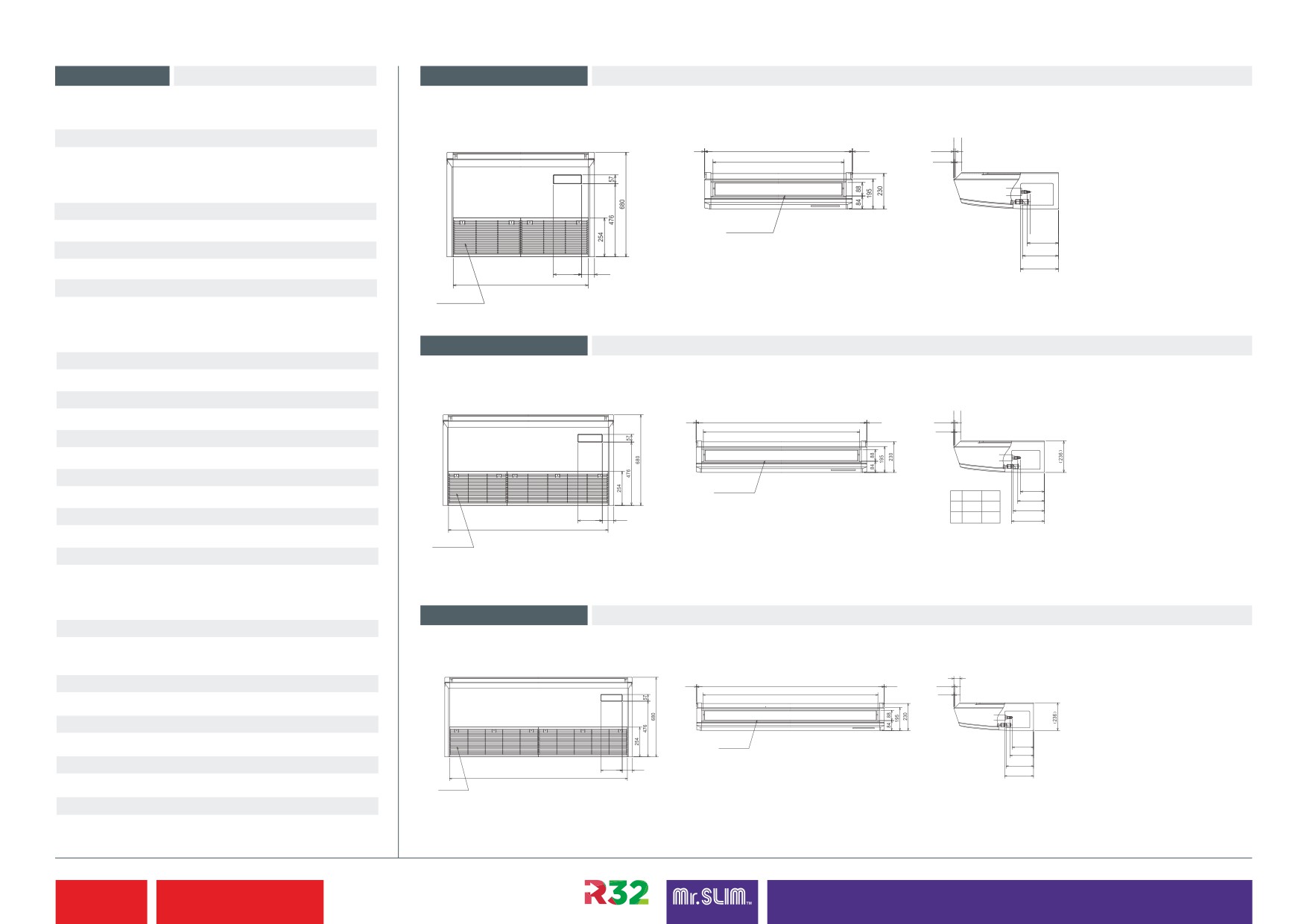

Product Dimensions PCA-M50KA

Indoor Units

Lower View

Front View

Side View

PAR-SL94B

960

Wireless remote controller and adaptor for PCA-M100-140KA

853

Outdoor Units

MAC-882SG

Air outlet

184

(liquid

Air outlet guide for SUZ-M50VAR2

203

(gas

MAC-886SG

233

(

When drain socket

is installed

246

(Drainage)

Air outlet guide for SUZ-M60VAR2 / SUZ-M71VAR1

182

878

PAC-SH96SG

Air intake

Air outlet guide for PUZ-M100-140VAR1

System Control Units

Product Dimensions PCA-M60/71KA

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

Lower View

Front View

Side View

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

1280

1173

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Air outlet

(liquid)

Touch screen wired remote controller (PB=Premium Finish)

(gas)

179

180

233

When drain socket

is installed

(

PAR-40MAA

182

203

200

246

(Drainage)

1198

Standard wired remote controller

Air intake

MAC-334IF

Interface for M-NET, MA remote controller

(PAR-40MAA / PAR-CT01MAA),

on/off input and run/fault output

Product Dimensions PCA-M100/125/140KA

MAC-397IF

Interface for MA remote controller (PAR-40MAA / PAR-CT01MAA),

Lower View

Front View

Side View

on/off input and run or fault output

MAC-567IF

1600

1493

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

Air outlet

180

(liquid)

200

(gas)

233

When drain socket

MELCORETAIL MINI

182

(

is installed

1518

246

(Drainage)

Retail control and input / output interface

Air intake

PAC-SJ95MA

M-NET adaptor for size 100 to 140

Note: Please see page 1.3.62 for the full range of accessories.

PCA-M R32 Ceiling Suspended System,

1.3.39

Air Conditioning

Standard Inverter Heat Pump (Single Phase)

1.3.40

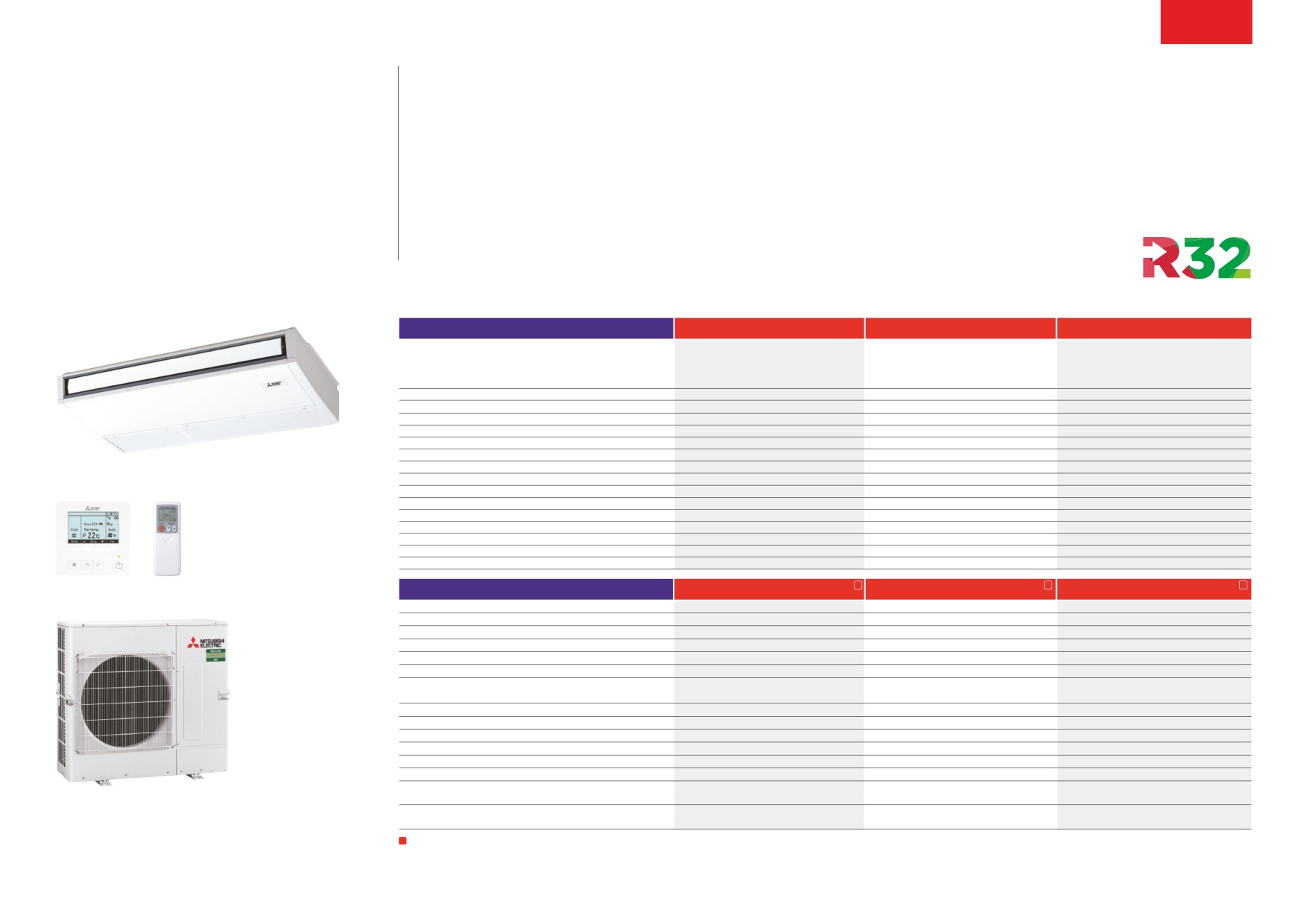

The PCA-M Standard Inverter range is a ceiling suspended system that blends a host of outstanding

PCA-M R32

features with a sophisticated streamlined design. Offering advanced control options and quiet operation,

Ceiling Suspended^{this range provides extreme flexibility and ease of installation whilst being cost effective.}

System

Key Features

■ Flush to wall installation for concealment of service connections

■ High / Low ceiling height modes

Standard Inverter Heat Pump

■ Improved airflow control, including automatic air speed adjustment for greater comfort

(Three Phase)

■ Replace Technology available

■ Single fan chassis across entire outdoor unit range

PCA-M - INDOOR UNITS

PCA-M100KA

PCA-M125KA

PCA-M140KA

CAPACITY (kW)

Heating (nominal)

11.2 (2.8-12.5)

13.5 (4.1-15.0)

15.0 (4.2-15.8)

Cooling (nominal)

9.5 (4.0-10.6)

12.1 (5.7-13.0)

13.4 (5.7-14.1)

Heating (UK)

9.63 (2.41-10.75)

11.61 (3.53-12.90)

12.90 (3.61-13.59)

Cooling (UK)

8.65 (3.64-9.65)

11.01 (5.19-11.83)

12.19 (5.19-12.83)

SHF (nominal)

0.77

0.72

COP / EER (nominal)

3.41 / 3.23

3.41 / 3.01

3.50 / 2.50

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.10 / 6.00

4.1 (162.7%) / 5.2 (213%)

4.0 (158.7%) / 5.1 (208%)

ErP ENERGY EFFICIENCY CLASS

Heating/Cooling

A+ / A+

A+ / A

AIRFLOW (l/s)

Lo-Mi1-Mi2-Hi

367-400-433-467

383-417-450-483

400-433-483-533

PIPE SIZE mm (in)

Gas/Liquid

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA)

Lo-Mi1-Mi2-Hi

37-39-41-43

39-41-43-45

41-43-45-48

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

1600 x 680 x 230

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL94B

PUZ-M - OUTDOOR UNITS

PUZ-M100YAR1

PUZ-M125YAR1

PUZ-M140YAR1

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

51 / 54

54 / 56

55 / 57

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

DIMENSIONS (mm)

Width x Depth x Height

1050 x 330 x 981

ELECTRICAL SUPPLY

380-415v, 50Hz

PHASE

Three

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

3.28 / 2.94

3.95 / 4.01

4.28 / 5.36

Heating/Cooling (UK)

2.95 / 2.44

3.56 / 3.33

3.85 / 4.45

STARTING CURRENT (A)

5.1

6.2

8.3

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

5.1 / 4.5 [11.5]

6.1 / 6.2 [11.5]

6.6 / 8.3 [11.5]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (KG) /

R32 (GWP 675)

3.10 / 2.09

3.60 / 2.43

CO2 EQUIVALENT (T)

MAX ADDITIONAL REFRIGERANT (KG) /

R32 (GWP 675)

4.10 / 2.77

5.00 / 3.38

CO₂EQUIVALENT (T)

Three Phase

Accessories

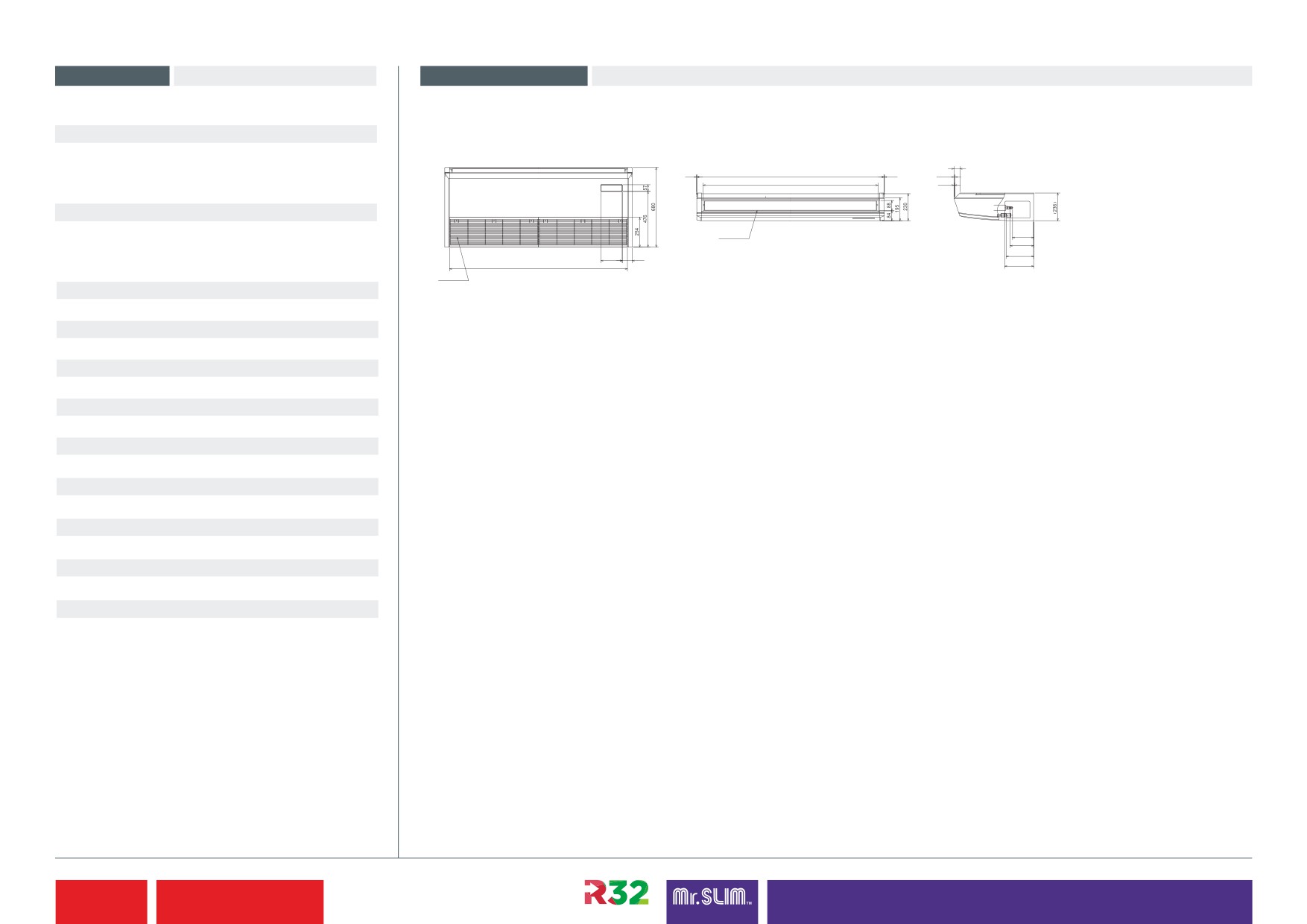

Product Dimensions PCA-M100/125/140KA

Indoor Units

PAR-SL94B

Lower View

Front View

Side View

Wireless remote controller and adaptor for PCA-M100-140KA

1600

1493

Outdoor Units

PAC-SH96SG

Air outlet guide for PUZ-M100-140YAR1

Air outlet

180

(liquid)

200

(gas)

233

(

When drain socket

182

is installed

System Control Units

1518

246

(Drainage)

Air intake

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

PAC-SJ95MA

M-NET adaptor for size 100 to 140

Note: Please see page 1.3.62 for the full range of accessories.

PCA-M R32 Ceiling Suspended System,

1.3.41

Air Conditioning

Standard Inverter Heat Pump (Three Phase)

1.3.42

The PCA-M-HA series is a ceiling suspended unit ideal for use in kitchen environments. The external casing

PCA-M-HA R32

is made of durable stainless steel that is resistant to oil and smoke, ensuring that the unit can be easily

Stainless Steel Ceiling^{cleaned at all times. Our Power Inverter Heat Pump offers customers high seasonal efficiency, advanced}

control options and quiet operation, whilst providing greater flexibility and ease of installation.

Suspended System

Key Features

■ High performance oil mist filter

Power Inverter Heat Pump

■ Easy maintenance - fan casing can be separated into different sections allowing easy cleaning and

(Single Phase)

the drain pan can also be cleaned easily on-site as the pipe connector can be quickly removed

■ Optional decoration covers

■ Durable stainless steel casing

PCA-M-HA - INDOOR UNIT

PCA-M71HA

CAPACITY (kW)

Heating (nominal)

7.6 (3.5-10.2)

Cooling (nominal)

7.1 (3.3-8.1)

Heating (UK)

6.8 (3.0-8.65)

Cooling (UK)

6.55 (3.05-7.45)

SHF (nominal)

0.74

COP / EER (nominal)

3.50 / 3.51

SCOP / SEER

3.9 / 5.6

ENERGY EFFICIENCY CLASS

Heating/Cooling

A / A+

AIRFLOW (l/s)

Lo-Hi

267-300

PIPE SIZE mm (in)

Gas/Liquid

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA)

Lo-Hi

37-39

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height

1136 x 650 x 280

WEIGHT (kg)

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL94B

PUZ-ZM - OUTDOOR UNIT

PUZ-ZM71VHAR1

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

49 / 47

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

DIMENSIONS (mm)

Width x Depth x Height

950 x 330 + 30 x 943

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)

Heating/Cooling (nominal)

1.82 / 1.65

Heating/Cooling (UK)

1.69 / 1.39

STARTING CURRENT (A)

6.0

SYSTEM RUNNING CURRENT (A)

Heating/Cooling [MAX]

7.5 / 6.7 [19.4]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t)

2.80 / 1.89

R32 (GWP 675) - 30m

MAX ADDITIONAL REFRIGERANT (kg) / CO₂ EQUIVALENT (t)

0.80 / 0.54

R32 (GWP 675)

Accessories

Product Dimensions PCA-M71HA

Indoor Units

PAR-SL94B

Upper View

Wireless remote controller and adaptor for PCA-M71HA

PAC-SG38KF

Terminal block box

130

Oil mist filter for PCA-M71HA (12 pack)

Electrical box

PAC-SF81KC

Decoration covers (front cover & suspending bracket)

for PCA-M71HA

Outdoor Units

PAC-SG59SG

Air outlet guide for PUZ-ZM71VHAR1

System Control Units

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SE41TS

Remote sensor

Front View

Side View

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB=Premium Finish)

1224

495

Suspension bolt

PAR-40MAA

1180

320

Standard wired remote controller

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

PAC-SJ95MA

986

289

M-NET adaptor for size 71

1136

650

Inspection port

(pipe sensor)

Note: Please see page 1.3.62 for the full range of accessories.

PCA-M-HA R32 Stainless Steel Ceiling Suspended System,

1.3.43

Air Conditioning

Power Inverter Heat Pump (Single Phase)

1.3.44

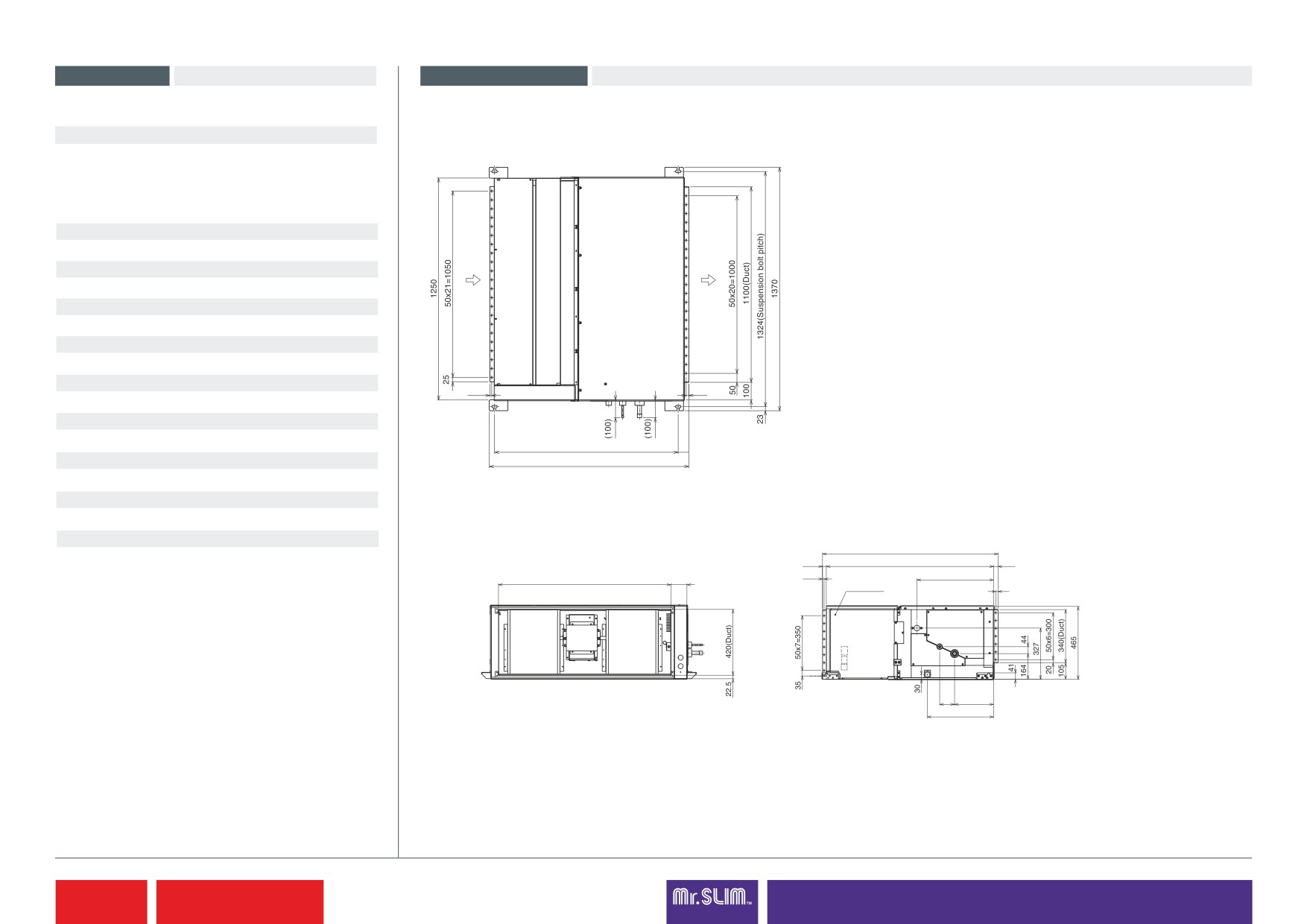

The PEA-RP Power Inverter range is a ceiling concealed ducted system that blends a host of outstanding

PEA-RP R410A

features with an unobtrusive design for easy installation and maintenance. Offering high seasonal efficiency,

advanced control options and quiet operation, this range provides extreme flexibility and ease of installation.

Large Capacity

Key Features

Ceiling Concealed

■ Single phase indoor unit

■ DC Fan Motor

Ducted System

■ Reduced indoor power input (compared to PEA-RP-GAQ)

■ Three fan speeds as standard

Power Inverter Heat Pump

■ Four static pressure settings of up to 150Pa

■ Reduced indoor noise level (compared to PEA-RP-GAQ)

(Three Phase)

■ ErP lot 6 and 30 compliant

■ Long pipe runs of up to 100m

■ Flexible ducting design

PEA-RP - INDOOR UNITS

PEA-RP200WKA

PEA-RP250WKA

CAPACITY (kW)

Heating (nominal)

22.4 (9.5-25.0)

27.0 (12.5-31.0)

Cooling (nominal)

19.0 (9.0-22.4)

22.0 (11.2-27.0)

Heating (UK)

19.05 (8.1-21.25)

22.95 (10.65-26.35)

Cooling (UK)

17.5 (8.3-20.6)

20.25 (10.3-24.85)

SHF (nominal)

0.81

0.86

COP / EER (nominal)

3.40 / 3.15

3.20 / 2.73

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

3.43 (137.2%) / 5.06 (202.2%)

3.40 (136.0%) / 4.71 (188.2%)

AIRFLOW (l/s)

Lo-Mi-Hi

833-1017-1200

967-1183-1400

PIPE SIZE mm (in)

Gas

28.58 (1 1/8”)

Liquid

9.52 (3/8”)

12.7 (1/2”)

EXTERNAL STATIC PRESSURE (Pa)

60 / 75 / 100 / 150

SOUND PRESSURE LEVEL (dBA) (60Pa)

Lo-Mi-Hi

38-41-44

40-43-46

SOUND POWER LEVEL (dBA) (60Pa)

Lo-Mi-Hi

65-66-67

70-71-72

DIMENSIONS (mm)

Width x Depth x Height

1370 x 1120 x 470

WEIGHT (kg)

108

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

POWER INPUT (kW)

Nominal / UK

0.66 / 0.59

0.80 / 0.71

STARTING CURRENT (A)

7.1

RUNNING CURRENT (A) [MAX]

3.57 [4.3]

4.34 [5.5]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

INTERCONNECTING CABLE No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

PUHZ-ZRP - OUTDOOR UNITS

PUHZ-ZRP200YKA3

PUHZ-ZRP250YKA3

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

62 / 59

WEIGHT (kg)

135

DIMENSIONS (mm)

Width x Depth x Height

1050 x 330 + 40 x 1338

ELECTRICAL SUPPLY

380-415v, 50Hz

PHASE

Three

SYSTEM POWER

Heating/Cooling (nominal)

6.58 / 6.03

8.43 / 8.05

INPUT (kW)

Heating/Cooling (UK)

5.92 / 5.01

7.59 / 6.68

STARTING CURRENT (A)

RUNNING CURRENT (A)

Heating/Cooling [MAX]

10.20 / 10.51 [19]

13.05 / 13.27 [21]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

100

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t)

7.10 / 14.82

7.70 / 16.08

R410A (GWP 2088) - 30m

MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t)

3.60 / 7.52 (up to 75m*¹)

4.80 / 10.02 (up to 75m*¹)

R410A (GWP 2088)

3 Three Phase Note: *1 For 75-100m please consult the Service Handbook.

1.3.46

The PEA-RP Standard Inverter range is a ceiling concealed ducted system that blends a host of outstanding

PEA-RP R410A

features with an unobtrusive design for easy installation and maintenance. Offering advanced control options

and quiet operation, this range provides extreme flexibility and ease of installation whilst being cost effective.

Large Capacity

Key Features

Ceiling Concealed

■ Single phase indoor unit

■ DC Fan Motor

Ducted System

■ Reduced indoor power input (compared to PEA-RP-GAQ)

■ Three fan speeds as standard

■ Four static pressure settings of up to 150Pa

Standard Inverter Heat Pump

■ Reduced indoor noise level (compared to PEA-RP-GAQ)

(Three Phase)

■ ErP lot 6 and 30 compliant

■ Long pipe runs of up to 70m

■ Flexible ducting design

PEA-RP - INDOOR UNITS

PEA-RP200WKA

PEA-RP250WKA

CAPACITY (kW)

Heating (nominal)

22.4 (9.5-25.0)

27.0 (12.5-31.0)

Cooling (nominal)

19.0 (9.0-22.4)

22.0 (11.2-27.0)

Heating (UK)

19.05 (8.1-21.25)

22.95 (10.65-26.35)

Cooling (UK)

17.5 (8.3-20.6)

20.25 (10.3-24.85)

SHF (nominal)

0.81

0.86

COP / EER (nominal)

3.30 / 3.02

3.10 / 2.70

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

3.36 (134.4%) / 4.86 (194.5%)

3.35 (133.9%) / 4.59 (183.7%)

AIRFLOW (l/s)

Lo-Mi-Hi

833-1017-1200

967-1183-1400

PIPE SIZE mm (in)

Gas

28.58 (1 1/8”)

Liquid

9.52 (3/8”)

12.7 (1/2”)

EXTERNAL STATIC PRESSURE (Pa)

60 / 75 / 100 / 150

SOUND PRESSURE LEVEL (dBA) (60Pa)

Lo-Mi-Hi

38-41-44

40-43-46

SOUND POWER LEVEL (dBA) (60Pa)

Lo-Mi-Hi

65-66-67

70-71-72

DIMENSIONS (mm)

Width x Depth x Height

1370 x 1120 x 470

WEIGHT (kg)

108

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

POWER INPUT (kW)

Nominal / UK

0.66 / 0.59

0.80 / 0.71

STARTING CURRENT (A)

7.1

RUNNING CURRENT (A) [MAX]

3.57 [4.3]

4.34 [5.5]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

INTERCONNECTING CABLE No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-40MAA

PUHZ-P - OUTDOOR UNITS

PUHZ-P200YKA3

PUHZ-P250YKA3

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

60 / 58

62 / 59

WEIGHT (kg)

127

135

DIMENSIONS (mm)

Width x Depth x Height

1050 x 330+40 x 1338

ELECTRICAL SUPPLY

380-415v, 50Hz

PHASE

Three

SYSTEM POWER

Heating/Cooling (nominal)

6.78 / 6.29

8.70 / 8.14

INPUT (kW)

Heating/Cooling (UK)

6.10 / 5.22

7.83 / 6.75

STARTING CURRENT (A)

RUNNING CURRENT (A)

Heating/Cooling [MAX]

11.45 / 11.04 [19]

14.04 / 13.04 [21]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t)

6.50 / 13.57

7.70 / 16.08

R410A (GWP 2088) - 30m

MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t)

3.60 / 7.52 (70m)

4.80 / 10.02 (70m)

R410A (GWP 2088)

Three Phase

1.3.48

The PSA-RP Power Inverter range is a floor standing system that blends a host of outstanding features

PSA-RP R410A

with a sophisticated streamlined design. Offering high seasonal efficiency, advanced control options and

quiet operation, this range provides extreme flexibility and ease of installation.

Floor Standing

Key Features

System

■ Built in controller

■ Space saving

Power Inverter Heat Pump

■ Quick and easy installation

■ Compact body / minimal footprint

PSA-RP - INDOOR UNITS

PSA-RP71KA

PSA-RP100KA

PSA-RP125KA

PSA-RP140KA

CAPACITY (kW)

Heating (nominal)

7.6 (3.5-10.2)

11.2 (4.5-14.0)

14.0 (5.0-16.0)

16.0 (5.7-18.0)

Cooling (nominal)

7.1 (3.3-8.1)

9.5 (4.9-11.4)

12.5 (5.5-14.0)

13.4 (6.2-15.0)

Heating (UK)

6.45 (3.0-8.65)

9.5 (3.85-11.9)

11.9 (4.25-13.6)

13.6 (4.84-15.3)

Cooling (UK)

6.55 (3.05-7.45)

9.2 (4.5-10.5)

11.4 (5.05-12.9)

12.3 (5.7-13.8)

SHF (nominal)

0.75

0.73

0.72

0.71

COP / EER (nominal)

3.44 / 3.76

3.64 / 3.80

3.30 / 3.06

3.34 / 3.30

SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)

4.0 / 6.3

4.0 / 5.6

4.0 / 5.5

4.0 (155.5%) / 5.0 (198.1%)

4.0 (155.5%) / 4.9 (197.1%)

4.4 (175.2%) / 5.3 (212.7%)

4.4 (175.2%) / 5.3 (211.7%)

ErP ENERGY EFFICIENCY CLASS Heating/Cooling

A+ / A++

A+ / A+

A+ / A

N/A

AIRFLOW (l/s)

Lo-Mi-Hi

333-367-400

417-467-500

417-467-517

PIPE SIZE mm (in)

Gas/Liquid

15.88 (5/8”) / 9.52 (3/8”)

SOUND PRESSURE LEVEL (dBA) Lo-Mi-Hi

40-42-44

45-49-51

SOUND POWER LEVEL (dBA)

DIMENSIONS (mm)

Width x Depth x Height (Grille)

600 x 360 x 1900

WEIGHT (kg)

Unit / Panel

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. Cores

WIRED REMOTE CONTROLLER REFERENCE

PAR-21MAA

PUHZ-ZRP - OUTDOOR UNITS

PUHZ-ZRP71VHA2

PUHZ-ZRP100VKA3

PUHZ-ZRP100YKA3

PUHZ-ZRP125VKA3

PUHZ-ZRP125YKA3

PUHZ-ZRP140VKA3

PUHZ-ZRP140YKA3

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

48 / 47

51 / 49

52 / 50

SOUND POWER LEVEL (dBA) Cooling

WEIGHT (kg)

116

123

116

125

118

131

DIMENSIONS (mm) Width x Depth x Height

950 x 330 + 30 x 943

1050 x 330 + 40 x 1338

ELECTRICAL SUPPLY

220-240v, 50Hz

380-415v, 50Hz

220-240v, 50Hz

380-415v, 50Hz

220-240v, 50Hz

380-415v, 50Hz

PHASE

Single

Three

Single

Three

Single

Three

SYSTEM POWER

Heating/Cooling (nominal)

2.21 / 1.89

3.08 / 2.50

4.24 / 4.09

4.79 / 4.06

INPUT (kW)

Heating/Cooling (UK)

1.86 / 1.61

2.59 / 2.13

3.56 / 3.48

4.02 / 3.45

STARTING CURRENT (A)

6.0

12.0

4.0

12.0

4.0

12.0

4.0

SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX]

8.79 / 7.76 [19.4]

11.58 / 11.62 [27.2]

4.54 / 4.55 [8.7]

16.39 / 17.23 [27.2]

6.27 / 6.57 [10.2]

20.92 / 19.41 [28.7]

7.87 / 7.34 [13.7]

FUSE RATING (BS88) - HRC (A)

MAINS CABLE No. Cores

MAX PIPE LENGTH (m)

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t)

3.50 / 7.31

5.00 / 10.44

R410A (GWP 2088) - 30m

MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t)

1.20 / 2.51

2.40 / 5.01

R410A (GWP 2088)

3 Three Phase Note: Includes built in PAR-21MAA wired remote controller.

Accessories

Product Dimensions PSA-RP71/100/125/140KA

Outdoor Units

PAC-SG59SG

Upper View

Front View

Side View

Air outlet guide for PUHZ-ZRP71VHA2

PAC-SH96SG

Air outlet guide for PUHZ-ZRP100-140VKA3/YKA3

Knockout hole

520

Metal fixture

for branch duct

against overturning

360

260

240

PAC-SJ71FM-E

240

30Pa outdoor fan motor for PUHZ-ZRP100-140VKA3

System Control Units

PAC-SA89TA

125

Remote on/off adaptor (3 wire adaptor)

340

370

Controller

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

129

PAC-SE41TS

Remote sensor

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

PAC-SJ95MA

M-NET adaptor for size 71 to 140

524

260

310

Knockout hole for wiring

600

(Provided on both sides)

Knockout hole for refrigerant and drainage

90×60 oval (Provided on both sides)

Note: Please see page 1.3.62 for the full range of accessories.

1.3.49

Air Conditioning

PSA-RP R410A Floor Standing System, Power Inverter Heat Pump

1.3.50

In collaboration with Thermoscreens^®, Mitsubishi Electric has developed a range of air curtains

HP DXE R410A

that can be connected to our Power Inverter heat pumps, as opposed to the more traditional

Air Curtain System^{direct electric method associated with air curtains.}

Key Features

■ Reduced CO₂ emissions and run costs (up to 67%)

■ 2.5 year payback period against equivalent electric systems

Power Inverter Heat Pump

■ Allows open door policy in retail outlets whilst being energy efficient

■ Clean indoor environment - protection from external dust, fumes etc.

■ Weather compensation option for further energy efficiency

■ R32 models coming Summer 2020

HP DXE - RECESSED

HP1000R DXE

HP1500R DXE

HP2000R DXE

CAPACITY (kW)

Heating (nominal)

8.3

13.8

15.9

21.0

Cooling (nominal)

7.4

12.3

14.2

18.7

AIRFLOW MAX (l/s)

364

575

720

SOUND PRESSURE LEVEL AT 3m (dBA) Lo-Mi1-Hi

50-55-58

49-54-58

50-55-58

WEIGHT (kg)

DIMENSIONS (mm) Width x Depth x Height

1250 x 539 x 348

1750 x 539 x 348

2340 x 539 x 348

ELECTRICAL SUPPLY*¹

220-240v, 50Hz

PHASE*¹

Single

RUNNING CURRENT (A)*¹

0.8

1.2

1.4

MAINS CABLE No. Cores*¹

UNIFORMITY AT OUTLET (%)*²

MAX MOUNTING HEIGHT (m)

3.3

HP DXE - FREE STANDING

HP1000 DXE

HP1500 DXE

HP2000 DXE

CAPACITY (kW)

Heating (nominal)

8.3

13.2

15.7

21.0

Cooling (nominal)

7.4

11.8

14.0

18.7

AIRFLOW MAX (l/s)

364

575

720

SOUND PRESSURE LEVEL AT 3m (dBA) Lo-Mi1-Hi

50-55-58

49-54-58

50-55-58

WEIGHT (kg)

DIMENSIONS (mm) Width x Depth x Height

1300 x 468 x 306

1825 x 468 x 306

2350 x 468 x 306

ELECTRICAL SUPPLY*¹

220-240v, 50Hz

PHASE*¹

Single

RUNNING CURRENT (A)*¹

0.8

1.2

1.4

MAINS CABLE No. Cores*¹

UNIFORMITY AT OUTLET (%)*²

MAX MOUNTING HEIGHT (m)

3.3

HEAT PUMP oUTDooR UNITS

PUHZ-ZRP71VHA2

PUHZ-ZRP125VKA3

PUHZ-ZRP125YKA3

PUHZ-ZRP140VKA3

PUHZ-ZRP140YKA3

PUHZ-ZRP200YKA3

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

48 / 47

52 / 50

62 / 59

SOUND POWER LEVEL (dBA) Cooling

WEIGHT (kg)

116

125

118

131

135

DIMENSIONS (mm) Width x Depth x Height

950 x 330 +30 x 943

1050 x 330 +40 x 1338

ELECTRICAL SUPPLY

220-240v, 50Hz

380-415v, 50Hz

220-240v, 50Hz

380-415v, 50Hz

PHASE

Single

Three

Single

Three

STARTING CURRENT (A)

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE

2 Core

MAX PIPE LENGTH (m)

100

MAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) / CO₂ EQUIVALENT (t)

3.50 / 7.31

5.00 / 10.44

7.10 / 14.82

R410A (GWP 2088) - 30m

MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t)

1.20 / 2.51

2.40 / 5.01

3.60 / 7.52 (up to 75m*³)

R410A (GWP 2088)

3 Three Phase

Notes: *1 For indoor units with electric heaters enabled, 380-415V 3ph power supply (7.3A HP1000, 12.1A HP1500, 14.4A HP2000).

*2 Tested to ISO 27327.

*3 For 75-100m please consult the Service Handbook.

1.3.52

The Air Handling Unit Controller can interface Mitsubishi Electric Mr Slim outdoor units to third party

PAC-IF013B-E

air handing units. Up to six Mr Slim outdoor units can be used on a single air handling unit providing

a wide range of heating and cooling capacities.

R32 & R410A

Key Features

Air Handling Unit Controller

■ Simpler installation with Mr Slim being a single source of heating and cooling

■ BEMS external monitoring and control can be achieved through direct Modbus, digital switches or analogue input

■ Intelligent Multiple Outdoor Unit Control (IMOUC) of up to six Mr Slim outdoor units when operated in external

manual control, this can include two different capacities or a series of Mr Slim outdoor units

■ Anti-cycling measures incorporated into the design to extend the life of the outdoor units

■ Capacity control of up to 11 individual steps ensures high comfort levels

■ SD card installed to record history and facilitate software upgrades

■ Maximum airflow of up to 5 x standard Mr Slim specification

■ Complete AHU systems incorporating this pre-installed controller are also available

PAC-IF013B-E

SIZE 35

SIZE 50

SIZE 60

SIZE 71

SIZE 100

SIZE 125

SIZE 140

SIZE 200

SIZE 250

CAPACITY (kW)

Heating (nominal)

4.1

6.0

7.0

8.0

11.2

14.0

16.0

22.4

27.0

Cooling (nominal)

3.5

5.0

6.0

7.1

10.0

12.5

14.0

20.0

25.0

COMPATIBLE O.U

PUZ-ZM

(R32)

PUZ-ZM35VKA

PUZ-ZM50VKA

PUZ-ZM60VHA

PUZ-ZM71VHAR1

PUZ-ZM100VKAR1/YKAR1PUZ-ZM125VKAR2/YKAR2PUZ-ZM140VKAR2/YKAR2

PUZ-ZM200YKA

PUZ-ZM250YKA

PUZ-M

(R32)

N/A

PUZ-M200YKA

PUZ-M250YKA

PUHZ-ZRP

(R410A)

PUHZ-ZRP35VKA2

PUHZ-ZRP50VKA2

PUHZ-ZRP60VHA2

PUHZ-ZRP71VHA2

PUHZ-ZRP100VKA3/YKA3

PUHZ-ZRP125VKA3/YKA3

PUHZ-ZRP140VKA3/YKA3

PUHZ-ZRP200YKA3

PUHZ-ZRP250YKA3

PUHZ-P

(R410A)

N/A

PUHZ-P200YKA3

PUHZ-P250YKA3

PIPE SIZE mm (in)

PUZ-ZM/M

Gas

12.7 (1/2”)

15.88 (5/8”)

28.58 (1 1/8”)

(R32)

Liquid

6.35 (1/4”)

9.52 (3/8”)

12.7 (1/2”)

PUHZ-ZRP/P

Gas

12.7 (1/2”)

15.88 (5/8”)

28.58 (1 1/8”)

(R410A)

Liquid

6.35 (1/4”)

9.52 (3/8”)

12.7 (1/2”)

HEAT EXCHANGER (cm³)

Max Volume

>30m

1.05

1.5

1.8

2.13

3.0

3.75

4.2

6.0

7.5

20m

1.35

1.8

2.7

3.03

3.9

4.65

5.1

7.8

9.3

10m

1.65

2.1

3.6

3.93

4.8

5.55

6.0

9.6

11.1

Min Volume

0.35

0.5

0.6

0.71

1.0

1.25

1.4

2.0

2.5

DIMENSIONS (mm)

Width x Depth x Height

336 x 69 x 278

WEIGHT (No Accessories) (kg)

2.5

Notes: One air handling unit controller is required per outdoor unit. Cooling: Indoor 27ºC DB/19ºC WB, Outdoor 35ºC DB/24ºC WB. Heating: Indoor 20ºC DB, Outdoor 7ºC DB/6ºC WB.

Notes:

Example:

Air Handling Unit Controller

Remote controller included

One air handling unit controller is required per heat exchanger.

(Mitsubishi Electric)

with PAC-IF013B-E

If using more than one air handling unit controller on a single AHU,

there are two options:

1. Connect 1 x PAC-IF013B-E unit per heat exchanger - these will

Controller

operate as separate circuits with a controller on each which is included.

(field supplied)

2. Connect 1 x PAC-IF013B-E for the first heat exchanger, then up to

5 additional slave PAC-SIF013B-E units. The included controller with

the PAC-IF013B-E will additionally control the slave units

For further information of this feature please consult your local sales office.

A Control wiring

Thermistor wiring

Piping

Outdoor Unit (Mitsubishi Electric)

Air Handling Unit (field supplied)

1.3.54

The Mr Slim Multi-Split system is an ideal option for open plan spaces in medium sized premises such

R32 Mr Slim Twin /

as offices or shops, where two, three or four units are required. These can be Mr Slim ceiling cassettes

(PLA-ZM/M & SLZ-M), ceiling suspended (PCA-M), ducted (PEAD-M) or wall mounted (PKA-M) models

Triple / Quadruple

and can be connected to a single outdoor unit using twin, triple or quadruple multi distributor pipes.

Multi-Split Systems

Key Features

Inverter Heat Pump Units

■ Twin, triple or quadruple indoor heat pump units can be operated in Multi-Split configuration from a single outdoor unit

■ Heat pumps must operate in same heating or cooling mode

■ Cooling capacity range 3.3 to 27kW

■ Heating capacity range 3.5 to 31kW

PIPE RUN PARAMETERS

oUTDooR MoDEL

REFRIGERANT

PIPE RUNS

MAX. PIPE RUN (M)

PUZ-ZM71VHAR1

R32

A+B+C twin

PUZ-ZM100VKAR1/YKAR1 / PUZ-ZM125-140VKAR2/YKAR2

R32

A+B+C twin

100

PUZ-ZM200/250YKA

R32

A+B+C twin

100

PUZ-M100VAR1/YAR1

R32

A+B+C twin

PUZ-M125-140VAR1/YAR1

R32

A+B+C twin

PUZ-M200/250YKA

R32

A+B+C twin

PUZ-ZM140VKAR2/YKAR2

R32

A+B+C+D triple

100

PUZ-ZM200/250YKA

R32

A+B+C+D triple

100

PUZ-M140VAR1/YAR1

R32

A+B+C+D triple

PUZ-M200/250YKA

R32

A+B+C+D triple

PUZ-ZM200/250YKA

R32

A+B+C+D+E quadruple

100

PUZ-M200/250YKA

R32

A+B+C+D+E quadruple

PUZ-ZM71VHAR1 / PUZ-ZM100VKAR1/YKAR1 / PUZ-ZM125-140VKAR2/YKAR2

R32

B - C or C - D or B - D

PUZ-ZM200/250YKA

R32

B - C or B - D or B - E or C - D or C - E or D - E

PUZ-M100-140VAR1/YAR1

R32

B - C or C - D or B - D

PUZ-M200/250YKA

R32

B - C or B - D or B - E or C - D or C - E or D - E

Notes: SEZ-M & PSA-RP indoor units cannot be used as part of an R32 Mr Slim Multi-Split system.

1.3.56

R32 Mr Slim outdoor units can be configured in twin,

R32 Mr Slim Twin /

triple and quadruple combinations giving added flexibility.

Triple / Quadruple

TWIN SYSTEMS

DESCRIPTIoN

Multi-Split Systems

(2) PLA-ZM35EA / (1) PUZ-ZM71VHAR1

R32 Power Inverter Cassette, Twin System, Single Phase

(2) PLA-ZM50EA / (1) PUZ-ZM100VKAR1

R32 Power Inverter Cassette, Twin System, Single Phase

(2) PLA-ZM60EA / (1) PUZ-ZM125VKAR2

R32 Power Inverter Cassette, Twin System, Single Phase

(2) PLA-ZM71EA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Cassette, Twin System, Single Phase

Inverter Heat Pump Units

(2) PLA-ZM50EA / (1) PUZ-ZM100YKAR1

R32 Power Inverter Cassette, Twin System, Three Phase

(2) PLA-ZM60EA / (1) PUZ-ZM125YKAR2

R32 Power Inverter Cassette, Twin System, Three Phase

(2) PLA-ZM71EA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Cassette, Twin System, Three Phase

(2) PLA-ZM100EA / (1) PUZ-ZM200YKA

R32 Power Inverter Cassette, Twin System, Three Phase

(2) PLA-ZM125EA / (1) PUZ-ZM250YKA

R32 Power Inverter Cassette, Twin System, Three Phase

(2) SLZ-M35FA / (1) PUZ-ZM71VHAR1

R32 Power Inverter Cassette, Twin System, Single Phase

(2) SLZ-M50FA / (1) PUZ-ZM100VKAR1

R32 Power Inverter Cassette, Twin System, Single Phase

(2) SLZ-M60FA / (1) PUZ-ZM125VKAR2

R32 Power Inverter Cassette, Twin System, Single Phase

(2) SLZ-M50FA / (1) PUZ-ZM100YKAR1

R32 Power Inverter Cassette, Twin System, Three Phase

(2) SLZ-M60FA / (1) PUZ-ZM125YKAR2

R32 Power Inverter Cassette, Twin System, Three Phase

(2) PLA-M50EA / (1) PUZ-M100VAR1

R32 Standard Inverter Cassette, Twin System, Single Phase

(2) PLA-M60EA / (1) PUZ-M125VAR1

R32 Standard Inverter Cassette, Twin System, Single Phase

(2) PLA-M71EA / (1) PUZ-M140VAR1

R32 Standard Inverter Cassette, Twin System, Single Phase

(2) PLA-M50EA / (1) PUZ-M100YAR1

R32 Standard Inverter Cassette, Twin System, Three Phase

(2) PLA-M60EA / (1) PUZ-M125YAR1

R32 Standard Inverter Cassette, Twin System, Three Phase

(2) PLA-M71EA / (1) PUZ-M140YAR1

R32 Standard Inverter Cassette, Twin System, Three Phase

(2) PLA-M100EA / (1) PUZ-M200YKA

R32 Standard Inverter Cassette, Twin System, Three Phase

(2) PLA-M125EA / (1) PUZ-M250YKA

R32 Standard Inverter Cassette, Twin System, Three Phase

(2) PKA-M35HA / (1) PUZ-ZM71VHAR1

R32 Power Inverter Wall Mounted, Twin System, Single Phase

(2) PKA-M50HA / (1) PUZ-ZM100VKAR1

R32 Power Inverter Wall Mounted, Twin System, Single Phase

(2) PKA-M60KA / (1) PUZ-ZM125VKAR2

R32 Power Inverter Wall Mounted, Twin System, Single Phase

(2) PKA-M71KA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Wall Mounted, Twin System, Single Phase

(2) PKA-M50HA / (1) PUZ-ZM100YKAR1

R32 Power Inverter Wall Mounted, Twin System, Three Phase

(2) PKA-M60KA / (1) PUZ-ZM125YKAR2

R32 Power Inverter Wall Mounted, Twin System, Three Phase

(2) PKA-M71KA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Wall Mounted, Twin System, Three Phase

(2) PKA-M100KA / (1) PUZ-ZM200YKA

R32 Power Inverter Wall Mounted, Twin System, Three Phase

(2) PKA-M50HA / (1) PUZ-M100VAR1

R32 Standard Inverter Wall Mounted, Twin System, Single Phase

(2) PKA-M60KA / (1) PUZ-M125VAR1

R32 Standard Inverter Wall Mounted, Twin System, Single Phase

(2) PKA-M71KA / (1) PUZ-M140VAR1

R32 Standard Inverter Wall Mounted, Twin System, Single Phase

(2) PKA-M50HA / (1) PUZ-M100YAR1

R32 Standard Inverter Wall Mounted, Twin System, Three Phase

(2) PKA-M60KA / (1) PUZ-M125YAR1

R32 Standard Inverter Wall Mounted, Twin System, Three Phase

(2) PKA-M71KA / (1) PUZ-M140YAR1

R32 Standard Inverter Wall Mounted, Twin System, Three Phase

(2) PKA-M100KA / (1) PUZ-M200YKA

R32 Standard Inverter Wall Mounted, Twin System, Three Phase

TWIN SYSTEMS

DESCRIPTIoN

R32 Mr Slim Twin /

(2) PEAD-M35JA / (1) PUZ-ZM71VHAR1

R32 Power Inverter Ceiling Concealed Ducted, Twin System, Single Phase

(2) PEAD-M50JA / (1) PUZ-ZM100VKAR1

R32 Power Inverter Ceiling Concealed Ducted, Twin System, Single Phase

Triple / Quadruple

(2) PEAD-M60JA / (1) PUZ-ZM125VKAR2

R32 Power Inverter Ceiling Concealed Ducted, Twin System, Single Phase

(2) PEAD-M71JA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Ceiling Concealed Ducted, Twin System, Single Phase

Multi-Split Systems

(2) PEAD-M50JA / (1) PUZ-ZM100YKAR1

R32 Power Inverter Ceiling Concealed Ducted, Twin System, Three Phase

(2) PEAD-M60JA / (1) PUZ-ZM125YKAR2

R32 Power Inverter Ceiling Concealed Ducted, Twin System, Three Phase

(2) PEAD-M71JA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Ceiling Concealed Ducted, Twin System, Three Phase

Inverter Heat Pump Units

(2) PEAD-M100JA / (1) PUZ-ZM200YKA

R32 Power Inverter Ceiling Concealed Ducted, Twin System, Three Phase

(2) PEAD-M125JA / (1) PUZ-ZM250YKA

R32 Power Inverter Ceiling Concealed Ducted, Twin System, Three Phase

(2) PEAD-M50JA / (1) PUZ-M100VAR1

R32 Standard Inverter Ceiling Concealed Ducted, Twin System, Single Phase

(2) PEAD-M60JA / (1) PUZ-M125VAR1

R32 Standard Inverter Ceiling Concealed Ducted, Twin System, Single Phase

(2) PEAD-M71JA / (1) PUZ-M140VAR1

R32 Standard Inverter Ceiling Concealed Ducted, Twin System, Single Phase

(2) PEAD-M50JA / (1) PUZ-M100YAR1

R32 Standard Inverter Ceiling Concealed Ducted, Twin System, Three Phase

(2) PEAD-M60JA / (1) PUZ-M125YAR1

R32 Standard Inverter Ceiling Concealed Ducted, Twin System, Three Phase

(2) PEAD-M71JA / (1) PUZ-M140YAR1

R32 Standard Inverter Ceiling Concealed Ducted, Twin System, Three Phase

(2) PEAD-M100JA / (1) PUZ-M200YKA

R32 Standard Inverter Ceiling Concealed Ducted, Twin System, Three Phase

(2) PEAD-M125JA / (1) PUZ-M250YKA

R32 Standard Inverter Ceiling Concealed Ducted, Twin System, Three Phase

(2) PCA-M50KA / (1) PUZ-ZM100VKAR1

R32 Power Inverter Ceiling Suspended, Twin System, Single Phase

(2) PCA-M60KA / (1) PUZ-ZM125VKAR2

R32 Power Inverter Ceiling Suspended, Twin System, Single Phase

(2) PCA-M71KA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Ceiling Suspended, Twin System, Single Phase

(2) PCA-M50KA / (1) PUZ-ZM100YKAR1

R32 Power Inverter Ceiling Suspended, Twin System, Three Phase

(2) PCA-M60KA / (1) PUZ-ZM125YKAR2

R32 Power Inverter Ceiling Suspended, Twin System, Three Phase

(2) PCA-M71KA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Ceiling Suspended, Twin System, Three Phase

(2) PCA-M100KA / (1) PUZ-ZM200YKA

R32 Power Inverter Ceiling Suspended, Twin System, Three Phase

(2) PCA-M125KA / (1) PUZ-ZM250YKA

R32 Power Inverter Ceiling Suspended, Twin System, Three Phase

(2) PCA-M50KA / (1) PUZ-M100VAR1

R32 Standard Inverter Ceiling Suspended, Twin System, Single Phase

(2) PCA-M60KA / (1) PUZ-M125VAR1

R32 Standard Inverter Ceiling Suspended, Twin System, Single Phase

(2) PCA-M71KA / (1) PUZ-M140VAR1

R32 Standard Inverter Ceiling Suspended, Twin System, Single Phase

(2) PCA-M50KA / (1) PUZ-M100YAR1

R32 Standard Inverter Ceiling Suspended, Twin System, Three Phase

(2) PCA-M60KA / (1) PUZ-M125YAR1

R32 Standard Inverter Ceiling Suspended, Twin System, Three Phase

(2) PCA-M71KA / (1) PUZ-M140YAR1

R32 Standard Inverter Ceiling Suspended, Twin System, Three Phase

(2) PCA-M100KA / (1) PUZ-M200YKA

R32 Standard Inverter Ceiling Suspended, Twin System, Three Phase

(2) PCA-M125KA / (1) PUZ-M250YKA

R32 Standard Inverter Ceiling Suspended, Twin System, Three Phase

(2) PCA-M71HA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Stainless Steel Ceiling Suspended, Twin System, Single Phase

(2) PCA-M71HA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Stainless Steel Ceiling Suspended, Twin System, Three Phase

1.3.57

Air Conditioning

R32 Mr Slim Twin / Triple / Quadruple Multi-Split Systems

1.3.58

TRIPLE SYSTEMS

DESCRIPTIoN

R32 Mr Slim Twin /

(3) PLA-ZM50EA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Cassette, Triple System, Single Phase

(3) PLA-ZM50EA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Cassette, Triple System, Three Phase

Triple / Quadruple

(3) PLA-ZM60EA / (1) PUZ-ZM200YKA

R32 Power Inverter Cassette, Triple System, Three Phase

(3) PLA-ZM71EA / (1) PUZ-ZM250YKA

R32 Power Inverter Cassette, Triple System, Three Phase

Multi-Split Systems

(3) SLZ-M35FA / (1) PUZ-ZM100VKAR1

R32 Power Inverter Cassette, Triple System, Single Phase

(3) SLZ-M50FA / (1) PUZ-ZM125VKAR2

R32 Power Inverter Cassette, Triple System, Single Phase

(3) SLZ-M50FA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Cassette, Triple System, Single Phase

(3) SLZ-M35FA / (1) PUZ-ZM100YKAR1

R32 Power Inverter Cassette, Triple System, Three Phase

Inverter Heat Pump Units

(3) SLZ-M50FA / (1) PUZ-ZM125YKAR2

R32 Power Inverter Cassette, Triple System, Three Phase

(3) SLZ-M50FA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Cassette, Triple System, Three Phase

(3) PLA-M50EA / (1) PUZ-M140VAR1

R32 Standard Inverter Cassette, Triple System, Single Phase

(3) PLA-M50EA / (1) PUZ-M140YAR1

R32 Standard Inverter Cassette, Triple System, Three Phase

(3) PLA-M60EA / (1) PUZ-M200YKA

R32 Standard Inverter Cassette, Triple System, Three Phase

(3) PLA-M71EA / (1) PUZ-M250YKA

R32 Standard Inverter Cassette, Triple System, Three Phase

(3) PKA-M50HA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Wall Mounted, Triple System, Single Phase

(3) PKA-M50HA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Wall Mounted, Triple System, Three Phase

(3) PKA-M60KA / (1) PUZ-ZM200YKA

R32 Power Inverter Wall Mounted, Triple System, Three Phase

(3) PKA-M71KA / (1) PUZ-ZM250YKA

R32 Power Inverter Wall Mounted, Triple System, Three Phase

(3) PKA-M50HA / (1) PUZ-M140VAR1

R32 Standard Inverter Wall Mounted, Triple System, Single Phase

(3) PKA-M50HA / (1) PUZ-M140YAR1

R32 Standard Inverter Wall Mounted, Triple System, Three Phase

(3) PKA-M60KA / (1) PUZ-M200YKA

R32 Standard Inverter Wall Mounted, Triple System, Three Phase

(3) PKA-M71KA / (1) PUZ-M250YKA

R32 Standard Inverter Wall Mounted, Triple System, Three Phase

(3) PEAD-M50JA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Ceiling Concealed Ducted, Triple System, Single Phase

(3) PEAD-M50JA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Ceiling Concealed Ducted, Triple System, Three Phase

(3) PEAD-M60JA / (1) PUZ-ZM200YKA

R32 Power Inverter Ceiling Concealed Ducted, Triple System, Three Phase

(3) PEAD-M71JA / (1) PUZ-ZM250YKA

R32 Power Inverter Ceiling Concealed Ducted, Triple System, Three Phase

(3) PEAD-M50JA / (1) PUZ-M140VAR1

R32 Standard Inverter Ceiling Concealed Ducted, Triple System, Single Phase

(3) PEAD-M50JA / (1) PUZ-M140YAR1

R32 Standard Inverter Ceiling Concealed Ducted, Triple System, Three Phase

(3) PEAD-M60JA / (1) PUZ-M200YKA

R32 Standard Inverter Ceiling Concealed Ducted, Triple System, Three Phase

(3) PEAD-M71JA / (1) PUZ-M250YKA

R32 Standard Inverter Ceiling Concealed Ducted, Triple System, Three Phase

(3) PCA-M50KA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Ceiling Suspended, Triple System, Single Phase

(3) PCA-M50KA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Ceiling Suspended, Triple System, Three Phase

(3) PCA-M60KA / (1) PUZ-ZM200YKA

R32 Power Inverter Ceiling Suspended, Triple System, Three Phase

(3) PCA-M71KA / (1) PUZ-ZM250YKA

R32 Power Inverter Ceiling Suspended, Triple System, Three Phase

(3) PCA-M50KA / (1) PUZ-M140VAR1

R32 Standard Inverter Ceiling Suspended, Triple System, Single Phase

(3) PCA-M50KA / (1) PUZ-M140YAR1

R32 Standard Inverter Ceiling Suspended, Triple System, Three Phase

(3) PCA-M60KA / (1) PUZ-M200YKA

R32 Standard Inverter Ceiling Suspended, Triple System, Three Phase

(3) PCA-M71KA / (1) PUZ-M250YKA

R32 Standard Inverter Ceiling Suspended, Triple System, Three Phase

(3) PCA-M71HA / (1) PUZ-ZM250YKA

R32 Power Inverter Stainless Steel Ceiling Suspended, Triple System, Three Phase

(3) PCA-M71HA / (1) PUZ-M250YKA

R32 Standard Inverter Stainless Steel Ceiling Suspended, Triple System, Three Phase

QUADRUPLE SYSTEMS

DESCRIPTIoN

R32 Mr Slim Twin /

(4) PLA-ZM50EA / (1) PUZ-ZM200YKA

R32 Power Inverter Cassette, Quadruple System, Three phase

(4) PLA-ZM60EA / (1) PUZ-ZM250YKA

R32 Power Inverter Cassette, Quadruple System, Three phase

Triple / Quadruple

(4) SLZ-M35FA / (1) PUZ-ZM125VKAR2

R32 Power Inverter Cassette, Quadruple System, Single phase

(4) SLZ-M35FA / (1) PUZ-ZM140VKAR2

R32 Power Inverter Cassette, Quadruple System, Single phase

Multi-Split Systems

(4) SLZ-M35FA / (1) PUZ-ZM125YKAR2

R32 Power Inverter Cassette, Quadruple System, Three phase

(4) SLZ-M35FA / (1) PUZ-ZM140YKAR2

R32 Power Inverter Cassette, Quadruple System, Three phase

(4) PLA-M50EA / (1) PUZ-M200YKA

R32 Standard Inverter Cassette, Quadruple System, Three phase

Inverter Heat Pump Units

(4) PLA-M60EA / (1) PUZ-M250YKA

R32 Standard Inverter Cassette, Quadruple System, Three phase

(4) PKA-M50HA / (1) PUZ-ZM200YKA

R32 Power Inverter Wall Mounted, Quadruple System, Three Phase

(4) PKA-M60KA / (1) PUZ-ZM250YKA

R32 Power Inverter Wall Mounted, Quadruple System, Three Phase

(4) PKA-M50HA / (1) PUZ-M200YKA

R32 Standard Inverter Wall Mounted, Quadruple System, Three Phase

(4) PKA-M60KA / (1) PUZ-M250YKA

R32 Standard Inverter Wall Mounted, Quadruple System, Three Phase

(4) PEAD-M50JA / (1) PUZ-ZM200YKA

R32 Power Inverter Ceiling Concealed Ducted, Quadruple System, Three Phase

(4) PEAD-M60JA / (1) PUZ-ZM250YKA

R32 Power Inverter Ceiling Concealed Ducted, Quadruple System, Three Phase

(4) PEAD-M50JA / (1) PUZ-M200YKA

R32 Standard Inverter Ceiling Concealed Ducted, Quadruple System, Three Phase

(4) PEAD-M60JA / (1) PUZ-M250YKA

R32 Standard Inverter Ceiling Concealed Ducted, Quadruple System, Three Phase

(4) PCA-M50KA / (1) PUZ-ZM200YKA

R32 Power Inverter Ceiling Suspended, Quadruple System, Three Phase

(4) PCA-M60KA / (1) PUZ-ZM250YKA

R32 Power Inverter Ceiling Suspended, Quadruple System, Three Phase

(4) PCA-M50KA / (1) PUZ-M200YKA

R32 Standard Inverter Ceiling Suspended, Quadruple System, Three Phase

(4) PCA-M60KA / (1) PUZ-M250YKA

R32 Standard Inverter Ceiling Suspended, Quadruple System, Three Phase

PIPE KITS

DESCRIPTIoN

MSDD-50TR2-E

R32 Multi distribution pipe twin units - 50:50 - sizes 71/100/125/140

MSDD-50WR2-E

R32 Multi distribution pipe twin units - 50:50 - sizes 200/250

MSDT-111R3-E

R32 Multi distribution pipe triple units - 33:33:33 - sizes 100/125/140/200/250

MSDF-1111R2-E

R32 Multi distribution pipe quadruple units - 25:25:25:25 - sizes 125/140/200/250

1.3.59

Air Conditioning

R32 Mr Slim Twin / Triple / Quadruple Multi-Split Systems

1.3.60

Power Inverter outdoor Units

Product Dimensions PUZ-ZM35/50VKA

Product Dimensions PUZ-ZM60VHA, PUZ-ZM71VHAR1, PUHZ-ZRP71VHA2

Upper View

Front View

Side View

Upper View

Front View

Side View

Rear air intake

950

404.5

2 U-shaped notched holes

322

Earth terminal

(Foundation Bolt M10)

Handle for moving

Air intake

42 drain hole

22.3

175

600

175

Service panel

Installation Feet

Service panel

Side air intake

Handle for moving

for charge plug

Earth terminal

Air intake

Service panel

Air discharge

Connection for

liquid pipe

2-12

36 oval holes

4-10×21 oval hole

(foundation bolt M10)

FLARE

6.35 (1/4F)

Connection for

Air discharge

gas pipe

154.5

FLARE

12.7 (1/2F)

Front piping cover

310

Service port

Rear piping cover

Installation bolt pitch

500

809

Product Dimensions

PUZ-ZM100/125/140VKAR1/R2, PUZ-ZM100/125/140YKAR1/R2

Product Dimensions PUZ-ZM200/250YKA, PUHZ-ZRP200/250YKA3

PUHZ-ZRP100/125/140VKA3, PUHZ-ZRP100/125/140YKA3

Upper View

Front View

Side View

Upper View

Front View

Side View

Rear Air Intake

2-U shaped notched holes

(foundation bolt M10)

1050

(foundation bolt M10)

1050

225

600

225

362

Earth terminal

225

600

225

362

Earth terminal

Handle for moving

Installation Feet

Terminal connection

Installation Feet

Terminal connection

Left...Power supply wiring

Side Air Intake

Right..Indoor/Outdoor wiring

Side Air Intake

Right...Indoor/Outdoor wiring

Service panel

Air Discharge

2-12

36 Oval holes

Air Discharge

2-12

36 Oval holes

(foundation bolt M10)

Handle for moving

(foundation bolt M10)

Handle for moving

Air Intake

Model

Refrigerant GAS pipe

Refrigerant LIQUID pipe

Refrigerant GAS pipe

Refrigerant LIQUID pipe

connection

PUZ-ZM200YKA

ø19.05 (3/4F)

ø9.52 (3/8F)

ø15.88 (5/8F)

ø9.52 (3/8F)

PUZ-ZM250YKA

ø19.05 (3/4F)

ø12.7 (1/2F)

PUHZ-ZRP200YKA.UK

ø19.05 (3/4F)

ø9.52 (3/8F)

MODEL

PUZ-ZM100-140VKAR1/R2

PUHZ-ZRP250YKA.UK

ø19.05 (3/4F)

ø12.7 (1/2F)

1067

442

450

Front piping cover

BRAZING

Front piping cover

PUHZ-ZRP100-140VKA3

1...Indication of Terminal connection location.

PUZ-ZM100-140YKAR1/R2

...Indication of Terminal connection location.

Rear piping cover

2...Refrigerant GAS pipe connection (BRAZING) O.Dø25.4.

Rear piping cover

919

442

450

PUHZ-ZRP100-140YKA3

2...Indication of STOP VALVE connection location.

Indication of STOP VALVE connection location.

Standard Inverter / Inverter outdoor Units

Product Dimensions

PUZ-M100/125/140VAR1, PUZ-M100/125/140YAR1,

Product Dimensions PUZ-M200/250YKA, PUHZ-P200/250YKA3

PUZ-SM100/125/140VKA, PUZ-SM100/125/140YKA

Upper View

Front View

Side View

Upper View

Front View

Side View

Rear Air Intake

2-U Shaped notched holes

(foundation Bolt M10)

1050

225

600

225

Handle for moving

362

Earth terminal

Installation Feet

Terminal connection

Side Air Intake

Left···Power supply wiring

Right···Indoor/Outdoor wiring

Air Discharge

Service panel

2-12 x 36 Oval holes

(foundation Bolt M10)

Handle for moving

Air Intake

Model

Refrigerant GAS pipe

Refrigerant LIQUID pipe

connection

PUZ-M200YKA

ø19.05 (3/4F)

ø9.52 (3/8F)

PUZ-M250YKA

ø19.05 (3/4F)

ø12.7 (1/2F)

PUHZ-P200YKA3.UK

ø19.05 (3/4F)

ø9.52 (3/8F)

PUHZ-P250YKA3.UK

ø19.05 (3/4F)

ø12.7 (1/2F)

1...Indication of Terminal connection location.

BRAZING

Front piping cover

2...Refrigerant GAS pipe connection (BRAZING) O.Dø25.4.

3...Indication of STOP VALVE connection location.

Rear piping cover

Product Dimensions SUZ-M25/35VAR2

Product Dimensions SUZ-M50VAR2

Upper View

Front View

Side View

Upper View

Front View

Side View

Product Dimensions SUZ-M60VAR2, SUZ-M71VAR1, SUZ-SM71VA

Upper View

Front View

Side View

1.3.61

Air Conditioning

Outdoor Unit Product Dimensions

1.3.62

WALL MoUNTED UNITS

DESCRIPTIoN

Mr Slim

PAR-FL32MA

Wireless remote controller

Accessories /

4-WA

Y BLoW CASSETTE UNITS

DESCRIPTIoN

optional Extras

SLP-2FA

Grille for SLZ-M15-60FA

SLP-2FAE

3D i-see sensor grille for SLZ-M15-60FA

Indoor Units

PLP-6EA

Grille for PLA-ZM/M35-140EA / PLA-SM71-140EA

PLP-6EAE

3D i-see sensor grille for PLA-ZM/M35-140EA

PLP-6EAJ

Self elevating grille for PLA-ZM/M35-140EA / PLA-SM71-140EA

PAC-SE1ME-E

Corner panel with 3D i-see sensor for PLA-ZM/M35-140EA

PAR-SE9FA-E

Corner panel with signal receiver for PLA-ZM/M35-140EA / PLA-SM71-140EA

PAC-SJ37SP-E

Shutter plate for PLA-ZM/M35-140EA / PLA-SM71-140EA

PAC-SJ41TME

Multi-function casement for PLA-ZM/M35-140EA / PLA-SM71-140EA

PAC-SJ39HR-E

Power supply kit for PLA-ZM/M35-140EA / PLA-SM71-140EA

PAR-SL100A-E

Wireless remote controller for PLA-ZM/M35-140EA / PLA-SM71-140EA

CEILING SUSPENDED UNITS

DESCRIPTIoN

PAR-SL94B

Wireless remote controller and adaptor

PAC-SG38KF

Oil mist filter for PCA-M71HA (12 pack)

PAC-SF81KC

Decoration covers (front cover & suspending bracket) for PCA-M71HA

oUTDooR UNITS

DESCRIPTIoN

Mr Slim

PAC-SJ08DS

Drain socket set for PUZ-ZM35-50

PAC-SG61DS

Drain socket set for PUZ-ZM60-250 / PUZ-(S)M100-250 / PUHZ-ZRP71-250 / PUHZ-P200-250

Accessories /

PAC-SJ07SG

Air outlet guide for PUZ-ZM35-50

PAC-SG59SG

Air outlet guide for PUZ-ZM60-71 / PUHZ-ZRP71

optional Extras

PAC-SH96SG

Air outlet guide for PUZ-ZM100-250 / PUZ-(S)M100-250 / PUHZ-ZRP100-250 / PUHZ-P200-250

PAC-SJ06SG

Air protect guide (allows cooling at -15ºC) for PUZ-ZM35-50

outdoor Units /

PAC-SH63AG

Air protect guide (allows cooling at -15ºC) for PUZ-ZM60-71 / PUHZ-ZRP71

PAC-SH95AG

Air protect guide (allows cooling at -15ºC) for PUZ-ZM100-250 / PUZ-(S)M100-250 / PUHZ-ZRP100-250 / PUHZ-P200-250

System Control Units /

MAC-889SG

Air outlet guide for SUZ-M35

Power Supply Terminal Kits

MAC-882SG

Air outlet guide for SUZ-M50

MAC-886SG

Air outlet guide for SUZ-M60-71 / SUZ-SM71

PAC-SJ71FM-E

30Pa outdoor fan motor for PUZ-ZM100-140 / PUHZ-ZRP100-140

SYSTEM CoNTRoL UNITS

DESCRIPTIoN

PAC-SA89TA

Remote on/off adaptor (3 wire adaptor)

PAC-SA88HA

Run/fault adaptor (5 wire adaptor)

PAC-SF40RM

Run/fault interface

MAC-334IF

Interface for M-NET, MA remote controller (PAR-40MAA / PAR-CT01MAA), on/off

input and run/fault output. Now includes a heating interlock mode - when SUZ or MXZ

MAC-397IF

Interface for MA remote controller (PAR-40MAA), on/off input and run or

fault output - when SUZ or MXZ

PAC-SE41TS

Remote sensor

MAC-567IF

Interface for connection to Wi-Fi MELCloud service

PAC-SJ96MA

M-NET adaptor for PUZ-ZM35-50

PAC-SJ95MA

M-NET adaptor for PUZ-ZM60-250 / PUZ-(S)M100-250 / PUHZ-ZRP71-250 / PUHZ-P200-250

PAR-CT01MAA-SB

Touch screen wired remote controller

PAR-CT01MAA-PB

Touch screen wired remote controller (Premium Finish)

PAR-40MAA

Standard wired remote controller

MELCOBEMS MINI

Modbus and BACnet MSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input/output interface

PoWER SUPPL

Y TERMINAL KITS

DESCRIPTIoN

PAC-SJ39HR

Power supply terminal kit for PLA-ZM and PLA-M

PAC-SG94HR

Power supply terminal kit for PKA-M

PAC-SG96HR

Power supply terminal kit for PCA-M / PSA-RP

PAC-SG97HR

Power supply terminal kit for PEAD-M / PCA-M-HA

1.3.63

Air Conditioning

Mr Slim Accessories / Optional Extras
