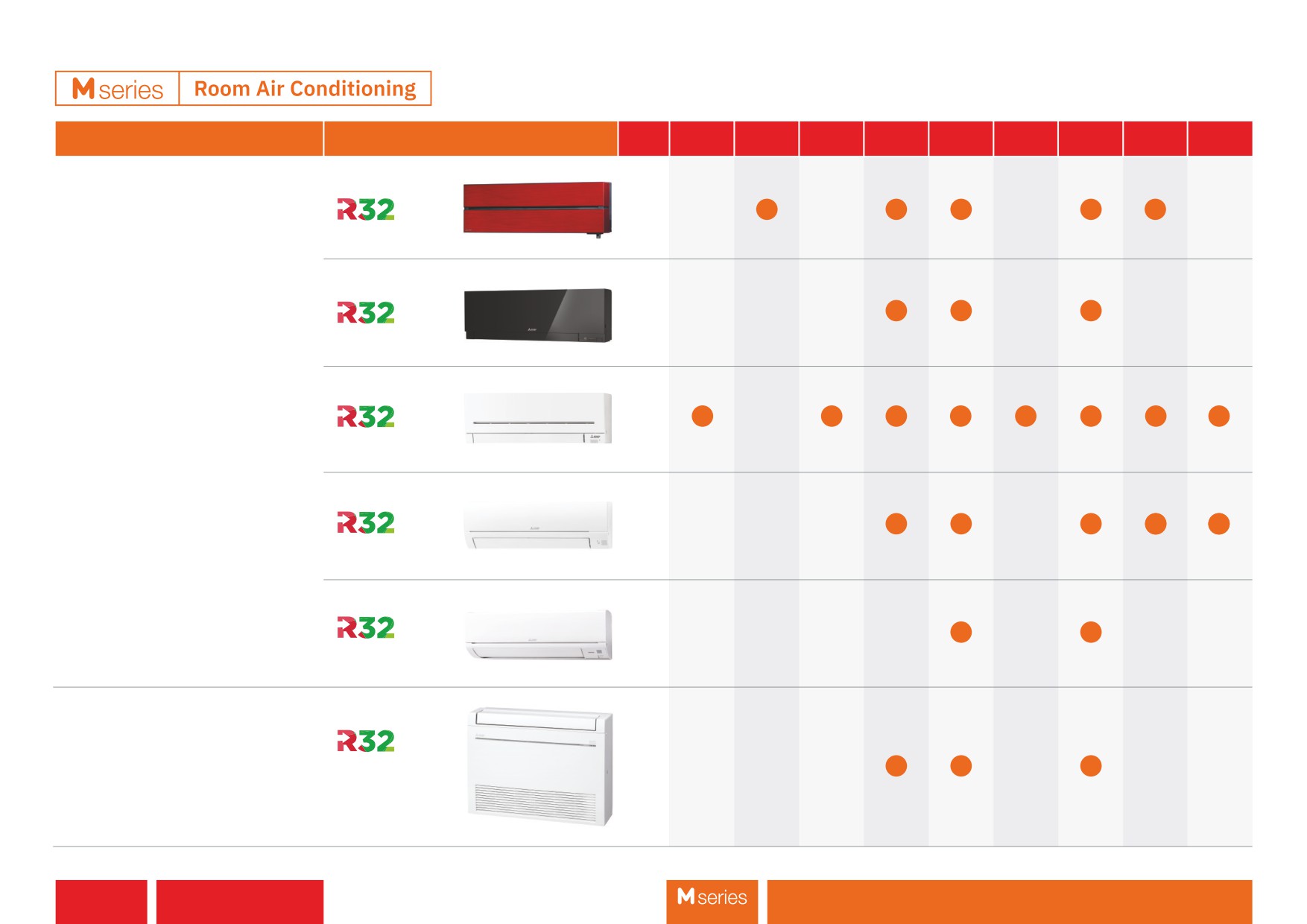

1.2.4

The Adaptable M Series Range

Designed to cool or heat small to medium sized spaces, such as

Wall Mounted Systems

retail units and small offices, the M Series splits range provides

Top of the range designer Inverter series, available in red, black or white

a versatile, yet affordable air conditioning solution.

Stylish Zen Inverter series, available in black, silver or white

Mid-range Inverter series designed to suit popular demand

Quick to install, the range includes some of the quietest units on the market. Available in

Cost effective Classic Inverter series

a variety of options, the M Series range fits in wherever it’s needed, with a choice of

wall or floor mounted indoor units.

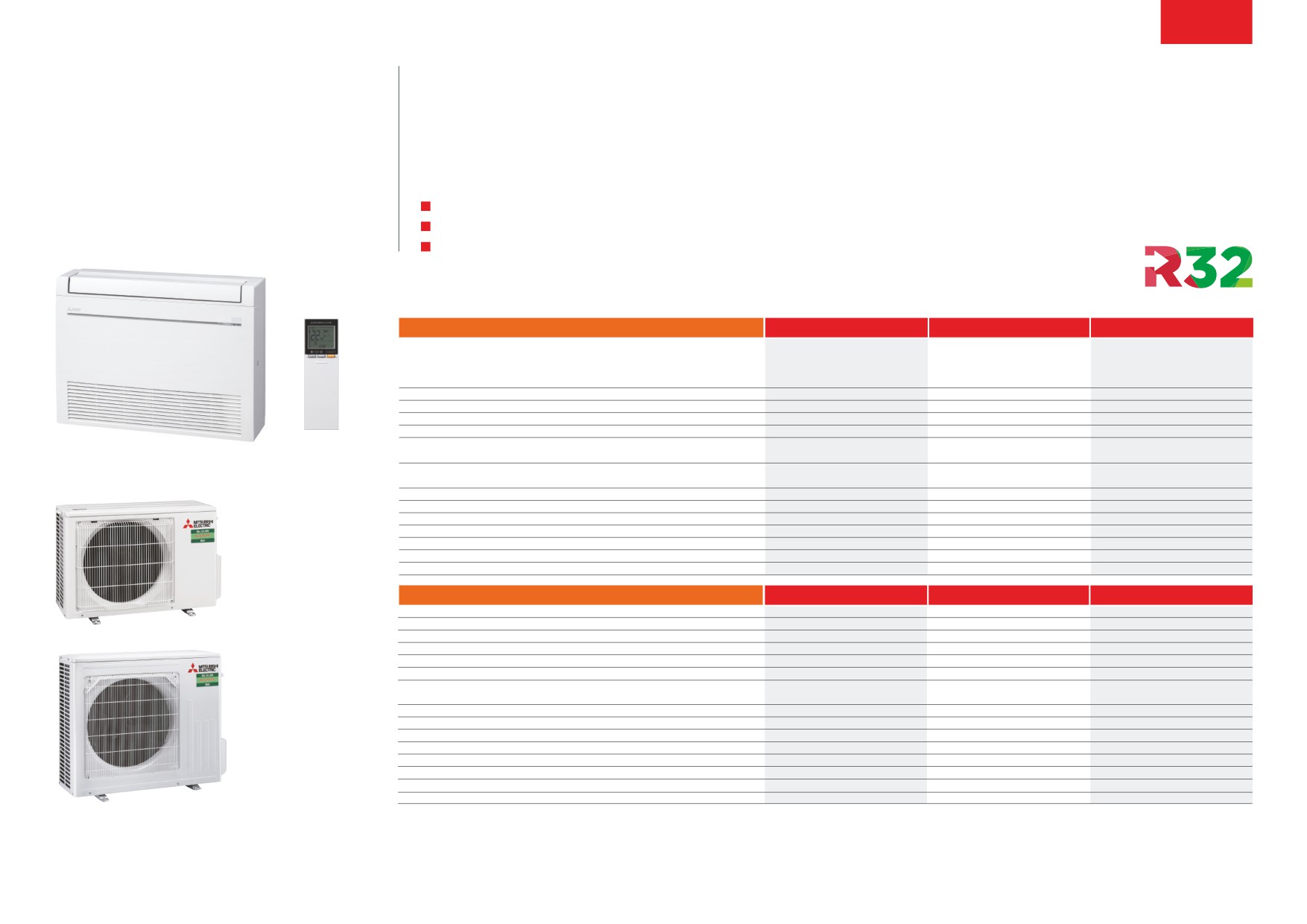

Floor Mounted Systems

Extremely versatile

Designed for wall installation at floor level

Compact design makes installation easy

3 models available from 2.5 - 5.0kW

Key Features

The entire M Series range is available using lower GWP R32 refrigerant

Wi-Fi enabled, allowing control and monitoring

via the MELCloud app (now compatible with Alexa)

Stylish indoor units, available in a variety of colours

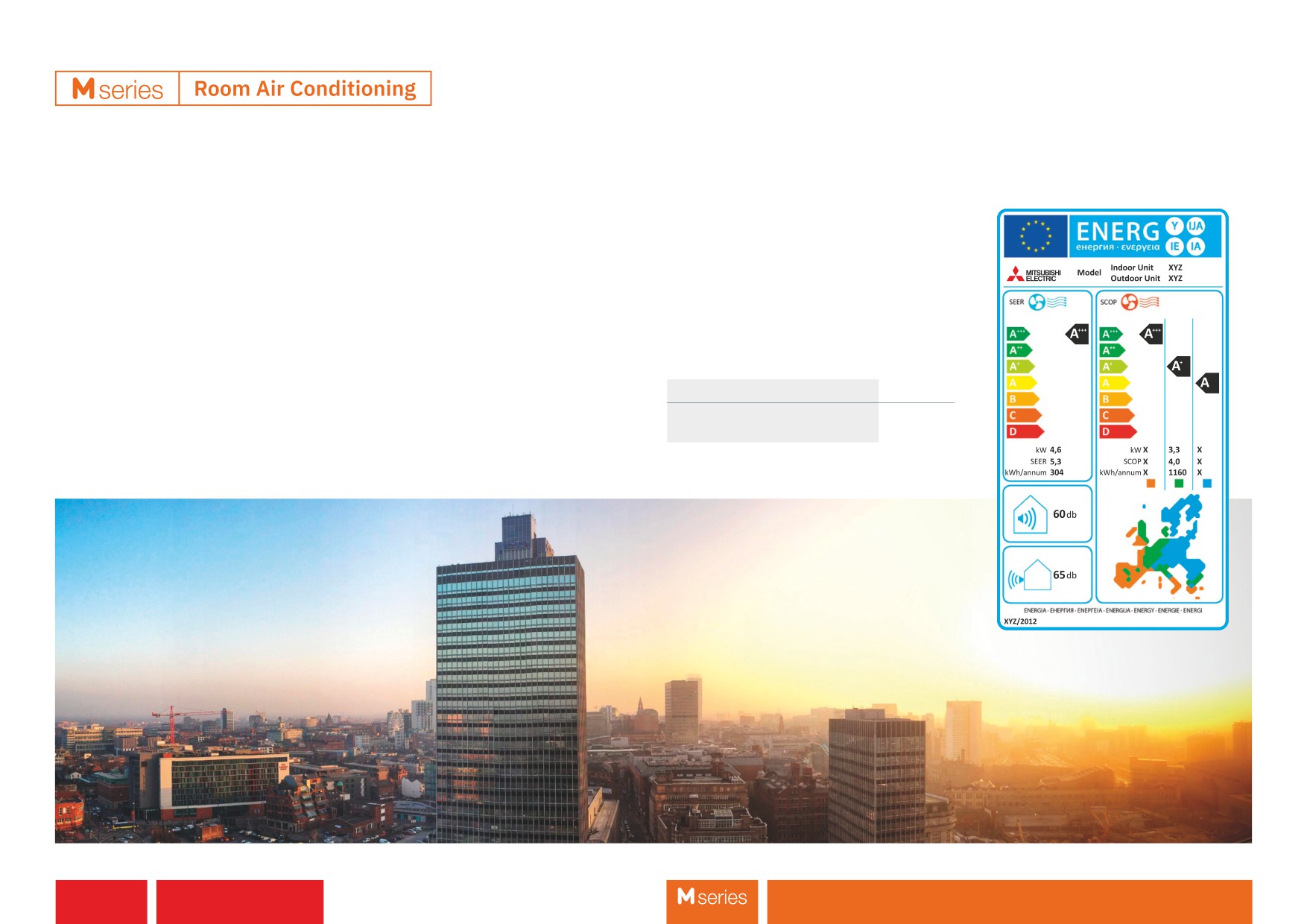

Ecodesign and Seasonal Efficiency

The European Standard BS EN14825 sets

With buildings accounting for around half of all UK greenhouse

the seasonal performance calculation for

emissions, legislation is demanding increased energy efficiency

an air conditioning system under 12kW,

in this sector.

of which the energy efficiency class for

each product specification is shown.

The Ecodesign Directive for Energy Related Products (ErP) is focusing on this area in a

bid to reduce overall energy consumption, and to accelerate market transformation

For more information visit the website

to more energy efficient products.

erp.mitsubishielectric.eu/erp

An air conditioner will vary performance over changing seasons, which means

Example:

calculating seasonal performance is important to ascertain the true performance

SCOP / SEER (BS EN14825)

4.0 / 5.3

of an air conditioning system. The Ecodesign Directive reflects this by setting

ErP ENERGY EFFICIENCY CLASS A+ / A+++

minimum efficiency requirement and a new method of measuring performance

Heating/Cooling

that has been introduced across Europe.

1.2.5

Air Conditioning

The Adaptable M Series Range

1.2.8

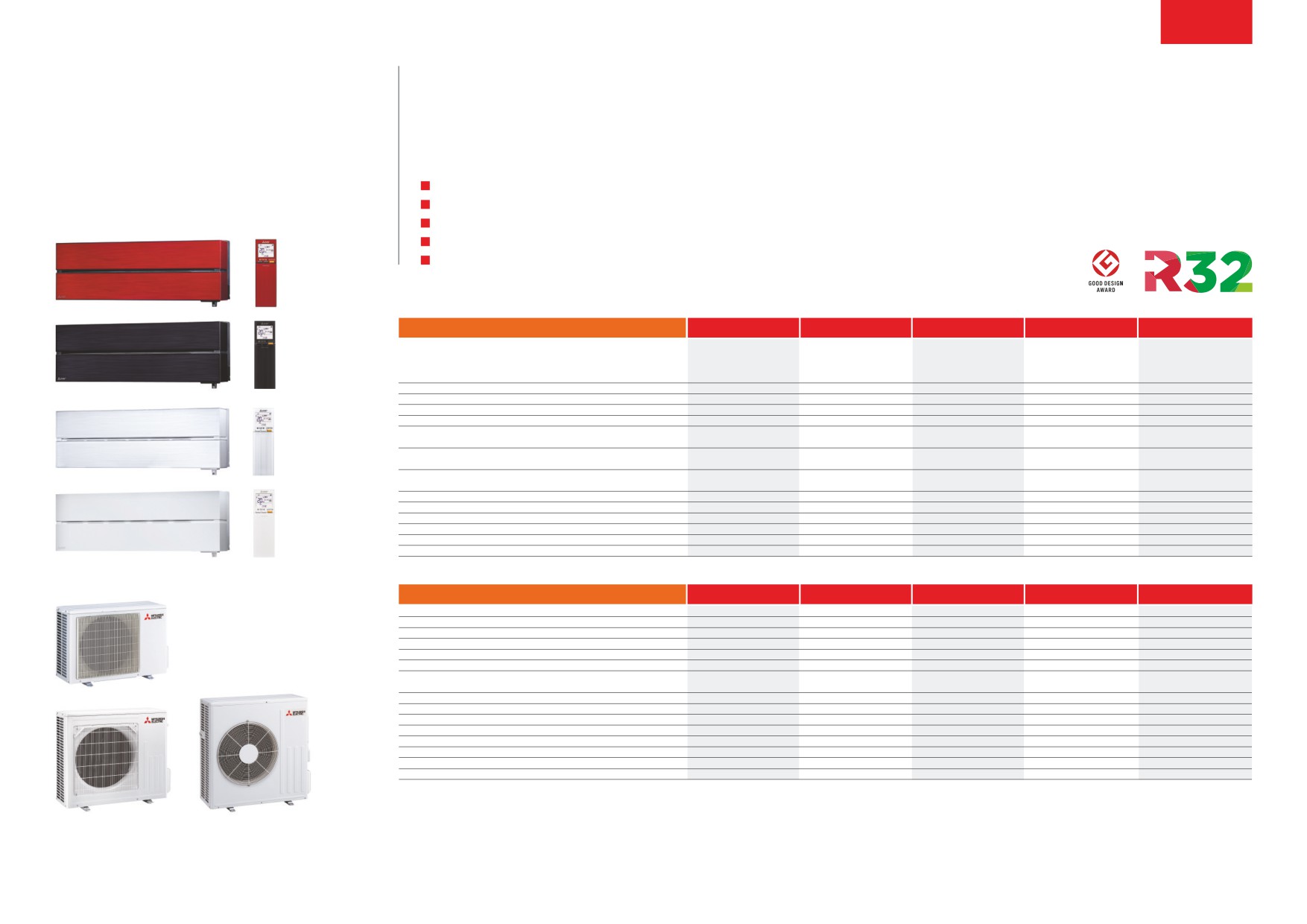

The MSZ-LN range is a wall mounted system that blends energy efficiency with a sophisticated streamlined

MSZ-LN R32

design. Finished with a choice of deep, rich colours and a premium quality feel, this range features the latest

product innovations, all designed to enhance the user experience.

Wall Mounted System

Key Features

Inverter Heat Pump

3D i-see sensor provides customised comfort by automatically monitoring room occupancy, position and body temperatures

Plasma Quad Plus filter uses powerful plasma technology to filter out even microscopic particles

Dual-Barrier Coating to the heat exchanger, fan and air duct prevents dust and grease accumulation

Built-in Wi-Fi interface enabling control and monitoring via the MELCloud app - now compatible with Alexa

New backlit controllers

Ruby Red (R)

MSZ-LN - INDOOR UNITS

MSZ-LN18VG2 R/B/V/W

MSZ-LN25VG2 R/B/V/W

MSZ-LN35VG2 R/B/V/W

MSZ-LN50VG2 R/B/V/W

MSZ-LN60VG2 R/B/V/W

CAPACITY (kW)

Heating (nominal)

2.0 (0.9 - 4.0)

3.2 (0.8 - 5.4)

4.0 (1.0 - 6.3)

6.0 (1.0 - 8.2)

6.8 (1.8 - 9.3)

Cooling (nominal)

1.8 (0.9 - 3.0)

2.5 (1.0 - 3.5)

3.5 (0.8 - 4.0)

5.0 (1.0 - 6.0)

6.1 (1.4 - 6.9)

Heating (UK)

2.64 (0.66 - 4.45)

3.3 (0.83 - 5.2)

4.94 (0.82 - 6.75)

5.6 (1.48 - 7.66)

Cooling (UK)

2.48 (0.99 - 3.47)

3.47 (0.79 - 3.96)

4.95 (0.99 - 5.94)

6.05 (1.38 - 6.84)

SHF (nominal)

0.97

0.90

0.77

0.75

Onyx Black (B)

COP / EER (nominal)

5.52 / 5.15

5.00 / 4.27

4.05 / 3.62

3.76 / 3.41

SCOP / SEER (BS EN14825)

5.2 / 10.5

5.1 / 9.5

4.6 / 8.5

4.6 / 7.5

ErP ENERGY EFFICIENCY CLASS

Heating/Cooling

A+++ / A+++

A++ / A+++

A++ / A++

AIRFLOW (l/s)

Heating (SLo-Lo-Mi-Hi-SHi)

67-95-118-142-240

71-97-118-142-228

90-107-142-178-262

110-158-192-227-262

Cooling (SLo-Lo-Mi-Hi-SHi)

71-97-118-147-198

71-97-118-147-213

95-127-148-177-232

118-147-177-212-262

PIPE SIZE mm (in)

Gas

9.52 (3/8”)

12.7 (1/2”)

Liquid

6.35 (1/4”)

Pearl White (V)

SOUND PRESSURE LEVEL (dBA)

Heating (SLo-Lo-Mi-Hi-SHi)

19-24-29-36-45

25-29-34-39-47

29-37-41-45-49

Cooling (SLo-Lo-Mi-Hi-SHi)

19-23-29-36-42

19-24-29-36-43

27-31-35-39-46

29-37-41-45-49

SOUND POWER LEVEL (dBA)

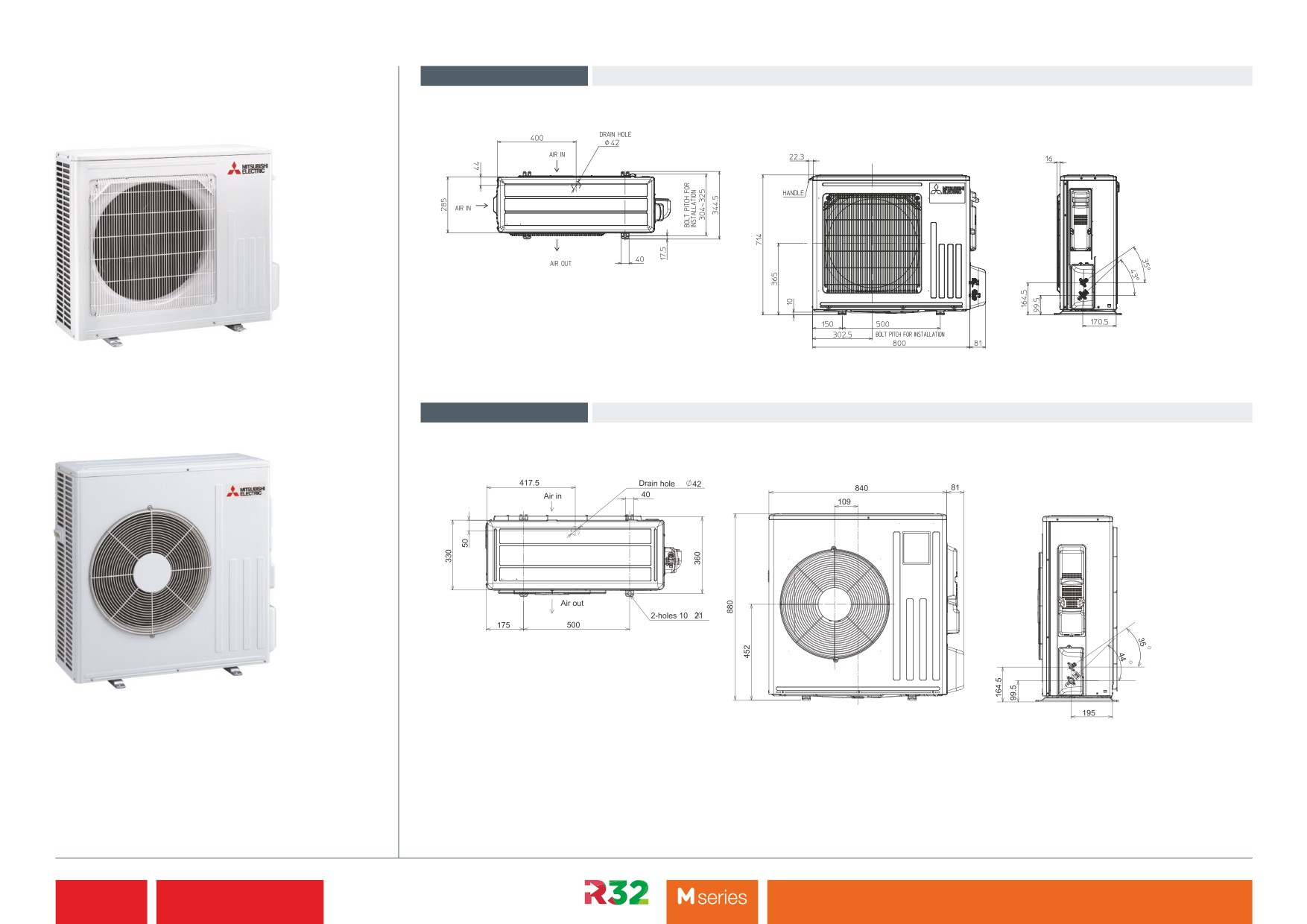

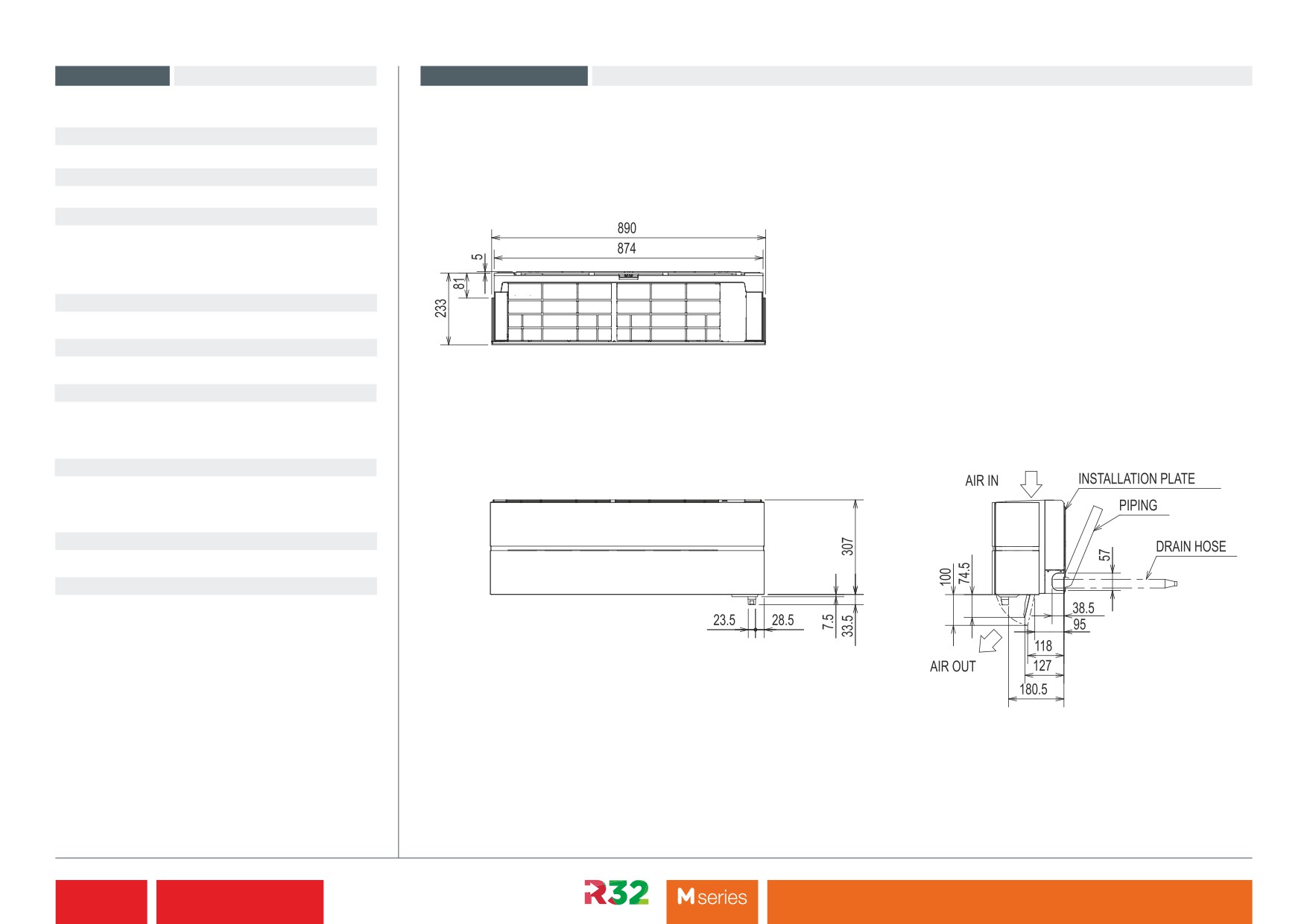

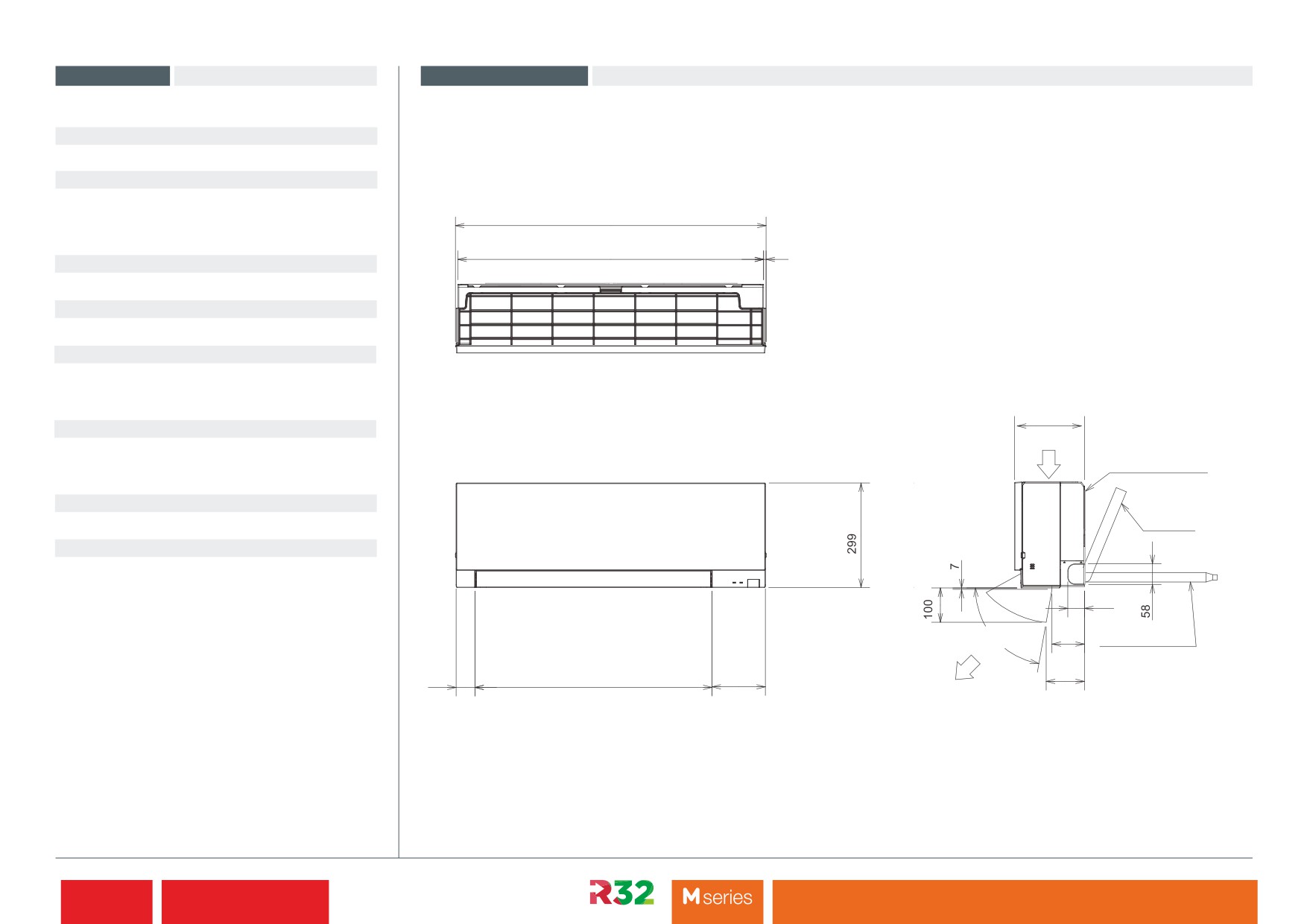

DImENSIONS (mm)

Width x Depth x Height

890 x 233 x 307

WEIGHT (kg)

15.5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. CORES

Natural White (W)

Notes: MSZ-LN18VG only available with R32 MXZ Multi-Split outdoor units. Ruby Red (R), Onyx Black (B), Pearl White (V), Natural White (W).

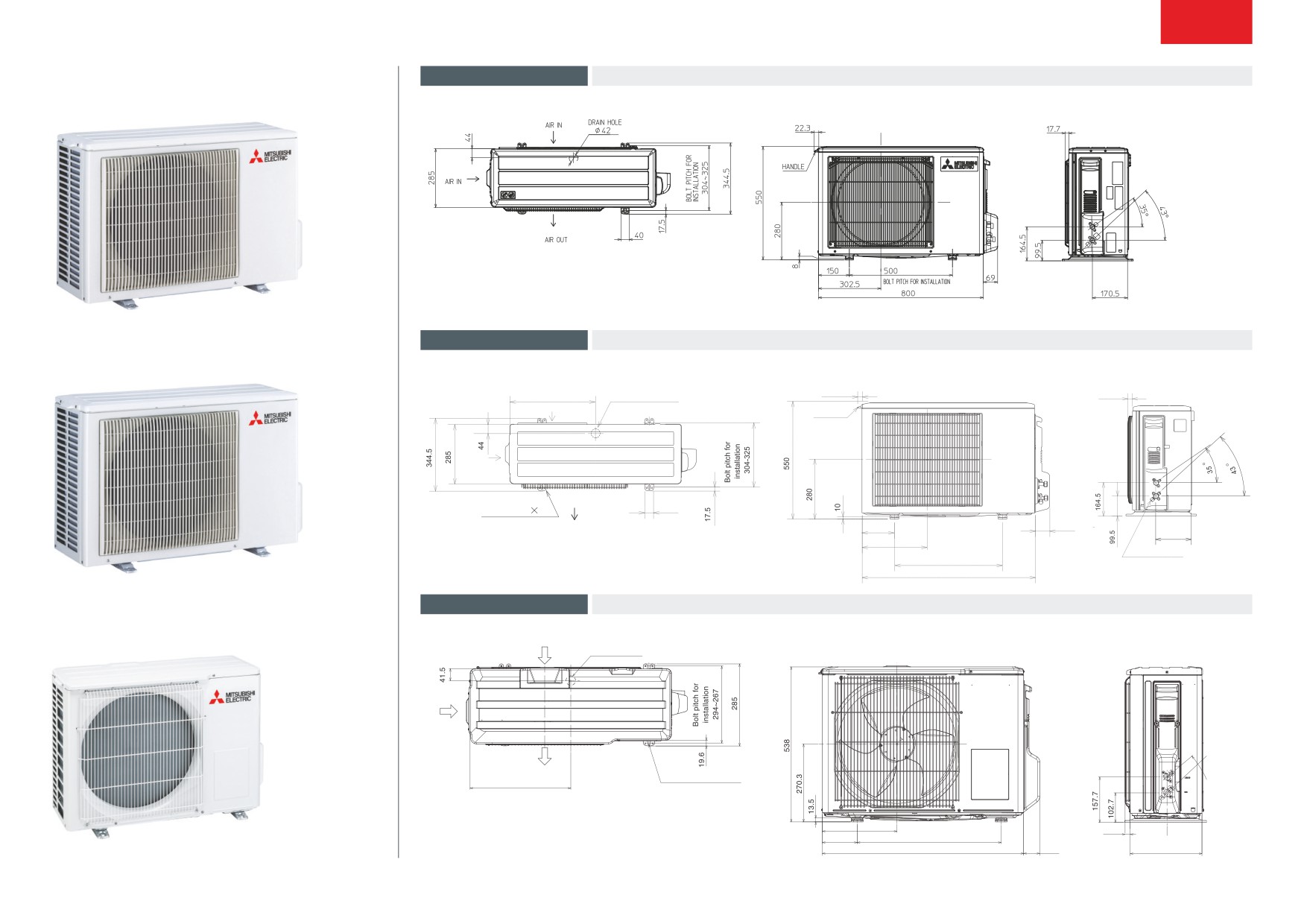

MUZ-LN - OUTDOOR UNITS

N/A MULTI-SPLIT ONLY

MUZ-LN25VG2

MUZ-LN35VG2

MUZ-LN50VG2

MUZ-LN60VG2

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

49 / 46

50 / 49

54 / 51

55 / 55

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

DImENSIONS (mm)

Width x Depth x Height

800 x 285 x 550

800 x 285 x 714

840 x 330 x 880

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEm POWER INPUT (kW)

Heating/Cooling (nominal)

0.580 / 0.485

0.800 / 0.820

1.480 / 1.380

1.810 / 1.790

Heating/Cooling (UK)

0.523 / 0.406

0.722 / 0.686

1.335 / 1.151

1.632 / 1.494

STARTING CURRENT (A)

3.0

4.0

6.8

7.9

SYSTEm RUNNING CURRENT (A)

Heating/Cooling [MAX]

3.0 / 2.5 [7.1]

4.0 / 3.9 [9.9]

6.8 / 6.3 [13.9]

7.9 / 7.9 [15.2]

FUSE RATING (BS88) - HRC (A)

mAINS CABLE No. CORES

mAX PIPE LENGTH (m)

mAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675) - 7m

1.0 / 0.68

1.25 / 0.85

1.45 / 0.98

mAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.26 / 0.18

0.46 / 0.32

1.2.10

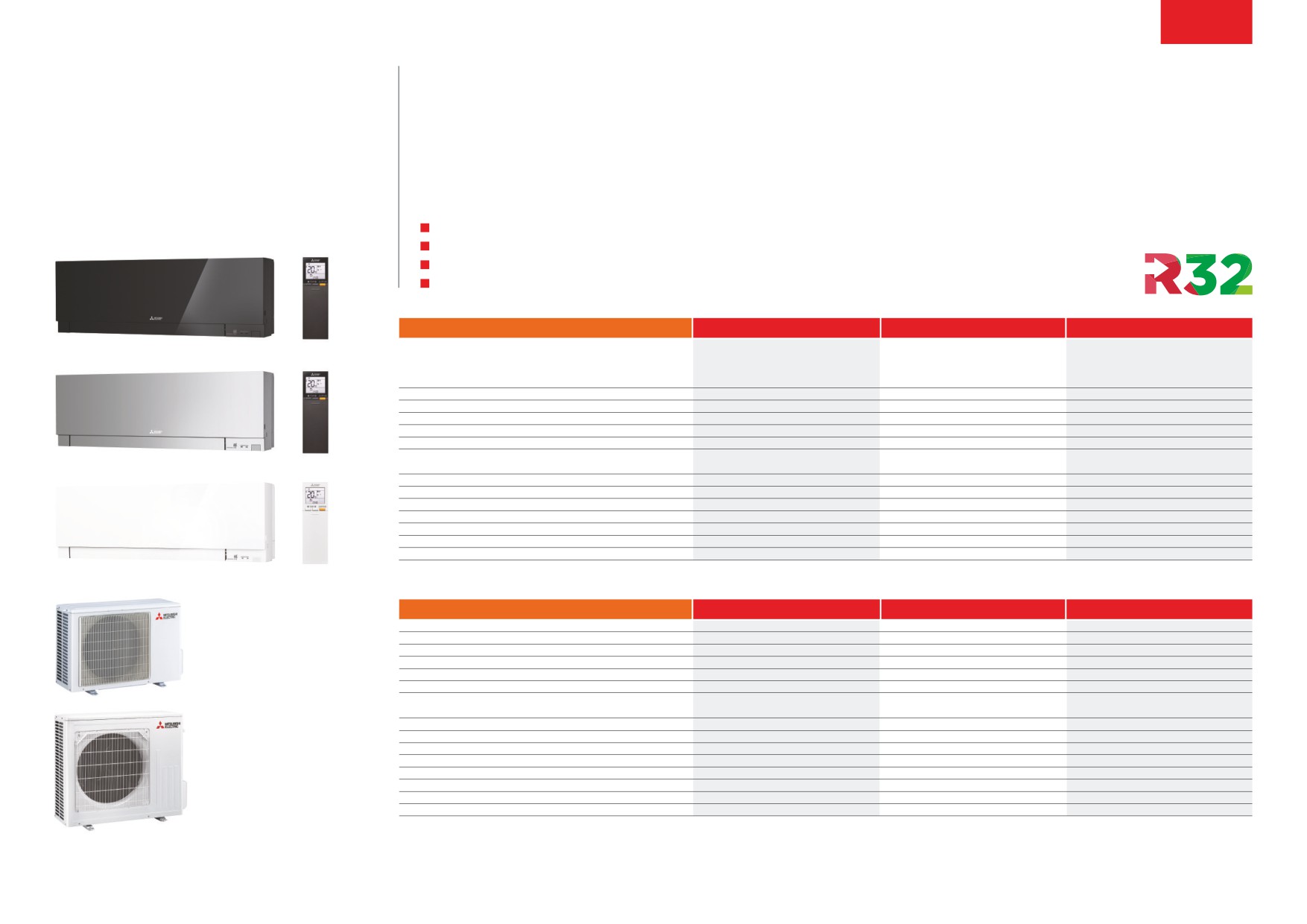

The Zen Series is a wall mounted system that blends energy efficiency with a sophisticated, streamlined design.

MSZ-EF R32

Combining an impressively low power consumption with a quiet, yet powerful performance, units have a distinctively styled front panel

that not only looks appealing, but also helps to make cleaning of the unit easier.

Zen Wall Mounted System

Designed to complement modern interior décor and suitable for a wide range of applications, Zen units blend in naturally wherever they

are installed and are available in three colours; black, silver and white. To aid control and energy saving, the universal controller has an

inbuilt 7 day timeclock.

Inverter Heat Pump

Key Features

Stylish design in a range of three distinct colours

Energy efficient operation with a powerful performance

Built-in Wi-Fi interface enabling control and monitoring via the MELCloud app - now compatible with Alexa

New backlit controllers

MSZ-EF B/S/W - INDOOR UNITS

MSZ-EF25VGK B/S/W

MSZ-EF35VGK B/S/W

MSZ-EF50VGK B/S/W

CAPACITY (kW)

Heating (nominal)

3.2 (1.0-4.2)

4.0 (1.3-5.1)

5.8 (1.4-7.5)

Black (B)

Cooling (nominal)

2.5 (0.9-3.4)

3.5 (1.1-4.0)

5.0 (1.4-5.4)

Heating (UK)

2.65 (0.91-3.49)

3.32 (1.08-4.23)

4.82 (1.16-6.23)

Cooling (UK)

2.48 (0.89-3.37)

3.47 (1.09-3.96)

4.96 (1.39-5.36)

SHF (nominal)

0.97

0.80

0.70

COP / EER (nominal)

4.57 / 4.63

4.21 / 3.85

3.72 / 3.25

SCOP / SEER (BS EN14825)

4.7 / 9.1

4.6 / 8.8

4.5 / 7.5

ErP ENERGY EFFICIENCY CLASS Heating/Cooling

A++ / A+++

A+ / A++

AIRFLOW (l/s)

Heating/Cooling - SLo-Lo-Mi-Hi-SHi

67-77-103-148-198 / 67-77-105-138-175

67-77-103-148-212 / 67-77-105-138-175

107-120-150-185-243 / 97-113-132-153-188

PIPE SIZE mm (in)

Gas

9.52 (3/8”)

Silver (S)

Liquid

6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA) Heating/Cooling - SLo-Lo-Mi-Hi-SHi

21-24-29-37-45 / 19-23-29-36-42

21-24-30-38-46 / 21-24-30-36-42

30-33-37-43-49 / 30-33-36-40-43

SOUND POWER LEVEL (dBA)

DImENSIONS (mm)

Width x Depth x Height

885 x 195 x 299

WEIGHT (kg)

11.5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. CORES

White (W)

Notes: Black (B), Silver (S), White (W)

MUZ-EF - OUTDOOR UNITS

MUZ-EF25VG

MUZ-EF35VG

MUZ-EF50VG

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

48 / 47

50 / 49

52 / 52

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

DImENSIONS (mm)

Width x Depth x Height

800 x 285 x 550

800 x 285 x 714

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEm POWER INPUT (kW)

Heating/Cooling (nominal)

0.70 / 0.54

0.95 / 0.91

1.56 / 1.54

Heating/Cooling (UK)

0.64 / 0.44

0.87 / 0.73

1.42 / 1.24

STARTING CURRENT (A)

3.6

4.4

7.1

SYSTEm RUNNING CURRENT (A)

Heating/Cooling [MAX]

3.6 / 3.0 [6.8]

4.4 / 4.2 [6.8]

7.1 / 6.9 [13.6]

FUSE RATING (BS88) - HRC (A)

mAINS CABLE No. CORES

mAX PIPE LENGTH (m)

mAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675) - 7m

0.62 / 0.42

0.74 / 0.50

1.05 / 0.71

mAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.26 / 0.18

0.46 / 0.31

1.2.12

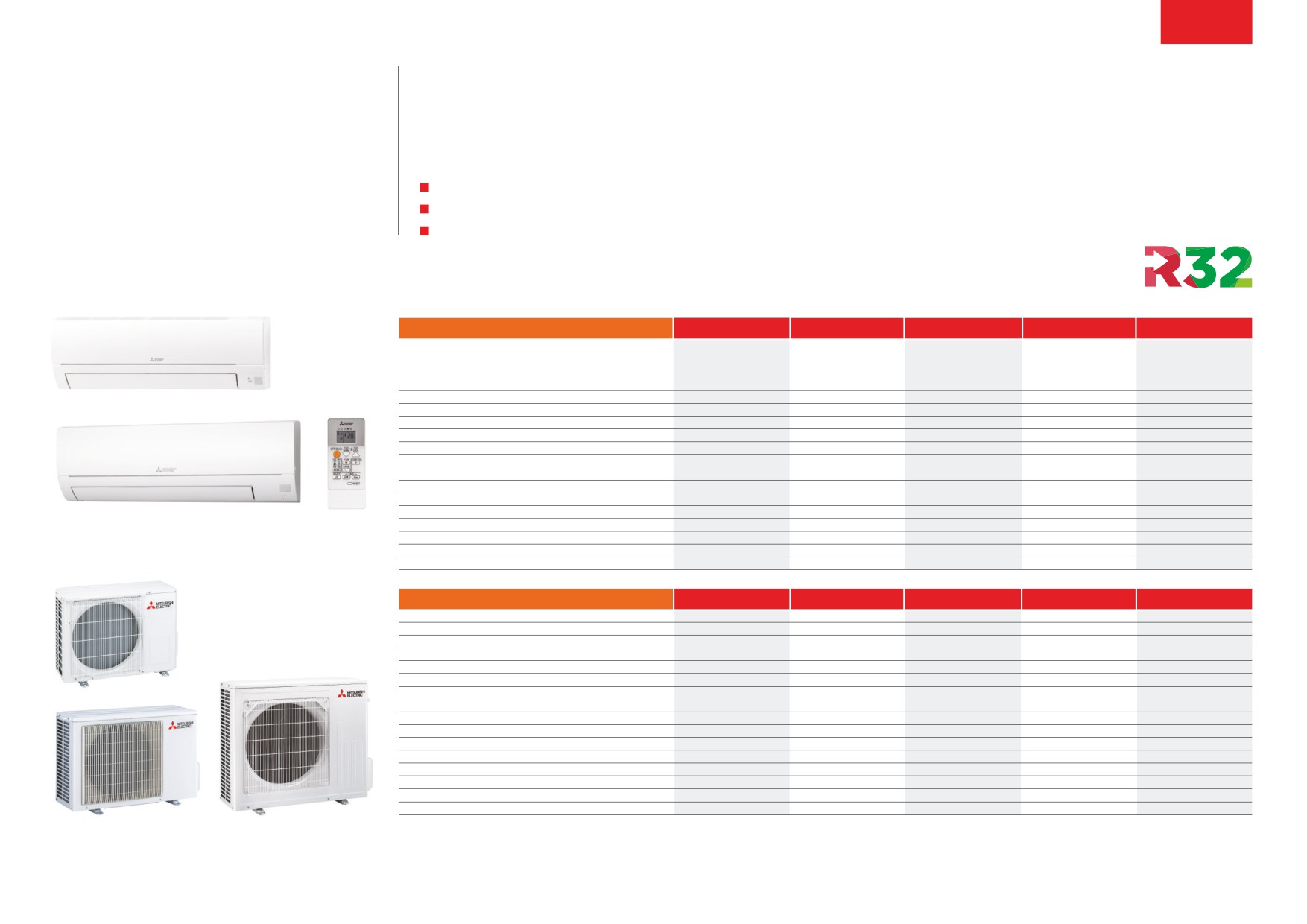

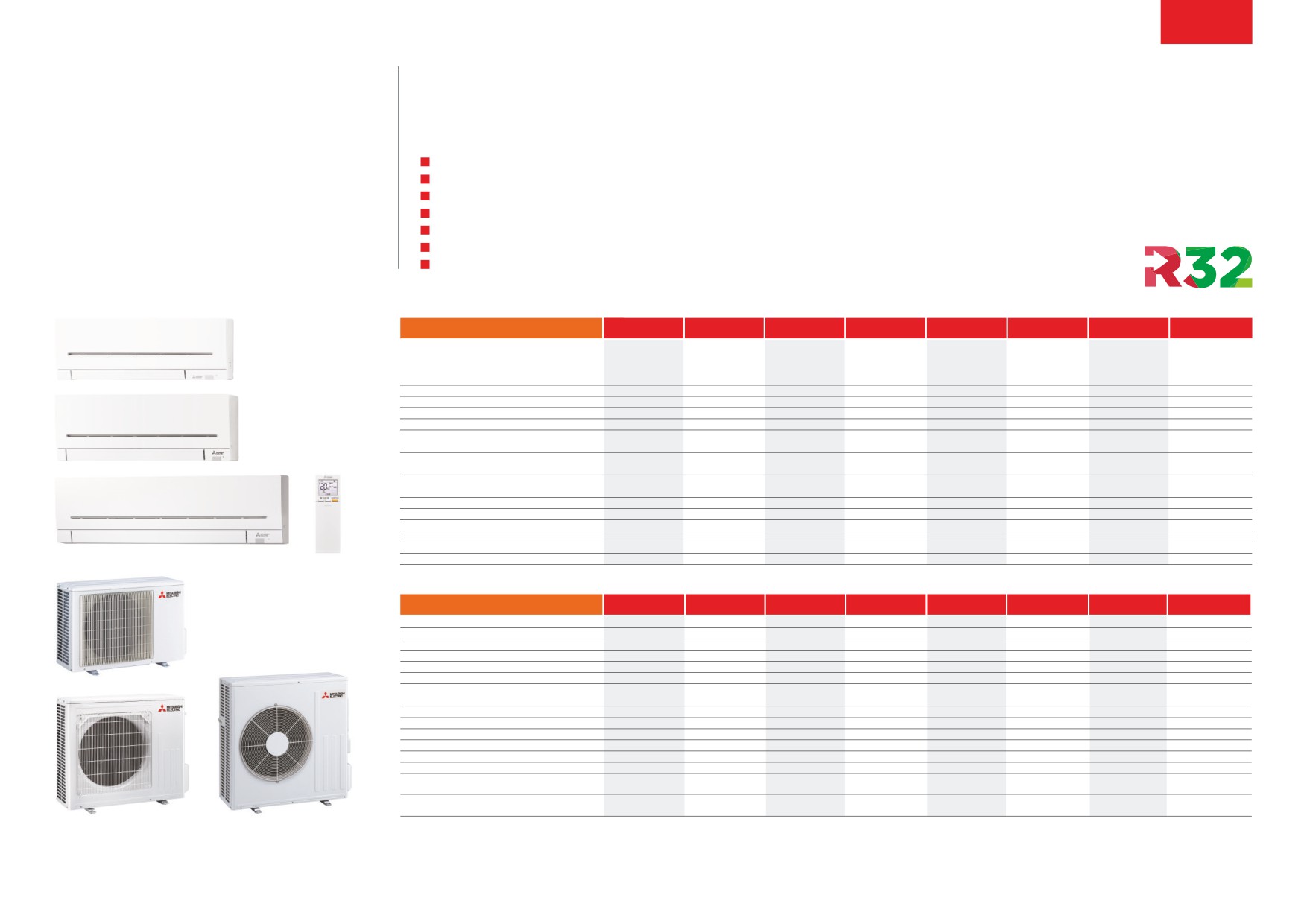

The MSZ-AP range is a wall mounted system that blends energy efficiency with a modern white design.

MSZ-AP R32

Boasting outstanding benefits, this mid-range unit includes state-of-the-art Wi-Fi control as standard.

Wall Mounted System

Key Features

Compact and stylish white design

Quiet operation with industry leading low noise levels

Inverter Heat Pump

Built in Wi-Fi interface enabling control and monitoring via the MELCloud app - now compatible with Alexa (MSZ-AP-VGK models)

Double vanes to distribute airflow evenly throughout the room

Weekly timer provides greater control of scheduling

New backlit controller

Incorporates Replace Technology, allowing the upgrade of systems utilising existing piping

MSZ-AP - INDOOR UNITS

MSZ-AP15VG

MSZ-AP20VG

MSZ-AP25VG(K)

MSZ-AP35VG(K)

MSZ-AP42VG

MSZ-AP50VG(K)

MSZ-AP60VG(K)

MSZ-AP71VG(K)

CAPACITY (kW)

Heating (nominal)

1.7 (1.2-3.0)

2.5 (1.2-3.9)

3.2 (1.0-4.1)

4.0 (1.3-4.6)

5.4 (1.3-6.0)

5.8 (1.4-7.3)

6.8 (2.0-8.6)

8.1 (2.2-10.3)

Cooling (nominal)

1.5 (0.9-2.7)

2.0 (0.9-3.0)

2.5 (0.9-3.4)

3.5 (1.1-3.8)

4.2 (0.9-4.5)

5.0 (1.4-5.4)

6.1 (1.4-7.3)

7.1 (2.0-8.7)

Heating (UK)

2.05 (0.98-3.2)

2.62 (0.8-3.4)

3.28 (1.1-3.77)

4.4 (1.1-4.9)

4.76 (1.2-6.0)

5.58 (1.64-7.05)

6.64 (1.8-7.13)

Cooling (UK)

1.86 (0.84-2.79)

2.33 (0.8-3.2)

3.26 (1.0-3.5)

3.9 (0.8-4.2)

4.65 (1.3-5.0)

5.67 (1.3-6.79)

6.6 (1.86-8.09)

SHF (nominal)

0.80

0.92

0.88

0.77

0.74

0.83

0.77

COP / EER (nominal)

4.17 / 4.34

4.10 / 4.17

3.88 / 3.54

3.62 / 3.23

3.63 / 3.23

4.07 / 3.84

3.82 / 3.53

SCOP / SEER (BS EN14825)

4.10 / 8.60

4.80 / 8.60

4.70 / 8.60

4.70 / 7.80

4.70 / 7.40

4.60 / 7.40

4.40 / 7.20

ErP ENERGY EFFICIENCY CLASS

Heating/Cooling

A+ / A+++

A++ / A+++

A++ / A++

A+ / A++

AIRFLOW (l/s)

Heating (SLo-Lo-Mid-Hi-SHi)

62-73-83-100-113

62-73-83-100-122

82-98-122-148-215

88-102-128-157-233

93-108-137-167-233

163-188-223-260-305

170-192-222-257-297

Cooling (SLo-Lo-Mid-Hi-SHi)

58-65-77-92-107

58-65-77-92-115

82-98-118-145-190

90-108-128-155-190

100-120-140-167-210

163-188-223-260-305

162-192-222-257-297

PIPE SIZE mm (in)

Gas

9.52 (3/8”)

12.7 (1/2”)

Liquid

6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA) Heating (SLo-Lo-Mid-Hi-SHi)

21-26-30-35-40

21-26-30-35-42

19-24-34-39-45

19-24-31-38-45

21-29-35-40-45

28-33-38-43-48

29-37-41-45-49

30-37-41-45-49

Cooling (SLo-Lo-Mid-Hi-SHi)

21-26-30-35-40

21-26-30-35-42

19-24-30-36-42

21-29-34-38-42

28-33-36-40-44

29-37-41-45-49

30-37-41-45-49

SOUND POWER LEVEL (dBA)

DImENSIONS (mm)

Width x Depth x Height

760 x 178 x 250

798 x 219 x 299

1100 x 257 x 325

WEIGHT (kg)

8.2

10.5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. CORES

Notes: MSZ-AP15VG only available with R32 MXZ Multi-Split outdoor units. MSZ-AP-VGK indoor units include built-in Wi-Fi adaptor.

MUZ-AP - OUTDOOR UNITS

MULTI-SPLIT ONLY

MUZ-AP20VG

MUZ-AP25VG

MUZ-AP35VG

MUZ-AP42VG

MUZ-AP50VG

MUZ-AP60VG

MUZ-AP71VG

SOUND PRESSURE LEVEL (dBA) Heating/Cooling

47 / 46

48 / 47

50 / 49

51 / 50

52 / 52

55 / 55

SOUND POWER LEVEL (dBA) Cooling

WEIGHT (kg)

DImENSIONS (mm)

Width x Depth x Height

800 x 285 x 550

800 x 285 x 714

840 x 330 x 880

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEm POWER INPUT (kW)

Heating/Cooling (nominal)

0.60 / 0.46

0.78 / 0.60

1.03 / 0.99

1.49 / 1.30

1.60 / 1.55

1.67 / 1.59

2.12 / 2.01

Heating/Cooling (UK)

0.54 / 0.43

0.70 / 0.56

0.93 / 0.93

1.38 / 1.21

1.44 / 1.46

1.50 / 1.50

1.91 / 1.89

STARTING CURRENT (A)

3.2

3.6

4.7

6.6

7.0

7.4

9.3

SYSTEm RUNNING CURRENT (A) Heating/Cooling [MAX]

3.2 / 2.6 [7.0]

3.6 / 2.9 [7.06]

4.7 / 4.5 [8.46]

6.6 / 5.8 [9.6]

7.0 / 6.9 [13.6]

7.4 / 7.1 [14.0]

9.3 / 8.8 [16.4]

FUSE RATING (BS88) - HRC (A)

mAINS CABLE No. CORES

mAX PIPE LENGTH (m)

mAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t)

0.55 / 0.38

0.55 / 0.37

0.70 / 0.47

1.00 / 0.68

1.05 / 0.71

1.50 / 1.02

- R32 (GWP 675) - 7m

mAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t)

0.26 / 0.18

0.30 / 0.21

- R32 (GWP 675)

Accessories

Product Dimensions

MSZ-AP15-20VG

Front View

Upper View

Side View

Outdoor Units

760

MAC-889SG

740

Air outlet guide for mUZ-AP20/25/35/42VG

AIR IN

INSTALLATION PLATE

MAC-882SG

PIPING

Air outlet guide for mUZ-AP50/60VG

DRAIN HOSE

MAC-886SG

Air outlet guide for mUZ-AP71VG

(66)

505

189

166

System Control Units

AIR OUT

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB = Premium Finish)

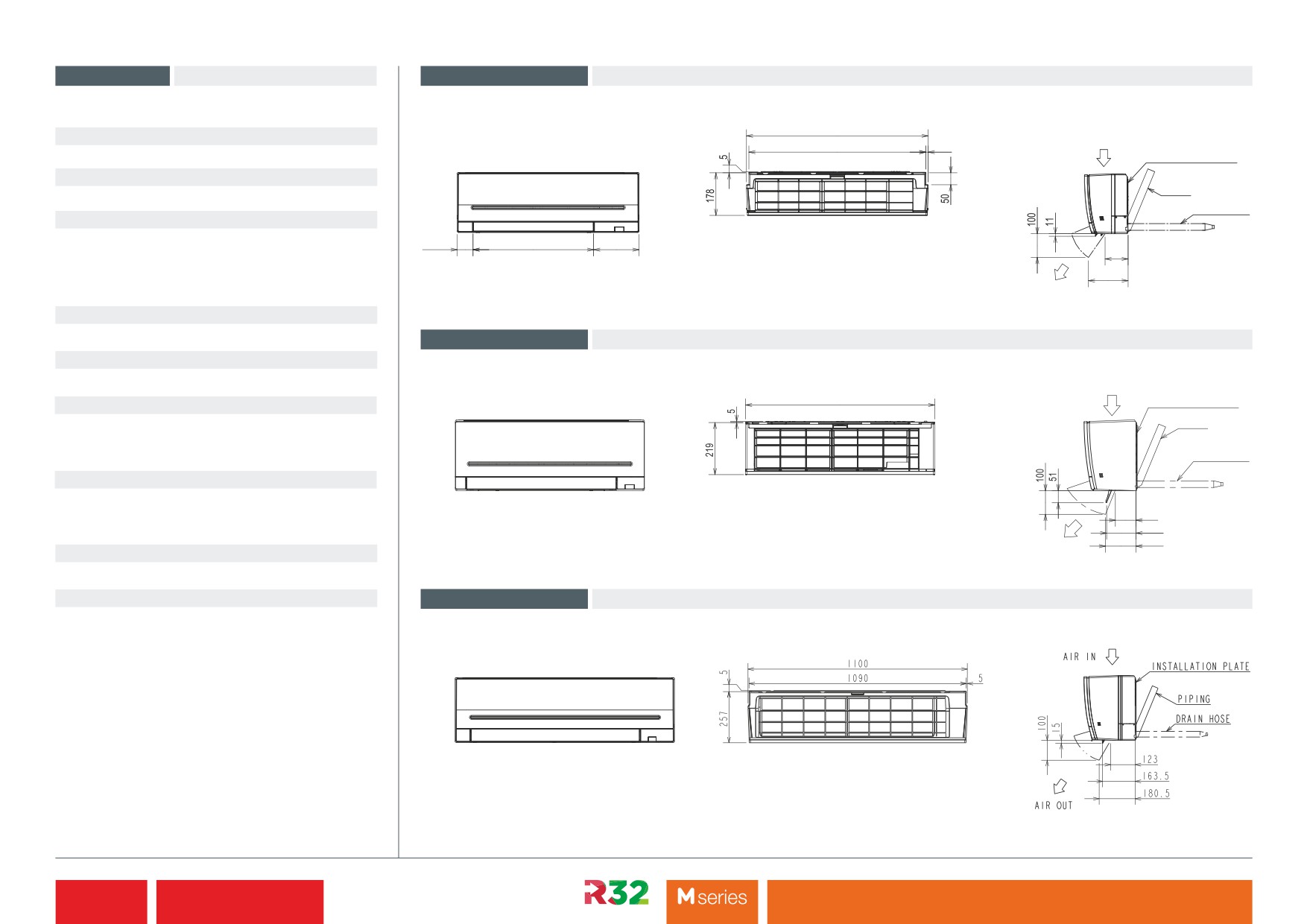

Product Dimensions

MSZ-AP25-50VG(K)

PAR-40MAA

Front View

Upper View

Side View

Standard wired remote controller

798

INSTALLATION PLATE

MAC-334IF

AIR IN

Interface for m-NET, mA remote controller

PIPING

(PAR-40mAA / PAR-CT01mAA),

on/off input and run/fault output

DRAIN HOSE

MAC-397IF

Interface for mA remote controller

(PAR-40mAA / PAR-CT01mAA),

on/off input and run or fault output

124

129

AIR OUT

MELCOBEMS MINI

modbus and BACnet mSTP CN105 adaptor

MELCORETAIL MINI

Product Dimensions MSZ-AP60-71VG(K)

Retail control and input / output interface

Front View

Upper View

Side View

1.2.13

Air Conditioning

MSZ-AP R32 Wall Mounted System

1.2.14

Mitsubishi Electric’s range of classic, flat panel wall mounted models make use of

MSZ-HR R32

inverter technology, whilst providing extremely good value for money, costing

approximately 20% less than the mSZ-AP equivalent.

Classic Wall

Mounted System

Key Features

Compact and stylish white design, including new 6.0kW and 7.1kW models

Optional Wi-Fi interface available with this range

Inverter Heat Pump

Extremely quiet sound levels, whilst also delivering economical air conditioning with improved SCOP / SEER figures

MSZ-HR - INDOOR UNITS

MSZ-HR25VF

MSZ-HR35VF

MSZ-HR50VF

MSZ-HR60VF

MSZ-HR71VF

CAPACITY (kW)

Heating (nominal)

3.15 (0.7-3.5)

3.6 (0.9-3.7)

5.4 (1.4-6.5)

6.8 (1.5-9.0)

8.1 (1.5-9.0)

Cooling (nominal)

2.5 (0.5-2.9)

3.4 (0.9-3.4)

5.0 (1.3-5.0)

6.1 (1.7-7.4)

7.1 (1.8-7.4)

Heating (UK)

2.61 (0.6-2.9)

2.99 (0.75-3.1)

4.48 (1.16-5.39)

5.64 (1.25-7.47)

6.72 (1.25-7.47)

Cooling (UK)

2.48 (0.5-2.8)

3.37 (0.89-3.4)

4.96 (1.29-4.96)

5.98 (1.67-7.25)

6.96 (1.76-7.25)

SHF (nominal)

0.78

0.73

0.79

0.74

COP / EER (nominal)

3.71 / 3.13

3.69 / 2.81

3.48 / 2.44

3.76 / 3.37

3.32 / 3.05

SCOP / SEER (BS EN14825)

4.30 / 6.20

4.30 / 6.50

4.50 / 7.20

4.30 / 7.00

ErP ENERGY EFFICIENCY CLASS

Heating/Cooling

A+ / A++

AIRFLOW (l/s)

Heating/Cooling - Lo-Mi-Hi-SHi

55-90-123-168 / 60-90-120-162

55-90-123-175 / 60-93-130-195

102-138-187-242 / 107-153-187-218

178-218-278-327 / 173-210-257-327

PIPE SIZE mm (in)

Gas

9.52 (3/8”)

12.7 (1/2”)

Liquid

6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling - Lo-Mi-Hi-SHi

21-30-37-43 / 21-30-37-43

21-30-37-44 / 22-31-38-46

27-34-41-47 / 28-36-40-45

33-38-44-50 / 33-38-44-50

SOUND POWER LEVEL (dBA)

DImENSIONS (mm)

Width x Depth x Height

838 x 228 x 280

923 x 263 x 305

WEIGHT (kg)

8.5

12.5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. CORES

MUZ-HR - OUTDOOR UNITS

MUZ-HR25VF

MUZ-HR35VF

MUZ-HR50VF

MUZ-HR60VF

MUZ-HR71VF

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

50 / 50

51 / 51

51 / 50

57 / 53

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

DImENSIONS (mm)

Width x Depth x Height

699 x 249 x 538

800 x 285 x 550

800 x 285 x 714

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEm POWER INPUT (kW)

Heating/Cooling (nominal)

0.85 / 0.80

0.98 / 1.21

1.55 / 2.05

1.81 / 1.81

2.44 / 2.33

Heating/Cooling (UK)

0.77 / 0.63

0.89 / 0.96

1.40 / 1.62

1.63 / 1.52

2.20 / 1.96

STARTING CURRENT (A)

4.1

5.9

9.0

8.0

10.8

SYSTEm RUNNING CURRENT (A)

Heating/Cooling [MAX]

4.1 / 3.8 [4.8]

4.6 / 5.9 [6.4]

6.9 / 9.0 [9.6]

8.0 / 8.0 [14.1]

11.8 / 10.3 [14.1]

FUSE RATING (BS88) - HRC (A)

mAINS CABLE No. CORES

mAX PIPE LENGTH (m)

mAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.40 / 0.27

0.45 / 0.30

0.80 / 0.54

1.05 / 0.71

mAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.26 / 0.18

0.46 / 0.32

Accessories

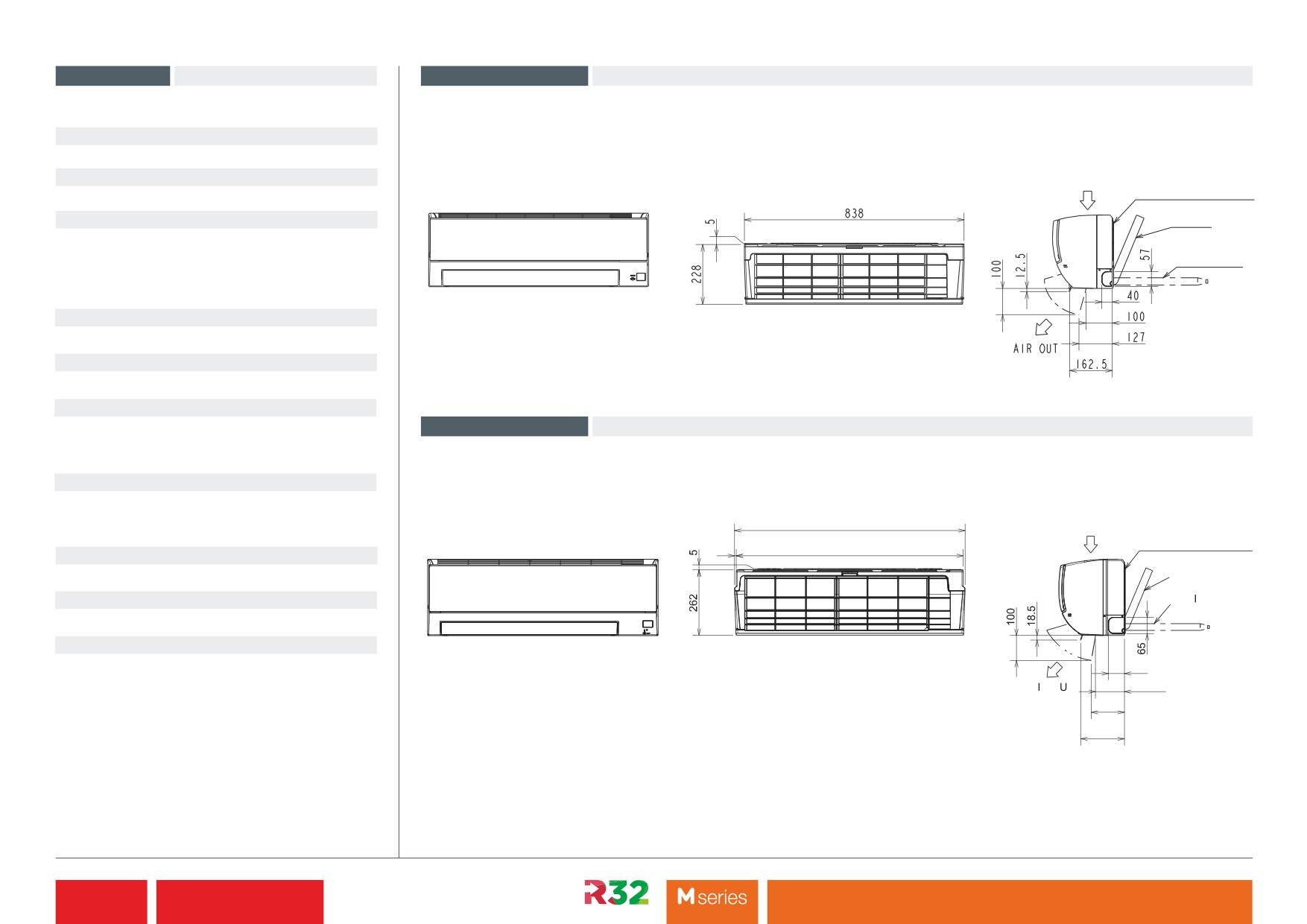

Product Dimensions MSZ-HR25/35/50VF

Outdoor Units

Upper View

Side View

Front View

MAC-883SG

Air outlet guide for mUZ-HR25/35VF

MAC-889SG

AIR IN

INSTALLATION PLATE

Air outlet guide for mUZ-HR50VF

MAC-882SG

PIPING

Air outlet guide for mUZ-HR60/71VF

DRAIN HOSE

System Control Units

PAR-CT01MAA-SB/PB

Touch screen wired remote controller (PB = Premium Finish)

PAR-40MAA

Standard wired remote controller

MAC-334IF

Interface for m-NET, mA remote controller

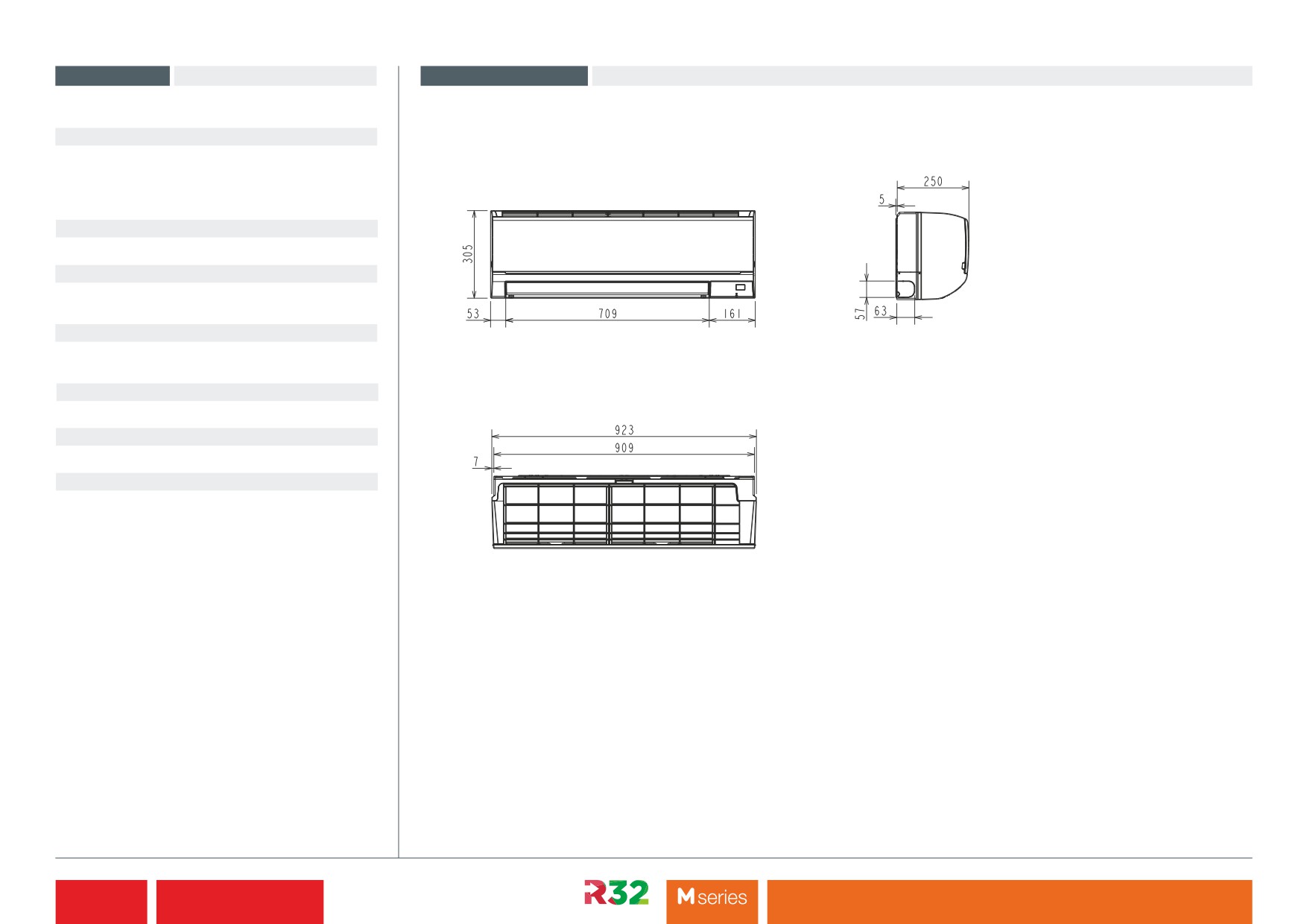

Product Dimensions MSZ-HR60/71VF

(PAR-40mAA / PAR-CT01mAA),

on/off input and run/fault output

Upper View

Side View

Front View

MAC-397IF

Interface for m-NET, mA remote controller

(PAR-40mAA / PAR-CT01mAA),

923

AIR IN

on/off input and run/fault output

INSTALLATION PLATE

909

MAC-567IF

PIPING

Interface for connection to Wi-Fi mELCloud service

MELCOBEMS MINI

DRA N HOSE

modbus and BACnet mSTP CN105 adaptor

MELCORETAIL MINI

Retail control and input / output interface

ARO T

116.5

133

175.5

1.2.15

Air Conditioning

MSZ-HR R32 Classic Wall Mounted System

1.2.16

The m Series MSY-TP R32 High SHF wall mounted system blends energy efficiency with a modern white design.

MSY-TP R32

This cooling only unit has a high sensible cooling capacity, making it ideal for small computer rooms or areas that require a greater

High SHF Wall

degree of sensible cooling. The mSY-TP also utilises lower GWP R32 refrigerant.

Mounted System

Key Features

Inverter Heat Pump

Compact and stylish white design

High sensible cooling ability

(Cooling Only)

Weekly timer provides greater control of scheduling

Cooling down to -25ºC outdoor air temperature

MSY-TP - INDOOR UNITS

MSY-TP35VF

MSY-TP50VF

CAPACITY (kW)

Cooling (nominal)

3.5 (1.5-4.0)

5.0 (1.5-5.7)

Cooling (UK)

3.47 (1.48-3.96)

4.96 (1.48-5.65)

SHF (nominal)

0.98

0.82

EER (nominal)

4.61

3.45

SEER (BS EN14825)

9.00

8.00

ErP ENERGY EFFICIENCY CLASS Cooling

A+++

A++

AIRFLOW (l/s)

Cooling - Lo-Mi-Hi-SHi

168-193-228-273

PIPE SIZE mm (in)

Gas

9.52 (3/8”)

Liquid

6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA)

Cooling - Lo-Mi-Hi-SHi

31-36-40-45

SOUND POWER LEVEL (dBA)

DImENSIONS (mm)

Width x Depth x Height

923 x 250 x 305

WEIGHT (kg)

12.5

ELECTRICAL SUPPLY

220-240v, 50Hz

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. CORES

MUY-TP - OUTDOOR UNITS

MUY-TP35VF

MUY-TP50VF

SOUND PRESSURE LEVEL (dBA)

Cooling

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

DImENSIONS (mm)

Width x Depth x Height

800 x 285 x 550

ELECTRICAL SUPPLY

Fed by Indoor Unit

PHASE

Single

SYSTEm POWER INPUT (kW)

Cooling (nominal)

0.76

1.45

Cooling (UK)

0.64

1.12

STARTING CURRENT (A)

3.6

6.4

SYSTEm RUNNING CURRENT (A)

Cooling [MAX]

3.6 [9.2]

6.4 [9.2]

FUSE RATING (BS88) - HRC (A)

mAINS CABLE No. CORES

mAX PIPE LENGTH (m)

mAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.85 / 0.57

mAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.13 / 0.09

Notes: The SHF figures are based on nominal conditions. Requires an additional MAC-334IF-E interface and PAR-40MAA wired remote controller

1.2.18

The MFZ-KT series is extremely versatile and is designed for wall attached installation at floor level.

MFZ-KT R32

The auto swing vane provides a more natural and comfortable airflow throughout the room and the lightweight, compact design

makes installation easy. To aid control and energy saving, the controller has an inbuilt 7 day timeclock.

Floor Mounted System

Inverter Heat Pump

Key Features

Simple flat asymmetrical design that harmonises with all types of interiors

Swing vane mode with autovane shutter

Optimum air distribution through the use of three uniquely shaped vanes

MFZ-KT - INDOOR UNITS

MFZ-KT25VG

MFZ-KT35VG

MFZ-KT50VG

CAPACITY (kW)

Heating (nominal)

3.4 (1.3-4.2)

4.3 (1.1-5.0)

6.0 (1.5-7.2)

Cooling (nominal)

2.5 (1.6-3.2)

3.5 (0.9-3.9)

5.0 (1.2-5.6)

Heating (UK)

2.79 (1.07-3.44)

3.53 (0.9-4.10)

4.92 (1.23-5.90)

Cooling (UK)

2.45 (1.57-3.14)

3.43 (0.88-3.82)

4.90 (1.18-5.49)

SHF (nominal)

0.79

0.70

0.72

COP / EER (nominal)

3.74 / 4.03

3.41 / 3.30

3.23 / 3.23

SCOP / SEER (BS EN14825)

4.2 / 6.5

4.4 / 6.6

4.2 / 6.8

ErP ENERGY EFFICIENCY CLASS

Heating/Cooling

A+ / A++

AIRFLOW (l/s)

Heating - Silent-Lo-Mi-Hi-SHi

58-67-93-122-162

100-128-157-193-233

Cooling - Silent-Lo-Mi-Hi-SHi

65-80-108-130-148

93-112-143-173-205

PIPE SIZE mm (in)

Gas

9.52 (3/8”)

12.7 (1/2”)

Liquid

6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling - Silent-Lo-Mi-Hi-SHi

19-23-30-37-44 / 19-24-31-37-41

29-35-40-44-49 / 28-32-37-42-48

SOUND POWER LEVEL (dBA)

DImENSIONS (mm)

Width x Depth x Height

750 x 215 x 600

WEIGHT (kg)

14.5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

INTERCONNECTING CABLE No. CORES

SUZ-M - OUTDOOR UNITS

SUZ-M25VAR2

SUZ-M35VAR2

SUZ-M50VAR2

SOUND PRESSURE LEVEL (dBA)

Heating/Cooling

46 / 45

48 / 48

49 / 48

SOUND POWER LEVEL (dBA)

Cooling

WEIGHT (kg)

DImENSIONS (mm)

Width x Depth x Height

800 x 285 x 550

800 x 285 x 714

ELECTRICAL SUPPLY

220-240V, 50Hz

PHASE

Single

SYSTEm POWER INPUT (kW)

Heating/Cooling (nominal)

0.80 / 0.71

1.07 / 1.00

1.61 / 1.54

Heating/Cooling (UK)

0.68 / 0.61

0.91 / 0.86

1.37 / 1.32

STARTING CURRENT (A)

3.7

5.0

8.0

SYSTEm RUNNING CURRENT (A)

Heating/Cooling [MAX]

3.7 / 3.0 [6.8]

5.0 / 4.1 [8.5]

8.0 / 7.1 [13.5]

FUSE RATING (BS88) - HRC (A)

mAINS CABLE No. CORES

mAX PIPE LENGTH (m)

mAX HEIGHT DIFFERENCE (m)

CHARGE REFRIGERANT (kG) / CO2 EQUIVALENT (T) - R32 (GWP 675) - 7M

0.65 / 0.44

0.90 / 0.61

1.20 / 0.81

mAX ADDITIONAL REFRIGERANT (kG) / CO2 EQUIVALENT (T) - R32 (GWP 675)

0.26 / 0.18

0.46 / 0.31

1.2.22

OUTDOOR UNITS

DESCRIPTION

M Series

mAC-889SG

Air outlet guide for mUZ-LN25/35VG2, mUZ-EF25/35VG, mUZ-AP20/25/35/42VG, mUZ-HR50VF, mUY-TP35/50VF, SUZ-m25/35VAR2

mAC-883SG

Air outlet guide for mUZ-HR25/35VF

Accessories /

mAC-882SG

Air outlet guide for mUZ-LN50VG2, mUZ-EF50VG, mUZ-AP50/60VG, mUZ-HR60/71VF, SUZ-m50VAR2

mAC-886SG

Air outlet guide for mUZ-LN60VG2, mUZ-AP71VG

Optional Extras

SYSTEM CONTROL UNITS

DESCRIPTION

PAR-40mAA

Standard wired remote controller for mSZ-LN, mSZ-EF, mSZ-AP, mSZ-HR, mSY-TP, mFZ-kT

mAC-334IF

Interface for m-NET, mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input

and run/fault output. Now includes a heating interlock mode

mAC-397IF

Interface for mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run or fault output

mAC-567IF

Interface for connection to Wi-Fi mELCloud service (Included as standard on mSZ-LN, mSZ-EF and mSZ-AP-VGk models)

PAR-CT01mAA-SB

Touch screen wired remote controller

PAR-CT01mAA-PB

Touch screen wired remote controller (Premium finish)

mELCOBEmS mINI

modbus/BACnet mSTP CN105 adaptor

mELCORETAIL mINI

Retail control and input/output interface
