The inverter driven Ecodan CRHV monobloc ground / water source heat pump can operate singly,
or be banked together to create a system that can modulate and cascade available units on and off
to meet the load from a building.
This level of modulation is unprecedented within the heating industry, and with cascade and rotation built in as standard,
CRHV
the Ecodan CRHV system is perfectly suited to a wide range of commercial applications.
Key Features
Monobloc Ground / Water
Wide range of heat sources - bore holes, slinkies, aquifers, lakes, rivers and waste heat
Source Heat Pump
Multiple unit cascade control of up to 16 units / 960kW
Ability to rotate units based on accumulated run hours
Provides up to 65°C water flow temperatures without booster heaters
Low maintenance, just electrical and water connections
Heat recovery applications can be achieved by moving heat between applications
Passive cooling possible by exchanging ground / water source with a chilled water system

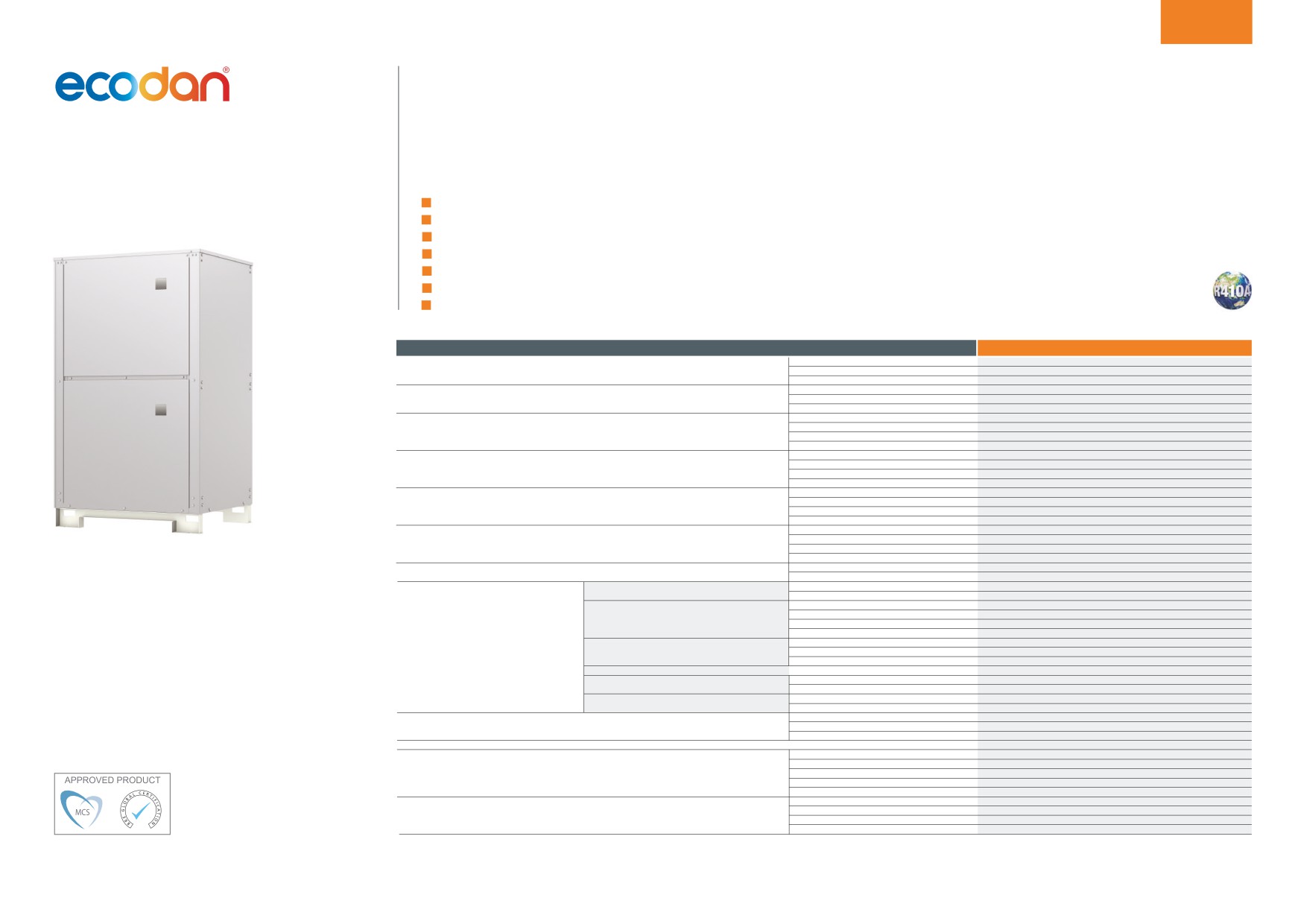

CRHV HEAT PUMP
CRHV-P600YA-HPB
HEAT PUMP SPACE HEATER - 55˚C
ErP Rating
A++
ɳs
127%
SCOP
3.37
HEAT PUMP SPACE HEATER - 35˚C
ErP Rating
A++
ɳs
153%
SCOP
4.03
HEATING*1
Capacity (kW)
60
(B0/W35)
Power Input inc. pump (kW)
14.20
COP
4.23
SEASONAL EFFICIENCY EN14825 (SPF)
B0/W35 (60kW)
4.33
HEATING*2
Capacity (kW)
45
(B0/W35)
Power Input inc. pump (kW)
10.20
COP
4.41
SEASONAL EFFICIENCY EN14825 (SPF)
B0/W35 (45kW)
4.03
HEATING*3
Capacity (kW)
60
(W10/W35)
Power Input inc. pump (kW)
11.90
COP
5.08
SEASONAL EFFICIENCY EN14825 (SPF)
W10/W35 (60kW)
5.09
HEATING*4
Capacity (kW)
45
(W10/W35)
Power Input inc. pump (kW)
8.89
COP
5.11
PLEASE NOTE: Full design criteria is needed to ascertain the capacity which could
SEASONAL EFFICIENCY EN14825 (SPF)
W10/W35 (45kW)
4.55
change based on heat source temperature and building flow temperature.
SOUND DATA
Pressure Level LpA at 1m (dBA)
50
*1 Under normal heating conditions at brine inlet: 0°C, outlet water temp 35°C as tested
Power Level LwA (dBA)*5
66
to BS EN14511 (60kW)
WATER DATA
Flow Rate Range
Heat Source (Brine) (l/s (m3/hr))
1.5 to 4.1 (5.4 to 15)
*2 Under normal heating conditions at brine inlet: 0°C, outlet water temp 35°C as tested
Building Side (LTHW) (l/s (m3/hr))
1.5 to 4.4 (5.4 to 16)
to BS EN14511 (45kW)
Mechanical Connections
Heat Source Outlet (Brine) (mm ("))
50.8 (R2) screw
*3 Under normal heating conditions at water inlet: 10°C, outlet water temp 35°C as tested
Heat Source Inlet (Brine) (mm ("))
50.8 (R2) screw
to BS EN14511 (60kW)
Building Side Outlet (LTHW) (mm ("))
50.8 (R2) screw
*4 Under normal heating conditions at water inlet: 10°C, outlet water temp 35°C as tested
to BS EN14511 (45kW)
Building Side Inlet (LTHW) (mm ("))
50.8 (R2) screw
*5 Sound power level as tested to BS EN12102
Operating Temperature Range
Heat Source Inlet (Brine) (°C)
-5 to +27
*6 Heat source inlet temperature above 27ºC and up to 45°C option must reverse the inlet
Heat Source Inlet Option (Brine) (°C)*6
-5 to +45
and outlet heat source connections and refer to manual for dip switch changes
Building Side Outlet (LTHW) (°C)
+30 to +65
*7 The system should be adequately protected from freezing
Heat Source Fluid Type*7
Min 30% Ethylene Glycol or equivalent
*8 MCB Sizes BS EN60898-2 & BS EN60947-2
Pressure Drop
Heat Source (Brine) (kPa)
12
* LTHW - Low Temperature Hot Water
(at 1.5l/s inc 30% glycol in heat source fluid)
Building Side (LTHW) (kPa)
7
* Please use adequate frost protection to ensure pipework and the unit do not freeze
Maximum Working Pressure
Heat Source (Brine) (MPa(Bar))
1 (10)
if the system is powered down
Building Side (LTHW) (MPa(Bar))
1 (10)
* Please do not use ground water or well water directly within the unit

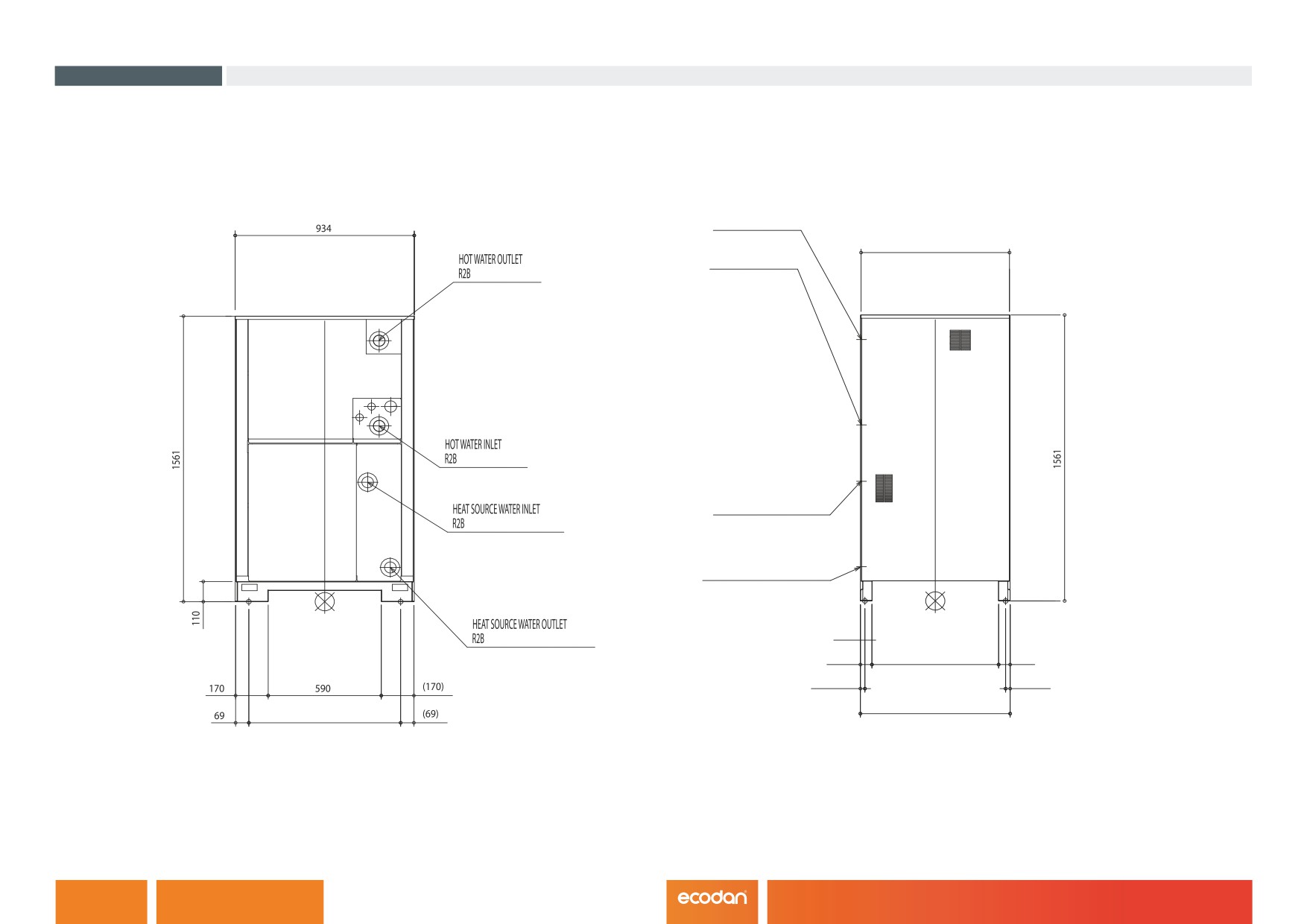

DIMENSIONS
Width (mm)
934
* The water circuit must be a closed circuit
Depth (mm)
780
Height (mm)
1561
ɳs is the seasonal space heating energy efficiency (SSHEE)
WEIGHT (kg)
395
ɳwh is the water heating energy efficiency
REFRIGERANT
Type
R410A
Charge (kg) / CO2 Equivalent (t)
9 / 18.7
Max pressure (MPa (Bar))
4.15
(41.5)
Compressor Type
Inverter Driven
Circuit type
Hermetically Sealed System
ELECTRICAL DATA
Electrical Supply
415v, 50Hz
Phase
3
Maximum Running Current (A)
44
Fuse Rating - MCB Size (A)*8
50
Certificate Number: MCS HP0002
Product Type: Heat Pumps
Product Reference: CRHV-P600YA-HPB
