4.30

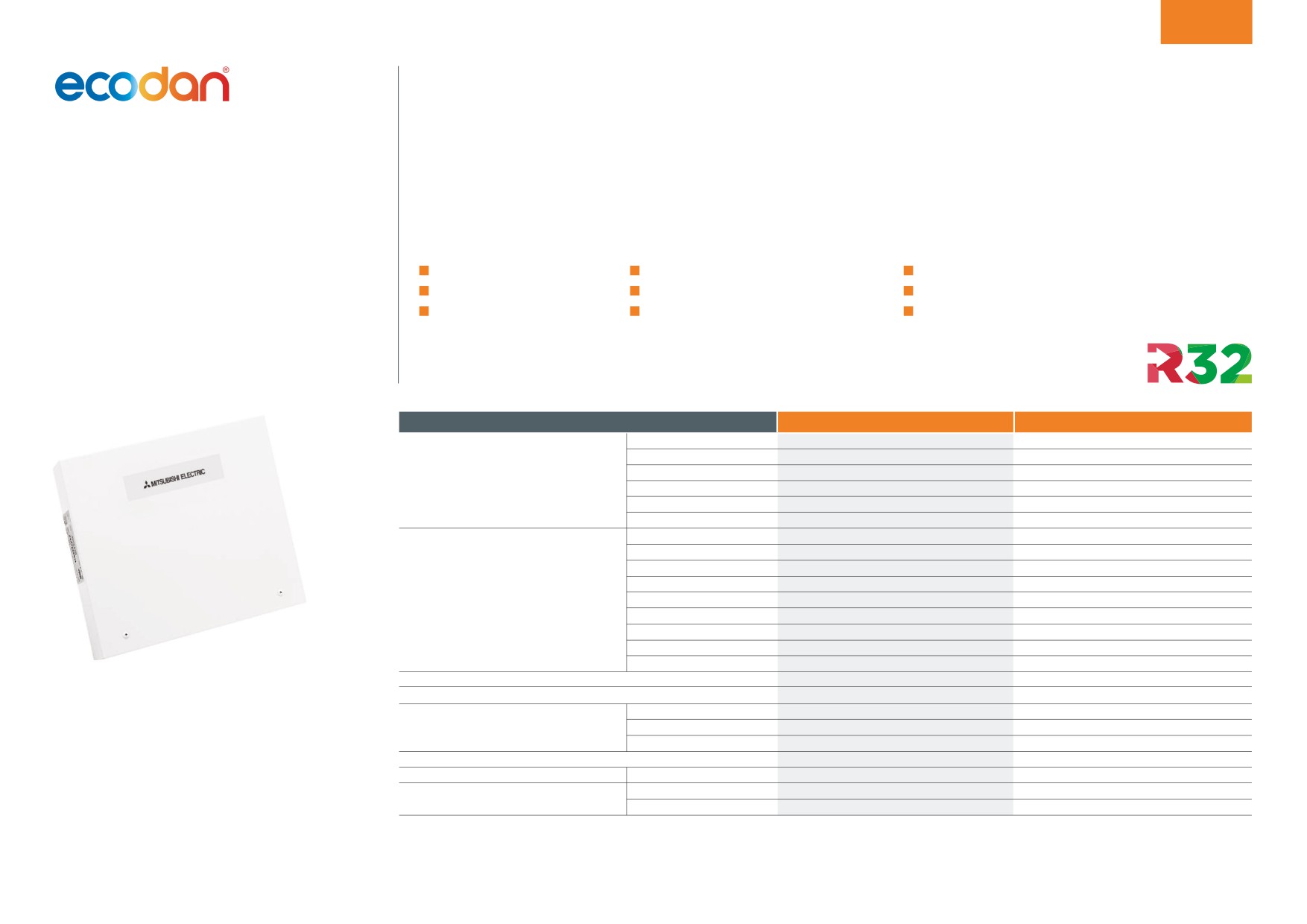

The FTC6 Flow Temperature Controller is designed specifically by Mitsubishi Electric to integrate
with the Ecodan PUZ monobloc air source heat pump range and a third party cylinder.
The FTC2BR has been developed to allow the Ecodan PUZ range to interface with third party or BEMS
FTC6 / FTC2BR
(Building Energy Management System) controls. A combination of volt free and voltage inputs allow the
Ecodan PUZ monobloc range to be used in applications where only simple on/off and temperature
Flow Temperature
control is required.
Functions that can be controlled and monitored by third party controls:
Controllers
Controlled
Monitored
On/Off heating mode
On/Off holiday mode
Unit running
On/Off heating ECO mode
On/Off legionella mode
Error
For use with Ecodan
On/Off hot water mode
Change water flow temperature
Defrost
Monobloc Units and
Third Party BEMS
The ability to interface with third party controls opens up a huge number of application opportunities. Many processes
simply require a heat source that provides hot water, without polished end user controls. The FTC2BR controller allows the
Ecodan PUZ to be used in these applications. FTC2BR inputs and outputs can be used in conjunction with local BEMS.
FLOW TEMPERATURE CONTROLLERS
FTC6 (PAC-IF072B-E)
FTC2BR (PAC-IF033B-E)
COMPATIBILITY
PUZ-WM50VHA(-BS)
PUZ-WM60VAA(-BS)
PUZ-WM85VAA(-BS)
PUZ-WM112VAA(-BS)
PUZ-HWM140VHA/YHA(-BS)
PUHZ-HW140VHA/YHA2(-BS)
BUILT-IN FEATURES
Initial Setting Wizard
Comissioning Aide
Smart Grid Ready
PV Connection
Energy Monitoring
Dual Set-Point DHW
Silent-Mode
Cascade*1
Hybrid
MELCloud*2
-
BEMS INTERFACE
DIMENSIONS (MM)
Width
393
336
Depth
86.7
69
Height
422
278
WEIGHT (kg)
4.1
3.2
OPERATING AMBIENT TEMPERATURE (°C) / HUMIDITY
0~ +35ºC (RH<80%)
0~ +35ºC (RH<80%)
ELECTRICAL DATA
Electrical Supply
Via Outdoor Unit or Independent Source (230v)
Via Outdoor Unit or Independent Source (230v)
Phase
Single
Single
*1 Requires Optional part(s) PAC-SIF051B-E. Please contact your regional sales office technical team.
*2 Requires Wi-Fi interface MAC-567IF-E.

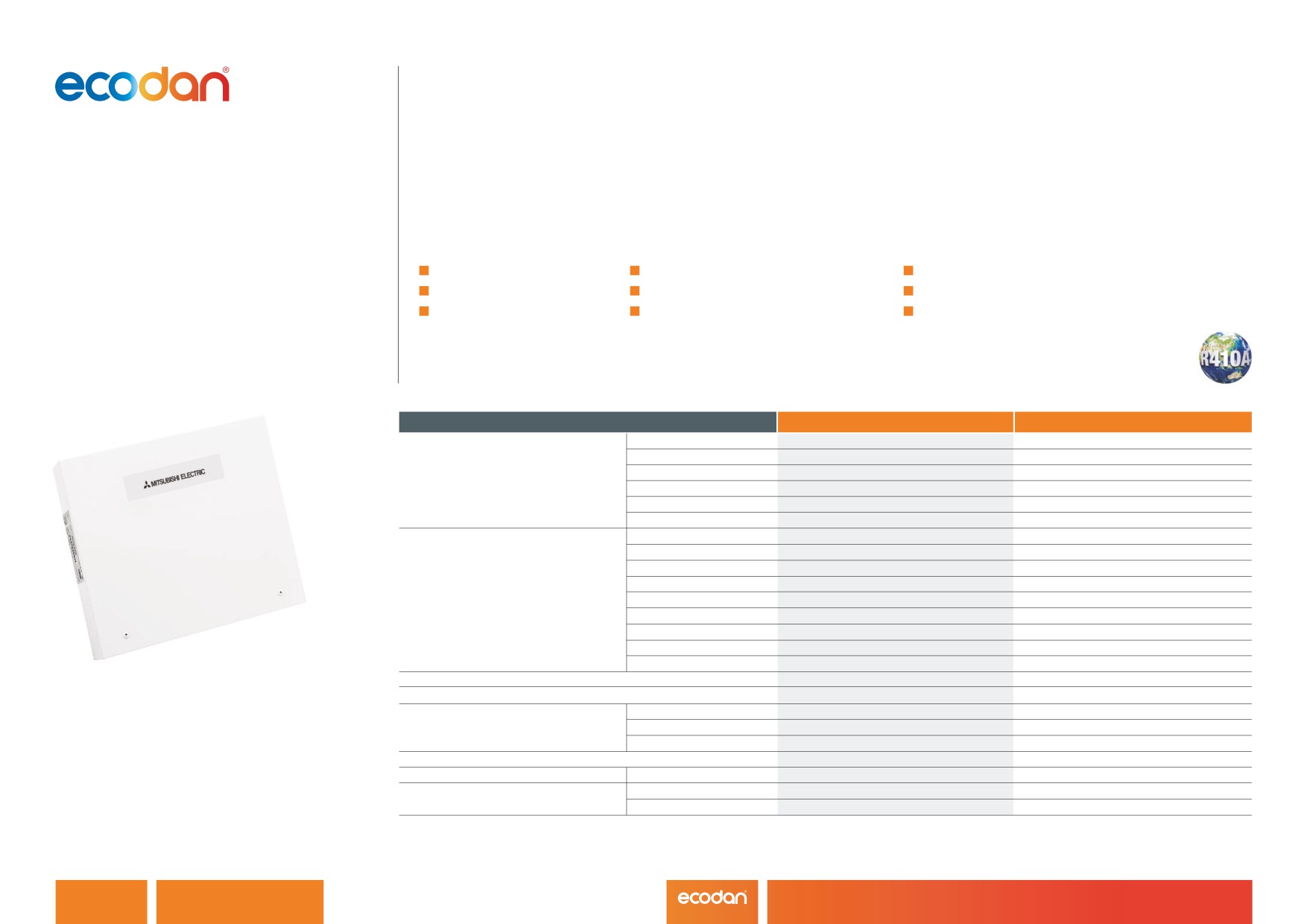

The FTC5 Flow Temperature Controller is designed specifically by Mitsubishi Electric to integrate
with the Ecodan PUHZ monobloc air source heat pump range and a third party cylinder.
The FTC2B has been developed to allow the Ecodan PUHZ range to interface with third party or BEMS
FTC5 / FTC2B
(Building Energy Management System) controls. A combination of volt free and voltage inputs allow the
Ecodan PUHZ monobloc range to be used in applications where only simple on/off and temperature
Flow Temperature
control is required.
Functions that can be controlled and monitored by third party controls:
Controllers
Controlled
Monitored
On/Off heating mode
On/Off holiday mode
Unit running
On/Off heating ECO mode
On/Off legionella mode
Error
For use with Ecodan
On/Off hot water mode
Change water flow temperature
Defrost
Monobloc Units and
Third Party BEMS
The ability to interface with third party controls opens up a huge number of application opportunities. Many processes
simply require a heat source that provides hot water, without polished end user controls. The FTC2B controller allows the
Ecodan PUHZ to be used in these applications. FTC2B inputs and outputs can be used in conjunction with local BEMS.
FLOW TEMPERATURE CONTROLLERS
FTC5 (PAC-IF062B-E)
FTC2B (PAC-IF032B-E)
COMPATIBILITY
PUZ-WM50VHA(-BS)
PUZ-WM60VAA(-BS)
PUZ-WM85VAA(-BS)
PUZ-WM112VAA(-BS)
PUZ-HWM140VHA/YHA(-BS)
PUHZ-HW140VHA/YHA2(-BS)
BUILT-IN FEATURES
Initial Setting Wizard
Comissioning Aide
Smart Grid Ready
PV Connection
Energy Monitoring
Dual Set-Point DHW
Silent-Mode
Cascade*1
Hybrid
MELCloud*2
-
BEMS INTERFACE
DIMENSIONS (MM)
Width
393
336
Depth
86.7
69
Height
422
278
WEIGHT (kg)
4.4
3.2
OPERATING AMBIENT TEMPERATURE (°C) / HUMIDITY
0~ +35ºC (RH<80%)
0~ +35ºC (RH<80%)
ELECTRICAL DATA
Electrical Supply
Via Outdoor Unit or Independent Source (230v)
Via Outdoor Unit (230v)
Phase
Single
Single
*1 Requires Optional part(s) PAC-SIF051B-E. Please contact your regional sales office technical team.
*2 Requires Wi-Fi interface MAC-567IF-E.
FTC6 / FTC2BR Flow Temperature Controllers
4.31
Heating
FTC5 / FTC2B Flow Temperature Controllers
