The Ecodan QUHZ system combines a 4kW outdoor unit with a 200 litre Thermal Store and is the ideal

plug and play heating and hot water solution for properties with a low space heating requirement.

With very low market leading noise levels for its class and highly efficient hot water generation due to its unique

CO₂ system design, this compact space saving product is capable of providing instantaneous hot water and

QUHZ-W-VA

removes the risk of legionella.

Monobloc Air Source Heat Pump

Key Features

Self contained system, only requires water connections and can be powered via the Thermal Store

With Thermal Store

No need for gas supply, flues or ventilation

Low maintenance and very quiet operation

Operates with outside temperatures as low as -15°C

Optimised low ambient defrost control and operation

Capable of being used in domestic hot water generation mode only

Energy monitoring as standard

OUTDOOR UNIT

QUHZ-W40VA

THERMAL STORE

EHPT20Q-VM2EA

HEAT PUMP COMBINATION

ErP Rating

A+

NOMINAL THERMAL STORE WATER VOLUME (LITRES)

200

HEATER - 55ºC

WATER TEMPERATURE RANGE

DHW Mode (°C)

40-70

ɳ_s

117%

Space Heating Mode (°C)

25-60

SCOP

2.90

MECHANICAL ZONES

DHW and 1 Heating Zone

HEAT PUMP COMBINATION

ErP Rating

(2 Zone capability with 3rd party 2-port valves)

HEATER - Large Profile^*1

ɳ_wh

129%

OPERATING AMBIENT TEMPERATURE (°C DB)

0 ~ +35°C (RH<80%)

COP

3.00

SOUND PRESSURE LEVEL AT 1M (dBA)

HEATING^*2

Capacity (kW)

4.32

SOUND POWER LEVEL (dBA)^*4

(A-3/W55)

Power Input (kW)

2.18

WATER DATA

Primary Pump

Grundfos Solar PML 25-145 180

COP

1.98

Sanitary Hot Water Pump

Grundfos Solar PML 25-145 180

OPERATING AMBIENT TEMPERATURE (°C DB)

-15 ~ +35

Connection Size (mm) Heating / DHW

22 / 22

SOUND PRESSURE LEVEL AT 1M (dBA)^*3

Primary Expansion Vessel (Litres)

SOUND POWER LEVEL (dBA)^*4

Charge Pressure (MPa (Bar))

0.1 (1)

WATER DATA

Pipework Size (mm)

WATER SAFETY DEVICES

Pressure relief valve (Mpa (Bar))

0.3 (3) - 2 No. devices

Flow Rate (l/min)

3 to 8

Flow sensor (supplied)

Min. flow 1.3 L/min

Manual reset thermostat (ºC)

DISTANCE BETWEEN OUTDOOR

Height Difference

UNIT AND THERMAL STORE

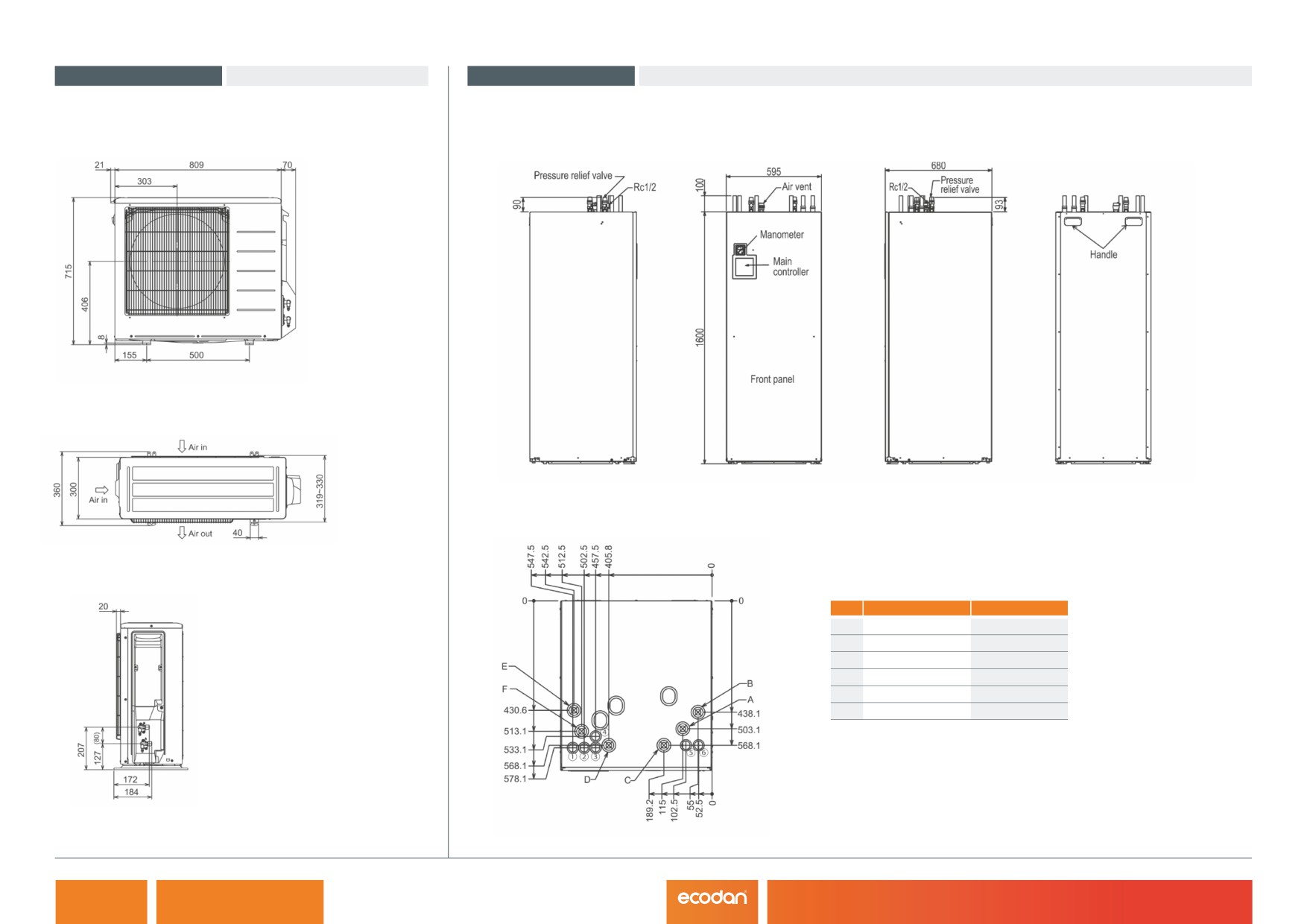

DIMENSIONS (mm)

Width

595

(m)

Piping Length

Depth

680

Height

1600

DIMENSIONS (mm)

Width

809+70^*5

WEIGHT EMPTY / FULL (kg)

77 / 283

Depth

300+20^*5

ELECTRICAL DATA

Electrical Supply

220-240v, 50Hz

Height

715

Phase

Single

WEIGHT (kg)

Maximum Running Current (A)

12.8

ELECTRICAL DATA

Powered from indoor unit

Fuse Rating - MCB Sizes (A)^*6

REFRIGERANT CHARGE (kg)

OPTIONAL SIMPLIFIED WIRELESS ROOM THERMOSTAT

PAR-WT50-E Controller

R744 (GWP 1)

1.15 / 0.0015

/ CO2

EQUIVALENT (t)

AND WIRELESS RECEIVER

and PAR-WR51-E Receiver

*1 Combination with EHPT20Q-VM2EA Thermal Store.

*2 Under normal heating conditions at outdoor temp: -3°CDB / -4°CWB, outlet water temp 55°C, inlet water temp 47°C.

*3 Under normal heating conditions at outdoor temp: 7°CDB / 6°CWB, outlet water temp 55°C, inlet water temp 47°C as tested to BS EN14511.

*4 Sound power level tested to BS EN12102.

*5 Grille or pipe cover.

*6 MCB Sizes BS EN60898-2 & BS EN60947-2.

ɳs is the seasonal space heating energy efficiency (SSHEE)

ɳwh is the water heating energy efficiency

Certificate Number: MCS HP0002

Product Type: Heat Pumps

Product Reference: QUHZ-W40VA
