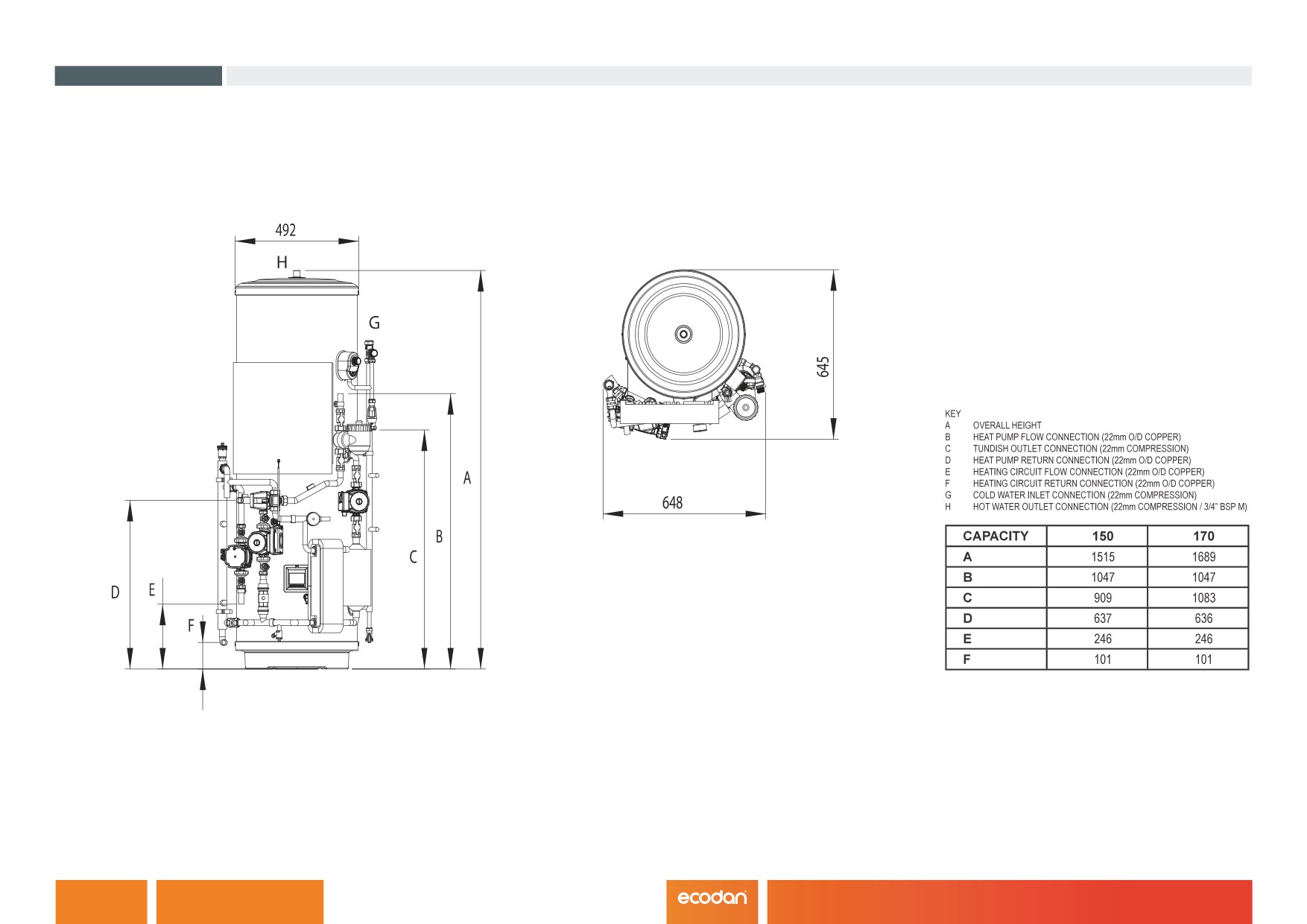

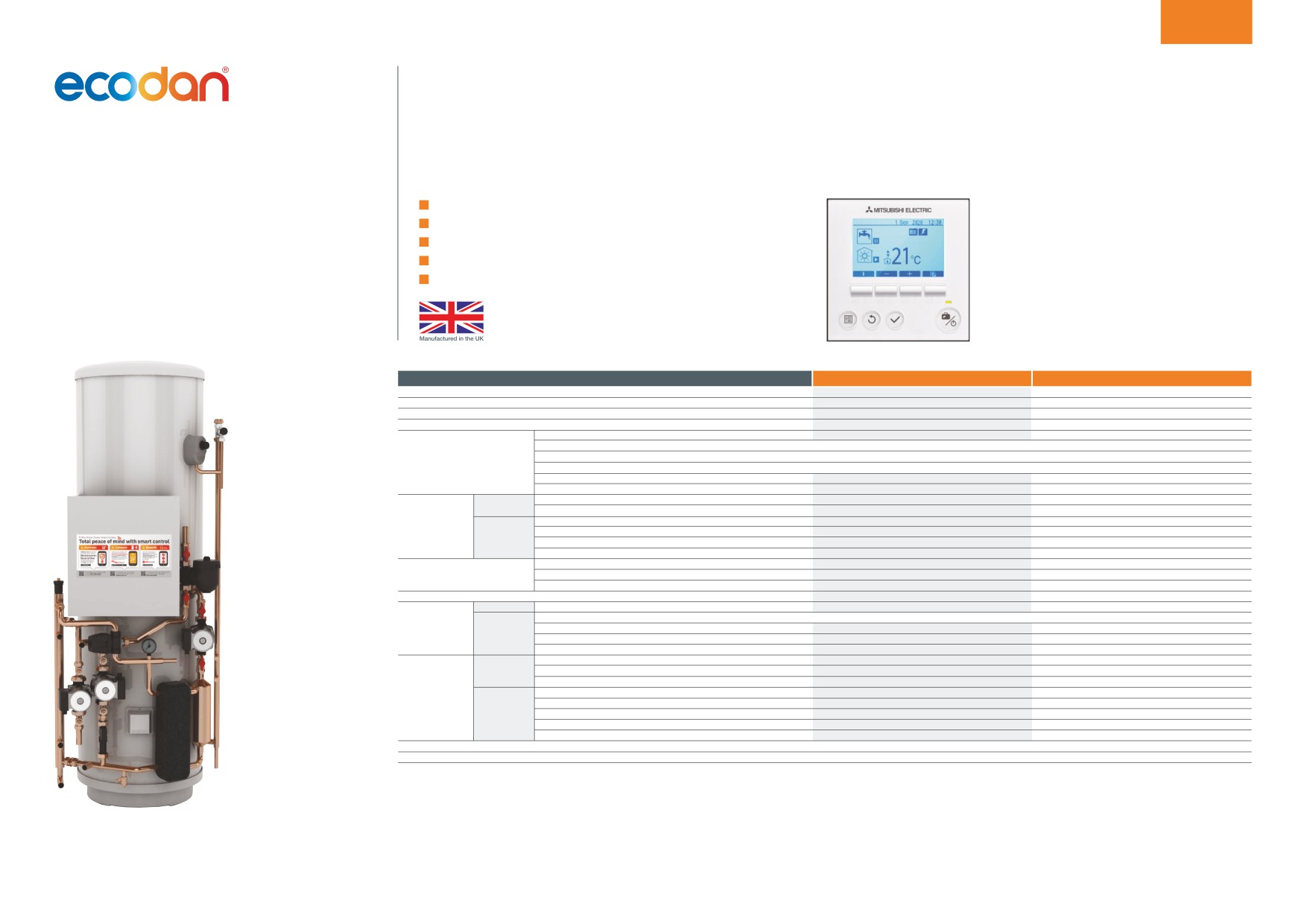

4.24

The Pre-Plumbed Slimline Cylinder comes complete with integrated hydraulic components & advanced controls.

Designed to optimise performance and flexibility within a minimal footprint, the slimline cylinder fully integrates with the Ecodan monobloc

air source heat pump range. Advanced plate heat exchanger technology delivers superior heat up times and our rapid SD card

commissioning, MELCloud WiFi connectivity and energy monitoring functions are also included as standard.

EHPT15-17X

Key Features

FTC6 Controller

-UKHLDW

Optional 2-zone energy efficient space heating control

Mitsubishi Electric’s sixth generation controller

Pre-Plumbed and wired for faster installation

Pre-Plumbed Slimline

(FTC6) includes intelligent room temperature

Hybrid function, for use with conventional boilers

control as standard. This together with

Cylinders for Ecodan

Energy monitoring as standard

advanced weather compensation ensures

the system delivers efficient, comfortable

Monobloc Units

MELCloud Wi-Fi connectivity

heating regardless of the season. FTC6

now also includes energy monitoring

showing consumed and produced energy.

CYLINDER

EHPT15X-UKHLDW

EHPT17X-UKHLDW

NOMINAL HOT WATER VOLUME (LITRES)

150

170

ErP RATING

HEAT LOSS (kWh/24hrs)

1.40

1.59

HEAT LOSS (W)

WATER

Flow Rate (l/min) - WM 50 / 60 / 85

14 / 17 / 24

Primary Circuit Pump

Grundfos UPMGEO 25-85

Heating Circuit Pump

Grundfos UPM3 25-70

Sanitary Hot Water Pump

Grundfos UPSO 15-60 CIL2

Connection Size (mm) Heating / DHW

22 / 22

Charge Pressure (MPa (Bar))

0.35

(3.5)

0.35

(3.5)

WATER SAFETY

Water Circuit

Control Thermistor (°C)

1 - 80

Expansion Relief Valve (Cold)

0.8 (8)

DHW Cylinder

DHW Expansion Vessel (Litres)

Control Thermistor

Over Temperature Cut-Out (°C)

80 ± 5

Temp and Pressure Relief Valve (°C) / (MPa (Bar))

90 / 1.0 (10)

DIMENSIONS (mm)

Width

648

Depth

645

Height

1515

1689

WEIGHT EMPTY / FULL (kg)

54 / 204

60 / 230

CYLINDER MATERIAL

Cylinder

Cylinder Material

Stainless Steel

Insulation

Insulation Type

CFC / HCFC-free flame-retardant expanded Polyurethane

Insulation Thickness (mm)

GWP of Insulation

3.1

ODP of Insulation

ELECTRICAL DATA

Control Board

Electrical Supply

220-240v, 50Hz

optionally

Phase

Single

outdoor unit

Fuse Rating - MCB Sizes (A)^*1

Immersion

Electrical Supply

220-240v, 50Hz

Heater

Phase

Single

Capacity (kW)

Max Running Current (A)

Fuse Rating - MCB Sizes (A)^*1

MECHANICAL ZONES

DHW and 1 Heating Zone^*2

OPTIONAL SIMPLIFIED WIRELESS ROOM THERMOSTAT AND WIRELESS RECEIVER

PAR-WT50-E Controller and PAR-WR51-E Receiver

For information marked with a “-” please consult the databook or speak to your local sales office.

*1 MCB Sizes BS EN60898-2 & BS EN60947-2 *2 Optional 2 zone accessory pack available

Notes: Cylinder includes: Flow Temperature Controller (FTC6) with Main Controller and Temperature Sensors, Magnetic & Cyclonic Filter, Pumps & Valves for Zone 1 and DHW use, Flow Sensor, Plate Heat Exchanger, Scale Trap, 3kW Immersion Heater and Expansion Vessel.

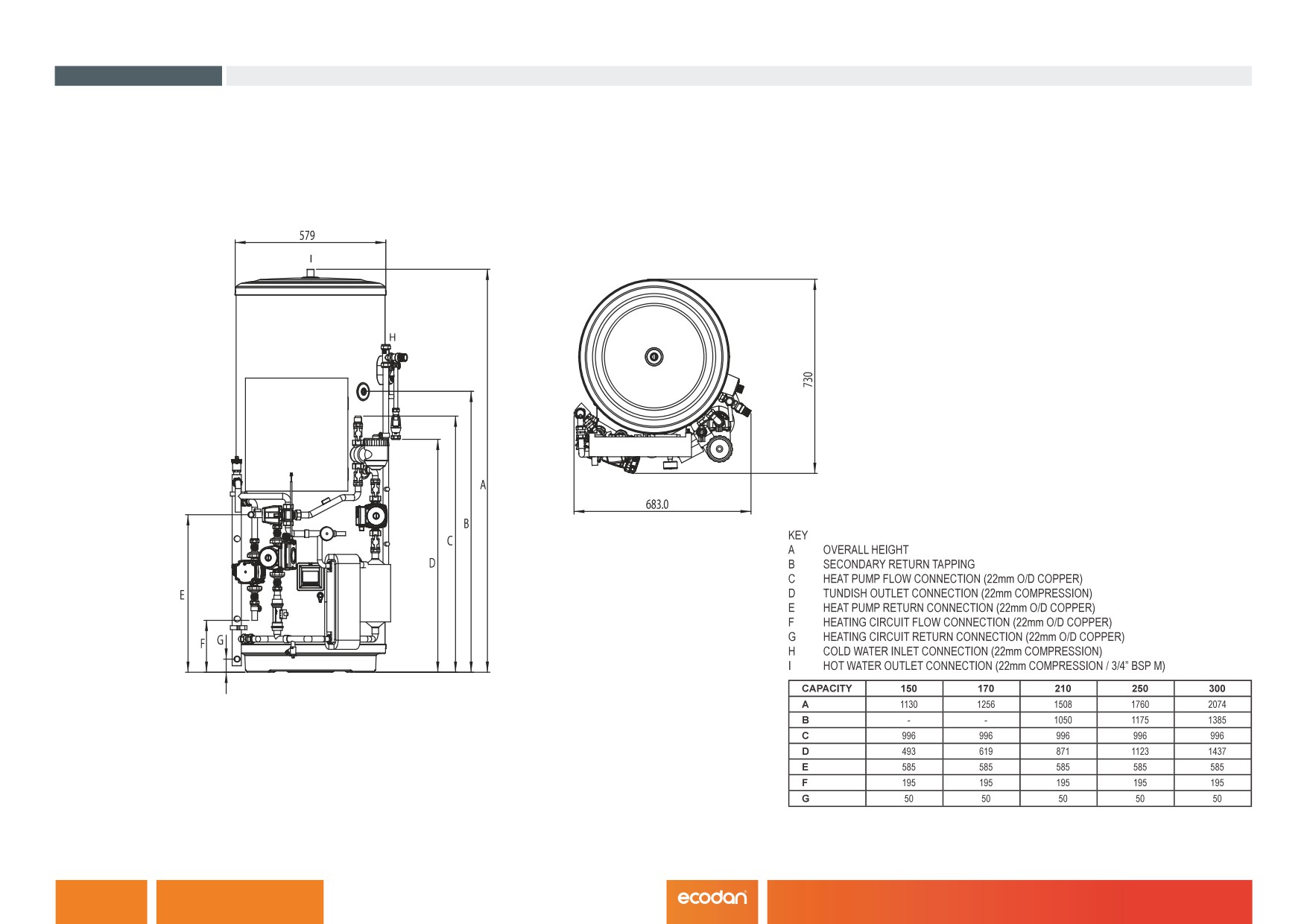

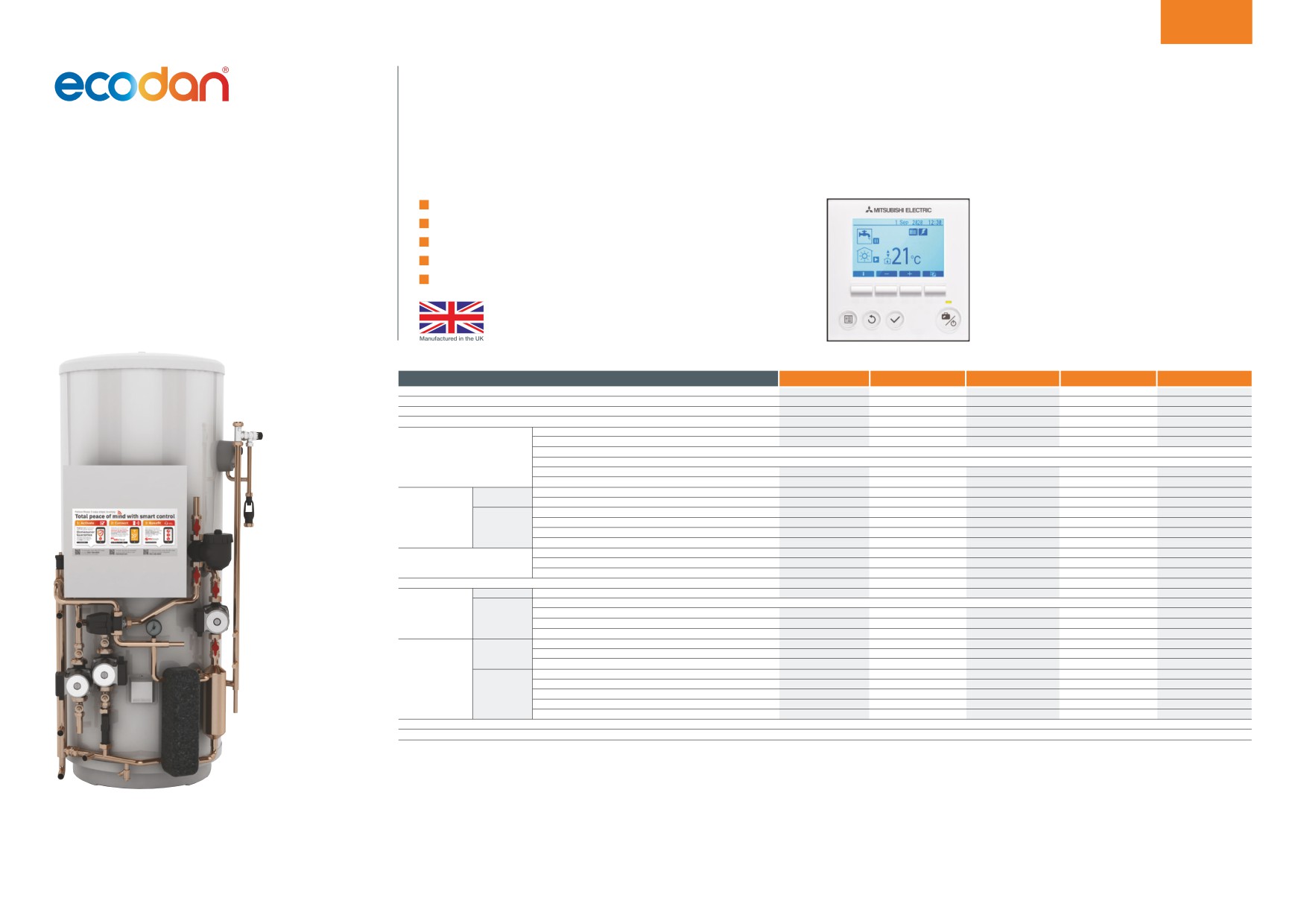

4.26

The Pre-Plumbed Standard Cylinder comes complete with integrated hydraulic components & advanced controls.

Designed to optimise performance and flexibility within an average footprint, the standard cylinder fully integrates with the Ecodan monobloc

air source heat pump range. Advanced plate heat exchanger technology delivers superior heat up times and our rapid SD card commissioning,

MELCloud WiFi connectivity and energy monitoring functions are also included as standard.

EHPT15-30X

-UKH(D/C)W

Key Features

FTC6 Controller

Optional 2-zone energy efficient space heating control

Mitsubishi Electric’s sixth generation controller

Pre-Plumbed and wired for faster installation

(FTC6) includes intelligent room temperature

Pre-Plumbed Standard

Hybrid function, for use with conventional boilers

control as standard. This together with

Energy monitoring as standard

advanced weather compensation ensures

Cylinders for Ecodan

the system delivers efficient, comfortable

MELCloud Wi-Fi connectivity

Monobloc Units

heating regardless of the season. FTC6

now also includes energy monitoring

showing consumed and produced energy.

CYLINDER

EHPT15X-UKHDW

EHPT17X-UKHDW

EHPT21X-UKH(D/C)W

EHPT25X-UKH(D/C)W

EHPT30X-UKH(D/C)W

NOMINAL HOT WATER VOLUME (LITRES)

150

170

210

250

300

ErP RATING

- / C

HEAT LOSS (kWh/24hrs)

1.53 / 1.57

1.80 / 1.67

2.09 / 1.89

HEAT LOSS (W)

64 / 65

75 / 70

87 / 75

WATER

Flow Rate (l/min) - (H)WM 50 / 60 / 85 / 112 / 140 & HW140

14 / 17 / 24 / - / - & -

14 / 17 / 24 / 32 / - & 40

N/A / N/A / 24 / 32 / - & 40

Primary Circuit Pump

Grundfos UPMGEO 25-85

Grundfos UPMXL GEO 25-125

Heating Circuit Pump

Grundfos UPM3 25-70

Sanitary Hot Water Pump

Grundfos UPSO 15-60 CIL2

Connection Size (mm) Heating / DHW

22 / 22

Charge Pressure (MPa (Bar))

0.35

(3.5)

0.35

(3.5)

0.35

(3.5)

0.35

(3.5)

0.35

(3.5)

WATER SAFETY

Water Circuit

Control Thermistor (°C)

1 - 80

DEVICES

Expansion Relief Valve (Cold)

0.8 (8)

DHW Cylinder

DHW Expansion Vessel (Litres)

Control Thermistor

75 / 40-70

Over Temperature Cut-Out (°C)

80 ± 5

Temp and Pressure Relief Valve (°C) / (MPa (Bar))

90 / 1.0 (10)

DIMENSIONS (mm)

Width

683

Depth

730

Height

1130

1256

1508

1760

2074

WEIGHT EMPTY / FULL (kg)

56 / 206

62 / 232

69 / 279

77 / 327

87 / 387

CYLINDER MATERIAL

Cylinder

Cylinder Material

Stainless Steel

Insulation

Insulation Type

CFC / HCFC-free flame-retardant expanded Polyurethane

Insulation Thickness (mm)

GWP of Insulation

3.1

ODP of Insulation

ELECTRICAL DATA

Control Board

Electrical Supply

220-240v, 50Hz

optionally

Phase

Single

outdoor unit

Fuse Rating - MCB Sizes (A)^*1

Immersion

Electrical Supply

220-240v, 50Hz

Heater

Phase

Single

Capacity (kW)

Max Running Current (A)

Fuse Rating - MCB Sizes (A)^*1

MECHANICAL ZONES

DHW and 1 Heating Zone^*2

OPTIONAL SIMPLIFIED WIRELESS ROOM THERMOSTAT AND WIRELESS RECEIVER

PAR-WT50-E Controller and PAR-WR51-E Receiver

For information marked with a “-” please consult the databook or speak to your local sales office.

*1 MCB Sizes BS EN60898-2 & BS EN60947-2 *2 Optional 2 zone accessory pack available

Notes: Cylinder includes: Flow Temperature Controller with Main Controller and Temperature Sensors, Magnetic & Cyclonic Filter, Pumps & Valves for Zone 1 and DHW use, Flow Sensor, Plate Heat Exchanger, Scale Trap, 3kW Immersion Heater and Expansion Vessel.

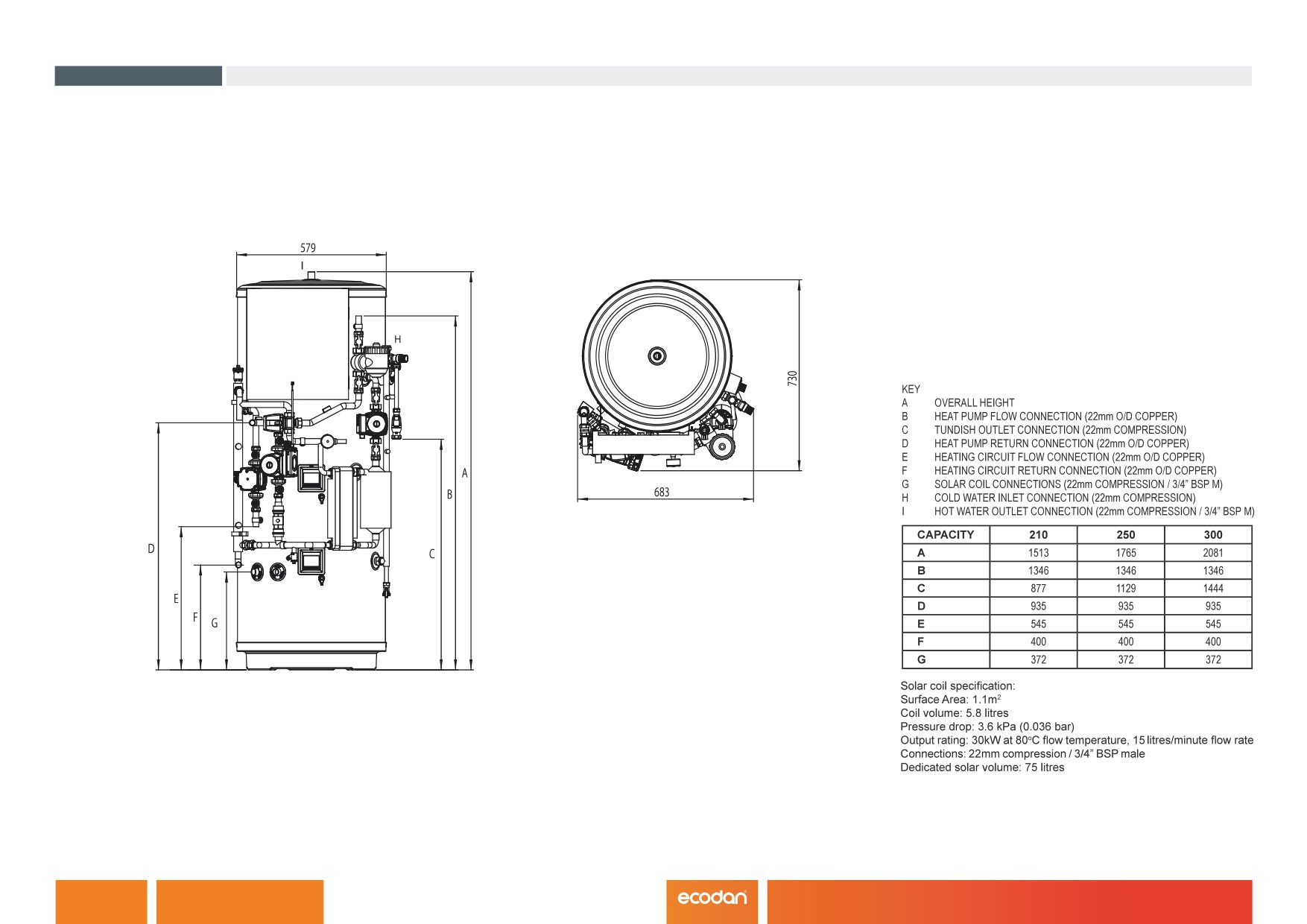

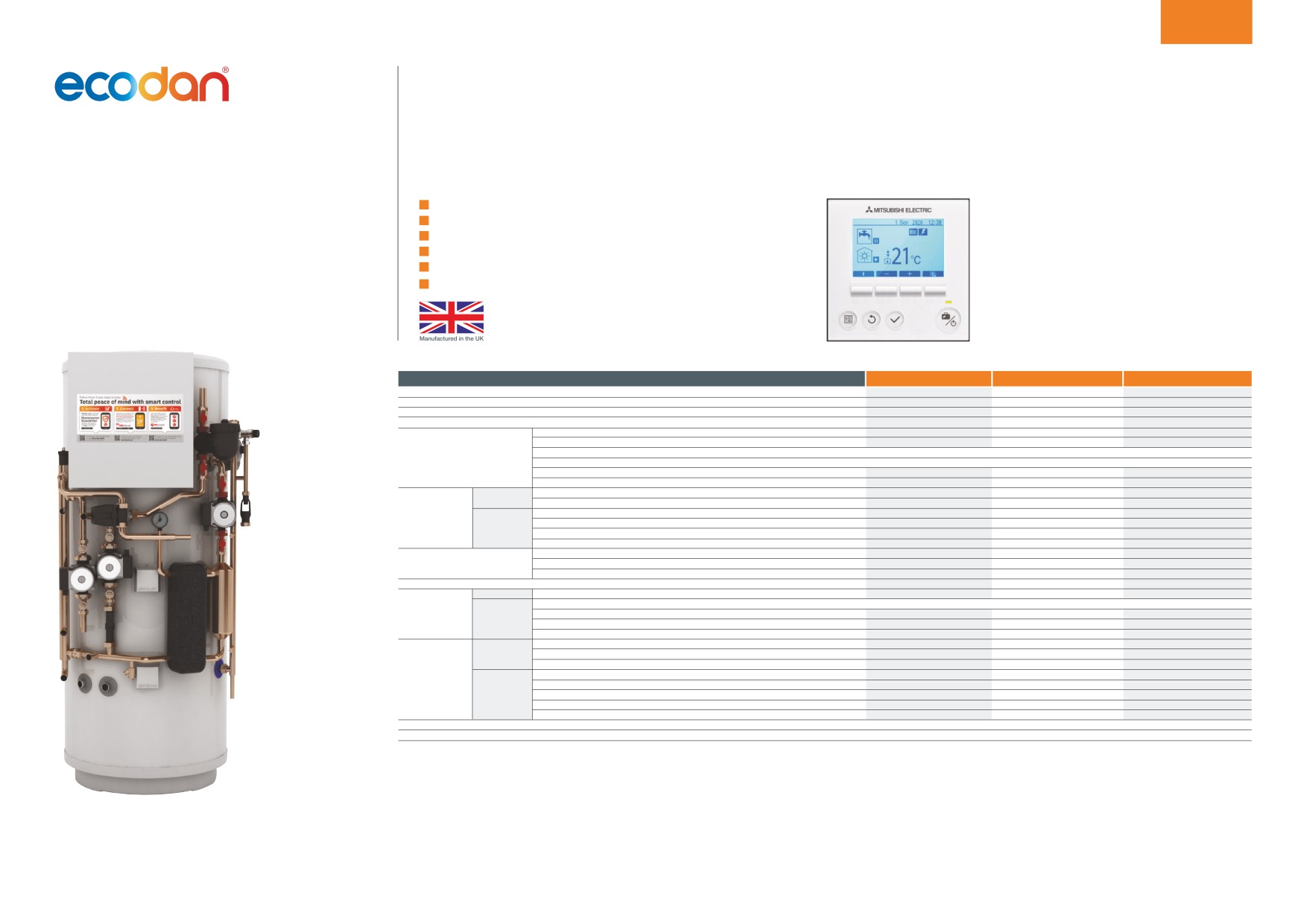

4.28

The Pre-Plumbed Solar Cylinder comes complete with integrated hydraulic components & advanced controls.

Designed to optimise performance and flexibility within an average footprint, the solar cylinder includes an independent coil and fully

integrates with the Ecodan monobloc air source heat pump range. Advanced plate heat exchanger technology delivers superior heat

up times and our rapid SD card commissioning, MELCloud WiFi connectivity & energy monitoring functions are included as standard.

EHPT21-30X

-UKHSDW

Key Features

FTC6 Controller

Includes independent coil for connection to solar thermal systems

Mitsubishi Electric’s sixth generation controller

Optional 2-zone energy efficient space heating control

(FTC6) includes intelligent room temperature

Pre-Plumbed and wired for faster installation

control as standard. This together with

Pre-Plumbed Solar

Hybrid function, for use with conventional boilers

advanced weather compensation ensures

Energy monitoring as standard

Cylinders for Ecodan

the system delivers efficient, comfortable

MELCloud Wi-Fi connectivity

heating regardless of the season. FTC6

Monobloc Units

now also includes energy monitoring

showing consumed and produced energy.

CYLINDER

EHPT21X-UKHSDW

EHPT25X-UKHSDW

EHPT30X-UKHSDW

NOMINAL HOT WATER VOLUME (LITRES)

210

250

300

ErP RATING

HEAT LOSS (kWh/24hrs)

1.55

1.79

HEAT LOSS (W)

WATER

Flow Rate (l/min) - (H)WM 50 / 60 / 85 / 112 / 140

14 / 17 / 24 / 32 / -

N/A / N/A / 24 / 32 / -

Primary Circuit Pump

Grundfos UPMGEO 25-85

Grundfos UPMXL GEO 25-125

Heating Circuit Pump

Grundfos UPM3 25-70

Sanitary Hot Water Pump

Grundfos UPSO 15-60 CIL2

Connection Size (mm) Heating / DHW

22 / 22

Charge Pressure (MPa (Bar))

0.35

(3.5)

0.35

(3.5)

0.35

(3.5)

WATER SAFETY

Water Circuit

Control Thermistor (°C)

1 - 80

DEVICES

Expansion Relief Valve (Cold)

0.8 (8)

DHW Cylinder

DHW Expansion Vessel (Litres)

Control Thermistor

Over Temperature Cut-Out (°C)

80 ± 5

Temp and Pressure Relief Valve (°C) / (MPa (Bar))

90 / 1.0 (10)

DIMENSIONS (mm)

Width

683

Depth

730

Height

1513

1765

2081

WEIGHT EMPTY / FULL (kg)

74 / 284

82 / 332

92 / 392

CYLINDER MATERIAL

Cylinder

Cylinder Material

Stainless Steel

Insulation

Insulation Type

CFC / HCFC-free flame-retardant expanded Polyurethane

Insulation Thickness (mm)

GWP of Insulation

3.1

ODP of Insulation

ELECTRICAL DATA

Control Board

Electrical Supply

220-240v, 50Hz

optionally

Phase

Single

outdoor unit

Fuse Rating - MCB Sizes (A)^*1

Immersion

Electrical Supply

220-240v, 50Hz

Heater

Phase

Single

Capacity (kW)

Max Running Current (A)

Fuse Rating - MCB Sizes (A)^*1

MECHANICAL ZONES

DHW and 1 Heating Zone^*2

OPTIONAL SIMPLIFIED WIRELESS ROOM THERMOSTAT AND WIRELESS RECEIVER

PAR-WT50-E Controller and PAR-WR51-E Receiver

For information marked with a “-” please consult the databook or speak to your local sales office.

*1 MCB Sizes BS EN60898-2 & BS EN60947-2 *2 Optional 2 zone accessory pack available
