The Packaged Cylinder provides a highly adaptable heating solution for all property types.
Designed to optimise performance within a compact white goods footprint, the plug and play packaged cylinder fully integrates with
the Ecodan monobloc air source heat pump range. Advanced plate heat exchanger technology delivers superior heat up times and
EHPT20X-MHEDWour rapid SD card commissioning, MELCloud WiFi connectivity and energy monitoring functions are also included as standard.
Key Features
FTC6 Controller
Packaged Cylinder for
Optional 2-zone energy efficient space heating control
Ecodan Monobloc Units
Mitsubishi Electric’s sixth generation controller
Ready-Plumbed and wired for faster installation
(FTC6) includes intelligent room temperature
Hybrid function, for use with conventional boilers
control as standard. This together with
Energy monitoring as standard
advanced weather compensation ensures
the system delivers efficient, comfortable
MELCloud Wi-Fi connectivity
heating regardless of the season. FTC6
now also includes energy monitoring
showing consumed and produced energy.
CYLINDER
EHPT20X-MHEDW
NOMINAL HOT WATER VOLUME (LITRES)
200
HEAT PUMP COMBINATION HEATER - Large Profile (Average Climate)
ErP Rating
A+
OPERATING AMBIENT TEMPERATURE (°C DB)
0 ~ +35°C (RH<80%)
SOUND PRESSURE LEVEL AT 1M (dBA)
28
WATER DATA
Flow Rate (l/min) - (H)WM 50 / 60 / 85 / 112 / 140
14 / 17 / 24 / 32 / 37
Primary Circuit Pump
Grundfos UPM3 15-75 130
Sanitary Hot Water Pump
Grundfos UPSO 15-60 130
Connection Size (mm) Heating / DHW
28 / 22
WATER SAFETY DEVICES
Heating Water
Control Thermistor (°C)
1 - 80
Circuit
Flow Sensor (minimum flow 5L/min)
Supplied
DHW Cylinder
Control Thermistor (°C)
75
Temp and Pressure Relief Valve (°C)/ (MPa (Bar))
90 / 0.7 (7)
DIMENSIONS (mm)
Width
595
Depth
680
Height
1600
WEIGHT EMPTY / FULL (kg)
90 / 296
ELECTRICAL DATA
Control Board -
Electrical Supply
220-240v, 50Hz
optionally powered
Phase
Single
by outdoor unit
Fuse Rating - MCB Sizes (A)*1
10
Immersion Heater
Electrical Supply
220-240v, 50Hz
Phase
Single
Capacity (kW)
3
Max Running Current (A)
13
Fuse Rating - MCB Sizes (A)*1
16
MECHANICAL ZONES
DHW and 1 Heating Zone*2
OPTIONAL SIMPLIFIED WIRELESS ROOM THERMOSTAT AND WIRELESS RECEIVER
PAR-WT50-E Controller and PAR-WR51-E Receiver
*1 MCB Sizes BS EN60898-2 & BS EN60947-2 *2 Optional 2 zone accessory pack available
Notes: Cylinder includes: Flow Temperature Controller (FTC6) with Main Controller and Temperature Sensors, Pumps & Valves for Zone 1 and DHW use, Flow Sensor, Plate Heat Exchanger, Scale Trap, 3kW Immersion Heater.

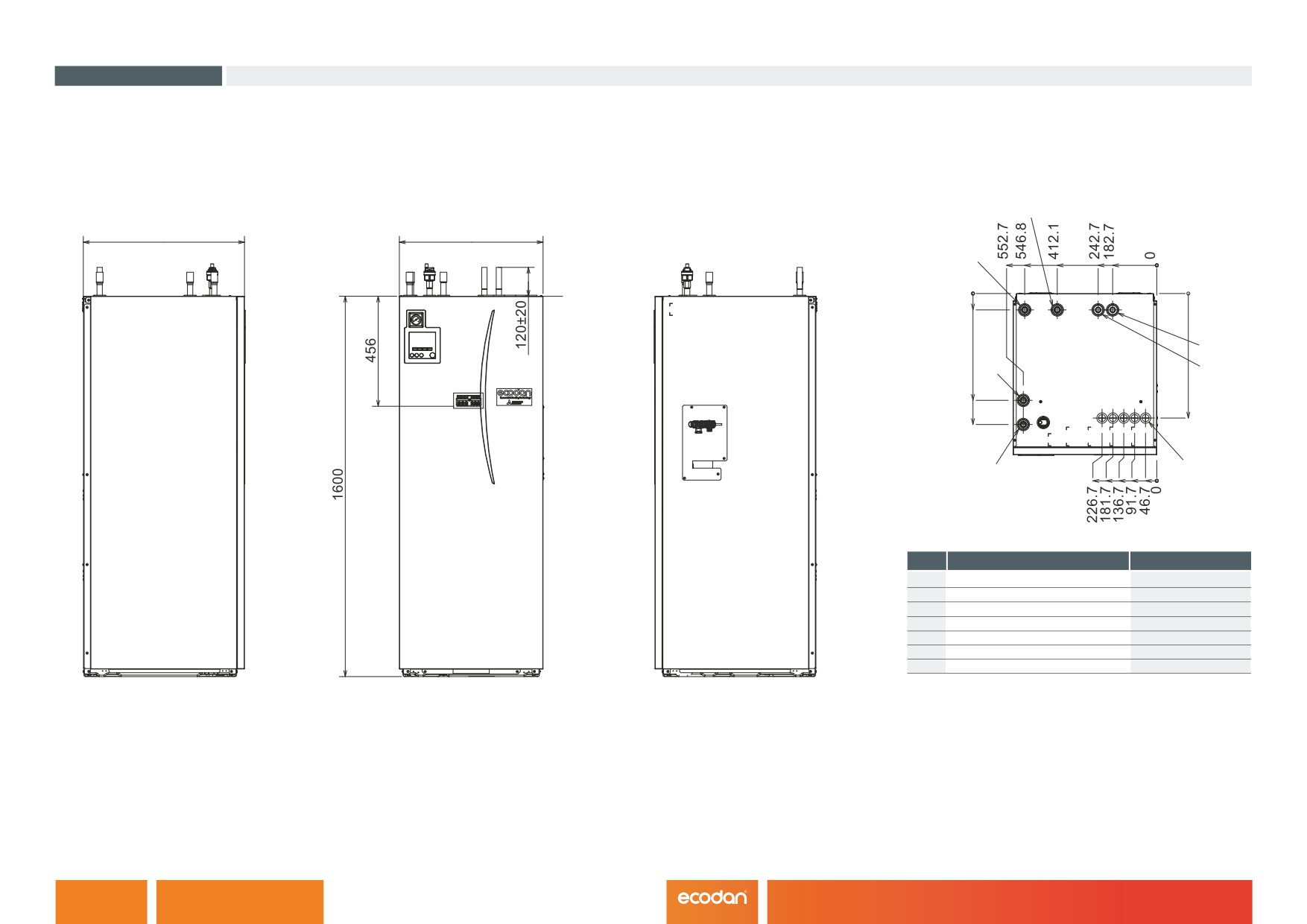

Product Dimensions EHPT20X-MHEDW
Left View
Front View
Right View
Upper View
680
595
C
0
0
67.8
A
B
F
442.3
515.7
542.3
G
E
Letter
Description
Connection Size/Type
A
DHW outlet connection
22mm/Compression
B
Cold water inlet connection
22mm/Compression
C
Space heating return connection
28mm/Compression
D
Space heating flow connection
28mm/Compression
E
Flow from heat pump connection
28mm/Compression
F
Return to heat pump connection
28mm/Compression
G
Electrical cable inlets
