Contents

Ecodan Heat Pumps - Renewable Heating Systems

4.4

QAHV R744 Monobloc Air Source Heat Pump

4.8

CAHV R407C Monobloc Air Source Heat Pump

4.10

CRHV R410A Monobloc Ground / Water Source Heat Pump

4.12

QUHZ-W-VA R744 Monobloc Air Source Heat Pump with Thermal Store

4.14

PUZ-WM-VHA R32 Monobloc Standalone Air Source Heat Pump

4.16

PUZ-WM-VAA R32 Monobloc Standalone Ultra Quiet Air Source Heat Pumps

4.18

PU(H)Z-HW(M)-VHA/YHA(2) R32 / R410A Monobloc Standalone Air Source Heat Pumps

4.20

EHPT20X-MHEDW Packaged Cylinder for Ecodan Monobloc Units

4.22

EHPT15-17X-UKHLDW Pre-Plumbed Slimline Cylinders for Ecodan Monobloc Units

4.24

EHPT15-30X-UKH(D/C)W Pre-Plumbed Standard Cylinders for Ecodan Monobloc Units

4.26

EHPT21-30X-UKHSDW Pre-Plumbed Solar Cylinders for Ecodan Monobloc Units

4.28

FTC6 / FTC2BR Flow Temperature Controllers for use with Ecodan Monobloc Units and Third Party BEMS

4.30

FTC5 / FTC2B Flow Temperature Controllers for use with Ecodan Monobloc Units and Third Party BEMS

4.31

MELCloud Wi-Fi Connectivity

4.32

Energy Monitoring Packs

4.34

i-LIFE2 Slim-DLMV Fan Assisted Radiator

4.35

Accessories / Optional Extras

4.36

4.3

Heating

Contents

4.4

Ecodan Heat Pumps - Renewable Heating Systems

There is now no doubt that the world is in a climate crisis and that

The award winning Ecodan heat pumps are available from 4kW up to 960kW, making them suitable

for virtually any property, from small flats to large detached houses, from an office block to a school.

we need to act immediately to avoid catastrophic climate change.

They are the renewable, low carbon alternative to traditional high carbon heating systems.

The UK Government have reacted by being the first major economy

Renewable heating solution capable of reducing emissions and achieving climate targets

to pass net zero (Greenhouse Gas) emission laws. Renewable

Highly efficient, proven and refined technology that can lower energy bills

technologies, such as heat pumps, have become an integral part

Range of easy to design, install and maintain systems suitable for a variety of

of the solution to the problem of reducing carbon emissions

property and application types

generated through heating.

Ecodan heat pumps are a renewable heating technology that efficiently

As a market leader in both commercial and domestic heat pumps, Mitsubishi Electric is a

pioneer in the development of this renewable technology. Around the world, heat pumps

and reliably generates sustainable space heating and hot water all

have been utilised for decades and Mitsubishi Electric has refined this technology to produce

year round, delivering a level of comfort that sets the technology

Ecodan - one of the most advanced, efficient heating systems available on the market today.

apart from other forms of heating.

TV presenter, architect, lecturer and writer,

George Clarke is a passionate advocate of

design excellence and high levels of quality

in the construction industry.

The way we design, build, heat, power and recycle our homes needs to change,

and change quickly, and renewable heating is an important part of our future.

I’m therefore delighted to associate myself with Ecodan, the market-leading

brand of heat pumps built here in the UK and which can help reduce energy

bills and lower emissions for almost any home.

George Clarke

Ecodan Brand Ambassador

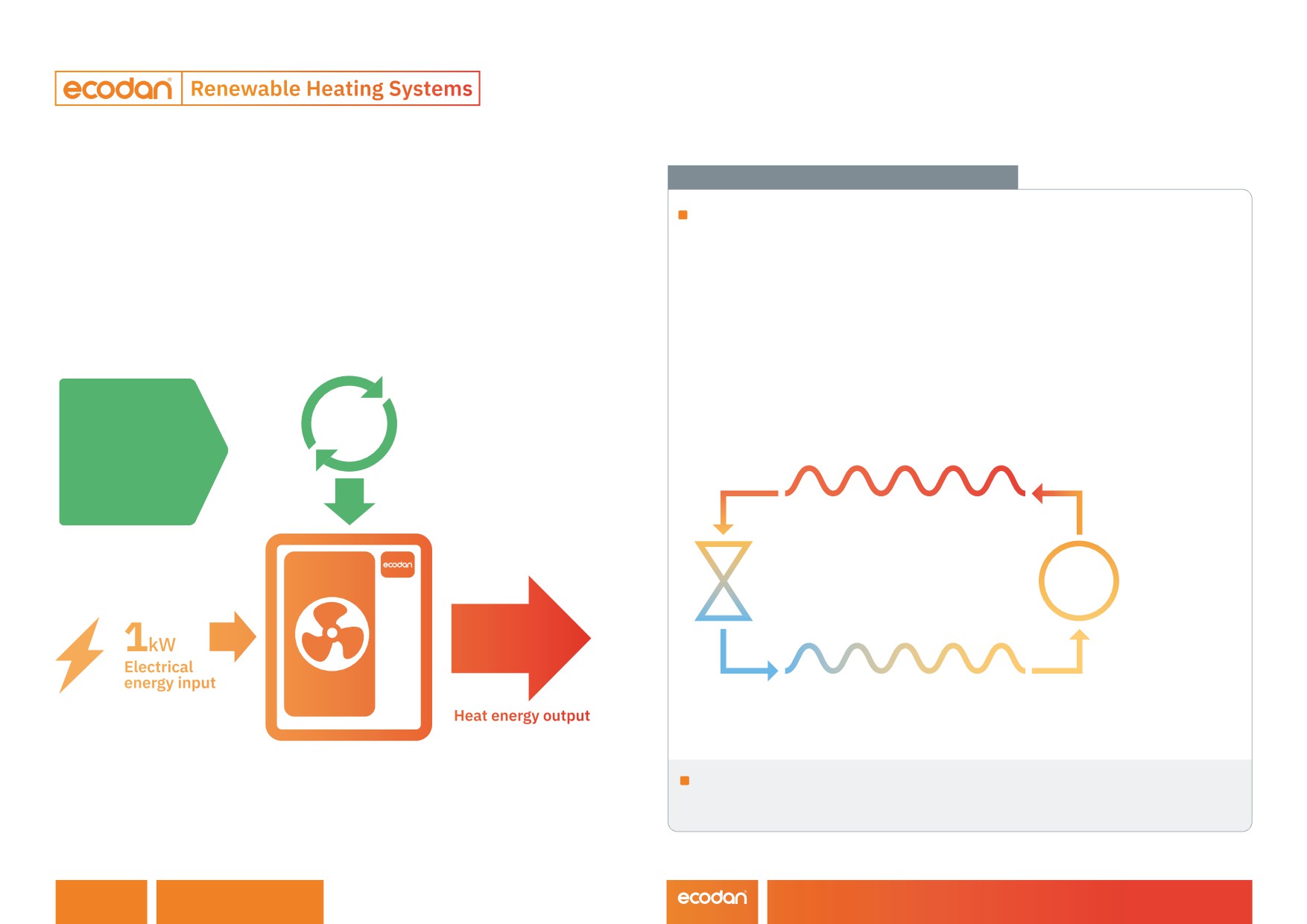

How do Ecodan air source heat pumps work?

What is the vapour compression cycle?

At the beginning of the first phase the refrigerant is a cold low pressure liquid

Ecodan heat pumps harvest, upgrade and move heat from

one location to another.

Refrigerant passes through the evaporator and is exposed to the heat energy of the outside air. As the air flows over

the evaporator coil, this heat energy is transferred to the refrigerant, causing it to pressurise into a warm vapour.

To achieve this, the vapour compression cycle is used, which has the ability

This warm vapour then enters the compressor where its temperature increases as a result of the compression

to take low temperature renewable heat from the environment and raise it to

process and turns into a hot gas.

usable temperatures capable of handling the space and water heating

loads required in buildings.

Hot refrigerant gas passes through the condenser (plate heat exchanger) and transfers its heat energy into the

(cooler) water side that is connected to the primary water circuit. The heated water in this circuit is then used to

heat up a hot water cylinder inside the property. Due to this energy transfer, the passing hot refrigerant gas cools

and transforms back into a cool vapour.

Although the refrigerant vapour has cooled, in order to return the refrigerant back to its initial state, it is passed

Low temperature renewable

through an expansion valve. This lowers the pressure of the cool refrigerant vapour and transforms it back into a

2.2

heat energy taken from

low pressure liquid - allowing for the vapour compression cycle to start once again.

the environment

320

Efficiency

3. Condenser

(Plate Heat Exchanger)

4. Expansion Valve

2. Compressor

3.2

1. Evaporator

(Outdoor Unit Heat Exchanger)

This process is repeated

As the refrigerant boils at -46ºC, there is still plenty of energy in the air on a cold day to make the process work.

*As independently tested by BSRIA based upon BSEN14511 Part 3 standard rating conditions. Due to the method of operation, the

performance of heat pumps will vary based upon the temperature of the heat source and the requirements of the heat delivered. The

BSEN14511 testing relates to the heat pump performance only and not the entire heating system.

4.5

Heating

Ecodan Renewable Heating Systems

4.6

Ecodan Toolbox

Guidance and Support

Ecodan Selection Tool

With consideration for a multitude of different customers and requirements, Mitsubishi

The Ecodan Heat Pump Selection Tool enables different customer types with varying levels of

Electric have developed a wide range of advanced Ecodan products suited to satisfy

technical knowledge to obtain an insight into how a property can benefit from the renewable

the demands of the market.

heating that this technology can deliver.

Resources that provide guidance and support to optimise the performance and clarify

Developed with two selection options to choose from, whether the project is a single domestic

the different types of Ecodan systems are readily available within our online Document

dwelling or a large commercial project, the tool will guide the user towards the solution most suited

Library and supporting digital media sources.

to the needs of the property. Upon completion of the selection process, the tool will generate a

bespoke and professional equipment selection report based upon the criteria entered; providing

Whether technical product information sheets are required for a design specification, a

the different user types with the relevant information and resources required to progress to the

brochure is required for a prospective customer, or a video is needed that explains how

next stage of design.

a heat pump is different from a common gas or oil boiler, an archive of useful resources

are available at the click of a button.

Whether the user is a homeowner that wishes to understand the basic estimated costs of operating

a renewable heating system or an installer that requires an MCS [MIS3005] standard compliant

design for an RHI application, the Ecodan Selection Tool is capable of supporting an informed choice.

Please visit the website:

library.mitsubishielectric.co.uk/pdf/directory/heating

Please visit the website: ecodanselectiontool.mitsubishielectric.co.uk

££££

RHI

CALCULATOR

INCLUDED

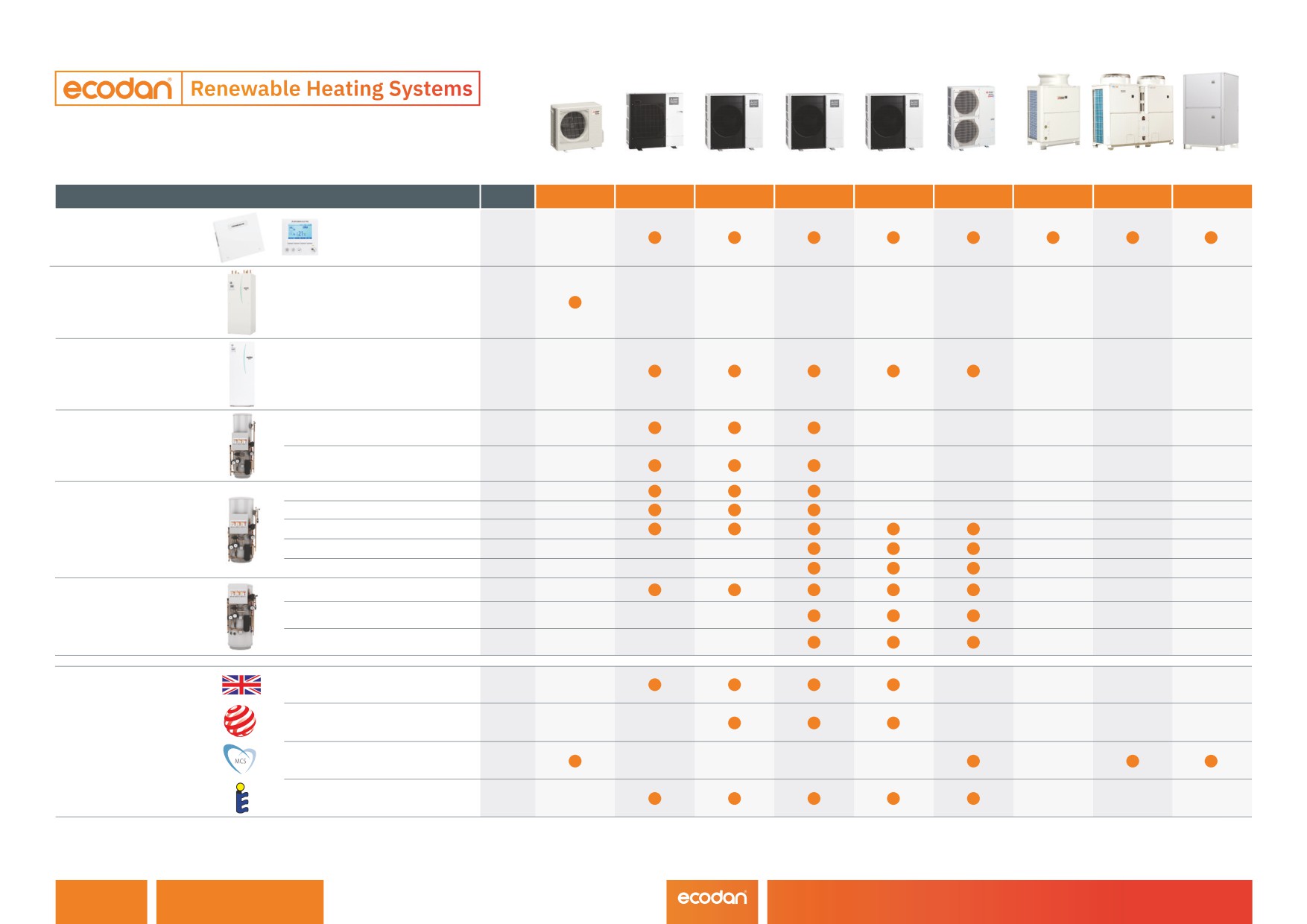

Range Overview

QUHZ-W-VA

PUZ-WM-VHA

PUZ-WM-VAA

PUZ-WM-VAA PUZ-WM-VAA PU(H)Z-HW(M)-V/YHA

QAHV

CAHV

CRHV

System Type

Litres

4kW

5kW

6kW

8.5kW

11.2kW

14kW

40kW

43kW

60kW

Standalone

Thermal Store

EHPT20Q-VM2EA

200

Packaged Cylinder

EHPT20X-MHEDW

200

Pre-Plumbed

EHPT15X-UKHLDW

150

Slimline Cylinder

EHPT17X-UKHLDW

170

EHPT15X-UKHDW

150

Pre-Plumbed

EHPT17X-UKHDW

170

Standard Cylinder

EHPT21X-UKH(D/C)W

210

EHPT25X-UKH(D/C)W

250

EHPT30X-UKH(D/C)W

300

EHPT21X-UKHSDW

210

Pre-Plumbed

Solar Cylinder

EHPT25X-UKHSDW

250

EHPT30X-UKHSDW

300

Approvals

Manufactured in the United Kingdom

Red Dot Award

Microgeneration Certification Scheme

Keymark

Notes: Microgeneration or Keymark certification qualifies the approved product for the Renewable Heat Incentive (RHI) scheme.

4.7

Heating

Ecodan Renewable Heating Systems
