5.16

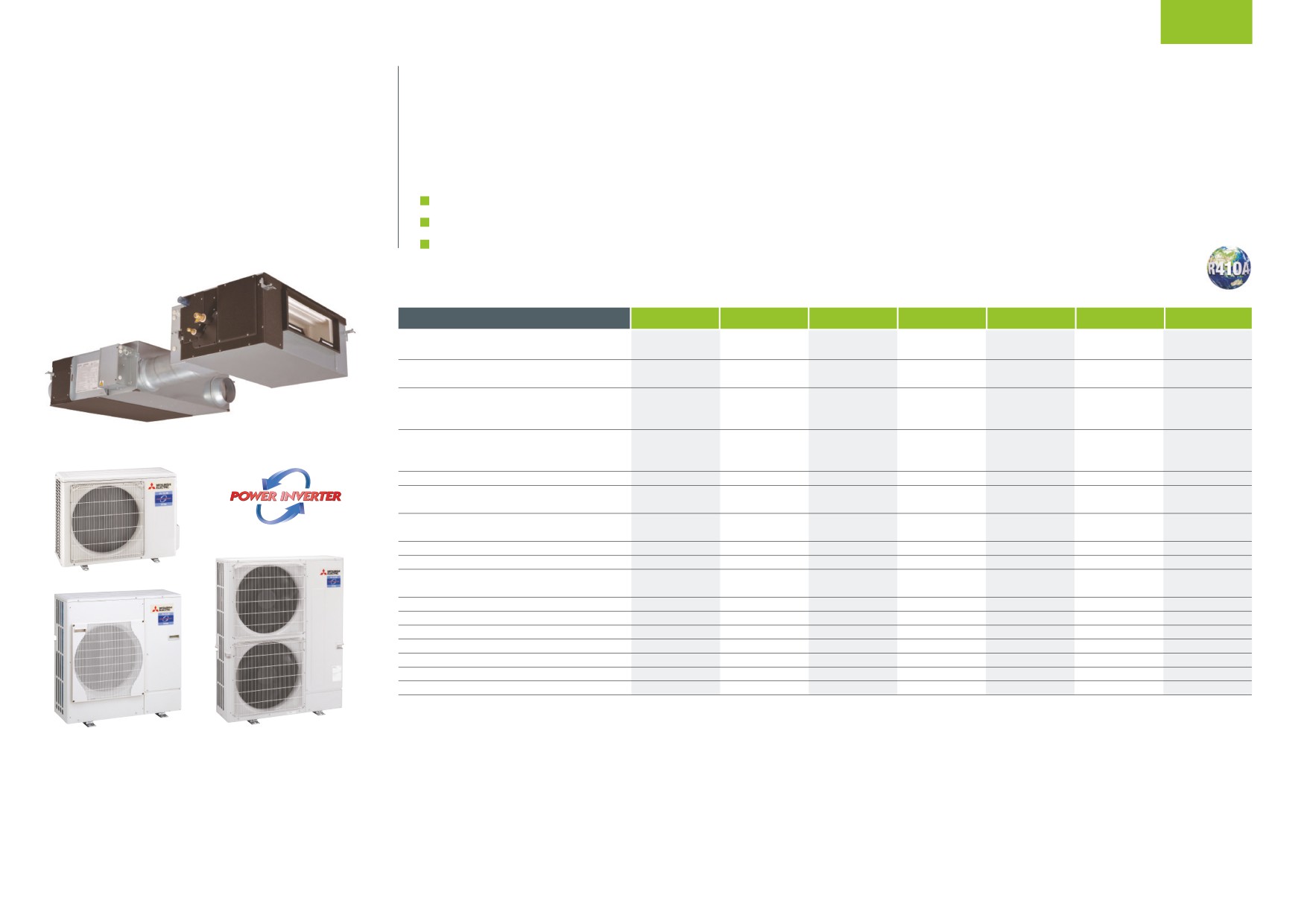

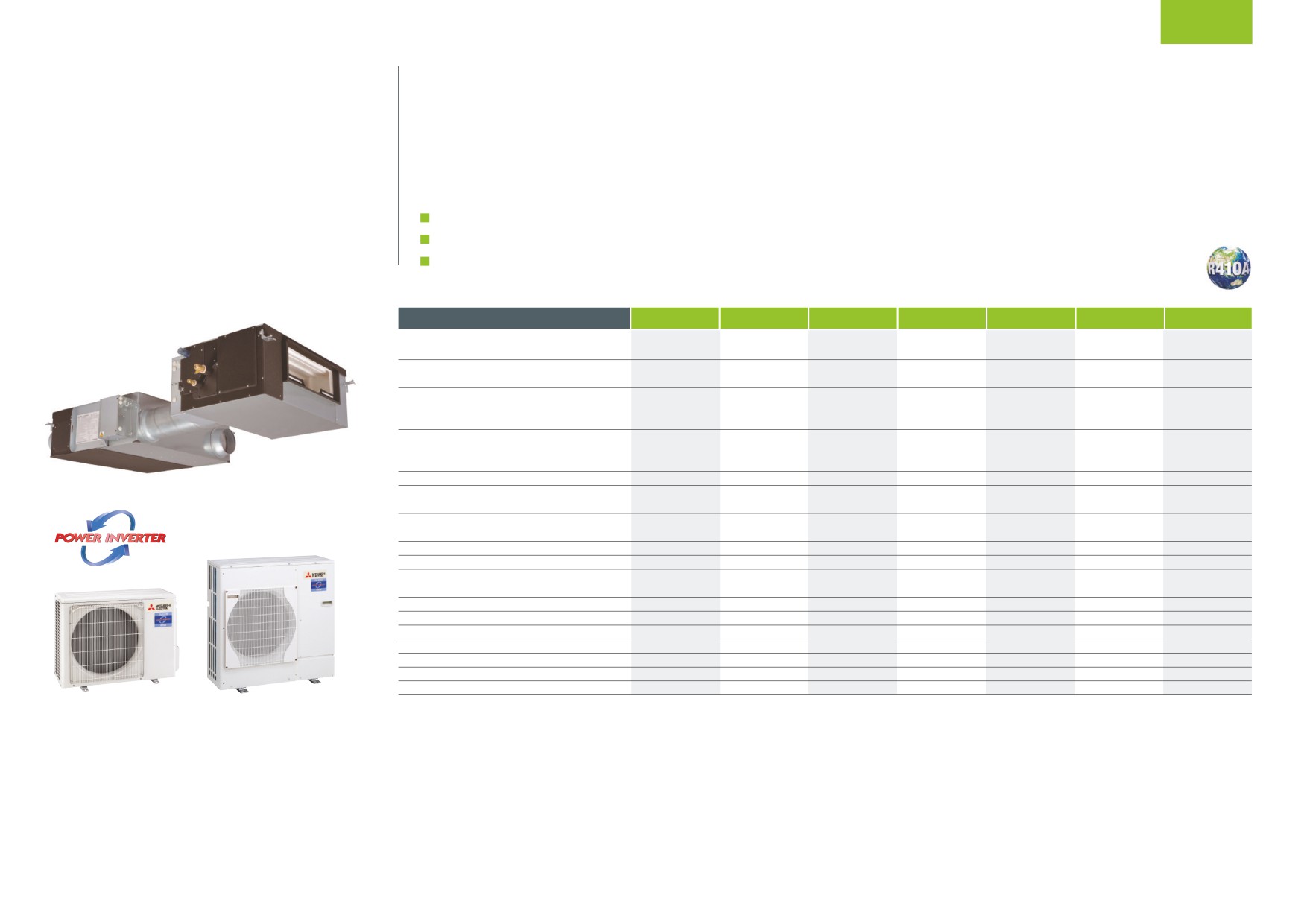

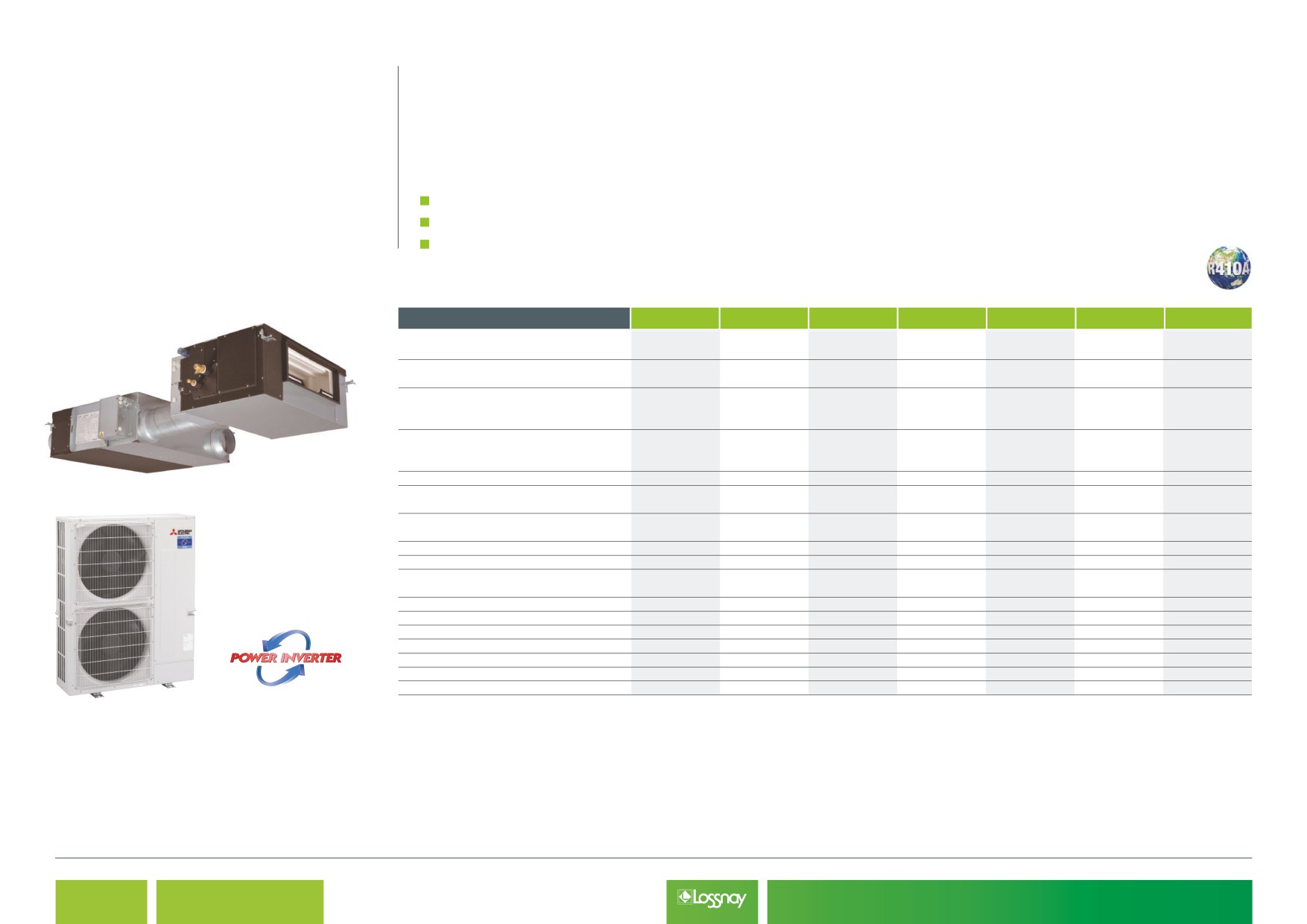

the GUG-SL-E combines a lossnay mechanical Ventilation with Heat Recovery (mVHR) unit with a
GuG-SL-E
mr Slim Power inverter outdoor heat pump to heat and cool the supply air delivery to the space.
in return temperature control mode, the combination of both technologies can provide the fresh air
Lossnay air Processing
and temperature control to a space from a single system.
DX unit
Key Features
Single system reduces installation time, costs and space
Return Air temperature control
Provides heat recovery ventilation and air conditioning from the same ventilation system
(5.6 to 15.8kw)
Return air temperature control allows for control dependent on the actual internal temperature
MODEL
GuG50-56RaV
GuG65-66RaV
GuG80-83RaV
GuG100-113RaV
GuG150-157RaVt
GuG150-157RaYt
GuG150-158RaV
fAN SPEEd 3 (75%)
Air Volume (l/s)
104
135
167
208
313
313
313
External Static Pressure (Pa)
59
53
73
73
84
84
84
fAN SPEEd 4 (100%)
Air Volume (l/s)
139
181
222
278
417
417
417
External Static Pressure (Pa)
105
95
130
130
150
150
150
HEAtiNG cAPAcity*1 (kw) DX Coil Capacity
4.1
4.5
6.0
8.1
13.0
13.0
13.0
Heat Recovery Capacity
2.4
3.2
4.0
5.1
7.4
7.4
7.7
Total Capacity
6.5
7.7
10.0
13.2
20.4
20.4
20.7
cOOliNG cAPAcity*1 (kw) DX Coil Capacity
3.6
4.0
5.0
7.1
9.5
9.5
9.5
Heat Recovery Capacity
2.0
2.6
3.3
4.2
6.2
6.2
6.3
Total Capacity
5.6
6.6
8.3
11.3
15.7
15.7
15.8
SHf
Nominal
0.66
0.69
0.69
0.66
0.68
0.68
0.68
SyStEm POwER iNPUt (kw) Heating (nominal)
1.59
1.63
2.17
2.99
5.01
5.01
4.88
Cooling (nominal)
1.2
1.31
1.75
2.27
3.12
3.12
3
PERfORmANcE iNdEx*2
Heating (nominal)
4.09
4.72
4.62
4.42
4.07
4.07
4.24
Cooling (nominal)
4.69
5.03
4.76
4.98
5.03
5.03
5.27
mAx PiPE lENGtH (m)
50
50
50
50
75
75
75
mAx HEiGHt diffERENcE (m)
30
30
30
30
30
30
30
PiPE SizE mm(in)
Gas
12.7 (1/2")
12.7 (1/2")
12.7 (1/2")
15.88 (5/8")
15.88 (5/8")
15.88 (5/8")
15.88 (5/8")
Liquid
6.35 (1/4")
6.35 (1/4")
6.35 (1/4")
9.52 (3/8")
9.52 (3/8")
9.52 (3/8")
9.52 (3/8")
GUG dimENSiONS (mm)
Width x Depth x Height
812 x 607 x 330
812 x 607 x 330
1034 x 607 x 394
1034 x 607 x 394
1130 x 576 x 404
1130 x 576 x 404
1130 x 576 x 404
GUG wEiGHt (kg)
21
21
26
26
28
28
28
GUG ElEctRicAl SUPPly (supplied from outdoor unit)*3
220-240v / 50Hz
220-240v / 50Hz
220-240v / 50Hz
220-240v / 50Hz
220-240v / 50Hz
220-240v / 50Hz
220-240v / 50Hz
GUG UNit*4
GUG-01Sl-E
GUG-01Sl-E
GUG-02Sl-E
GUG-02Sl-E
GUG-03Sl-E
GUG-03Sl-E
GUG-03Sl-E
mR Slim OUtdOOR UNit
PUHz-zRP35VKA2
PUHz-zRP35VKA2
PUHz-zRP50VKA2
PUHz-zRP71VHA2
PUHz-zRP100VKA3
PUHz-zRP100yKA3
PUHz-zRP100VKA3
lOSSNAy UNit
lGH-50RVx-E
lGH-65RVx-E
lGH-80RVx-E
lGH-100RVx-E
lGH-150RVxt-E
lGH-150RVxt-E
lGH-150RVx-E
lOSSNAy cONtROllER
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Notes:
*1 The cooling and heating capacities are based on the rated airflow of fan speed 4 and the following air conditions: Cooling Indoor: 27°CDB/19°CWB Outdoor: 35°CDB/24°CWB. Heating Indoor: 20°CDB/15°CWB Outdoor: 7°CDB/6°CWB
*2 Performance index is the total capacity divided by the total power consumption of the outdoor unit and Lossnay at the conditions above.
*3 For electrical power requirements for Lossnay and Mr Slim outdoor unit, please refer to their respective sections
*4 GUG unit includes a dedicated controller
the GUG-SL-E combines a lossnay mechanical Ventilation with Heat Recovery (mVHR) unit with a
GuG-SL-E
mr Slim Power inverter outdoor heat pump to heat and cool the supply air delivery to the space.
in return temperature control mode, the combination of both technologies can provide the fresh air
Lossnay air Processing
and temperature control to a space from a single system.
DX unit
Key Features
Single system reduces installation time, costs and space
Return Air temperature control
Provides heat recovery ventilation and air conditioning from the same ventilation system
(15.8 to 22.3kw)
Return air temperature control allows for control dependent on the actual internal temperature
MODEL
GuG150-156RaY
GuG200-184RaV
GuG200-184RaY
GuG200-184RaVt
GuG200-184RaYt
GuG250-223RaVt
GuG250-223RaYt
fAN SPEEd 3 (75%)
Air Volume (l/s)
313
417
417
417
417
521
521
External Static Pressure (Pa)
84
59
59
82
82
79
79
fAN SPEEd 4 (100%)
Air Volume (l/s)
417
556
556
556
556
694
694
External Static Pressure (Pa)
150
105
105
145
145
140
140
HEAtiNG cAPAcity*1 (kw) DX Coil Capacity
13
13.5
13.5
13.5
13.5
14
14
Heat Recovery Capacity
7.7
10.3
10.3
10.3
10.3
12.1
12.1
Total Capacity
20.7
23.8
23.8
23.8
23.8
26.1
26.1
cOOliNG cAPAcity*1 (kw) DX Coil Capacity
9.5
10.0
10.0
10.0
10.0
12.5
12.5
Heat Recovery Capacity
6.3
8.4
8.4
8.4
8.4
9.8
9.8
Total Capacity
15.8
18.4
18.4
18.4
18.4
22.3
22.3
SHf
Nominal
0.68
0.76
0.76
0.76
0.76
0.87
0.87
SyStEm POwER iNPUt (kw) Heating (nominal)
4.88
4.74
4.74
4.89
4.89
5.49
5.49
Cooling (nominal)
3.00
3.14
3.14
3.29
3.29
4.86
4.86
PERfORmANcE iNdEx*2
Heating (nominal)
4.24
5.02
5.02
4.86
4.86
4.75
4.75
Cooling (nominal)
5.27
5.86
5.86
5.59
5.59
4.59
4.59
mAx PiPE lENGtH (m)
75
75
75
75
75
75
75
mAx HEiGHt diffERENcE (m)
30
30
30
30
30
30
30
PiPE SizE mm(in)
Gas
15.88 (5/8")
15.88 (5/8")
15.88 (5/8")
15.88 (5/8")
15.88 (5/8")
15.88 (5/8")
15.88 (5/8")
Liquid
9.52 (3/8")
9.52 (3/8")
9.52 (3/8")
9.52 (3/8")
9.52 (3/8")
9.52 (3/8")
9.52 (3/8")
GUG dimENSiONS (mm)
Width x Depth x Height
1130 x 576 x 404
1130 x 576 x 404
1130 x 576 x 404
1130 x 576 x 404
1130 x 576 x 404
1130 x 576 x 404
1130 x 576 x 404
GUG wEiGHt (kg)
28
28
28
28
28
28
28
GUG ElEctRicAl SUPPly (supplied from outdoor unit)*3
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
GUG UNit*4
GUG-03Sl-E
GUG-03Sl-E
GUG-03Sl-E
GUG-03Sl-E
GUG-03Sl-E
GUG-03Sl-E
GUG-03Sl-E
mR Slim OUtdOOR UNit
PUHz-zRP100yKA3
PUHz-zRP100VKA3
PUHz-zRP100yKA3
PUHz-zRP100VKA3
PUHz-zRP100yKA3
PUHz-zRP125VKA3
PUHz-zRP125yKA3
lOSSNAy UNit
lGH-150RVx-E
lGH-200RVx-E
lGH-200RVx-E
lGH-200RVxt-E
lGH-200RVxt-E
lGH-250RVxt-E
lGH-250RVxt-E
lOSSNAy cONtROllER
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Notes:
*1 The cooling and heating capacities are based on the rated airflow of fan speed 4 and the following air conditions: Cooling Indoor: 27°CDB/19°CWB Outdoor: 35°CDB/24°CWB. Heating Indoor: 20°CDB/15°CWB Outdoor: 7°CDB/6°CWB
*2 Performance index is the total capacity divided by the total power consumption of the outdoor unit and Lossnay at the conditions above.
*3 For electrical power requirements for Lossnay and Mr Slim outdoor unit, please refer to their respective sections
*4 GUG unit includes a dedicated controller
5.17
Ventilation
GUG-SL-E Lossnay Air Processing DX Unit
5.18
the GUG-SL-E combines a lossnay mechanical Ventilation with Heat Recovery (mVHR) unit with a
GuG-SL-E
mr Slim Power inverter outdoor heat pump to heat and cool the supply air delivery to the space.
in supply air temperature control mode, the combination of both technologies provides effective tempering
Lossnay air Processing
of fresh air entering a space, taking the load off other cooling/heating services whilst elimating any chance
of draughts.
DX unit
Key Features
Supply Air temperature control
Single system reduces installation time, costs and space
(8.3-17.6kw)
Provides heat recovery ventilation and air conditioning from the same ventilation system
Supply air temperature control allows the system to target a specific temperature to supply to the internal environment
MODEL
GuG80-83SaV
GuG100-95SaV
GuG150-133SaVt
GuG150-134SaV
GuG200-159SaV
GuG200-159SaVt
GuG250-176SaVt
fAN SPEEd 3 (75%)
Air Volume (l/s)
167
208
313
313
417
417
521
External Static Pressure (Pa)
73
73
84
84
59
82
79
fAN SPEEd 4 (100%)
Air Volume (l/s)
222
278
417
417
556
556
694
External Static Pressure (Pa)
130
130
150
150
105
145
140
HEAtiNG cAPAcity*1 (kw) DX Coil Capacity
6.0
6.3
8.9
8.9
9.2
9.2
9.5
Heat Recovery Capacity
4.0
5.1
7.4
7.7
10.3
10.3
12.1
Total Capacity
10.0
11.4
16.3
16.6
19.5
19.5
21.6
cOOliNG cAPAcity*1 (kw) DX Coil Capacity
5.0
5.3
7.1
7.1
7.4
7.4
7.8
Heat Recovery Capacity
3.3
4.2
6.2
6.3
8.5
8.5
9.8
Total Capacity
8.3
9.5
13.3
13.4
15.9
15.9
17.6
SHf
Nominal
0.69
0.73
0.86
0.85
0.90
0.90
0.95
SyStEm POwER iNPUt (kw) Heating (nominal)
2.17
2.24
3.16
3.04
3.10
3.25
3.62
Cooling (nominal)
1.75
1.75
2.64
2.52
2.72
2.87
3.32
PERfORmANcE iNdEx*2
Heating (nominal)
4.62
5.09
5.16
5.46
6.30
6.01
5.97
Cooling (nominal)
4.76
5.43
5.03
5.32
5.85
5.54
5.31
mAx PiPE lENGtH (m)
50
50
50
50
50
50
50
mAx HEiGHt diffERENcE (m)
30
30
30
30
30
30
30
PiPE SizE mm(in)
Gas
12.7 (1/2")
12.7 (1/2")
15.88 (5/8")
15.88 (5/8")
15.88 (5/8")
15.88 (5/8")
15.88 (5/8")
Liquid
6.35 (1/4")
6.35 (1/4")
9.52 (3/8")
9.52 (3/8")
9.52 (3/8")
9.52 (3/8")
9.52 (3/8")
GUG dimENSiONS (mm)
Width x Depth x Height
1034 x 607 x 394
1034 x 607 x 394
1130 x 576 x 404
1130 x 576 x 404
1130 x 576 x 404
1130 x 576 x 404
1130 x 576 x 404
GUG wEiGHt (kg)
26
26
28
28
28
28
28
GUG ElEctRicAl SUPPly (supplied from outdoor unit)*3
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
220-240V / 50Hz
GUG UNit*4
GUG-02Sl-E
GUG-02Sl-E
GUG-03Sl-E
GUG-03Sl-E
GUG-03Sl-E
GUG-03Sl-E
GUG-03Sl-E
mR Slim OUtdOOR UNit
PUHz-zRP50VKA2
PUHz-zRP50VKA2
PUHz-zRP71VHA2
PUHz-zRP71VHA2
PUHz-zRP71VHA2
PUHz-zRP71VHA2
PUHz-zRP71VHA2
lOSSNAy UNit
lGH-80RVx-E
lGH-100RVx-E
lGH-150RVxt-E
lGH-150RVx-E
lGH-200RVx-E
lGH-200RVxt-E
lGH-250RVxt-E
lOSSNAy cONtROllER
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Pz-61dR-E
Notes:
*1 The cooling and heating capacities are based on the rated airflow of fan speed 4 and the following air conditions: Cooling Indoor: 27°CDB/19°CWB Outdoor: 35°CDB/24°CWB. Heating Indoor: 20°CDB/15°CWB Outdoor: 7°CDB/6°CWB
*2 Performance index is the total capacity divided by the total power consumption of the outdoor unit and Lossnay at the conditions above.
*3 For electrical power requirements for Lossnay and Mr Slim outdoor unit, please refer to their respective sections
*4 GUG unit includes a dedicated controller

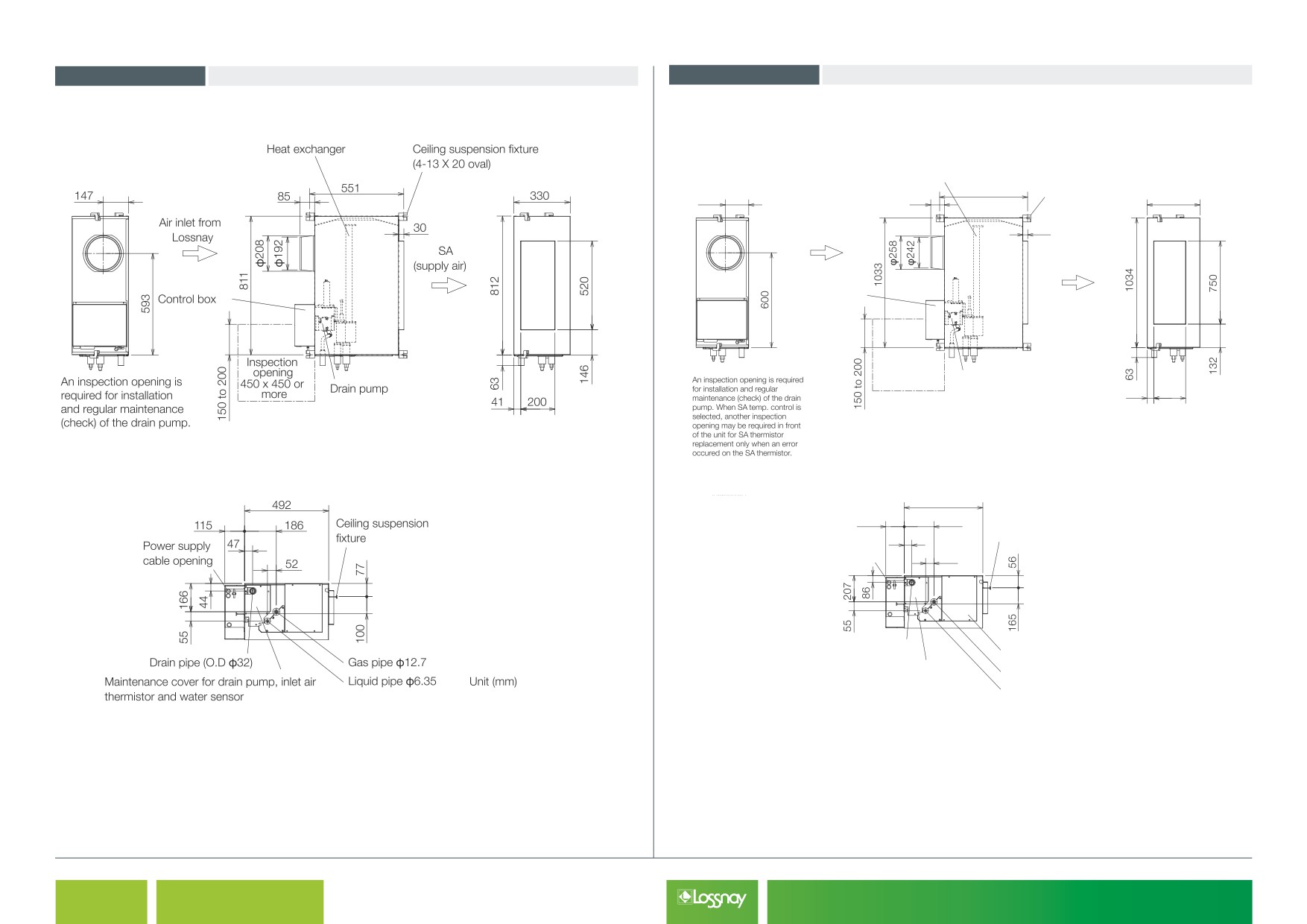

DIMENSIONS
GUG-01SL-E
DIMENSIONS
GUG-02SL-E
Left Side View
Upper View
Right Side View
Left Side View
Upper View
Right Side View
Heat exchanger
Ceiling suspension fixture
551
(4-13 X 20 oval)
170
84
394
Air inlet from
30
Lossnay
SA
(supply air)
Control box
Inspection
opening
450 x 450 or
Drain pump
more
59
250
Front View
Front View
492
115
186
Ceiling suspension
fixture
Power supply
47
cable opening
52
Drain pipe (O.D φ32)
Maintenance cover for SA thermistor
Maintenance cover for drain pump, inlet air
Gas pipe φ15.88
thermistor and water sensor
Liquid pipe φ9.52
Unit (mm)
GuG-SL-E Lossnay air Processing DX unit
5.19
Ventilation
GUG-SL-E Dimensions
5.20

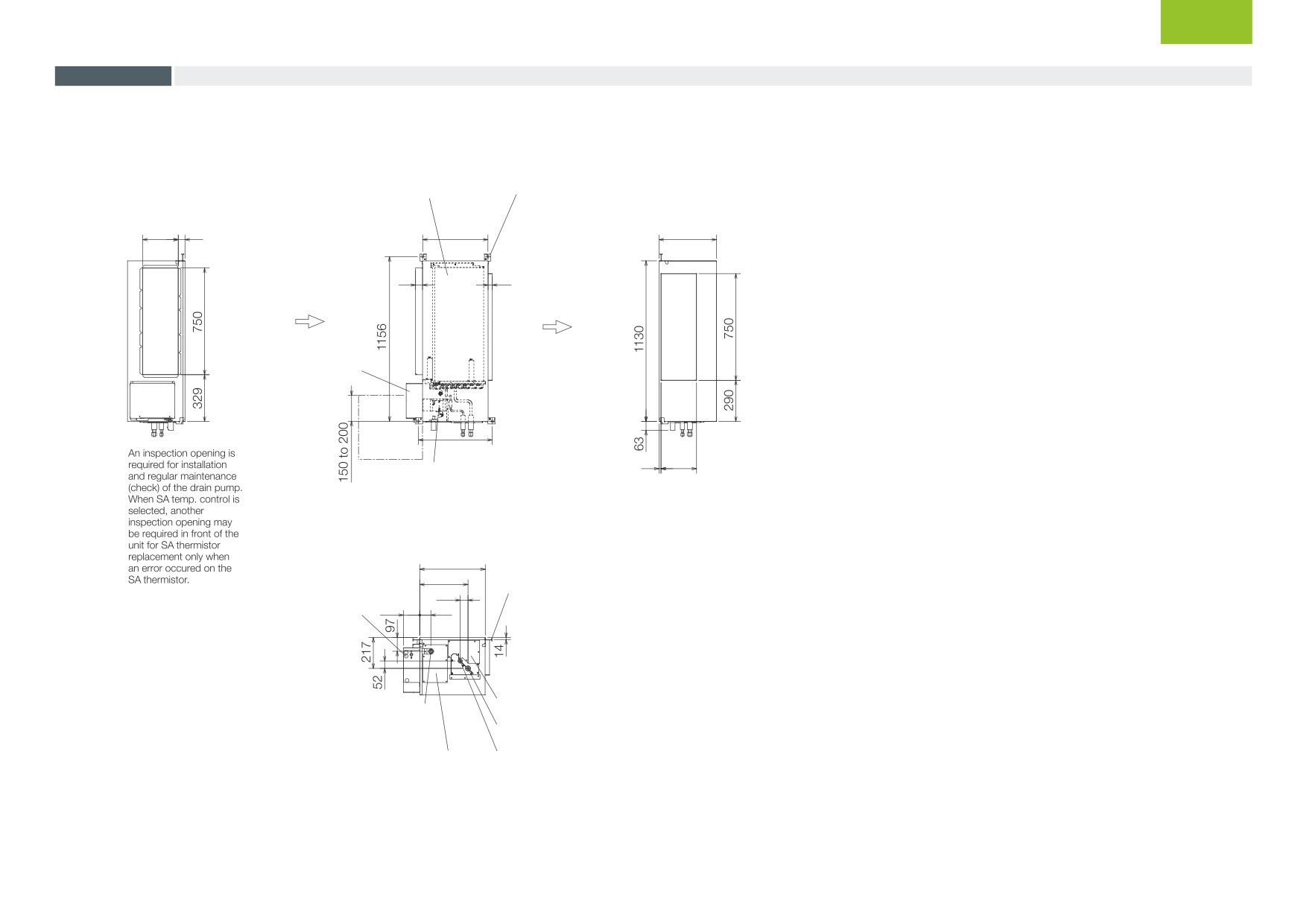

DIMENSIONS
GUG-03SL-E
Left Side View
Upper View
Right Side View
Heat exchanger
Ceiling suspension fixture
(4-13 X 20 oval)
250
47
459
404
49
30
Air inlet from
SA
Lossnay
(supply air)
Control box
Inspection
opening
518
450 x 450
or more
14
250
Drain pump
Front View
461
340
55
Ceiling suspension
115
78
fixture
Power supply
cable opening
Maintenance cover for SA thermistor
Drain pipe (O.D φ32)
Gas pipe φ15.88
Liquid pipe φ9.52
Maintenance cover for drain pump, inlet air
thermistor and water sensor
Unit (mm)

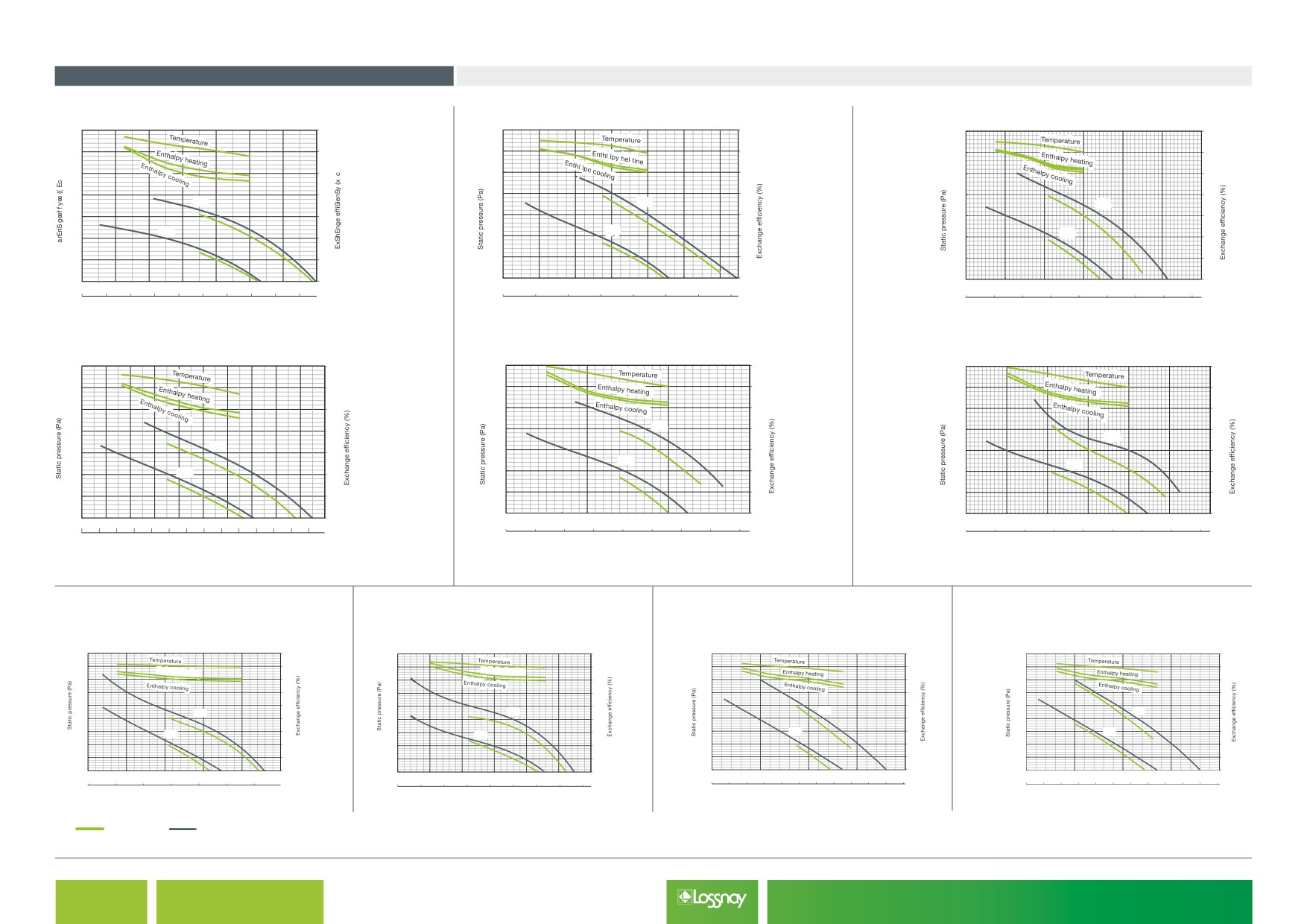

GuG-SL-E FaN CuRVE CHaRaCtERIStICS
LGH-50RVX-E
LGH-80RVX-E
LGH-150RVX-E
350
90
350
90
350
90
300
80
300
80
300
80
250
70
250
70
250
70
200
60
200
60
200
60
SP4
SP4
SP4
150
150
150
SP3
SP3
S
P3
100
100
100
50
50
50
0
0
0
0
100
200
300
400
500
600
700 (m3/h)
0
200
400
600
800
1000
1200
(m3
/h)
0
500
1000
1500
2000
2500
3000 (m3/h)
0
20
40
60
80
100
120
140
160
180
(L/s)
0
50
100
150
200
250
300
350
(L/s)
0
100
200
300
400
500
600
700
800
(L/s)
Air volume
Air volume
Air volume
LGH-65RVX-E
LGH-100RVX-E
LGH-200RVX-E
350
90
350
90
350
90
300
80
300
80
300
80
250
70
250
70
250
70
200
60
200
SP
4
60
200
60
S
P4
SP4
150
150
150
SP3
SP3
100
SP3
100
100
50
50
50
0
0
00
100
200
300
400
500
600
700
800
900
1000 (m3/h)
0
500
1000
1500 (m3
/h)
0
500
1000
1500
2000
2500
3000 (m3/h)
0
20
40
60
80
100
120
140
160
180
200
220
240
260
(L/s)
0
50
100
150
200
250
300
350
400
(L/s)
0
100
200
300
400
500
600
700
800
(L/s)
Air volume
Air volume
Air volume
LGH-150RVXt
-E
LGH-200RVXt-E
LGH-250RVXt-E
LGH-250RVXt-E
RA temperature control
SA temperature control
450
90
450
90
450
90
450
90
400
80
400
80
400
80
400
80
Ent
hal
py
heatin
g
En
thalp
y h
ea
tin
g
350
70
350
70
350
70
350
70
300
60
300
60
300
60
300
60
250
250
250
250
SP4
SP
4
SP4
SP4
200
200
200
200
150
150
150
SP3
150
SP3
SP
3
SP
3
100
100
100
100
50
50
50
50
0
0
0
0
0
500
1000
1500
2000
2500
(m3/h)
0
500
1000
1500
2000
2500
3000
(m3/h)
0
1000
2000
3000
4000
(m3/h)
0
1000
2000
3000
4000
(m3/h)
0
100
200
300
400
500
600
(L/s)
0
100
200
300
400
500
600
700
800
(L/s)
0
100
200
300
400
500
600
700
800
900
1000
1100
(L/s)
0
100
200
300
400
500
600
700
800
900
1000
1100
(L/s)
Air volume
Air volume
Air volume
Air volume
with GUG-01SlE-E
without GUG-01SlE-E
GuG-SL-E Dimensions
5.21
Ventilation
GUG-SL-E Fan Curve Characteristics
