the VL-100 units supply fresh air inside a room using simultaneous supply
VL-100(E)u
5-E
and extract operation in an energy efficient manner.
The recovery of both latent heat and sensible heat ensures a comfortable internal environment

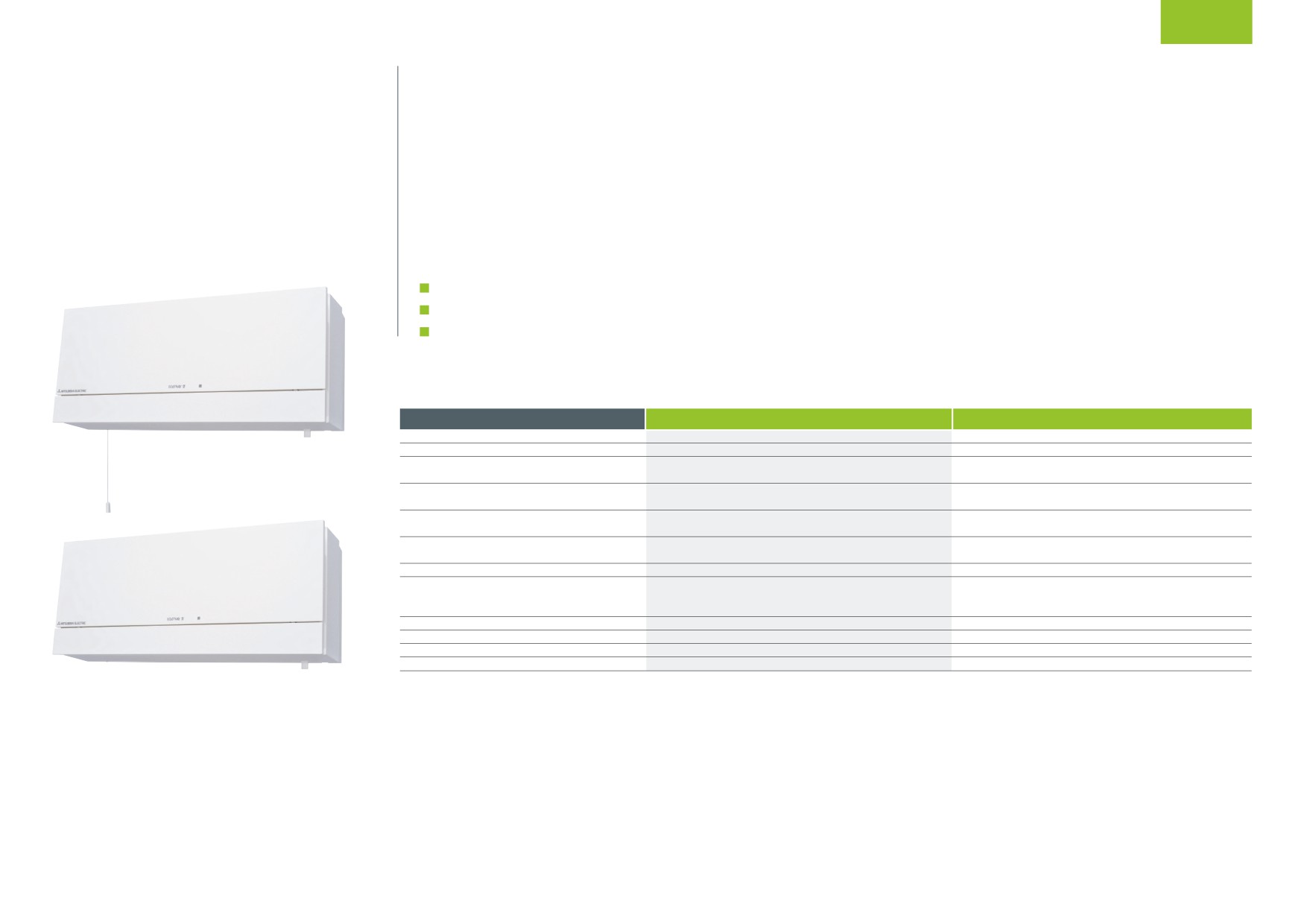

Wall Mounted Lossnay
as well as reducing heat losses, saving both energy and costs.
The compact unit with its simple installation makes it ideal for single room applications,
such as small offices, bedrooms etc.
Key Features
Effective fresh air ventilation with improved air quality
Reduces heating / cooling costs
Simple installation
MODEL
VL-100u5-E
VL-100Eu5-E
ElEctRicAl POwER SUPPly
220-240V, 50Hz
220-240V, 50Hz
PHASE
Single
Single
POwER cONSUmPtiON (w)
Low
17
17
High
34
34
AiRflOw (m3/h)
Low
61
61
High
106
106
SOUNd PRESSURE lEVEl (dBA)
Low
27
27
High
38
38
tEmPERAtURE ExcHANGE EfficiENcy (%) Low
79
79
High
72
72
wEiGHt (kg)
7.5
7.5
dimENSiONS (mm)
Width
620
620
Depth
200
200
Height
265
265
dUct SizE (mm)
2 x Ø75
2 x Ø75
fUSE RAtiNG (BS88) - HRc (A)
6
6
mAiNS cABlE No. cores
3
3
cONtROl ON/Off
Pull cord
field Supplied
Notes: The VL-100U5-E includes a pull cord switch to control the unit. Also available as VL-100EU5-E which includes the option to fit a field supplied external wall switch
Accessories

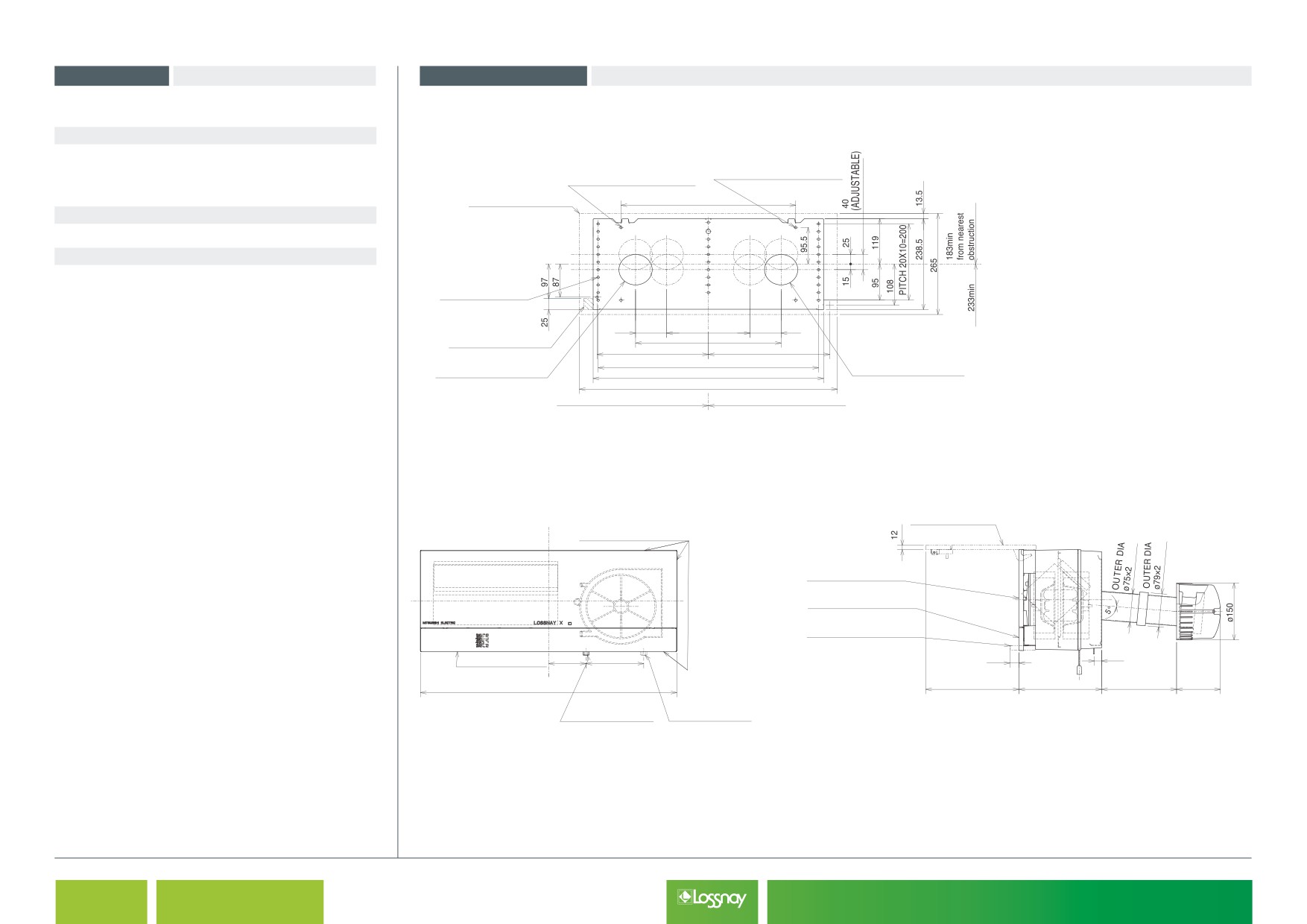

Product Dimensions VL-100(E)U5-E
Filters
Front View
P-100HF5-E
m6 filter for Vl-100(E)U5-E
REQUIRE TO BE SECURED
MOUNTING PLATE
REQUIRE TO BE SECURED
Extension Pipe Kits
EDGE OF MAIN UNIT
420
P-100P-E
Extension pipe for Vl-100(E)U5-E (300mm)
P-100PJ-E
Extension pipe joint for Vl-100(E)U5-E (300mm)
MOUNTING HOLES
36×ø6
(ADJUST
(ADJUST
75
ABLE
)
200(MIN)
75
ABLE)
350(
MAX)
POWER CORD HOLE
267.5
292
AIR EXHAUST HOLE
530
AIR INTAKE HOLE
ø85 to ø90 WALL HOLE
554
ø85 to ø90 WALL HOLE
620
360min from nearest obstruction
360min
Upper View
Side View
FRONT PANEL
(OPEN POSITION)
INDOOR AIR EXHAUST
FRONT PANEL
(CLOSED POSITION)
FRONT PANEL LOUVER
(VERTICAL POSITION)
FRONT PANEL LOUVER
(HORIZONTAL POSITION)
90
140
22
17
FRESH AIR SUPPLY
54
WALL THICKNESS
620
226
200
50 to 550
106
SHUTTER KNOB
SHUTTER KNOB
(CLOSED POSITION) (OPEN POSITION)
Unit: mm
5.13
Ventilation
VL-100(E)U5-E Wall Mounted Lossnay
5.14

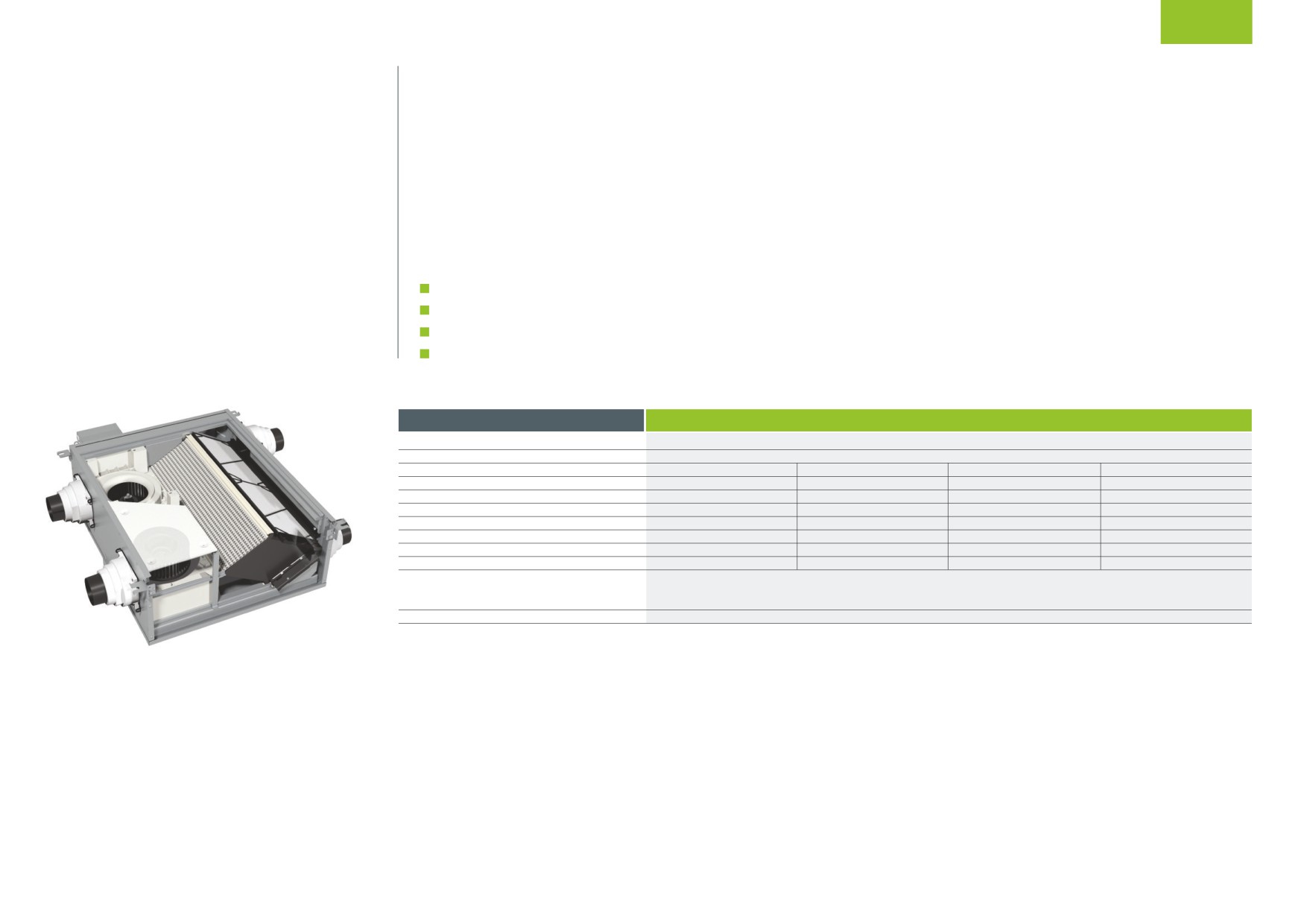

the lossnay VL-220 mechanical Ventilation with Heat Recovery (mVHR) unit is
VL-220CZGV-EB
an energy efficient whole-house ventilation solution which provides a clean,
fresh air supply to a home.
Residential / Light
It simultaneously extracts stale air from the internal environment whilst recovering valuable heat energy
Commercial Lossnay
to maximise efficiency and minimise energy use. Ideal for high humidity areas, the Lossnay VL-220 is
also suitable for small commercial properties.
Key Features
Energy efficient whole-house ventilation with heat recovery
Free cooling function
Dedicated remote controller
Treated Lossnay core allowing extract from high humidity areas
MODEL
VL-220CZGV-EB
ElEctRicAl POwER SUPPly
220-240V/50Hz
wEiGHt (kg)
32
fAN SPEEd
1
2
3
4
RUNNiNG cURRENt (A)
0.11
0.18
0.29
0.60
iNPUt POwER (w)
8.5
18.5
35
80
AiRflOw (m3/h)
65
120
165
220
AiRflOw (l/s)
18
33
46
64
ExtERNAl StAtic PRESSURE (Pa)
13
44
84
164
tEmPERAtURE ExcHANGE EfficiENcy (%)
86
85
84
82
NOiSE (dB)
14
19
25
31
dimENSiONS (mm)
Width
850
Depth
720
Height
340
mAximUm cURRENt (A)
0.8
Accessories

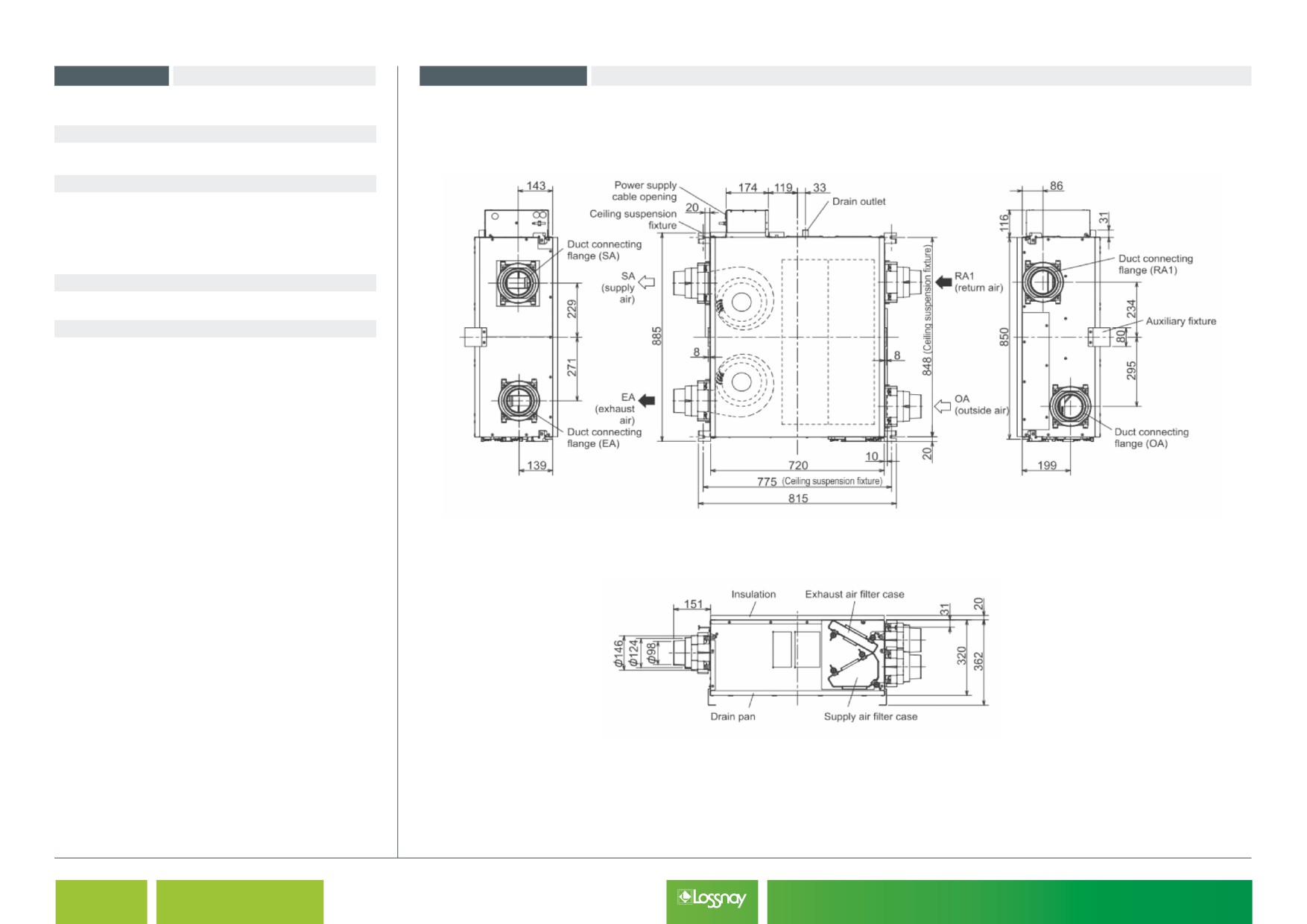

Product Dimensions VL-220CZGV-EB
Controllers
PZ-61DR-E
Left Side View
Upper View
Right Side View
lossnay remote controller for Vl-220czGV-EB
PZ-43SMF-E
lossnay simplified remote controller for Vl-220czGV-EB
Filters
P-220EMF-E
G4 filter for Vl-220czGV-EB (return air)
P-220SHF-E
m6 filter for Vl-220czGV-EB (supply air)
Front View
