5.22

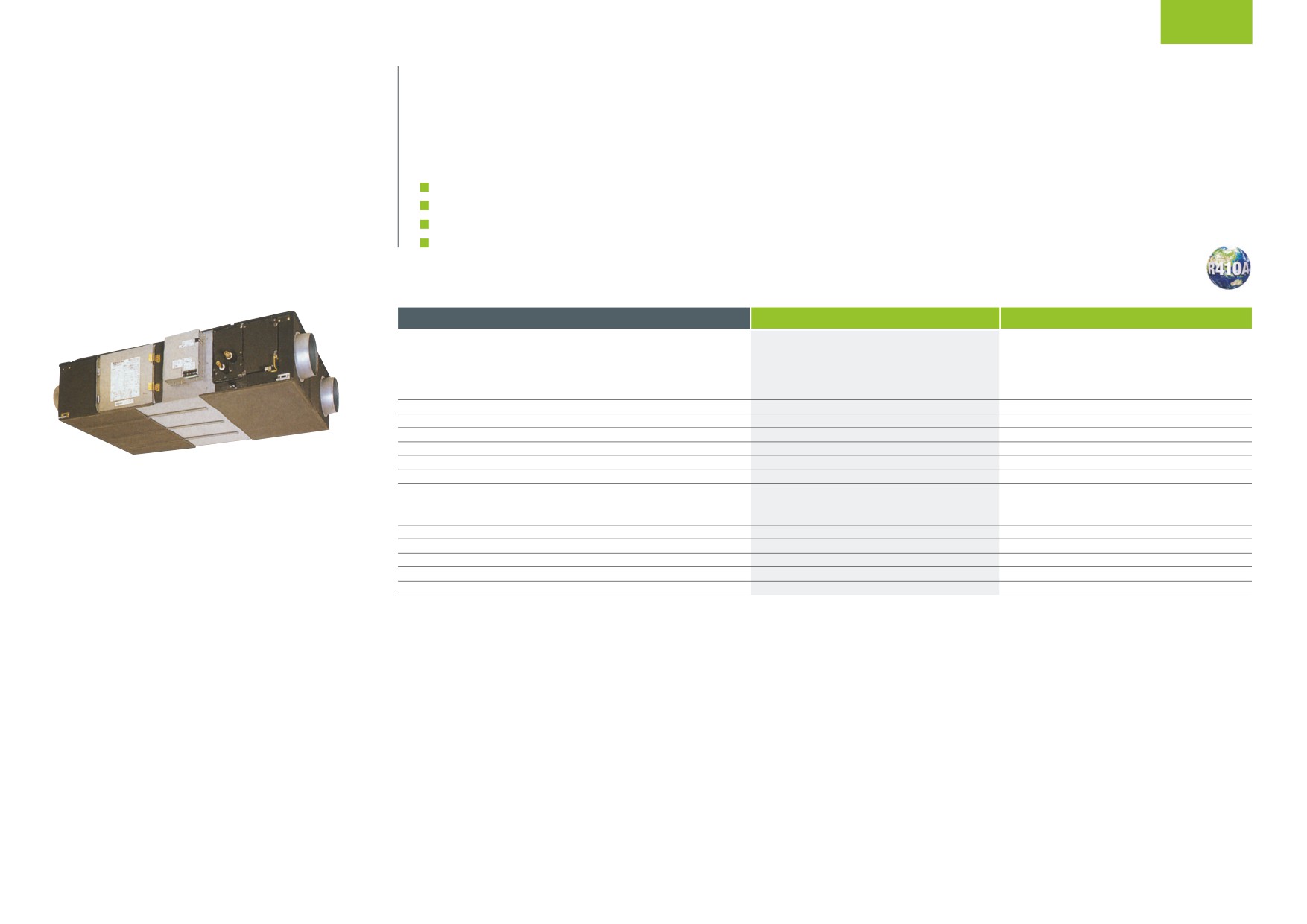

the GUF-50RD4 and GUF-100RD4 Outdoor Air Processing units can be used
GuF-RD4
with any of the extensive range of city multi indoor units to provide ventilation,
dust removal, humidification and heat recovery.
Lossnay Outdoor
Key Features
air Processing unit
A combination of a Lossnay & City Multi indoor in a single unit
The ventilating and air conditioning functions are integrated in a single unit, saving space and installation costs
Heat recovery helps to save energy - a benefit that’s not only good for the environment, but also great for cutting energy costs
Free cooling is also available should outdoor conditions be suitable
MODEL
GuF-50RD4
GuF-100RD4
cAPAcity (kw)
Heating (nominal)
6.21
(2.04)
12.56
(4.26)
Cooling (nominal)
5.57
(1.94)
11.44
(4.12)
UK Heating (High Performance)
6.42
(2.25)
13.00
(4.70)
UK Heating (COP Priority)
5.93
(2.08)
12.01
(4.34)
UK Total Cooling
5.03
(1.58)
10.27
(3.32)
POwER iNPUt (kw)
Lo-Hi
0.150 / 0.265
0.370 / 0.505
AiRflOw (m3/h)
Lo-Hi
400-500
800-1000
ExtERNAl StAtic PRESSURE (Pa)
Lo-Hi
90 - 140
90 - 140
tEmPERAtURE ExcHANGE EfficiENcy (%) Lo-Hi
80 - 77.5
81.5 - 79.5
SOUNd PRESSURE lEVEl (dBA)
Lo-Hi
29.5 - 34.5
34 - 39
wEiGHt (kg)
54
92
dimENSiONS (mm)
Width
1016
1231
Depth
1288
1580
Height
317
398
ElEctRicAl SUPPly
220-240v, 50Hz
220-240v, 50Hz
PHASE
Single
Single
RUNNiNG cURRENt (A)
Lo-Hi
0.70-1.15
1.73-2.20
fUSE RAtiNG (BS88) - HRc (A)
6
6
mAiNS cABlE No. cores
3
3
Notes: The figures in ( ) indicate the heat recovery at Lossnay core. Total value is capacity of Lossnay core and refrigerant coil. The current and input are based on the above air volume.
The sound pressure at the air outlets (45º angle 1.5m ahead) is about 6dBA greater than the indicated value (high speed). Specifications may be subject to change without notice.

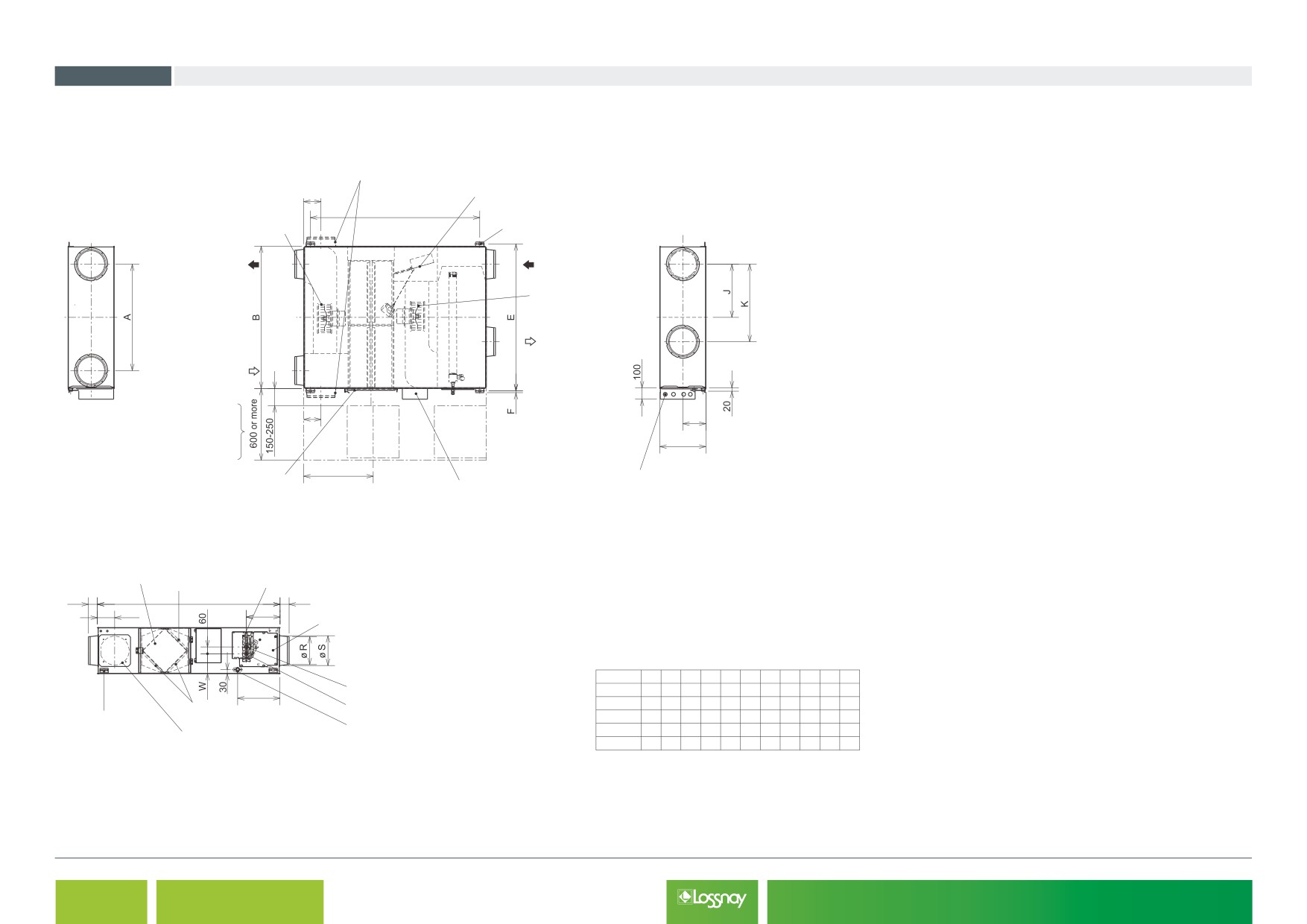

DIMENSIONS
GUF-RD4
Side View
Upper View
Side View
Position where duct direction change is possible
C
Damper plate
D
Air exhaust fan
Ceiling suspension fixture
EA
RA
(Exhaust air)
(Return air)
Air supply fan
SA
(Supply air)
OA
(Outdoor air)
Maintenance space for
Heat recovery unit
G
L
(Lossnay Core)
Inspection
Inspection
Maintenance space for
Air filters, Blower
ope
ning
opening
Heat exchanger
M
High-efficiency filter
H
Maintenance cover
Power supply opening
Control box
Front View
Heat recovery unit
High-efficiency filter
(Lossnay Core)
(Optional parts)
Direct Expansion coil
79
N
79
P
Q
Maintenance cover(humidifier)
Model
A
B
C
D
E
F
G
H
J
K
L
Gas pipe (Flare øT)
GUF-50RD4
745
1,016
124
1,185
1,048
22
124
450
372.5
435
158.5
V
GUF-100RD4
920
1,231
149
1,465
1,271
16
149
600
460
670
199
Air filters
Liquid pipe (Flare ø U)
Model
M
N
P
Q
R
S
T
U
V
W
Y
Ceiling
GUF-50RD4
317
1,288
124
266
192
208
12.7
6.35
347
99
135
suspension
Position where duct direction
Drain discharge hole
fixture
change is possible
[O.D. 32mm (1-1/4inch), I.D. 25mm (1inch)]
GUF-100RD4
398
1,580
149
280
242
258
15.88
9.52
361
110
169
5.23
Ventilation
GUF-RD4 Lossnay Outdoor Air Processing Unit
